Micron S630DC
The New Standard for Business-Critical Applications

Micron S630DC


QNAP Spare Parts
Micron S630DC

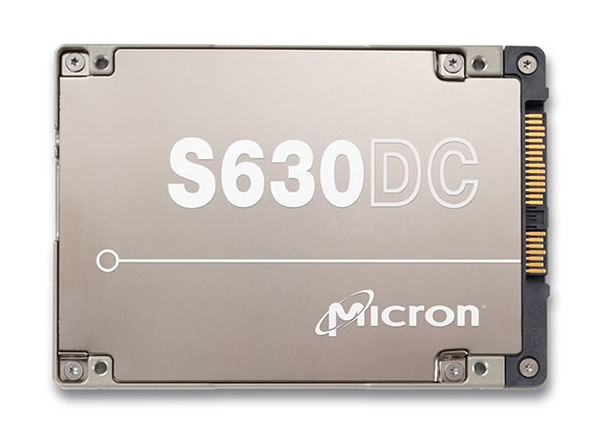

Micron S630DC - solid state drive - 960 GB - SAS 12Gb/s
#MTFDJAK960MBT-2AN1ZABYY
List Price: $1,017.99
Our Price: $850.00
Micron S630DC - solid state drive - 480 GB - SAS 12Gb/s
#MTFDJAK480MBT-2AN1ZABYY
List Price: $693.99
Our Price: $550.00

Micron's solid state drive (SSD) uses a single-chip controller with a dual-port SAS interface on the system side and 10 channels of Micron NAND flash internally. Packaged in an HDD replacement enclosure, the SSD integrates easily into existing storage infrastructures. The SSD is designed to support and manage the needs of highly available, high-performance platforms that use significant read/write mixed workloads. Optimized to support enterprise needs previously supported only by single-level cell (SLC) solutions, this SSD provides endurance and data integrity required by growing environments.

Main Features

Specifications:

Micron S630DC - 960 GB Specifications

Bay Required
Form Factor: 2.5"
Form Factor (metric): 6.4 cm
Total Qty: 1
Type: Internal
Dimensions & Weight
Depth: 3.9 in
Height: 0.3 in
Width: 2.7 in
Environmental Parameters
Humidity Range Operating: 5 - 95% (non-condensing)
Max Operating Temperature: 122 °F
Min Operating Temperature: 32 °F
Hard Drive
4KB Random Read: 180000 IOPS
4KB Random Write: 30000 IOPS
Average Latency: 115 µs
Bytes per Sector: 512
Data Transfer Rate: 1.2 GBps
Drive Writes Per Day (DWPD): 3
Form Factor: 2.5"
Form Factor (metric): 6.4 cm
Form Factor (Short): 2.5"
Form Factor (Short) (metric): 6.4 cm
Hard Drive Type: Internal hard drive
Interface: Serial Attached SCSI 3
Internal Data Rate: 1700 MBps
Internal Data Rate (Write): 850 MBps
Manufacturing Process: 16nm
NAND Flash Memory Type: Multi-level cell (MLC)
Non-Recoverable Errors: 1 per 10^17
SSD Endurance: 5.2
Storage Interface: Serial Attached SCSI 3
Header
Brand: Micron
Compatibility: PC
Manufacturer: Micron Enterprise SSD
Model: S630DC
Packaged Quantity: 1
Product Line: Micron
Interface Provided
Qty: 1
Storage Interface: Serial Attached SCSI 3
Miscellaneous
Compliant Standards: AS/NZS CISPR 22 , BSMI CNS 13438 , C-Tick , EN 60950-1:2006+A11:2009+A1:2010+A12:2011 , EN55022:2006 + A1:2007 , EN55024:1998 + A1:2001 + A2:2003 , FCC CFR47 Part 15 A , IEC 60950-1:2005 Second Edition , IEC60950/EN60950 , RoHS , UL 60950-1 Second Edition , VCCI , WEEE 2002/96/EC
MTBF: 2,500,000 hours
Power Consumption
Mode: Idle
Value: 3.54 Watt
Mode: Start
Value: 9.29 Watt
Mode: Read
Value: 5.1 Watt
Mode: Write
Value: 6.79 Watt
Shock & Vibration Tolerance
Shock Acceleration (Non-operating): 1000
Shock Acceleration (Operating): 1000
Shock Duration (Non-operating): 0.5 ms half-sine wave
Shock Duration (Operating): 0.5 ms half-sine wave
Storage
Type: Solid state drive
Storage Hard Drive
Capacity: 960 GB
Features: Dual Port , Dynamic and Static Wear Leveling , Hot-Plug Support , Secure Erase function , Upgradable firmware

Micron S630DC - 480 GB Specifications

Bay Required
Form Factor: 2.5"
Form Factor (metric): 6.4 cm
Total Qty: 1
Type: Internal
Dimensions & Weight
Depth: 4 in
Height: 0.3 in
Width: 2.7 in
Environmental Parameters
Humidity Range Operating: 5 - 95% (non-condensing)
Max Operating Temperature: 158 °F
Min Operating Temperature: 32 °F
Hard Drive
4KB Random Read: 180000 IOPS
4KB Random Write: 30000 IOPS
Average Latency: 115 µs
Bytes per Sector: 512
Data Transfer Rate: 1.2 GBps
Drive Writes Per Day (DWPD): 3
Form Factor: 2.5"
Form Factor (metric): 6.4 cm
Form Factor (Short): 2.5"
Form Factor (Short) (metric): 6.4 cm
Hard Drive Type: Internal hard drive
Interface: Serial Attached SCSI 3
Internal Data Rate: 1750 MBps
Internal Data Rate (Write): 750 MBps
Manufacturing Process: 16nm
NAND Flash Memory Type: Multi-level cell (MLC)
Non-Recoverable Errors: 1 per 10^17
SSD Endurance: 2600
Storage Interface: Serial Attached SCSI 3
Header
Brand: Micron
Compatibility: PC
Manufacturer: Micron Enterprise SSD
Model: S630DC
Packaged Quantity: 1
Product Line: Micron
Interface Provided
Qty: 1
Storage Interface: Serial Attached SCSI 3
Miscellaneous
Compliant Standards: AS/NZS CISPR 22 , BSMI CNS 13438 , C-Tick , EN 60950-1:2006+A11:2009+A1:2010+A12:2011 , EN55022:2006 + A1:2007 , EN55024:1998 + A1:2001 + A2:2003 , FCC CFR47 Part 15 A , IEC 60950-1:2005 Second Edition , IEC60950/EN60950 , RoHS , UL 60950-1 Second Edition , VCCI , WEEE 2002/96/EC
MTBF: 2,500,000 hours
Power Consumption
Mode: Read
Value: 5.1 Watt
Mode: Maximum
Value: 12 Watt
Mode: Write
Value: 6.79 Watt
Mode: Idle
Value: 3.54 Watt
Shock & Vibration Tolerance
Shock Acceleration (Non-operating): 1000
Shock Acceleration (Operating): 1000
Shock Duration (Non-operating): 0.5 ms half-sine wave
Shock Duration (Operating): 0.5 ms half-sine wave
Storage
Type: Solid state drive
Storage Hard Drive
Capacity: 480 GB
Features: Dynamic and Static Wear Leveling , Hot-Plug Support , Secure Erase function
