QNAP 10GbE NAS Solution
Discover a brilliant, accelerated, and effortless way to meet what you need

As the demand for higher bandwidth for virtualization, faster backup/restore, and the exponential growth rate for data in business increases, the need for a 10 GbE network becomes essential. The deployment cost for a 10 GbE infrastructure is becoming more affordable, and the time for businesses with performance demanding applications to transition into this technology is now.

Benefits of 10GbE QNAP NAS:

Products:

QNAP 10Gb Ethernet Ready Products


Type Capacity Model Remark
Tower 10 bay TS-1079 Pro 1x PCIe card slot
8 bay TS-879 Pro 1x PCIe card slot
Rack Mount 16 bay TS-EC1679U-RP and TS-1679U-RP 2x PCIe card slot
12 bay TS-EC1279U-RP and TS-1279U-RP 2x PCIe card slot
8 bay TS-EC879U-RP and TS-879U-RP 2x PCIe card slot

Applications:

10 Gigabit Ethernet Ready

The Turbo NAS has an optional 10GbE network card which can be used to fulfill the most demanding applications requiring a high bandwidth. 10GbE has the highest data transfer rate, acheiving ten times faster than the standard GbE.

Throughput Chart

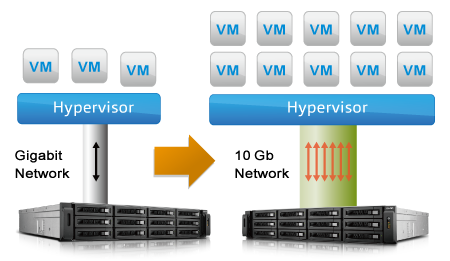

Virtualization Solution

Powerful Storage Solution for the Virtualized Data Center:

Application and processing requirements constantly evolve heightening the need for higher performance storage. Especially with virtualization of IT resources the need for high performance storage is essential. The Turbo NAS offers class leading hardware matched with unparalleled 10Gb speed for all the virtualization needs.

The 10Gb speed will increase the agility of data transmission in a virtualized environment intensifying NFS and iSCSI connection performance.

Virtualization Solution

With QNAP Turbo NAS, you can:

  • Leverage all the benefits from virtualization technology
  • Deploy the virtualization environment with flexibility
  • Improve work continuity

VMware Certified, Citrix Certified, Microsoft Hyper-V Compliant

  • VMware Certified
  • Citrix Certified
  • Microsoft Hyper-V Compliant

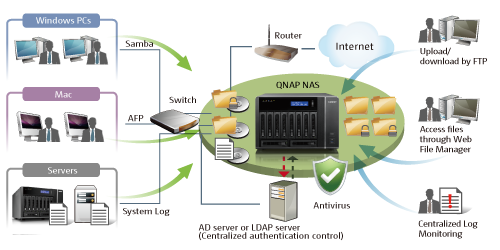

Backup Solution

The 10GbE connections will reduce backup time & enhance business productivity!

The 10GbE Turbo NAS supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. User accounts and shared folders can becreated via the user-friendly web-based interface without IT expertise.

The 10GbE Turbo NAS is a quick and complete backup solution that offers extreme high performance storage to meet the needs of small or medium-sized businesses looking to quickly and centralize data management while safeguarding their data from unauthorized users. With powerful applications such as the QNAP NetBak backup station, information can be automatically transferred from Windows PC to the TurboNAS instantly or scheduled. The Turbo NAS is even an ideal storage for the Apple Time Machine. Many IT companies may already use third party software,and an array of backup software such as Acronis True image and Symantec Backup Exec is supported.

Backup Solution

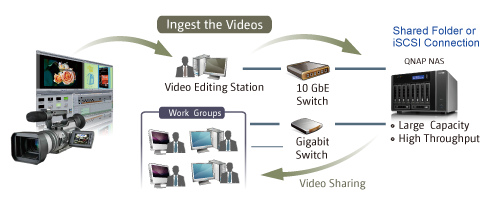

Video Editing solution

QNAP 10GbE NAS is a good alternative solution of DAS for video studio

Digital film and video production produces volumes of data that require high performance RAID storage with sustainable throughput to balance with the demanding output of video editing. The Turbo NAS fulfills storage and video editing needs with a high-speed 10GbE network interface. Digital videos can be quickly stored and edited on the Turbo NAS directly over the network.

The Turbo NAS supports various network file sharing protocols such as NFS, AFP, and SMB/CIFS, so sharing files among PCs with different operating system is easy. The scalable design of the Turbo NAS allows for the capacity to be expanded on the fly so the Turbo NAS can grow as the business data does.

Video Editing solution

Physical Interfaces:

10Gb Ethernet Network Physical Interface

There are multiple physical interfaces of 10Gbps Ethernet to choose from. The SFP+ is the most popular one for now,and both SFP+ and 10GBase-T will be the industry standard in the near future.

SFP+ (Small Form factor Pluggable):

SFP+ (Small Form factor Pluggable)

Two types of wiring is recommended for 10GbE SPF+ in SMB environment

SFP+ DAC (Direct Attach Copper):

Direct attach copper (DAC) cable is a copper interconnect using a passive twin-ax cable assembly that connects directly into an SFP+ housing. It has a range of 10 meters which is low power, low cost and low latency with the added advantage of having the small form factor of SFP+, and smaller, more flexible cabling.

DAC cable can be either passive or "active" (according the support of NIC)

The active twin-ax cable has active electronic components in the SFP+ housing to improve the signal quality; the passive twin-ax cable is a simple straight "wire" with no active components.

The theoretical maximum cable length of active DAC can reach 10 meter.

SFP+ DAC (Direct Attach Copper)

Note:

  1. SFP+ DAC cable can be purchase from a third party vendor as long as it is compatible with solution card.
  2. If used to connect the NAS to a 10GbE switch, some switch vendors have encryption implemented on their 10GbE interface. Therefore if to connect the NIC or NAS to their switch, only proprietary cable can be used. Cables that are SFF8431 compliant can be used on most systems. However some manufacturers use encryption so that their cable must be used with their products.

SFP+ OPTIC

SFP+ OPTIC adapter using enhanced small form factor pluggable (SFP+) short range (SR) transceivers connect to network using optic cables. Fiber Optic cables are designed to reach long distance without losing signal.

SFP+ OPTIC come in a variety of types to drive signals across fiber optic cables with different maximum distances. The most common, and lowest in cost, is 10GBase-SR (SR, or short reach),the Maximum cable length for SPF+ (SR) is 300 meters over multi-mode Optical fiber. Over Single-mode optical Fiber can reach up to 80km.

SFP+ OPTIC

Note:
For example, the Emulex OCe11102-NX 10GbE card can be upgraded to OCe11102-NM by inserting the SFP+ optical transceiver module. After the transceiver is attached, the optical cable can be used. (the OCe10100-OPT kit includes two short-range optical transceivers)

10GBase-T

The 10GBase-T is to provide 10 Gbit/s connections for both over unshielded or shielded twisted pair cables to distances up to 100 meters (330 ft).The 10GBASE-T has higher latency and consumes more power than other 10GbE physical layers. The 10GBASE-T silicon is available from several manufacturers with claimed power dissipation of 6W and a latency approaching 1 microsecond. The advantages of the 10GBase-T is longer distance, familiarity with RJ45 connectors, and backward compatibility, but the latency, cost and less stability deters the cable from reaching a sweet point.

10GBase-T

Third Party Generic Cable Suppliers

Amphenol     Daldan Technology

Note: please double check 10GbE cable compatibility with 10GbE NIC and Switch

Connection:

10Gb Ethernet Network Connection Guide

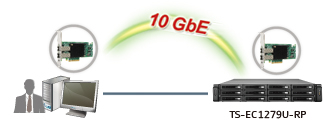

System directly connect to 10GbE NAS

System directly connect to 10GbE NAS

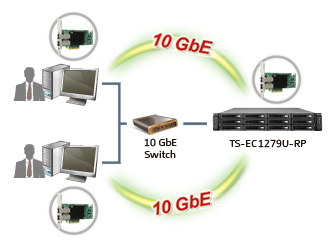

System connect to 10GbE NAS via 10GbE Switch

System connect to 10GbE NAS via 10GbE Switch
