QNAP TR-004U

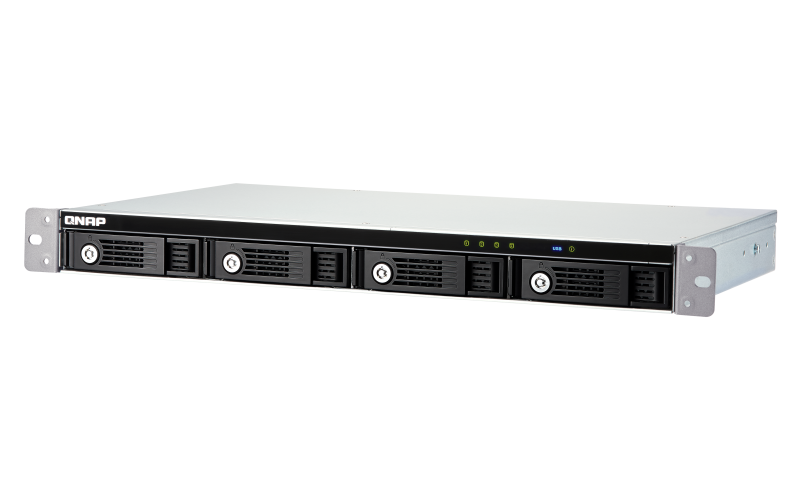

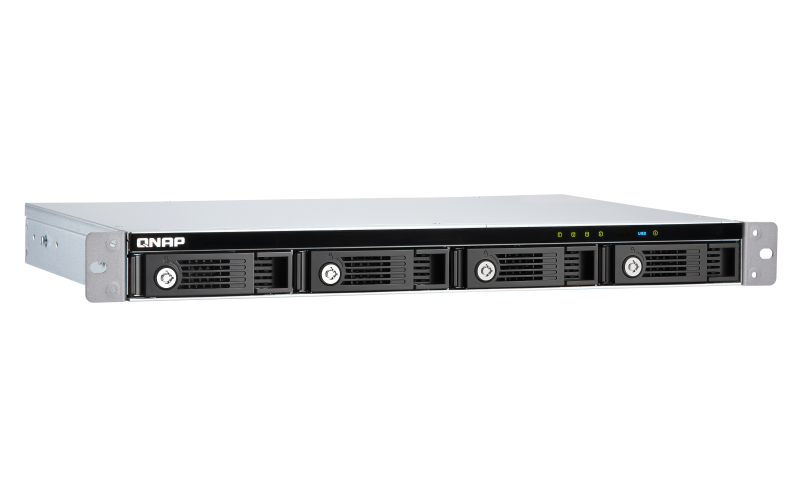

4-bay Rackmount USB 3.0 RAID Expansion Enclosure

QNAP TR-004U

QNAP Products TR-004U
Small Business Storage
4-bay 1U 12" short-depth rackmount 3.5" SATA HDD USB 3.0 type-C hardware RAID external enclosure. 1M USB 3.0 type-C to type-A cable included. Expansion unit for QNAP NAS, Windows, Mac, Linux computers.
#TR-004U-US
Our Price: $329.00

Click here to jump to more pricing!

Overview:

The TR-004U USB 3.0 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004U can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content by connecting it via USB. The TR-004U features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.0 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.


overview-1

Supports various RAID levels

The TR-004U supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.



Supports various RAID levels

The TR-004U supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.

overview-2

Individual Mode

Treats every disk as separate storage space, allowing you to independently access each one.

overview-2

JBOD Mode

All the disks are recognized as a single drive. This allows maximal storage utilization but provides no data protection.

overview-2

RAID 0 Mode

Data is split amongst the drives. RAID 0 provides the fastest performance but does not protect data from drive failure.

overview-2

RAID 1/10 Mode

Half of the total storage capacity is used to store data, and the other half keeps a copy of this data. This provides high data protection at the cost of only being able to use half the installed storage space.

overview-2

RAID 5 Mode

RAID 5 requires at least three drives to use and parity information is distributed among the drives, providing optimized storage capacity and protection against one disk failing.

overview-2

Software Ctrl Mode

Use this mode to control the RAID configuration from your NAS or computer.


RAID mode supported NAS expansion External storage for NAS External storage for Windows/Mac computer External storage for Linux computer
Software Ctrl Required to switch to Software Ctrl mode
Individual
JBOD
RAID 0/1/5/10
Multiple RAID


Flexible storage configuration and management

Compared with other RAID enclosures, the TR-004U provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.

overview-2


Use Storage & Snapshots Manager to configure the TR-004U as a storage expansion unit for your QNAP NAS. In addition to RAID configuration, the NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. By choosing external storage mode, you can use the TR-004U as a DAS.

overview-2

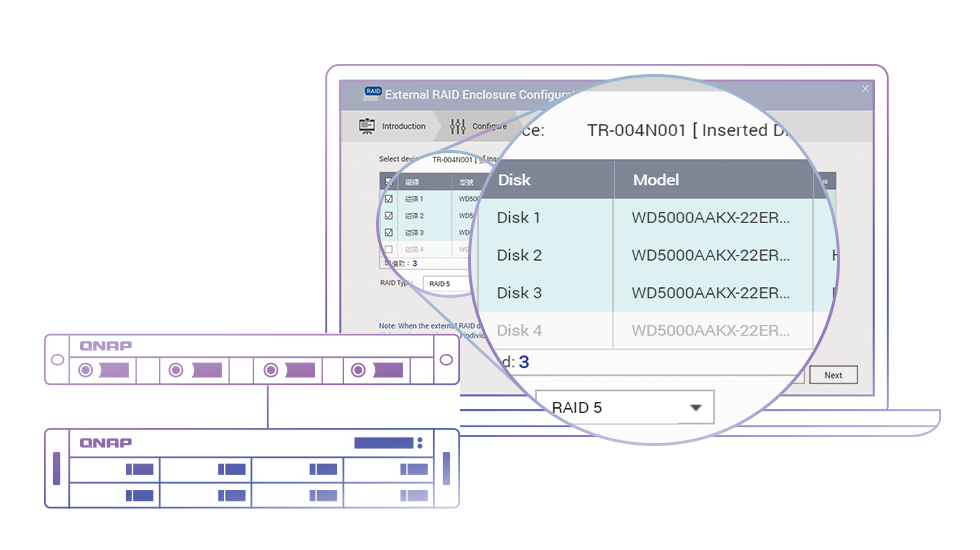

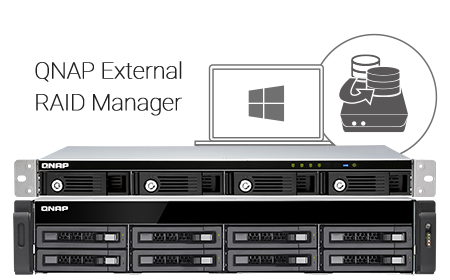

The QNAP External RAID Manager is a utility for Windows and Mac users to set up, monitor, and view the status of the TR-004U. Users can easily configure RAID groups on the TR-004U and quickly obtain the status of RAID performance and health at a glance.



Scenario 1: Expand the capacity of your NAS

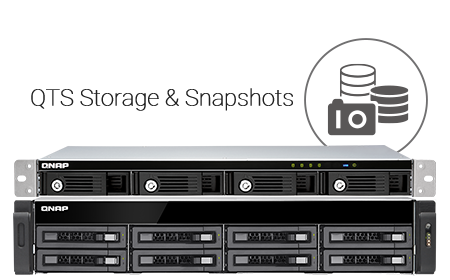

The TR-004U provides an alternative method for users to expand their NAS storage capacity. By connecting the TR-004U to their NAS and using the Storage & Snapshots Manager, users can easily configure and manage their storage expansion. The TR-004U supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, find files with Qsirch and organize files with Qfiling.

Function QNAP TR-004U Other external RAID device
Connection Type USB 3.0 By device
Drive bays 4 By device
Supported systems QNAP QTS, Windows, macOS, Linux etc... QNAP QTS, Windows, macOS, Linux etc...
Disk health monitoring Supported (QNAP QTS, Windows, macOS) Not Supported
External RAID protection Supported (QNAP QTS, Windows, macOS) Supported
Create Storage Pool Supported (QNAP QTS, Windows, macOS) Not Supported
RAID migration, replacing disk Not Supported Varies by device

Note:

  1. The TR-004U does not support the following: the TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U, and NAS models that cannot be updated to QTS 4.3.6 (or later).
  2. The TR-004U can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TR-004U.
  3. Drives can only be migrated from one TR-004U to another TR-004U. The files and data stored on drives moved to/from a NAS (or another device) will not be recognized.



Scenario 2: External storage for your NAS

Instead of using the TR-004U to expand the capacity of your QNAP NAS, you can use it as a complimentary storage unit for backing up or moving data. It also allows you to physically migrate huge data collections that would require significant network bandwidth. While connected to the NAS, you can monitor the health and status of the TR-004U by using the Storage & Snapshots Manager on the NAS.

overview-2

overview-2

Scenario 3: Expand the storage space of your computer

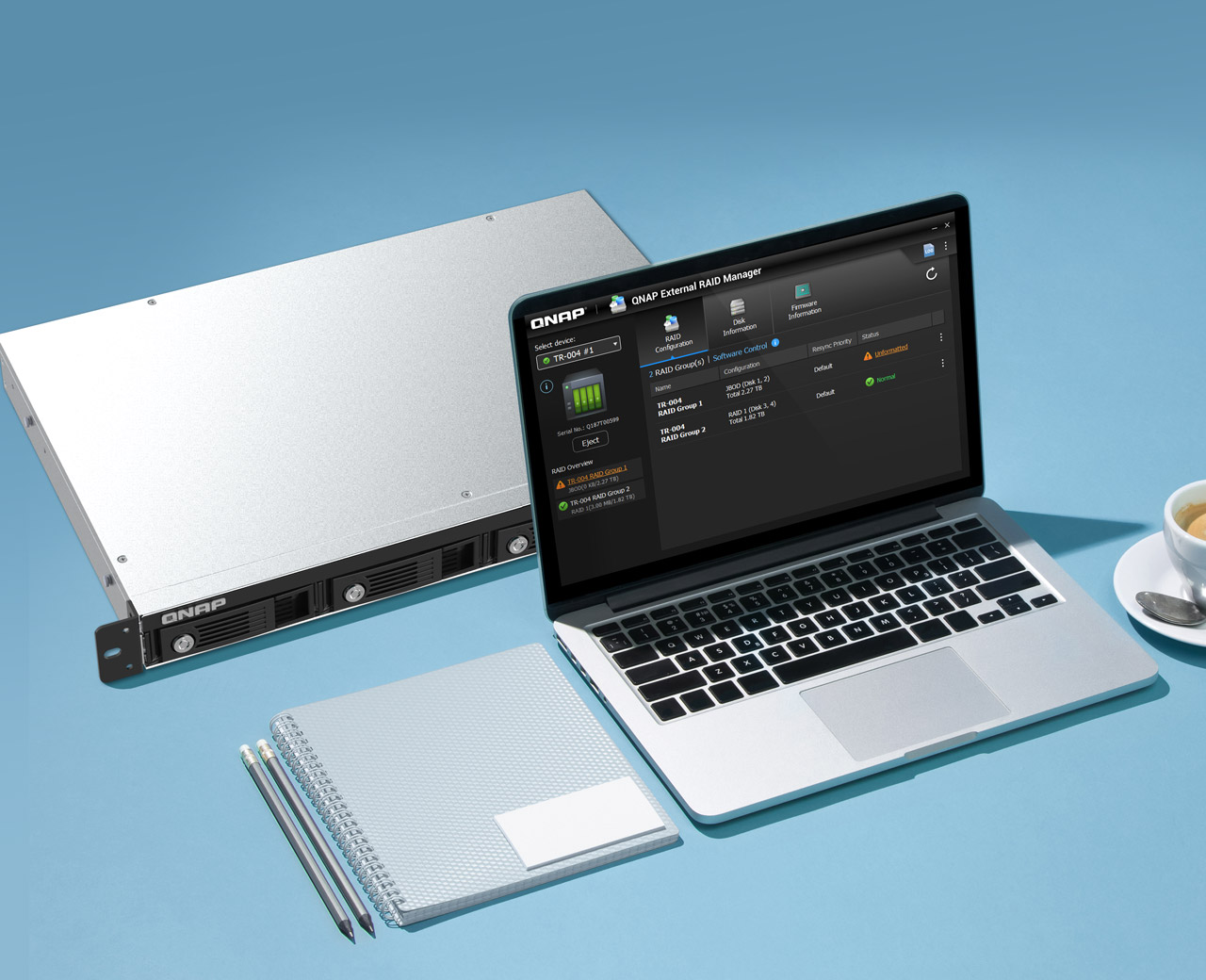

The TR-004U can quickly add storage space to your computer. You can use the DIP switch to configure a hardware RAID mode or manage it by using the QNAP External RAID Manager utility. The health and status of the TR-004U can also be monitored by using the QNAP External RAID Manager utility.

The QNAP External RAID Manager requires Windows 7 (or later), Windows Server 2012 R2 (or later) and macOS 10.13 (or later).

Scenario 4: Cross-platform file sharing

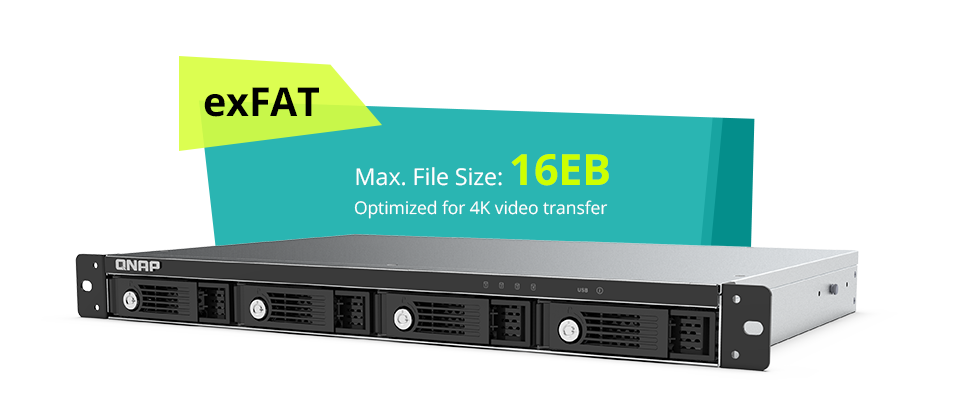

From your NAS to Windows, Mac, and Linux computers, the TR-004U is compatible with a wide range of devices. This makes it ideal for quickly moving large files between different devices. The TR-004U is even compatible with devices that use the exFAT file system*, adding further convenience for accessing and sharing files from a wider range of devices.

* To access devices that use the exFAT file system, users must purchase a separate exFAT driver license.

overview-2

Features:

USB 3.0 Type-C port for faster data transfer.

Supports up to four SATA drives for reliable read and write performance.

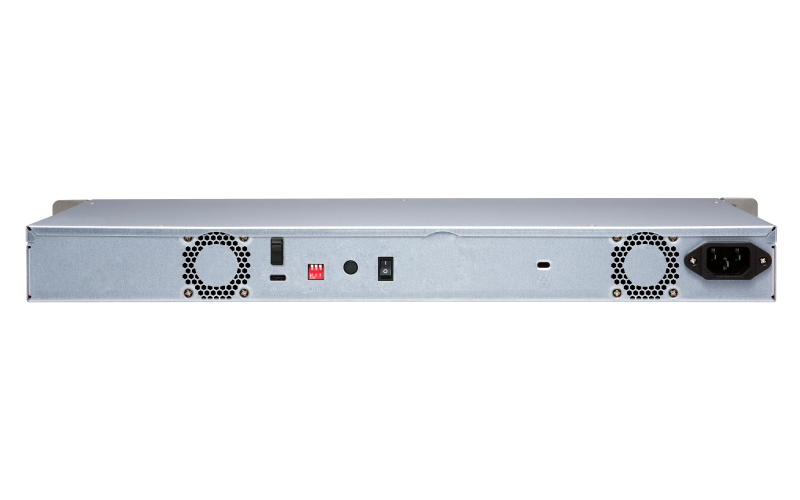

Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.

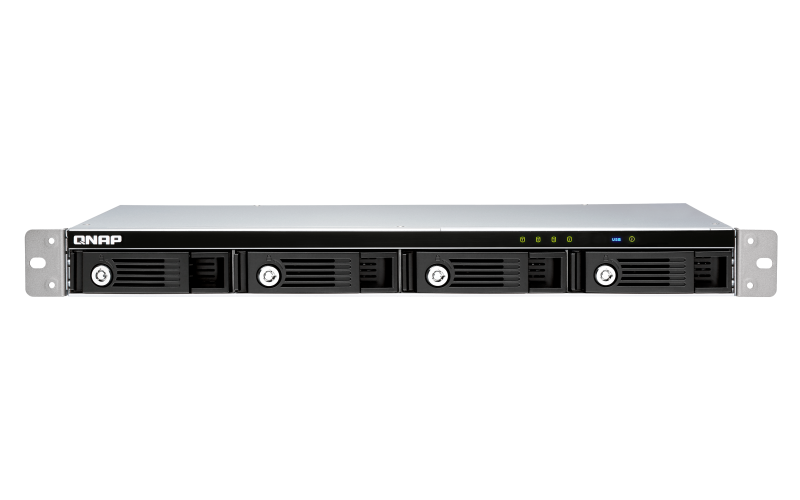

Lockable hard drive trays to prevent accidental drive removal.

Eject button for disconnecting the TR-004U from a NAS or computer*.
*Requires the QNAP External RAID Manager utility.

Instantly back up files from the TR-004U to the NAS using the One Touch Copy button**.
**Requires a QNAP NAS with a one touch copy button when in external drive mode. This feature will be supported in 2019 Q2.

Specifications:

CPU Micro processor with hardware RAID
Drive Bay 4 x 2.5-inch or 3.5-inch SATA 3Gb/s
The system is shipped without HDD.
Drive Compatibility 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.

TR-004U does not support the QDA-A2AR/ QDA-A2MAR.

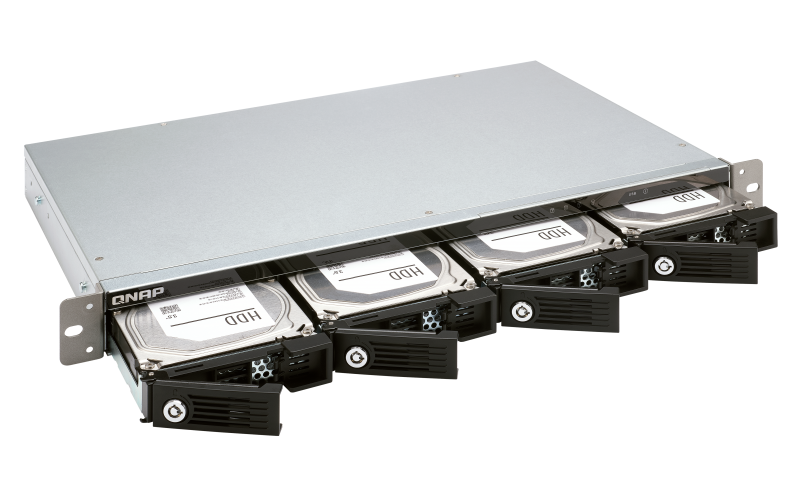

Hot-swappable
USB 3.0 port 1 x Type-C USB 3.0 (USB 3.1 Gen 1)
Dimensions (HxWxD) 44 × 439 × 291 mm
Max. number of HDDs/SSDs supported 4
Hard Drive Type 4 x 2.5-inch or 3.5-inch SATA 3Gb/s
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Open-frame 100W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz
Kensington Security Slot

Documentation:

Datasheet for QNAP TR-004U is coming soon.
