QNAP TS-1635
Cost-effective, high-capacity quad-core 16-bay business NAS with 2 integrated 10GbE SFP+ ports

QNAP TS-1635

QNAP Products
Small Business (SMB) Storage
QNAP TS-1635 cost-effective, high-capacity quad-core 16-bay business NAS
- with 2 integrated 10GbE SFP+ ports
TS-1635-8G-US
Our Price: $1,499.00
QNAP TS-1635 cost-effective, high-capacity quad-core 16-bay business NAS
- with 2 integrated 10GbE SFP+ ports
TS-1635-4G-US
Our Price: $1,299.00

Click here to jump to more pricing!

Overview:

Supporting up to twelve 3.5" HDDs and four 2.5" SSDs, the TS-1635 is a powerful, high-capacity, quad-core business NAS. It includes two 10GbE SFP+ ports to fully support 10Gb high-speed networks with maximized ROI. The TS-1635 also supports QNAP's network-based VJBOD (Virtual JBOD), providing an economical method for using unused storage space to expand the capacity of other QNAP NAS units. Furthermore, the TS-1635 features Container Station, which allows you to rapidly develop and deploy Internet of Things (IoT) apps, bringing a valued-added IoT business solution. The TS-1635 is a cost-effective storage solution designed for growing businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.

  • 10GbE readiness, SSD cache, and hardware-accelerated encryption
  • VJBOD allows using the TS-1635 to expand the storage capacity of other QNAP NAS
  • Enjoy containerized virtualization and IoT app development with Container Station
  • Build a high-capacity private cloud to centrally store, organize and manage high-resolution surveillance footage
  • Quickly find NAS files using Qsirch - QNAP's proprietary search engine
  • Centrally manage multiple email accounts with QmailAgent
  • Easily manage contact information on your NAS with Qcontactz
  • Built-in speaker for bilingual human voice notification alerts and audio playback
  • Scale up to 32 hard drives with QNAP UX-800P expansion enclosures

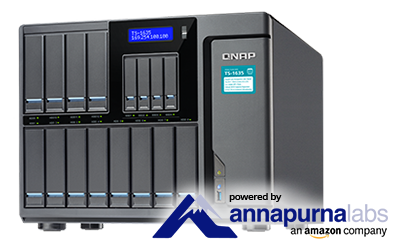

TS-1635 overview

Specifications:

TS-1635 Specifications
Ordering P/N TS-1635-4G TS-1635-8G
Processor Annapurna Labs Alpine AL-514 quad-core 1.7 GHz ARM® Cortex-A15 Processor
Hardware Encryption Accleration
System Memory 4GB DDR3 (1 x 4GB) 8GB DDR3 (1 x 8GB)
Maximum Memory 16GB
Memory Slot 2 x SODIMM DDR3 (For dual-DIMM configurations, you must use a pair of identical DDR3L modules.)
Flash Memory 512MB
Drive Type 12 x 3.5"/2.5" + 4 x 2.5" SATA 6Gb/s HDDs/SSDs
Note: You can create a volume over 16TB, but its storage space cannot be expanded. Volumes smaller than 16TB can only be expanded up to 16TB by using online capacity expansion. For the best use of storage space on your NAS, please create multiple volumes.
10GbE LAN 2 x 10 Gigabit SFP+ LAN ports
GbE LAN 2 x Gigabit RJ45 LAN ports
USB Port 3 x USB 3.0 ports
PCIe Slot 1 x PCIe Gen2 ( x2)
LED Indicator Status/Power,LAN, Drive 1-16
Button Power / Reset
Audio Output 1 x built-in speaker, 1 x line out jack (for ampfliers or speakers)
Others Kensington security slot, system maintenance port
Dimension 303.84 x 369.89 x 319.8 mm
11.96 x 14.56 x 12.59 inch (HxWxD)
Weight Net: 12.22 kg ( 26.94 lbs) Net: 12.32 kg (27.16 lbs)
Sound Level* Sound pressure (LpAm) : 22.1 dB(A)
Operating Temperature 0-40˚C
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C
Power Consumption HDD Standby: 38.37W
In operation: 78.45W
(With 12 x 1TB HDDs and 4x 120GB SSDs)
Power 100-240V~, 3-1.5A, 60-50Hz, 250W PSU
Fan 3 x 9.2cm system fan (12V DC)

* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS

Optional Accessories:

Optional Accessories
Expansion Unit
UX-1200U-RP
12-Bay Expansion Unit
UX-1200U-RP
UX-800U-RP
8-Bay Expansion Unit
UX-800U-RP

RAM
RAM-4GDR3L-SO-1600
4GB DDR3L RAM Module
RAM-4GDR3L-SO-1600
RAM-8GDR3L-SO-1600
8GB DDR3L RAM Module
RAM-8GDR3L-SO-1600

LAN card
LAN-10G1T-U
Single-port 10GbE 10GBASE-T NIC
LAN-10G1T-U
LAN-10G2T-U
Dual-port 10GbE 10GBAST-T NIC
LAN-10G2T-U
LAN-1G2T-U
Dual-port Gigabit NIC
LAN-1G2T-U
Accessories
CAB-DAC15M-SFPP
1.5M SFP+ Direct-Attach Cable
CAB-DAC15M-SFPP
RAIL-B02
B02 series (Chassis) rail kit
RAIL-B02


Documentation:

Download the QNAP TS-1635 Datasheet (PDF).
