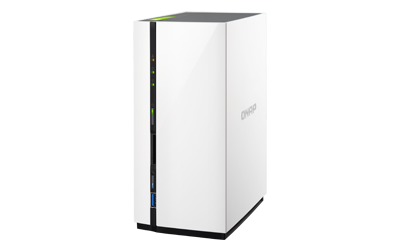

QNAP TS-228
2-bay home & SOHO NAS for data backup and entertainment

QNAP TS-228

QNAP Products 228
QNAP Products 228
QNAP 2-bay Personal Cloud NAS with DLNA, mobile apps and AirPlay support
TS-228-US
Our Price: $159.00

Click here to jump to more pricing!

Overview:

The TS-228 is a lightweight, easy to use and feature-rich networked storage center for backup, synchronization, remote access, and home entertainment. It’s energy-efficient and budget-friendly, ideal for home users to start their personal cloud and stay connected to files with full control. See how TS-228 can make your digital life easier, simpler and more convenient.

  • Organize your content and backups in one centralized location
  • Synchronize files between computers, tablets, and mobile devices
  • Collect, enjoy, and share your large photo, music, and video collection
  • Stream your multimedia library via DLNA to other devices and your TV
  • Access, manage and enjoy all your files with your tablets and smartphones
  • Enjoy the App Center with hundreds of install-on-demand apps to increase diverse applications

Specifications:


TS-228 Specifications
CPU ARM® v7 1.1 GHz Dual-core
System memory 1GB DDR3 RAM
Flash Memory 4 GB
Hard Disk Drive 2 x 3.5" SATA 6Gb/s, 3Gb/s HDDs

* Maximum single volume: 16TB
LAN Port 1 x Gigabit RJ-45 Ethernet port
USB Port 1 X USB 3.0 (Front)
1 X USB 2.0 (Rear)
LED Indicators HDD 1-2, LAN, Status, USB
Buttons Power/Status, USB One-Touch-Backup, reset
Alarm Buzzer System warning
Form Factor Mini-tower
Dimensions 187.7(H) x 90(W) x 125(D) mm
7.36(H) x 3.54(W) x 4.92(D) inch
Weight Net: 0.7 kg (1.54lbs)
Gross: 1.88 kg (4.14lbs)
Power Consumption
(HDD standby mode)
HDD standby:6.05W
In operation:13.24W
(with 2 x 2TB HDDs intalled)
Sound Level* Sound pressure (LpAm): 17.0 dB(A)
Temperature & Humidity 0 - 40 °C,5-95% RH
Power Supply External Power Adapter 60W, 100-240V
Fan Yes

* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS

Package Contents

  • TS-228
  • Ethernet Cable x 1
  • Power Cord x 1
  • AC Adapter: SP-2BAY-ADAPTOR
  • Quick Installation Guide (QIG)

Accessories:

FIXER-HDD35-BLK001
FIXER-HDD35-BLK001
FIXER-HDD35-BLK001
$30.00
Power adaptor for 3.5- inch 2 Bay & 2.5-inch 2 Bay NAS
Power adaptor for 3.5- inch 2 Bay & 2.5-inch 2 Bay NAS
SP-2BAY-ADAPTOR
$83.00

Documentation:

Download the QNAP TS-128 / TS-228 Series Brochure (PDF).
