QNAP TS-251+
2-bay High-performance Intel quad-core NAS supporting virtualization, transcoding, and HDMI for home and SOHO users
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
Package Content
- QNAP TS-251+ 2-Bay Home and SOHO NAS Enclosure
- 2 x Ethernet Cable
- Quick Installation Guide (QIG)
- 8 x Flat Head Screws (for 3.5" HDD)
- 6 x Flat Head Screws (for 2.5" HDD)
- AC Adapter
- Power Cord
- IR Remote Control
File storage, sharing, and increased multimedia usage are driving demand for affordable, flexible NAS solutions that can meet ever-growing capacity and management needs. The TS-251+/451+ quad-core 2.0GHz (upgradable to 2.42GHz) is a perfect match for SOHO, home theater enthusiasts, and audiophiles looking to maximize their audiovisual experience. The TS-251+/451+ are designed to provide superior performance and expansion capabilities enabling you to grow cost effectively while reducing operational overhead.The QNAP operating system, QTS 4.2, is equipped with a variety of intelligent and easy to use applications. QTS is simply designed to meet all your needs for storage, synchronization, management, backup, multimedia, remote access, and surveillance. QTS 4.2 is the ideal platform from which to build your private cloud. Use the TS-251+/451+ with a screen, keyboard, and mouse connections to transform your virtual machines into physical computers.The TS-251+/451+ is a cost-efficient, flexible, and reliable high performance NAS with a huge range of cross platform support.
Connect the TS-251+/451+ to an HDTV or A/V receiver via HDMI and use the HybridDesk Station (HD Station) with the free QNAP remote control to enjoy rich multimedia content for the best audiovisual experience.Use the bundled QNAP remote control for watching movies, listening to music, or enjoying a slideshow of treasured photos. Just grab the remote control and enjoy the best in QNAP NAS convenience.Every family member can enjoy entertainment on demand, and from different locations. Centrally manage and stream photos, music, and videos from the TS-251+/451+ to different rooms from a single device using Bluetooth®, USB devices, HDMI, DLNA®, Apple TV® and Chromecast™. The TS-251+/451+ supports Roku® and Amazon Fire® TV™, and Google TV™ in addition to fully supporting Plex media server for the ultimate in flexibility. Search for, install, remove, and update apps through the App Center to extend the functionality of your QNAP NAS.
The QTS App Center provides a wide range of install-on-demand apps for you to enjoy. The available applications include media servers for family entertainment, cloud backup and synchronization tools, helpful communication platforms, and many many more.The TS-251+/451+ are completely flexible, perfect companions for SOHO users as a file manager, backup manager, download manager, permissions manager, and multimedia center.

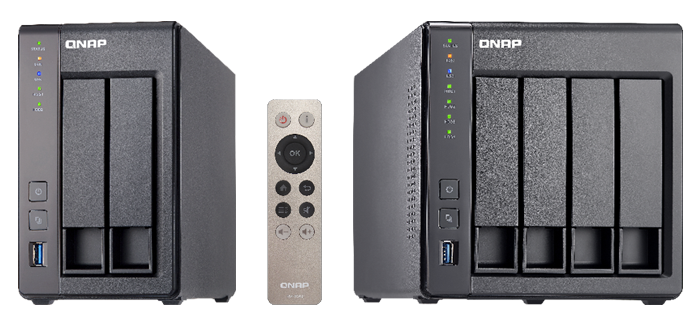

TS-251+ and TS-251+
Features:
Quad-core 64-bit Intel® Celeron® CPU for exceptional performance
The TS-251+ is powered by a 64-bit Intel® Celeron® quad-core 2.0GHz processor and has 2GB/8GB energy-efficient DDR3L RAM (upgradable to 8GB) an dual gigabit LAN ports, delivering up to 225 MB/s read & write speeds with port trunking mode. The TS-251+ can also automatically increase the processor's clock rate from 2.0GHz to 2.42GHz when needed for CPU-intensive tasks. The TS-251+ supports AES 256-bit volume & folder encryption with transfer speeds of up to 205 MB/s, boosting system performance & security while ensuring the safety of sensitive personal data stored in the TS-251+.

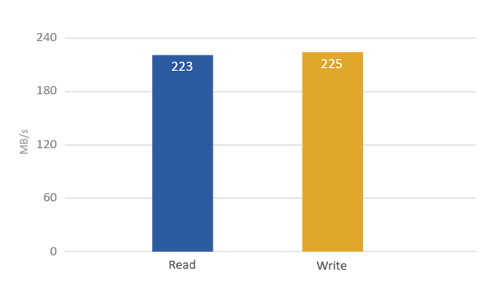

Throughput
Windows Upload/Download, 2 x GbE

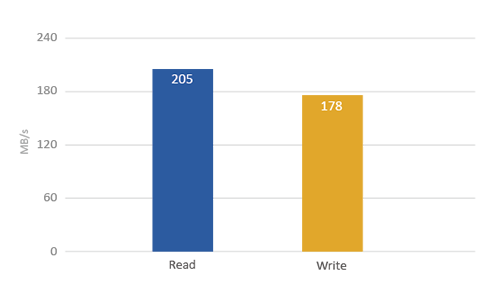

AES 256-bit Encryption
Windows Upload/Download, 2 x GbE
Tested in QNAP Lab. Figures could vary by environment.
Test environment: NAS: OS: QTS 4.2.0 Volume type: RAID 5; 4 x Seagate 1TB HDD (ST1000NM0033) Network environment: direct connection between NAS and PC, 1GbE LAN (MTU 1500)
Client PCs: Intel® Core™ i7-4790 3.60GHz CPU; DDR3-1600 16GB; Seagate 500GB ST500DM002; Intel Gigabit CT (MTU 1500);Windows® 7Professional 64bit SP1 IOMeter configuration: Transferring 8GB file continuously to/from 4 PCs for 3 minutes. Block size: 64KB for SMB2.0 (Throughput)

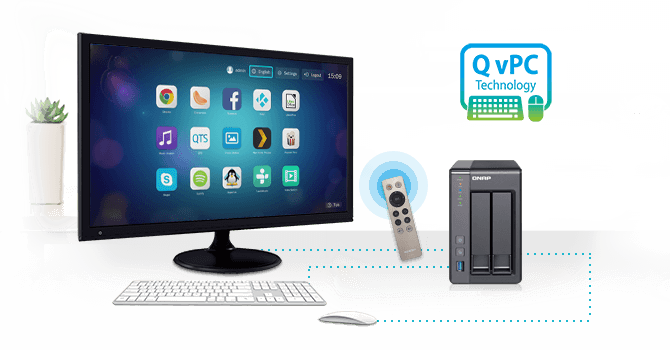

Use your TS-251+ as a PC with QvPC Technology
QNAP's exclusive QvPC Technology consolidates a number of high-end technologies including VM integration, multimedia transcoding, HDMI output, cloud integration and NAS connection technologies, allowing users to operate the TS-251+ as a PC when they plug in a keyboard, mouse and HDMI monitor. With QvPC Technology, the TS-251+ is transformed into a cost-effective device with PC functionalities for users to directly access stored data, run multiple applications using Windows®/Linux®/UNIX®/Android™ based VMs, surf the web, enjoy Full HD videos with Kodi™, monitor surveillance live feeds from IP cameras in real time, and much more.

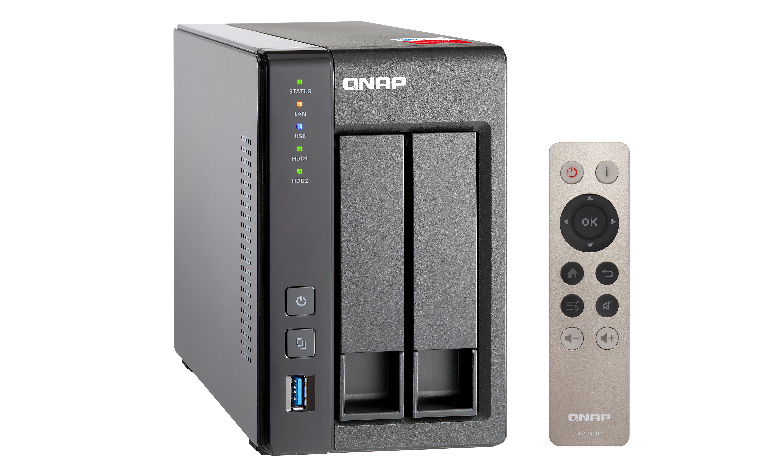

Enjoy videos on TV via HDMI with bundled remote control
QNAP HD Station integrates the powerful Kodi™ media player and web browser. With HDMI connectivity, you can connect the TS-251+ to a HDTV to watch your rich multimedia content on the big screen. The splendid user interface and support for 7.1-channel audio passthrough* bring smooth playback of 1080p videos**. You can even watch YouTube™ videos, surf the web and manage the TS-251+ using Google Chrome™ or Mozilla Firefox® with multilingual keyboard input. HD Station supports multi-tasking and user authentication so only authorized users can access the stored data via HDMI monitors.
The TS-251+ is packed with the QNAP RM-IR002 remote control for you to conveniently control HD Station via the built-in IR receiver. You can also turn your mobile devices into remote controls by installing the Qremote app. HD Station also supports YouTube Pairing, allowing you to select a YouTube™ video on your smartphone, tablet or computer and play it on your HDTV via the TS-251+.
*A receiver with HDMI support is required for decoding multi-channel surround sound. ** The quality of video and music delivery may vary depending on hardware and network environments.

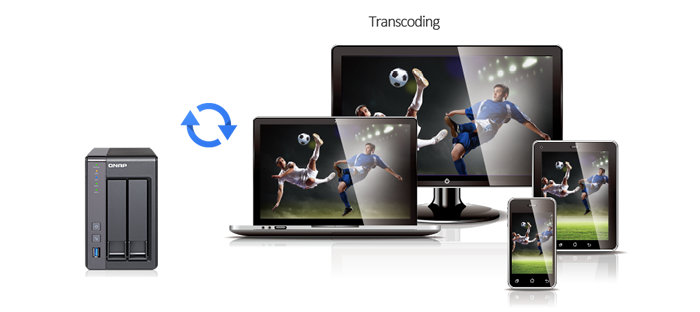

Real-time & offline HD video transcoding
The TS-251+ delivers superior real-time Full HD video transcoding to convert your videos to formats that can be smoothly played on PCs, mobile devices and Smart TVs. It allows for multiple devices to simultaneously view different videos stored on the TS-251+ with on-the-fly hardware accelerated transcoding, saving your time in converting videos to different formats for different devices.
With the benefits of offline transcoding, if you can only connect to an Internet connection with limited/restricted bandwidth, you can still enjoy smooth videos via File Station, Video Station, or the Qfile app by selecting a pre-rendered lower-resolution video, saving system resources of the TS-251+ for other applications. The TS-251+ also allows you to set a dedicated folder for automatic video transcoding.

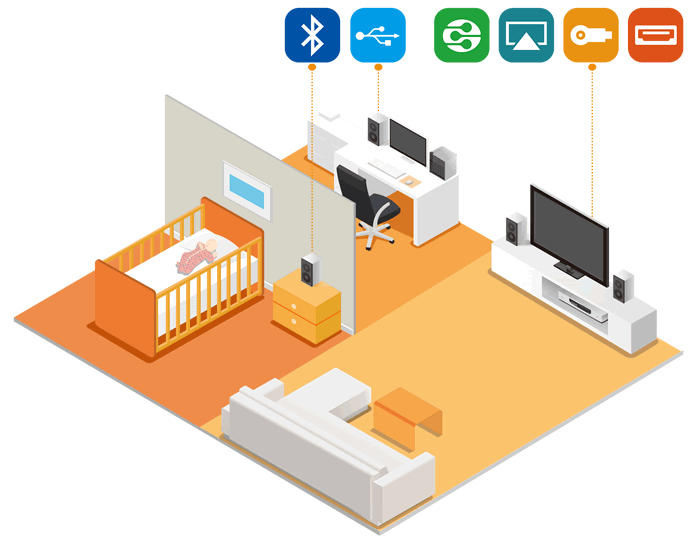

Enjoy media freely with multi-zone multimedia control
Use your TS-251+ as a multi-zone multimedia system to fill every corner of your house with your choice of media. You can centrally manage and stream photos, music and videos from the TS-251+ to different rooms from a single device using Bluetooth® & USB devices connected to the TS-251+ (for music streaming only), HDMI, DLNA®, Apple TV® and Chromecast™*. Every room member in different zones can enjoy the convenience and simplicity for media playback and multimedia storage.
Alternatively, to enjoy multimedia yourself, you can choose DLNA-compatible devices, use the Qfile app on an iOS® device to browse videos/photos and play on the TV via Apple TV®, install the Media Streaming add-on app from the QTS App Center to stream media content directly on a TV via Apple TV® or Chromecast™, or transform the TS-251+ into a powerful streaming machine with DLNA®, Roku®, Amazon® Fire TV, and Google TV™ support with the support of Plex Media Server.
*To stream multimedia via Chromecast, you must first install the multimedia extension pack from the QTS App Center.

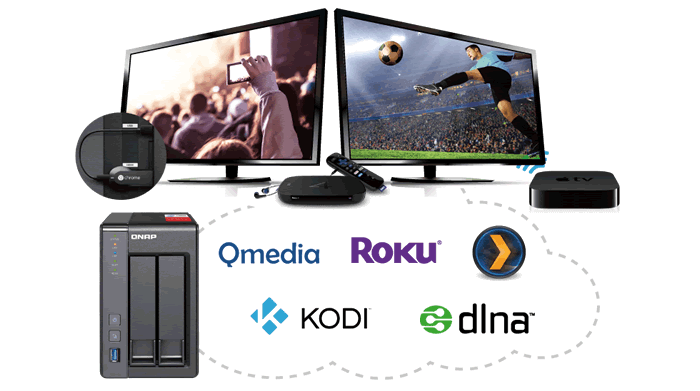

Your Ultimate Multimedia Hub
It's never been this easy to stream your multimedia content on your HDTV. Use DLNA-compatible devices such as HDTVs, Smart TVs, Sony® PS3, Sony® PS4, Microsoft® Xbox 360 and Hi-Fi systems to enjoy HD quality videos and high-resolution audio content such as DSD (Direct Stream Digital) audio format stored on the TS-251+. You can also use the NAS as your Plex Media Server, which organizes all of your media and allows you to access all your movies and media on your mobile phones and tables. The TS-251+ is a powerful streaming machine that can be accessed through DLNA, Roku (Qmedia app), Apple TV, Amazon Fire TV, and Google TV.

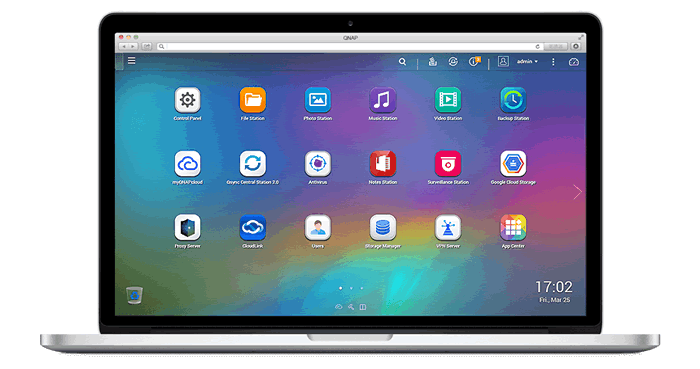

QTS 4.2 - Simple and efficient
Thanks to the intuitive user interface of QTS 4.2, your NAS experience is smarter, smoother and spectacular. Its modern flat design streamlines loading times, and the intelligent desktop allows you to quickly find desired functions, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency. QTS breaks the barriers of devices, platforms and geography to bring optimized cloud experiences to you, and incorporates more advanced features including volume/LUN snapshot, remote connection to public cloud services in File Station, multi-zone multimedia system, and more.

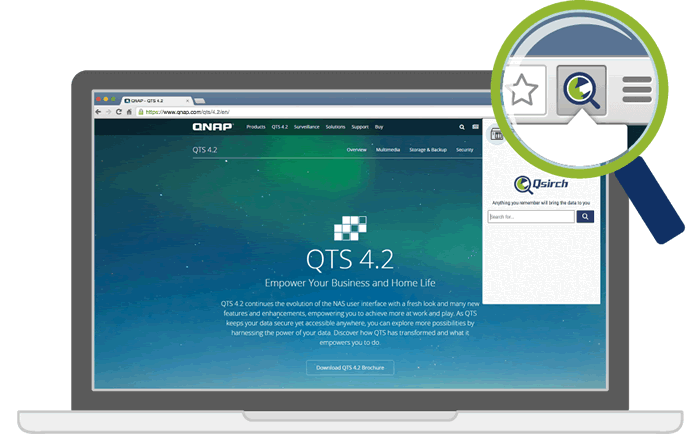

Qsirch – A smarter, faster way to search
Quickly and easily find documents, photos, videos, and music with Qsirch, QNAP's new built-in NAS search application lets you find what you need by real-time, natural search. Simply type in as much as you know about what you are trying to find, including parts of the file name or even words/phrases in the document, and Qsirch will display a list of matches, complete with thumbnails, as you type. Qsirch even remembers your search history so you can quickly navigate to files you've previously searched for. Qsirch is a huge productivity boost that greatly reduces the amount of time spent looking for files on the NAS so you can focus on other tasks.

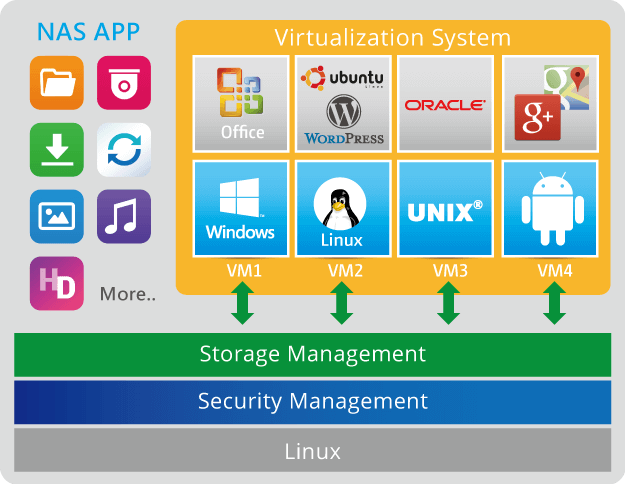

Run additional operating systems on the TS-251+
The Virtualization Station transforms the TS-251+ into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform that supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, Device Management for centrally managing VM, and enables desktop operations on web browsers. With the easy-to-use interface, you can centrally manage all of the VMs created on the TS-251+ with minimal effort. You can also download VMs on demand from online VM markets and import them to the TS-251+ without any complex procedures.
Container Station – LXC and Docker® Containers inclusive
QNAP Container Station exclusively integrates LXC and Docker® lightweight virtualization technologies, allowing you to operate multiple isolated Linux® systems on the TS-251+ as well as download apps from the built-in Docker Hub™ Registry. It supports container import/export and permission settings, and features an informative dashboard and flexible user interface for you to manage multiple containers. You can experience the amazing Container Station and enjoy the playground of virtual containers with the TS-251+.
Cross-platform file sharing, centralized data storage
The TS-251+ supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows®, Mac® and Linux®/UNIX®. Data, logs and ISO image of CDs and DVDs can be centrally stored in the TS-251+ and protected by an integrated antivirus solution.

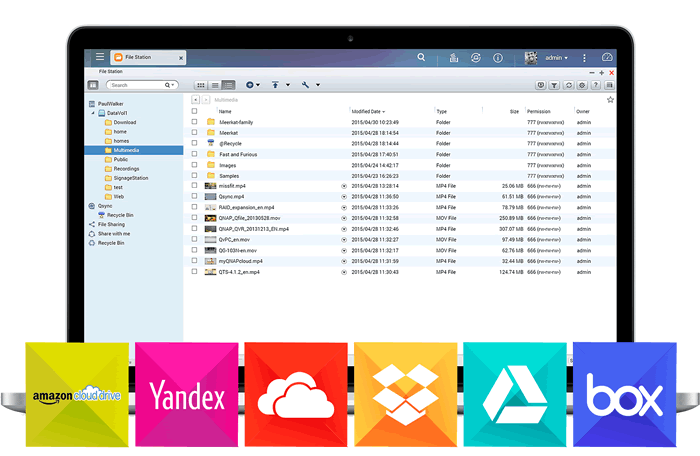

File Station integrated with cloud services
The web-based File Station enables you to easily upload, download, and manage files on your TS-251+ wherever there is an internet connection. Supporting file extraction, folder creation, and smart search for files and folders, the File Station also allows you to easily share files with friends & family via unique URLs, email, and a shared space. What's even better, you can also directly browse and transfer files between the TS-251+ and public cloud services like Google Drive™, Dropbox®, Microsoft® OneDrive, Box®, Yandex® Disk and Amazon® Cloud Drive through File Station, and view files with Office Online and Google Docs™ or directly open them with a Google Chrome™ office extension.
Well-rounded backup solutions to secure data
QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine® is also supported to provide Mac® OS X users with a solution to effortlessly back up data to the TS-251+. The front panel USB 3.0 port on the TS-251+ features a one-touch-copy function for you to instantly back up data on external drives to the TS-251+ with just one click, or alternatively to back up data from the TS-251+ to external drives. A wide range of third-party backup software such as Acronis® True Image and Symantec® Backup Exec are also supported.
Disaster recovery solutions bring peace of mind
The TS-251+ offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time and scheduled data backup to remote QNAP NAS or FTP servers and synchronizes files to remote folders from local folders with better backup efficiency. You can enjoy backup versioning to preserve a certain amount of versions, with options of simple versioning to schedule how many versions should be retained and for how long, or smart versioning with a rotation scheme that automatically replaces earlier backup versions. The TS-251+ also supports rsync protocol to back up data to remote servers on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, Amazon® Glacier, Microsoft® Azure, ElephantDrive®, Dropbox®, Google Drive™, Google Cloud Storage™, and more.

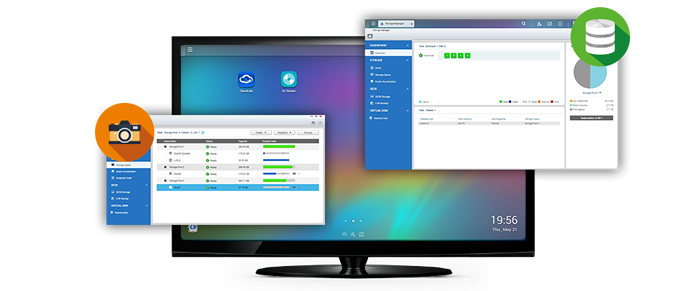

Volume & LUN snapshot simplifies restoration
Not limited to high-end models, the TS-251+ brings the highly-anticipated snapshot function for your flexible usage. QTS Storage Manager adds an easy-to-use web-based snapshot tool for you to easily back up and restore data on the TS-251+ back to any point of time to prevent loss of important data. You can take up to 256 snapshots for both volumes and LUN, efficiently replicate volume/LUN snapshots to remote servers by copying only the changes made, and quickly clone a volume /LUN snapshot as a local volume without interrupting the current system operation. You can even set up the system to automatically take a snapshot of the volume before backup via RTRR/rsync, even when the file is opened.
Comprehensive security options
In open network environments, data on the connected devices may be exposed in a potential hack. The TS-251+ provides numerous security options, such as 2-step verification, encrypted access, IP blocking, and more. Administrators can also control the access rights of each user to different folders, preventing unauthorized access to important files. The TS-251+ is validated with military-level FIPS 140-2 AES 256-bit encryption, preventing sensitive data from unauthorized access and breach even if the hard drives or the entire system were stolen.

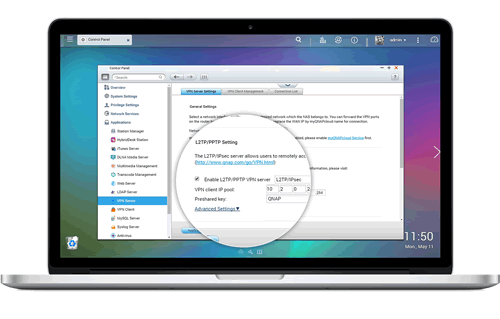

Secure access with VPN Server & VPN Client
The TS-251+ can be a VPN server with L2TP/IPsec, OpenVPN, and PPTP support, allowing you to securely access data shared within the private local network. The TS-251+ also supports VPN Client for PPTP and OpenVPN to protect your privacy during data transmission.
File synchronization across multiple devices
With Qsync, your TS-251+ is turned into a safe data center for file synchronization. Any file uploaded to the TS-251+ will be made available for all linked devices, such as computers, laptops and mobile devices. Qsync is especially useful for frequent travelers in managing files and ensuring that different devices have the most up-to-date files. Qsync provides multiple ways for file synchronization and group file sharing, greatly enhancing the flexibility of team projects and collaboration. The centralized configuration allows you to remotely erase the Qsync folder on a lost device to avoid data breaches, and even restore it after you have retrieved the device.

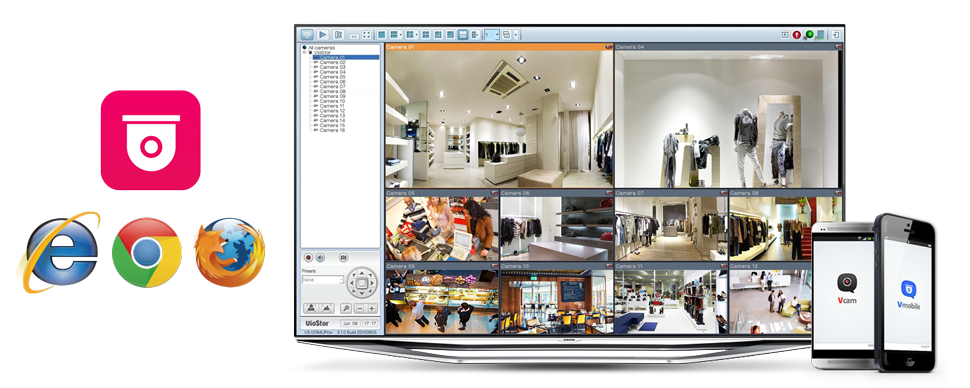

Comprehensive surveillance solution providing 24/7 security
The TS-251+'s Surveillance Station offers a professional surveillance solution with a user-friendly management interface, a wide range of over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS® or Android™ devices to manage the monitoring of cameras anytime, anywhere, to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TS-251+. The TS-251+ offers 2 free IP camera channels and you can expand up to 40 channels by purchasing additional licenses.
Access and enjoy with your mobile devices
The TS-251+ is your private cloud storage that virtually enlarges the capacity of your smart mobile devices. Qfile allows you to access, upload, download, manage, and share stored files easily as if you are carrying tons of files in your pocket. If Qfile is installed on an iOS® device, users can also browse videos & photos stored on the TS-251+ and play on a TV via Apple® TV. Qmanager lets you monitor & manage the TS-251+ remotely and efficiently without turning on your PC. You can take and share digital notes with Qnotes, and enjoy and share music, photos and videos on the TS-251+ anywhere and anytime with Qmusic, Qphoto and Qvideo apps.

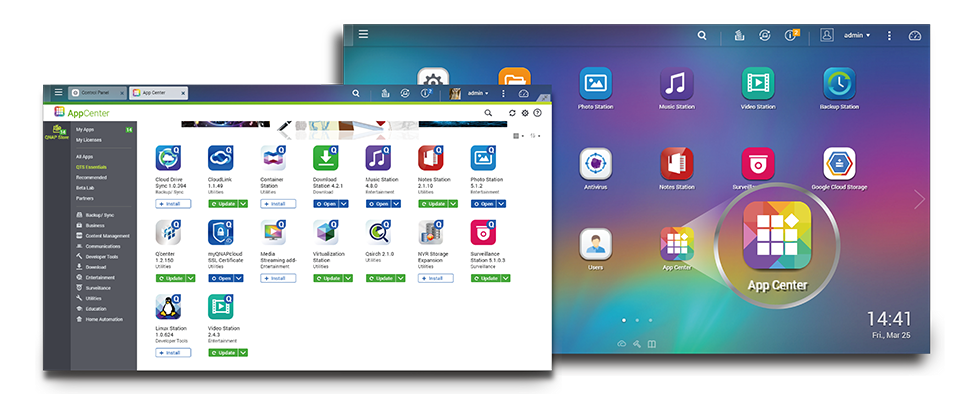

Install-on-demand apps to extend NAS functionality
The TS-251+ has a built-in App Center that provides various install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. In addition, QNAP's development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless potential for the TS-251+.

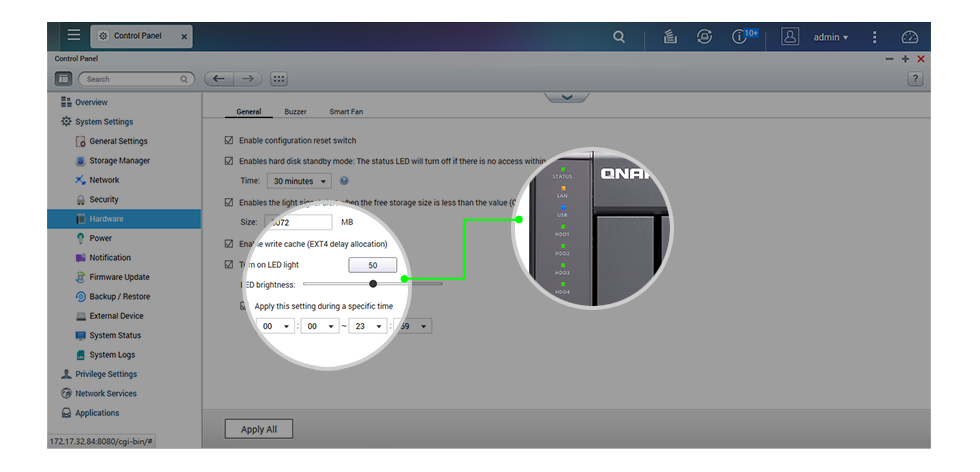

LED indicators with adjustable brightness controls
With adjustable 3-stage brightness controls for LED indicators, the TS-251+ provides flexible LED brightness options. Based on the surrounding environment, you can adjust the brightness of all system indicators and also schedule the system to automatically dim the LEDs at certain times when needed.
Expand storage capacity easily
The TS-251+ supports online capacity expansion for archiving rapidly growing data by connecting a QNAP expansion enclosure. With the QNAP scale-up solution, the raw storage capacity can be expanded on demand, making the TS-251+ an ideal file center with large storage capacity for personal video collections.
With the support of QJBOD Express (JBOD enclosures roaming)*, you can just connect a large capacity QNAP expansion enclosure to the TS-251+, and migrate data to another NAS through the JBOD enclosure without network connectivity.
The maximum raw storage capacity available by connecting a QNAP expansion enclosure:
| NAS Model | RAID Expansion Enclosure | No. of RAID Expansion Enclosure | Total HDD No. (NAS + Enclosure) | Max. Raw Capacity (TB)** |
| TS-251+ | UX-800P | 1 | 10 | 80 |
| UX-500P | 1 | 7 | 56 |
*RAID groups of storage pools cannot cross multiple enclosures. **The maximum capacity is calculated by using 8TB HDDs.
Energy-saving & eco-friendly
The TS-251+ utilizes a 22nm CPU and DDR3L RAM which feature low voltage, low power consumption, maintaining high performance in system operations with the benefit of energy-saving. Other eco-friendly designs include S3 sleep mode, HDD standby, scheduled power on/off, hard disk standby mode, and Wake on LAN. QNAP also packs the TS-251+ in an eco-friendly box to minimize the environmental impact.

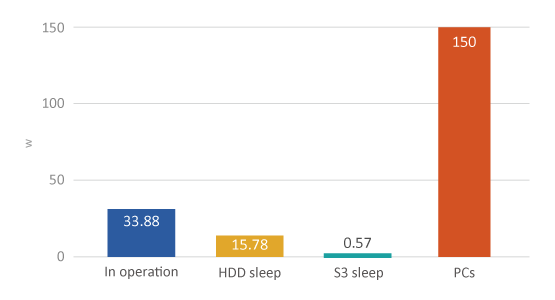

Power Consumption
Easy-to-use NAS management tools
The TS-251+ provides comprehensive system tools to increase management efficiency.
Instant Alert Notifications
With the SMTP and SMS settings on the Turbo NAS, system administrators will get notifications via SMS or email if an error occurs.
Resource Monitor
Easily monitor CPU, memory, disk & network bandwidth usage, as well as currently-running Turbo NAS apps and services.
Wake on LAN
Administrators can turn on the Turbo NAS via LAN to save energy and improve security.
Scheduled Power on/off
Administrators can flexibly set up the time of powering on/off the Turbo NAS, with a maximum of 15 schedules for setting powering on, off, or rebooting.
S.M.A.R.T. & Advanced Hard Drive Health Scan (HHS)
The Turbo NAS supports HDD S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) which monitors the hard drive status, and sends out email notifications for administrators to take action. The HHD Health Scanning technology can also examine hard drive status and prevent possible data loss.
Comprehensive Event Logs
The Turbo NAS supports Syslog server that collects logs from various connected devices over the Internet and saves the data, enabling centralized log management with greater efficiency.
Additional features
The TS-251+ supports various applications for home offices as an all-in-one Turbo NAS with cost-efficiency.
FTP Server
The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission.
Web Server
The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS for reduced IT costs.
RADIUS Server
The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service.
VPN Client
QTS also supports VPN Client for PPTP and OpenVPN to protect your privacy during data transmission.
Printer Server
The Turbo NAS supports Printer server to send remote printing request over the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.
Surveillance Station
The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.
Specifications:
| CPU | Quad-Core Intel® Celeron® 2.0GHz (burst up to 2.42GHz) |
| Floating Point Unit | V |
| GPU | Intel® HD Graphics |
| Hardware-Acclerated Transcoding | V |
| Memory | System memory:
Expandable up to: 8 GB NOTE:
|
| Flash Memory | 512MB |
| Drive | 2 x 2.5" or 3.5" SATA 6Gb/s, 3Gb/s HDD or SSD; hot swappable trays |
| Expansion Unit | Max. 1 (UX-800P, UX-500P) |
| Gigabit LAN Ports | 2 |
| USB | 2 x USB 3.0 (Front: 1, Rear: 1) 2 x USB 2.0 (Rear) |
| IR Receiver | Yes (QNAP RM-IR002 remote control) |
| HDMI | 1 |
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Alarm Buzzer | System warning |
| Form Factor | Tower |
| Dimensions (HxWxD) | 168.5 x 102 x 225 mm 6.63 x 4.02 x 8.86 inch |
| Weight (Net / Gross) | 1.28 kg (2.82 lbs) / 2.32 kg (5.11 lbs) |
| System Fan | 1 x 7cm, 12V DC |
| Kensington Security Slot | 1 |
| Power Supply | External Power Adapter, 60W, 100-240V |
| Power Consumption (W) | S3 sleep: 0.57 HDD standby: 10.56 In operation (typical): 18.09 |
| Sound Level* | Sound pressure (LpAm) :15.4 dB(A) |
| Temperature | 0 - 40 °C |
| Humidity | 5~95% RH non-condensing, wet bulb: 27˚C |
* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS
Software Specifications:
| Operating System | File System |
| QTS 4.2 (embedded Linux) |
|
| Supported Client OS | Power Management |
|
|
| Supported Browsers | Access Right Management |
|
|
| Multilingual Support | Domain Authentication Integration |
|
|
| Storage Management | myQNAPcloud Service |
|
|
| Networking | Qsync |
|
|
| Security | Web Administration |
|
|
| Powerful All-in-one server | |
|---|---|
| File Server | Download Station |
|
|
| FTP Server | Notes Station |
|
|
| File Station | HD (HybridDesk) Station 3.0 |
|
- The playback and quality of some video files may be affected by the system's CPU and GPU decoding abilities. - Up to 7.1 channel audio passthrough is supported |
| Transcode Management | Virtualization Station |
|
|
| Backup Station | Signage Station |
|
|
| Print Server | Storage Plug & Connect |
|
|
| Photo Station | iSCSI (IP SAN) |
|
|
| Music Station | Surveillance Station |
|
|
| iTunes Server | VPN Server |
|
|
| Video Station | VPN Client |
|
|
| Cloud Backup Station | DLNA Server |
|
|
| AirPlay & Chromecast | Q'center (NAS CMS) |
|
|
| App Center | |
|
|
| Designs and specifications are subject to change without notice. | |
Optional Accessories:
| Category | Order No. | Description |
|---|---|---|
| Expansion units |

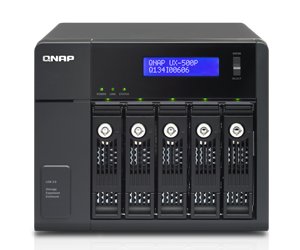

UX-500P |
QNAP 5-bay Expansion unit 185.2 (H) x 210.6 (W) x 235.4 (D) mm 7.29 (H) x 8.29 (W) x 9.27 (D) inch, 5.1 kg / 11.24 lbs |

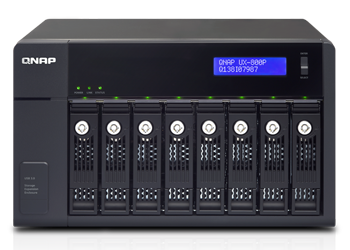

UX-800P |
QNAP 8-bay Expansion unit 185.2 (H) x 298.2 (W) x 235.4 (D) mm 7.29 (H) x 11.74 (W) x 9.27 (D) inch, 7.3 kg / 16.08 lbs |
|
| RAM |
RAM-2GDR3L-SO-1600 |
2GB DDR3 RAM, 1600 MHz, SO-DIMM |
RAM-4GDR3L-SO-1600 |
4GB DDR3 RAM, 1600 MHz, SO-DIMM | |
RAM-8GDR3L-SO-1600 |
8GB DDR3 RAM, 1600 MHz, SO-DIMM | |
| Remote control |
|
QNAP IR-002 remote conyrol (included) |
RM-IR002Utilities:
Various handy utilities are available for you to work smartly with your Turbo NAS. These utilities help increase your productivity and make it absolutely easy with connecting the Turbo NAS, setting up the system, data backup and synchronization, downloading files, and so on.
Qfinder Pro
Connect and set up NAS easily
Qfinder Pro is a utility, available for Windows, Mac, and Linux, to quickly find and access the Turbo NAS over the LAN. Install the Finder on your computer, open it, and double click your Turbo NAS name, and the login page is ready for you.
Chromebook-ready
If you're finding it difficult to connect your NAS to a Chromebook, Qfinder Pro for Chrome allows you to quickly find & connect to the Turbo NAS over LAN. Just download Qfinder Pro from the Chrome Web Store and enjoy easy access to your Turbo NAS now.
*Qfinder Pro Chrome is for Chromebooks & Chrome only.

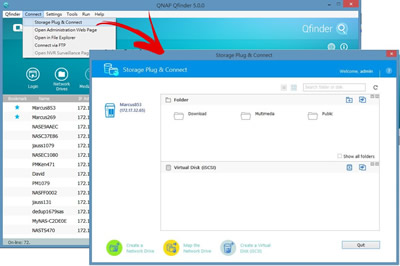

Easily access the NAS by Storage Plug & Connect
Windows version of Qfinder Pro provides a convenient way to connect to the Turbo NAS and map a network drive or a virtual disk. By creating a shared folder on the Turbo NAS and mapping it as a network drive, you can use it as an additional drive and store files on it as it is a local drive of the computer.

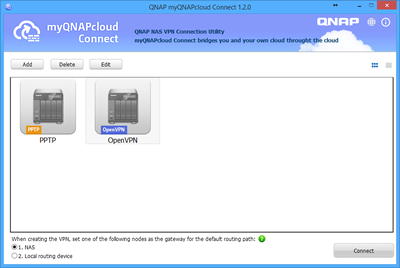

*Storage Plug & Connect is for Windows version only.myQNAPcloud Connect
NAS Connection by VPN
myQNAPcloud Connect helps you access the published services of the Turbo NAS quickly and securely on the Internet. myQNAPcloud Connect application is designed for Windows PC users. By installing the myQNAPcloud Connect, you will be able to connect to the Turbo NAS and easily manage files by drag-and-drop within the Windows Explorer.

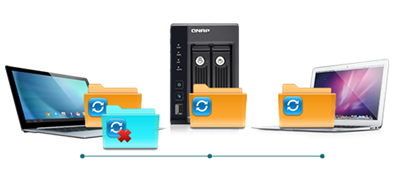

Qsync
Synchronize files anytime, anywhere
Qsync is a useful tool to synchronize files in multiple computers. It creates a specific “Qsync folder” in your devices that you can simply drop files in, and synchronizes the files to all your devices linked to the Turbo NAS.
Sync in multiple ways

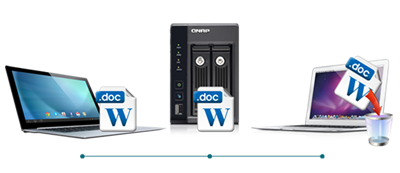

Full Sync
Whenever you add, edit, delete or rename a file on one computer, the change applies to all others linked with the Turbo NAS, so you have exactly identical contents on all your devices.
Smart Sync
It allows you to remove files on one computer without affecting the copies stored on others that are linked with the Turbo NAS. However, when someone updates the files you deleted from another computer, you can still retrieve them in the Qsync folder.
Advanced Selective Sync
With both Full Sync or Smart Sync options, you can choose to only sync specific sub-folders within the Qsync folder, useful if your computers have limited storage.
Share files and folders easily
Quickly share files with download links
You can create download links to share files with people, even if they don’t have an account on the Turbo NAS. This greatly reduces the time in creating user account and password for users.
Share folders for collaboration
Your life is connected with different groups of people. You can create sub-folders within the Qsync folder, and share each with different groups of Turbo NAS users as a file exchange center. Everyone in the same sub-folder is always kept up-to-date with the latest version of the files.
QNAP NetBak Replicator
Backup data on PC
The QNAP NetBak Replicator, provided with any Turbo NAS unit free of charge, helps you easily back up files from Windows PC - entire disk drives, documents, pictures, music, videos, fonts, emails, and more - to the Turbo NAS. The operation is very simple. You can do the backup task in just a few clicks using NetBak Replicator by the setting of real-time synchronization, scheduled backup and auto-backup from multiple PCs to the Turbo NAS.
NetBak Replicator also supports backing up to a remote server via FTP and WebDAV through the Internet. Imagine that you can backup new photos whenever on vacation. Even you are away from home, the convenient backup supports your memories.
vSphere (Web) Client plug-in
Manage QNAP NAS within vSphere (Web) Client
The Turbo NAS supports vSphere (Web) Client Plug-in that allows managing VMware datastores on the Turbo NAS directly from the vSphere (Web) client console. In a large-scale server virtualization environment, management is centralized and straightforward. Administrators can easily control the status of the Turbo NAS and datastores and create additional datastores to multiple ESXi hosts in just a few clicks.
Note: The TS-x51 series doesn’t support vSphere (Web) Client plug-in.
Q’center Virtual Appliance
Deploy Q’center as virtual appliance
Q’center is a powerful QNAP NAS management system. The Q’center Virtual Appliance can be easily deployed in Microsoft® Hyper-V™ or VMware® ESXi™ to increase its flexibility and connectivity for large storage environments.
Minimum requirements：108 GB free disk space, 1 GB memory and 4 virtual CPUsSupported platforms: VMware ESXi (ESXi 5.0, ESXi 5.1, ESXi 5.5), VMware Fusion 7, VMware Workstation 11, Microsoft Windows Server 2012 R2 with Hyper-V 3.0.

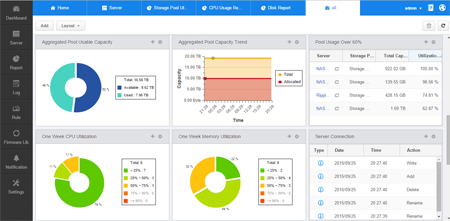

Use Q’center to monitor multiple NAS.
With Q’center, you can view the status and system information of multiple QNAP NAS units at the same time, inspect system resource usage, monitor disk/volume health and perform other management tasks. With these features, Q’center can better assist IT administrators and QNAP NAS users in system resource allocation and future capacity planning.
QNAP Snapshot Agent
In QTS 4.2, the Storage Manager's Snapshot function supports iSCSI LUNs to rapidly back up and restore data. When creating a LUN snapshot, QNAP Snapshot Agent for Windows Server or VMware vCenter allows the NAS to communicate with the remote server when taking snapshots and ensures Application-consistent LUN snapshots.
VSS Hardware Provider also allows NAS ROW (Redirect on Write) instead of Windows COW (Copy on Write) to increase backup efficiency and to offload the snapshot to the NAS for reducing the performance impact on the Windows server.
Qsnap
Take screenshots, easy and fast
Qsnap is a handy utility assisting you to quickly capture screenshots on your PC, and easily edit, save, and share, enabling quick note-taking or productive communication in your work and life.
- Hotkey capturing: Taking PC screenshots without complicated mouse operations.
- Easy editing: Add emphasis or remove unnecessary elements with a range of editing tools.
- Instant sharing: Simply drag and drop the screenshots to instant messengers and emails as attachments to share.
Product Views:

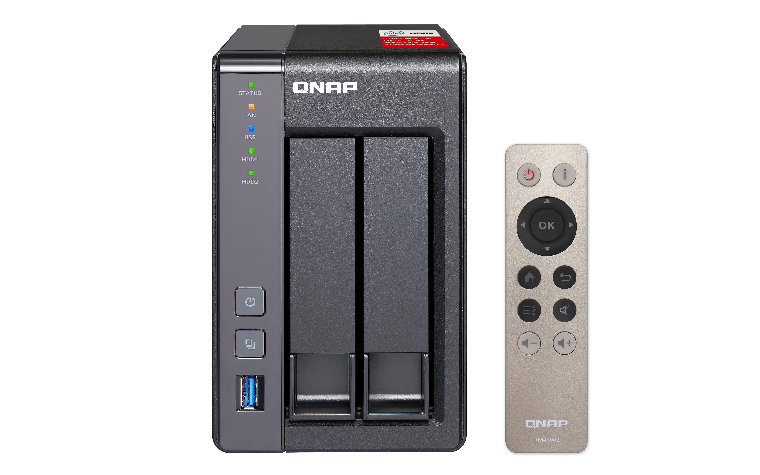

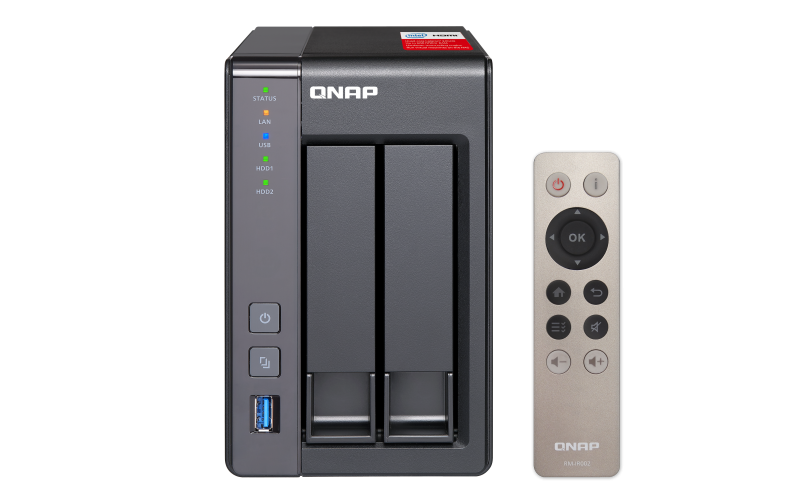

Front View |
Left View |

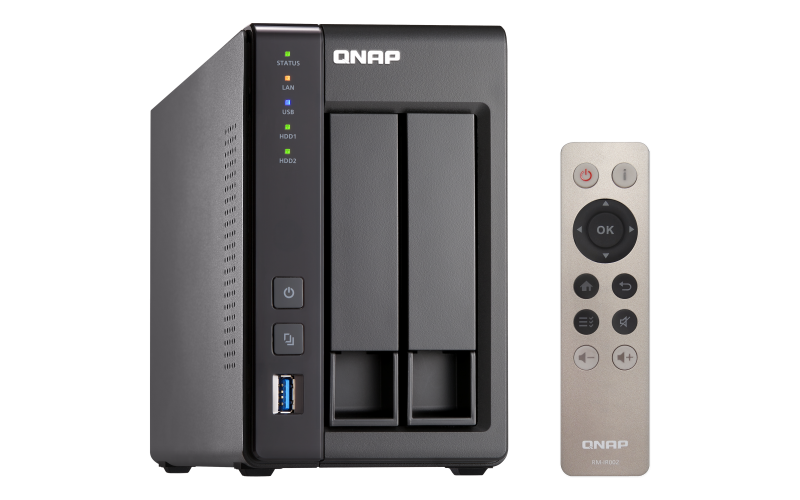

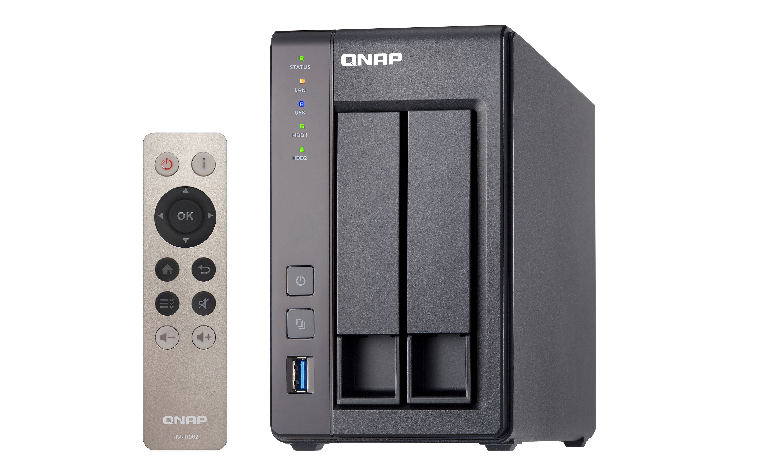

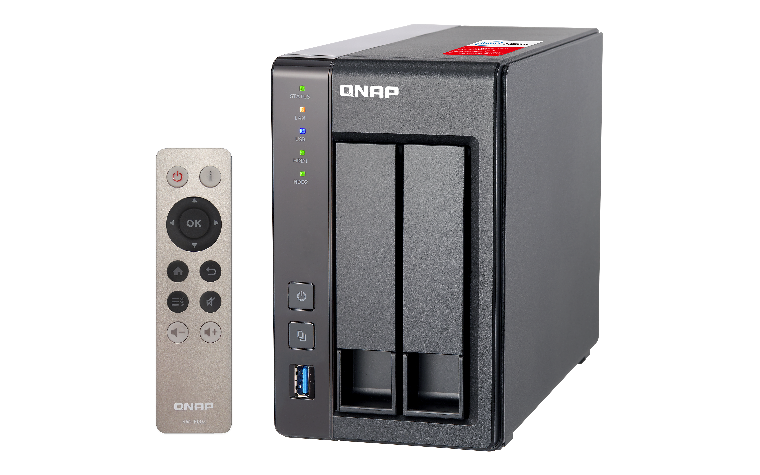

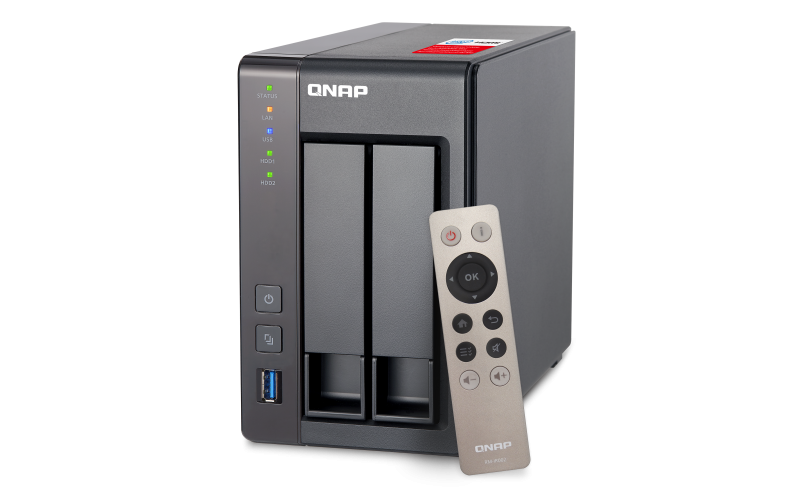

Left Angle View |
Right View |

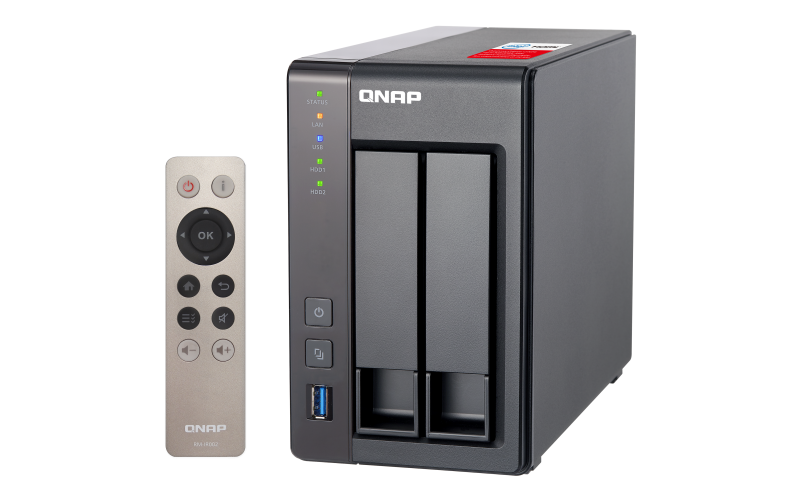

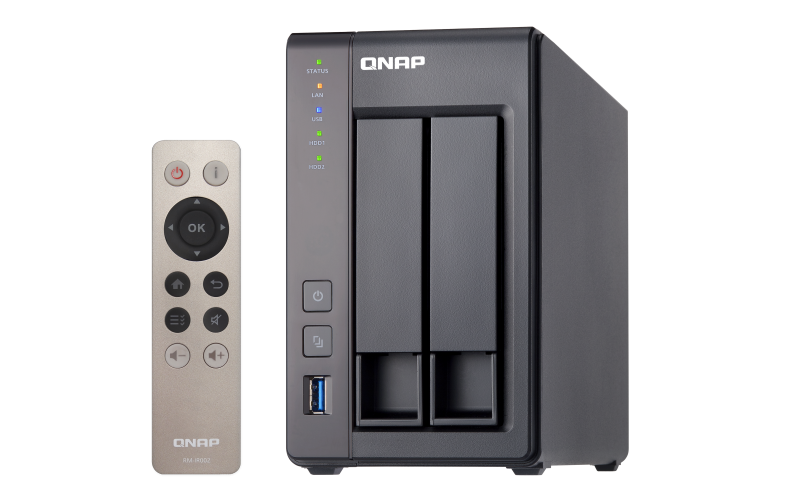

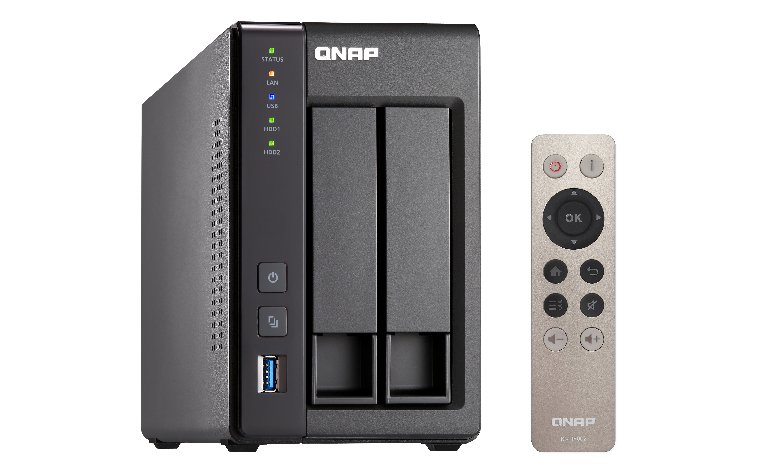

Right Angle View |

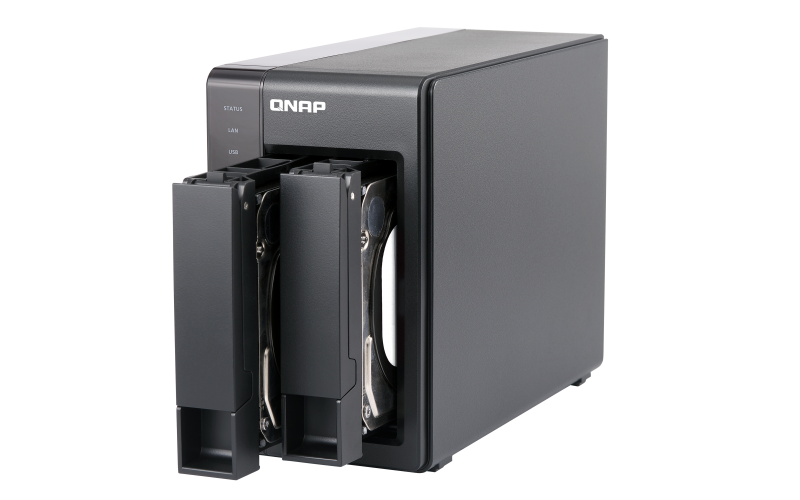

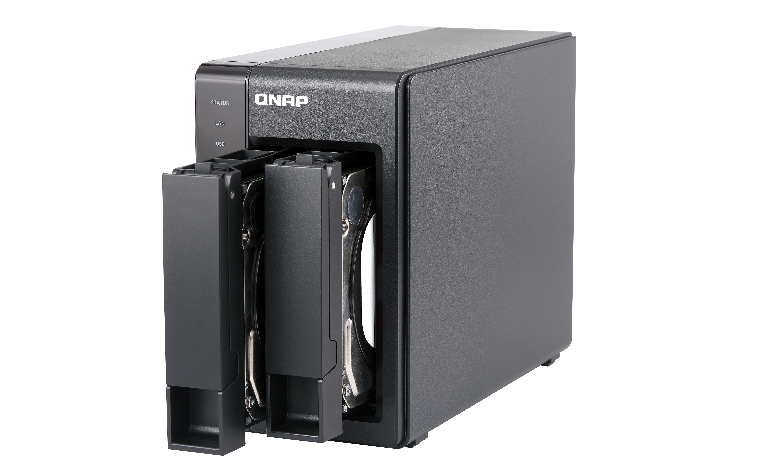

Drive Pull-out View |

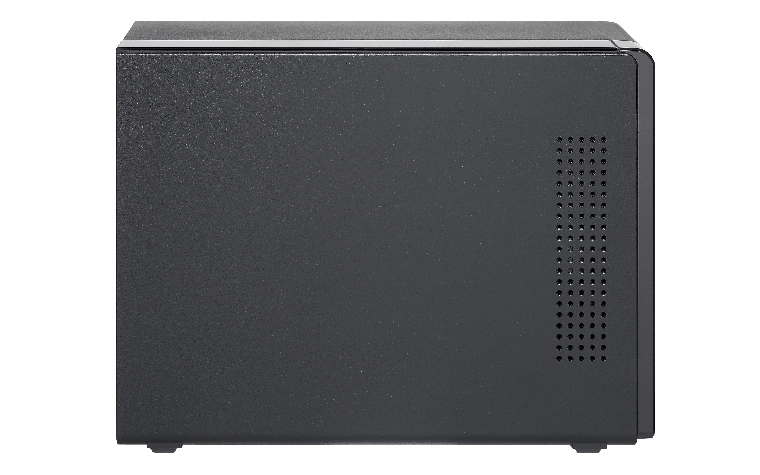

Right Side View |

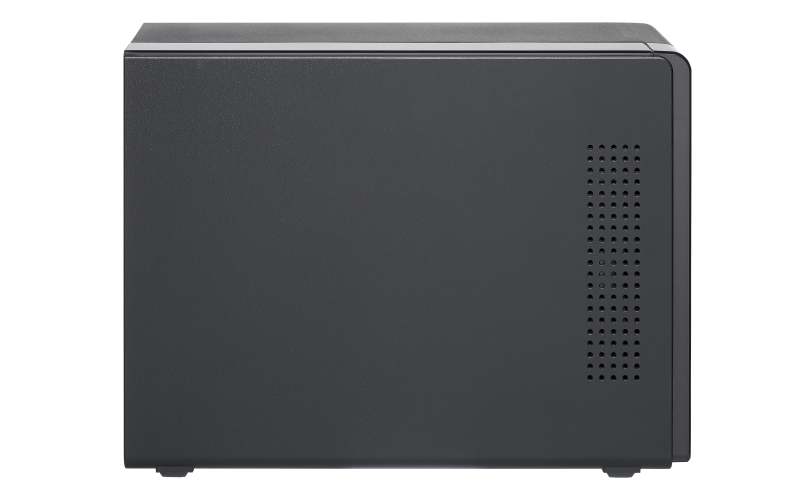

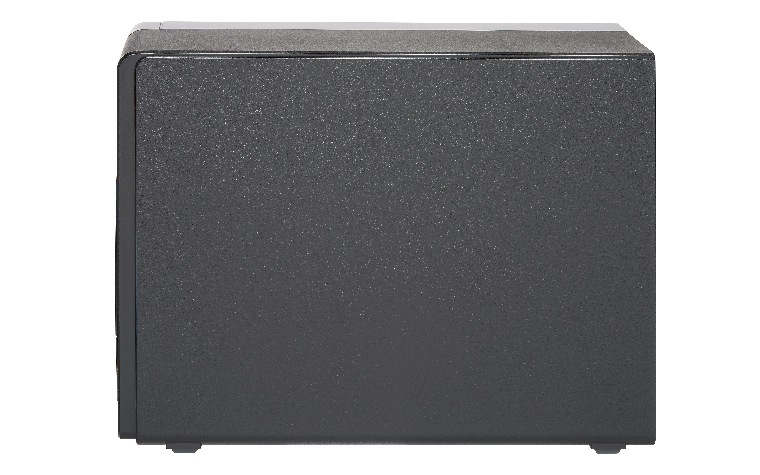

Left Side View |

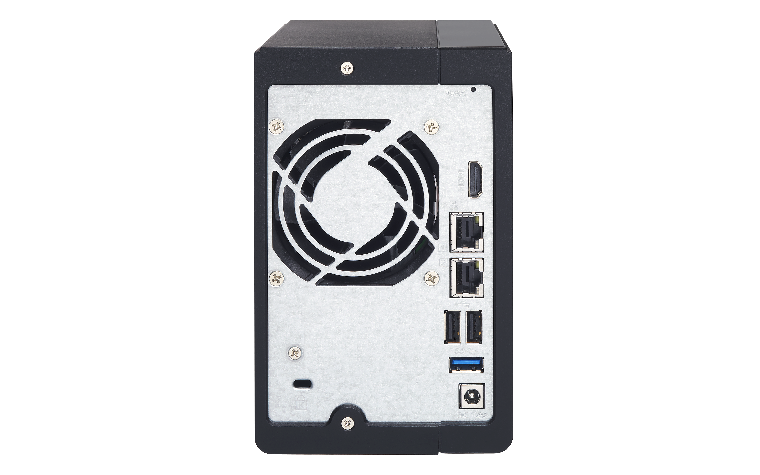

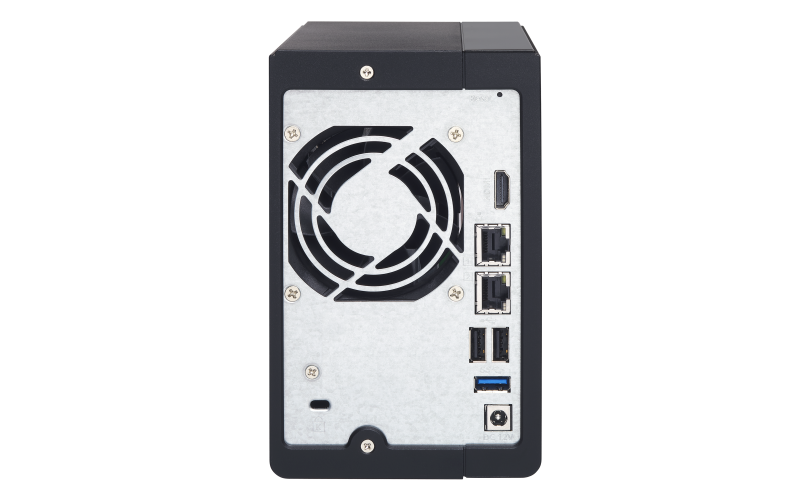

Rear View |
Documentation:
Download the QNAP TS-x51 Series Datasheet (PDF).
