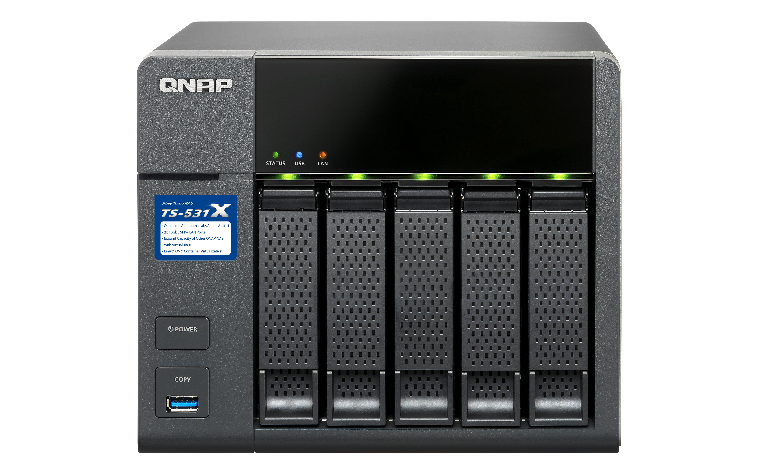

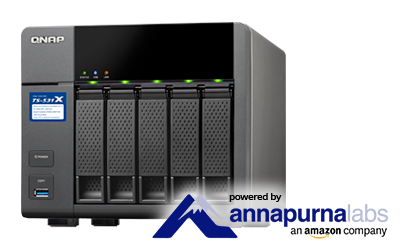

QNAP TS-531X
High-performance, quad-core, 5-bay business NAS with integrated dual 10GbE SFP+ ports

QNAP TS-531X

QNAP Products TS-531X
SMB Storage
QNAP TS-531X (8GB RAM version) ARM-based NAS with Hardware Encryption, Quad Core 1.4GHz, 8GB RAM, 2 x 10GbE(SFP+) ,2 x 1GbE
TS-531X-8G-US
Our Price: $799.00
QNAP TS-531X ARM-based NAS with Hardware Encryption, Quad Core 1.4GHz, 2GB RAM, 2 x 10GbE(SFP+) ,2 x 1GbE
TS-531X-2G-US
Our Price: $599.00

Click here to jump to more pricing!

Overview:

The TS-531X supports 5 hard drives and comes with two built-in 10GbE SFP+ ports to fully support 10GbE network environments. Equipped with a strong hardware-accelerated encryption engine, it doubles the encrypted file transfer performance, providing a secure and reliable quad-core NAS solution. Powered by the QTS operating system, the TS-531X provides versatile all-in-one server functionalities and unique features including Container Station, which allows users to rapidly develop and deploy Internet of Things (IoT) apps, and VJBOD (Virtual JBOD), which introduces an economical way to utilize the TS-531X's unused NAS storage space for expanding the storage capacity of other QNAP NAS. The TS-531X is a cost-effective storage solution designed for growing businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.

  • 10GbE readiness, SSD cache, and hardware-accelerated encryption engine
  • VJBOD allows using the TS-531X to expand the storage capacity of other QNAP NAS
  • Enjoy containerized virtualization and IoT app development with Container Station
  • Build a private cloud to centrally organize & manage files and backup tasks
  • Secure access with VPN Server & VPN Client
  • Quickly find files using a real-time, natural search with Qsirch
  • Centrally manage multiple email accounts with QmailAgent
  • Easily manage contact information on your NAS with Qcontactz
  • Expand the storage capacity to 21 drives by using QNAP expansion enclosures

QNAP TS-531X

Specifications:

TS-531X Specifications
Ordering P/N TS-531X-2G TS-531X-8G
Processor AnnapurnaLabs, an Amazon company Alpine AL-314 Quad-core 1.4GHz ARM® Cortex-A15 Processor
Hardware Encryption Accleration
System Memory 2GB DDR3 (1 x 2GB) 8GB DDR3 (1 x 8GB)
Maximum Memory 16GB
Memory Slots 2 x SODIMM DDR3 (Note: For dual-DIMM configurations, you must use a pair of identical DDR3 RAM modules.)
Flash Memory 512MB
Drive Type 5 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs
10GbE LAN 2 x 10 Gigabit SFP+ LAN Ports
GbE LAN 2 x Gigabit RJ45 LAN Ports
USB 3 x USB 3.0 ports
PCIe Slot 1 x PCIe Gen2 (x2)
LED Status/Power, LAN, USB, HDD 1-5
Button Power, USB One-touch-copy,Reset
Other Kensington security slot,console port
Dimension 185 (H) x 210.6 (W) x 235.4 (D) mm
7.28 (H) x 8.29 (W) x 9.27 (D) inch
Weight Net:5.8 kg (12.79 lbs) Net:5.9 kg ( 13 lbs)
Operating Temperature 0-40˚C
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C
Noise Level 22.4 dB(A)
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS
Power Consumption HDD standby: 17.01W
In operation: 29.31W
(with 5 x 1TB HDDs installed)
Power ATX 240W, 100-240V AC, 50-60Hz, 3.5A
Fan 1 x 12cm fan (12V DC)

Documentation:

Download the QNAP TS 531X Series Datasheet (PDF).
