QNAP TS-653B
QTS-Linux combo quad-core NAS with PCIe port for diversified storage applications

QNAP TS-253B

QNAP Products
Small Business (SMB) Storage
QNAP TS-653B (8GB RAM version) 6-Bay Professional-grade iSCSI NAS. Intel Celeron Apollo Lake J3455 Quad-core CPU with Hardware Encryption and exclusive USB type-C QuickAccess Port.
Intel Celeron J3455 quad-core 1.5GHz (up to 2.3GHz), 8GB DDR3L RAM (2x4GB, max 8GB), SATA 6G, 2xGbE, PCIe slot for 10GbE or 2 more GbE, AES-NI encryption, 4K hardware transcoding, dual 4K HDMI v1.4b, max 1 UX-800P/UX-500P expansion unit, built-in speaker, 1x Line out
#TS-653B-8G-US
Our Price: $949.00
QNAP TS-653B 6-Bay Professional-grade iSCSI NAS. Intel Celeron Apollo Lake J3455 Quad-core CPU with Hardware Encryption and exclusive USB type-C QuickAccess Port.
Intel Celeron J3455 quad-core 1.5GHz (up to 2.3GHz), 4GB DDR3L RAM (2x2GB, max 8GB), SATA 6G, 2xGbE, PCIe slot for 10GbE or 2 more GbE, AES-NI encryption, 4K hardware transcoding, dual 4K HDMI v1.4b, max 1 UX-800P/UX-500P expansion unit, built-in speaker, 1x Line out
#TS-653B-4G-US
Our Price: $899.00

Click here to jump to more pricing!

Overview:

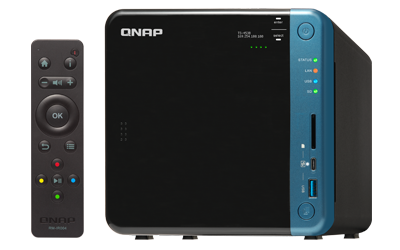

The TS-653B comes with a sleek new look, featuring an OLED panel and two capacitive touch buttons. The TS-653B also features a PCIe port for boosting the potential applications of your NAS: the QNAP QM2 expansion card can be installed for adding an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-653B as a wireless access point, and a USB 3.1 10Gbps card can be added for easier backup to/from multiple external storage devices. With a USB Type-C QuickAccess port and a SD card slot, the TS-653B simplifies transferring and sharing files without needing a network connection. The TS-653B also provides feature-rich multimedia functionality, such as 4K video playback and real-time transcoding. The multi-zone multimedia management app Cinema28 and popular web automation app IFTTT Agent also enrich your multimedia experience and NAS automation.

  • PCIe port supports installing a QNAP QM2 dual-port M.2 SSD/10GbE connectivity, a compatible PCIe wireless adapter, or a USB 3.1 10Gbps card
  • USB QuickAccess port for direct access to files on NAS without needing a network connection
  • Supports virtualization, centralized storage, backup, sharing, and disaster recovery
  • A hybrid approach to virtualization in one NAS: Virtualization Station and Container Station
  • Supports 4K hardware decoding and transcodes 4K H.264 videos on-the-fly or offline
  • Cinema28 for centralized management of multimedia devices to enrich multimedia experiences
  • IFTTT Agent enables web automation for improved working efficiency

Specifications:

TVS-653B Specifications
Ordering P/N TS-653B-8G TS-653B-4G
CPU Intel® Celeron® J3455 quad-core 1.5 GHz, up to 2.3 GHz
Encryption Accleration ✔ (AES-NI)
Graphics Intel® HD Graphics 500
System memory 8GB DDR3L
(2 x 4GB)
4GB DDR3L
(2 x 2GB)
Maximum Memory 8GB
Total Memory Slots 2 x DDR3L SODIMM slots
(For dual-DIMM configuration, you must use a pair of identical DDR3L modules.)
Drive Hot-swappable 6 x 3.5"/2.5" SATA 6Gb/s HDD/SSD
GbE LAN Port 2 x RJ45 Gigabit LAN port
10GbE LAN Port Optional 10 Gigabit LAN port via a PCIe expansion card
USB 3.0 Port 5 x USB 3.0 Type-A ports
USB QuickAccess USB Type-C
PCIe Slot 1 PCIe 2.0 x2 slot
HDMI Port 2 x HDMI v1.4b, up to 3840 x 2160, 30 Hz
Audio Input 2 x 3.5mm microphone input jacks
Audio Output speaker, 3.5mm line out jack
Display 0.96” monochrome OLED
LED Indicators Status/Power, LAN, USB, Drives, SD card, USB QuickAccess
Buttons Power, USB copy, Reset, Capacitive touch buttons (select, enter)
Infrared Receiver ✔ supplied with a QNAP RM-IR004 remote control (compatible with RM-IR002 remote control)
SDXC Card Reader
Other Interfaces Kensington security slot
Dimension (HxWxD) 168 x 235 x 226 mm
6.61 x 9.25 x 8.90 inch
Weight 3.01 kg ( 6.64 lbs )
Sound Level* Operating low speed: 19.6 dB(A)
Operating Temperature 0 ~ 40˚C (32˚F ~ 104˚F)
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Consumption HDD sleep: 20.62W
Typical Operation: 40.33W
Power Supply 120W AC adapter, 100-240V
Fan 2 x 9 cm
Package Contents NAS, QIG, 2 x RJ45 ethernet cables, AC adapter, power cord, 2.5" drive screw kit
* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS

Documentation:

Download the QNAP TS-x53B Series Datasheet (PDF).

Pricing Notes:

QNAP Products
Small Business (SMB) Storage
QNAP TS-653B (8GB RAM version) 6-Bay Professional-grade iSCSI NAS. Intel Celeron Apollo Lake J3455 Quad-core CPU with Hardware Encryption and exclusive USB type-C QuickAccess Port.
Intel Celeron J3455 quad-core 1.5GHz (up to 2.3GHz), 8GB DDR3L RAM (2x4GB, max 8GB), SATA 6G, 2xGbE, PCIe slot for 10GbE or 2 more GbE, AES-NI encryption, 4K hardware transcoding, dual 4K HDMI v1.4b, max 1 UX-800P/UX-500P expansion unit, built-in speaker, 1x Line out
#TS-653B-8G-US
Our Price: $949.00
QNAP TS-653B 6-Bay Professional-grade iSCSI NAS. Intel Celeron Apollo Lake J3455 Quad-core CPU with Hardware Encryption and exclusive USB type-C QuickAccess Port.
Intel Celeron J3455 quad-core 1.5GHz (up to 2.3GHz), 4GB DDR3L RAM (2x2GB, max 8GB), SATA 6G, 2xGbE, PCIe slot for 10GbE or 2 more GbE, AES-NI encryption, 4K hardware transcoding, dual 4K HDMI v1.4b, max 1 UX-800P/UX-500P expansion unit, built-in speaker, 1x Line out
#TS-653B-4G-US
Our Price: $899.00
Accessories
2GB DDR3L RAM, 1600 MHz, SO-DIMM
#RAM-2GDR3L-SO-1600
Our Price: $100.00
4GB DDR3L RAM, 1600 MHz, SO-DIMM
#RAM-4GDR3L-SO-1600
Our Price: $160.00
QNAP single-port 10 Gigabit SFP+ network expansion card
#LAN-10G1SR
Our Price: $170.00
QNAP dual-port 10 Gigabit 10GBASE-T network expansion card
#LAN-10G2T-X550
Our Price: $359.00
QNAP dual-port 10 Gigabit SFP+ network expansion card
#LAN-10G2SF-MLX
Our Price: $239.00
QNAP dual-port Gigabit RJ45 network expansion card
#LAN-1G2T-I210
Our Price: $109.00
Cables
SFP+ 10GbE twinaxial direct attach cable, 3.0M
CAB-DAC30M-SFPP-DEC01
Our Price: $79.00
