QNAP TS-832XU-RP
10GbE-ready, entry-level rackmount NAS for SMB featuring two SFP+ ports, one PCIe 2.0 ×2 slot and redundant power supply

QNAP TS-832XU-RP

QNAP Products
Small Business (SMB) Storage
QNAP 2U 8-Bay ARM-based 10G NAS, Quad Core 1.7GHz, 4GB DDR3 RAM, 2 x 10GbE SFP+, 2 x GbE, Redundant Power Supply
#TS-832XU-RP-4G-US
Our Price: $1,349.00

Click here to jump to more pricing!

Overview:

The TS-832XU-RP is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP's QM2 expansion cards. The TS-832XU-RP can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more. The TS-832XU-RP is also equipped with a redundant power supply to ensure uninterrupted services.

A solid storage for everyday needs

The TS-832XU-RP is equipped with a AL-324 quad-core 1.7 GHz platform-on-chip (PoC), from the Alpine V2 AL3 product family powered by Annapurna Labs, an Amazon company. The included 4 GB RAM can be upgraded to a maximum of 16 GB for futureproofing its capabilities. With 10GbE connectivity and PCIe expansion, the TS-832XU-RP can provide performance of up to 2134 / 725 MB/s (unencrypted) and 1263 / 441 MB/s (with hardware-accelerated AES-256 volume encryption) to significantly boost business operations.

feat-logo

Built-in 10 GbE SFP+ ports accelerate your workflows

With two built-in 10 GbE SFP+ ports, the TS-832XU-RP can immediately take advantage of high-speed 10GbE network infrastructure. The 10 GbE SFP+ ports can empower bandwidth-demanding tasks including databases, virtual machine storage, and large data backups.

One PCI Express slot gives you expandability and flexibility

The TS-832XU-RP provides one PCI Express (PCIe) 2.0 ×2 slot (×4 length) for expanding NAS functionality, such as installing additional 10GBASE-T ports and M.2 SSDs (both SATA and PCIe NVMe*). QNAP offers a complete array of expansion cards for you to take advantage of the TS-832XU-RP's PCIe expandability, including QM2 expansion cards and single/dual port NICs.

*HDDs and SSDs sold separately. To create storage pools/volumes on M.2 PCIe NVMe SSDs, the use of QM2 is required. M.2 PCIe NVMe SSDs that are not installed through QM2 can only be used for caching.

feat-logo

Snapshots and Hybrid Backup Sync secure your data

A well-rounded disaster recovery plan requires multiple layers of protection and backups to deliver peace of mind. The TS-832XU-RP supports snapshots to manually/automatically record the content of files and changes to them at the block level, allowing them to be quickly reverted in the event of corruption or accidental deletion. For added data security, the Hybrid Backup Sync app can help back up, restore and sync files to/from local external devices, remote NAS and public cloud services.

Cross-platform file sharing and Qsync facilitate convenient file exchange

The TS-832XU-RP supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Data can be centrally stored on NAS and protected by rigid security measures provided by the TS-832XU-RP. The Windows AD and LDAP services enable system administrators to configure user permissions by using an existing Windows AD server, LDAP server or built-in LDAP service. To sync data across devices, including mobiles, simply install Qsync Central on NAS and Qsync clients on other devices to enjoy a fast, private, secure, and real-time file sync service with the TS-832XU-RP.

feat-logo

Windows and Mac backups help keep data security in the workplace

The TS-832XU-RP can handle file backup tasks from Windows® PC and Mac. By using QNAP's NetBak Replicator backup utility, with a few simple clicks, you're all set. For macOS users, Time Machine can be set up to save to the TS-832XU-RP. Combined with snapshots and Hybrid Backup Sync, the TS-832XU-RP provides the solid foundations of a disaster recovery plan.

QTS & App Center open endless possibilities

QTS, the QNAP NAS operating system, provides numerous functionality additions and improvements, such as the revamped Qtier, RAID 50/60 support, Qboost, OCR Converter, and much more. More apps are available from the QTS App Center, such as Domotz, QVPN Service, and more. You can easily take advantage of apps from QNAP and trusted third parties to expand NAS functionality and possibilities.

feat-logo

Secure your premises with integrated surveillance solutions

The TS-832XU-RP provides an intelligent surveillance management system for real-time monitoring, video & audio recording, and playback to safeguard your work environment. You can even use USB webcams as affordable IP cameras with the free QUSBCam2 app. The TS-832XU-RP also supports QVR Pro, the next-generation QNAP NVR system, that allows you to arrange a dedicated, independent storage space for surveillance data on the NAS and leverage the advantages of scalability and storage manageability from QTS.

feat-logo

Features:

feat-logo

The built-in 10GbE SFP+ ports deliver high speed for mission-critical applications such as database hosting and VM storage

feat-logo

One PCIe 2.0 ×2 slot (×4 length) is available for adding a 10GbE port and/or M.2 SSD slots. With SSDs installed, Qtier auto tiering can be enabled to optimize storage utilization.

feat-logo

Snapshots add an extra layer of protection to your disaster recovery plan, giving you the flexibility to create and revert snapshots locally and/or remotely.

feat-logo

The Hybrid Backup Sync app completes your backup strategies, allowing you to back up, restore and sync files locally and remotely.

feat-logo

QNAP's Virtual JBOD technology can be used to expand remote NAS capacity, ensuring all available space can be fully utilized.

feat-logo

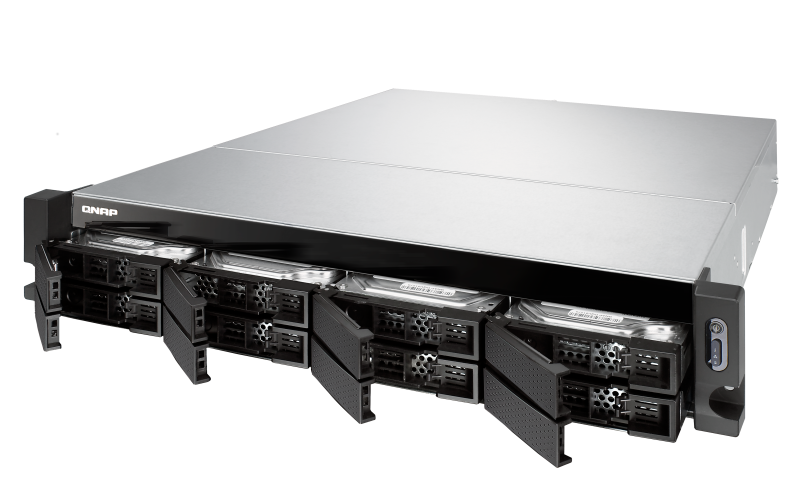

The hot-swappable redundant power supply ensures high reliability and maximum system uptime.

Specifications:

CPU Annapurna Labs Alpine AL-324 ARMv8 Cortex-A57 quad-core 1.7 GHz processor
Architecture: 64-bit
Encryption Engine:
System Memory 4 GB DDR4 (1 x 4GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x DDR4 Long-DIMM slot
Drive Bay 8 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
SSD Cache Acceleration Support • 3.5-inch bays 1 to 8
Optional: SSDs on an optional QM2 PCIe expansion card
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Gigabit Ethernet Port 2 x RJ45
USB Port 4 x USB 3.1 Gen 1 Type-A
PCIe Slot Slot 1: 2.0 x2
Form Factor Rackmount
Dimensions (H x W x D) 89 x 482 x 534 mm
3.5 x 18.98 x 21.02 inch
Net Weight 12.56 kg (27.69 lbs)
Power Supply Unit 2 x ATX 250 W, 100 - 240 V AC, 50/60 Hz, 5A - 2.5A
Power Consumption (W) HDD sleep: 38.1 W
In Operation: 60.74 W
Fan 2 x 7 cm fans (12 V DC)
Sound Level 31.1 dB(A)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb temp.: 27˚C (80.6˚F)

Documentation:

Download the QNAP TS-832XU-RP Datasheet (PDF).
