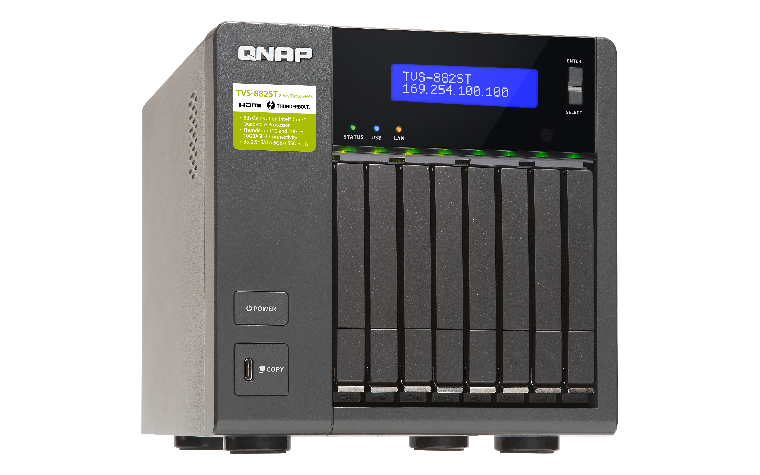

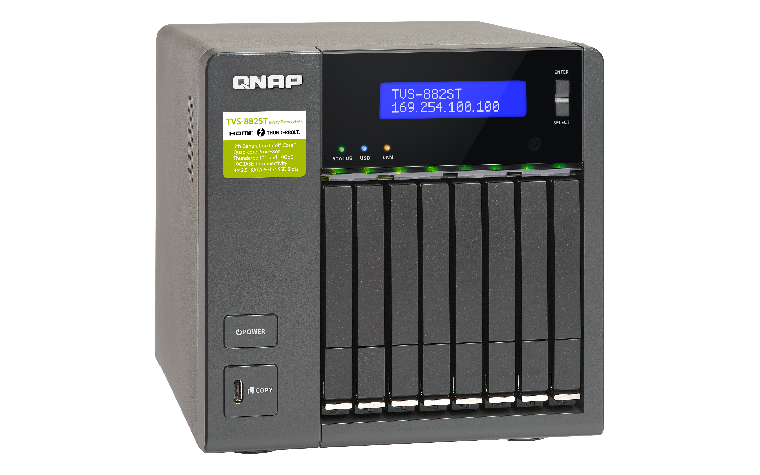

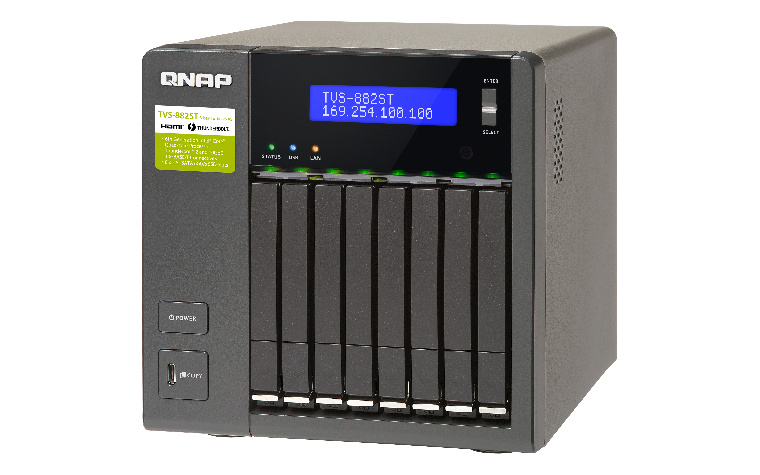

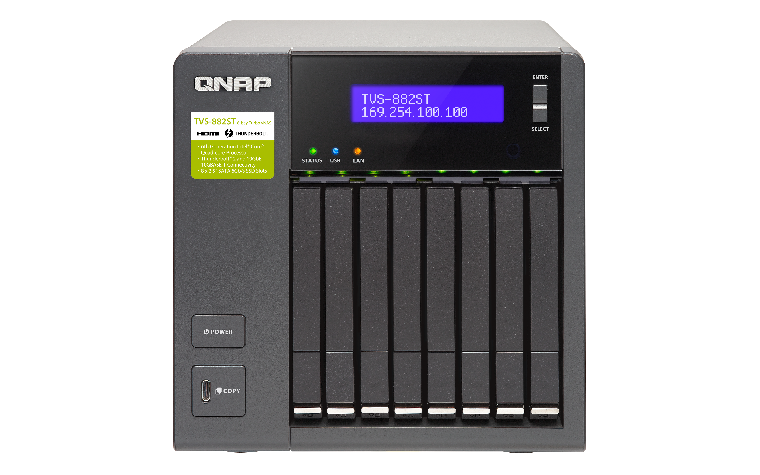

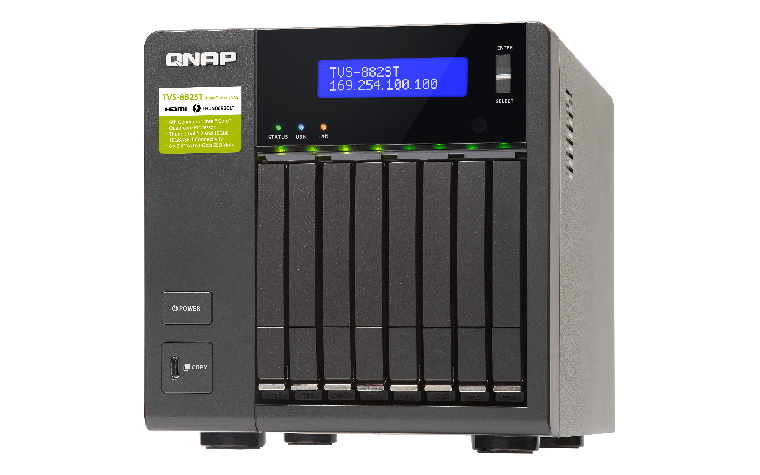

QNAP TVS-882ST2
Thunderbolt™ 2 NAS with eight 2.5” SSD/HDD and 10GbE connectivity

QNAP TVS-882ST2

Sorry, this unit has been discontinued. Please, contact us for a replacement product!

Click here to jump to more pricing!

Overview:

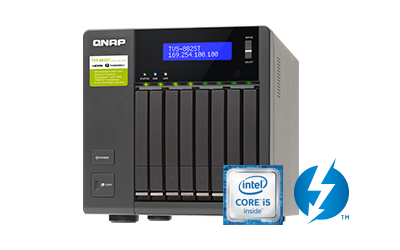

The TVS-882ST2 is powered by an Intel® 6th Generation Core™ i5 Quad-core processor with AES-NI hardware encryption and provides a Thunderbolt™ 2/NAS/iSCSI SAN triple solution. With Thunderbolt™ 2, 10GbE, USB 3.1 Type-C + Type-A 10Gbps, and 4K output it provides the performance and connectivity to empower small offices and studios to take their business to the next level. The software-based Thunderbolt-to-Ethernet (T2E) function also allows Thunderbolt-enabled computers to access Ethernet networks by connecting them to the TVS-882ST2.

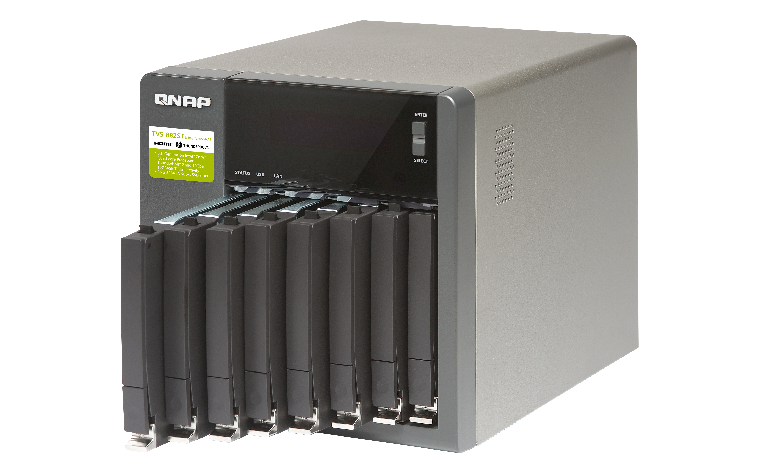

  • Eight 2.5” SATA 6Gb/s SSD/HDD slots
  • High-speed Thunderbolt™ 2 (20Gbps) and 10GbE dual networks
  • High flexibility with USB 3.1Gen 2 10Gbps Type-A & Type-C ports
  • The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
  • 4 available combinations with Mac/PC and JBOD for flexible attaching, sharing and expansion
  • HDMI with 4K 30Hz output
  • Supports QvPC Technology and features integrated virtualization and container solutions
  • Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-882ST2’s storage capacity
  • Scalable up to 56 SSDs/HDDs with the Thunderbolt™ 2 storage expansion enclosures TX-800P/ TX-500P

TVS-882ST2

Specifications:

TVS-882ST2 Specifications
Ordering P/N TVS-882ST2-i5-8G
Processor 6th Genertion 14nm Intel® Core™ i5-6442EQ 1.9 GHz Quad-core processor
Hardware Encryption Accleration , AES-NI
System Memory 8GB DDR4 (2 x 4GB)
Maximum Memory 32GB (2 x 16GB)
Memory slot 2 x SODIMM DDR4
(For dual-DIMM configurations, you must use a pair of identical DDR4L modules.)
Flash Memory 512MB DOM,installed QTS operating system
Drive Type 8 x 2.5" SATA 6Gb/s SSDs/HDDs (up to 9.5mm SSD/HDD support)

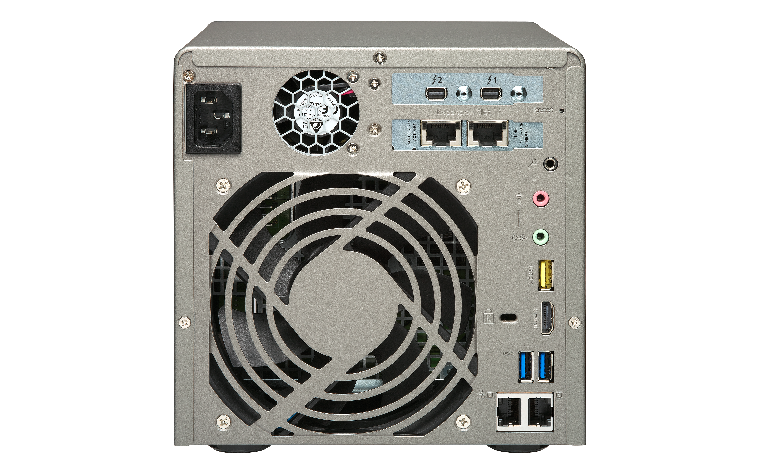

Thunderbolt Port 2 x Thunderbolt™ 2 high-speed port
10GbE Port 2 x 10GbE 10GBASE-T LAN ports
GbE Port 2 x Gigabit RJ45 LAN ports
USB 3.1 Port 1 x Type-C + 1 x Type-A USB 3.1 Gen2 10Gbps
USB 3.0 Port 2
LCD Panel
PCIe Slot 1 x PCIe Gen3 (x8) + 1 x PCIe Gen3 (x4)
Both PCle slots are occupied by a Thunderbolt™ 2 card and a 10GbE adapter
HDMI 1, max. resolution 3840 x 2160 @ 30Hz
Audio Input 3.5mm microphone jacks (dynamic microphones only)
Audio Output 3.5mm Line Out jacks (for amplifier or headphone amplifier)
LED Indicator Status/Power、USB、Drive 1-8
Button Power/Status, USB Auto Copy, Reset
IR Sensor , supports QNAP RM-IR004 remote controls
Other Kensington security slot,console port
Dimension (H x W x D) 177 x 180 x 235 mm
6.97 x 7.09 x 9.25 inch
Weight Net:3.97 kg (8.75lbs)
Operating Temperature 0 ~ 40˚C
Relative Humidity 5~95% RH non-condensing, wet bulb:27˚C
Noise Level 15.2 dB (A)
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS
Power Consumption HDD standby:25.57W
In operation:42.70W
(with 8 x 1TB HDDs installed)
Power ATX 240W,Input:100V-240V ~ / 3.5A, 47Hz-63Hz
Fan 1 x 12cm (12V DC)
Designs and specifications are subject to change without notice.
