QNAP TVS-951X
High-capacity, highly-compact 9-bay multimedia NAS with 10GbE connectivity

QNAP TVS-951X

QNAP Products TVS-951X
Enterprise Storage
QNAP TVS-951X (8GB RAM version) 5+4 bay NAS with auto data tiering. Intel® Celeron® dual-core 1.8 GHz, 8GB DDR4 SODIMM RAM (max 32GB), 5 x 3.5" and 4 x 2.5" drive slots, 1 x 10GbE NBASE-T LAN, 1 x GbE LAN, 1 x HDMI v1.4b, hardware encryption
#TVS-951X-8G-US
Our Price: $849.00
QNAP TVS-951X 5+4 bay NAS with auto data tiering. Intel® Celeron® dual-core 1.8 GHz, 2GB DDR4 SODIMM RAM (max 32GB), 5 x 3.5" and 4 x 2.5" drive slots, 1 x 10GbE NBASE-T LAN, 1 x GbE LAN, 1 x HDMI v1.4b, hardware encryption
#TVS-951X-2G-US
Our Price: $699.00

Click here to jump to more pricing!

Overview:

The TVS-951X is powered by a 7th-generation Intel® Celeron® 3865U low-power dual-core processor, with 2GB/8GB DDR4 dual-channel memory (up to 32GB) and features a hybrid drive bay design (including five 3.5-inch drive bays and four 2.5-inch SSD bays) that supports up to nine drives in the same physical space as a 5-bay NAS. When 2.5-inch SSDs are installed in their dedicated bays, you can enable SSD caching and Qtier auto-tiering technologies to boost overall system performance. As the price of SSDs continues to become more accessible, the TVS-951X provides a high-performance and budget-friendly storage solution for SMBs. The TVS-951X also features a built-in 10GBASE-T/NBASE-T port for you to build a 10GbE high-speed network environment.

feat-logo

Hybrid structure for enabling SSD and tiered storage

SSD prices continue to fall, but creating a full-SSD storage solution is still out of reach for most users - especially if they require high-capacity storage. The TVS-951X provides the ability to use a hybrid storage structure that leverages the benefits of both hard drives and SSD to provide high storage capacity and high performance. You can flexibly allocate applications to SSDs, set up a SSD cache, or use Qtier™ technology to automatically tier your frequently-accessed files to the SSD for the highest access speeds. Users can take advantage of these features to fully optimize the storage utilization of the TVS-951X.

7th-generation Intel® Celeron® 3865U dual-core 1.8 GHz CPU

Powered by a 7th-generation 14nm Intel® Celeron® Kaby Lake 3865U dual-core 1.8 GHz processor, with 2GB/8GB DDR4 dual-channel memory (up to 32GB), and SATA 6Gb/s HDD and SSD drives, the TVS-951X delivers high-performance read/write speeds and maintains high speeds even with AES-NI encryption enabled.

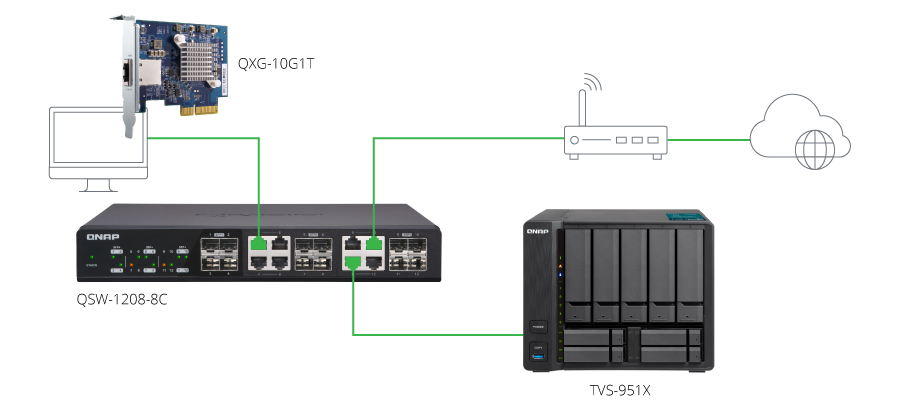

High-speed 10GbE network connectivity

TVS-951X features a built-in 10GBASE-T network port to provide 10GbE high-speed network connectivity. You can use the TVS-951X with QNAP's 10GbE unmanaged switch (sold separately) to upgrade your network infrastructure to benefit from faster transfer speeds and to improve bandwidth-demanding applications. Both the TVS-951X and QNAP's 10GbE unmanaged switches support NBASE-T (10G/5G/2.5G/1G/100M) five-speed network technology so you don’t have to replace the existing Cat 5e, 6 and 6a cables in your current network infrastructure.

feat-logo
feat-logo

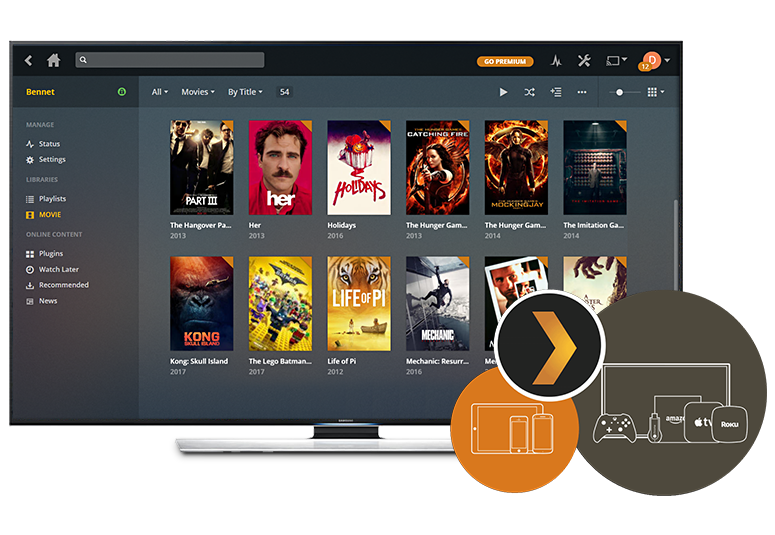

Real-time 4K video transcoding

Featuring advanced Intel® HD Graphics 610, the TVS-951X supports dual-channel 4K H.264/H.265 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be smoothly played on multiple devices*. You can also watch high-quality 4K media files on a HDTV using the HDMI output or use with Plex® Media Server to stream media files to mobiles devices and media streaming devices (including DLNA®, Roku®, Apple TV®, Amazon Fire TV® and Chromecast™).The QNAP RM-IR004 remote control (sold separately) can be configured using QButton to customize the actions of individual buttons, providing a more convenient NAS experience.

*The TVS-951X’s hardware provides H.264 /H.265 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.

Enjoy the Roon experience without a PC

Roon, the music player for music lovers, identifies all the music stored on the NAS and consolidates them in Roon’s interconnected digital library. You can browse and play music with Roon apps on any compatible device for multi-zone multimedia experiences. The TVS-951X supports the Roon Server app in the QTS App Center and provides the performance, storage potential, and SSD caching to optimize music streaming, providing the perfect choice for the optimum music experience!

feat-logo

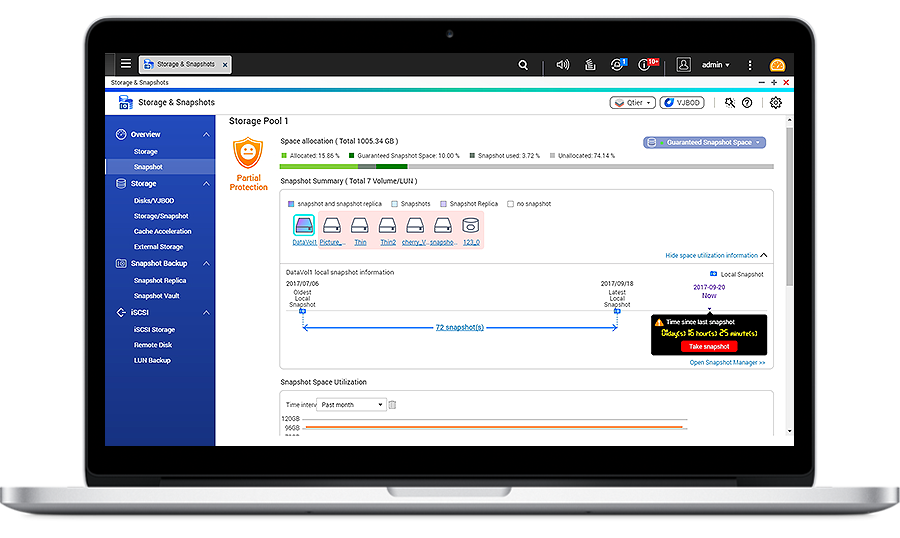

Protect data with snapshots

Snapshots help protect your data by fully recording the NAS system state and metadata. If a file is accidentally deleted or modified, you can use snapshots from the Storage & Snapshots Manager or the File Station to quickly restore the file to its previously-recorded state. QNAP snapshots are block-based and only record the changed data. Not only does this save storage space but also reduces the time required to back up and restore data. The TVS-951X supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots in total.

feat-logo

Features:

feat-logo

A single 10GBASE-T/NBASE-T port provides 10GbE connectivity for accelerating virtualization tasks and file sharing.

feat-logo

Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

feat-logo

Snapshots fully record the system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

feat-logo

Full support for virtualization and containerized applications, centralized storage, backup, sharing, and disaster recovery.

feat-logo

4K media playback and online transcoding. HDMI output for direct multimedia playback.

feat-logo

Expand available storage with UX-800P or UX-500P expansion enclosures or by using QNAP's VJBOD technology to use the unused storage capacity of other QNAP NAS.

Specifications:

CPU Intel® Celeron® 3865U dual-core 1.8 GHz processor
Graphics Intel® HD Graphics 610
Encryption Acceleration ,AES-NI
System Memory 8 GB DDR4 (2 x 4 GB)
Maximum Memory 32 GB (2 x 16 GB)
Memory Slot 2 x SODIMM DDR4, with dual-channel support
Flash Memory 512MB DOM
Drive Bay 5 x 3.5" SATA 6 Gbps HDD
4 x 2.5" SATA 6 Gbps SSD
Drive Compatibility 3.5" drive bay
• 3.5" SATA 6Gb/s HDD
• 2.5" SATA 6Gb/s HDD
• 2.5" SATA 6Gb/s SSD

2.5" drive bay
• 2.5" SATA 6Gb/s SSD
SSD Cache Acceleration Support • 3.5" drive bay:1 to 5
• 2.5" drive bay:1 to 4
10 Gigabit Ethernet Port 1 x RJ45 10GBASE-T, supporting 10G/5G/2.5G/1G/100M speeds
Note: Please use Cat 6a or Cat 7 LAN cables (optional purchase) to achieve 10GbE speed over longer distance.
Gigabit Ethernet Port 1 x RJ45
USB Port 3 x USB 3.0 (Front:1;Rear:2)
USB One Touch Copy Front:USB 3.0 Type-A
HDMI Output 1 x HDMI v1.4b, up to 4096 x 2304, 24 Hz
IR sensor Yes, supporting QNAP RM-IR004 remote control (optional purchase)
Audio 1 x speaker
1 x 3.5 mm line-out jack
Alarm buzzer

Note: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators Status/power、LAN、USB、HDD 1 - 5、SSD 1 - 4
Buttons Power, Reset, USB One-touch-copy
System Warning Alarm buzzer and voice prompts
Form Factor Tower
Dimensions (H x W x D) 182 x 225 x 224 mm
( 7.17 x 8.86 x 8.82 inch)
Weight Net weight: 3.53 kg (7.78 lbs)
Power Consumption (W) HDD standby:23.38W
In operation:39.37W
(with 5 x 1TB HDDs and 4 x 120GB SSDs installed)
Sound Level Sound pressure(LpAm): 17.6 dB(A)
Power Supply Unit 120W 100-240V AC adapter
Fan 1 x 14cm smart fan (12V DC)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot
CPU Intel® Celeron® 3865U dual-core 1.8 GHz processor
Graphics Intel® HD Graphics 610
Encryption Acceleration ,AES-NI
System Memory 2 GB DDR4 (1 x 2 GB)
Maximum Memory 32 GB (2 x 16 GB)
Memory Slot 2 x SODIMM DDR4, with dual-channel support
Flash Memory 512MB DOM
Drive Bay 5 x 3.5" SATA 6 Gbps HDD
4 x 2.5" SATA 6 Gbps SSD
Drive Compatibility 3.5" drive bay
• 3.5" SATA 6Gb/s HDD
• 2.5" SATA 6Gb/s HDD
• 2.5" SATA 6Gb/s SSD

2.5" drive bay
• 2.5" SATA 6Gb/s SSD
SSD Cache Acceleration Support • 3.5" drive bay:1 to 5
• 2.5" drive bay:1 to 4
10 Gigabit Ethernet Port 1 x RJ45 10GBASE-T, supporting 10G/5G/2.5G/1G/100M speeds
Note: Please use Cat 6a or Cat 7 LAN cables (optional purchase) to achieve 10GbE speed over longer distance.
Gigabit Ethernet Port 1 x RJ45
USB Port 3 x USB 3.0 (Front:1;Rear:2)
USB One Touch Copy Front:USB 3.0 Type-A
HDMI Output 1 x HDMI v1.4b, up to 4096 x 2304, 24 Hz
IR sensor Yes, supporting QNAP RM-IR004 remote control (optional purchase)
Audio 1 x speaker
1 x 3.5 mm line-out jack
Alarm buzzer

Note: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators Status/power、LAN、USB、HDD 1 - 5、SSD 1 - 4
Buttons Power, Reset, USB One-touch-copy
System Warning Alarm buzzer and voice prompts
Form Factor Tower
Dimensions (H x W x D) 182 x 225 x 224 mm
( 7.17 x 8.86 x 8.82 inch)
Weight Net weight: 3.53 kg (7.78 lbs)
Power Consumption (W) HDD standby:23.38W
In operation:39.37W
(with 5 x 1TB HDDs and 4 x 120GB SSDs installed)
Sound Level Sound pressure(LpAm): 17.6 dB(A)
Power Supply Unit 120W 100-240V AC adapter
Fan 1 x 14cm smart fan (12V DC)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot

Documentation:

Download the QNAP TVS-951X Specification Sheet (PDF).
