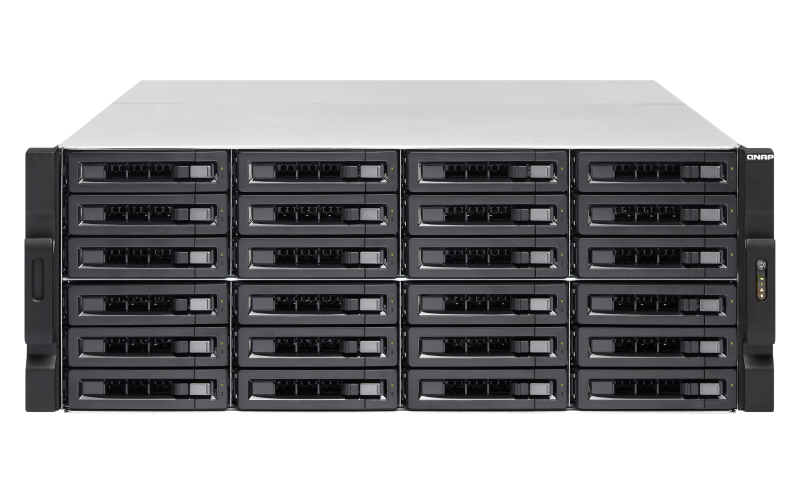

QNAP TVS-EC2480U-SAS-RP R2
24-bay 12Gbps SAS-enabled high-performance NAS/iSCSI/IP-SAN unified storage with dual built-in 10GbE ports

QNAP TVS-EC2480U-SAS-RP
QNAP Products
Enterprise
QNAP 24-bay NAS and iSCSI/ IP-SAN. 4U, SAS 12G, SAS/SATA 6G, 4LAN, 10G-ready, Redundant PSU
#TVS-EC2480U-SAS-RP-8GE-R2-US
Our Price: $7,899.00
QNAP 24-bay NAS and iSCSI/ IP-SAN. 4U, SAS 12G, SAS/SATA 6G, 4LAN, 10G-ready, Redundant PSU
#TVS-EC2480U-SAS-RP-16G-R2-US
Our Price: $7,899.00

Click here to jump to more pricing!

Overview:

QNAP TVS-EC2480U-SAS-RP R2 is the world's first unified NAS supporting Auto Tiering to deliver ongoing optimization of data across high-performance SSD, 12Gbps SAS drives and high-capacity SATA disks. Powered by an Intel® Xeon E3 CPU, the 40GbE-ready TVS-EC2480U-SAS-RP R2 delivers exceptional performance and supports cross-platform file sharing, comprehensive backup solutions, iSCSI & virtualization applications, and more practical business functions. With the powerful QTS operating system, the TVS-EC2480U-SAS-RP R2 performs as a reliable, scalable and unbeatable unified and tiered storage solution for businesses.

  • Built-in 10GbE, highly-efficient storage solution with high speed network for HD video editing and sharing
  • 3,800+ MB/s throughput and 267,000+ IOPS
  • Qtier Technology drives Auto Tiering for optimal storage efficiency
  • Built-in 256GB mSATA modules for caching, beneficial to IOPS-demanding applications
  • Scalable design, up to 1,216 TB total capacity
  • Virtualization-ready, centralized data storage, backup, sharing and disaster recovery
  • Backward compatible with SAS/SATA 6Gbps drives

In the era of big data, there is a wealth of data generated and exchanged by the billion of devices on the Internet of Everything (IoE) and across hybrid cloud devices. The rampant data growth requires increasingly flexible storage solutions that will ensure business continuity. QNAP has strived to provide enterprises and SMBs with the facilities and tools to attain storage services to meet the evergrowing capacity demand and results in reduced overall operation risks and costs.

Besides managing data growth, another major challenge for an organization is its ability to keep existing data available and protected in the event of a disaster or system failure. QNAP’s flexible storage solutions incorporate features such as tiered storage, snapshots, thin provisioning, and LUN backup to better match specific business requirements and cope with disastrous situations.

The QNAP 12Gbps SAS is more reliable and has better storage I/O performance than the 6G model. Furthermore, it is backward compatible with 6Gbps SAS HDDs. Our 12Gbps JBOD Expansion enclosures not only strengthen the organization’s disaster recovery system but also satisfy the growing need to expand storage capacity at different stages as organizations seek to adapt to more demanding business environments.

QNAP NAS has demonstrated its ability to offer a complete product portfolio that fits for every SMB and small to medium enterprise, including a wide range of hard disk models and iSCSI SAN solutions.

Features:

Enable Auto Tiering with Qtier Technology

QNAP’s Qtier Technology empowers the TVS-EC2480U-SAS-RP with Auto Tiering that helps continuously optimize storage efficiency. With Auto Tiering, the TVS-EC2480U-SAS-RP can automatically move hot data to high-performance storage tiers and cold data to lower-cost, higher-capacity drives, making the TVS-EC2480U-SAS-RP an extremely efficient shared resource. Businesses will no longer have to invest heavily in expensive Flash technology, but can still enjoy exceptional application performance and lower TCO of storage from Auto Tiering with the TVS-EC2480U-SAS-RP.

Enable Auto Tiering with Qtier Technology

12Gbps DataBolt™ Advantage

Implementing DataBolt technology, the TVS-EC2480U-SAS-RP can deliver twice the throughput for 6Gbps SAS drives by automatically aggregating the bandwidth from 3Gbps and 6Gbps drives to fully utilize 12Gbps, effectively accelerating the existing infrastructure.

12Gbps DataBolt™ Advantage

Excellent performance

The TVS-EC2480U-SAS-RP supports 12Gbps SAS drives to provide fast data transmission speeds and drive up to 3,812 MB/s throughput and 267,726 IOPS*. Powered by an Intel® Xeon® E3 v3 quad-core processor with 16GB DDR3 or 8GB DDR3 ECC RAM, the TVS-EC2480U-SAS-RP greatly enhances the efficiency of CPU-demanding tasks and serves more concurrent tasks.

Excellent performance760
Tested in QNAP Lab. Figures may vary by environment. Test Environment:
4 Client PC configurations: Intel (R) Core (TM) i7-4790 CPU @ 3.60GHz CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit, Dual-port Intel X520 10GbE Server Adapter, IOMeter sequential read and write.
NAS Configuration: Plextor PX-256MPro ; F/W:1.07, SSDs with RAID 5 configuration, QNAP LAN-10G2T-U dual-port 10GBase-T network adapter*2

SSD cache acceleration

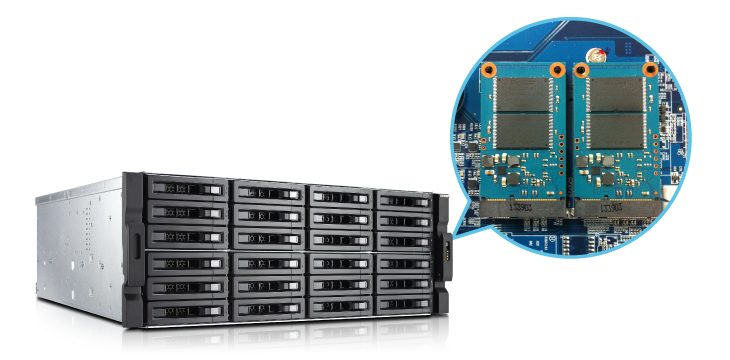

The TVS-EC2480U-SAS-RP features 2 pre-installed 128GB mSATA modules, and there are no limits on using SSDs for caching. By installing high-performance SSDs, the IOPS performance of storage volumes can remarkably boost. It is perfect for improving overall workflow of random IOPS demanding applications such as database and virtualization. The internal cache port design reserves the space of hard drive tray for more storage capacity.

SSD cache acceleration

Removable motherboard drawer for easy maintenance

With the TVS-EC2480U-SAS-RP's removable motherboard drawer, IT administrators have easier access in upgrading/installing RAM, the internal cache, 40GbE adapter and other components. The motherboard itself can be removed and replaced without needing to remove the heavy TVS-EC2480U-SAS-RP from the rack cabinet, making it especially useful in maintaining the TVS-EC2480U-SAS-RP in data centers with multiple rack cabinets.

Removable motherboard drawer for easy maintenance
Note: The TVS-EC2480U-SAS-RP is not hot-pluggable and must be powered-off before removing the motherboard drawer.

Get ready for 40GbE to your TVS-EC2480U-SAS-RP

The TVS-EC2480U-SAS-RP offers four inbuilt Gigabit Ethernet ports and supports 10 Gigabit high speed network by installing 10GbE network adapter. If 10GbE is insufficient for some workloads, the TVS-EC2480U-SAS-RP supports Mellanox® ConnectX-3 Pro adapter cards with 10/40/56 Gigabit Ethernet connectivity to deliver the most cost-effective computing and storage Ethernet Interconnection solution. It helps achieve significantly higher throughput for high-performance embedded I/O applications and virtualization acceleration. Businesses can greatly benefit from the fast, flexible storage network of the 40GbE-ready TVS-EC2480U-SAS-RP for boosting their mission-critical IT performance.

Get ready for 40GbE to your TVS-EC2480U-SAS-RP

5 year warranty - Global warranty inclusive5 year warranty - Global warranty inclusive

QNAP's TVS-EC2480U-SAS-RP offers 5 year warranty with 3-year global warranty inclusive at no extra cost. This premier warranty demonstrates QNAP’s attention to the essential business needs of continuous operations and non-interrupted services to their customers.

QTS - Simple and efficient

Thanks to the intuitive user interface of QTS, your NAS experience is smarter, smoother and spectacular. Its modern flat design streamlines loading times, and the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.

QTS - Simple and efficient

Volume & LUN snapshot simplifies restoration

QTS Storage Manager adds an easy-to-use web-based snapshot tool for you to easily back up and restore data on the TVS-EC2480U-SAS-RP back to any point of time to prevent loss of important data. You can take snapshots for both volumes and LUN, efficiently replicate volume/LUN snapshots to remote servers by copying only the changes made, and quickly clone a volume /LUN snapshot as a local volume without interrupting the current system operation. You can even set up the system to automatically take a snapshot of the volume before backup via RTRR/rsync, even when the file is opened.

Volume & LUN snapshot simplifies restoration

Seamless capacity expansion

The TVS-EC2480U-SAS-RP R2 supports online capacity expansion by cascading multiple QNAP RAID expansion enclosures to meet the needs of growing business data. With QNAP scale-up solution, total storage capacity can be gradually expanded on demand. It is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage.

The maximum total storage capacity available by connecting RAID expansion enclosures:

Turbo NAS Model RAID Expansion Enclosure No. of RAID Expansion Enclosures Total HDD No. (NAS + Enclosures) Max. Raw Capacity (TB)
TVS-EC2480U-SAS-RP R2 REXP-1620U-RP 8 152 1216
7 136 1088
6 120 960
5 104 832
4 88 704
3 72 576
2 56 448
1 40 320
REXP-1220U-RP 8 120 960
7 108 864
6 96 768
5 84 672
4 72 576
3 60 480
2 48 384
1 36 288
*The maximum capacity is calculated by 8TB HDDs.

Powerful QNAP flexible volume

QNAP's flexible volume provides a more secure and flexible way to store NAS data. This next-generation volume offers powerful features such as storage pooling with multiple RAID group protection, thin provisioned volume with space reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage Manager neatly presents tools and options for managing system storage which simplifies the process of NAS capacity expansion and QNAP RAID expansion enclosure management.

Powerful QNAP flexible volume

Qsirch – A smarter, faster way to search

Quickly and easily find documents, photos, videos, and music with Qsirch, QNAP’s new built-in NAS search application lets you find what you need by real-time, natural search. Simply type in as much as you know about what you are trying to find, including parts of the file name or even words/phrases in the document, and Qsirch will display a list of matches – complete with thumbnails – as you type. Qsirch even remembers your search history so you can quickly navigate to files you’ve previously searched for. Qsirch is a huge productivity boost that greatly reduces the time spent looking for files on the NAS, allowing you to focus on other tasks.

Qsirch – A smarter, faster way to search

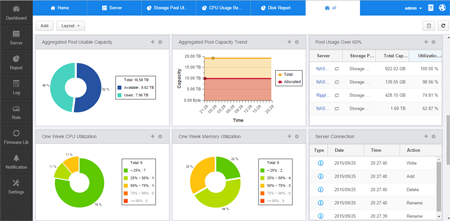

Monitor and manage multiple NAS with Q'center

Q'center turns your TVS-EC2480U-SAS-RP into a central management system to manage multiple QNAP NAS units. After installing Q'center in the QTS App Center, you can use the TVS-EC2480U-SAS-RP to centrally manage multi-site QNAP NAS for monitoring system logs, manage firmware updates & maintenance, and enjoy major benefits including ease-of-use, cost-efficiency, convenience and flexibility. Managing multiple QNAP NAS becomes effortlessly easy and efficient.

Monitor and manage multiple NAS with Q'center

Cross-platform file sharing, centralized data storage

The TVS-EC2480U-SAS-RP supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux/UNIX networks. Data, logs and ISO images of CDs and DVDs can be centrally stored on the TVS-EC2480U-SAS-RP and protected by an integrated antivirus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using existing Windows AD server, LDAP server or NAS build-in LDAP services.

Cross-platform file sharing, centralized data storage

Well-rounded backup solutions to secure data

The QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with a solution to effortlessly back up data to the TVS-EC2480U-SAS-RP.

Backup solutions to secure data

Disaster recovery solutions brings peace of mind

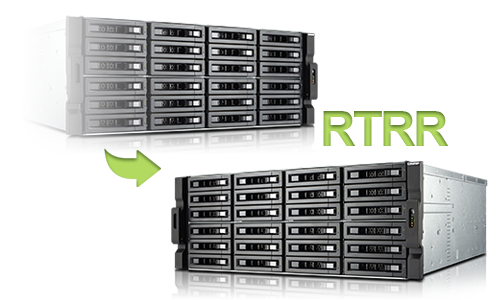

The TVS-EC2480U-SAS-RP offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote QNAP NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency and reduced backup time. The TVS-EC2480U-SAS-RP also supports rsync protocol to back up data to another remote server on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, Amazon Glacier, Microsoft® OneDrive, Windows Azure, ElephantDrive®, Dropbox®, Google® Drive, Yandex, Google Cloud Storage, and more.

Disaster recovery solutions

Comprehensive security options

In an open network environment, business data may be exposed in a potential hack. The TVS-EC2480U-SAS-RP provides numerous security options, such as encrypted access, IP blocking, and more. Besides, IT administrators can control the access rights of each user to different folders, preventing unauthorized access to important files. The TVS-EC2480U-SAS-RP is validated with military-level FIPS 140-2 AES 256-bit encryption, preventing sensitive business data from unauthorized access and breach even if the hard drives or the entire system were stolen.

Data Security

Storage for comprehensive virtualization applications

The TVS-EC2480U-SAS-RP supports VMware® and Citrix®, and is compatible with Microsoft® Hyper-V™ and Windows Server 2012, benefiting flexible deployment and management in virtualization environments. The TVS-EC2480U-SAS-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications.

Storage for comprehensive virtualization applications

Run multiple operating systems on the TVS-EC2480U-SAS-RP

The Virtualization Station transforms the TVS-EC2480U-SAS-RP into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform supporting multiple operating systems, fast virtual machine (VM) creation, VM backup & restoration, VM import/export, snapshot, and enables desktop operations in web browsers. With an easy-to-use interface, you can centrally manage every VM created on the TVS-EC2480U-SAS-RP with minimal effort. You can download VMs on demand from online VM markets and import them to TVS-EC2480U-SAS-RP to use directly without any complex procedures.

Run multiple operating systems

Container Station – LXC and Docker Containers inclusive

QNAP Container Station exclusively integrates LXC and Docker lightweight virtualization technologies, allowing you to operate multiple isolated Linux systems on the TVS-EC2480U-SAS-RP as well as download apps from the built-in Docker Hub Registry. It supports container import/export and permission settings, and features an informative dashboard and flexible user interface for you to manage multiple containers. You can experience the amazing Container Station and enjoy the playground of virtual containers with the TVS-EC2480U-SAS-RP.

Container Station

Highly-efficient storage solution for video editing

Digital video production produces a significant amount of data that requires high-performance storage with sustainable throughput to meet the demanding output of video editing. The TVS-EC2480U-SAS-RP fulfills storage and video editing needs with a high-speed 10GbE network interface. Videos can be quickly stored and edited on the TVS-EC2480U-SAS-RP directly over the network.

Highly-efficient storage solution for video editing

File synchronization across multiple devices

The Qsync utility turns your TVS-EC2480U-SAS-RP into a safe data center for file synchronization with a large storage capacity. Any file uploaded to the TVS-EC2480U-SAS-RP will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most updated files on different devices. Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration.

File synchronization across multiple devices

Comprehensive surveillance solution with 24/7 security

The TVS-EC2480U-SAS-RP’s Surveillance Station offers a professional surveillance solution with a user-friendly management interface, a wide range of over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS® or Android™ mobile devices to manage the monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam app to turn your mobile device into a network camera to instantly record any moment around you to your TVS-EC2480U-SAS-RP.

Comprehensive surveillance solution with 24/7 security

Install-on-demand apps extend NAS features

The TVS-EC2480U-SAS-RP has a built-in App Center that provides over 100 install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. In addition, QNAP’s development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless potential for the TVS-EC2480U-SAS-RP.

Install-on-demand apps extend NAS features

Additional SMB-ready features

The TVS-EC2480U-SAS-RP R2 supports various business applications as an all-in-one Turbo NAS with cost-efficiency.

FTP Server Web Server RADIUS Server
FTP Server
The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission.
Web Server
The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT cost.
RADIUS Server
The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service.
VPN Server Print Server Surveillance Station
VPN Server
The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.
Print Server
The Turbo NAS can be used as a Printer server to send remote printing request via the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.
Surveillance Station
The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.

Specifications:

  TVS-EC2480U-SAS-RP-16G R2 TVS-EC2480U-SAS-RP-8GE R2
CPU Intel® Xeon® E3-1246 v3 Family 3.5 GHz Quad-core Processor
Memory System memory: 16 GB DDR3 RAM
Memory module pre-installed: 8 GB x2
Total memory slots: 4
Memory expandable up to: 32 GB (8GB x4)
Note:
  • ECC RAM and non-ECC RAM cannot be used at the same time in the NAS.
System memory: 8 GB DDR3 ECC RAM
Memory module pre-installed: 4 GB x2
Total memory slots: 4
Memory expandable up to: 32 GB (8GB x4)
Note:
  • ECC RAM and non-ECC RAM cannot be used at the same time in the NAS.
Flash Memory 512MB DOM
Internal Cache Port Two mSATA port on board for read caching. The standard system is shipped with two 128GB mSATA flash.
Hard Drive 24 x 3.5-inch SAS 12Gbps, SAS/SATA 6Gbps/3Gbps hard drive or 2.5-inch SAS/SATA SSD hard drive
Note:
  • The standard system is shipped without hard drives.
  • For the hard drive compatibility list, please visit https://www.qnap.com/compatibility

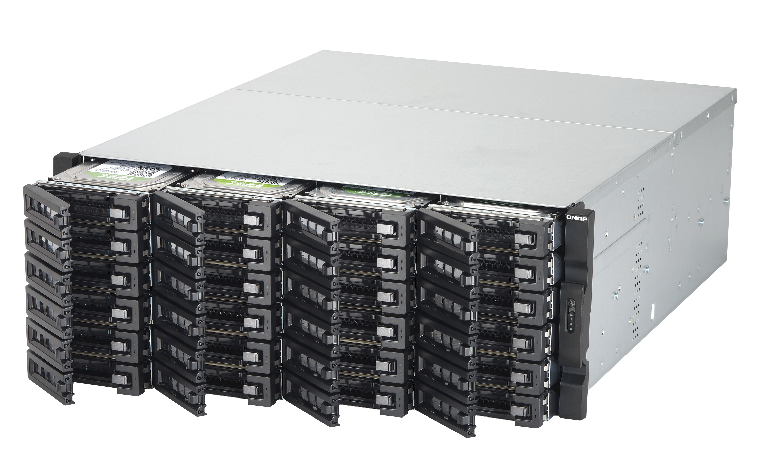

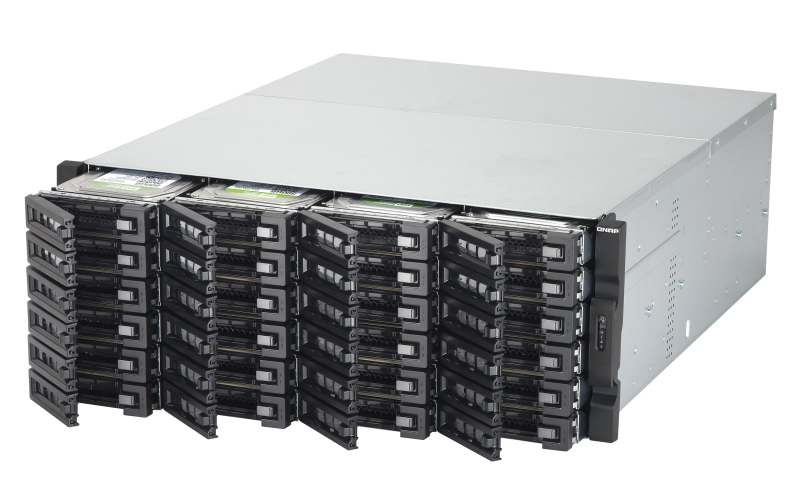

Hard Drive Tray 24 x hot-swappable and lockable tray
LAN Port 4 x Gigabit RJ-45 Ethernet port (Expandable up to 8 x 1 Gb LAN or 4 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card)
LED Indicators 10 GbE, Status, LAN, Storage expansion port status
USB 4x USB 3.0 port (rear)
4x USB 2.0 port (rear)
Support USB printer, pen drive, USB hub, and USB UPS etc.
Buttons System: Power button and reset button
Alarm Buzzer System warning
Form Factor 4U, Rackmount
Dimensions 176.15(H) x 442.5(W) x 530.5(D) mm
6.94(H) x 17.42(W) x 20.89(D) inch
Weight Net weight (NAS only) : 23.08 kg/50.88 lb
Gross weight (with packing and accessories) : 28.56 kg/ 62.96 lb
Sound Level (dB) Sound Level (dB) Sound pressure (LpAm) (bystander position): 48.3 dB
(with 24 x HITACHI HUS724020ALA640 hard drive installed)
Power Consumption (W) Sleep mode: 129.43
In Operation: 263.81 W
(with 24 x HITACHI HUS724020ALA640 hard drive installed)
Temperature 0-40˚C
Relative Humidity 5~95% non-condensing, wet bulb: 27˚C
Power Supply Redundant power: Input 90~264VAC; 650W x 2
PCIe Slot 2 (Left slot: 1* PCIe Gen3 x8; Right slot: 1* PCIe Gen3 x4)
Fan 4 x 8 cm smart cooling fan

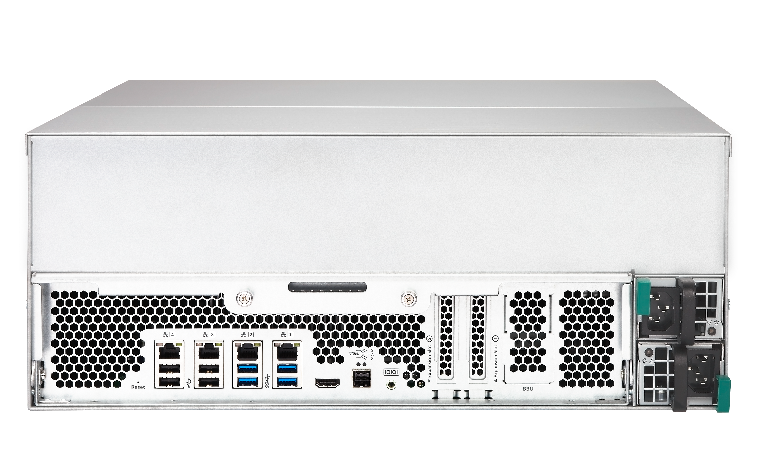

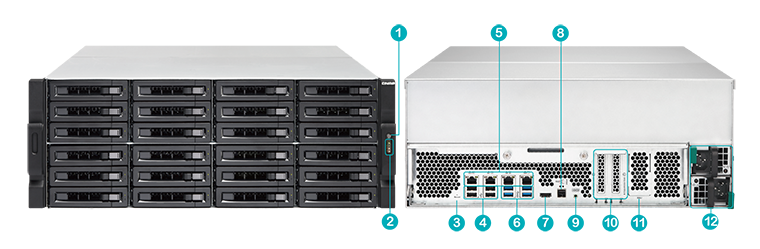

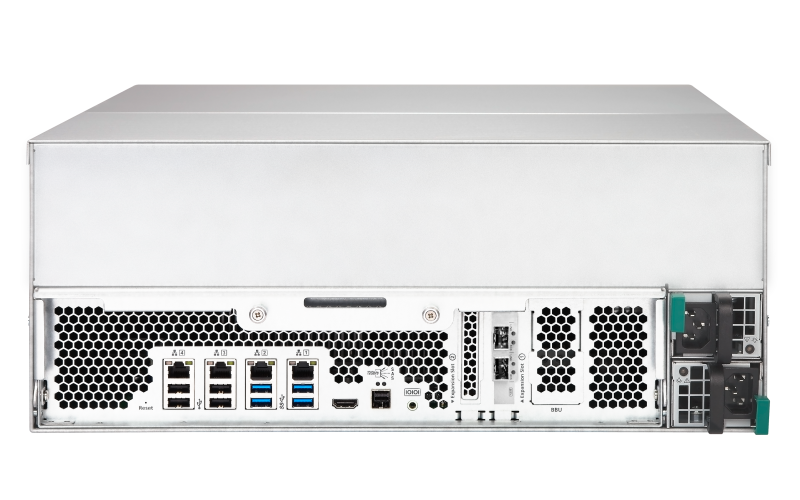

QNAP TVS-EC2480U-SAS-RP
1. Power Button 7. HDMI
2. LED Indicators: 10 GbE, Status, LAN, Storage Expansion Port Status 8. 12G mini SAS connector
3. Password & Network Settings Reset Button 9. Console
4. USB 2.0 Port x 4 10. PCIe slot x 2 (Left slot: 1* PCIe Gen3 x8; Right slot: 1* PCIe Gen3 x4)
5. Gigabit LAN x 4 11. BBU (Reserved)
6. USB 3.0 Port x 4 12. Power Connector

Software Specifications:


Operating System
  • QTS 4.2 (embedded Linux)

Supported Clients

  • Windows Server 2003 onward, Apple Mac OS X onward, Linux & UNIX

Supported Browsers

  • Microsoft Internet Explorer 10
  • Mozilla Firefox 8+
  • Apple Safari 4+
  • Google Chrome

Multilingual Support

  • Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

File System

  • Internal Hard Drive: EXT4
  • External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+

Networking

  • TCP/IP (IPv4 & IPv6: Dual Stack)
  • Quad Gigabit NICs with Jumbo Frame*
    • Failover
    • Multi-IP Settings
    • Port Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-TLB and Balance-ALB)
  • Optional Dual-port 10 GbE and 1 GbE Network Expansion Cards*
  • Service Binding Based on Network Interfaces*
  • Proxy Client, Proxy Server
  • DHCP Client, DHCP Server
  • Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  • UPnP & Bonjour Discovery
  • USB Wi-Fi Adapter Support

Security

  • IP Filter & Policy-based Automatic IP Blocking
  • Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  • Encrypted Access: HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH)
  • CIFS Host Access Control for Shared Folders
  • Antivirus Protection
  • FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption**
  • AES 256-bit External Drive Encryption*
  • Importable SSL Certificate
  • Instant Alert via E-mail, SMS, Beep, and LCD Panel*

Disk Management

  • QNAP Flexible volume
  • Thin-provisioning with space reclamation supported
  • Online Volume Expansion
  • Online Storage Pool Expansion (via QNAP RAID expansion enclosure)
  • Single Disk, JBOD, RAID 0, 1, 5, 6, 10
  • RAID Hot Spare and Global Hot Spare
  • Online RAID Capacity Expansion and Online RAID Level Migration
  • Bad Block Scan and Hard Drive S.M.A.R.T.
  • Bad Block Recovery
  • RAID Recovery
  • Bitmap Support

Power Management

  • Wake on LAN *
  • Internal Hard Drive Standby Mode
  • Scheduled Power on/off
  • Automatic Power on after Power Recovery
  • USB and Network UPS Support with SNMP Management

Access Right Management

  • Batch Users Creation
  • Import/Export Users
  • User Quota Management
  • Local User Access Control for CIFS, AFP, FTP, and WebDAV,
  • Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and Web File Manager

Domain Authentication Integration

  • Microsoft Active Directory (AD)
  • LDAP Server
  • LDAP Client
  • Domain Users Login via CIFS/SMB, AFP, FTP, and File Station

Web Administration

  • Multi-window, Multi-tasking based System Management
  • Movable Icons and Personalized Desktop
  • Smart Toolbar and Dashboard for Neat Display on System Status
  • Smart Fan Control
  • Dynamic DNS (DDNS)
  • SNMP (v2 & v3)
  • Resource Monitor
  • Network Recycle Bin for File Deletion via CIFS/SMB and AFP
    • Automatic Cleanup
    • File Type Filter
  • Comprehensive Logs (Events & Connection)
  • Syslog Client
  • Firmware Live Update
  • System Settings Backup and Restore
  • Restore to Factory Default
  • Mobile App Qmanager for Remote Monitoring

File Server

  • File Sharing across Windows, Mac, and Linux/UNIX
  • Protocols: CIFS/SMB, AFP, NFS, FTP/FTPS, HTTP/HTTPS (Web File Manager), WebDAV
  • Windows ACL
  • Advanced Folder Permission for CIFS/SMB, AFP, FTP
  • Shared Folder Aggregation (CIFS/SMB)

File Station

  • Supports ISO Mounting (Up to 256 ISO Files)
  • Creates and Sends Download Links for Sharing Public Files with Expiration Time and Password Protection
  • Drag-n-drop Files via Chrome and Firefox Browsers
  • Photo, Music, and Video Preview and Playback Empowered by Built-in Transcoding Technology
  • File Compression (ZIP or 7z)
  • Advanced Search
  • Mobile App: Qfile for File Browsing and Management
FTP Server
  • FTP over SSL/TLS (Explicit)
  • Concurrent Connections: Max 256
  • Passive FTP Port Range Control
  • FTP Bandwidth & Connection Control
  • Supports FXP & Unicode

Backup Station

  • Remote Replication Server (over Rsync)
  • Real-time Remote Replication (RTRR) to another QNAP NAS or FTP Server
  • Works as Both RTRR Server & Client with Bandwidth Control
  • Real-time & Scheduled Backup
  • Encryption, Compression, File Filter, and Transfer Rate Limitation
  • Encrypted Replication between QNAP NAS Servers
  • Desktop Backup by QNAP NetBak Replicator for Windows
  • Apple Time Machine Support with Backup Management
  • Data Backup to Multiple External Storage Devices
  • Synchronizes with Cloud Storage: Amazon S3, ElephantDrive, Symform, Dropbox, and Google Drive
  • Third Party Backup Software Support: Veeam Backup & Replication, Acronis True
  • Image, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc.

iSCSI (IP SAN)

  • iSCSI Target
  • Multi-LUNs per Target
  • Up to 256 Targets/LUNs Combined
  • Supports LUN Mapping & Masking
  • Block-based LUN
  • Thin-provisioned LUN with Space Reclamation supported
  • Online LUN Capacity Expansion
  • Supports SPC-3 Persistent Reservation
  • Supports MPIO & MC/S
  • iSCSI LUN Backup, One-time Snapshot, and Restore
  • iSCSI Connection and Management by QNAP Finder (Windows)
  • Virtual Disk Drive (via iSCSI Initiator)
  • Stack Chaining Master
  • Max No. of Virtual Disk Drives: 8

Server Virtualization & Clustering

  • VMware vSphere (ESX/ESXi 4.x, 5.x)
  • VMware VAAI for iSCSI and VAAI for NAS
  • vSphere Plug-in
  • Citrix XenServer (6.0)
  • Windows Server 2012 Hyper-V
  • Supports Microsoft ODX
  • QNAP SMI-S provider for Microsoft SCVMM
  • Windows Server 2012 Failover Clustering

Virtualization Station

  • Support up to 8 Virtual Machine (32GB RAM is required) creating to run an operating system such as Windows, Linux, Unix.
  • VM import from Virtual Appliances
  • VM export into a virtual appliance in OVF / QVM format
  • VM clone
  • VM snapshot
  • HTML5 based shared remote console

Storage Plug & Connect via Windows Qfinder by QNAP

  • Create and Map Shared Folders
  • Create and Connect to iSCSI Target/LUN

myQNAPcloud Service

  • Private Cloud Storage and Sharing
  • Free Host Name Registration (DDNS)
  • Auto Router Configuration (via UPnP)
  • CloudLink for Remote Access without Complicated Router Setup
  • myQNAPcloud Connect for Easy VPN Connection (Windows VPN Utility)

Qsync

  • Syncs Files among Multiple Devices through the NAS
  • Option for Not Removing Files on the NAS during Synchronization
  • Selective Synchronization
  • Shares Securely with SSL
  • Team Folder
  • Shares Files by Links via E-mail
  • Uploads Photos or Videos to Qsync Folder Automatically via Qfile
  • Restores Files from Network Recycle Bin
  • File Name Conflict Policy
  • Option for Filter Settings
  • Privilege Control for Qsync Users
  • Supports Windows & Mac OS

Web Server

  • HTTP/HTTPS Connections
  • Built-in MySQL Server
  • Web-based Management via phpMyAdmin (QPKG)
  • Virtual Hosts: Max 32

Syslog Server

  • Centralized Log Monitoring and Archiving
  • Immediate Email Alerts
  • Supports Log Filtering

Print Server

  • Max No. of Printers: 3
  • Supports Internet Printing Protocol
  • Print Job Display and Management
  • IP-based and Domain Name-based Privilege Control
  • Supports Apple Bonjour Printing

Database Server

  • Built-in MySQL Server
  • Web-based Management via phpMyAdmin

RADIUS Server

  • Centralized Account Management and Authentication for Network Access
  • Supports 802.1x Security Authentication
  • TFTP Server with PXE Booting (Read-only)

VPN Server

  • Secure Remote Access: PPTP & OpenVPN VPN services
  • Remote Access to Other Resources on Local Network
  • Max No. of Clients: 30

Surveillance Station Pro

  • Supports over 1,400 IP Cameras
  • Includes 8 Free Camera License
  • Up to 80 Camera Channels via Additional License Purchase*
  • Intelligent Video Analytics (IVA) for Advanced Video Search
  • Visual Aid by E-map
  • Surveillance Client for Mac
  • Mobile App: VMobile (iOS and Android)

Antivirus

  • Supports ClamAV (free) and McAfee (optional purchase) virus scanner.
  • Protection against Viruses, Trojans, and Other Threats
  • Free Virus Databases Update on Manual or Scheduled Basis
  • Multiple Scan Tasks (Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled Scanning
  • Email Notification upon Task Completion or Virus Detection
  • Quarantines or Deletes Infected Files

APP Center

  • Add New Features by Online Installation of over 90 Official and Community Software

Add-ons

  • (The actual available software add-ons may vary depending on the NAS platform)
* This feature may vary according to different models. ** The data encryption functions may not available in accordance with the legislative restrictions of some countries.

Optional Accessories:

Optional Accessories
Storage expansion accessories
REXP-1620U-RP
REXP-1620U-RP
  1. 3U 16-bay RAID expansion enclosure
  2. Up to 8 REXP-1620U-RP can be connected to TVS-EC2480U-SAS-RP.
REXP-1220U-RP
REXP-1220U-RP
  1. 2U 12-bay RAID expansion enclosure
  2. Up to 8 REXP-1220U-RP can be connected to TVS-EC2480U-SAS-RP.
SAS-12G2E-U
SAS-12G2E-U
Dual-wide-port storage expansion card, SAS 12Gbps.
Note: The storage expansion card is to be installed in the NAS for connecting to the RAID Expansion Enclosures.
CAB-SAS10M-8644
CAB-SAS10M-8644
Mini SAS external cable (SFF-8644 to SFF-8644), 1.0 m
CAB-SAS05M-8644
CAB-SAS05M-8644
Mini SAS external cable (SFF-8644 to SFF-8644), 0.5 m
Rail kit
RAIL-A02-90
RAIL-A02-90
A02 series (Chassis) rail kit, max. load 90 kg
LAN card
LAN-10G2T-U
LAN-10G2T-U
Dual-port 10GBase-T network expansion card for A01 series rack mount model, low-profile bracket
LAN-1G2T-U
LAN-1G2T-U
Dual-port 1 GbE network expansion card for A01 series rack mount model, low-profile bracket
RAM
RAM-4GDR3-LD-1600
RAM-4GDR3-LD-1600
QNAP 4GB DDR3-1600 LONG-DIMM RAM module
RAM-8GDR3-LD-1600
RAM-8GDR3-LD-1600
QNAP 8GB DDR3-1600 LONG-DIMM RAM module
RAM-4GDR3EC-LD-1600
RAM-4GDR3EC-LD-1600
QNAP 4GB DDR3-1600 ECC LONG-DIMM RAM module
RAM-8GDR3EC-LD-1600
RAM-8GDR3EC-LD-1600
QNAP 8GB DDR3-1600 ECC LONG-DIMM RAM module
mSATA Flash Module
FLASH-256GB-MSATA
FLASH-256GB-MSATA
Two 128GB mSATA flash modules

Utilities:

Qfinder myQNAP cloud Connect Qsync Netbak vSphere Client plug-in Q'center Virtual Appliance Qsnap

Various handy utilities are available for you to work smartly with your Turbo NAS. These utilities help increase your productivity and make it absolutely easy with connecting the Turbo NAS, setting up the system, data backup and synchronization, downloading files, and so on. Visit the Download center, find your Turbo NAS model, and the list of available utilities are ready for you.

Qfinder

Connect and set up NAS easily
Qfinder is a utility, available for Windows, Mac, and Linux, to quickly find and access the Turbo NAS over the LAN. Install the Finder on your computer, open it, and double click your Turbo NAS name, and the login page is ready for you.

Chromebook-ready
If you're finding it difficult to connect your NAS to a Chromebook, Qfinder for Chrome allows you to quickly find & connect to the Turbo NAS over LAN. Just download Qfinder from the Chrome Web Store and enjoy easy access to your Turbo NAS now.

*Qfinder Chrome is for Chromebooks & Chrome only.
Connect and set up NAS easily

Easily access the NAS by Storage Plug & Connect
Windows version of Qfinder provides a convenient way to connect to the Turbo NAS and map a network drive or a virtual disk. By creating a shared folder on the Turbo NAS and mapping it as a network drive, you can use it as an additional drive and store files on it as it is a local drive of the computer.

Easily access the NAS by Storage Plug & Connect

myQNAPcloud Connect

NAS Connection by VPN
myQNAPcloud Connect helps you access the published services of the Turbo NAS quickly and securely on the Internet. myQNAPcloud Connect application is designed for Windows PC users. By installing the myQNAPcloud Connect, you will be able to connect to the Turbo NAS and easily manage files by drag-and-drop within the Windows Explorer.

NAS Connection by VPN

Qsync

Synchronize files anytime, anywhere
Qsync is a useful tool to synchronize files in multiple computers. It creates a specific “Qsync folder” in your devices that you can simply drop files in, and synchronizes the files to all your devices linked to the Turbo NAS.

Synchronize files anytime, anywhere

Sync in multiple ways

Full Sync
Whenever you add, edit, delete or rename a file on one computer, the change applies to all others linked with the Turbo NAS, so you have exactly identical contents on all your devices.

Full Sync
Smart Sync

Smart Sync

It allows you to remove files on one computer without affecting the copies stored on others that are linked with the Turbo NAS. However, when someone updates the files you deleted from another computer, you can still retrieve them in the Qsync folder.

Advanced Selective Sync

With both Full Sync or Smart Sync options, you can choose to only sync specific sub-folders within the Qsync folder, useful if your computers have limited storage.

Advanced Selective Sync

Share files and folders easily

Share files and folders easily

Quickly share files with download links

You can create download links to share files with people, even if they don't have an account on the Turbo NAS. This greatly reduces the time in creating user account and password for users.

Share folders for collaboration

Your life is connected with different groups of people. You can create sub-folders within the Qsync folder, and share each with different groups of Turbo NAS users as a file exchange center. Everyone in the same sub-folder is always kept up-to-date with the latest version of the files.


QNAP NetBak Replicator

Backup data on PC

The QNAP NetBak Replicator, provided with any Turbo NAS unit free of charge, helps you easily back up files from Windows PC - entire disk drives, documents, pictures, music, videos, fonts, emails, and more - to the Turbo NAS. The operation is very simple. You can do the backup task in just a few clicks using NetBak Replicator by the setting of real-time synchronization, scheduled backup and auto-backup from multiple PCs to the Turbo NAS.

NetBak Replicator also supports backing up to a remote server via FTP and WebDAV through the Internet. Imagine that you can backup new photos whenever on vacation. Even you are away from home, the convenient backup supports your memories.

QNAP NetBak Replicator

vsphere Client plug-in

Manage QNAP NAS within vSphere Client

The Turbo NAS supports vSphere Client Plug-in that allows managing VMware datastores on the Turbo NAS directly from the vSphere client console. In a large-scale server virtualization environment, management is centralized and straightforward. Administrators can easily control the status of the Turbo NAS and datastores and create additional datastores to multiple ESXi hosts in just a few clicks.

Note: The TS-x51 series doesn't support vSphere Client plug-in.

vsphere Client plug-in

Q’center Virtual Appliance

Q’center Virtual Appliance

Deploy Q’center as virtual appliance

Q’center is a powerful QNAP NAS management system. The Q’center Virtual Appliance can be easily deployed in Microsoft® Hyper-V™ or VMware® ESXi™ to increase its flexibility and connectivity for large storage environments.

Minimum requirements:108 GB free disk space, 1 GB memory and 4 virtual CPUs
Supported platforms: VMware ESXi (ESXi 5.0, ESXi 5.1, ESXi 5.5), VMware Fusion 7, VMware Workstation 11, Microsoft Windows Server 2012 R2 with Hyper-V 3.0.

Use Q’center to monitor multiple NAS.

With Q’center, you can view the status and system information of multiple QNAP NAS units at the same time, inspect system resource usage, monitor disk/volume health and perform other management tasks. With these features, Q’center can better assist IT administrators and QNAP NAS users in system resource allocation and future capacity planning.

Use Q’center to monitor multiple NAS.

Qsnap

Qsnap

Take screenshots, easy and fast

Qsnap is a handy utility assisting you to quickly capture screenshots on your PC, and easily edit, save, and share, enabling quick note-taking or productive communication in your work and life.

  • Hotkey capturing: Taking PC screenshots without complicated mouse operations.
  • Easy editing: Add emphasis or remove unnecessary elements with a range of editing tools.
  • Instant sharing: Simply drag and drop the screenshots to instant messengers and emails as attachments to share.

Product Views:

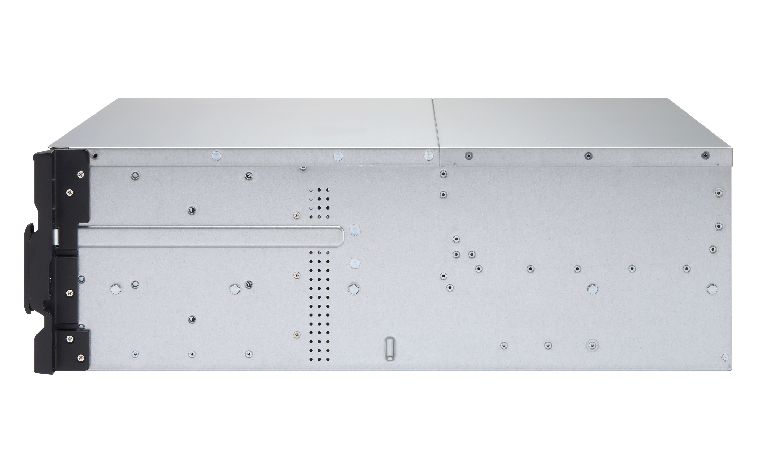

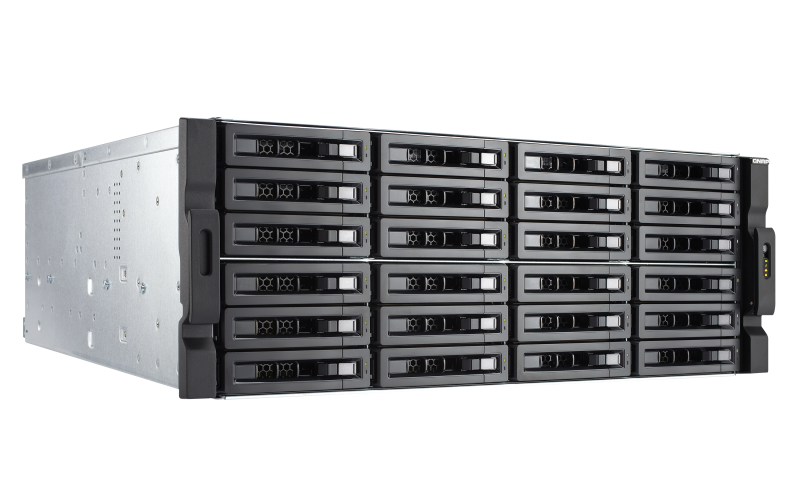

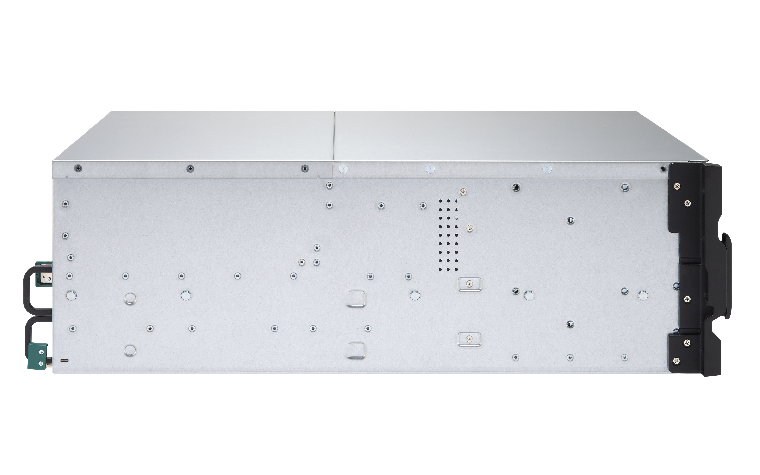

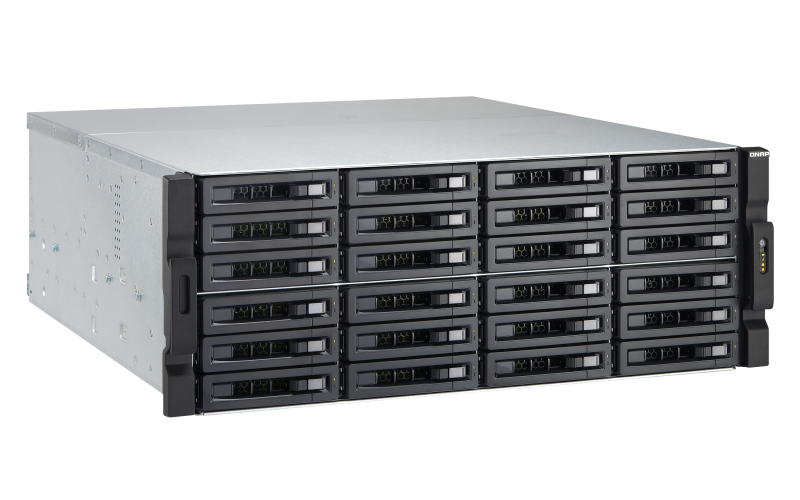

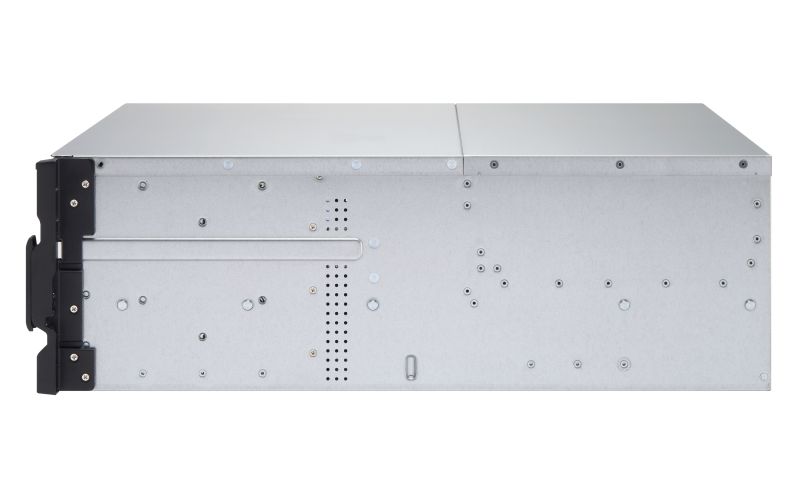

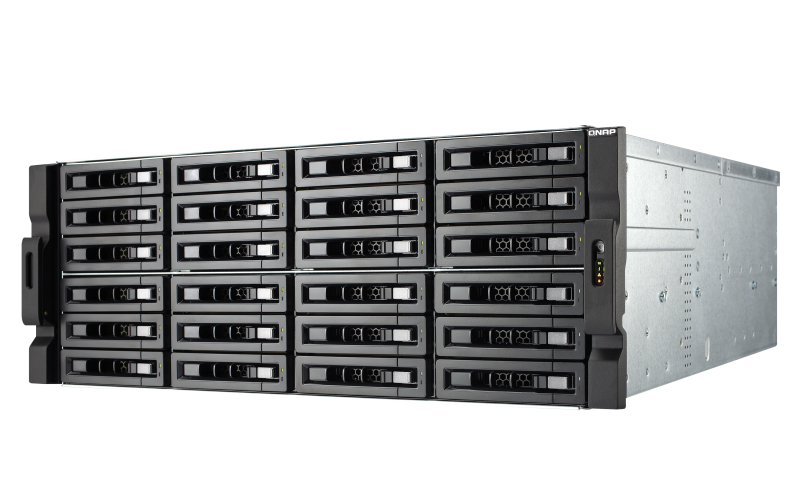

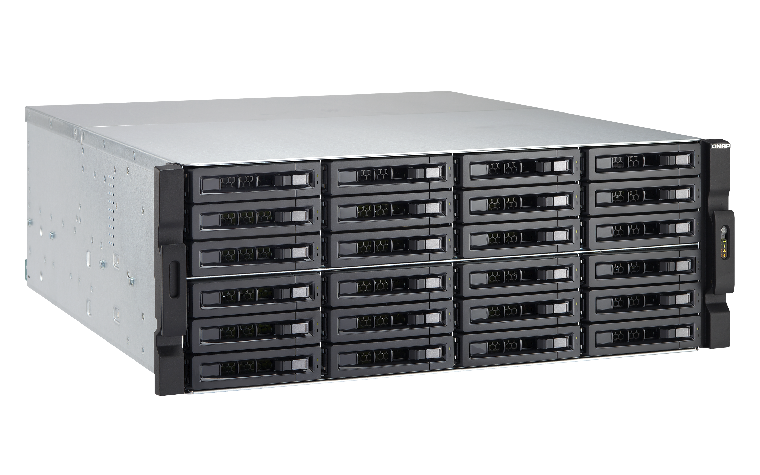

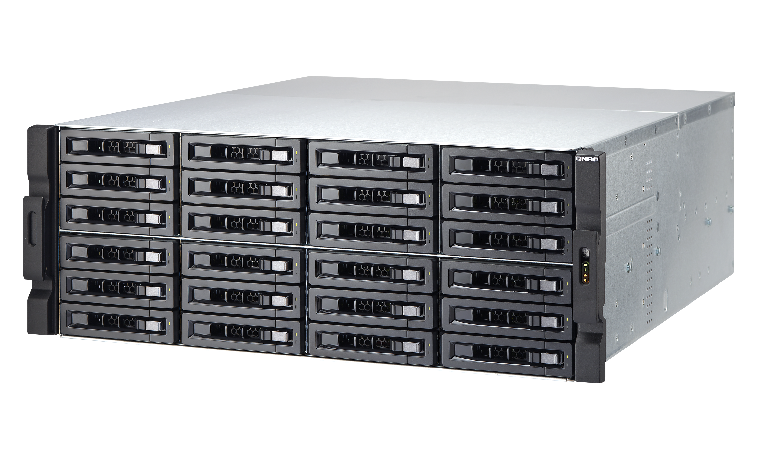

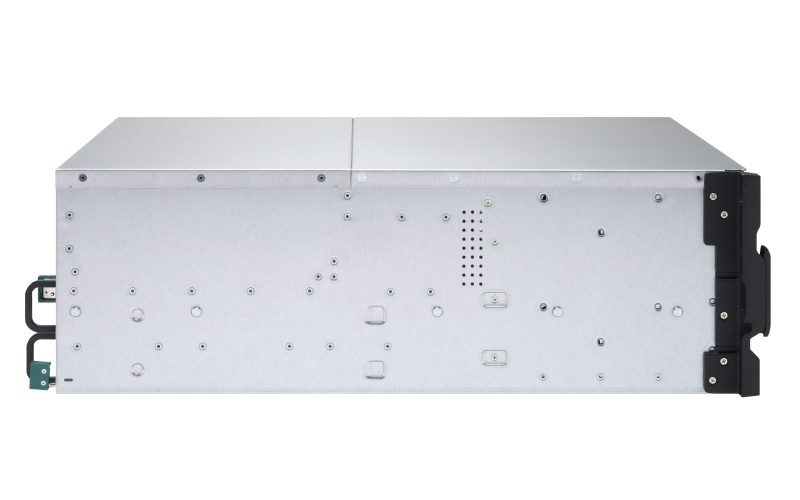

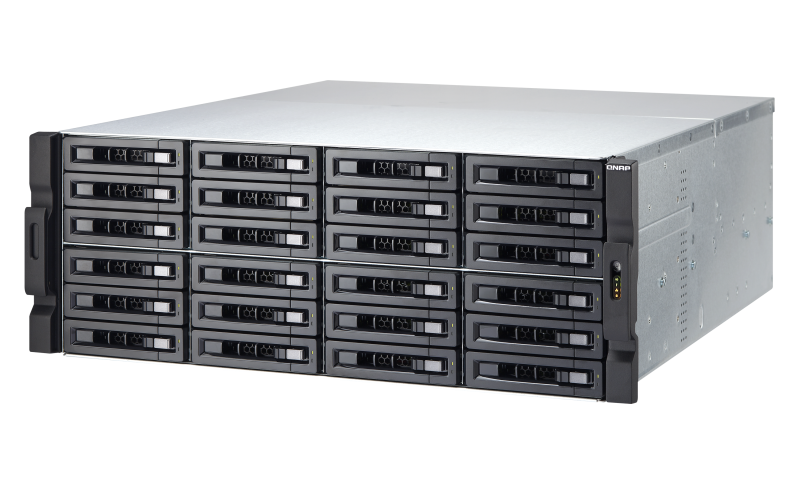

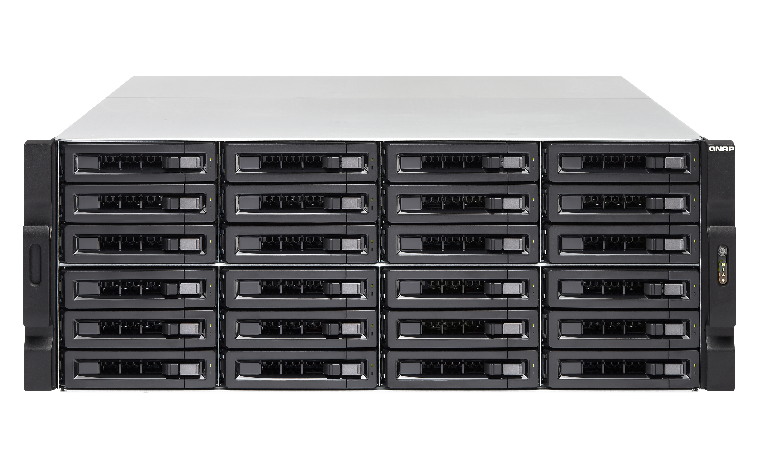

TVS-EC2480U-SAS-RP R2 Front View TVS-EC2480U-SAS-RP R2 Right Angle View TVS-EC2480U-SAS-RP R2 Left Angle View TVS-EC2480U-SAS-RP R2 Rear View
TVS-EC2480U-SAS-RP R2 Drive Pull-out View TVS-EC2480U-SAS-RP R2 Right Top View TVS-EC2480U-SAS-RP R2 Left Top View

Pricing Notes:

QNAP Products
Enterprise
QNAP 24-bay NAS and iSCSI/ IP-SAN. 4U, SAS 12G, SAS/SATA 6G, 4LAN, 10G-ready, Redundant PSU
#TVS-EC2480U-SAS-RP-8GE-R2-US
Our Price: $7,899.00
QNAP 24-bay NAS and iSCSI/ IP-SAN. 4U, SAS 12G, SAS/SATA 6G, 4LAN, 10G-ready, Redundant PSU
#TVS-EC2480U-SAS-RP-16G-R2-US
Our Price: $7,899.00
Enterprise Seagate SAS Bundles
QNAP TVS-EC2480U-SAS-RP R2 72TB Bundle, 24 x 3TB 3.5in Seagate SAS drives
#TVS-EC2480U-SAS-RP-8GE-R2-US-24-ST300
Our Price: $12,732.00
QNAP TVS-EC2480U-SAS-RP R2 96TB Bundle, 24 x 4TB 3.5in Seagate SAS drives
#TVS-EC2480U-SAS-RP-8GE-R2-US-24-ST4000
Our Price: $13,353.00
QNAP TVS-EC2480U-SAS-RP R2 144TB Bundle, 24 x 6TB 3.5in Seagate SAS drives
#TVS-EC2480U-SAS-RP-8GE-R2-US-24-ST6000
Our Price: $17,842.00
QNAP TVS-EC2480U-SAS-RP R2 192TB Bundle, 24 x 8TB 3.5in Seagate SAS drives
#TVS-EC2480U-SAS-RP-8GE-R2-US-24-ST8000
Our Price: $20,078.00
QNAP TVS-EC2480U-SAS-RP R2 72TB Bundle, 24 x 3TB 3.5in Seagate SAS drives
#TVS-EC2480U-SAS-RP-16G-R2-US-24-ST300
Our Price: $12,732.00
QNAP TVS-EC2480U-SAS-RP R2 96TB Bundle, 24 x 4TB 3.5in Seagate SAS drives
#TVS-EC2480U-SAS-RP-16G-R2-US-24-ST4000
Our Price: $13,353.00
QNAP TVS-EC2480U-SAS-RP R2 144TB Bundle, 24 x 6TB 3.5in Seagate SAS drives
#TVS-EC2480U-SAS-RP-16G-R2-US-24-ST6000
Our Price: $17,842.00
QNAP TVS-EC2480U-SAS-RP R2 192TB Bundle, 24 x 8TB 3.5in Seagate SAS drives
#TVS-EC2480U-SAS-RP-16G-R2-US-24-ST8000
Our Price: $20,078.00
Accessories
Mini SAS 12G cable (SFF-8644), 0.5m
#CAB-SAS05M-8644
Our Price: $89.00
Mini SAS 12G cable (SFF-8644), 1.0m
#CAB-SAS10M-8644
Our Price: $119.00
Mini SAS cable (SFF-8644 to SFF-8088), 1.0m
#CAB-SAS10M-8644-8088
Our Price: $119.00
