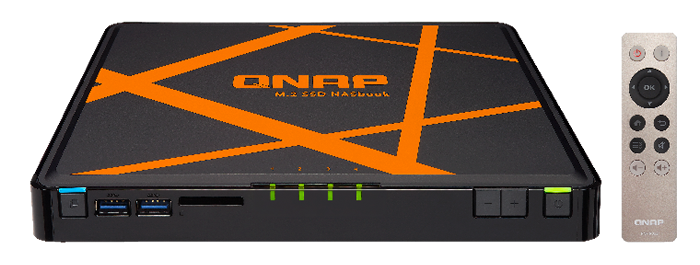

QNAP TBS-453A

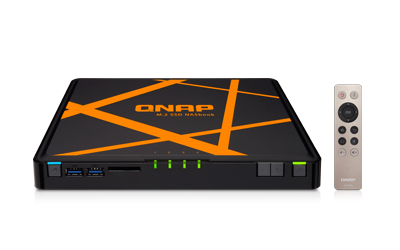

4-Bay M.2 SSD NASbook: A Compact yet Versatile Quad-core M.2 SSD NAS

Overview:

Compact, near-silent, and versatile, the 4-bay M.2 SSD NASbook TBS-453A is ideal for office meetings and multimedia applications. Featuring a quad-core Intel® 1.6GHz processor, a built-in 4-port network switch, and using up to 4 M.2 SSDs for storage, the TBS-453A not only provides full-fledged NAS functions with RAID protection, but also can act as a switch and share network access with multiple users regardless of being powered on or off. Coupled with its dual HDMI output and 4K H.264 video display & transcoding abilities, the TBS-453A can easily be carried to meetings to present stored files and quality multimedia content. The TBS-453A also supports the open-source Linux® platform that allows you to directly utilize feature-rich Linux® apps, enjoying a private cloud combining storage and IoT applications.

• Built-in 4-port LAN switch, combined with advanced virtual switch functionality for maximized network flexibility
• Dual HDMI output with duplicated and extended desktop options
• Use the TBS-453A as a PC with exclusive QvPC Technology and 4K (H.264) support
• Supports Linux® OS with direct output via HDMI
• Store, backup, and share files with snapshots and versioning
• Wide range 10V ~ 20V DC power input
• Expand the total raw storage capacity with a UX-800P/UX-500P expansion enclosure
• Build a karaoke system with the OceanKTV app

Specifications:

TBS-453A Specifications
Ordering P/N	TBS-453A-4G	TBS-453A-8G
Processor	14nm Intel® Celeron® N3150 quad-core 1.6GHz, burst up to 2.08GHz
Floating Point Unit
Hardware Encryption Acceleration	(AES-NI)
GPU	8th generation Intel HD Graphics
System Memory	4GB (2 x 2GB)	8GB (2 x 4GB)
Maximum Memory	8GB
Memory Slot	2, SODIMM DDR3L-1600 (*For dual-DIMM configurations, you must use a pair of identical DDR3L RAM modules.)
Flash	4GB
Drive Type	4 x M.2 2280/2260/2242 SATA 6Gb/s SSDs
Pre-installed M.2 SSDs	-	-
Raw Capacity	Optional purchase	Optional purchase
Default Capacity (Factory Configuration)	Optional purchase	Optional purchase
Network	5 x Gigabit LAN ports (Port 1 and any of the four ports from 2-1 to 2-4 are available to the 2 built-in network cards, and the remaining three ports can work as switch ports.)
USB Port	4 x USB 3.0 & 1 x USB 2.0 ports Support USB printer, pen drive, and USB UPS, etc.
Video Output	2 x HDMI, up to 4K 2160P 30Hz Ultra HD support
Audio Input	2 x 3.5mm microphone jack (dynamic microphone only)
Audio Output	1 x built-in speaker, 1 x line out jack (for amplifier or headphone amplifier)
LED	Status/Power, USB, SSD 1-4
Button	Power, USB one-touch-backup, Reset, Volume Up, Volume Down
IR Receiver	, support QNAP RM-IR002, RM-IR003 and MCE-compatible Remote Control(DM)
Security	Kensington security slot
Dimension (HxWxD)	25 x 230 x 165 mm / 0.98 x 9.06 x 6.50 inch
Weight	724g / 1.60lbs.	724g / 1.60lbs.
Power Consumption (W)	System sleep mode: 0.98W SSD standby: 13.05W In operation: 15.2W
Sound Level**	Sound pressure (LpAm) :10.8 dB(A)
Working Temperature	0-40˚C
Relative Humidity	5~95% RH non-condensing, wet bulb: 27˚C
Power	DC10V-20V wide input range
Fan	Compact internal fan
Package Contents	NASbook, 65W 19V AC adapter, power cord, quick installation guide, Ethernet cable x 2, remote control, SSD installation kit

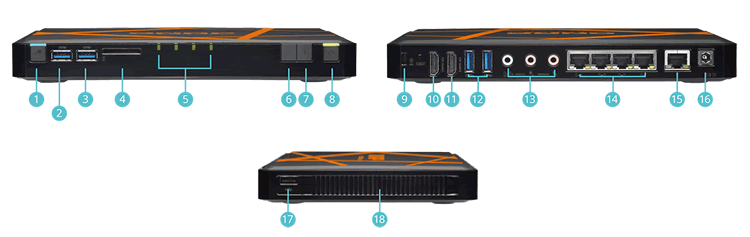

1.	Button for USB One Touch Copy	10.	HDMI 2
2.	USB 3.0 (One Touch Copy)	11.	HDMI 1
3.	USB 3.0	12.	USB 3.0
4.	SD Card Reader	13.	Line Out, MIC In 1 & 2
5.	SSD 1 - 4	14.	LAN Port 2-1, 2-2, 2-3, 2-4
6.	Volume Down	15.	LAN Port 1
7.	Volume Up	16.	DC Input 10V-20V
8.	Power Button / Status LED	17.	USB 2.0
9.	Kensington Lock	18.	Speaker

*The SSD's available capacity may vary depending on whether over-provisioning is applied by the SSD manufacturer.

** Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS

Product Views:

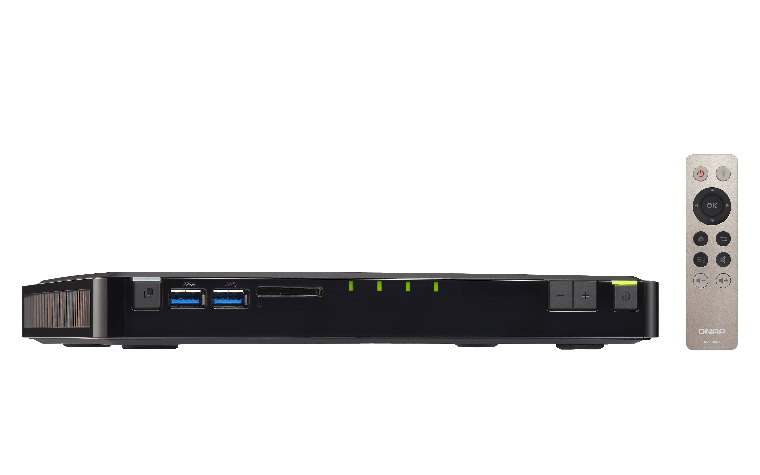

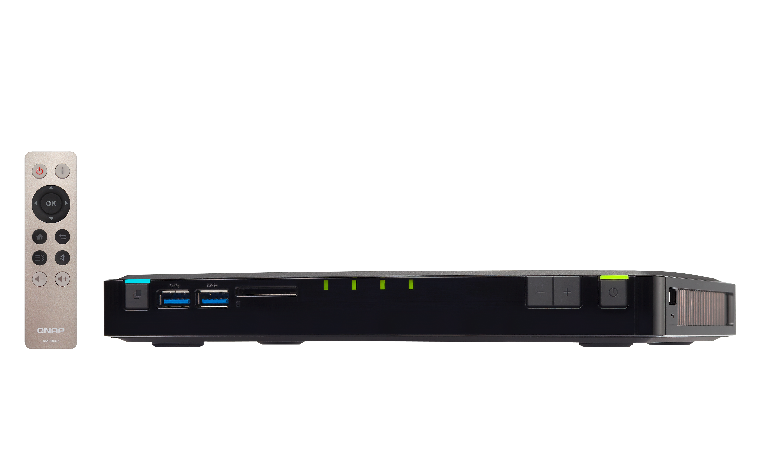

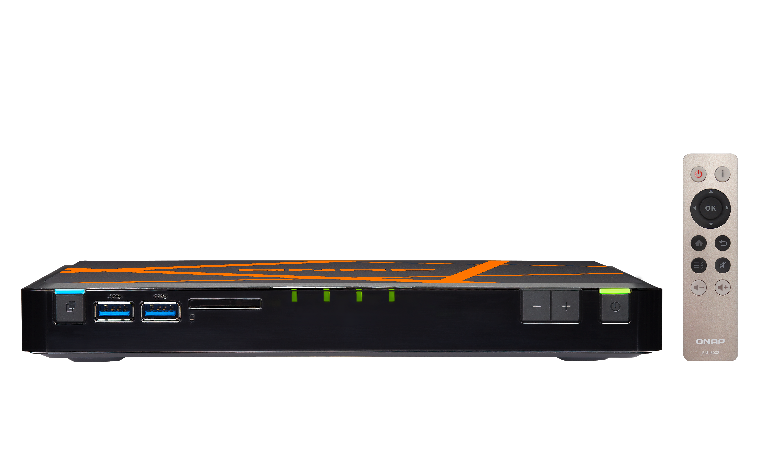

Front View	Left Angle View	Right Angle View

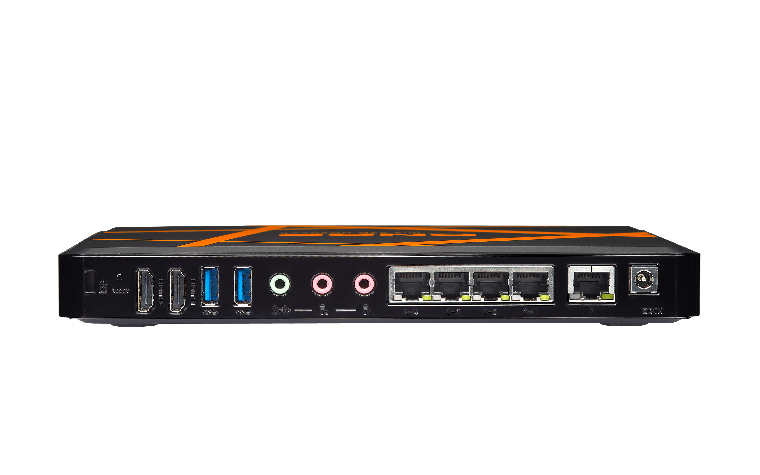

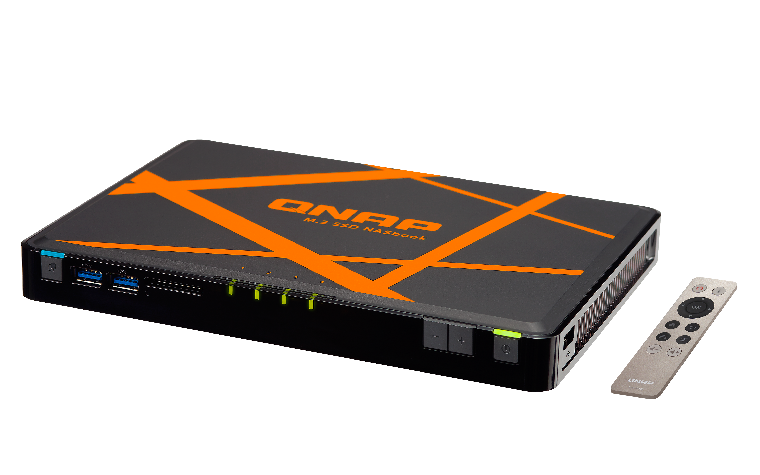

Top Right View	Top View	Back View

Documentation:

Download the QNAP TBS-453A Datasheet (PDF).
