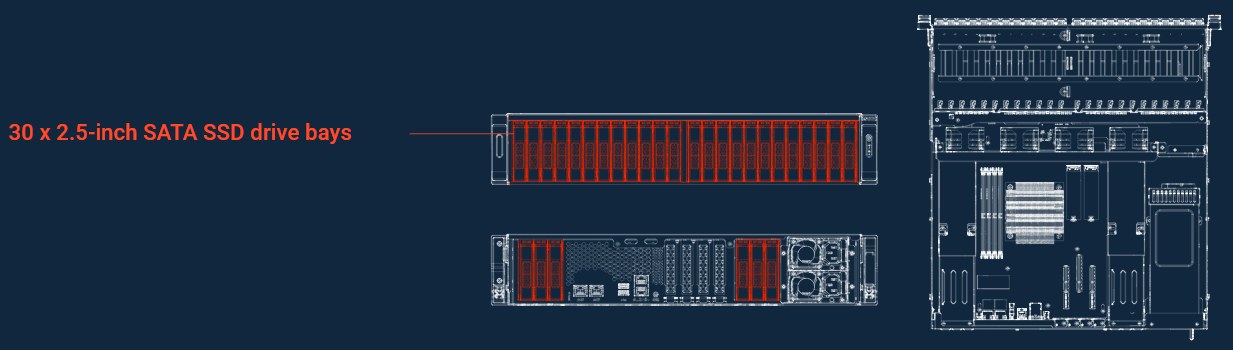

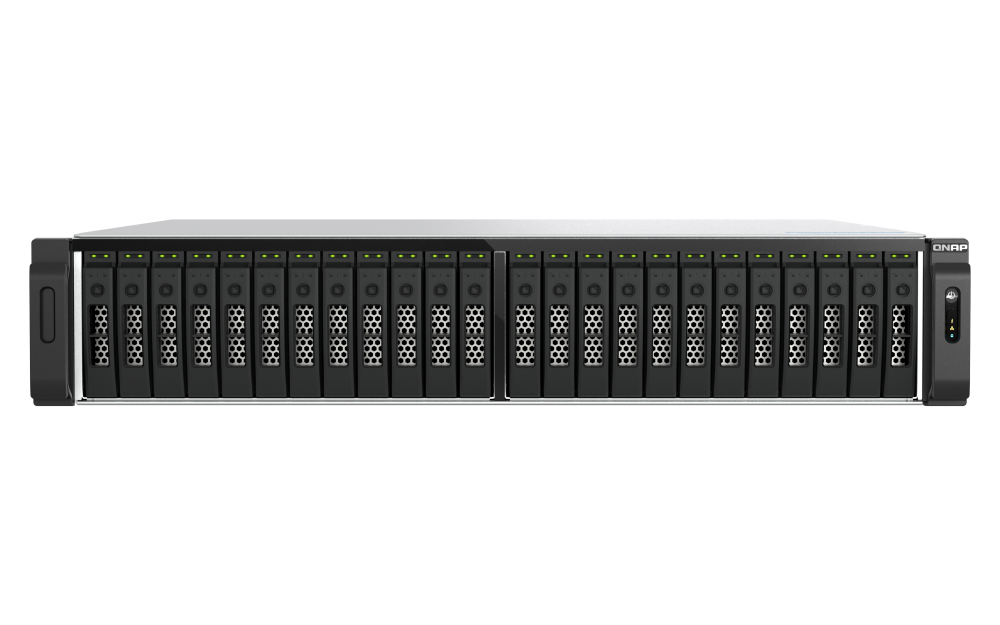

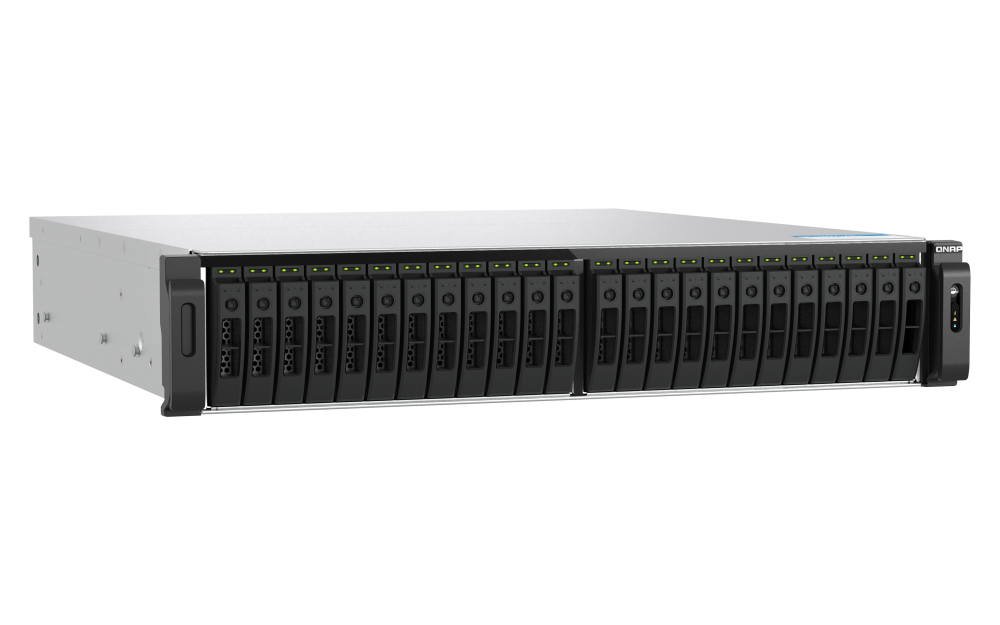

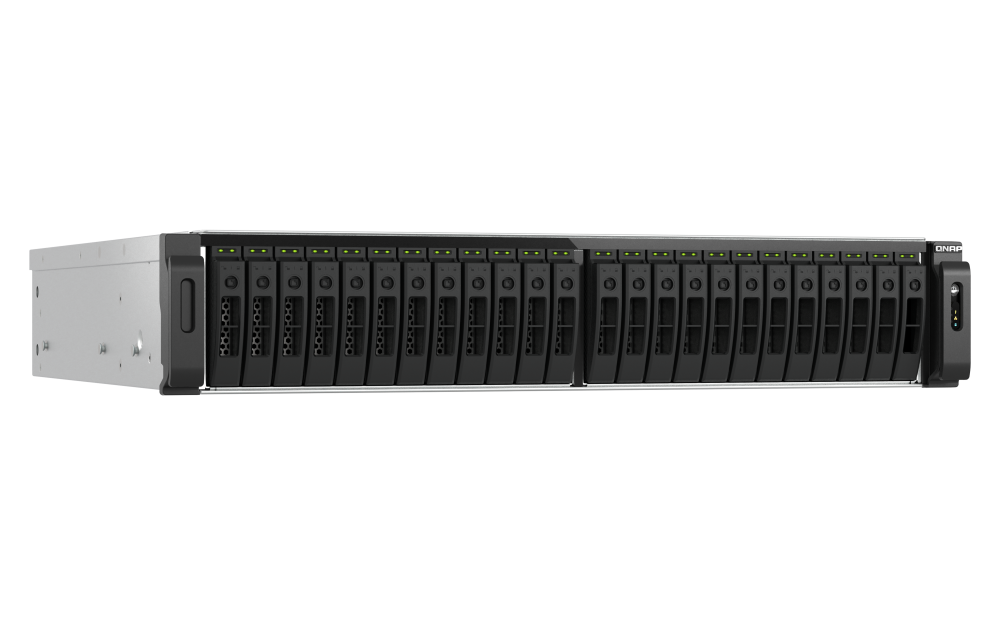

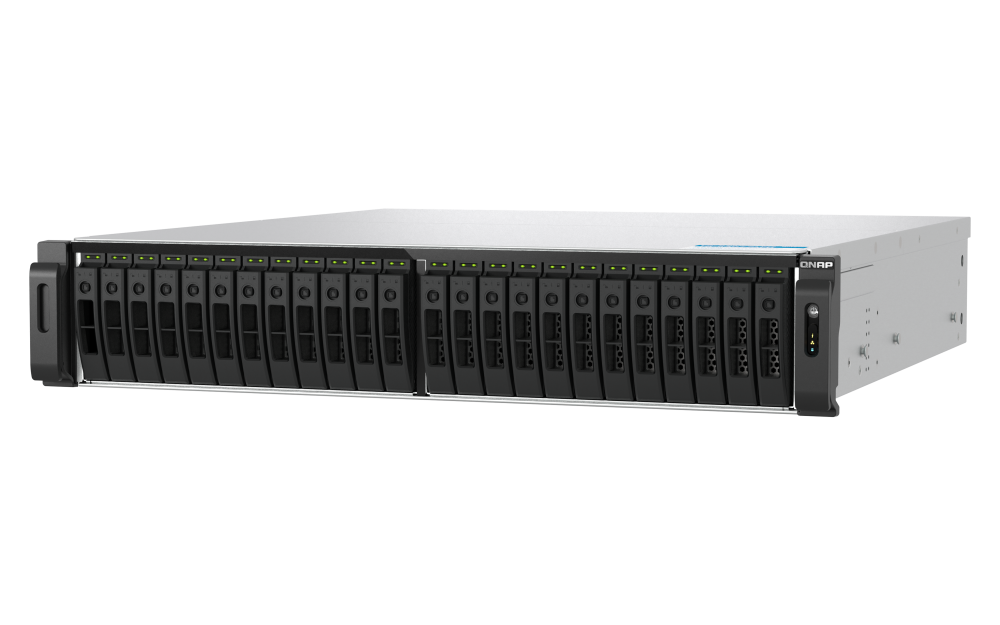

High-density SATA all-flash array architecture
The TS-h3077AFU offers an affordable all-flash storage solution, combining ample storage capacity and robust I/O performance. It caters to budget-conscious businesses, providing all-flash storage infrastructure capable of efficiently handling a range of demanding, business-critical applications.

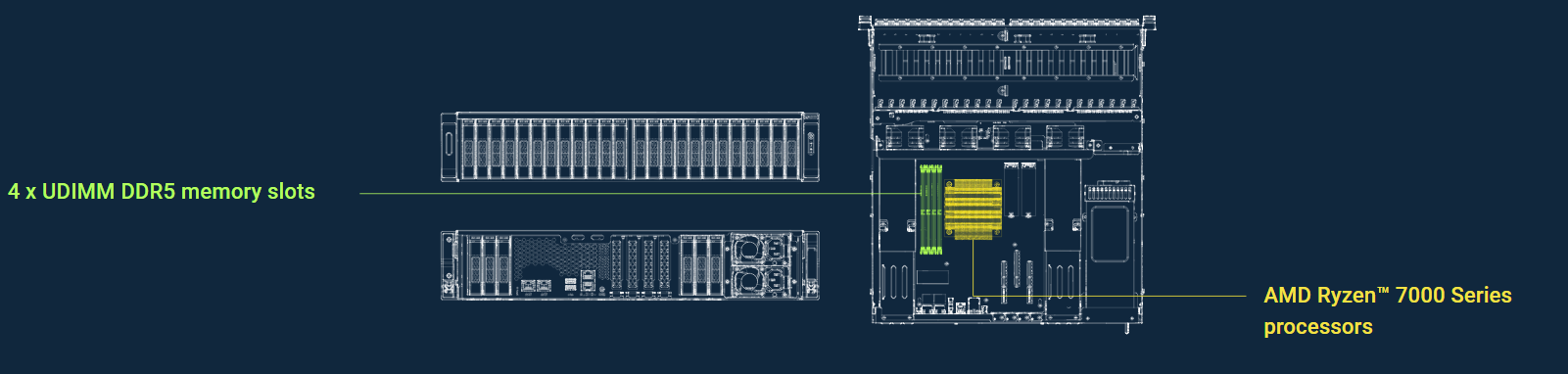

New-gen AMD Ryzen™ 7000 Series processors
The TS-h3077AFU is armed with enterprise-class AMD Ryzen™ 7000 series processors. The first gen of CPUs on the new AMD Socket AM5 platform provides greater performance and power efficiency compared to similar-grade processors.
CPU
AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz; Built-in AMD Radeon™ Graphics
Memory
DDR5 non-ECC memory (up to 128 GB, 4 x 32 GB)
Note: Also supports ECC RAM. ECC RAM cannot be used with non-ECC RAM.
AMD Radeon™ Graphics
Integrated AMD Radeon™ Graphics on the TS-h3077AFU provides energy-efficient high-quality graphics performance, enabling processing high-resolution videos, photos, and simultaneously running multiple tasks.
DDR5 RAM
DDR5 RAM comes as standard on the TS-h3077AFU to accommodate the increased performance of CPUs. Up to 128 GB can be installed to tackle memory-intensive and complex multitasking workloads, and ECC memory is also supported (sold separately).
Designed for media production and enterprises
Expandability is a concept for the TS-h3077AFU. Let’s see how the all-flash TS-h3077AFU supercharges your organization in 4K/8K video workflows, storage centers, and virtualization applications.
Flexibly add petabyte-scale storage capacity
Use a TS-h3077AFU paired with multiple QNAP TL PCIe interface SATA JBOD expansion enclosures to achieve both breakthrough performance and massive capacity. The TS-h3077AFU supports up to eight 24-bay TL-R2400PES-RP JBOD enclosures, providing a storage capacity of 192 drives.

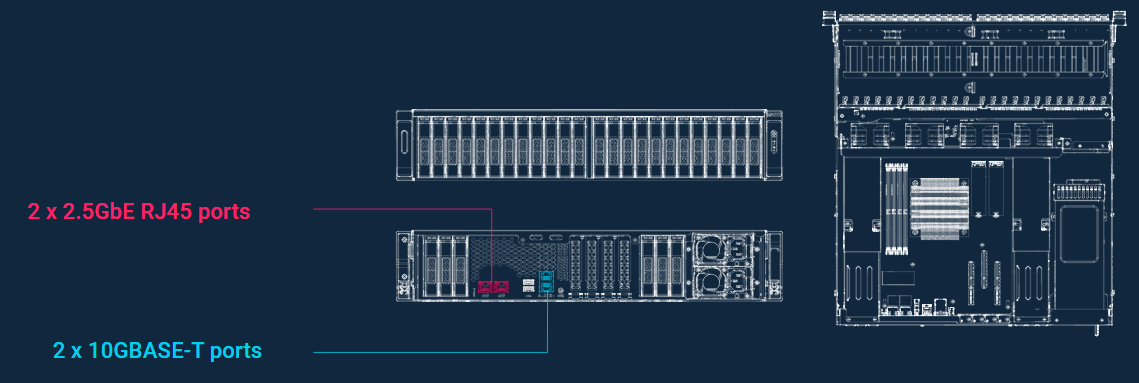

Upgrade up to 100 Gbps
The TS-h3077AFU empowers your organization with the bandwidth to tackle the most demanding applications, including storage centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. Utilizing Port Trunking (Link Aggregation) ensures network redundancy to improve fault tolerance.
Streamline post-production workflows
Store your projects on the super-fast TS-h3077AFU. NAS folders can be mounted on Windows® or Mac® via 25/10 GbE, allowing teams to save time and effort.
Backup business-critical data
The all-flash TS-h3077AFU delivers low latency and high IOPS performance. The ZFS-based QuTS hero operating system ensures data integrity and reliability while supporting multiple backup solutions.
Virtualization
With ultra-fast DDR5 memory which is optimized for large data processing, the TS-h3077AFU is ideal for server virtualization and virtual desktop infrastructure (VDI) usage.
Long-term and stable supply available
The TS-h3077AFU will be available until 2030. This long-term availability makes the TS-h3077AFU an ideal choice for organizations requiring matching NAS models for long-term projects.
Get a secondary backup to QNAP-hosted cloud storage
Back up NAS data to myQNAPcloud Storage, the perfect partner for QNAP’s backup/recovery solutions, including Hybrid Backup Sync. We only charge for storage space, with transmitting data being completely free.

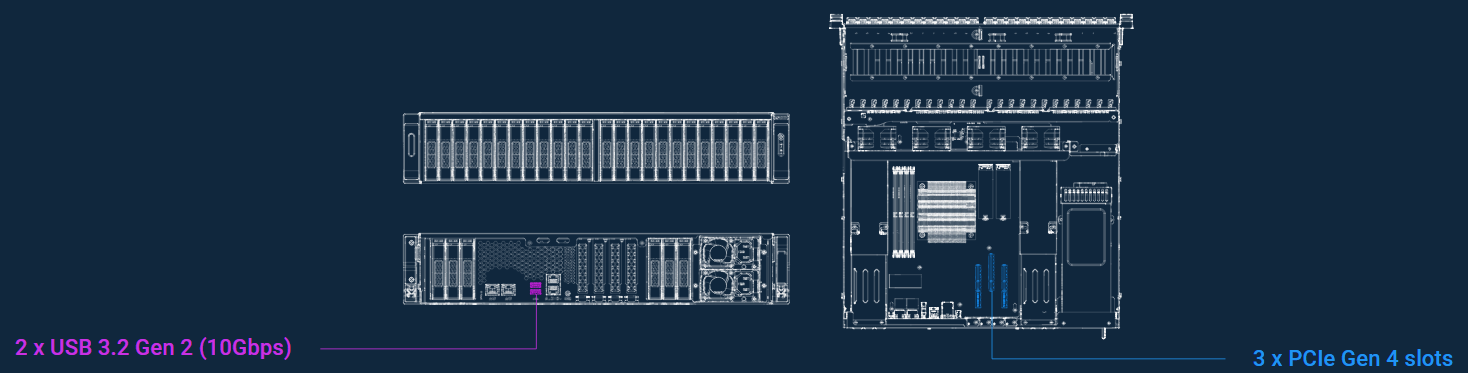

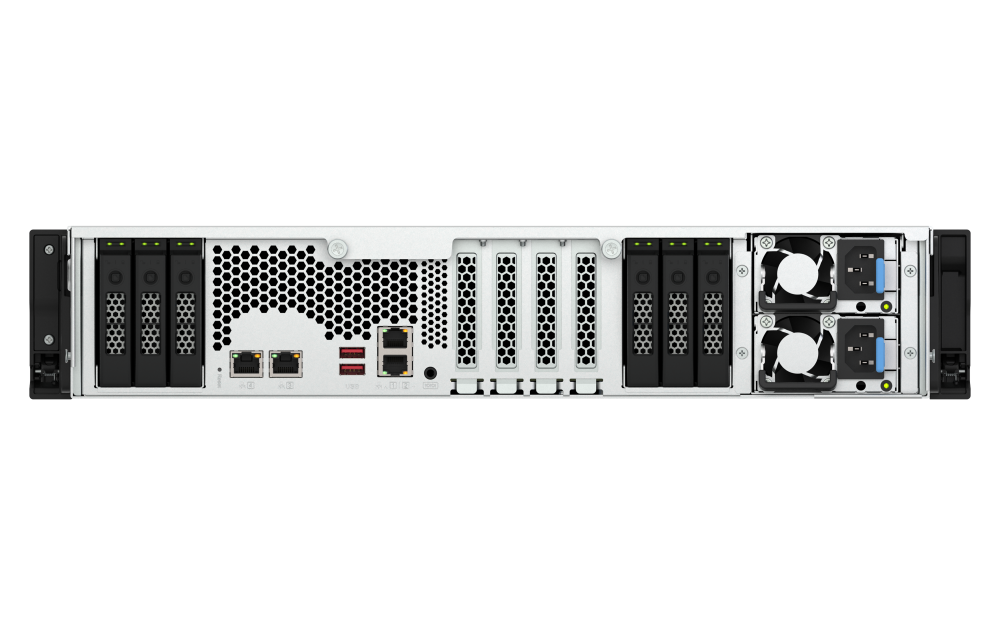

Future-proof PCIe Gen 4 slots
The TS-h3077AFU has three PCIe Gen 4 slots for you to add additional functionality (such as 100 GbE connectivity) to meet growing workload and business requirements.
100/25 GbE network card
Enable lightning-fast throughput for bandwidth-demanding tasks such as 4K/8K production or virtualization.
QM2 cards
Adds M.2 SSD or extra 10/2.5 GbE connectivity to the NAS for optimized performance and bandwidth.
Graphics cards
Supercharge your video editing and transcoding or enable GPU passthrough to virtual machines.

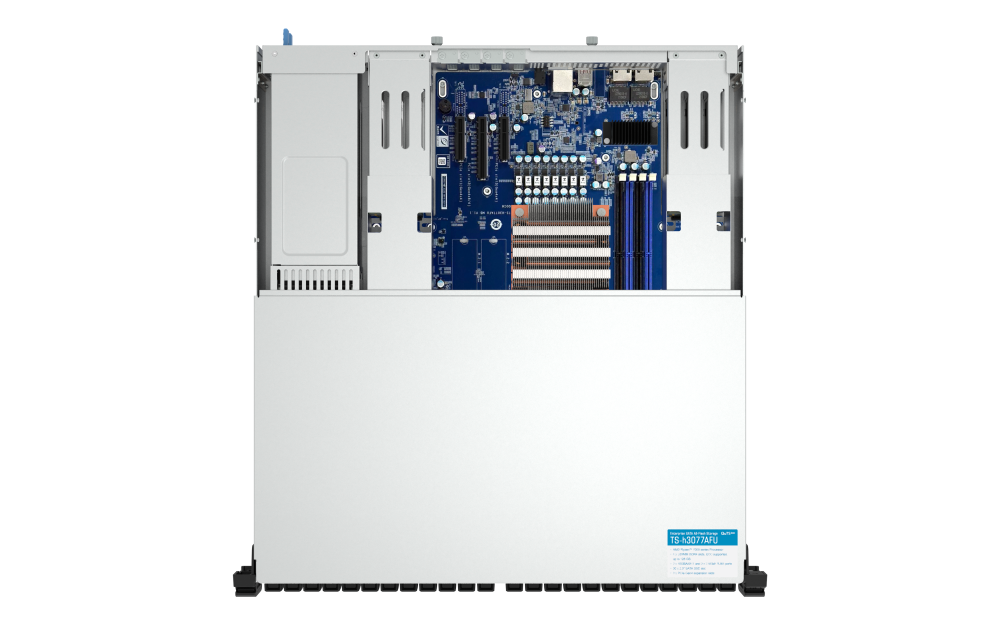

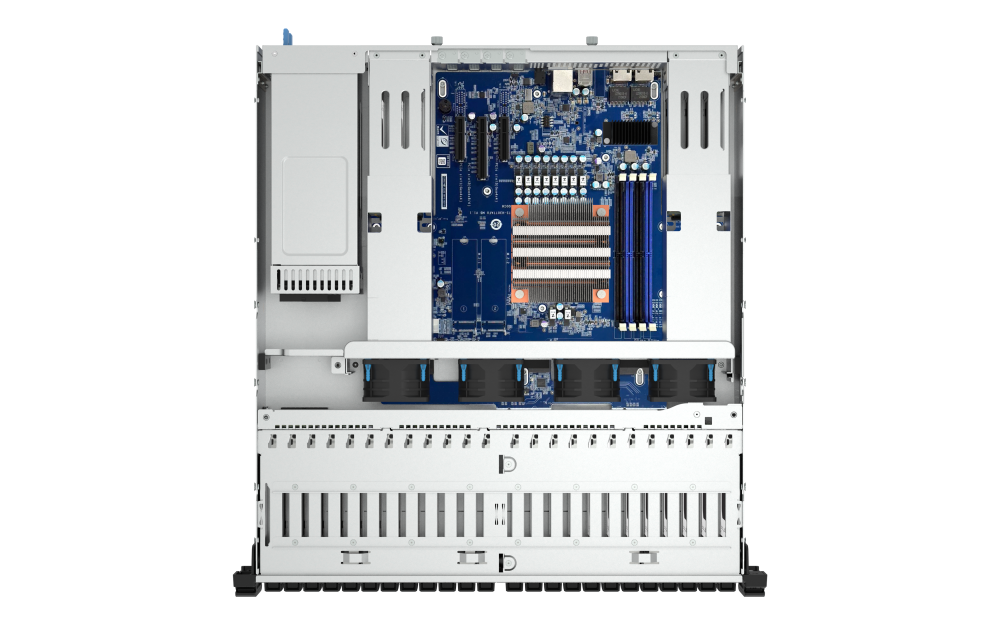

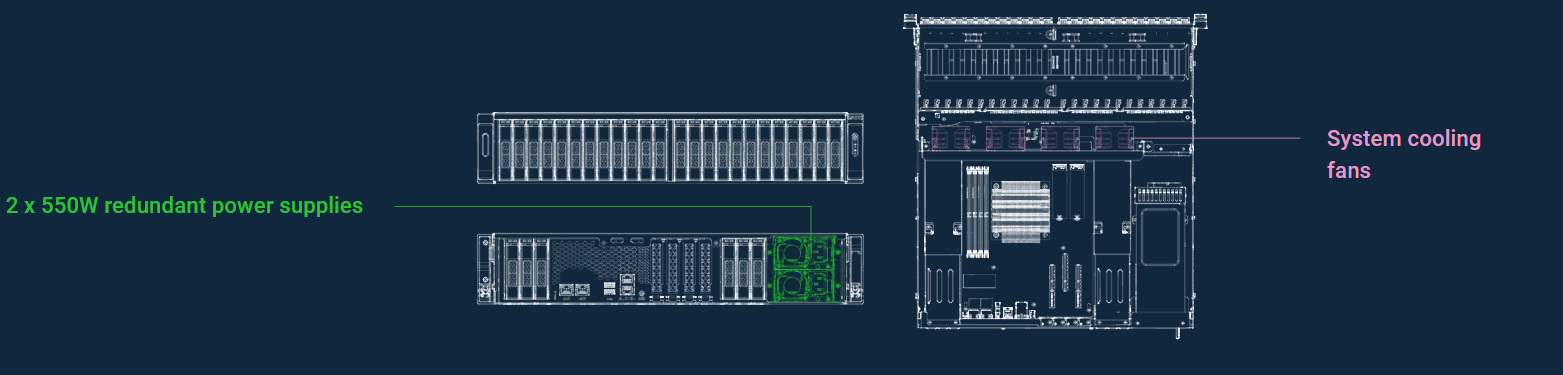

Robust hardware to boost SSD performance
The TS-h3077AFU’s high-level hardware with an expandable architecture is designed to maximize SSD performance.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
| Data integrity is key |
Data reduction improves storage efficiency and performance |
| QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported. |
Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance. |
| Multi-level cache technology |
QSAL (QNAP SSD Antiwear Leveling) enhances data protection |
| Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power failure protection are supported to boost performance and security. |
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability. |
Inline data deduplication, compression, and compaction improve SSD endurance
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h3077AFU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
Additional technologies for optimizing SSD performance and lifespan
Write Coalescing
Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
Pool Over-provisioning
Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
TRIM
Informs SSDs to delete unneeded data blocks and processes deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.

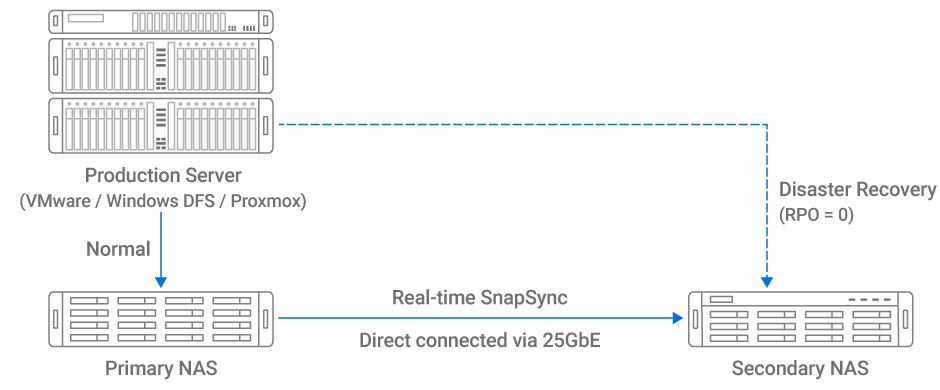

Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
The TS-h3077AFU also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.
Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h3077AFU to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
License-free VMware™ and Hyper-V backup appliance
With Hyper Data Protector, the TS-h3077AFU becomes an agentless backup tool for VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h3077AFU perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications.
HybridMount File-Based Cloud Gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
Reliable, high-performance storage for virtualization
The TS-h3077AFU supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h3077AFU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
5-year warranty as standard
The TS-h3077AFU is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.
