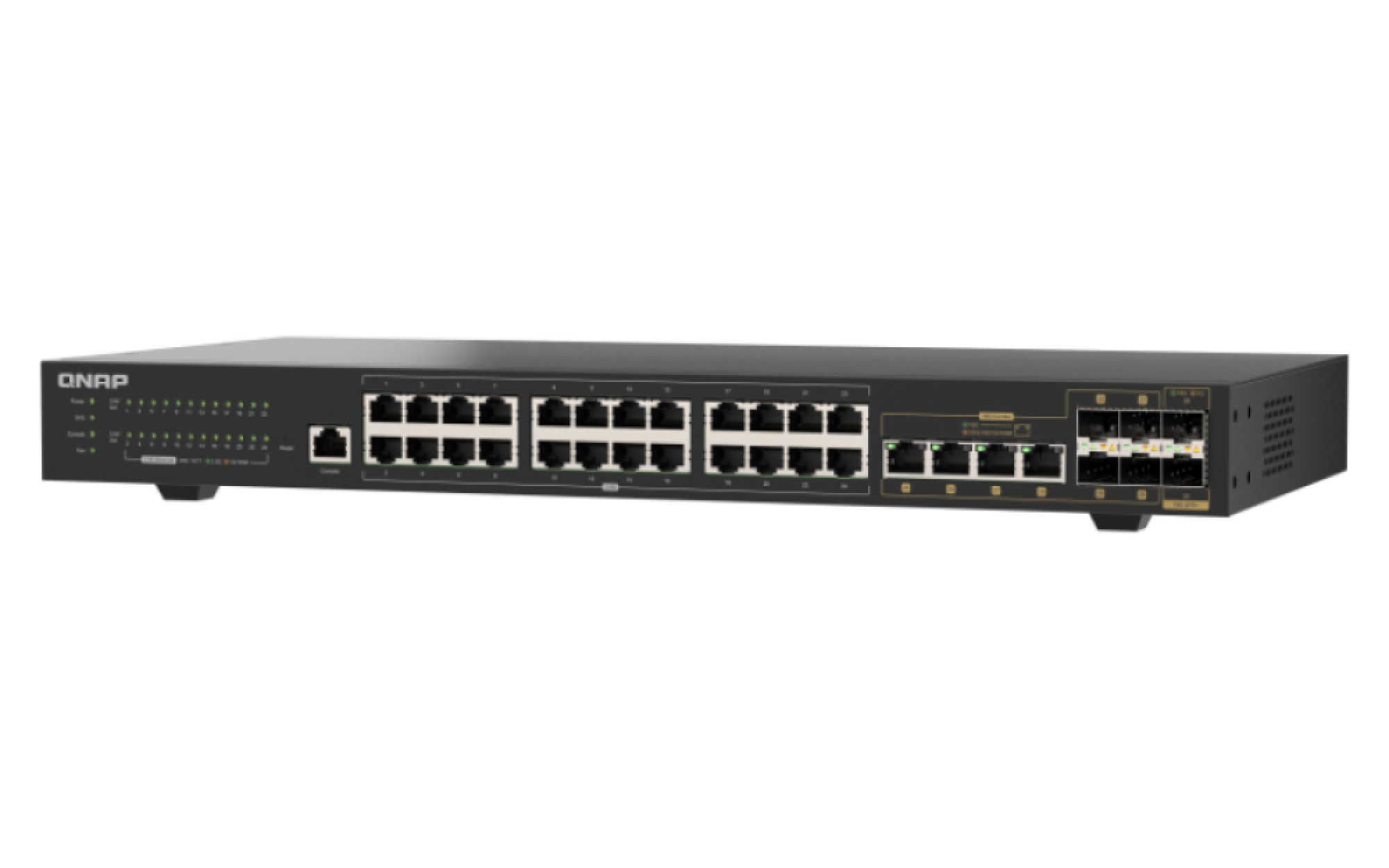

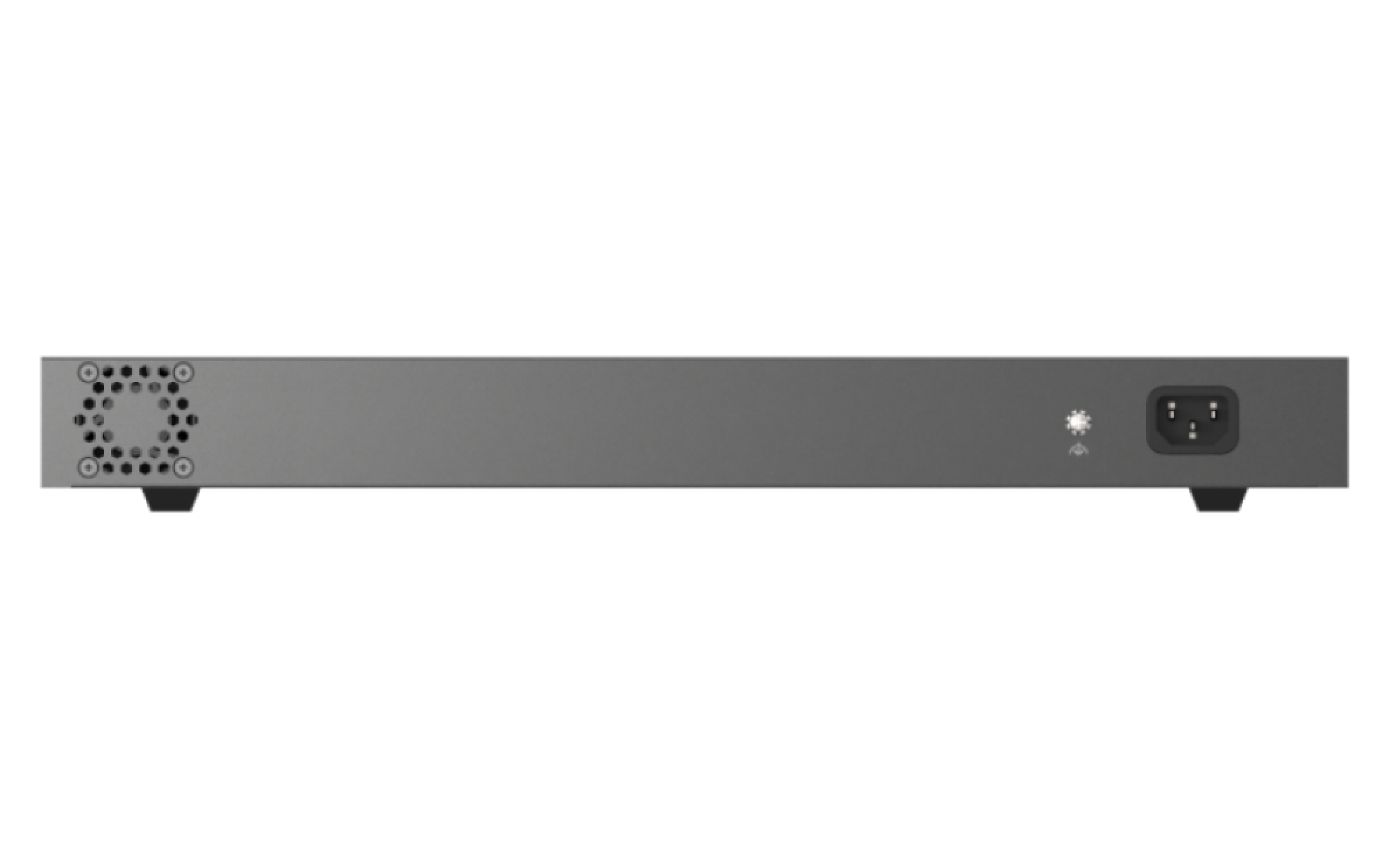

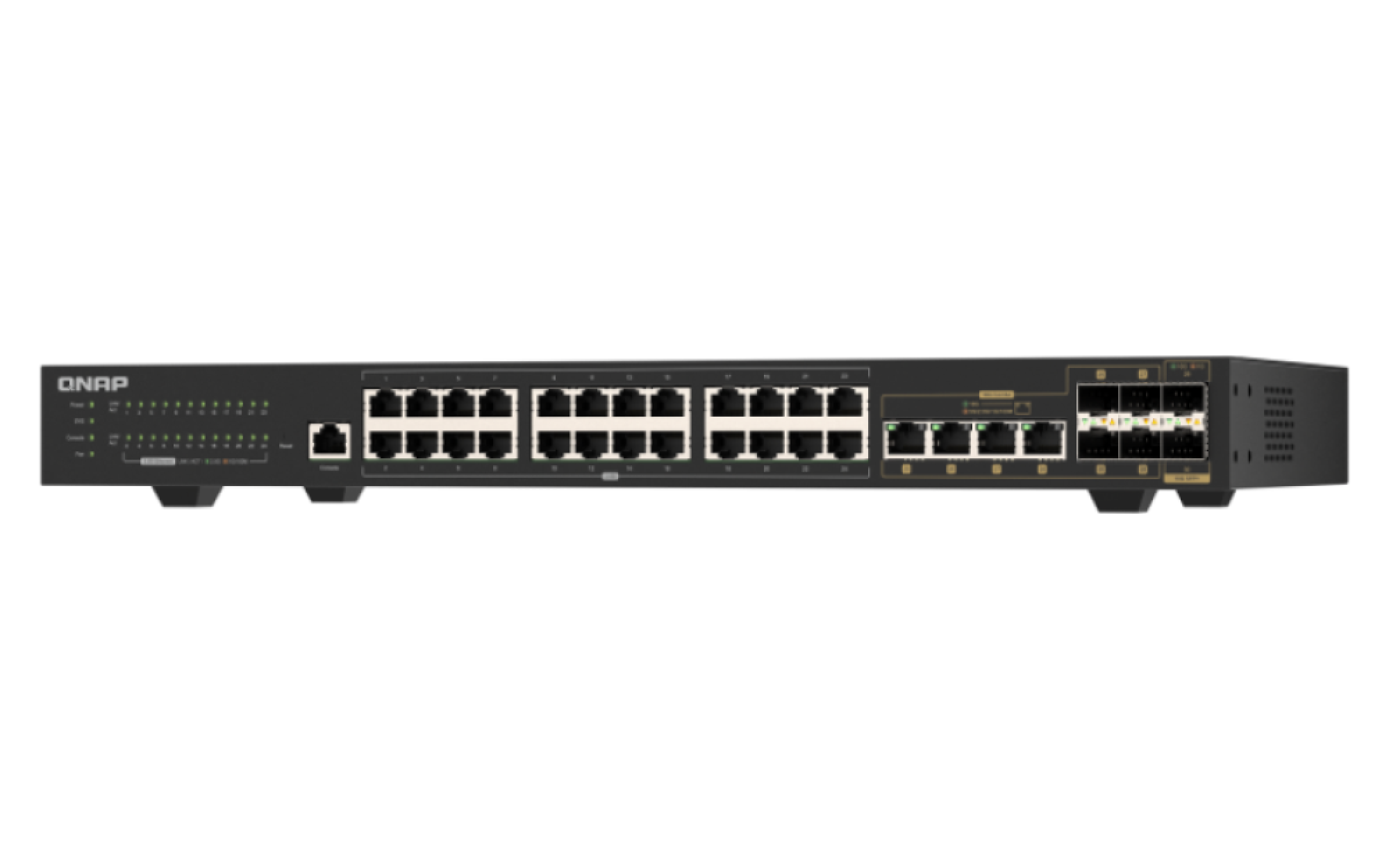

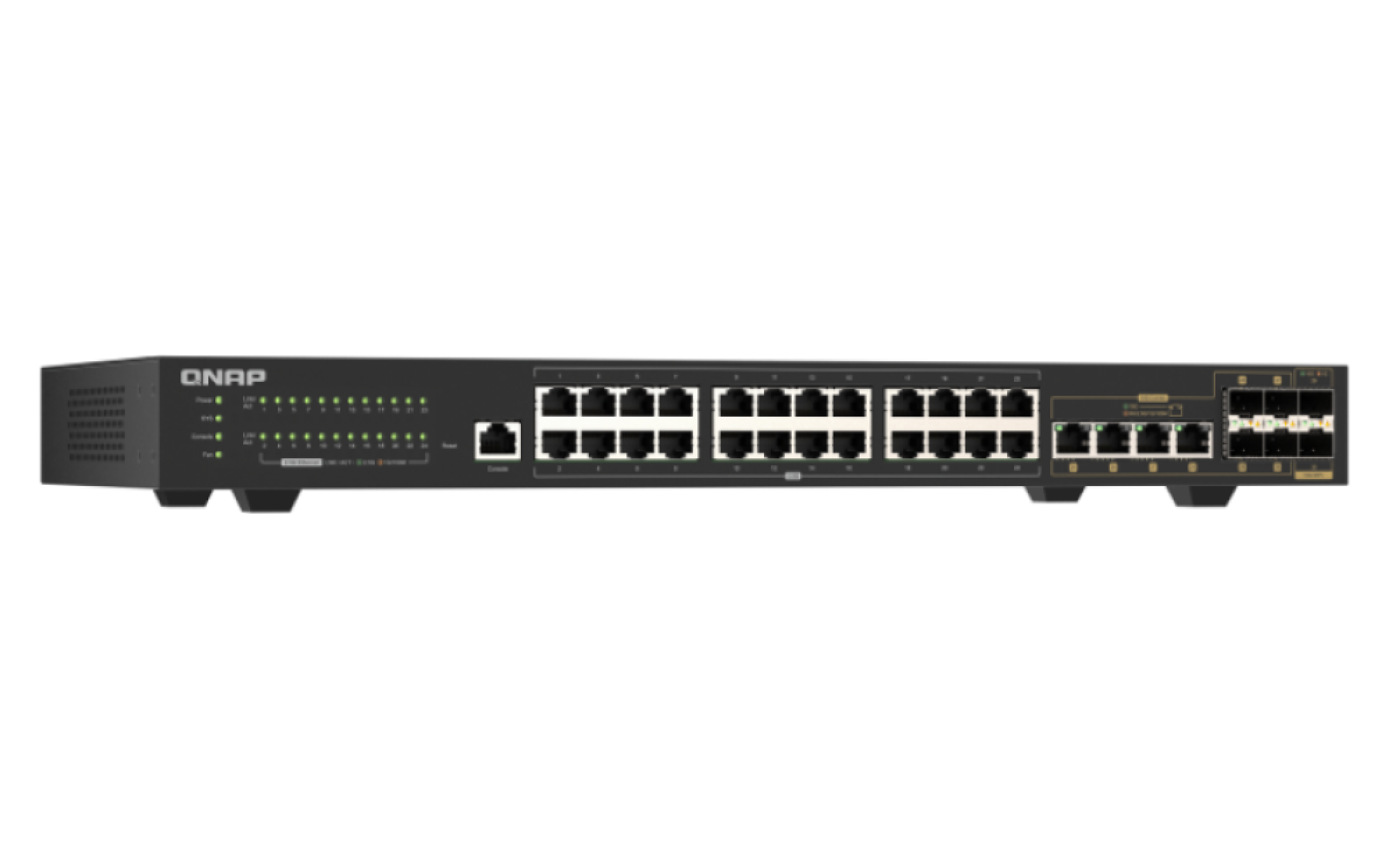

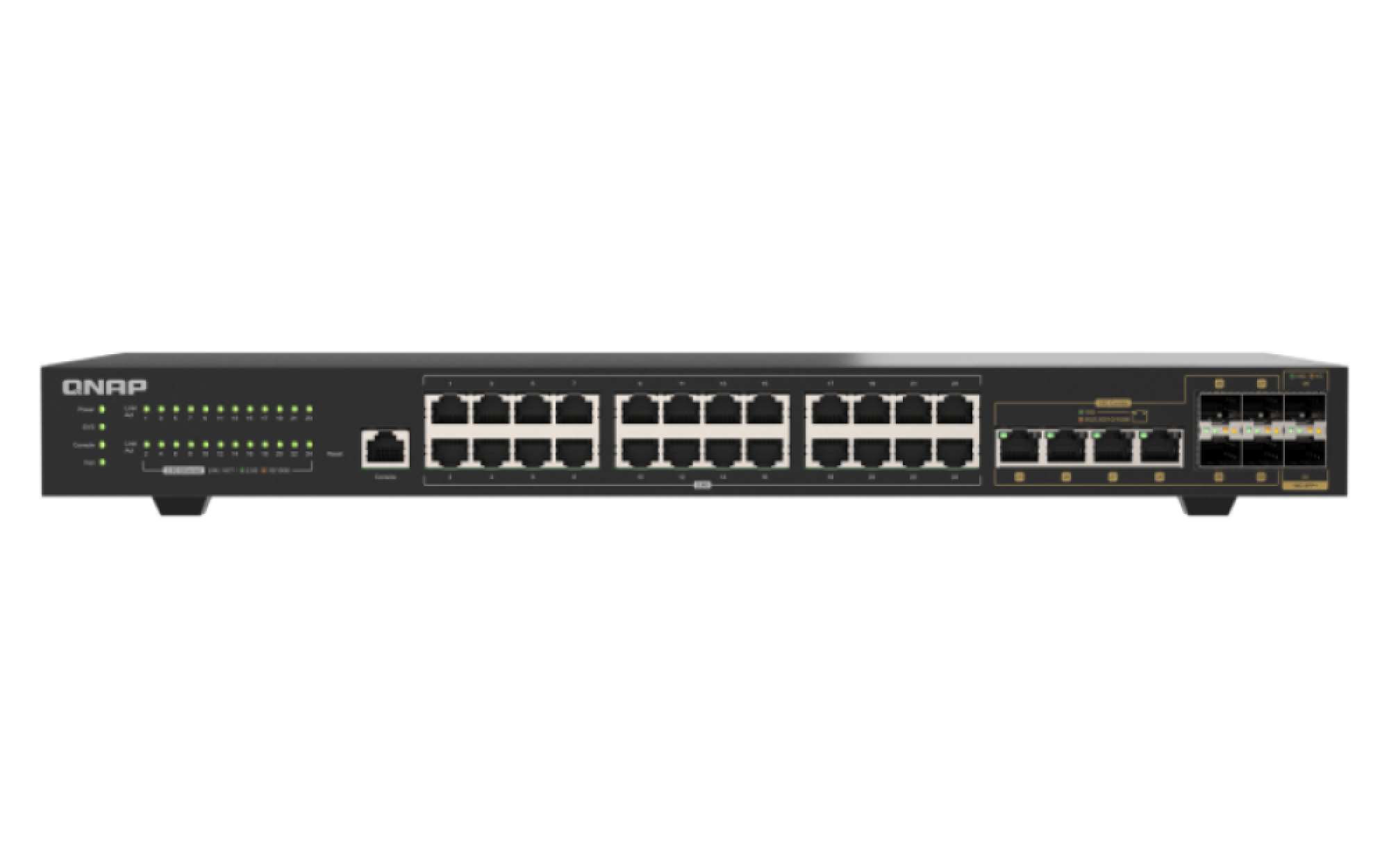

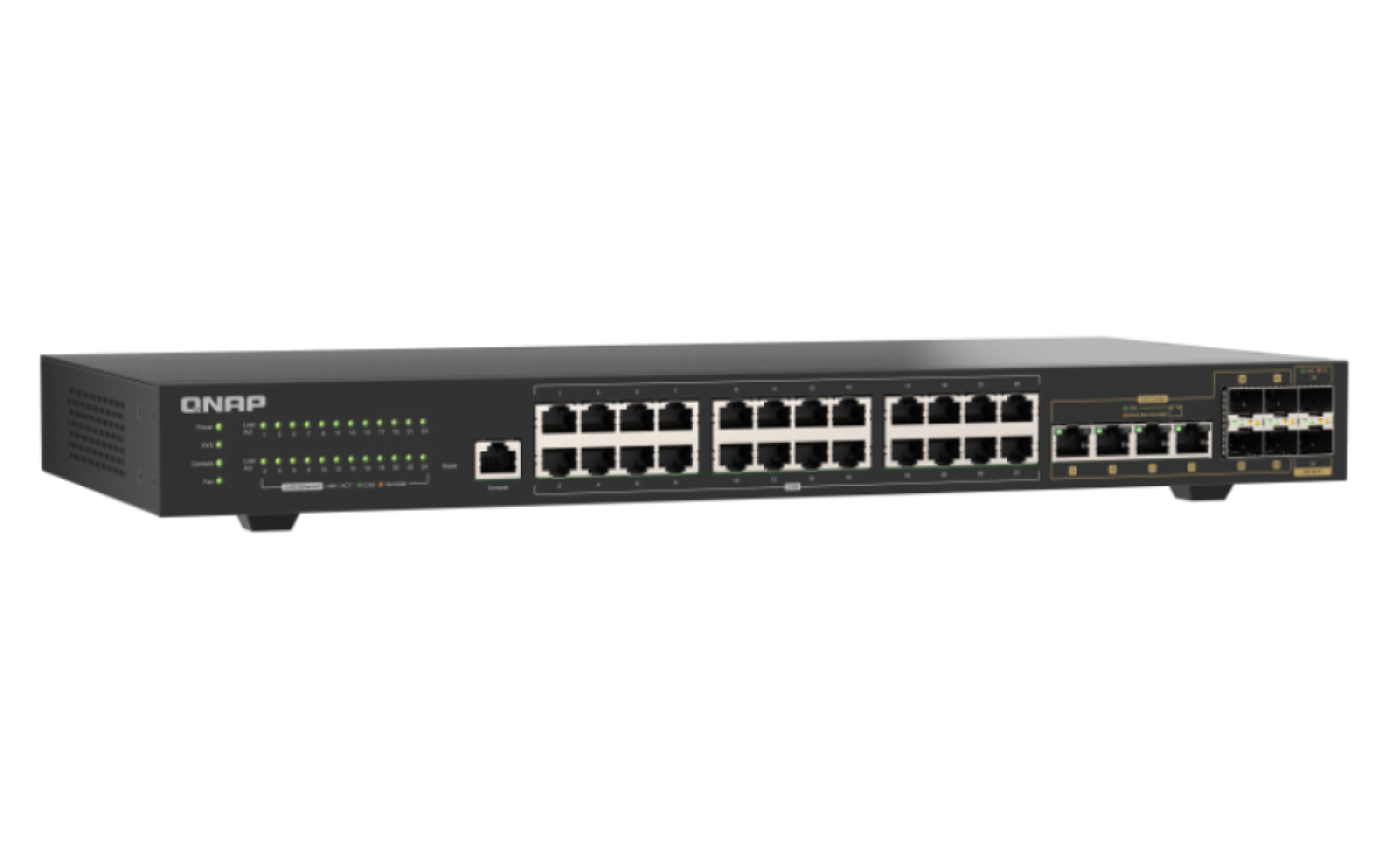

QNAP QSW-M2130-4C2S24T
L2 Managed Switch with 10GbE and 2.5GbE ports, ideal for enterprise network deployment

Overview:

QSW-M2130-4C2S24T is a next-generation L2 managed switch featuring 24 x 2.5GbE Base-T ports, 2 x 10GbE SFP+ ports, and 4 x 10GbE Combo ports for flexible high-speed connectivity. Designed to meet the high-bandwidth demands of NAS and servers, its multi-Gigabit port design makes it ideal for deployment as both an access and aggregation switch. With support for VLAN, QoS, LACP, and ACL, along with the intuitive QSS management interface, it helps businesses build a scalable, efficient, and easy-to-manage network infrastructure. The QSW-M2130-4C2S24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

Features:

Simplify Network Architecture with Integrated Access and Aggregation

In SMB and multi-floor office environments, complexity often arises from fragmented network architectures. QSW-M2130-4C2S24T integrates both access and aggregation roles into a single device. With 24 x 2.5GbE ports connecting workstations, NAS, and edge devices, and 10GbE uplinks aggregating traffic to the core switch, it enables a scalable yet structured network architecture—reducing deployment complexity while maintaining predictable performance.

---

Flexible deployment with multiple 10GbE and 2.5GbE ports

QSW-M2130-4C2S24T features 24 x 2.5GbE Base-T ports, 2 x 10GbE SFP+ ports and 4 x 10GbE Combo ports, delivering a versatile port configuration that supports both access and aggregation layers for more flexible network expansion and multi-Gigabit deployment.

---

10GbE Combo Port: Dual-purpose RJ45 direct connection and flexible SFP+ uplink

The 10GbE Combo port supports both RJ45 copper and SFP+ fiber connections, allowing flexible deployment based on your cabling environment and expansion needs. It helps simplify network upgrades and reduce costs without requiring changes to your existing infrastructure.

---

Optimize Network Performance with bandwidth and packet control

The QSW-M2130-4C2S24T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

LACP	VLAN	QoS	IGMP Snooping
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure.	Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network.	QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation.	IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

---

Powerful security and system functions

The QSW-M2130-4C2S24T has powerful security and system functions (including ACL, DoS Attack Prevention, RSTP and Flow Control) to help enhance network reliability with access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL	DoS Attack Prevention	RSTP	Flow Control
Access Control List filters packets based on rules to offer firewall-like security protection.	Denial-of-Service (DoS) attack prevention is a critical security feature designed to protect against malicious traffic that could exhaust system resources and disrupt network access for legitimate users.	Rapid Spanning Tree Protocol, RSTP ensures a loop-free topology for Ethernet networks by blocking or forwarding traffic.	Flow Control balances the traffic between a sender and a receiver to avoid network congestion.

---

QSS: Human-centered settings guide

QSS provides an overview dashboard, port management and setting guide to help control Layer 2 networks.

---

Extend hardware warranty up to 5 years

The QSW-M2130-4C2S24T is backed by a 2-year warranty at no additional cost.
You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

---
