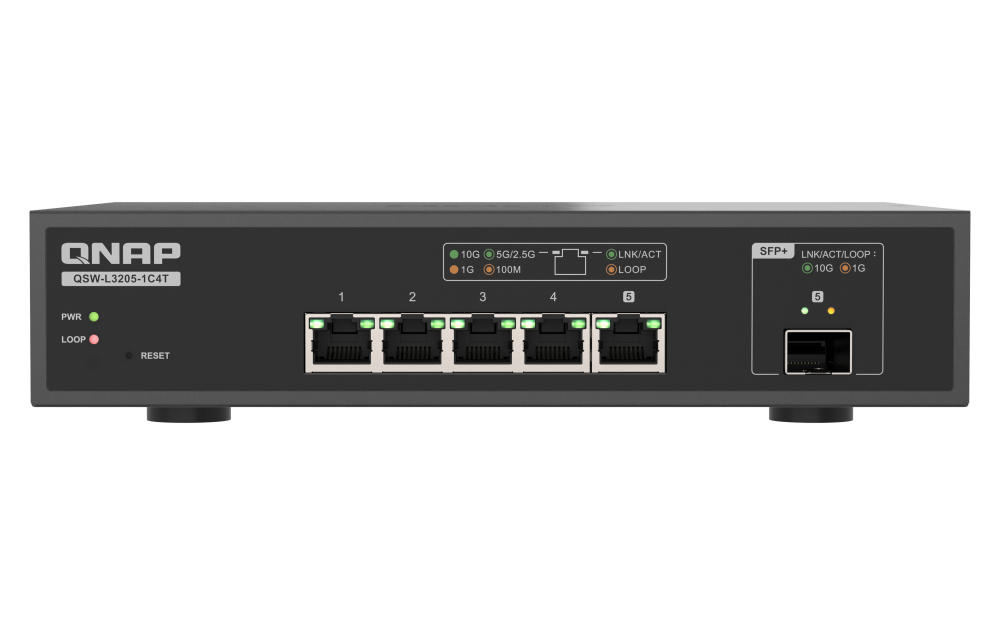

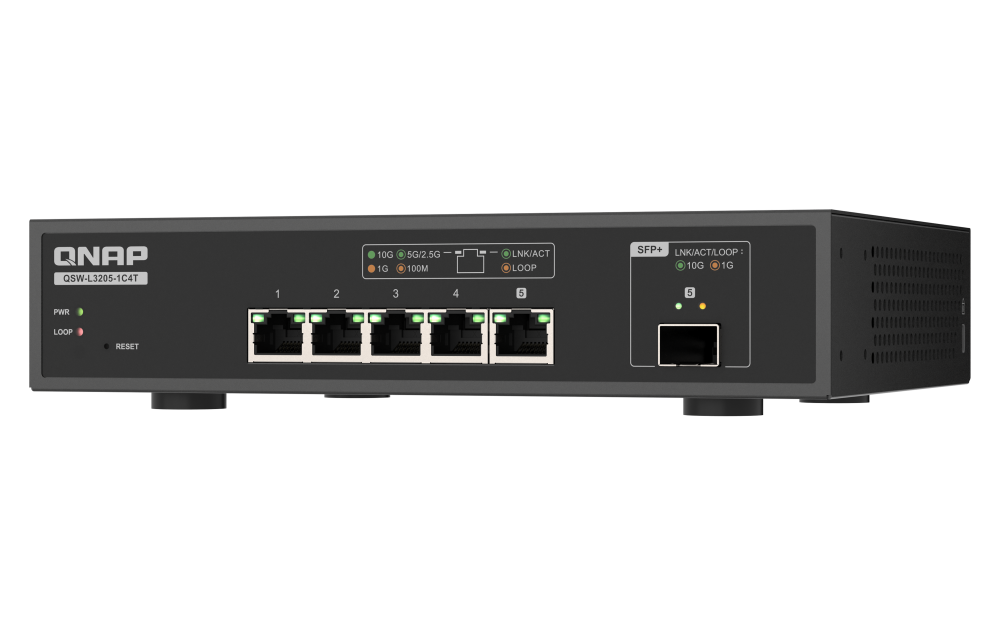

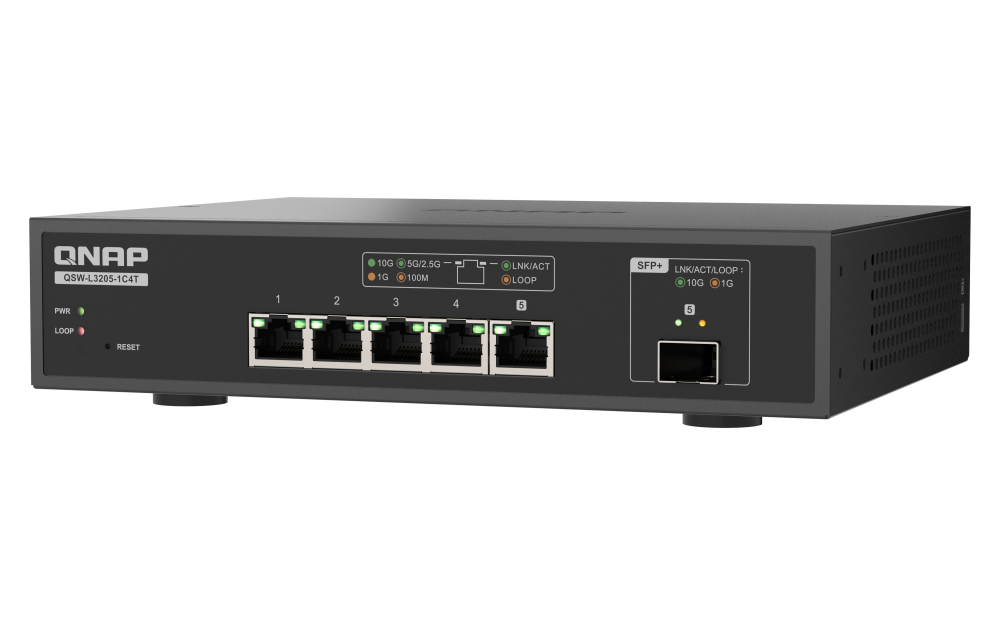

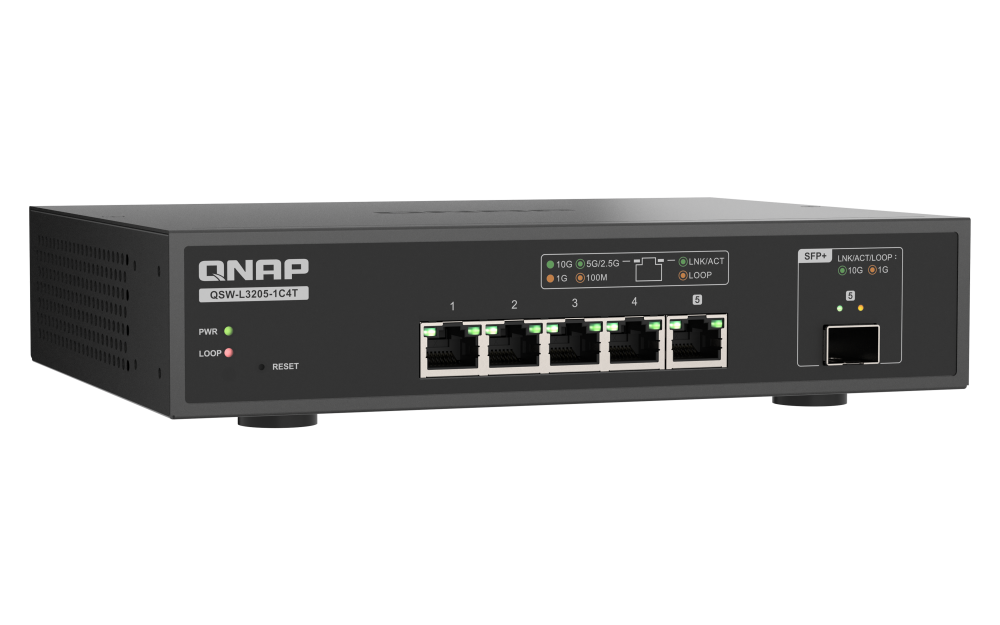

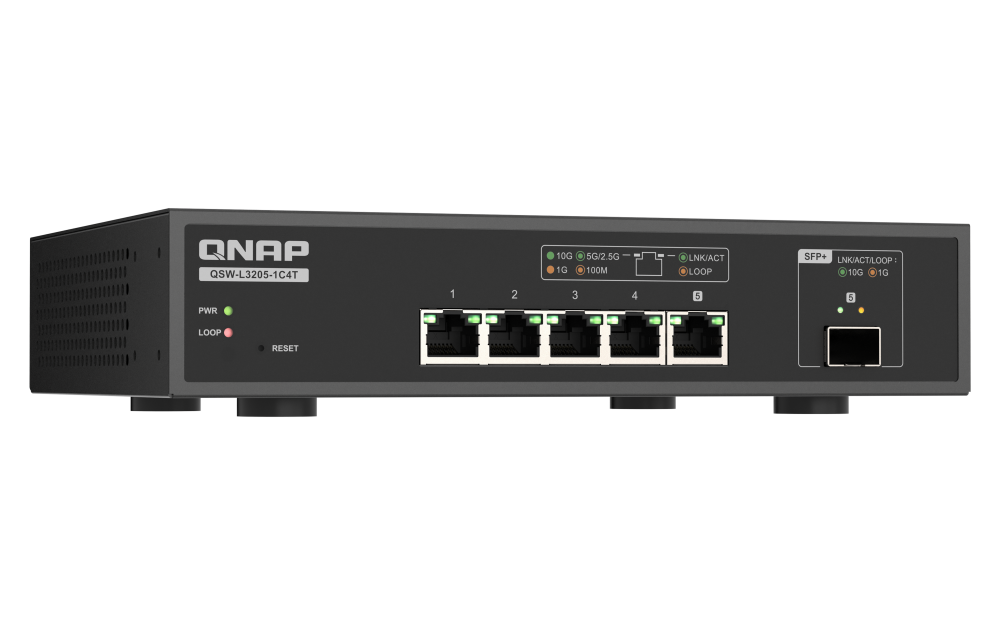

QNAP QSW-L3205-1C4T
10GbE high-speed switching combined with lite management capabilities accelerates video editing, backups, and surveillance without lag

Enhanced Management without Extra Budget – Feel the Lite Managed Difference

Worried about network issues but hesitant about complex settings? Lite Managed switches are the perfect middle ground between unmanaged and L2 managed switches. More flexible than unmanaged switches and simpler and more affordable than L2 managed switches, they offer essential management features—perfect for SMBs, creative studios, and advanced home users seeking stable performance at reasonable cost.

Management Type	Key Features	Management Benefits	Ideal Use Cases
Lite Managed	LACP / VLAN / QoS / Port Mirroring	Simple yet effective traffic segmentation and rate control	SMBs, retail, basic multi-device segmented surveillance
L2 Managed	ACL / SNMP / RSTP	Fine-grained traffic/security control, full monitoring and troubleshooting	Virtualization, storage networks, enterprise surveillance, campus networks
Unmanaged	EEE / Flow Control / Loop Protection	Plug-and-play deployment with stable, maintenance-free connectivity	Homes, SOHOs, meeting rooms

---

5-Port 10GbE Network with Flexible RJ45 and SFP+ Port Configuration

QSW-L3205-1C4T offers 5 x 10GbE ports (4 x RJ45, 1 x SFP+/RJ45 combo), flexibly supporting both fiber and copper connections for seamless integration into different network environments.

Whether for high-speed file transfer or multimedia streaming, this setup ensures smooth, stable operation. RJ45 ports support multiple speeds with Cat 6 or higher cables (10G/5G/2.5G/1G/100M), while the SFP+ port is backward compatible with 1GbE SFP modules—allowing a scalable and high-efficiency network architecture.

---

Precise Bandwidth and Packet Control for Enhanced Network Performance

QSW-L3205-1C4T delivers advanced traffic and bandwidth management to optimize overall network efficiency and stability.

LACP	VLAN	QoS
Combines multiple network links for greater bandwidth and stability. Ideal for upgrades and expansions.	Flexible segmentation for departments and applications. Enhances resource management and security.	Ensures priority applications (such as VoIP and video) receive stable, sufficient bandwidth.
IGMP Snooping	Port Mirroring	Flow Control
Precisely manages multicast streams to prevent waste and improve multimedia performance.	Duplicates port traffic for monitoring and troubleshooting—boosting network security.	Regulates traffic to avoid overload during high-speed transfers—ensuring smooth flow.

---

Real-time Loop Detection for Stable Connectivity

QSW-L3205-1C4T features built-in loop detection. When loops are detected, related ports are immediately blocked to restore normal operations. Even in complex environments, the system efficiently identifies and resolves loops to ensure stability.

---

Intuitive QSS GUI for Easy Management

The QNAP Switch System (QSS) provides a graphical interface for fast, simple, and organized network management.

---

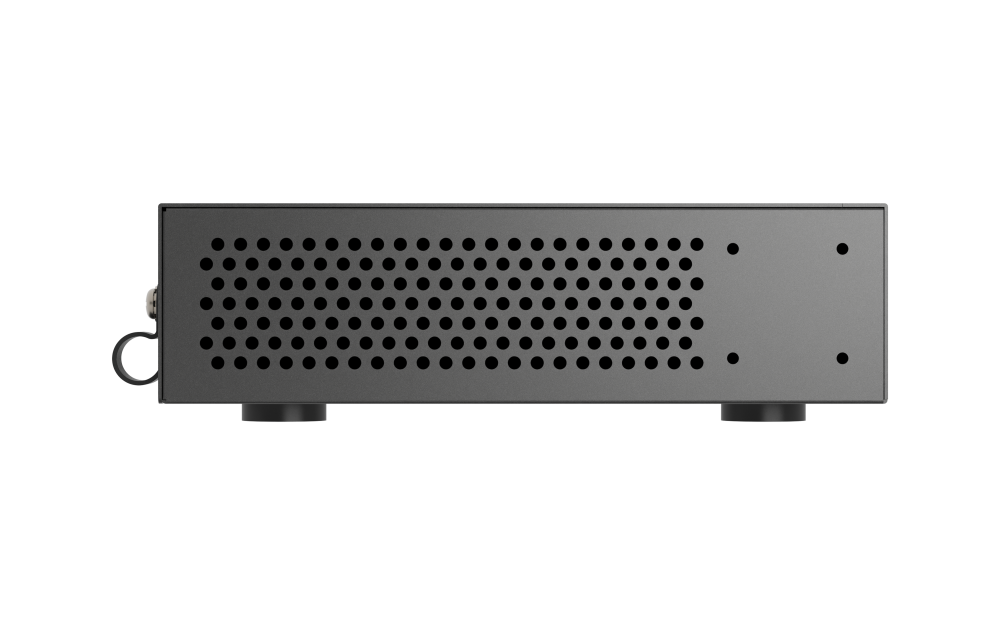

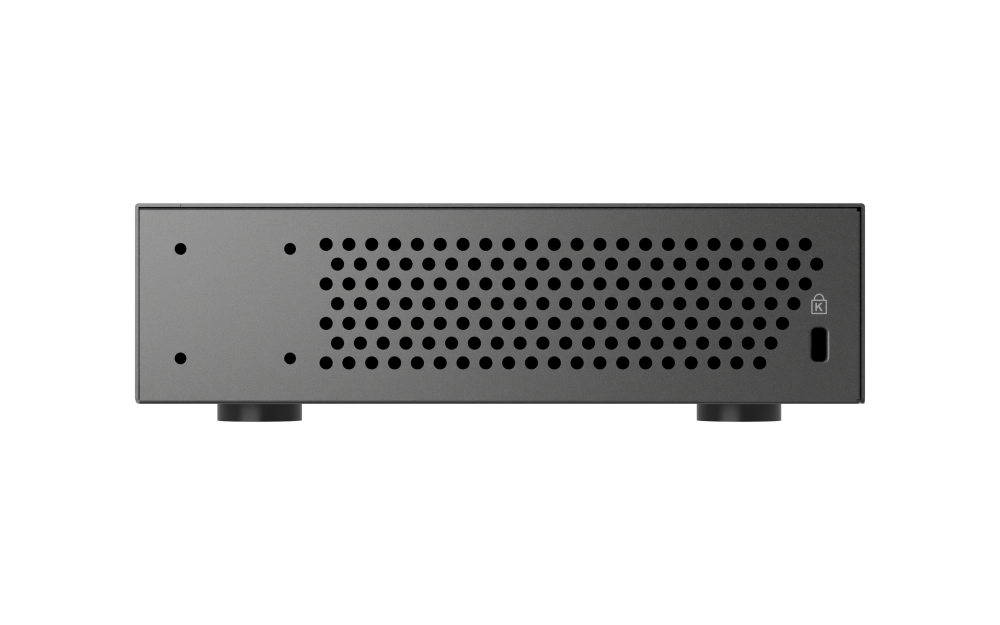

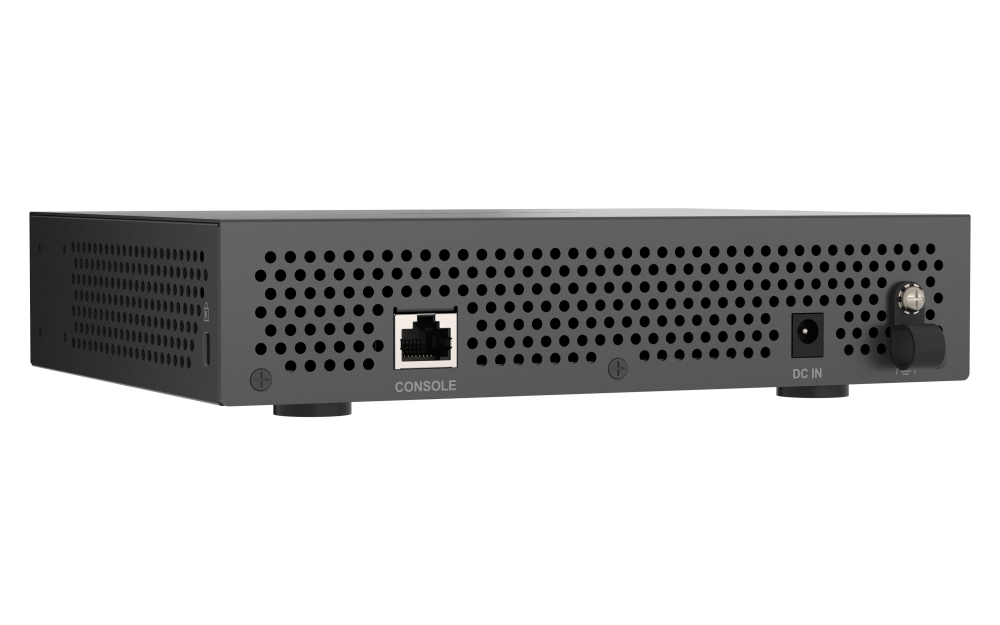

Silent and Reliable with Superior Heat Dissipation

QSW-L3205-1C4T features a full-metal enclosure for robust protection and excellent thermal performance during high-speed access, ensuring long-term stability. Its fanless design ensures silent operation—ideal for office and studio use. Clear LED indicators make device status easy to monitor.

---

Fully embrace high-speed networking with QNAP!

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

---

Extend hardware warranty up to 5 years

The QSW-L3205-1C4T is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
