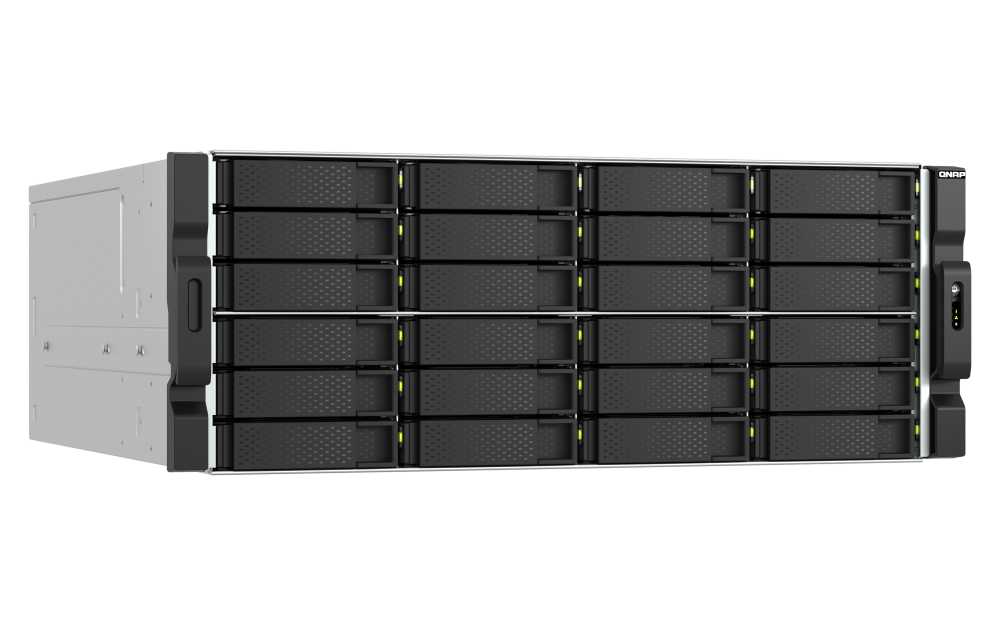

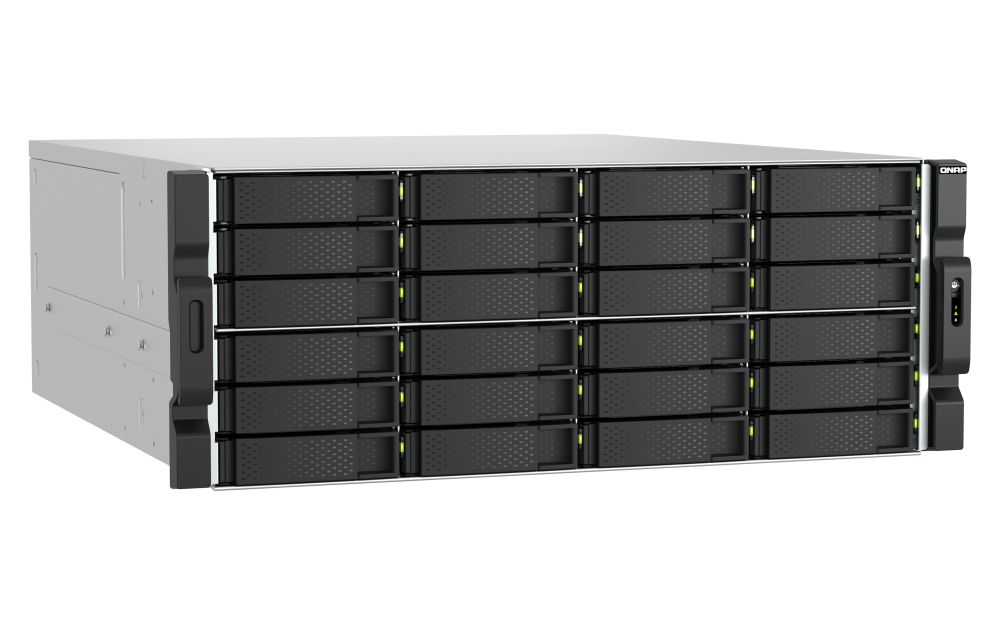

QNAP TS-h2477AXU-RP
AMD Ryzen™ 7 PRO 7000 Series Processor and ZFS Data Integrity for Enterprise Storage and Virtualization
AMD Ryzen 7 7000 series 8C16T (boost up to 5.3 GHz), 32GB DDR5 non-ECC RAM (max. 192GB total), 24x 2.5"/3.5" SATA HDD/SSD, 2x M.2 2280 PCIe Gen5 x2 slots for SSD cache, 2x 10GBASE-T + 2x 2.5 GbE RJ45, 3 x PCIe Gen 4 expansion slots, 2 x 550W redundant power supply
Our Price: $6,099.00
Want to build a custom bundle? Contact us!
Click here to jump to more pricing!
Package Content
- TS-h2477AXU-RP Storage System
- 1 x 10Gbase-T Ethernet cable
- 2 x Power Cord
- 96 Flat Head Screw (for 3.5” HDD)
- 72 Flat Head Screw (for 2.5” HDD)
Overview:
Purpose-built for high-performance environments, the TS-h2477AXU-RP features 24-bay SATA drive support and dual PCIe Gen 5 M.2 SSD slots to handle massive storage volumes and ultra-fast data access. Redundant power supplies ensure uninterrupted operation for mission-critical workloads. Powered by the AMD Ryzen™ 7 PRO 7000 series processor and the ZFS file system, it delivers enterprise-level data integrity and protection. Ideal for mid to large-sized teams running file servers, virtualization platforms, long-term data archiving, media production, and large-scale surveillance recording.
Immutable Storage
QuTS hero OS supports WORM, ZFS deduplication, compression, and high-volume snapshots to ensure data integrity and long-term retention.
DDR5 RAM
Supports up to 192 GB DDR5 RAM, delivering stability and performance for memory-intensive applications and multi-VM workloads (ECC RAM is also supported).
3 x PCIe Gen 4 Expansion Slots
Easily scale with 25GbE adapters, GPUs, or storage expansion cards—customize hardware to match evolving performance needs.
High-Speed 10/2.5GbE Ports
Equipped with dual 10GbE and dual 2.5GbE ports, ideal for fast multi-user file sharing, low-latency virtualization, and high-throughput media workflows.
Petabyte-Level Scalability
Compatible with QNAP SAS and PCIe JBOD expansion units—build a flexible, high-capacity storage infrastructure for long-term growth.
Long-term supply
Supported until 2030 to ensure stability for enterprise IT planning and infrastructure lifecycle management.
Features:
Enterprise-Grade High-Density Storage for Maximum Space Efficiency
Offers 24-bay HDD capacity with support for M.2 SSDs and dual power supplies, optimizing both space usage and performance. Ideal for centralized backup, cold data archiving, and media asset consolidation, helping enterprises build a stable and efficient storage foundation on-premises.
Powerful Multi-Core Performance for Enterprise Workloads
Engineered for enterprise-grade multitasking and high-performance applications, the TS-h2477AXU-RP ensures stable and seamless computing for virtualization, parallel workloads, and data-intensive tasks.
Processor
AMD Ryzen™ 7 PRO 7000 series processor features 8 cores and 16 threads, with speeds up to 5.3 GHz. Integrated AMD Radeon™ Graphics provides hardware-accelerated graphics processing.
Memory
Equipped with DDR5 non-ECC memory, expandable to 192 GB (4 x 48 GB).
Transfer speed
| ISCSI Random IOPS 4K (5 x 25GbE) | Read 1439069 |
Write 1045255 |
| SMB Sequential Throughput 1M (6 x 25GbE) | Read 13094 |
Write 12249 |
Tested in QNAP Labs. Figures may vary by environment.
Test environment:
NAS: TS-h2477AXU-RP-R7-32G (upgrade RAM to 64G) with QXG-25G2SF-CX6*3
OS: QuTS hero h5.2.5.3133
Volume type:
Phison PASCARI SA50V 15.36TB 2.5" SATA SSD S1201K0015T3V0116T300 x12, RAID 5
Client PC:
5x Windows Server 2019, (1x Intel Core i7-7700, 3x Intel Core i3-8100, 1x i7-6700), simultaneously read and write 256GB file
Built-in 10GbE & 2.5GbE, upgradeable to 25GbE
Supports Port Trunking for redundant connections
Dual 10GbE and 2.5GbE ports with optional 25GbE expansion. Aggregates bandwidth and ensures network fault tolerance for stable data transfer under load or failure.
Supports Port Trunking for redundant connections
Dual 10GbE and 2.5GbE ports with optional 25GbE expansion. Aggregates bandwidth and ensures network fault tolerance for stable data transfer under load or failure.

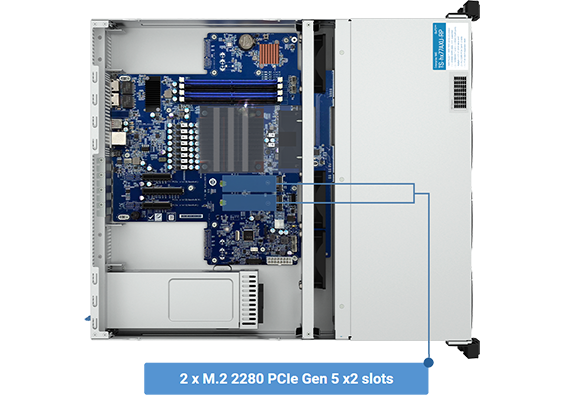

M.2 PCIe Gen 5 slots enable flexible upgrades
The TS-h2477AXU-RP features two M.2 2280 PCIe Gen 5 slots which support NVMe SSDs for exceptional read/write speeds. PCIe Gen 5 is backwards compatible with PCIe Gen 4 and Gen 3, providing flexible storage performance and expansion options.
Note: M.2 SSDs are sold separately. Due to limited physical space, you should remove large heatsinks from M.2 SSDs and replace them with QNAP’s M.2 SSD heatsink before installing in the TS-h2477AXU-RP.
SSD Caching or Storage Pool Configuration
Configure SSDs as cache drives or create M.2 NVMe SSD storage pools to accelerate intensive data access and deliver blazing-fast performance.
Note: We recommend using the NVMe SSD storage pool as the QuTS hero operating system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
Power Failure Protection
Add M.2 SSDs to enable ZIL power failure protection, ensuring that the NAS can continue completing unfinished data writes after power outage followed by a power restoration, and preventing data corruption while modifying data.
Optimized PCIe Gen 4 Slots for Advanced Expansion Cards
The TS-h2477AXU-RP has three PCIe Gen 4 slots which provide versatile expansion options, optimizing application performance and overall system efficiency.
Network Expansion: 2.5/10/25GbE Expansion Card
Add more network ports and bandwidth to speed up large file transfers, backups, and virtualization. Port Trunking boosts performance further while ensuring network resilience.
M.2 Slot Expansion: QM2 Expansion Card
Add M.2 SSDs for high-speed storage pools or cache acceleration, reducing latency and improving overall system responsiveness.
GPU Expansion: Graphics Card
Enhance video editing and transcoding capabilities or leverage GPU Passthrough to accelerate virtual machine graphics processing.
Storage Expansion: Storage Expansion Cards
Expand storage capacity by connecting multiple high-performance QNAP JBOD devices, ideal for large-scale data storage, backups, and long-term archiving.
Meets diverse business needs
Tier 2 Storage
Fulfills high-speed transfer performance as a cost-effective Tier 2 storage solution.
Virtualization
Supports GPU passthrough to VMs by leveraging graphics cards; coupled with inline data deduplication to maximize storage efficiency.
4K/8K Video Editing
Supports up to three additional high-speed 25GbE network cards, delivering the bandwidth needed for 4K/8K media transfer, online editing, and post-production workflows.
PB-Level Storage
Achieve futureproof PB-level storage by connecting up to eight 24-bay TL-R2400PES-RP PCIe JBOD units to the TS-h2477AXU-RP.
Secure data access at your fingertips
Access NAS data like from a local folder
Map your TS-h2477AXU-RP NAS folders as network drives on your computer, and access files like they were stored locally.
Cross-platform file sharing
Supporting SMB/CIFS, AFP, WebDAV, and NFS protocols, the TS-h2477AXU-RP enables seamless file sharing and transfer across Windows®, macOS® and Linux® computers, without compatibility concerns.
Secure remote access
Use QVPN to create a secure virtual private network to access to the TS-h2477AXU-RP. Businesses can further leverage QuWAN to swiftly set up Mesh VPNs, allowing employees to easily join VPN and systems on intranet.

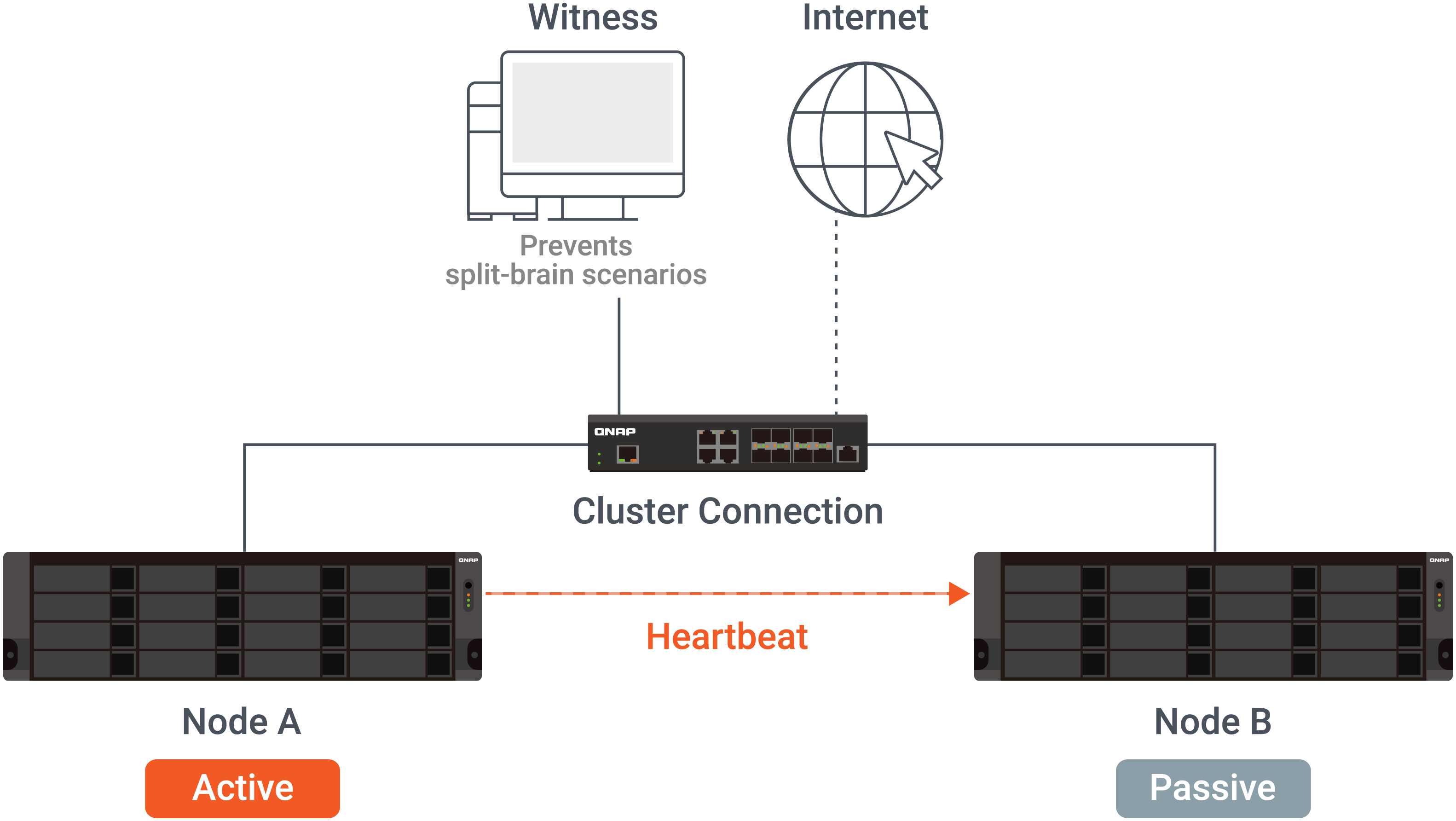

High availability (HA) and failover with dual-NAS architecture
Avoid unplanned downtime and data loss.
Create a HA cluster with two TS-h2477AXU-RP — one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.
Easy management and monitoring
Use the High Availability Manager app to easily configure, remove, or rebuild clusters.
Guaranteed data consistency
Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).
Ensured continuity of critical business
The passive server takes over within 1 minute if the active server fails (RTO < 60 secs).
Trusted storage for virtualization
Powerful yet affordable
Cost-effective iSCSI/IP-SAN storage solutions with high bandwidth for reduced latency.
Flexible & Scalable
Supports multiple protocols and expansion options to meet business needs.
Data protection
Offers LUN encryption, snapshots, and backup to ensure data safety.
Compatible with top-tier solutions
The TS-h2477AXU-RP supports VMware® vSphere™, Microsoft® Hyper-V®, and Citrix® XenServer™ mainstream virtualization platforms. With the QNAP CSI Plugin for Kubernetes®, the TS-h2477AXU-RP is also ideal block storage for Kubernetes® containerized apps.
Object storage certified as Veeam® Ready
Use the TS-h2477AXU-RP with QuObjects as the premier destination for S3 object storage and backup. QuObjects supports Object Lock, validated as Veeam® Ready – Object with Immutability.
Run VMs and Containers
With no additional fees, you can run multiple VMs of different OS on TS-h2477AXU-RP. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.
VMs
Securely run Windows®, Linux®, UNIX®, QuTScloud VMs using Virtualization Station.
Containers
Run Docker®, LXD, Kata Containers and download Container Apps using Container Station.
VM High Availability
(Coming soon)
VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.
Network & Virtual Switch
Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.
QuTS hero operating system
Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses’ stringent demands for performance and reliability.
Automatic repair of corrupted data
ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.
Data immutability
Defend against ransomware by creating a WORM (Write Once, Read Many) folder to prevent data from being overwritten, modified, or deleted, while also enabling immutable backups.
Power failure protection
ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.
Data reduction
Inline data deduplication1 reduces storage consumption for maintaining optimal disk capacity.
Prevent simultaneous SSD failure
The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.
Note: Inline Data Deduplication requires a NAS with at least 16GB memory. At least 32GB memory is recommended for optimal performance.
Multi-level security strategy for enterprises
Bolster business data security with resilience from all aspects
Connection
Enterprise private network connection
Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches.
Filtering unauthorized access
Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats.
Permission
Efficient NAS user management
The TS-h2477AXU-RP supports Windows® AD, Azure® AD, and LDAP; Admins can further improve management productivity and NAS security via delegated administration.
Strengthened NAS log-in security
Set up passwordless login or two-factor authentication (2FA) for your NAS accounts to prevent data breaches and unauthorized access.
Transmission
SMB signing acceleration
Enable SMB signing to facilitate secure SMB file transfer, while QNAP’s exclusive algorithm greatly increases data signing efficiency and data transmission performance.
Assessment
Security and risk assessment
Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures.
Centralized notification management
Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status.
Block malware attacks
Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h2477AXU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
5-year warranty as standard
The TS-h2477AXU-RP is backed by a 5-year warranty at no extra cost – providing your business organization with greater peace of mind.
Hardware Specifications:
| TS-h2477AXU-RP-R7-32G | |
|---|---|
| CPU | AMD Ryzen™ 7 Pro 7000 series 8-core/16-thread processor, burst up to 5.3 GHz AMD Radeon Graphics |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | AMD Radeon™ Graphics |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 32 GB UDIMM DDR5 (1x 32 GB) |
| Maximum Memory | 192 GB (4 x 48 GB) |
| Memory Slot | 4 x UDIMM DDR5 Support optional ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 24 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 5 x2 slots Compatible with NVMe SSD PCIe Gen 3 and above. |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 4 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use. Card dimensions for PCIe slot 1：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches Card dimensions for PCIe slot 2：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches Card dimensions for PCIe slot 3：200 x 111.15 x 23.76 mm / 9.84 x 4.38 x 0.94 inches Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 4U Rackmount |
| LED Indicators | Power Status, HDD 1-24, M.2 SSD 1-2, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Operating temperature | 0 - 40°C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 550W(x2), 100-240V |
| Fan | System fan: 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
