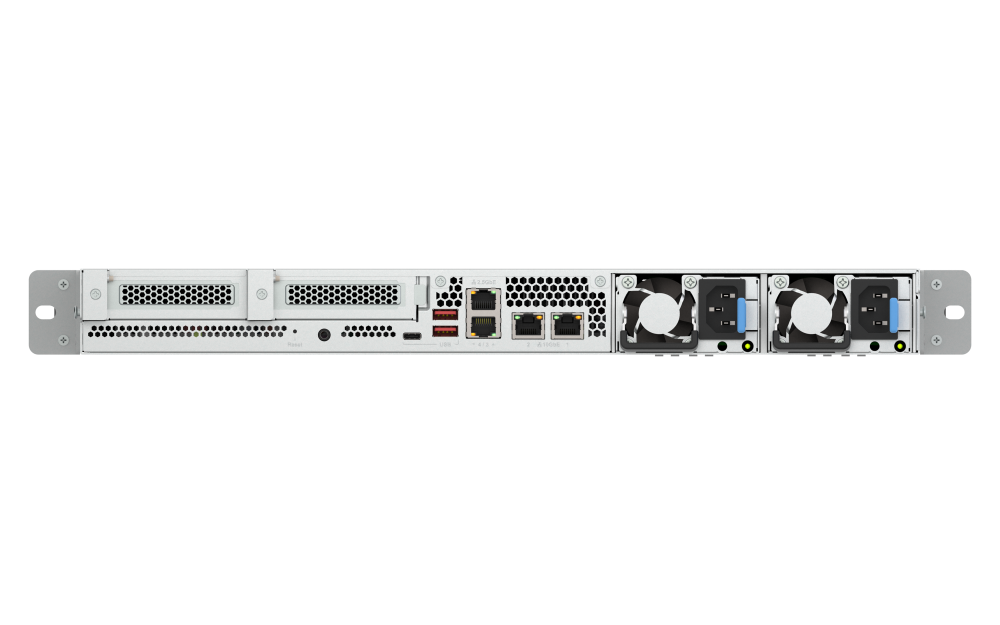

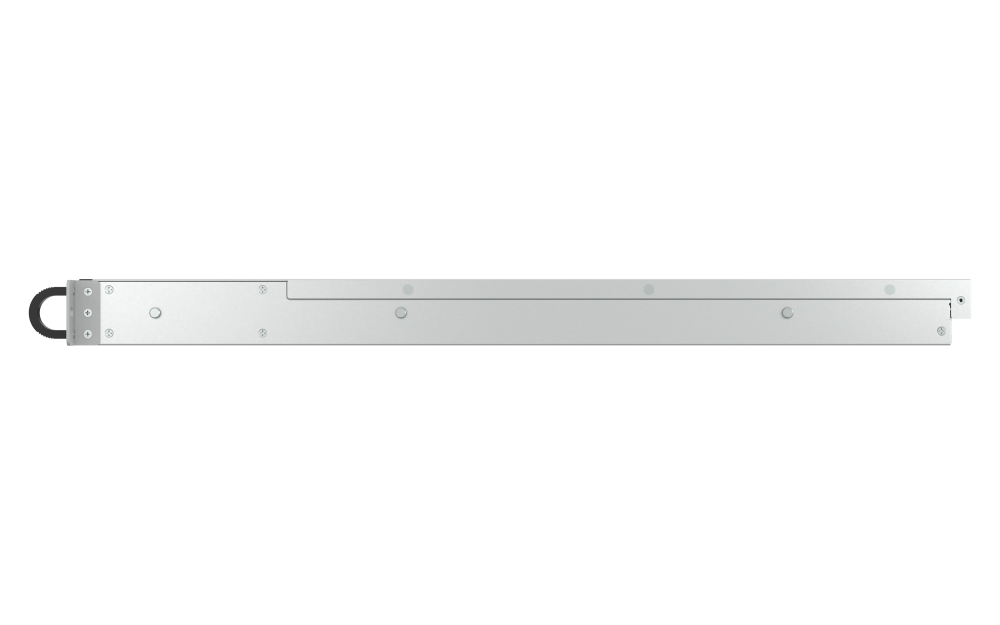

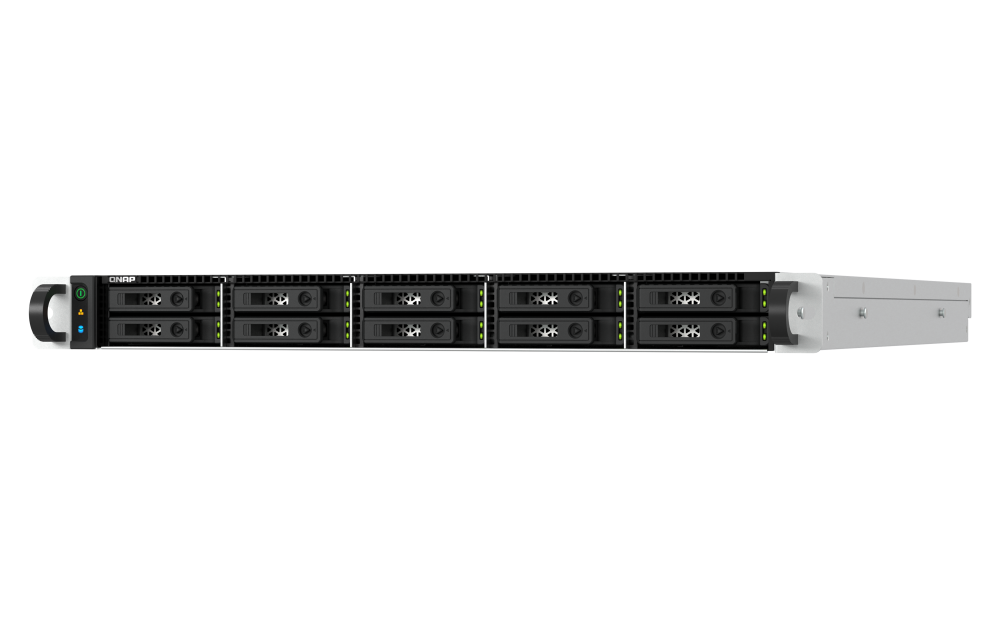

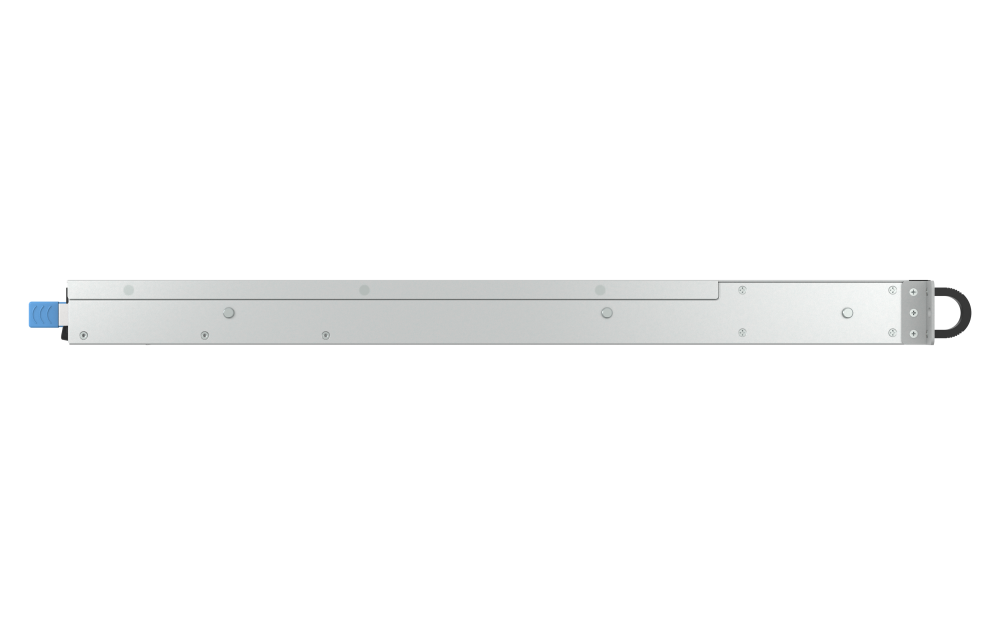

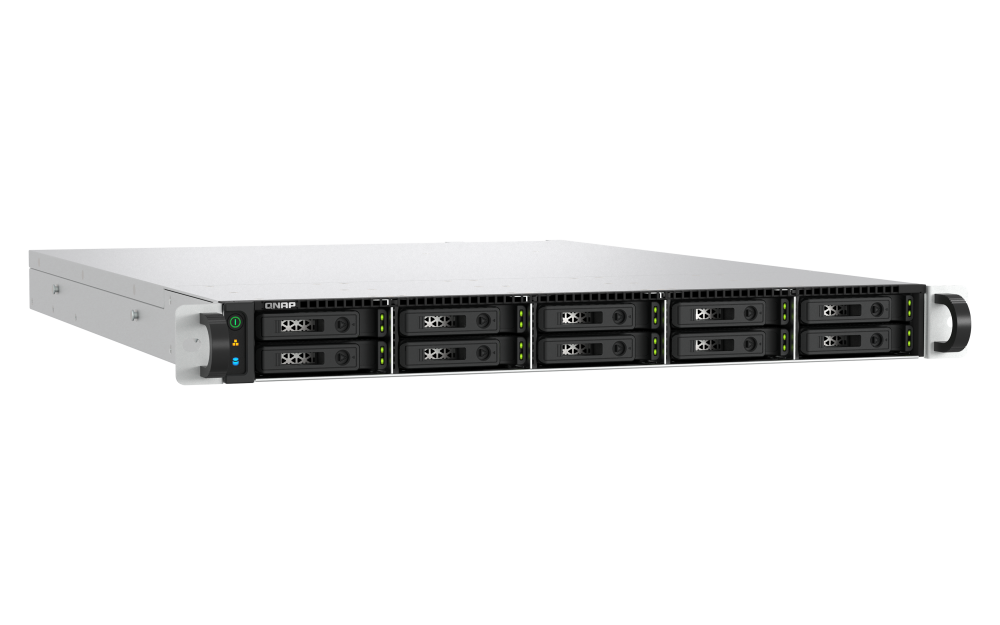

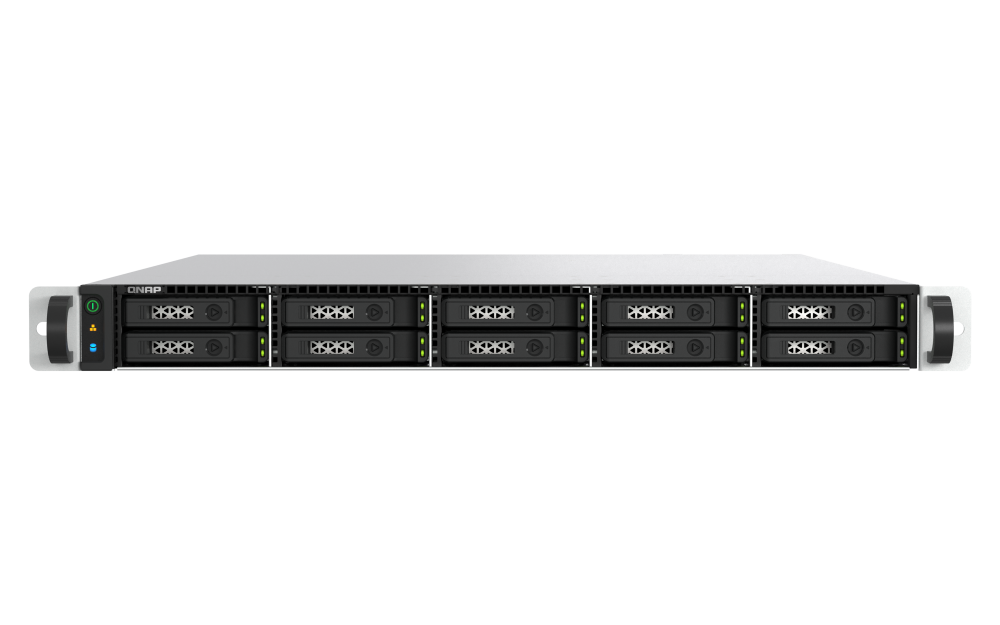

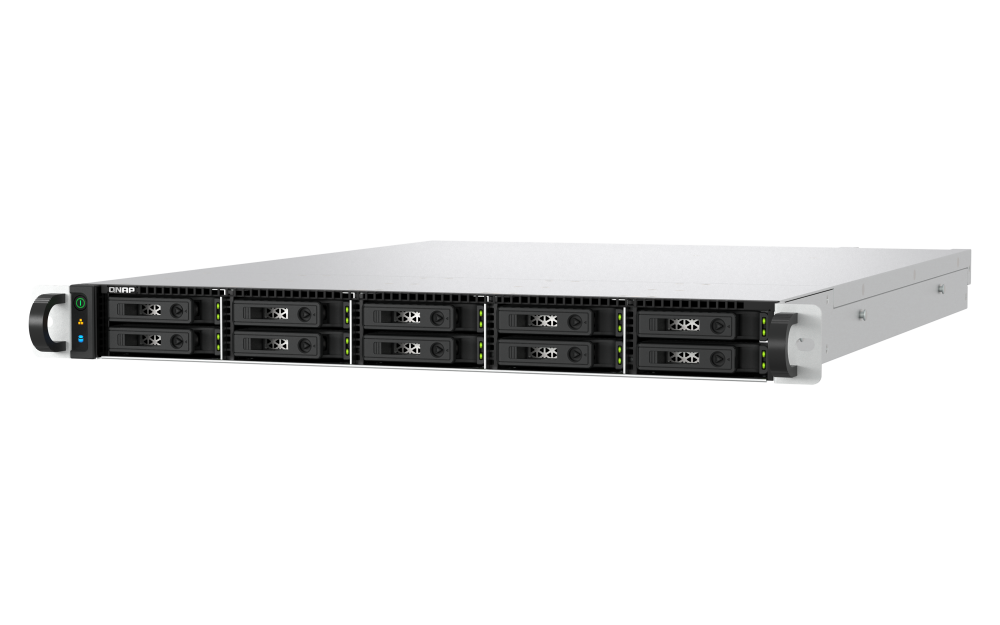

QNAP TS-h1077AFU
SATA-based all-flash NAS. Compact 1U rackmount. Powered by ZFS for data integrity.

QNAP Products

Enterprise Storage Products

QNAP 1U 10-bay 2.5″ SATA all flash NAS, AMD Ryzen 7000 series 8C16T, 32GB DDR5 ECC RAM, 2x 10GBASE-T + 2x 2.5 GbE RJ45, 2 x PCIe Gen 4 expansion slots, 2 x 550W redundant pwoer supply, without rail kit.
AMD Ryzen 7000 series 8C16T (boost up to 5.3 GHz), 32GB DDR5 ECC RAM (max. 192GB total). Support rail kit RAIL-B02.

#TS-h1077AFU-R7-32G-US
Get a Quote!

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Overview

Features

Specifications

Overview:

The TS-h1077AFU is ideal for teams managing virtual machines, databases, or remote backups across branch offices; media professionals working with high-resolution content in fast-paced editing environments; and MSPs deploying reliable storage infrastructure for client workloads. With all-flash performance and High Availability (HA) support, the TS-h1077AFU forms a dual-NAS failover cluster that ensures uninterrupted core services—delivering the stability and resilience required for mission-critical workloads.

Optimized SSD performance

QuTS hero OS enhances SSD efficiency and lifespan with technologies like inline data deduplication and QNAP SSD Antiwear Leveling (QSAL).

High-speed networking

Comes with 2 x 10/2.5GbE ports as standard. Upgrade to 25GbE via PCIe for faster virtualization, media file transfers, and large-scale backup/restore.

Long-term and stable supply

The TS-h1077AFU will be available and supported by QNAP for an extended period, up to 2030.

Built-in GPU

Energy-efficient AMD Radeon™ Graphics streamlines video editing/transcoding and multitasking.

Petabyte-scale storage

Connect up to four 24-bay JBODs (TL-R2400PES-RP) to attain petabyte-scale storage capacity of 96 drives.

DDR5 ECC RAM

Supports up to 192GB DDR5 ECC RAM for demanding workloads, ensuring performance and data integrity.

Features:

Ideal applications

Virtualization

Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).

Enterprise

Delivers ultra-low latency and high IOPS for mission-critical systems. Ideal for log processing, database caching, backup, and acting as a cache layer in hybrid storage environments.

Media creation

Enables smooth 4K/8K media streaming, post-production, and VFX with high-speed data access, transfer, and backup—empowering demanding multimedia workflows.

Compact & cost-effective all-flash array

Designed with speed, density, and reliability at its core. The TS-h1077AFU is a sleek 1U all-flash NAS that packs 10 SATA SSD bays into a space-saving chassis—delivering enterprise-class performance. Engineered for speed, density, and reliability, it’s the smart, cost-effective choice for businesses ready to unleash the full potential of flash.

Storage capacity up to^*

153 TB

* Raw capacity calculated with 15.36 TB SSDs.

Powered by AMD Ryzen™ PRO 7000 series processors

Powered by AMD Ryzen™ PRO 7000 Series on the AM5 platform, the TS-h1077AFU delivers higher performance, improved power efficiency, and DDR5 support—ideal for modern enterprise workloads.

CPU

AMD Ryzen™ PRO 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz; Built-in AMD Radeon™ Graphics

Memory

32 GB DDR5 ECC memory (up to 192 GB, 4 x 48 GB)

AMD Ryzen™ 7000 Series processor

Transfer speed

4 x 25GbE iSCSI, Random IOPS (4K), Compression On, Dedupe Off	Read 1142025 IOPS	Write 959344 IOPS
4 x 25 GbE SMB, Sequential Throughput (1M), Compression On, Dedupe Off	Read 11576 MB/s	Write 11740 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test environment:
NAS: TS-h1077AFU-R7-32G with 64GB RAM(32G x2) QuTS hero h5.2.5
Volume type: Samsung 870 EVO 1TB SSD *10 (10* SSDs for RAID 5); NVIDIA® Mellanox Dual-port 25GbE NIC with ConnectX-6 Lx SmartNIC controller
Client PC:
4* Client PC simultaneously read and write 64GB file (= 256GB totally) Intel Xeon E-2124 3.3GHz CPU, 64GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2019

AMD Radeon™ Graphics

Integrated AMD Radeon™ Graphics on the TS-h1077AFU provides energy-efficient high-quality 3D graphics performance, enabling processing high-resolution videos, photos, and simultaneously running multiple tasks.

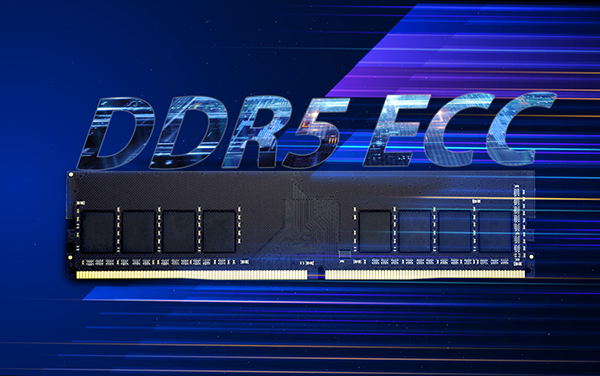

DDR5 ECC UDIMM

The TS-h1077AFU comes with ECC DDR5 memory as standard, ensuring system stability and data integrity. With support for up to 192 GB, it’s ideal for handling virtualization, data processing, and other memory-intensive, multi-threaded workloads.

Flexibly add petabyte-scale storage capacity

The TS-h1077AFU allows you to start with a lean deployment and expand flexibly as your business grows. Use a TS-h1077AFU paired with multiple QNAP TL PCIe interface SATA JBOD expansion enclosures to achieve both breakthrough performance and massive capacity.

Upgrade to 25Gbps

The TS-h1077AFU empowers your organization with the bandwidth to tackle the most demanding applications, including storage centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. Utilizing Port Trunking (Link Aggregation) ensures network redundancy to improve fault tolerance.

Streamline post-production workflows

Centrally store your projects on the super-fast TS-h1077AFU. NAS folders can be mounted via SMB on Windows® or Mac® over 25/10GbE, allowing teams to collaborate faster, saving time and effort.

Backup business-critical data

The all-flash TS-h1077AFU delivers low latency and high IOPS performance. The ZFS-based QuTS hero operating system ensures data integrity and reliability while supporting multiple backup solutions.

Long-term and stable supply available

The TS-h1077AFU will be available until 2030. This long-term availability makes the TS-h1077AFU an ideal choice for organizations requiring matching NAS models for long-term projects.

Reliable offsite cloud backup

Hybrid cloud made simple with myQNAPcloud One

QNAP’s myQNAPcloud One is an integrated cloud storage solution that supports both file and object storage, making it the ideal cloud backup destination for TS-h1077AFU. Data transfers are completely free, while team members can remotely access, sync, and share files anytime, anywhere. The TS-h1077AFU also supports 20+ major public clouds, ensuring near-LAN access speeds for seamless cloud sharing and multi-point synchronization.

PCIe Gen 4 slots

The TS-h1077AFU has two PCIe Gen 4 slots for you to add additional functionality.

10/25 GbE network card

Supports up to 25GbE, enable lightning-fast throughput for bandwidth-demanding tasks such as 4K/8K media production or virtualization.

QM2 cards

Add M.2 SSDs or extra 10/2.5GbE connectivity to the NAS for optimized performance and bandwidth.

Graphics cards

Supercharge your video editing and transcoding or enable GPU passthrough to virtual machines.

Robust hardware to boost SSD performance

High-level hardware with an expandable architecture designed to maximize SSD performance.

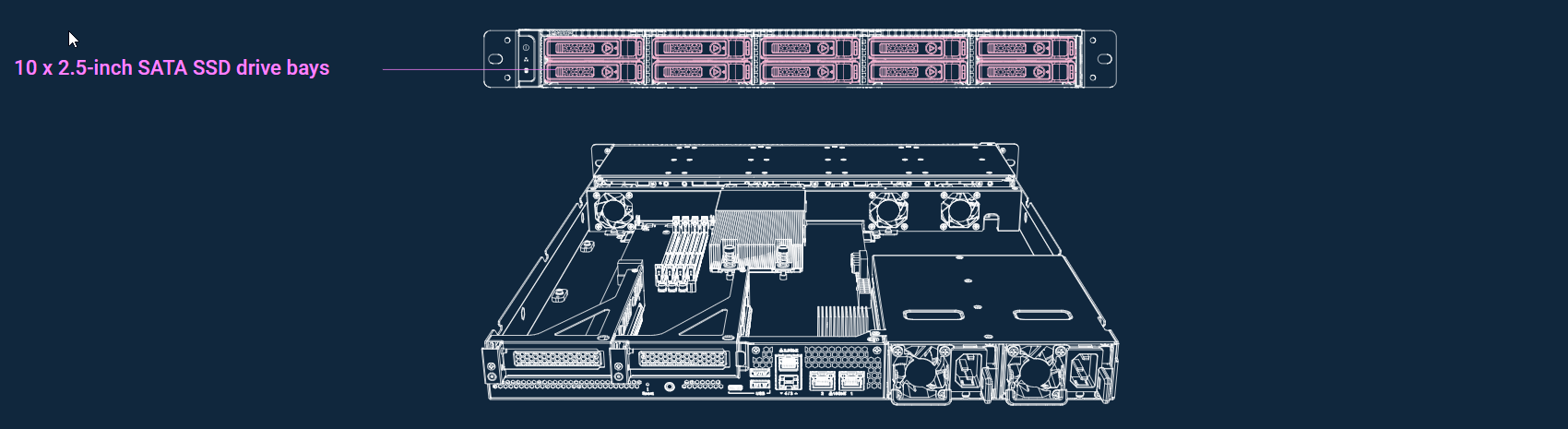

High-capacity storage

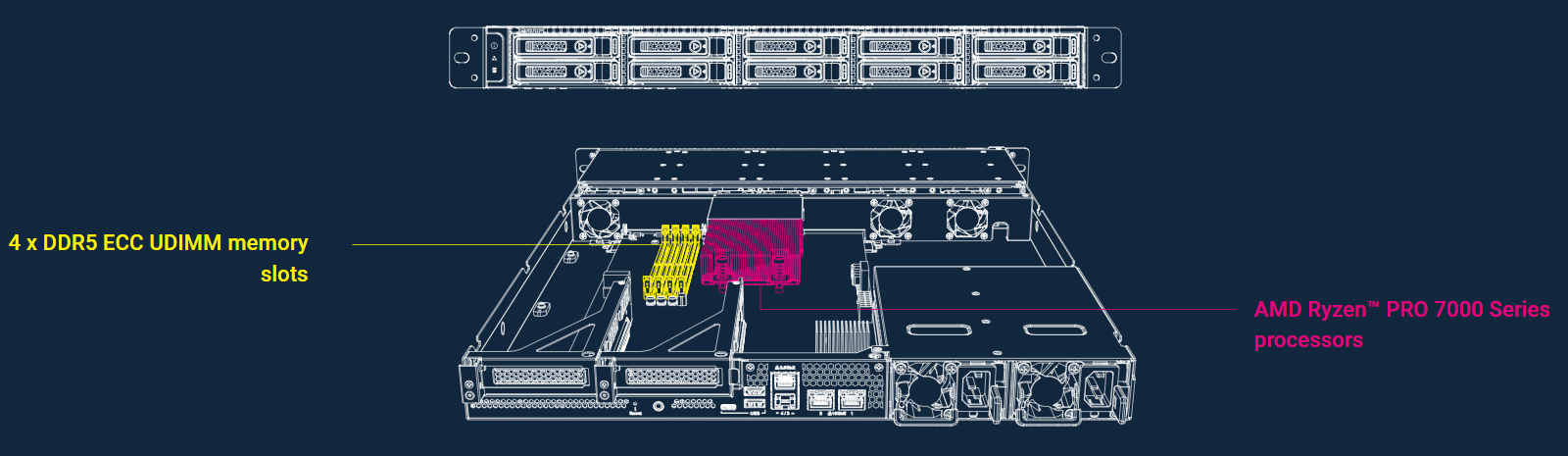

Powerful Processor and Memory

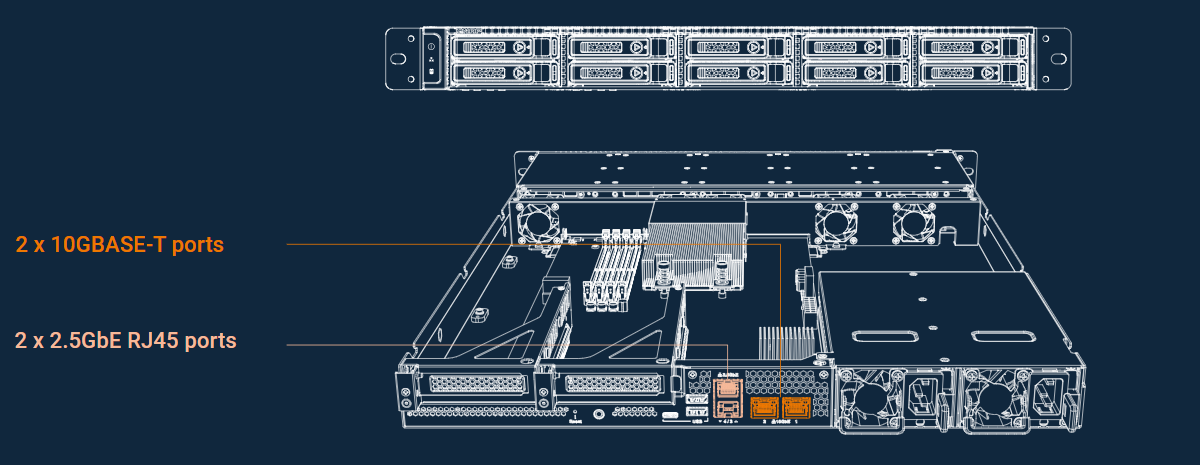

High-speed Ethernet

Flexible Expansion and Connectivity

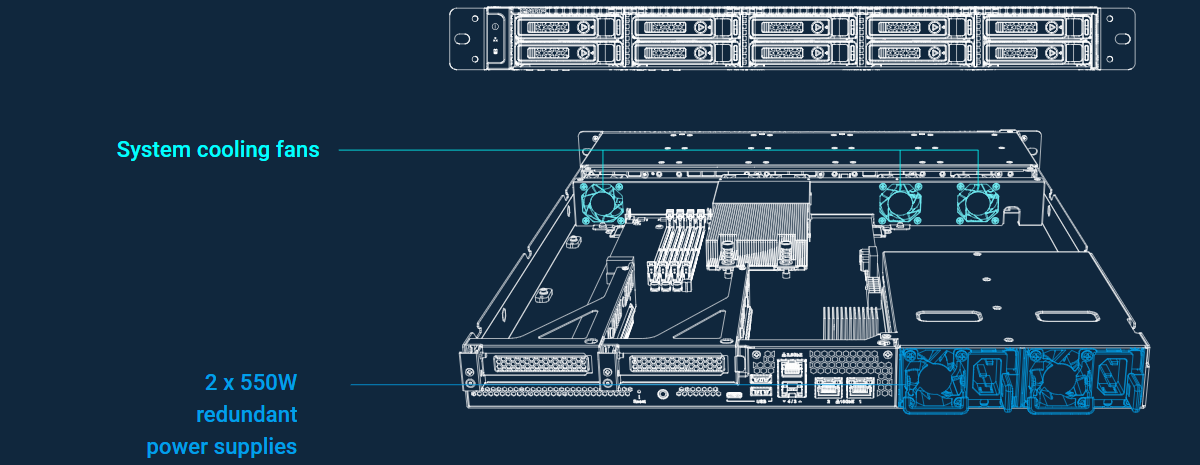

Others

QuTS hero operating system

Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses’ stringent demands for performance and reliability.

Automatic repair of corrupted data

ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.

Data immutability

Defend against ransomware by creating a WORM (Write Once, Read Many) folder to prevent data from being overwritten, modified, or deleted, while also enabling immutable backups.

Power failure protection

ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.

Data reduction

Inline data deduplication^* reduces storage consumption for maintaining optimal disk capacity.

Prevent simultaneous SSD failure

The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.

Note: *Inline Data Deduplication requires a NAS with at least 16GB memory. At least 32GB memory is recommended for optimal performance.

Additional technologies for optimizing SSD performance and lifespan

Write Coalescing

Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.

Pool Over-provisioning

Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.

TRIM

Informs SSDs to delete unneeded data blocks and processes deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.

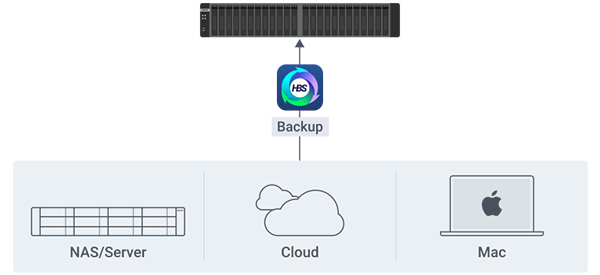

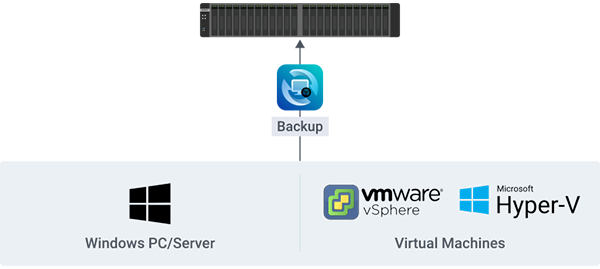

All-in-one backup solution

The TS-h1077AFU supports various apps that cover all your backup needs.

NAS/File server	Cloud	Mac
Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.	Back up NAS data to/from major cloud services, including QNAP’s myQNAPcloud One.	Set a QNAP NAS as Time Machine backup destination.

Windows® PC/Server

Back up full PC/server systems and manage all backups from multiple devices through a single interface.

VM

Back up VMware® vSphere and Microsoft® Hyper-V with dramatically lower costs than others.

business-backup_all-in-one-backup-solution

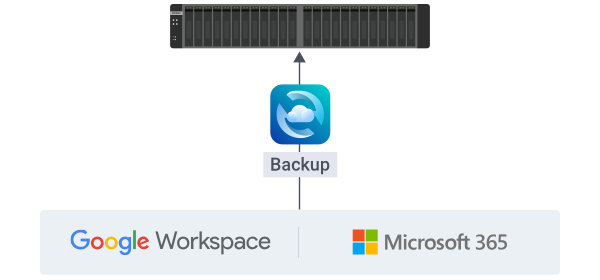

Google™ Workspace/Microsoft 365®

Use QNAP’s Boxafe to back up, recover, and manage the data of 10,000+ users over multiple Google™ Workspace and Microsoft 365®.

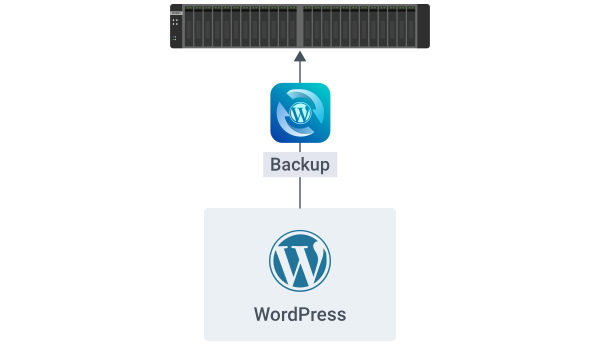

WordPress

Backup, restore or migrate your WordPress site. QNAP NAS can also host a website.

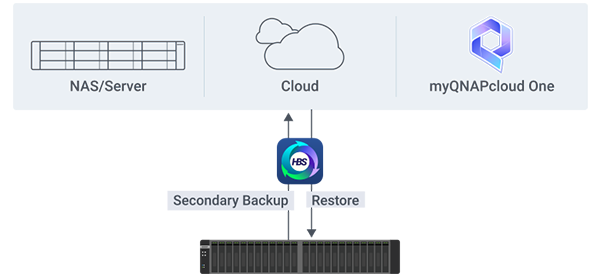

Secondary backup or restore

By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective.

NAS and file server

Backup NAS data to another QNAP NAS or remote server. Supports immutable backups by using WORM folders as the destination, preventing data from being overwritten, modified, or deleted to effectively protect against ransomware.

Cloud

Supports advanced technologies to save backup time, spaces, and effort.

myQNAPcloud One

QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.

RPO = 0 real-time replication

Real-time SnapSync syncs between shared folders/LUNs on primary NAS and secondary NAS. This assists organizations in resuming essential data and services in the shortest time.

High availability (HA) and failover with dual-NAS architecture

Avoid unplanned downtime and data loss.

Create a HA cluster with two TS-h1077AFU — one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.

High availability (HA) and failover with dual-NAS architecture

Easy management and monitoring

Use the High Availability Manager app to easily configure, remove, or rebuild clusters.

Guaranteed data consistency

Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).

Ensured continuity of critical business

The passive server takes over within 1 minute if the active server fails (RTO ≤ 90 secs).

Trusted storage for virtualization

Powerful yet affordable

Cost-effective iSCSI/IP-SAN storage solutions with high bandwidth for reduced latency.

Flexible & Scalable

Supports multiple protocols and expansion options to meet business needs.

Data protection

Offers LUN encryption, snapshots, and backup to ensure data safety.

Compatible with top-tier solutions

The TS-h1077AFU supports VMware® vSphere™, Microsoft® Hyper-V®, and Citrix® XenServer™ mainstream virtualization platforms. With the QNAP CSI Plugin for Kubernetes®, the TS-h1077AFU is also ideal block storage for Kubernetes® containerized apps.

Object storage certified as Veeam® Ready

Use the TS-h1077AFU with QuObjects as the premier destination for S3 object storage and backup. QuObjects supports Object Lock, validated as Veeam® Ready – Object with Immutability.

Run VMs and Containers

With no additional fees, you can run multiple VMs of different OS on TS-h1077AFU. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.

VMs

Securely run Windows®, Linux®, UNIX®, QuTScloud VMs using Virtualization Station.

Containers

Run Docker®, LXD, Kata Containers and download Container Apps using Container Station.

VM High Availability

VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.

Network & Virtual Switch

Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h1077AFU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

5-year warranty as standard

The TS-h1077AFU is backed by a 5-year warranty at no extra cost – providing your business organization with greater peace of mind.

Specifications:

	TS-h1077AFU-R7-32G
CPU	AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz AMD Radeon Graphics
CPU Architecture	64-bit x86
Graphic Processors	AMD Radeon™ Graphics
Floating Point Unit
Encryption Engine	(AES-NI)
Hardware-accelerated Transcoding
System Memory	32 GB ECC UDIMM DDR5
Maximum Memory	192 GB (4 x 48 GB)
Memory Slot	4 x UDIMM DDR5 For dual-DIMM configurations, you must use a pair of identical DDR5 modules.
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	10 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	2.5-inch SATA solid state drives
Hot-swappable
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port	2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
25 Gigabit Ethernet Port	Optional via an adapter
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot	2 Slot 1: Gen 4 x 8 Slot 2: Gen 4 x 8
USB 3.2 Gen 2 (10Gbps) Port	2 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor	1U Rackmount
LED Indicators	Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, storage expansion port status
Buttons	Power, Reset
Dimensions (H x W x D)	44 × 430 × 582 mm
Weight (Net)	9.43 kg
Weight (Gross)	12.41 kg
Operating temperature	0 - 40°C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	350W PSU (x2), AC 100-240 V
System Warning	Buzzer
Standard Warranty	5

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
