Package Content
- QGD-1600 Storage System
- 1 x Power Cord
- 1 x Ethernet Cable
- 6 Flat Head Screw (for 2.5” HDD)
- Rackmount kit
- Rubber feet
- Quick Installation Guide (QIG)

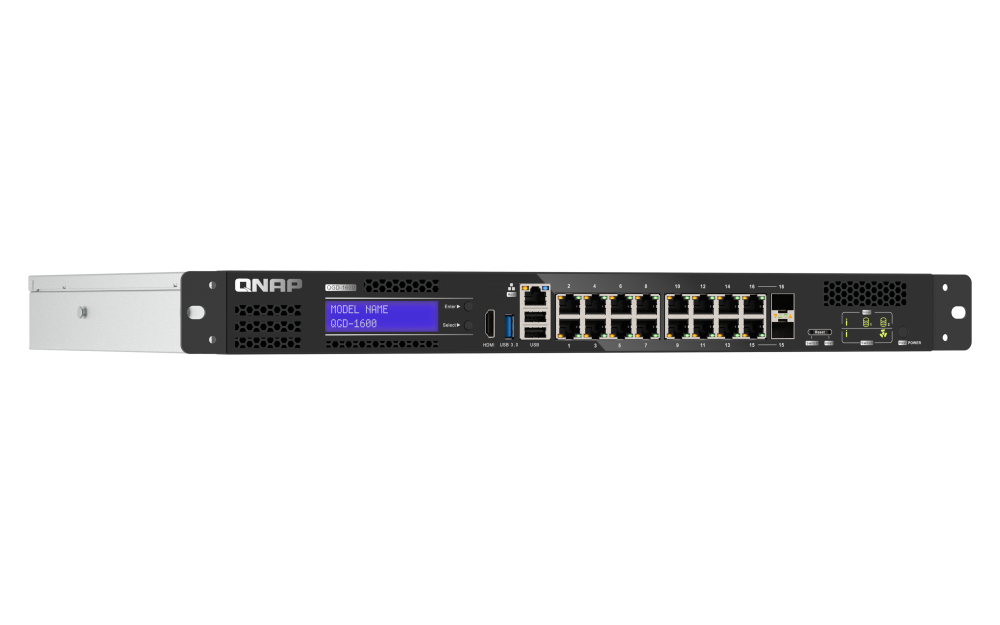

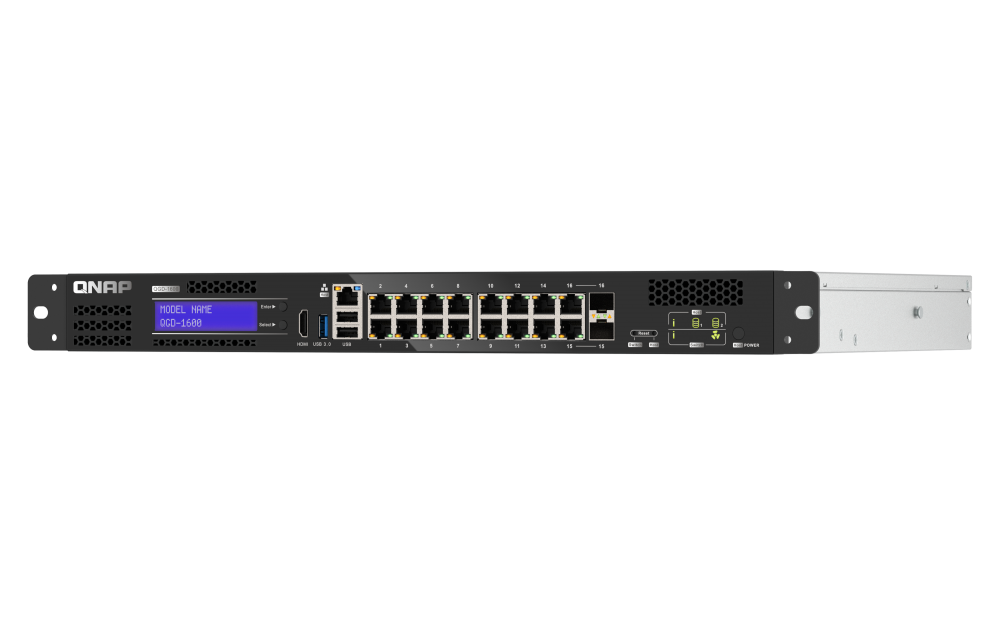

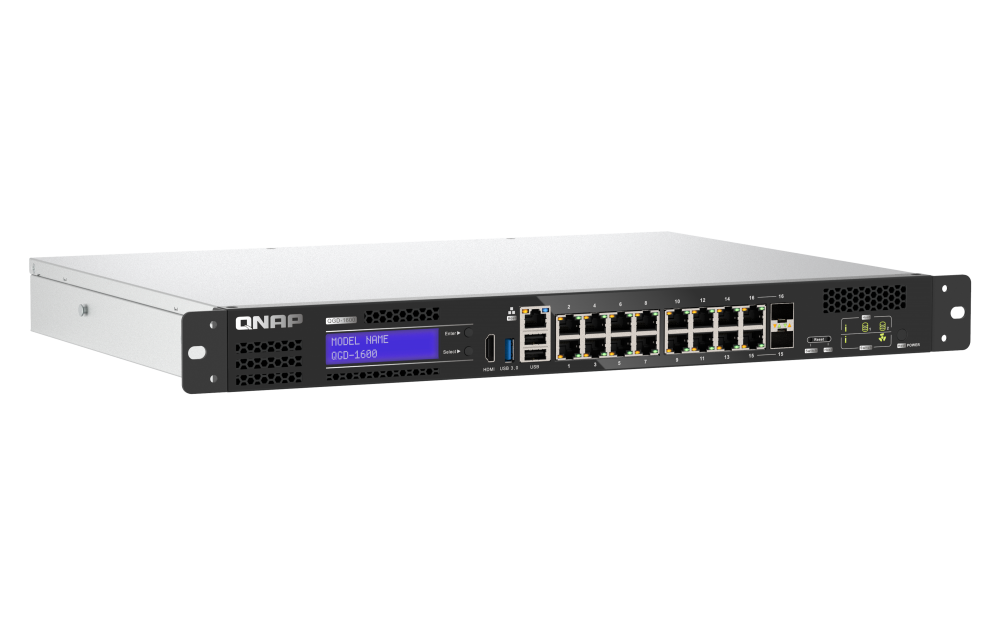

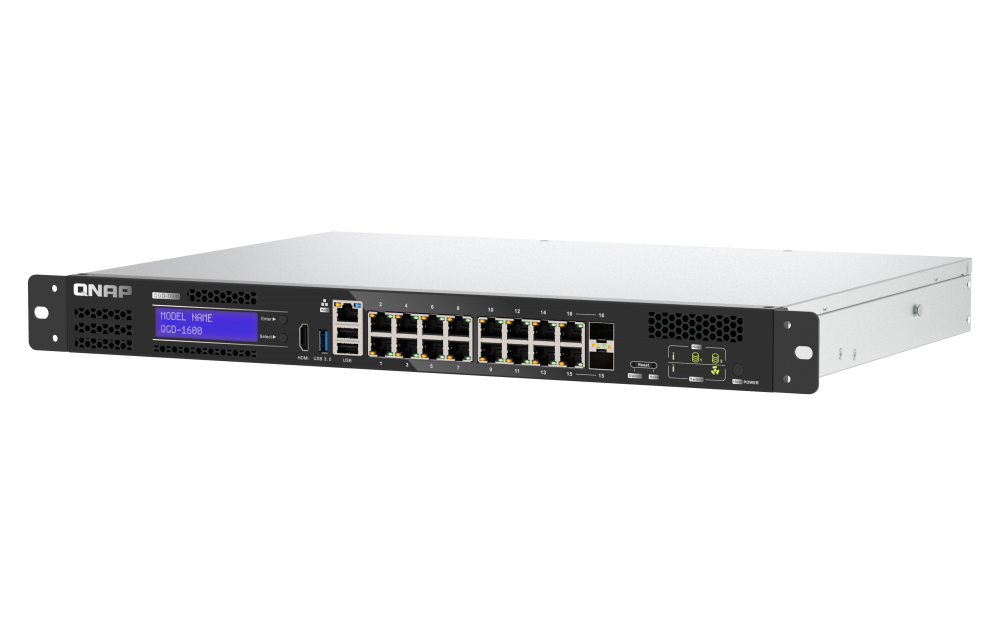

Overview:
QNAP’s QGD-1600 is the world’s first managed switch that supports Virtual Machines (VMs). It features multiple Gigabit ports for highly flexible networking environment deployment. With a dual-CPU design, the QGD-1600 provides both Layer 2 management functions for VM and QTS applications. The QGD-1600 also features Software-Defined Networking (SDN), enabling it to function as a NAS, NVR, router and firewall for IP surveillance, network security and storage expansion applications. Therefore, the QGD series offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Available Models
- QGD-1600-8G-
14 x Gigabit RJ45 ports, 2 x Gigabit RJ45/SFP combo ports; Intel® Celeron® J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz), 8 GB DDR4 RAM
- QGD-1600-4G-
14 x Gigabit RJ45 ports, 2 x Gigabit RJ45/SFP combo ports; Intel® Celeron® J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz), 4 GB DDR4 RAM

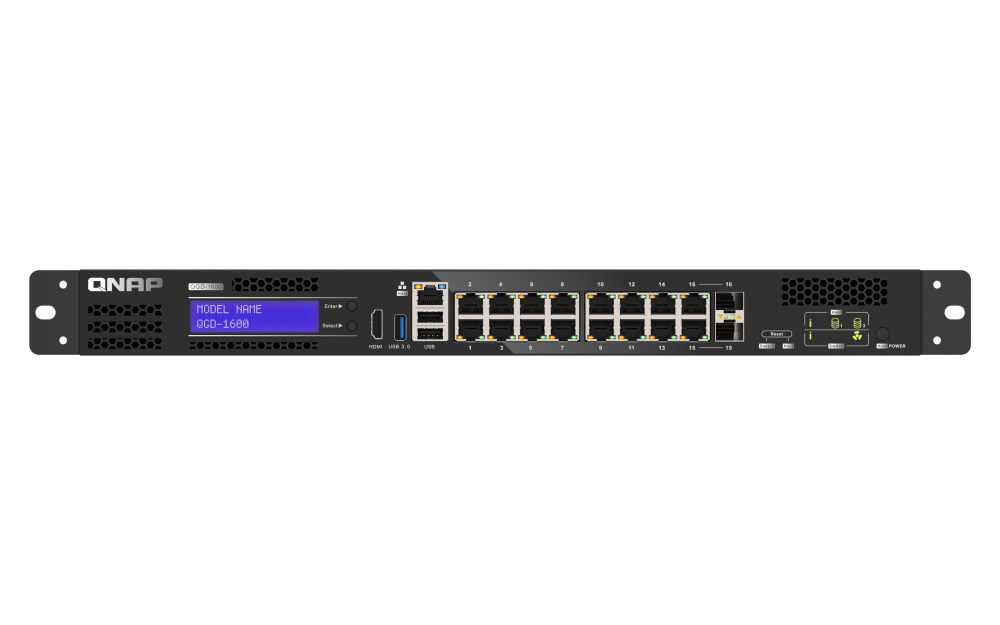

Gigabit RJ45/SFP ports
Multiple Gigabit and RJ45/SFP combo ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
Layer 2 network
QGD-1600 provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface.
User-friendly management interface
QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and pored devices at a glance, making central management of network devices intuitive and easy.
Two SATA drive bays
Supports up to two SATA drives.

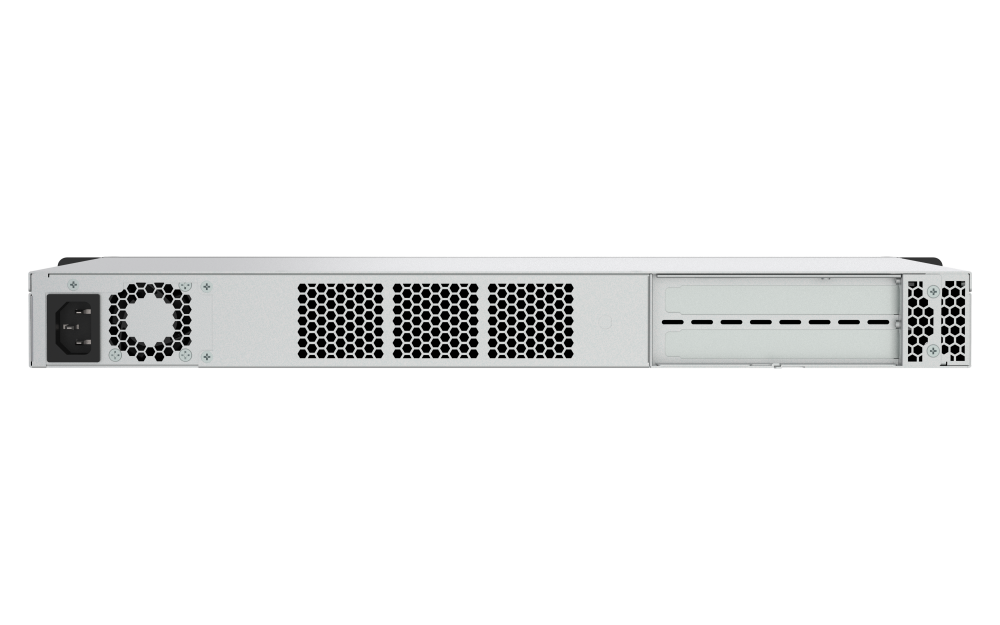

Flexible PCIe expansion
PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.1 Gen 2 (10Gbps) cards, or Wireless Adapters.
Virtualization applications
Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications.
Features:
The First Switch with VM Support

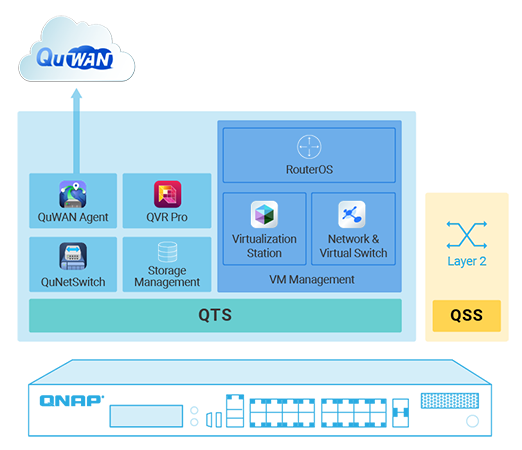

The Guardian series is the world’s first switch with the QTS operating system built in for VM, container, and other cloud applications, enabling diverse networking and storage solutions. In addition to QVR Pro, VJBOD, and other diverse storage applications, the QTS App Center also supports VMs for running many open-source software applications. Integrated with public cloud services, the QGD-1600 meets the needs of various applications in IP surveillance, storage expansion and network security. The QGD-1600 dual-CPU design enables you to run the networking management interfaces of QSS (QNAP Switch System) and QTS independently. The QGD-1600 offers a user-friendly web interface, QuNetSwitch, to help SMBs easily deploy a flexible and secure IT infrastructure.
Note: QTS and QSS can work independently without interfering each other to ensure continuous operation. For example, when restarting the QTS, the QSS connections will not be interrupted; when rebooting the QSS, the VMs on QTS will keep running.

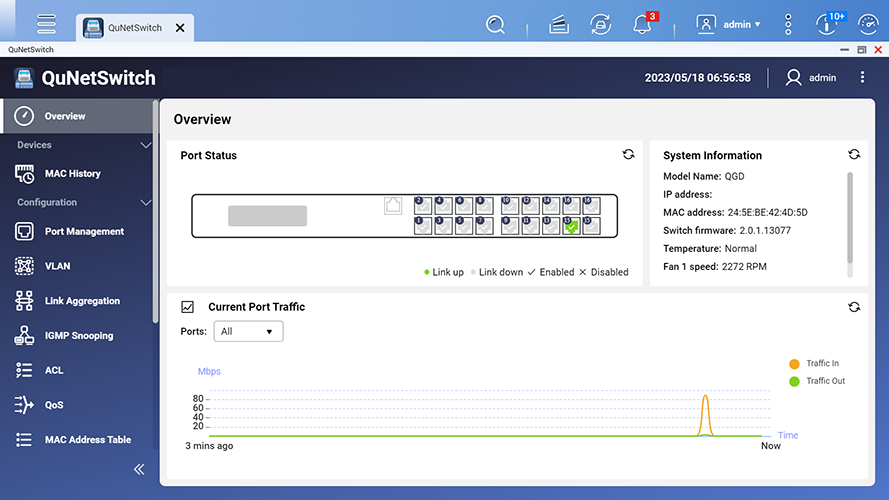

QuNetSwitch: Layer 2 Management with User-friendly Web GUI
The QGD-1600 provides comprehensive Layer 2 management features (including VLAN, LACP, and LLDP) for efficient control of networks through IP grouping and bandwidth management. Powerful security functions (including IGMP Snooping, static MAC, QoS, and Wake-on-LAN) are also suitable for simple networking environments and easy deployment. Aside from the QNAP Switch System (QSS), the QGD-1600 also offers the user-friendly web interface software QuNetSwitch (via QTS) to help IT staff control Layer 2 management networks. The overview dashboard and statistical analysis area displays all the information about the switch and devices at a glance, making centralized management of network devices intuitive and easy.
| Port Management |
VLAN |
Port Trunking |
QoS |
- Port status
- Port statistics
- Port configuration
- Jumbo frame support
- IEEE 802.3x flow control
- Auto-negotiation of speed and duplex modes
|
- VLAN configuration
- Port-based private VLAN
- IEEE 802.1Q-based VLAN
|
- Port trunking
- LACP groups
|
- Bandwidth control
- Traffic classification
|
| IGMP |
Security |
Management |
Advanced Applications |
|
- Access Control Lists (ACL): ACL by IP address, ACL by MAC
- Static MAC address
- Rate limits
|
- Link Layer Discovery Protocol (LLDP): LLDP remote device
- Interfaces: Web UI, Telnet, Command Line Interface (CLI)
- SNTP, DNS, DHCP client entry
|
- Port mirroring
- Loop protection to avoid broadcast loops
- Wake-on-LAN
|
Deploy a multi-site VPN with SD-WAN solution
The QGD-1600 and other QNAP solutions now support QuWAN – QNAP’s SD-WAN solution. QuWAN provides full mesh IPsec VPN topology between QNAP devices based in multiple sites to fulfill enterprise video, VoIP, ERP system data, and filing needs. QuWAN adopts software-defined networking to achieve optimum network connectivity, and supports cloud-centric management for deploying a resilient IT Infrastructure.
 |
QuWAN Orchestrator
Manage the network using a centralized management cloud platform. |
 |
QuCPE Server
The high-performance core VPN Server at the HQ. |
 |
NAS
Add branch offices to the VPN Infrastructure with your existing NAS. |
 |
QGD Switch
Fulfill surveillance and VoIP applications at small business sites (such as stores). |
 |
QHora Router
Provides easy-to-use VPN functions for remote workers. |
 |
QVPN
Mobile users can connect to SSL VPN using their PCs, laptops or mobile phones. |
The Guardian Smart Edge Switch meets your business needs.
The QGD-1600 is a central networking solution that offers Web-based management, and innovative virtualization applications to solve various networking problems.
Virtual Router x Virtual Firewall = Enhanced Cybersecurity
The QGD-1600 can be transformed into a secure router with a firewall via virtual router and virtual firewall software by installing MikroTik RouterOS and OpenWrt. Flexibly configure routing functions and separate or protect local networks and apply multiple security policies. You can also easily manage all networking devices with Zabbix network management software.
Zabbix = Centralized Network Management Platform
The QGD-1600 supports Zabbix Network Monitoring Software that auto-detects connected SNMP-compliant servers/devices, and monitors network status. Zabbix provides a Dashboard and Analysis Reports for efficient large-scale network management.
Hardware Specifications:
| |
QGD-1600-4G |
QGD-1600-8G |
| Management Type |
Web Managed |
| Number of Ports |
16 |
| 1GbE (RJ45) |
14 |
| 1GbE SFP/RJ45 Combo Ports |
2 |
| PCIe Slot |
Slot 1: PCIe Gen2 (x2)
Slot 2: PCIe Gen2 (x2) |
| USB 3.2 Gen 1 port |
1 |
| USB 2.0 port |
2 |
| Management Port |
1 x 1GbE |
| USB 3.2 Gen 2 (10Gbps) Port |
Optional via PCIe adapter |
| HDMI™ Output |
1 |
| Power Supply Description |
Internal Power Supply Unit |
| Max. Power Consumption |
100W |
| Input Power Type |
AC |
| Input Voltage Range |
100-240VAC, 50/60 Hz |
| MAC Address Table |
8K |
| Total Non-Blocking Throughput |
16Gbps |
| Switching Capacity |
32Gbps |
| Management Interface |
Web |
| Energy Efficient Ethernet (IEEE 802.3az complaint) |
|
|
| Fan |
System: 2 x 4 cm (12V DC) |
| Supported Standards |
IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000Base-X
IEEE 802.3x Full-duplex flow control
IEEE 802.1q Virtual LANs (VLAN)
IEEE 802.1p QoS Protocol for Traffic Prioritization |
| Form Factor |
Rackmount |
| LED Indicators |
Per Port: Link/Activity/Speed
Per System: Warning/Fan |
| LCD Management |
|
|
| Buttons |
Device PSU power button
Host power button
Host reset button(load default)
Switch reset button |
| Dimensions (HxWxD) |
1.86 × 17.17 × 12.84 inch |
| Weight (Net) |
9.72 lbs |
| Weight (Gross) |
12.26 lbs |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Relative Humidity |
5% to 95% non-condensing, wet bulb: 27°C (80.6°F) |
| Certifications |
CE, FCC, VCCI, BSMI RCM, CCC |
| Electromagnetic Compliance |
CLASS A, UL62368 |
| Jumbo Frames |
9k |
| QTS Built-in |
|
|
| CPU |
Intel® Celeron® J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz) |
| CPU Architecture |
64-bit x86 |
| Internal Network Bandwidth |
2 x 1GbE |
| Graphics Processors |
Intel® HD Graphics 600 |
| Floating Point Unit |
|
|
| Encryption Engine |
(AES-NI) |
(AES-NI) |
| System Memory |
4 GB (1 x 4 GB) |
8 GB (2 x 4 GB) |
| Maximum Memory |
8 GB |
| Memory Slot |
2 x SODIMM DDR4 |
| Flash Memory |
4GB (Dual boot OS protection) |
| Drive Bays |
2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
2.5-inch bays:
2.5-inch solid-state drives
2.5-inch hard disk drives |
| Hot-swappable |
|
|
| M.2 SSD Slots |
Optional via PCIe adapter |
| SSD Cache Acceleration Support |
|
|
| File System: Internal Hard Drive+ |
EXT4 |
| File System: External Hard Drive |
EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
| Warranty |
2 Years |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
