QNAP TS-431X
High-performance business NAS with a built-in 10GbE SFP+ port

TS-431X

This product is no longer available, please contact us for a replacement!

Click here to jump to more pricing!

Overview:

The TS-431X supports 4 hard drives and comes with a built-in 10GbE SFP+ port for rigorous data processing, providing a cost-effective storage solution for demanding everyday business tasks. Powered by the QTS operating system, the TS-431X provides versatile all-in-one server functionalities and unique features including Container Station, which facilitates Internet of Things (IoT) development, and VJBOD (Virtual JBOD), which allows for expanding NAS capacity with another NAS. The TS-431X is an ideal entry-level NAS for businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.

  • 10GbE readiness, SSD caching. and hardware-accelerated encryption
  • Enjoy containerized virtualization and IoT app development with Container Station
  • Build a private cloud to centrally store, backup, share and restore files
  • Rich productivity apps including QmailAgent for central mail management, Notes Station for collaborative note-taking, Qsirch full-text search engine, and much more
  • Use the TS-431X to expand the storage capacity of other QNAP NAS with VJBOD
  • Secure access with VPN Server & VPN Client

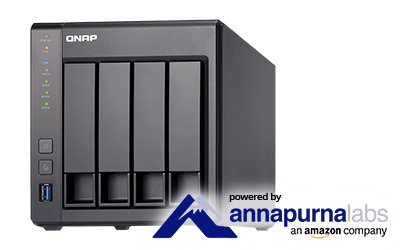

TS-431X overview

Specifications:

TS-431X Specifications
Ordering P/N TS-431X-2G TS-431X-8G
Processor AnnapurnaLabs, an Amazon company Alpine AL-212 Dual-core 1.7GHz ARM® Cortex-A15 Processor
Hardware Encryption Accleration
System Memory 2GB DDR3 RAM (1 x 2GB) 8GB DDR3 RAM (1 x 8GB)
RAM slot 1 x SODIMM (Max. 8GB)
Flash Memory 512MB NAND flash

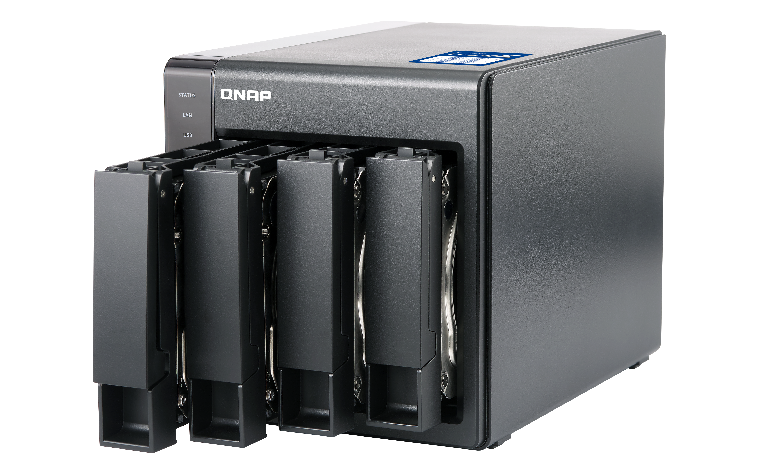

Drive Type 4 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs; Hot-swappable
10GbE LAN 1 x 10 Gigabit SFP+ LAN Port
GbE LAN 2 x Gigabit RJ45 LAN Ports
USB 3 x USB 3.0 port (Front x1; Rear x 2)
LED Indicators Status/Power, LAN, USB, HDD 1-4
Buttons Power, Reset, USB One- touch-copy
Security Design Kensington security slot
System Warning Buzzer
Form Factor Tower
Dimension (HxWxD) 169 x 160 x 219 mm
6.65 x 6.3 x 8.62 inch
Weight Net: 3 kg (6.61 lbs)
Gross: 4.3 kg (9.48 lbs)
Temperature 0-40˚C
Relative Humidity 5~95% non-condensing, wet bulb: 27˚C
Power Supply External Adapter 90W,12V
Power Consumption HDD standby: 11.65W
In operation: 26.7W
(with 4 x 1TB HDD installed)
Sound Level Operating low speed: 19.5 dB(A)
Fan 1 x 12cm smart Fan (12V DC)

* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS

Documentation:

Download the QNAP TS-x31X Series Datasheet (PDF).
