QNAP TS-932PX
Compact 9-bay NAS with 10GbE SFP+ and 2.5GbE for Smoother File Applications


QNAP TS-932PX

QNAP Products
TS-932PX
QNAP TS-932PX 5 (+4) Bay 64-bit NAS with Hardware Encryption, Quad Core 1.7GHz, 4GB RAM, 2 x 10GbE(SFP+) LAN ,2 x 2.5GbE (2.5G/1G) LAN
Annapurna Labs AL324 64-bit quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (max 16GB), 5 x 3.5" and 4 x 2.5" drive slots, 2 x 10GbE SFP+ LAN, 2 x 2.5GbE (2.5G/1G) LAN, 3 x USB 3.2 Gen1, hardware encryption, expansion unit support
#TS-932PX-4G-US
Our Price: $549.00

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Overview:

The quad-core 1.7GHz TS-932PX fits nine drive bays into the size of a 5-bay NAS. With five 3.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s bays, the TS-932PX provides the ability to create an HDD/SSD hybrid infrastructure to boost application performance. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-932PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing.



Available Models

  • TS-932PX-4G-
    Annapurna Labs Alpine AL324 quad-core 1.7 GHz processor, 4 GB DDR4 RAM (expandable to 16 GB)

2.5GbE ports

Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing.

HBS

HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to optimize storage and bandwidth usage, while reducing backup times.

Snapshots

Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks.


Cloud storage

Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

storage efficiency

Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

storage capacity

Increase the storage capacity of the TS-932PX with QNAP TR RAID expansion enclosures or TL JBOD.

Features:

Energy-efficient Quad-core Processor

Powered by 64-bit quad-core 1.7GHz ARM Cortex-A57 processor and 4 GB DDR4 RAM (expandable to 16 GB), the TS-932PX features is highly energy efficient without impacting system or application performance.


High-speed 10GbE and 2.5GbE connectivity

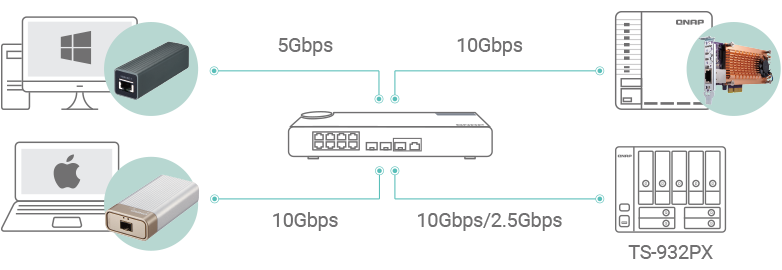

The TS-932PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.

storage capacity


Boost NAS performance with 2.5-inch SATA SSDs

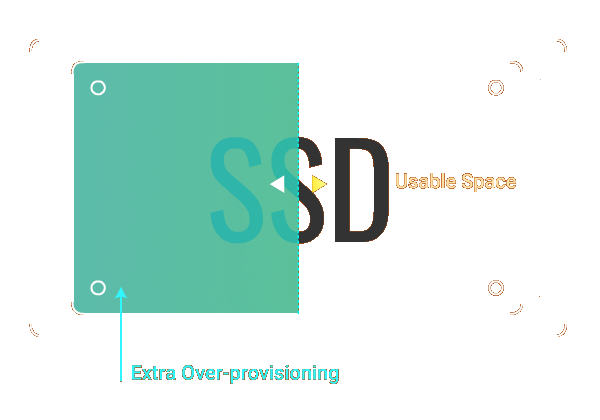

SSDs can greatly improve NAS performance without requiring a heavy investment. The TS-932PX supports SSD cache technology, Qtier™ auto-tiering, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.

software-defined-ssd-smb


Protect Important Data with Snapshots

Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously-recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data. The TS-932PX supports up to 256 snapshots per NAS and up to 64 snapshots per volume or LUN.

lightweight-switch-ts-932px


Multi-Point File Backup, Access, and Sync

The TS-932PX supports common file sharing protocols (including SMB/CIFS, AFP and NFS) for Windows®, Mac®, and Linux®/UNIX® devices. Coupled with Qsync (a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization) any file uploaded to the TS-932PX becomes available for all linked devices (such as computers, laptops, and mobile devices). Hybrid Backup Sync helps you easily backup or synchronize data on the TS-932PX to another QNAP NAS, remote server, or cloud storage (including Microsoft One Drive®, Google Drive™, and Dropbox®) for disaster recovery.

hybrid-backup-sync


Smart AI Photo Management

QuMagie integrates QuMagie Core AI image recognition technology for facial recognition, subject identification, and geotagging photos. Similar photos are categorized into People, Places, and Things albums. QuMagie also features a built-in timeline scroll, customizable folder covers, iOS® Live Photo display and a powerful search tool, to provide you with the ultimate photo management and image sharing solution.


Low-latency Access to Cloud Data with Cloud Storage Gateways

By deploying cloud storage gateways and enabling local caching on the TS-932PX, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

HybridMount

HybridMount File-based Cloud Gateway

Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud Block

VJBOD Cloud Block-based Cloud Gateway

VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files


Secure remote access to your QNAP NAS

Use myQNAPcloud Link to access, share, download, and manage files stored on an HQ-based NAS via the Internet. QNAP NAS also supports VPN services for remote workers to access the NAS and resources on a private network from the Internet. You can also use QVPN Device Client powered by QNAP's proprietary QBelt protocol to easily connect to your TS-932PX and use measurement tools to know the speed of your VPN connections and connection history.

VJBOD Cloud Block


Easily find and automatically organize files

The TS-932PX provides greater convenience for managing files. You can quickly find files using Qsirch and auto-archive them with Qfiling.

Auto archiving

Auto archiving

Qfiling automates file organization or recycling based on self-configured rules, greatly improving work efficiency.

File search

File search

Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.


Flexible and economical storage expansion

QNAP provides several ways to expand the storage capacity of the TS-932PX to accommodate data growth:

Attach Expansion Enclosures

Attach Expansion Enclosures

Connect two expansion enclosures (4-bay TR-004, 2-bay TR-002) or one 8-bay TL-D800C JBOD and use the Storage & Snapshots Manager to handle NAS capacity expansion.

Upgrade RAID Capacity

Upgrade RAID Capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-932PX.

Migrate to a New NAS

Migrate to a New NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.


Multiply Your Productivity

Security Counselor

Security Counselor

A security portal for checking weaknesses and providing recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Notification Center

Notification Center

Consolidates all QTS system events, alerts, and notifications for easy NAS management, keeping you always informed of your NAS status.

QVR Pro

QVR Pro

Build a secure surveillance environment without any extra software needed. Provides free embedded channels and you can also purchase QVR Pro licenses to deploy a large-scale surveillance network.


Extend hardware warranty up to 5 years

The TS-932PX is backed by a 2-year warranty at no additional cost. You can purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:

  TS-932PX-4G
CPU AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 quad-core 1.7GHz processor
CPU Architecture 64-bit ARM
Floating Point Unit
Encryption Engine
System Memory 4 GB SODIMM DDR4 (1 x 4 GB)
Maximum Memory 16 GB (1 x 16GB)
Memory Slot 1 x SO-DIMM DDR4
Flash Memory 512 MB (Dual boot OS protection)
Drive Bay 5x 3.5-inch+ 4 x 2.5-inch SATA 6Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch solid state drives
Hot-swappable
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Jumbo Frame
USB 3.2 Gen 1 port 3
Form Factor Tower
LED Indicators System Status, LAN, USB, HDD1~5, SSD1-4
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 7.19 × 8.84 × 8.82 inch
Weight (Net) 7.47 lbs
Weight (Gross) 11 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit External, 120 W, AC 100 to 240 V
Fan 1 x 140mm, 12VDC
Sound Level 18.6 db(A)
System Warning Voice prompts or Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) 1500
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Product Views:

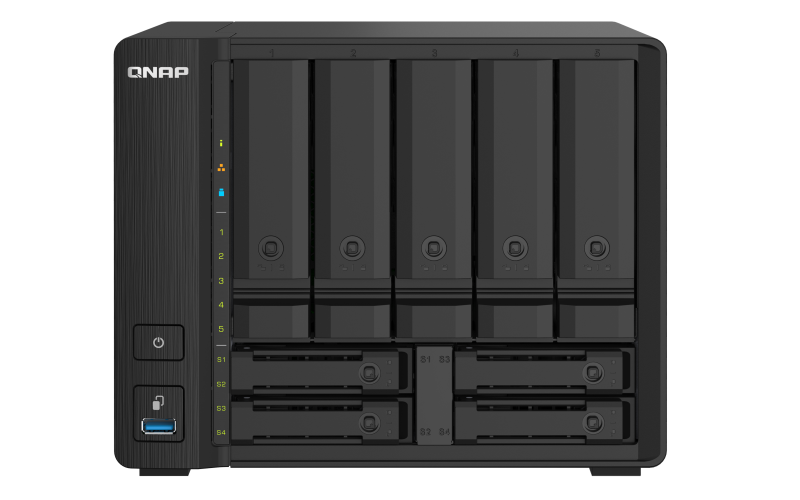

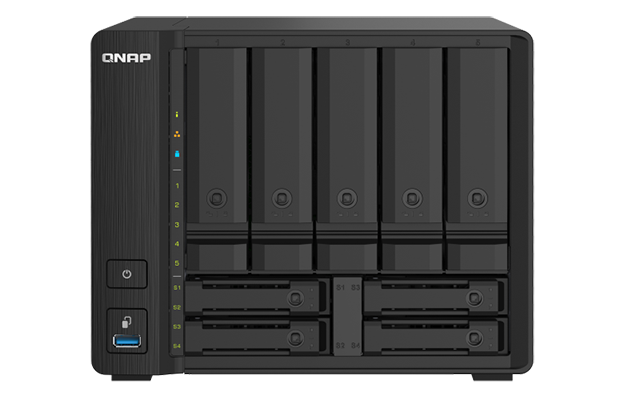

Front View

Front View

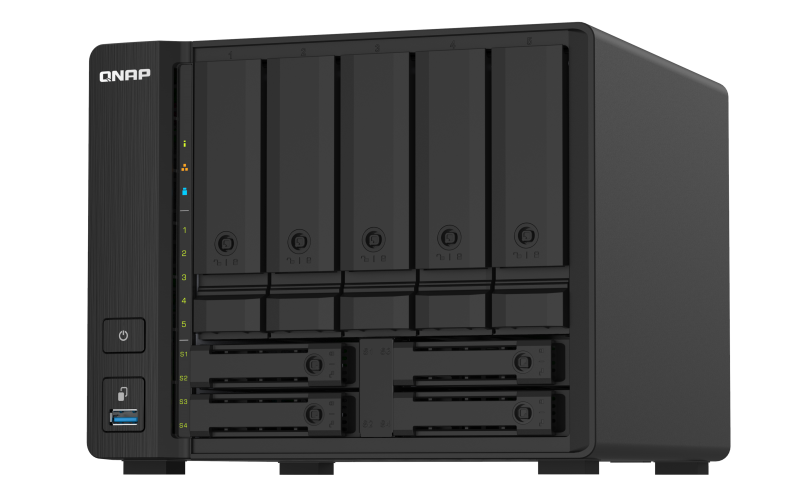

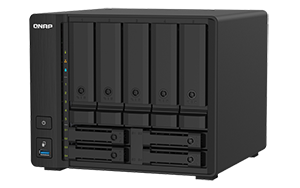

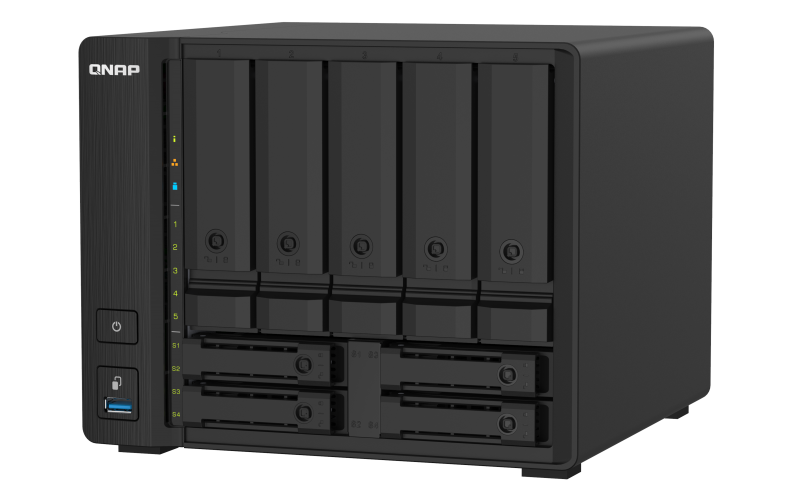

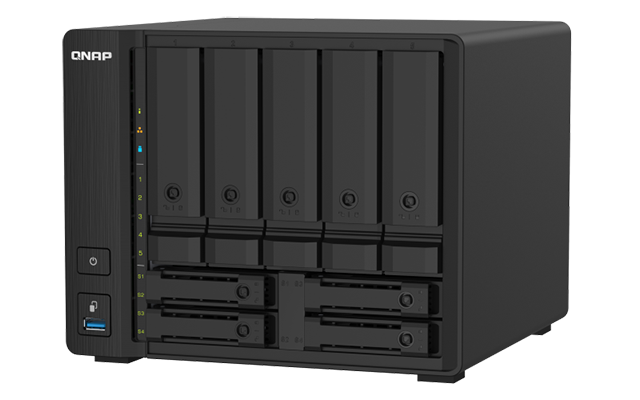

Right Angle View

Right Angle View

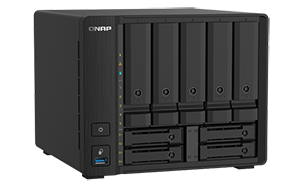

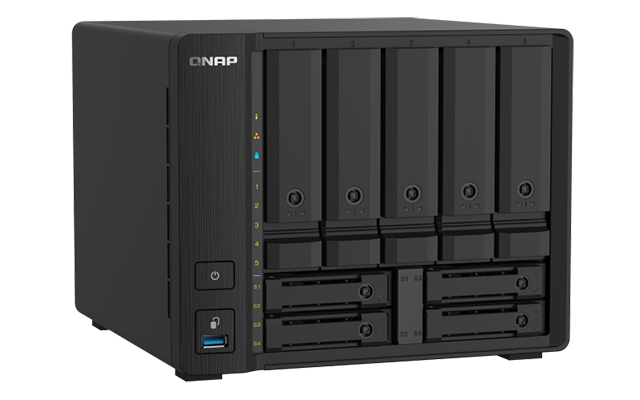

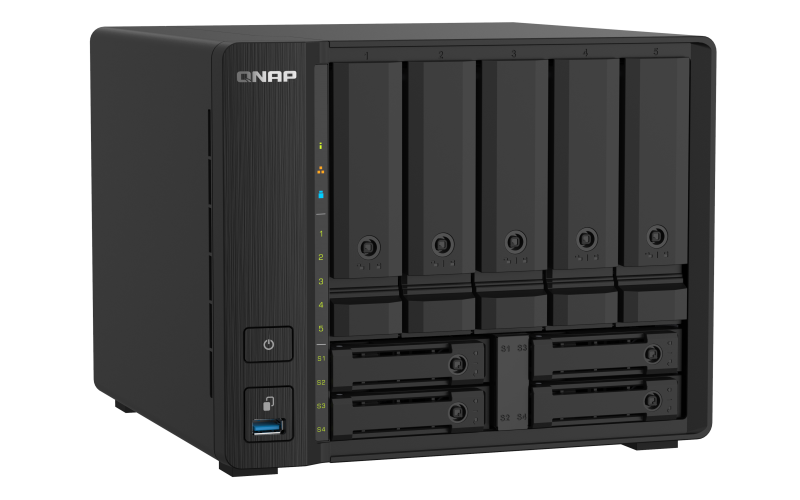

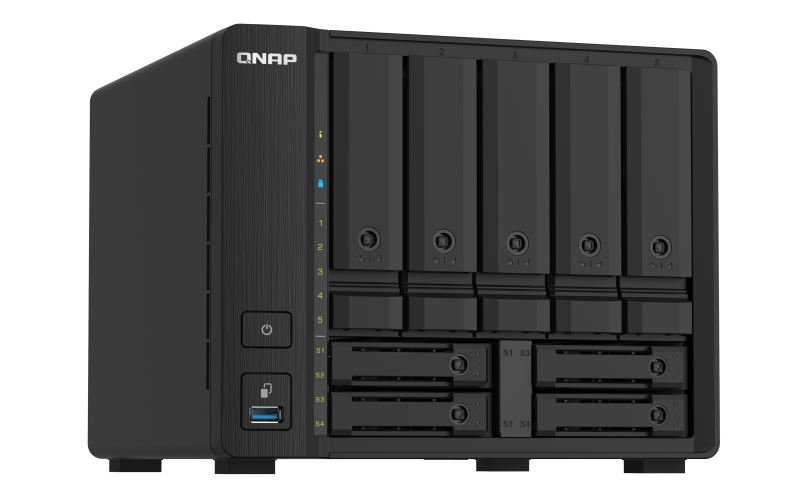

Left Angle View

Left Angle View

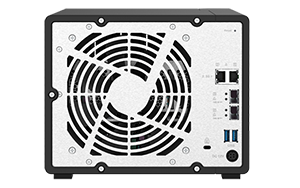

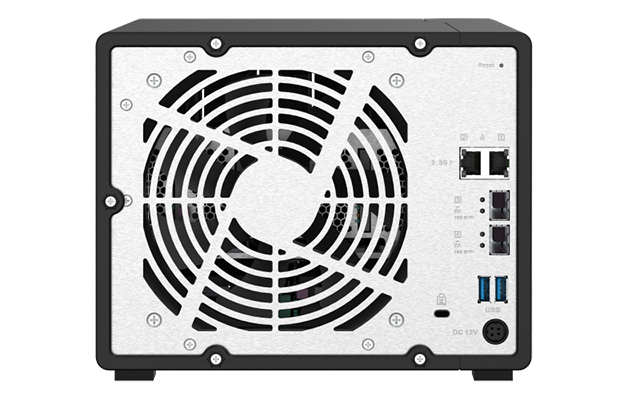

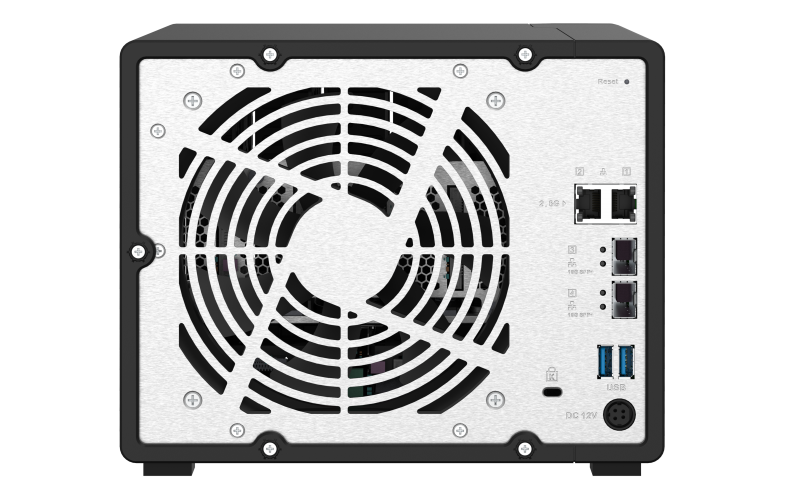

Rear View

Rear View



Documentation:

Datasheet for QNAP TS-932PX is coming soon.

Pricing Notes:

QNAP Products
TS-932PX
QNAP TS-932PX 5 (+4) Bay 64-bit NAS with Hardware Encryption, Quad Core 1.7GHz, 4GB RAM, 2 x 10GbE(SFP+) LAN ,2 x 2.5GbE (2.5G/1G) LAN
Annapurna Labs AL324 64-bit quad-core 1.7GHz, 4GB DDR4 SODIMM RAM (max 16GB), 5 x 3.5" and 4 x 2.5" drive slots, 2 x 10GbE SFP+ LAN, 2 x 2.5GbE (2.5G/1G) LAN, 3 x USB 3.2 Gen1, hardware encryption, expansion unit support
#TS-932PX-4G-US
Our Price: $549.00
QNAP Accessories
SFP+ 10GbE twinaxial direct attach cable, 3.0M
For use with SFP+ 10GbE NIC
#CAB-DAC30M-SFPP-DEC02
Our Price: $79.00
SFP+ 10GbE twinaxial direct attach cable, 3.0M
For use with NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
#CAB-DAC30M-SFPP
Our Price: $70.00
SFP+ 10GbE twinaxial direct attach cable, 1.5M
For use with NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
#CAB-DAC15M-SFPP
Our Price: $50.00
