QNAP QSW-308S
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
Cost-effective entry-level 10GbE Switch with 10G SFP+ fiber and Gigabit Ethernet
The QSW-308S is a 3-port 10G SFP+ and 8-port Gigabit Unmanaged Switch, allowing you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price. With its desktop size and silent operation, the QSW-308S perfectly blends into homes and offices while providing high performance, low latency and superb functionality.
Package Contents
- QSW-308S Ethernet Switch
- Power Cord
- Power Adapter
- Quick Installation Guide (QIG)

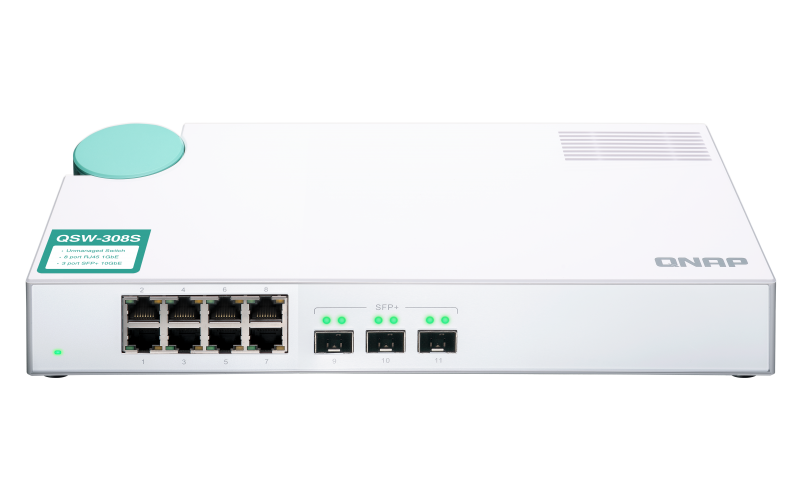

The QSW-308S provides three 10GbE SFP+ ports and eight Gigabit ports for connecting various devices.

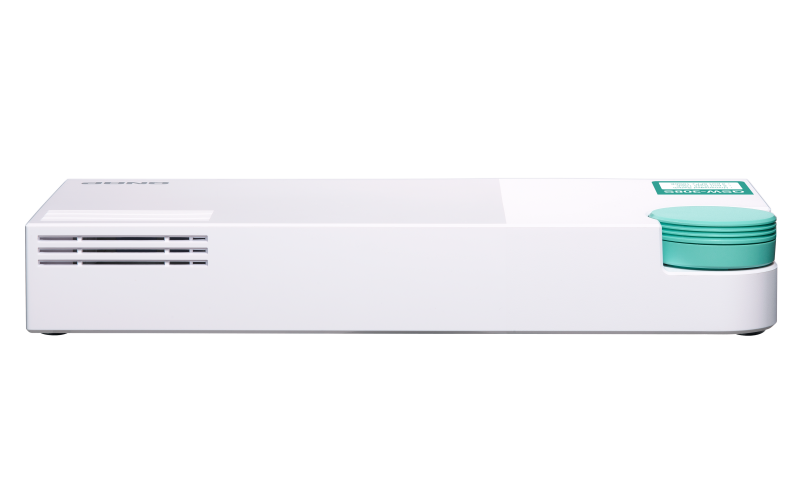

The unique fanless design with ventilated construction provides silent operations while maintaining high performance.
Simply connect the QSW-308S to your devices and it will do the rest. It supports auto-negotiation for optimal speed and duplex detection when connecting different devices.
Features:

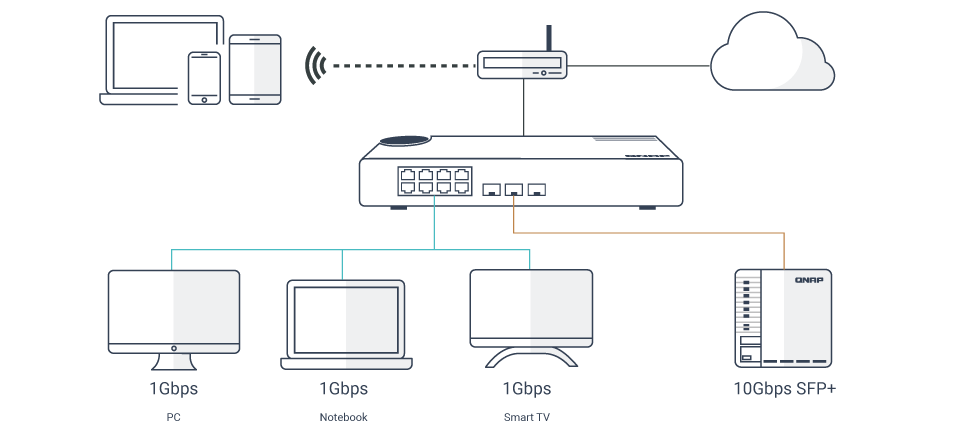

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-308S provides three 10GbE SFP+ ports and eight Gigabit ports for connecting various devices and enabling a hybrid high-speed network in homes and offices. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-308S is 76Gbps, guaranteeing the full potential of each port.

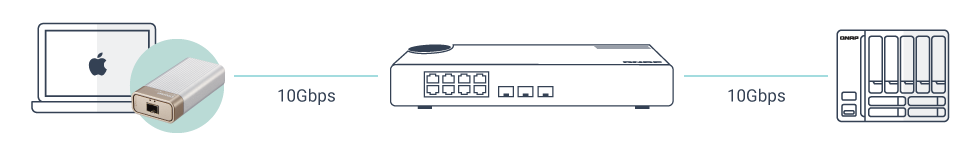

Easily build a High-Speed Network with QNAP Network Adapters
QNAP provides a wide range of network devices to assist business and home users with upgrading their network infrastructure to meet growing bandwidth requirements. QNAP's Thunderbolt 3 to 10GbE Network Adapter provides a quick and budget-friendly method for laptops (and other upgrade-constrained devices) to take advantage of high-speed 10GbE connectivity.
Improve your productivity with a 10GbE-enabled QNAP NAS
Many QNAP NAS series are designed with 10GbE readiness, and can be immediately upgraded by purchasing and installing a 10GbE network adapter. QNAP NAS are also available with 10GbE SFP+ and 10GBASE-T as standard to fully support 10GbE high-speed networks, making them beneficial for IOPS-demanding applications such as virtualization, databases, high-resolution video editing, and sharing workflows.

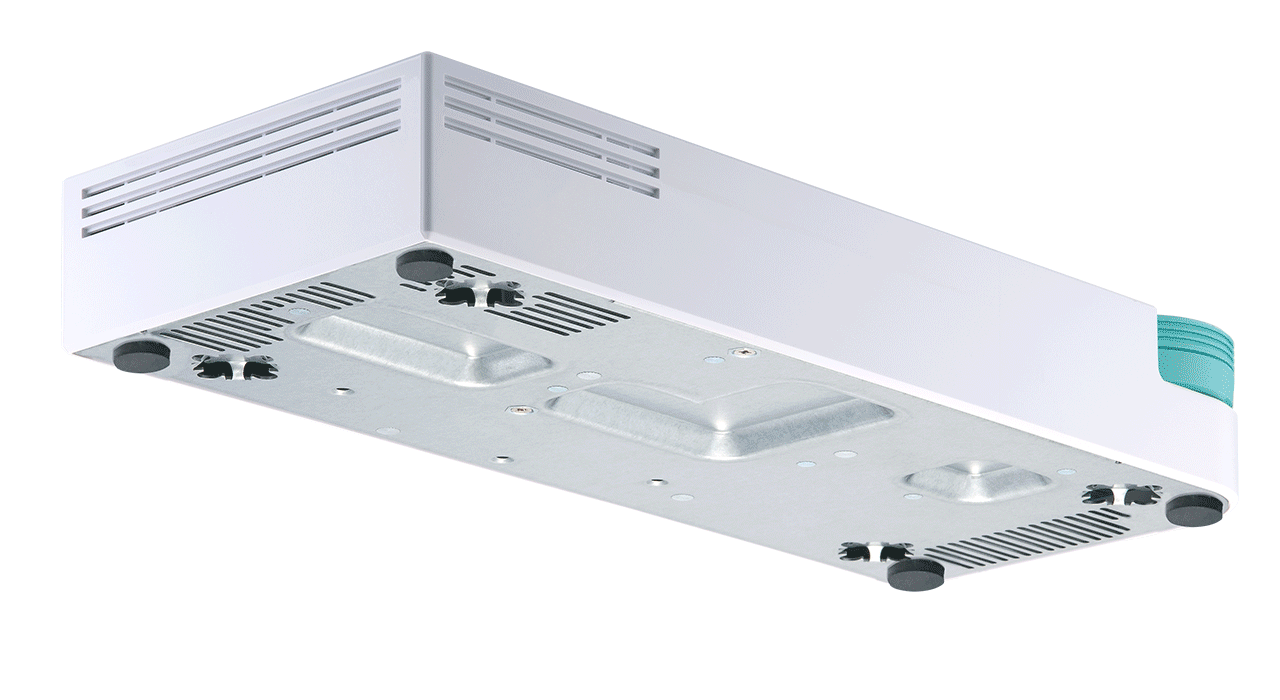

Cool and quiet operation

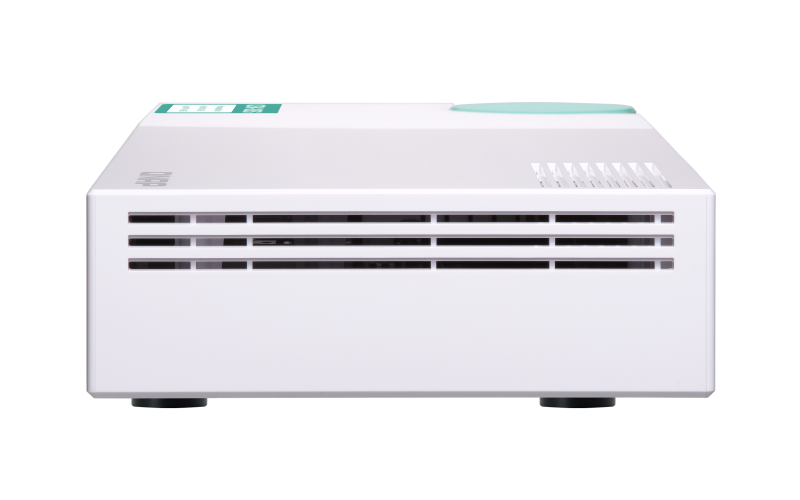

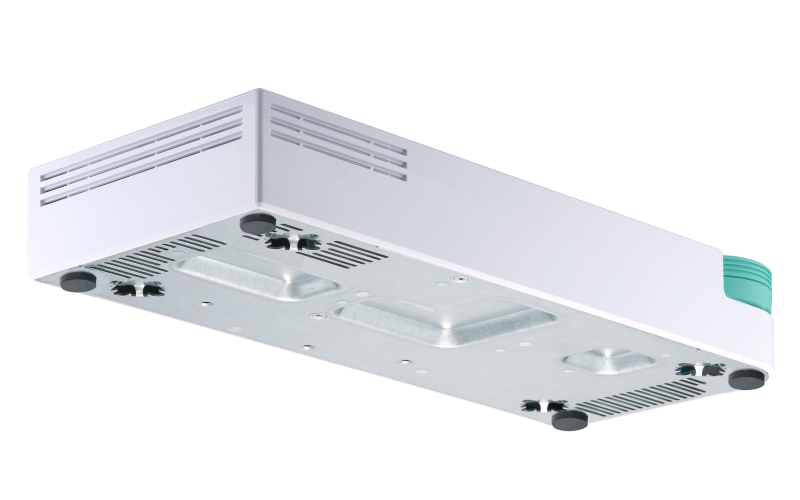

The QSW-308S features a fanless design for silent operations. The unique ventilated construction assists in cooling while maintaining high performance.
Desktop size for easy use in homes and offices

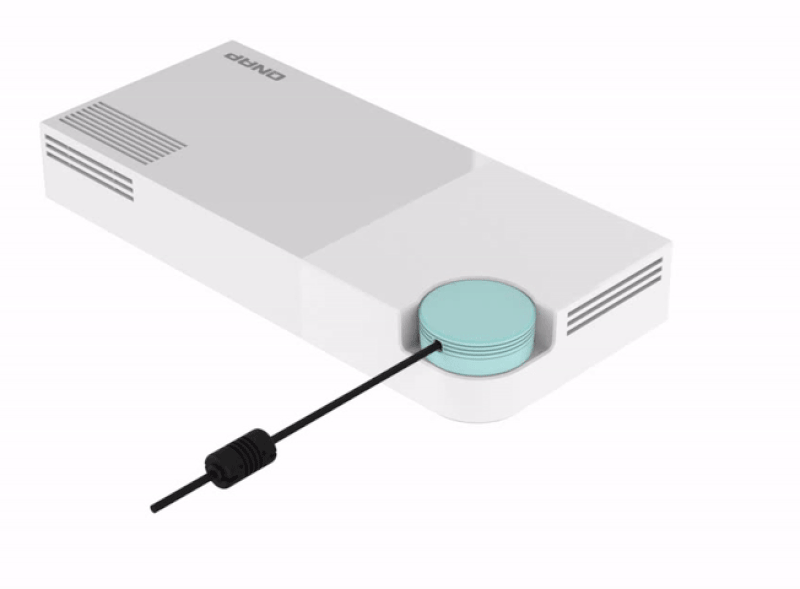

With a compact and modern design, the QSW-308S fits perfectly alongside other devices in modern digital homes and offices. Featuring a delicate white polished or textured surface design, the QSW-308S helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-308S.
Specifications:
|
QSW-308S-US |
| Management Type |
Unmanaged |
| Supported Standards |
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T |
| Jumbo Frames |
10k |
| Electromagnetic Compliance |
2 x SO-DIMM DDR4 |
| Certifications |
CE, FCC, VCCI, BSMI RCM |
| Relative Humidity |
5~95% Non-condensing |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Weight (Gross) |
2.56 lbs |
| Weight (Net) |
1.63 lbs |
| Dimensions (HxWxD) |
1.67 × 11.42 × 5 inch |
| LED Indicators |
Per Port: Speed/Link/Activity
Per System: Power/Status |
| Form Factor |
Desktop |
| Fanless |
Yes |
| Number of Ports |
11 |
| Switching Capacity |
76Gbps |
| Total Non-Blocking Throughput |
38Gbps |
| MAC Address Table |
16K |
| Input Voltage Range |
100-240VAC, 50/60 Hz |
| Input Power Type |
AC |
| Max. Power Consumption |
36W |
| Power Supply Description |
Adapter |
| 1GbE (RJ45) |
8 |
| 10GbE SFP+ |
3 |
