QNAP QGD-1602P
Smart Edge PoE Switch with 2.5GbE and 10GbE Capability for the Wi-Fi 6 & SD-WAN Generation
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Package Content
- QNAP QGD-1602P Switch
- 1 x Power cord
- Flat head screws (for 2.5″ HDD)
- 1 x Ethernet Cable
- Rackmount kit
- Rubber feet
- Quick Installation Guide
Overview:
The QNAP QGD-1602P is the world’s first PoE managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP+ ports and up to 90-watt PoE output, the QGD-1602P allows you to build a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers. With a dual-CPU design, the QGD-1602P uses Intel® Atom® multi-core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD-1602P not only fulfills IP surveillance, network security, wireless AP management, and storage expansion applications, but also integrates QuWAN to form a SD-WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel® QuickAssist Technology (Intel® QAT), the QGD-1602P achieves the high-performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Available Models
- QGD-1602P-C3558-8G-
- 4 x RJ45 2.5GbE 802.3bt 90-watt PoE ports, 4 x RJ45 2.5GbE 802.3at 30-watt PoE ports, 8 x RJ45 Gigabit 802.3at 30-watt PoE ports, 2 x 10GbE SFP+ ports; Intel® Atom® C3558 quad-core 2.2 GHz processor, 8 GB DDR4 RAM, supports hosting up to 4 VMs
- QGD-1602P-C3758-16G-
- 4 x RJ45 2.5GbE 802.3bt 90-watt PoE ports, 4 x RJ45 2.5GbE 802.3at 30-watt PoE ports, 8 x RJ45 Gigabit 802.3at 30-watt PoE ports, 2 x 10GbE SFP+ ports; Intel® Atom® C3758 octa-core 2.2 GHz processor, 16 GB DDR4 RAM, supports hosting up to 6 VMs
Two 10GbE SFP+ ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. Offers 4-port 90-watt and 12-port 30-watt Gigabit PoE capabilities. Can supply a total power budget of 380 watts to meet the demands of high-powered devices (PDs) and supports intelligent PoE management functions.
Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) with user-friendly network management software. IT staff can efficiently control network bandwidth and enhance security using a web-based management interface.
Set up an SSD cache or storage pools to increase file access efficiency.
Two PCIe Gen3 x2 slots allow users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless adapters.
Host containerized applications and virtual machines with various operating systems. Flexibly install QuWAN, virtual router, firewalls, or wireless LAN management software for various networking management applications.
Features:

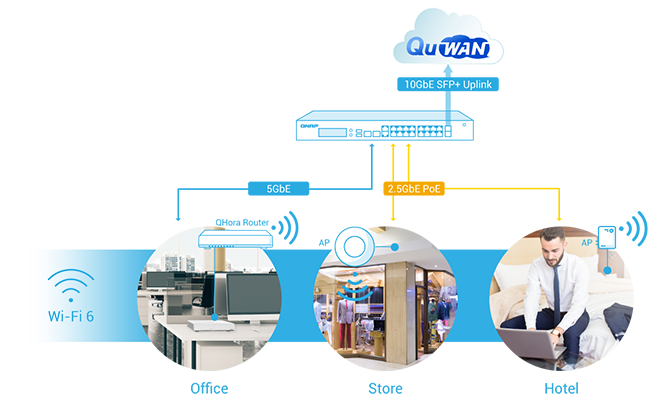

2.5GbE PoE Switch for Wi-Fi 6 APs & Routers
The QGD-1602P breaks through bandwidth limitations of connecting cabled and wireless networks to enhance your storage and access experience. With eight 2.5GbE ports, the QGD-1602P supplies up to 90 watts of PoE per port and a total power budget of 380 watts to meet the demands of high-power Wi-Fi 6 APs. The QGD-1602P can also be connected to a QHora Wi-Fi 6 Router via its 5GbE host ports to offer Wi-Fi 6 networking in home or office environments. Featuring diverse high-speed network interfaces, the QGD-1602P provides a comprehensive Wi-Fi 6 wireless network infrastructure solution for small-to-medium-scale businesses, hotels, and stores. Coupled with QNAP’s QuWAN SD-WAN solution, the QGD-1602P greatly enhances wireless LAN efficiency from optimized WAN bandwidth.
Upgraded performance for smoother virtualization
The QGD-1602P provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly-efficient virtualization applications.
8- core
CPU (Max.)
10GbE
network
90W
PoE
20Gbps
Internal bandwidth capacity
64GB
RAM (Max.)
6
VMs (Max.)
Sturdy hardware with Intel QAT for optimized performance
The QGD-1602P uses Intel® Atom® C3000 series multi-core 2.2GHz processors, has two SATA drive bays, and provides and two M.2 NVMe SSD slots for SSD caching to increase IOPS performance. Two PCIe Gen3 x2 slots allows users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters to boost core functionality. The QGD-1602P also supports Intel® QuickAssist Technology (Intel® QAT) to greatly enhance IPsec VPN performance.
Note: Intel® QAT is supported when using QTS 4.4.3 (or later).

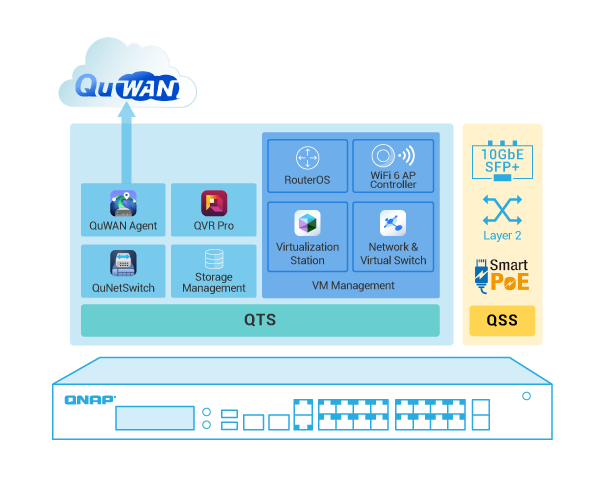

The First PoE Switch Series with VM Support
The Guardian supports QNAP’s QTS operating system and is the world’s first PoE switch series that can host virtual machines, containers, and provide other cloud applications - enabling diverse networking and storage solutions. In addition to QuWAN, QVR Pro, HybridMount, and other applications, the included App Center also supports VMs for running many open-source software applications. The Guardian provides SMBs with not only an all-in-one networking solution for IP surveillance, storage expansion, network security, and wireless LAN management, but also a SD-WAN solution for connecting to other QNAP devices at multiple sites. The dual-processor Guardian enables you to independently run the networking management interfaces (QSS - QNAP Switch System) and QTS. The Guardian provides a user-friendly web interface, QuNetSwitch, to help SMBs deploy a flexible and secure IT infrastructure.
QTS and QSS can work independently without interference to ensure continuous operation. For example, when restarting QTS, the QSS PoE power supply will not be interrupted; when rebooting QSS, the VMs on QTS will keep running.
Deploy a multi-site VPN with SD-WAN solution
 |
QuWAN Orchestrator Manage the network using a centralized management cloud platform. |
 |
QuCPE Server The high-performance core VPN Server at the HQ. |
 |
NAS Add branch offices to the VPN Infrastructure with your existing NAS. |
 |
QGD Switch Fulfill surveillance and VoIP applications at small business sites (such as stores). |
 |
QHora Router Provides easy-to-use VPN functions for remote workers. |
 |
QVPN Mobile users can connect to SSL VPN using their PCs, laptops or mobile phones. |

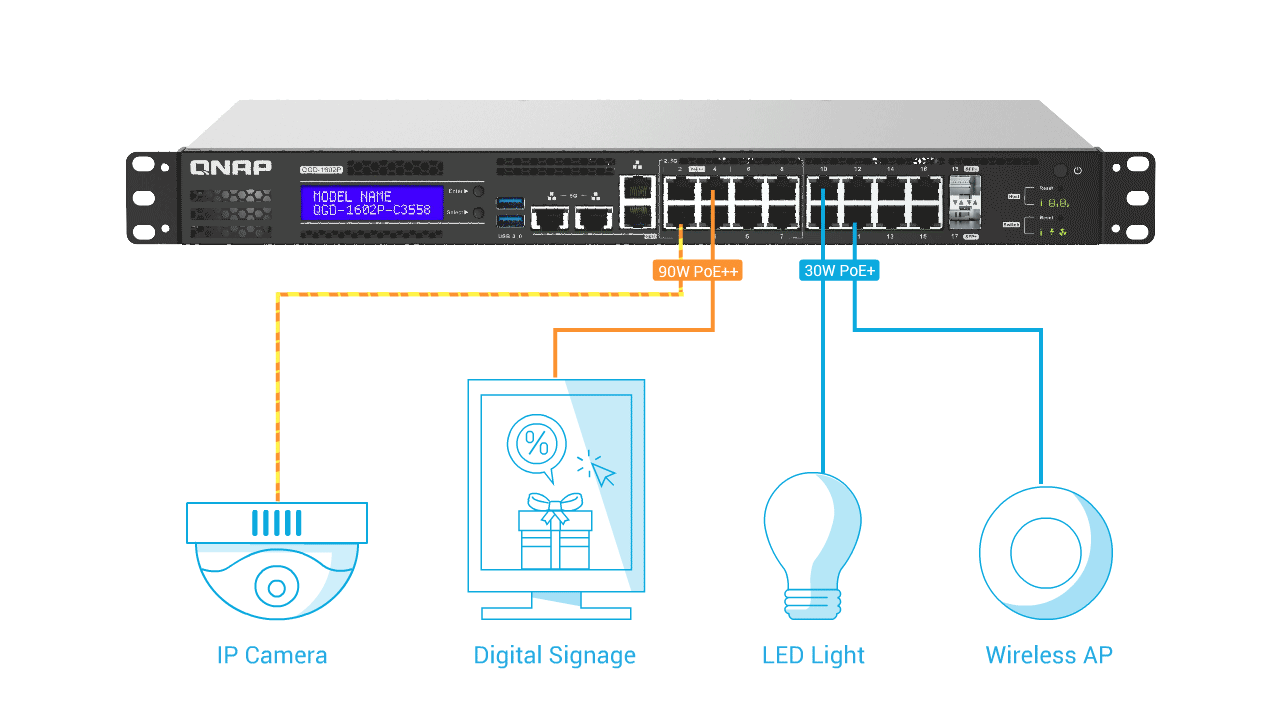

Intelligent PoE Management of up to 90W high-power devices
The QGD-1602P is compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, offering 4-port 90-watt and 12-port 30-watt PoE capabilities. The QGD-1602P can supply a total power budget of 370 watts to meet the demands of many high-power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage). The QGD-1602P supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain the real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.
Faster wired and wireless transmission
The QGD-1602P has eight 2.5GbE ports and eight Gigabit PoE ports for connecting various high-speed powered devices. Two in-built 10GbE SFP+ ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches. The additional two 5GbE and two Gigabit host management ports can be connected to multiple hosts or LAN devices to improve LAN efficiency. The switching capacity of QGD-1602P is 96Gbps, guaranteeing the full potential of each port. By installing an 802.11ac Wireless Adapter and the WirelessAP Station App, the QGD-1602P can work as an access point for connecting multiple edge devices and offer wireless speeds up to 2533Mbps.

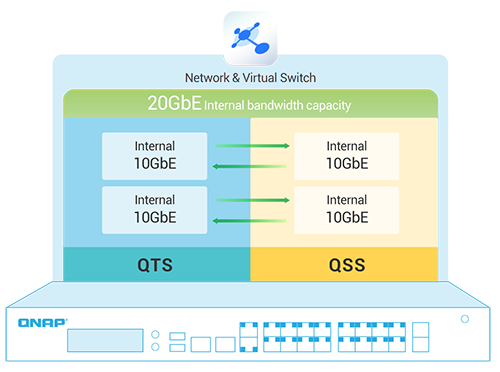

20GbE Internal Bandwidth for Virtualized Applications
QTS can directly access to and control the data processed in QSS using Virtual Switches. The QGD-1602P provides 20GbE internal bandwidth to accelerate computing between end devices and hosts. The additional two 5GbE and two Gigabit host management ports can also be connected to multiple hosts for deploying multiple virtual machines.
QuNetSwitch: Layer 2 Management with User-friendly Web GUI
The QGD-1602P provides comprehensive Layer 2 management features (including VLAN, LACP, and LLDP) for efficient control of networks through IP grouping and bandwidth management. Powerful security functions (including IGMP Snooping, static MAC, QoS, and Wake-on-LAN) are also suitable for simple networking environments and easy deployment. Aside from the QNAP Switch System (QSS), the QGD-1602P also offers the user-friendly web interface software QuNetSwitch (via QTS) to help IT staff control Layer 2 management and PoE networks. The overview dashboard and statistical analysis area displays all the information about the switch and PDs at a glance, making centralized management of powered devices intuitive and easy.
| Port Management | VLAN | Port Trunking | QoS |
|---|---|---|---|
|
|
|
|
| IGMP | Security | Management | Advanced Applications |
|
|
|
|
The Guardian Smart Edge PoE Switch meets all your business needs.
The QGD-1602P is a one-stop central networking solution that offers flexible power supply, Web-based management, and innovative virtualization applications to solve various networking problems.
x Ubiquiti UniFi = Wireless AP Controller
The QGD-1602P has 16 PoE ports and a 380w power supply for various high-power PoE wireless APs. By installing UniFi, the QGD-1602P becomes a hardware and software-based wireless AP controller. The QGD-1602P enables not only data transmission and PoE management over wireless APs, but also central management of cabled and Wi-Fi networking devices in offices, hotels, stores, and other small-to-medium-sized networks.
x QVR Pro = Total IP Surveillance System
The QGD-1602P has 4-port 90-watt and 12-port 30-watt PoE to different brands of high-power 4K PTZ Cameras with the ONVIF standard. When used with QVR Pro, the QGD-1602P simplifies the surveillance network infrastructure while satisfying requirements for surveillance deployment, central management, video recording and computing.
IP PBX System
The QGD-1602P offers 15-90 watts PoE per port for SIP IP Conferencing Phones. You can also deploy a secure IP PBX phone system for multiple users by installing FreePBX software.
x Virtual Router x Virtual Firewall = Enhanced Cybersecurity
The QGD-1602P can be transformed into a secure router with a firewall via virtual router and virtual firewall software by installing MikroTik RouterOS and OpenWrt. Flexibly configure routing functions and separate or protect local networks and apply multiple security policies. You can also easily manage all networking devices with Zabbix network management software.
x Zabbix = Centralized Network Management Platform
The QGD-1602P supports Zabbix Network Monitoring Software that auto-detects connected SNMP-compliant servers/devices, and monitors network status. Zabbix provides a Dashboard and Analysis Reports for efficient large-scale network management.
Smart Hotels
Hotel staff and customers can benefit from a smart access control system. Customers can check in with self-help kiosks upon arrival while browsing through room details and service packages. Wi-Fi should also be provided for customers to check information and contact customer service. Customer data also needs to be securely stored, while a surveillance system is necessary to ensure security.
The Guardian Smart Edge PoE switch provides:
- Smart Access Control System: Up to 2.5GbE 90-watt PoE capabilities and 2.5GbE network transmission to transfer customer check-in data in real time.
- Self-help Kiosk: Up to 2.5GbE 90-watt PoE capabilities, enabling data connection for self-help kiosks and digital signage.
- Wi-Fi Service: 15–90-watt 2.5GbE PoE capabilities for wireless access points (WAPs), while also supporting Ubiquiti UniFi for centrally managing a connected UniFi Access Point (UniFi AP).
- IP Surveillance System: 15–90-watt PoE capabilities and 2.5GbE speeds to 4K PTZ and Fisheye IP cameras. Deploy QVR Pro and auto-detect ONVIF IP cameras for greater management convenience.
- Data Storage and Backup: Centrally store check-in data from customers.
- Network Devices: Printers, fax, and VoIP phones can benefit from Gigabit Ethernet connectivity.
Business Digital Transformation
IT staff in small businesses often need to set up file servers for employees to centrally store files. You also need to create networks for connecting equipment such as printers and VoIP phones. Firewalls are crucial in information security for mitigating attacks and threats. VPN connections are also necessary for secure remote file transfers between offices, sites, and remote workers.
Smart Retail
Digital signage is a convenient way to display menus/inventory and current offers. The POS system must also be constantly connected to ensure sales data is saved. An NVR surveillance system is also required to ensure customer, staff, and environmental security. These services can also use Wi-Fi for ease of use.
The Guardian Smart Edge PoE switch provides:
- Digital Signage: 90-watt PoE capabilities, supports running QTS for storing digital signage data.
- Ordering Kiosk: 60-watt PoE capabilities and 2.5GbE connectivity for transferring customer order details.
- POS System: 30-watt PoE capabilities, supports running QTS for centrally storing sales data. When used with QuWAN (an SD-WAN solution featuring IPSec VPN), staff and management can easily access an ERP system based in company headquarters/data centers.
- IP Surveillance System: 15–90-watt PoE capabilities and 2.5GbE speeds to 4K PTZ and Fisheye IP cameras. Deploy QVR Pro and auto-detect ONVIF IP cameras for greater management convenience.
- Wi-Fi Service: Install a QNAP QWA-AC2600 PCIe card and use with the WirelessAP Station app to provide high-coverage dual-band wireless connections.
Flexible storage expansion
Connect a TR RAID, TL USB JBOD, or TL SATA JBOD to expand the storage capacity of the QGD-1602P to accommodate data and business growth.
| Expansion units | TL SATA JBOD | TL USB JBOD | TR RAID |
|---|---|---|---|
| Number of bays | 4: TL-D400S, TL-R400S 8: TL-D800S 12: TR-R1200S-RP 16: TL-D1600S |
8: TL-D800C 12: TL-R1200C-RP |
2: TR-002 4: TR-004, TR-004U |
| Supported O.S | QNAP QTS, Windows, Linux/Ubuntu | QNAP QTS, Windows, Mac, Linux/Ubuntu | QNAP QTS, Windows, Mac, Linux/Ubuntu |
| Cerate QTS storage pool | Yes | ||
| QTS operations such as disk scan | Yes | Yes | |
| H/W RAID Protection | Yes (RAID 0/1/5/10) | ||
| RAID level migration & capacity expansion | Yes | Yes | |
| Max units supported by QGD-1602P | 2 | 1* | 2* |
* The total number of connected TR and TL USB expansion units cannot exceed two.

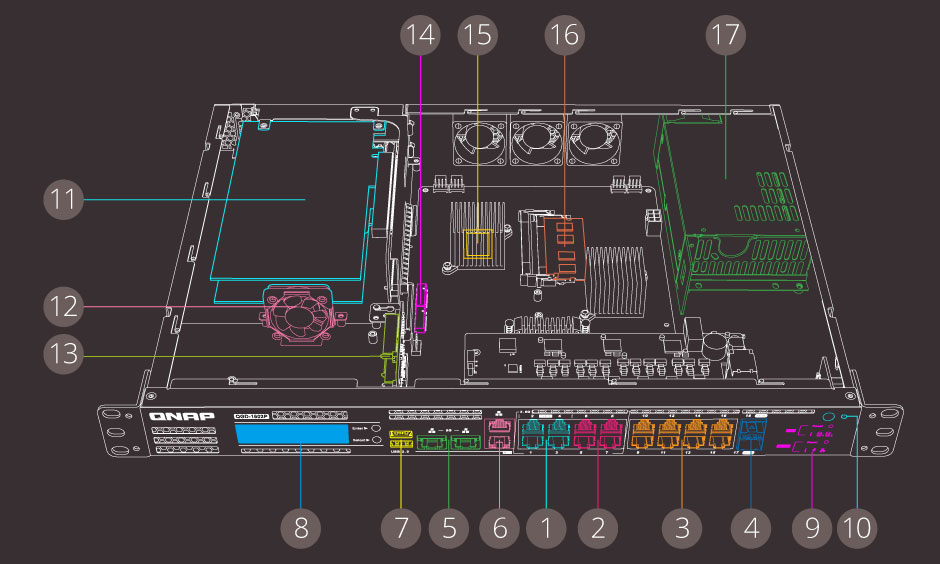

Dual-system of Switch & NAS, enabling optimum performance
The QGD-1602P features dual system design, multi-port capability and expandable architecture, enabling optimum transmission and flexibility to fulfill business needs in performance and application diversification.
| 1 | 4x RJ45 2.5GbE 802.3bt PoE++ ports | Supplies up to 90 watts and 2.5GbE connectivity per port to meet the demands of high-powered devices (PDs), such as Wi-Fi 6 APs, LED lights, digital signage and PTZ IP cameras. |
| 2 | 4x RJ45 2.5GbE 802.3at PoE+ ports | Supplies up to 30 watts and 2.5GbE connectivity per port to meet the demands of powered devices (PDs), such as wireless APs and IP phones. |
| 3 | 8x RJ45 Gigabit 802.3at PoE ports | Supplies up to 30 watts and Gigabit connectivity per port, the 8 Gigabit PoE ports provide flexibility for various high-speed powered devices. |
| 4 | 2x 10GbE SFP+ ports | Provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing. |
| 5 | 2x 5GbE host interface ports | The additional two 5GbE host management ports can be connected to multiple hosts, LAN devices or Internet. |
| 6 | 2x Gigabit host interface ports | The additional two Gigabit host management ports can be connected to multiple hosts, LAN devices or Internet. |
| 7 | 2x USB 3.2 Gen 1 ports | The USB 3.2 Gen 1 port allows for connecting to external hard drives, printers. |
| 8 | LCD monitor and control buttons | The LCD Monitor displays real-time IP and Firmware information of the Switch and QTS System to help you understand the network status. The control buttons allow you to directly configure and restart the system. |
| 9 | Independent QSS/QTS reset buttons and LED indicators | You can reset the switch and QTS separately via the independent reset buttons, ensuring the PoE power supply is stable when resetting the QTS, or continuous operation of the VMs on QTS when resetting the QSS. You can also easily view the status of QTS/ QSS systems, hard drives, PoE and system FAN via the LED indicators. |
| 10 | Independent QTS Host power button | When shutting down the QTS via the independent QTS Host power button, the switch can still offer data transmission in LAN network and ensure uninterrupted operation without being affected by QTS status. |
| 11 | 2x PCIe Gen3 expansion slots | Supports 10GbE network cards, QM2 cards, USB 3.2 Gen 2 (10Gbps) expansion cards and wireless adapters for greater application potential. |
| 12 | System fans | Monitors system temperatures and automatically adjusts fan speeds accordingly. |
| 13 | 2x 2.5″ SATA 6Gb/s SSD/HDD ports | Built-in 2x2.5″ SATA SSD/HDD slots offer secure storage space for application data. |
| 14 | 2 x M.2 NVMe SSD slots | Provides SSD caching to increase IOPS performance. |
| 15 | Intel® Atom® processor | High-performance Intel® Atom® C3000 series multi-core 2.2 GHz processor |
| 16 | DDR4 memory | Supports four DDR4 dual-channel SO-DIMM memory modules for a maximum of 64 GB RAM. |
| 17 | Power supply unit | 280W or 500W power supplies ensure continuous system uptime. |
Hardware Specifications:
| QGD-1602P-C3558-8G | QGD-1602P-C3758-16G | |
|---|---|---|
| Management Type | Web Managed | |
| CPU | Intel® Atom® C3558 quad-core 2.2 GHz processor | Intel® Atom® C3758 8-core 2.2 GHz processor |
| CPU Architecture | 64-bit x86 | |
| System Memory | 8 GB (1 x 8 GB) | 16 GB (1 x 16 GB) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s | |
| Number of Ports | 18 | |
| 10GbE SFP+ | 2 10G/1G |
|
| 2.5GbE (RJ45) | 8 | |
| 1GbE (RJ45) | 8 | |
| Total PoE Ports | 16 | |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 | |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 | |
| PoE++ PSE (802.3bt, 60W) | Ports 1-4 | |
| PoE Power Output | ||
| Total PoE Power Budget | 200W | 370W |
| PCIe Slot | Slot 1: PCIe Gen3 (x4) Slot 2: PCIe Gen3 (x4) |
|
| USB 3.2 Gen 1 port | 2 | |
| Management Port | 2 x 5GbE ; 2 x 1GbE | |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via PCIe adapter | |
| Power Supply Description | Internal Power Supply Unit | |
| Max. Power Consumption | 280W | 500W |
| Input Power Type | AC | |
| Input Voltage Range | 100 ‒ 240VAC, 50/60Hz | |
| MAC Address Table | 32K | |
| Total Non-Blocking Throughput | 48Gbps | |
| Switching Capacity | 96Gbps | |
| Management Interface | Web | |
| Fan | System: 3 x 4 cm (12V DC) | |
| Supported Standards | IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet IEEE 802.3an 10GBASE-T 10G Ethernet IEEE 802.3ae 10GBASE-SR IEEE 802.3ae 10GBASE-LR IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.3af/at/bt Power-over-Ethernet (PoE) IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization |
|
| Form Factor | Rackmount | |
| LED Indicators | Per Port: Link/Activity/Speed/PoE Per System: Warning/PoE/Fan |
|
| LCD Management | ||
| Buttons | Device PSU power button Host power button Host reset button(load default) Switch reset button |
|
| Dimensions (HxWxD) | 44.2 × 435.2 × 327.7 mm | |
| Weight (Net) | 4.37 lbs | |
| Weight (Gross) | 5.52 kg | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Relative Humidity | 5%–95% (non-condensing), wet bulb: 27˚C (80.6˚F) | |
| Certifications | CE, FCC, VCCI, BSMI RCM | |
| Electromagnetic Compliance | CLASS A, UL62368 | |
| QTS Built-in | ||
| Jumbo Frames | ||
| Intel QAT Support | ||
| Internal Network Bandwidth | 2 x 10GbE | |
| Floating Point Unit | ||
| Encryption Engine | (AES-NI) | (AES-NI) |
| Maximum Memory | 64 GB | |
| Memory Slot | 2 x SODIMM DDR4 | |
| Flash Memory | 4GB (Dual boot OS protection) | |
| Drive Compatibility | 2.5-inch bays: 2.5-inch solid-state drives 2.5-inch hard disk drives |
|
| Hot-swappable | ||
| M.2 SSD Slots | 2 | |
| SSD Cache Acceleration Support | ||
| File System: Internal Hard Drive | EXT4 | |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) | |
| Warranty | 2 Years | |
Product Views:

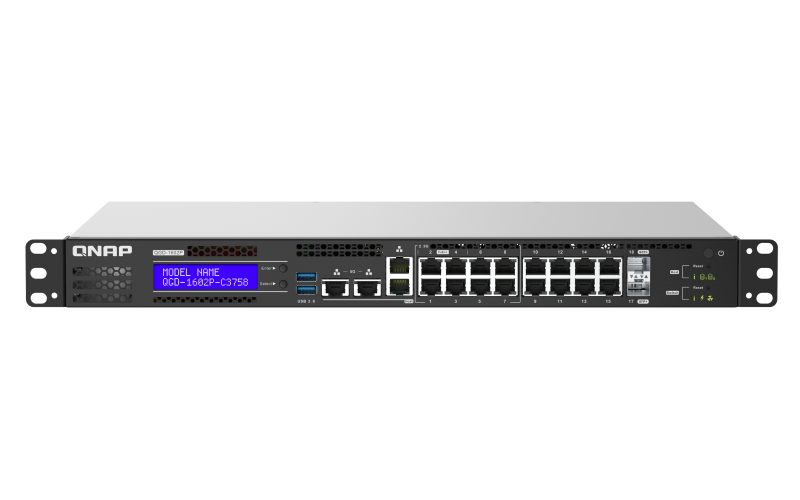

Front View |

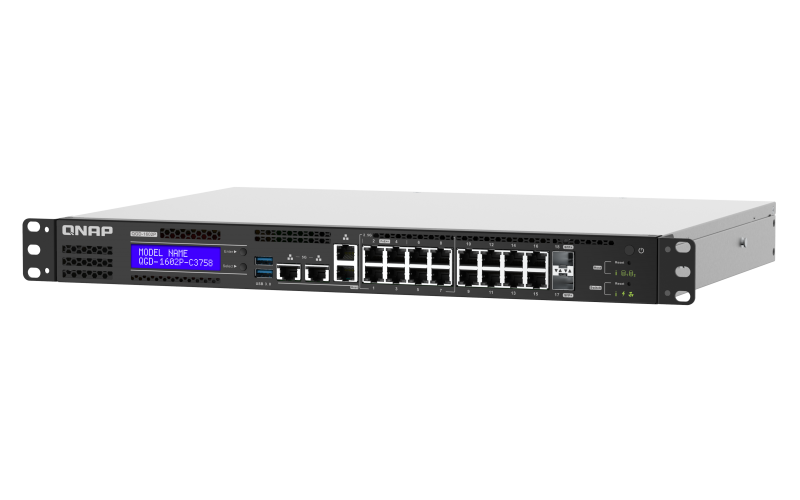

Top Right Side View |

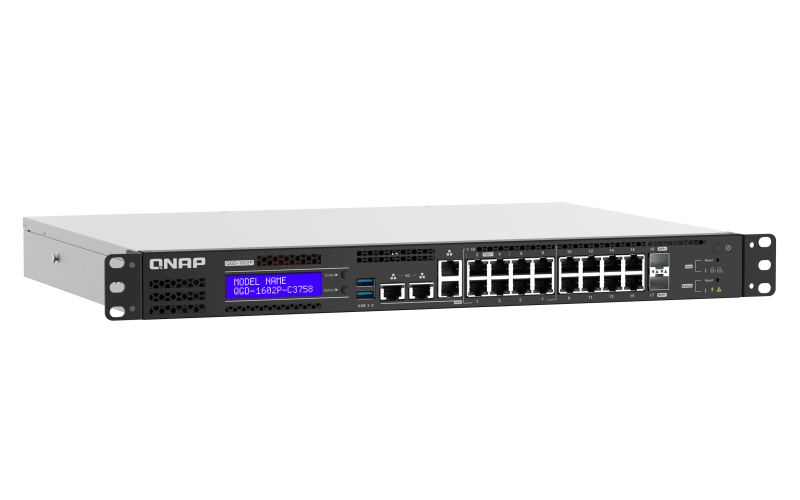

Top Left Side View |

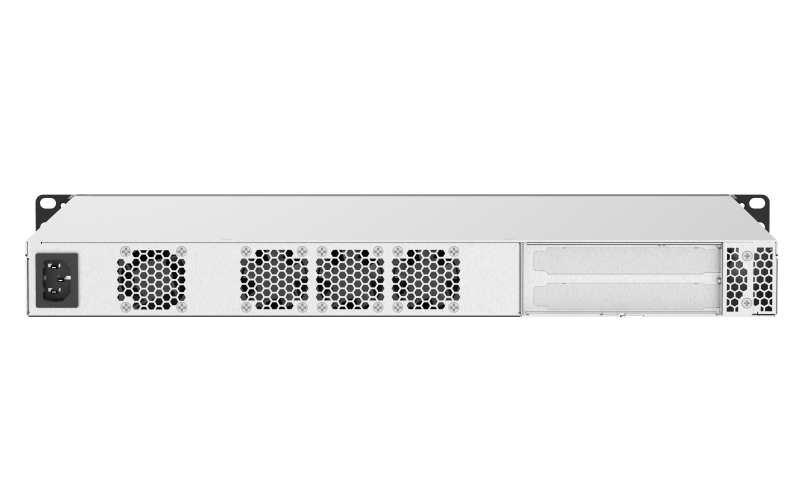

Rear View |
