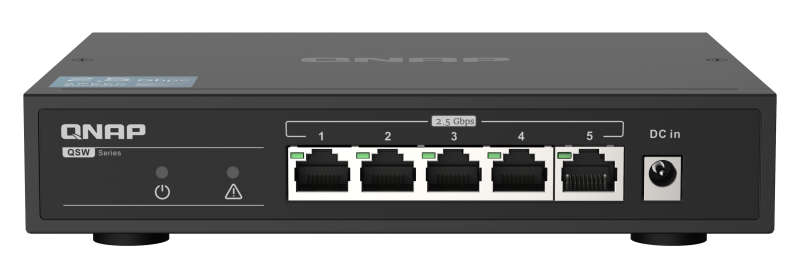

QNAP QSW-1105-5T
Instantly upgrade your network to 2.5GbE connectivity


QNAP QSW-1105-5T

QNAP Products
QSW-1105-5T
QNAP QSW-1105-5T, 5 port 2.5Gbps auto negotiation (2.5G/1G/100M), unmanagement switch
#QSW-1105-5T-US
Our Price: $99.00

Create Your Ideal Bundle:

Click here to jump to more pricing!

Package Content

  • QNAP QSW-1105-5T Switch
  • Power supply
  • Bracket screws
  • Anchors
  • Foot pads
  • Quick Installation Guide



Overview:

With five 2.5GbE ports, the QNAP QSW-1105-5T switch instantly upgrades your network to take advantage of 2.5GbE-enabled devices and NAS without requiring any new network cables. Featuring a near-silent fanless design and plug-and-play set up, the QSW-1105-5T provides network loop detection and blocking functions, making it easy for you to create an affordable high-speed network environment for your home or business.





2.5GbE

Immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.

Plug & Play

No complex settings are required, and auto-negotiation ensures optimal performance.


loop detection and blocking

Automatic loop detection and blocking to ensure continuous network operation.

fanless design

The unique fanless design with ventilated construction provides near-silent operation.

Features:

Up to 2.5 times faster

The QSW-1105-5T has five 2.5GbE ports that support existing Ethernet devices and are ready for next-generation 2.5GbE devices. Whether you are upgrading your network for business or personal use, the QSW-1105-5T provides a solid foundation for enabling faster and smoother productivity and entertainment.

multiple-ports

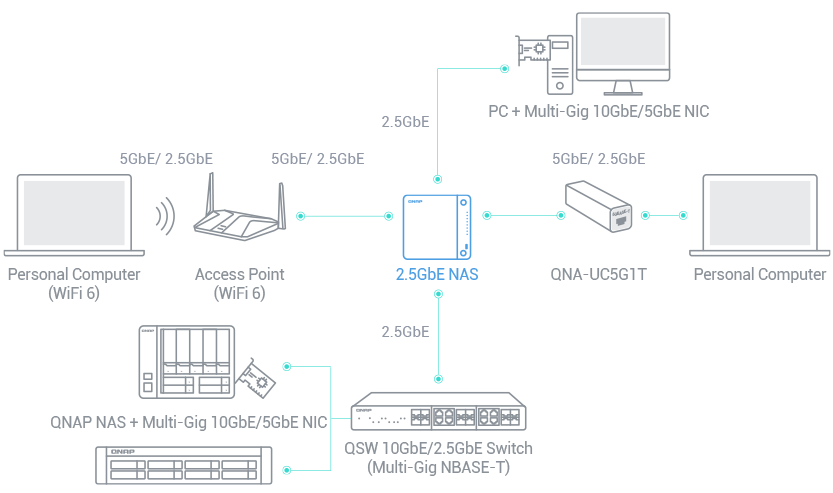

Future-proof your network environment

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A switch that supports 2.5GbE+ QNAP 10GbE/2.5GbE switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
A fast 2.5GbE NAS A QNAP NAS features one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Upgrade computers and servers Servers and desktop computers can install the PCIe-based QNAP network expansion cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
Add a 5GbE port to laptops Laptops and upgrade-limited computers can use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.

2-5-gnetwork-environment

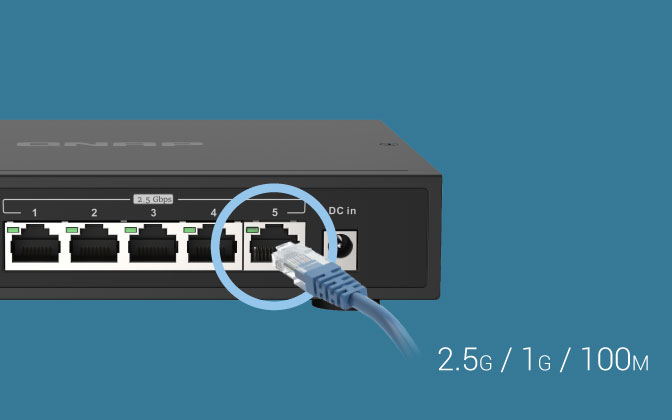

Affordable network upgrade

Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. You can even use your existing CAT 5e cables to immediately take advantage of higher transfer speeds.

existing_cables


Instantly build a plug-and-play high-speed network

No complex settings are required to use the QSW-1105-5T - simply connect your devices and it’s ready to use. The QSW-1105-5T supports auto-negotiation that optimizes transfer speeds and performance for each connected device, while its built-in management mechanism ensures smooth transmission of network packets during periods of heavy usage.

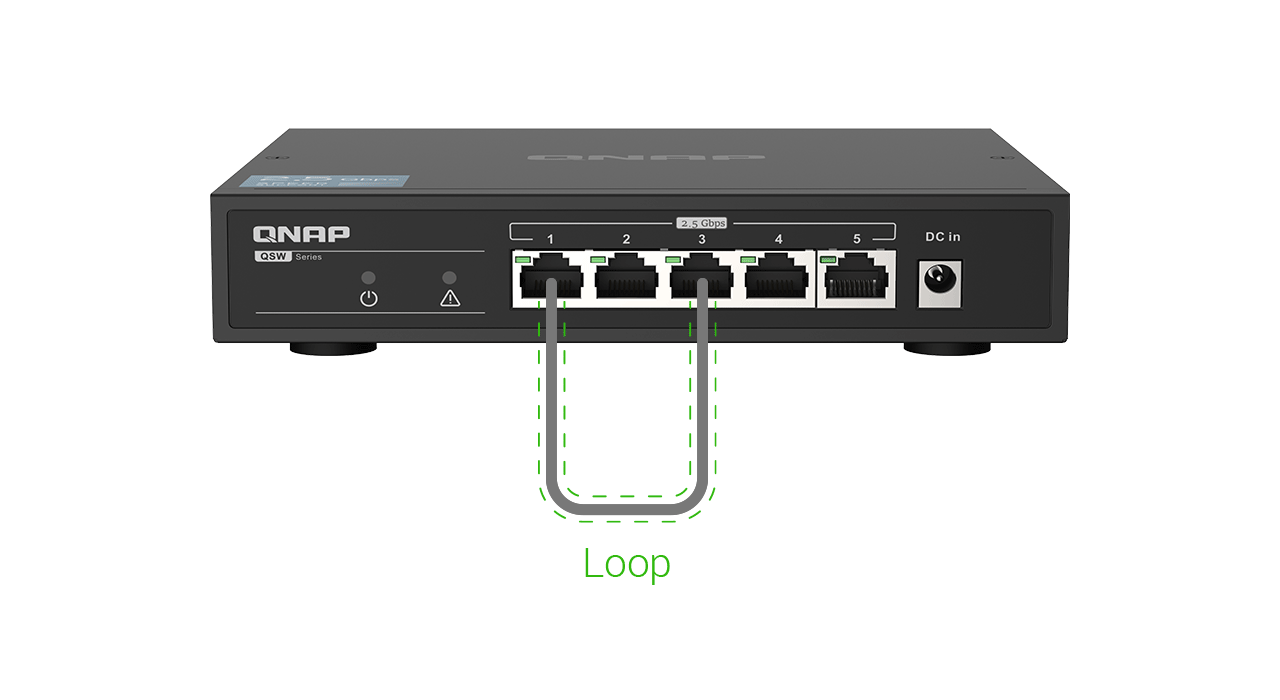

Loop detection and blocking

The QSW-1105-5T features network loop detection. If a network loop is detected, the QSW-1105-5T automatically locks the looped ports to ensure the network environment quickly resumes normal operation.

loop-and-blocking


cool-and-quiet

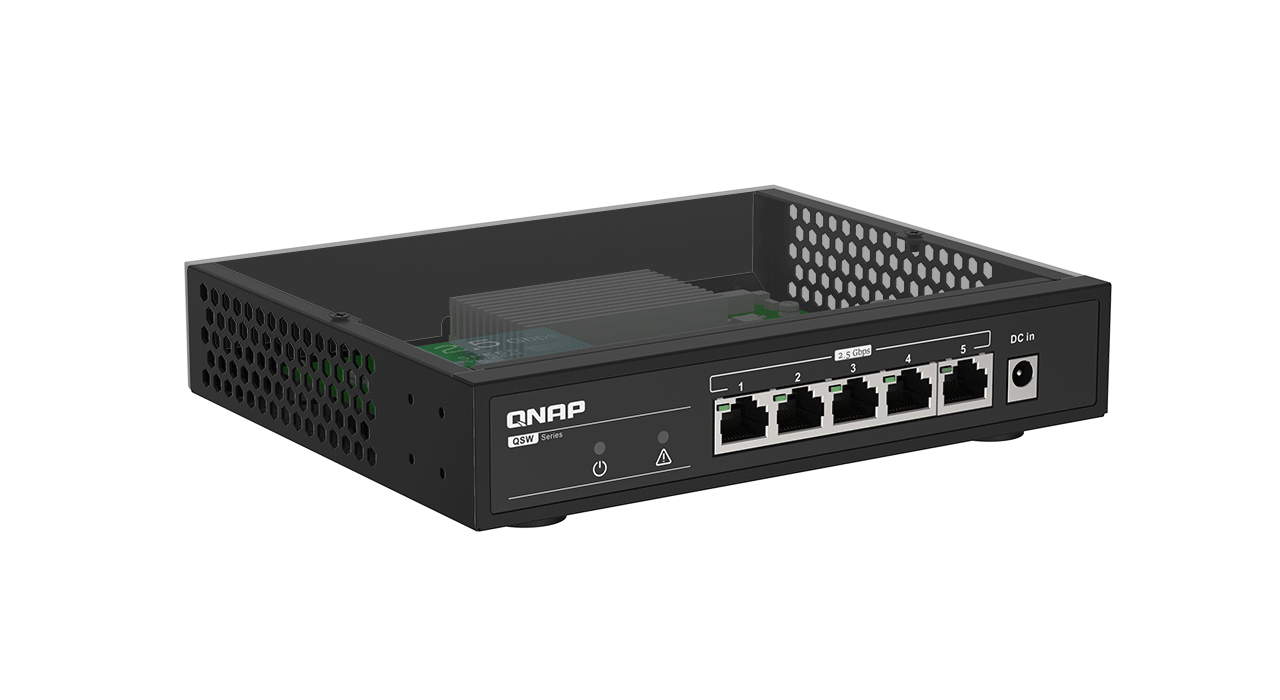

Cool and quiet operation

The QSW-1105-5T features a fanless design for near-silent operation. The unique ventilated construction assists in cooling while maintaining high performance.

Hardware Specifications:

  QSW-1105-5T
Management Type Unmanaged
Number of Ports 5
2.5GbE (RJ45) 5
Power Supply Description Adapter
Max. Power Consumption 12 W
Input Power Type AC
Input Voltage Range 100~240 VAC, 50/60Hz
MAC Address Table 16K
Total Non-Blocking Throughput 12.5Gbps
Switching Capacity 25Gbps
Fan Fanless
Fanless
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBase-T
IEEE 802.3x Full-Duplex Flow Control
Form Factor Desktop
LED Indicators Per Port: Speed/Link/Activity
Loop LED: Loop
Per System: Power/Status
Dimensions (HxWxD) 34 x 180 x 145 mm
Weight (Net) 1.27 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 10% to 90% (non-condensing)
Certifications FCC, CE, BSMI, VCCI, LVD,CCC,KCC,ASNZ
Electromagnetic Compliance Class B
Jumbo Frames 9K
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Product Views:

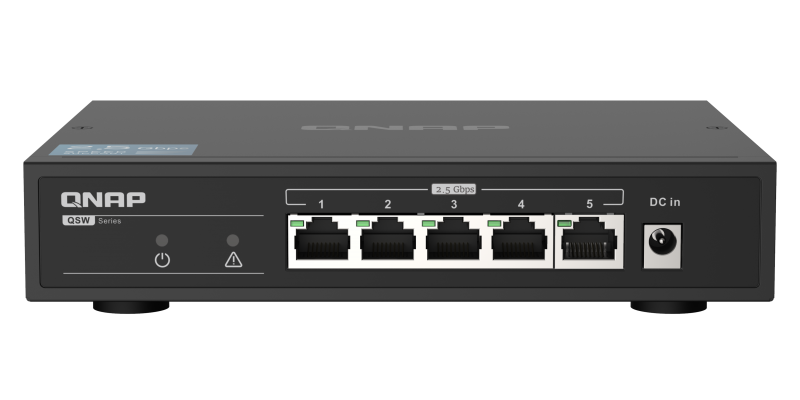

Front View

Front View

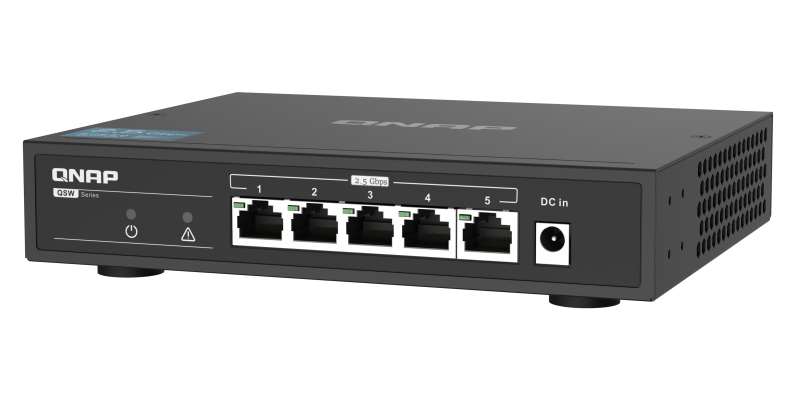

Top Right View

Top Right View

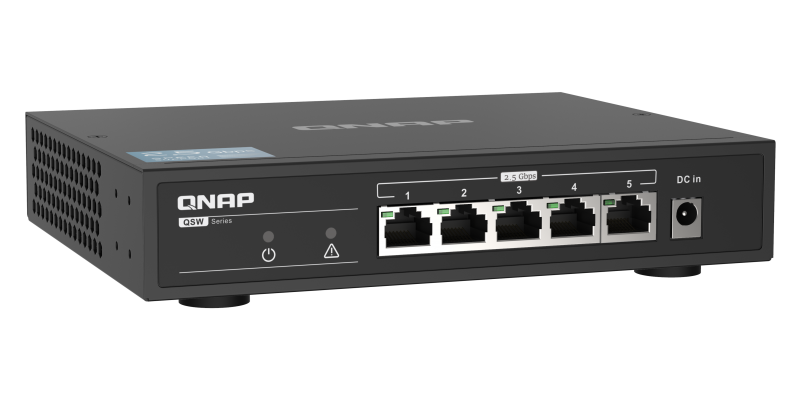

Top Left View

Top Left View

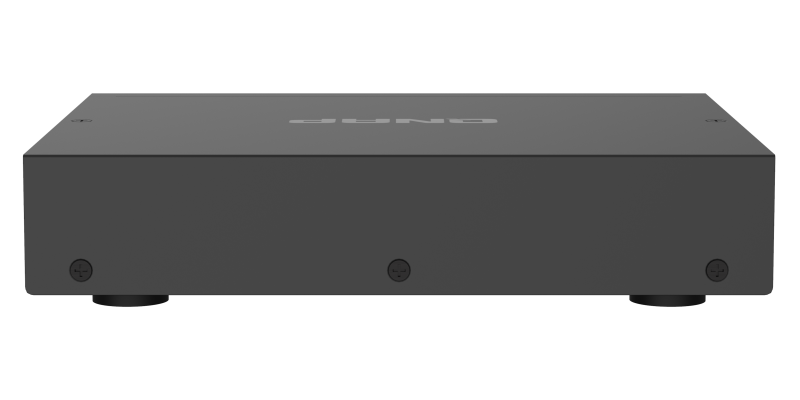

Rear View

Rear View



Documentation:

Datasheet for QNAP QSW-1105-5T is coming soon.
