Package Content

QNAP QSW-M408-2C Switch
1 x Power cord
Power Adapter
Quick Installation Guide

Overview:

The QSW-M408-2C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Supporting Layer 2 switching and network management via user-friendly web user interface, the QSW-M408-2C offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals. The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with your existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-2C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security.

10GbE SFP+

The QSW-M408-2C is equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M408-2C offers higher transmission speeds when used with existing cables.

QSS

Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.

Layer 2

The QSW-M408-2C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for IT administrators to efficiently control the network bandwidth and enhance security.

RSTP

The QSW-M408-2C is one the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention.

Energy Efficient

Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M408-2C avoids packet loss from unparalleled bandwidth, and reduces power consumption for low-speed and inactive connections.

network security

QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.

Features:

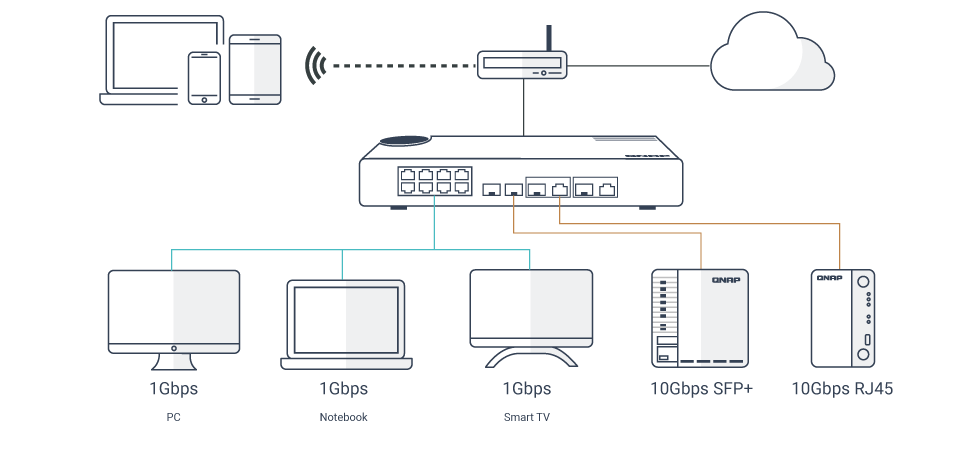

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports

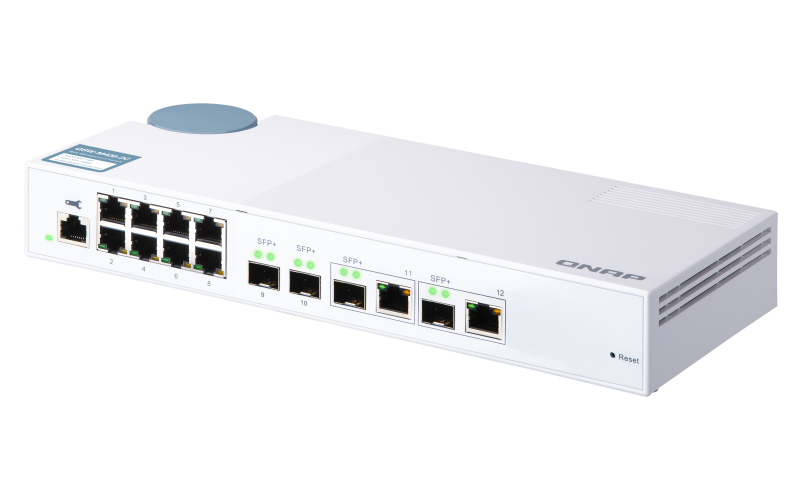

The QSW-M408-2C provides four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-2C is 96Gbps, guaranteeing the full potential of each port.

Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G / 5G / 2.5G / 1G / 100M).

multiple-ports-qsw-m408-2c

QSS: Intuitive Network Management Software with Web GUI

The QSW-M408-2C uses the QNAP Switch System (QSS), which features an easy-to-use Web GUI with value-added functions to simplify network set up and management.

Sleek Design

Use the at-a-glance major functions, flat control layers and one-click login to simplify set up and management.

GUI

The visual illustration matches physical ports for greater usability.

Value-added Functions

With the setting guide, status chart reference, online firmware update, the learning and management costs are greatly reduced.

QSS: Human-centered settings guide

QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide to help administrators control Layer 2 networks.

Overview Dashboard

View real-time system information, port connection status and port traffic.

Port Management

View port status, port packet statistics, and configure port speeds.

Setting Guide

Quickly learn how to set up the network using the function introduction and step-by-step setting guide.

Exclusive Status Chart Referencing

Refer to four major status charts during each configuration to avoid going back and forth between different setting pages.

Online Firmware Check and Update

Keep your QSW-M408-2C secure and up-to-date with one-click firmware updates.

Optimize Network Performance with bandwidth and packet control

The QSW-M408-2C provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) for boosting network performance through IP grouping and bandwidth management.

LACP	VLAN	QoS	IGMP Snooping
Bandwidth allocation Bandwidth expansion	Communication Efficiency Flexible Segmentation	Traffic control Prioritizing bandwidth	Status snooping Traffic reduction

Powerful security and system functions

The QSW-M408-2C has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL	LLDP	RSTP	Flow Control
Access controls Security system	Device disclosure Troubleshooting	Loop prevention Backup path	Balance speed Jam prevention

Faster speeds using existing cables with 10GBASE-T & NBASE-T

The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

Note: To achieve 10Gb/s speeds, if the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used.

	CAT 5e	CAT 6e	CAT 6A & CAT 7
100M
1G
2.5G
5G
10G		(55m)

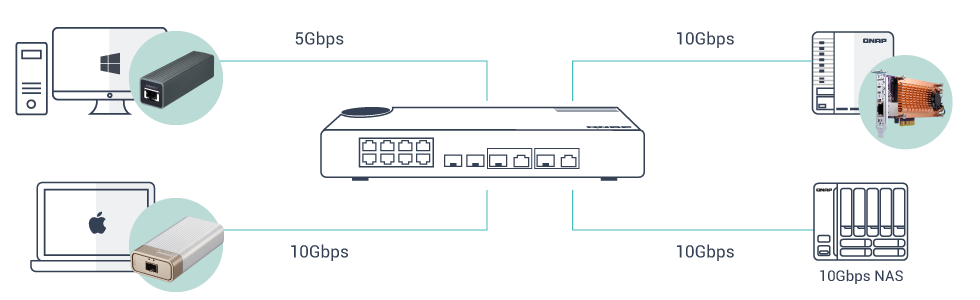

Improve team productivity with a 5GbE/ 10GbE High-Speed Network

From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE/5GbE/2.5GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M408-2C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.

High-Speed-Network-qsw-m408-2c

Desktop size for easy use in offices

With a compact and modern design, the QSW-M408-2C fits perfectly alongside other devices in modern digital offices. Featuring a delicate white or textured surface design, the QSW-M408-2C helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-M408-2C. Being fully plug-and-play, simply connect the QSW-M408-2C to your devices and it will do the rest.

Hardware Specifications:

	QSW-M408-2C
Management Type	Web Managed
Number of Ports	12
10GbE SFP+	2 10G/1G
10GbE SFP+/RJ45 Combo Ports	2 Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
1GbE (RJ45)	8
Power Supply Description	Adapter
Max. Power Consumption	22.04 W
Input Power Type	AC
Input Voltage Range	100 ‒ 240VAC, 50/60Hz
MAC Address Table	16K
Total Non-Blocking Throughput	48Gbps
Switching Capacity	96Gbps
Management Interface	Web
Console	RJ45
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fan	PWM double ball bearing fan x 1
Supported Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service
Form Factor	Desktop
LED Indicators	Per Port: Speed/Link/Activity Per System: Power/Status
Buttons	Reset button
Dimensions (HxWxD)	1.67 × 11.42 × 5 inch
Weight (Net)	2.54 lbs
Weight (Gross)	3.46 lbs
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	5%–95% (non-condensing)
Certifications	CE, FCC, VCCI, BSMI
Electromagnetic Compliance	CLASS A
Jumbo Frames	9K
Warranty	2 Years
