QNAP QuCPE Network Virtualization Premise Equipment
Network Virtualization Premise Equipment with an Intel® Xeon D multi-core processor, suitable for multi-user and multi-tasking business applications.



Sorry, this product is no longer available, Please contact us for a replacement.


Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

  • QNAP QuCPE-7010
  • 1 x Ethernet cables
  • 1 x Power cord
  • Flat head screw (for 2.5″ HDD)
  • Rackmount kit
  • Quick Installation Guide

Overview:

QNAP’s QuCPE-7010 Network Virtualization Premise Equipment is a universal virtualization platform specifically designed for SMBs. The QuCPE-7010 adopts powerful Intel® Xeon® D multi-core processors that support Intel® QAT*, Smart NIC SR-IOV and DPDK hardware acceleration technologies and provides multi-port 10GbE, a network module slot and a PCIe slot for 40GbE/ 25GbE expandability. With enhanced bandwidth and computing performance for running multiple VMs and VNFs, the QuCPE-7010 is suitable for multi-user and multi-tasking business applications. The QuCPE-7010 also features the QNE (QNAP Network Equipment) OS for chaining VNF services and AMIZ Cloud centralized deployment and management platform to realize flexible Zero Touch Provisioning.

Note: Only QuCPE-7010-D2166NT-64G and QuCPE-7010-D2146NT-32G support Intel® QAT.



Available Models

  • QuCPE-7010-D2166NT-64GB-
    Intel® Xeon® D-2166NT 12-core/24-thread 2.0GHz processor (up to 3.0 GHz), 64 GB DDR4 ECC memory (4 x 16GB); 4 x 10GbE SFP+ ports、8 x Gigabit RJ45 ports

  • QuCPE-7010-D2146NT-32GB-
    Intel® Xeon® D-2146NT 8-core/16-thread 2.3GHz processor (up to 3.0 GHz), 32 GB DDR4 ECC memory (2 x 16GB); 4 x 10GbE SFP+ ports, 8 x Gigabit RJ45 ports

  • QuCPE-7010-D2123IT-8GB-
    Intel® Xeon® D-2123IT 4-core/8-thread 2.2GHz processor (up to 3.0 GHz), 8 GB DDR4 ECC memory (2 x 4GB); 4 x 10GbE SFP+ ports、8 x Gigabit RJ45 ports

flexible-icon

The QuCPE-7010 is powered by QNAP’s proprietary QNE operating system, providing convenient and intuitive Network Service Composer and QuWAN SD-WAN solutions to achieve flexible network deployment and multi-site network infrastructure expansion.

SR-IOV-icon

Intel® QAT, Smart NIC SR-IOV and DPDK hardware acceleration technologies offer superior computing power for virtualization deployment and enhance SD-WAN and VPN transmission efficiency.

AMIZ Cloud-icon

AMIZ Cloud is a centralized management platform that enables IT administrator at HQ to centrally monitor all edge devices, virtual machines, and containers. The QuCPE-7010 helps enterprises achieve Zero Touch Provisioning to enhance IT deployment efficiency and reduce maintenance costs.


firewall-icon

The AMIZ Marketplace is an open ecosystem platform providing various Virtualized Network Functions (VNF) and applications including firewall and software routers; and also allows you to deploy virtual machines developed and released by yourself*.

Note: The function that supports publishing self-made apps will be available in 2021 Q2.

Logs-icon

Notification Center, QuLog Center, and Security Center provide comprehensive network management solutions and the third-party software Zabbix greatly boosts IT network management efficiency.

continuous operation-icon

Supports Active-Standby High Availability and QuFirewall to ensure the continuous operation and services, and Zero Trust Cybersecurity protection.

Features:

Easily deploy virtual network environments with the 2-in-1 Premise Equipment

When deploying virtualized environments, Enterprises often choose to install costly enterprise-grade solutions on edge servers or free solutions with limited technical support – a hard decision for resource-constricted SMBs. In addition, simultaneously running multiple VMs can impact network performance. QNAP’s QuCPE Network Virtualization Premise Equipment feature hardware acceleration technologies, QNAP’s proprietary QNE operating system and the AMIZ Cloud centralized management platform to help SMBs build a highly-optimized virtual network infrastructure.



The QNE Operating System completes the virtual network infrastructure

QNAP’s proprietary QNE operating system supports the intuitive Network Service Composer and Software-Defined WAN (SD-WAN), allowing for flexible network deployment and multi-site network infrastructure expansion. By supporting Virtual Network Functions (VNF), Virtual Machines and Containers, QNE integrates network, computing and application services to realize network virtualization, application virtualization and efficient management, greatly lowering management and maintenance complexity.

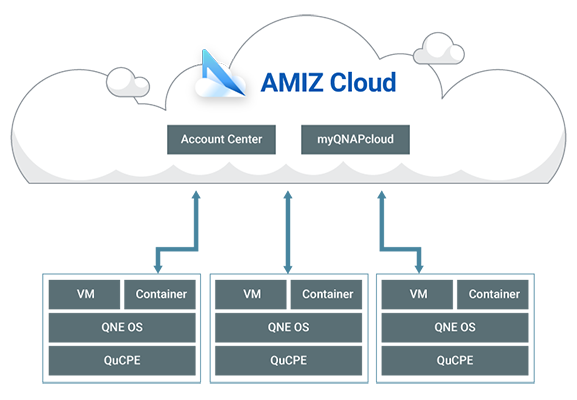

AMIZ Cloud - powerful centralized VM management platform

The AMIZ Cloud centralized management platform enables IT administrator at HQ to centrally monitor all edge devices, virtual machines and containers. Supporting High Availability, troubleshooting, and remote management via the Account Center, the QuCPE-7010 helps enterprises achieve Zero Touch Provisioning, thus enhancing IT deployment efficiency and reducing maintenance costs.

AMIZ_Cloud

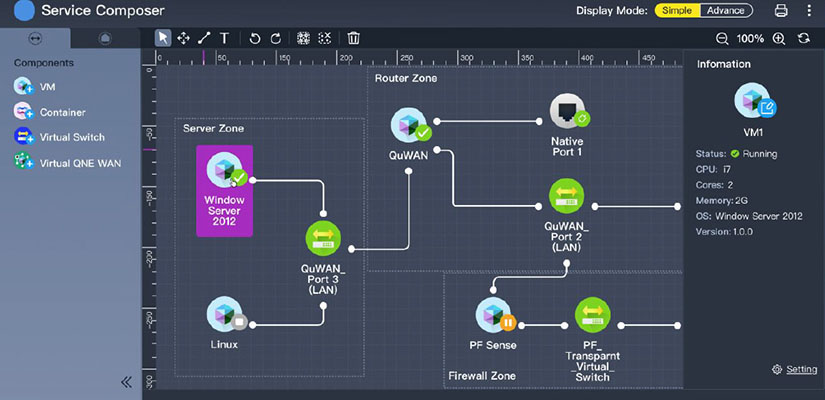

Efficient management via Service Composer with visualized topology

With the visualized topology of the Network Service Composer, you can easily set up VNFs or VMs, create virtual switches , and allocate physical network resources for chained services by drag and drop. When settings change, you can directly add/remove individual VNFs using the service composer, greatly simplifying operational network combination.

Service_Composer


Run your VM/VNF Directly on QuCPE

QNE inherits versatile virtual applications from the QNAP QTS system. QuCPE can simultaneously run multiple virtual machines, software containers, and even bespoke user-made virtual machines in Virtualization Station and Container Station, assisting SMBs in improving deployment and management flexibility while streamlining hardware costs.


Intel hardware acceleration technologies boost virtual network performance

Specifically designed for running virtualization applications, the QuCPE-7010 Network Virtualization Premise Equipment adopts multiple Intel hardware acceleration technologies to allow direct hardware access, thus enhancing VM and virtual network transmission performance.

Note: Only QuCPE-7010-D2166NT-64G and QuCPE-7010-D2146NT-32G support Intel® QAT.

DPDK (Data Plane Development Kit) Allows data to bypass the OS Kernel and directly enter user space to offer a double packet transmission rate (Total T/R x L2) and improve overall virtualization application performance.
Smart NIC SR-IOV (Single Root I/O Virtualization) By installing an SR-IOV compatible PCIe SmartNIC, you can allocate bandwidth resources from a physical network card directly to VMs. With traffic bypassing the Hypervisor vSwitch, it helps enhance I/O throughout and network efficiency, ensuring reliable VM applications and reduced CPU overheads.
Intel QAT (Intel QuickAssist Technology) Offloads computationally-intensive compression and improves IPSec cryptography VPN performance.

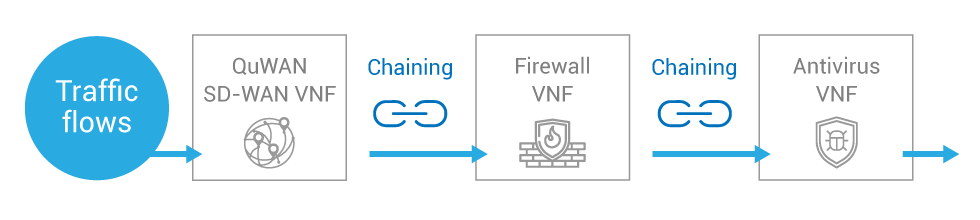

SD-WAN enables chaining network services

QNE incorporates QNAP’s QuWAN SD-WAN solution to form encrypted VPN tunnels with other QNAP devices based in multiple sites and achieve multi-site network services chaining. For example, you can automatically create a firewall network (using QuWAN and pfSense VNFs) to enhance WAN security in the Service Composer UI using drag-and-drop .

SD-WAN


Smart IT tools for network management efficiency

QNE provides comprehensive management features for Smart IT network management.

Notification Center Consolidates QTS system events and alerts, providing a single-app solution for notifications instead of having to configure individual settings in multiple apps. Notifications can be sent through email, SMS, and other communication apps.
QuLog Center Centralizes statistical rankings of error/warning events and access, assisting IT staff in monitoring and responding to potential system risks.
Security Center Provides security management for IT staff, including managing SSL certificates. Other features include automatically detecting history edits to prevent malicious edits.
Zabbix Zabbix is a third-party solution that automatically detects devices and monitors network status. Zabbix provides user-friendly topology and network reporting, suitable for enterprise network management.

Smart Surveillance System for Unattended IT Rooms Monitoring

Remote surveillance and automated door access. QNE integrates QVR Elite for central management over remote surveillance streams. The QuCPE-7010 supports installing two HDD/SSDs and its surveillance streams in branches can mount a remote NAS in headquarters with HybridMount QNE edition*.

Note: QuCPE QNE Network Edition allocates the full capacity of the 2.5-inch drives to be an Application Volume. VM, Container and vDisk data is stored in the Application Volume by default. If two identical 2.5-inch drives are installed in the QuCPE-7010, they will be configured as RAID 1 by default in QNE Network Edition. All the storage management features in the NAS QTS OS (such as creating storage pools for file storage and Snapshots) are not supported by QuCPE QNE Network Edition.

hybridmount-qne-edition

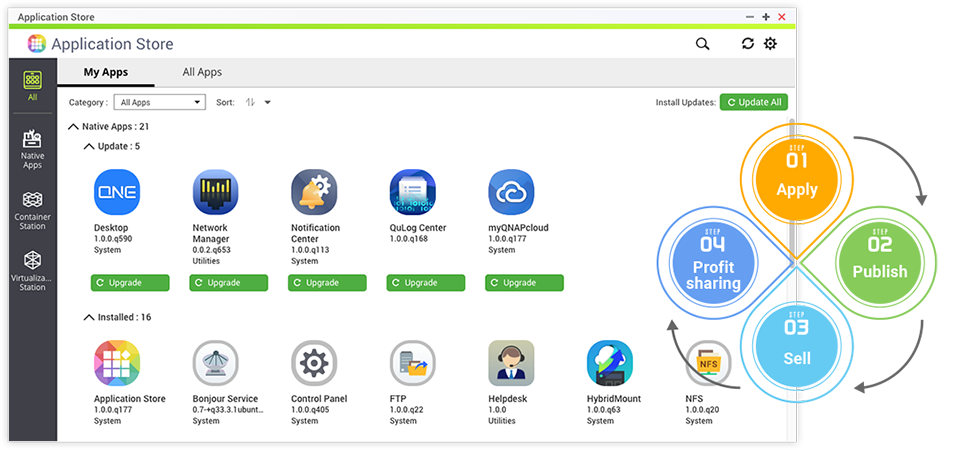

AMIZ Marketplace Open ecosystem platform

The AMIZ Marketplace is an open platform ecosystem where software developers can launch VNF and apps. The AMIZ Marketplace features well-rounded licensing and payment services to streamline app deployment and payments. Third Party Managed service providers, independent software vendors and business integrators are welcome to develop a collaborative ecosystem to foster greater business innovation with QNAP.

Note: The function that supports publishing self-made apps will be available in 2021 Q2.

qucpe-app


Supports third Party Virtual Network Functions

The AMIZ Marketplace provides multiple free and premium VNF and applications that users can install on demand.

vnfs_firewall

Firewall Software

Virtual firewall software (like pfSense and FortiGate) help enterprises separate or protect local networks and apply multiple security policies.

Note: Fortigate software will be available on AMIZ Marketplace in 2021 Q2.

vnfs_firewall

Virtual Router

The QuCPE-7010 can be transformed into a security router by installing RouterOS or OpenWrt. You can also create site-to-site VPN tunnels between headquarters and branch offices while securing enterprise network data transmission.

Hardware Specifications:

  QuCPE-7010-D2166NT-64G QuCPE-7010-D2146NT-32G QuCPE-7010-D2123IT-8GB
CPU Intel® Xeon® D-2166NT 12-core/24-thread 2.0GHz processor (16.6M Cache; up to 3.0 GHz) Intel® Xeon® D-2146NT 8-core/16-thread 2.3GHz processor (11M Cache; burst up to 3.0GHz) Intel® Xeon® D-2123IT 4C/8T (11M Cache, 2.20 GHz, up to 3GHz)
System Memory 64GB DDR4 2666MHz ECC UDIMM (4 x 16GB) 32GB DDR4 2666MHz ECC UDIMM (2 x 16GB) 8GB DDR4 2666MHz ECC UDIMM (2 x 4GB)
Maximum Memory 128 GB (UDIMM) or 256GB (RDIMM)
Memory Slot 8 x Long-DIMM DDR4 DDR4 2133/2400MHz slots, up to 128 GB (UDIMM) or 256GB (RDIMM)
Drive Bays 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Total number of built-in and Pre-configured Ports 12
10GbE SFP+ 4
1GbE (RJ45) 8
Network Module Slot 1
PCIe Slot 1 x PCIe Gen 3 x8
Form Factor Rackmount, 1U
Fan 3 x Cooling fans with smart fan
M.2 SSD Slots 1 x M.2 2280 NVMe
USB 2.0 port 1
USB 3.2 Gen 1 port 1
Power Redundant power 300W, 90V~264V AC
Intel QAT support
SR-IOV supports
Intel DPDK support
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

Powerful server-grade hardware architecture

With multi-port capabilities and expandable architecture, the ###model_name## enables optimal storage, computing, and deployment flexibility to fulfill performance and application diversification requirements.

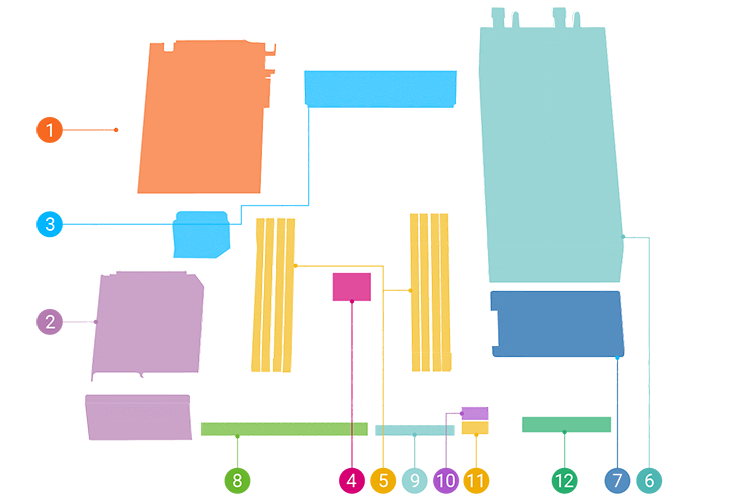

QNAP QuCPE-7010 Hardware

1 1x PCIe Gen3x8 expansion slot Install a QNAP 40GbE/25Gbps/10GbE network card, QM2 card, USB 3.2 Gen 2 (10Gbps) card, or a wireless adapter card for greater application potential.
2 1x Network module slot Install a QNAP network module to add 10GbE RJ45/SFP+ ports.
3 System fans Automatically adjusts fan speeds based on system temperatures.
4 Intel® Xeon® processors High-performance Intel® Xeon® D series multi-core 2.2 GHz processors
5 DDR4 memory Supports eight DDR4 2133/2400 Unbuffered DIMM memory modules for a maximum of 128GB/256GB RAM.
6 Power supply unit 300W power supplies ensure continuous system uptime.
7 2x 2.5-inch SATA 6Gb/s drive bays Install hard drives or SSDs to securely store application data.
8 8x RJ45 Gigabit ports Connect to switches or other LAN devices.
9 4x 10GbE SFP+ ports Provides high-speed connectivity to next-generation 10GbE routers, switches, and servers.
10 1x Gigabit host interface port A dedicated Gigabit port for managing the QuCPE-7010.
11 1x USB 2.0 port and 1x USB 3.2 Gen 1 port Connect and use USB devices with the ###model_name##.
12 LCD monitor and control buttons The LCD Monitor displays real-time IP and firmware information of the Switch and QNE System to help you understand the network status. The control buttons allow you to directly configure and restart the system.

Product Views:

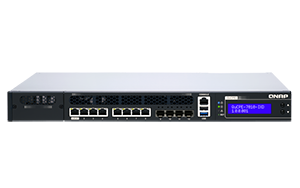

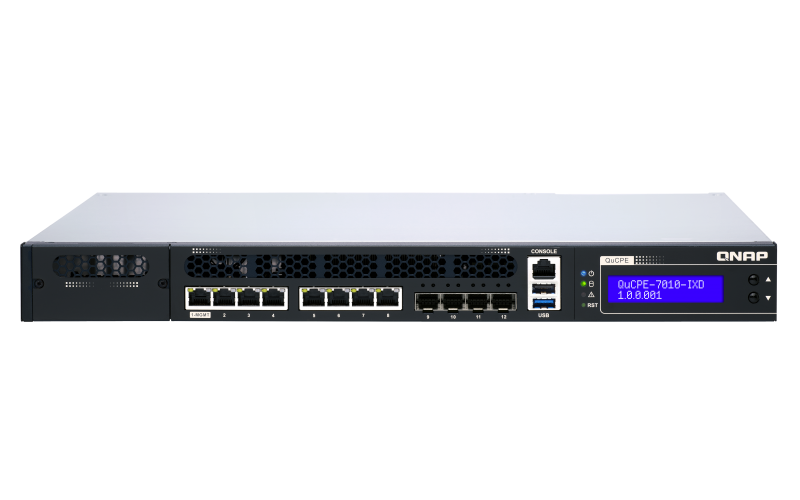

Front View

Front View

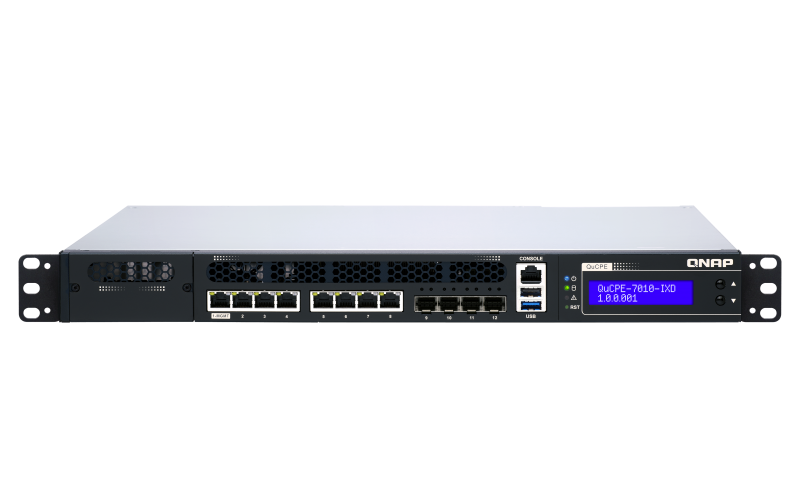

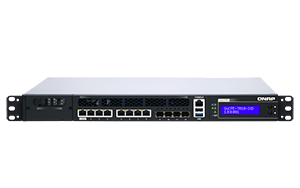

Front Bracket View

Front Bracket View

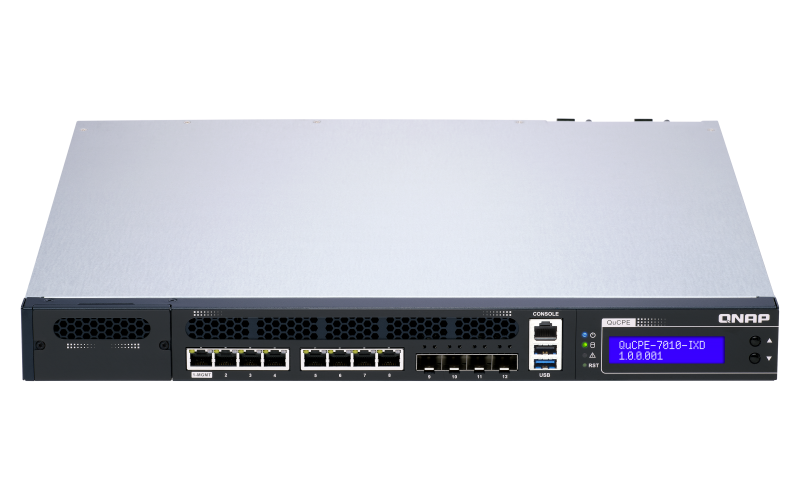

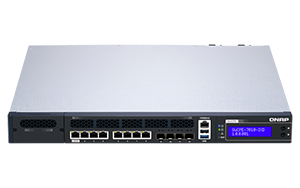

Top View

Top View

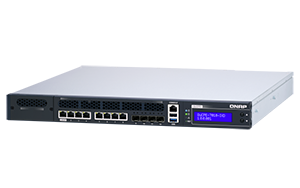

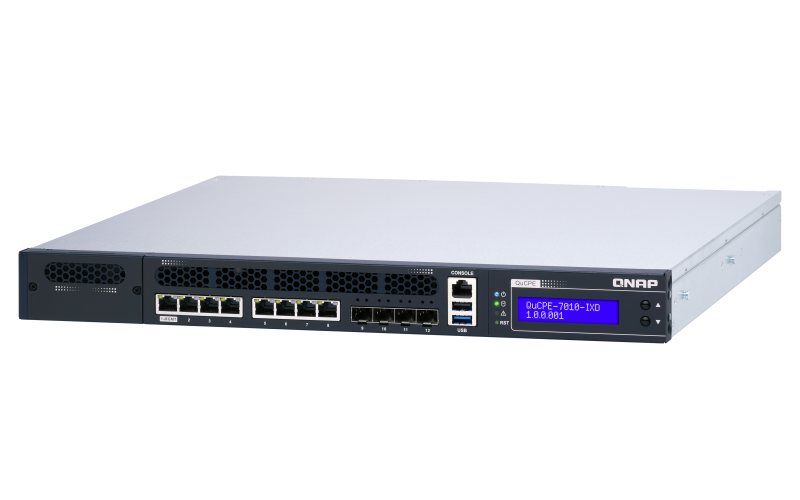

Top Right Angle View

Top Right Angle View

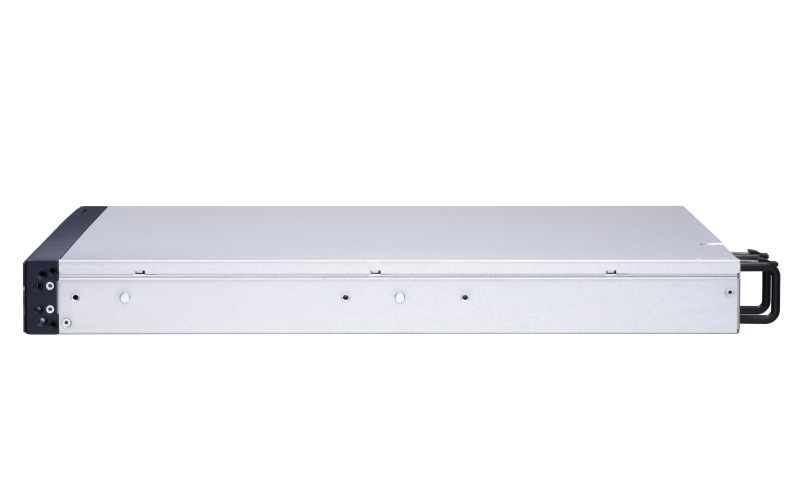

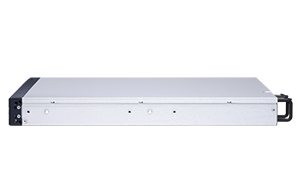

Right Angle View

Right Angle View

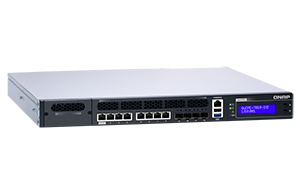

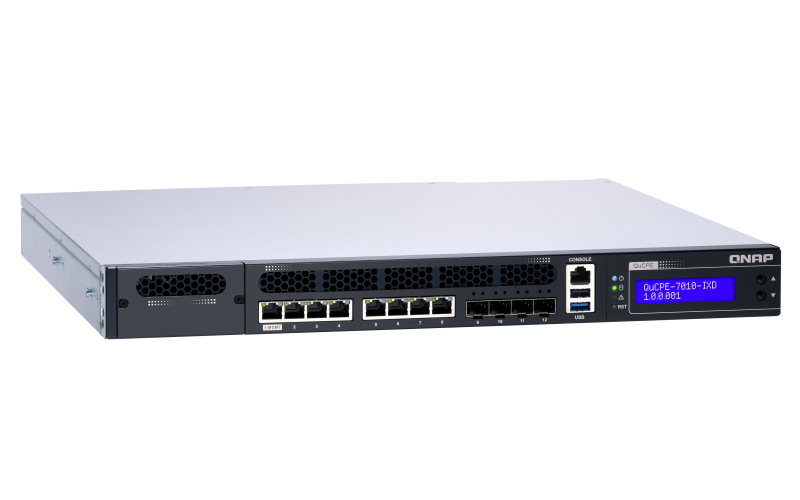

Top Left Angle View

Top Left Angle View

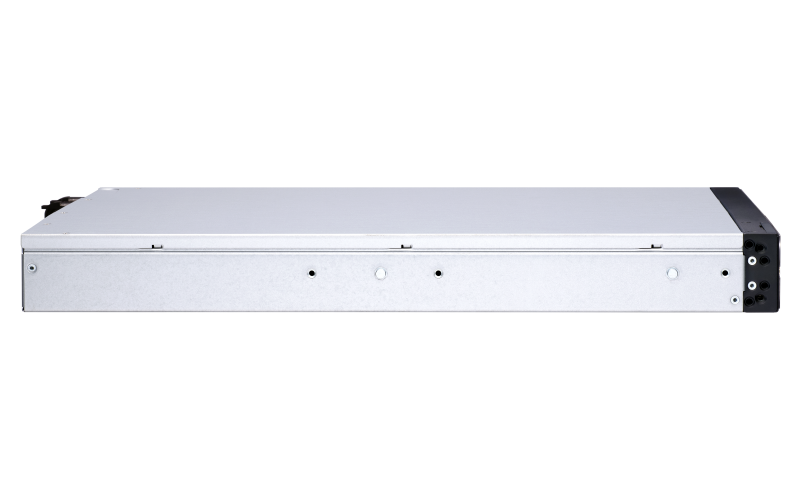

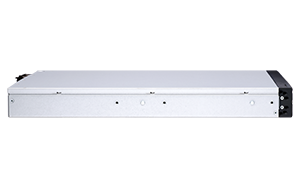

Left Angle View

Left Angle View

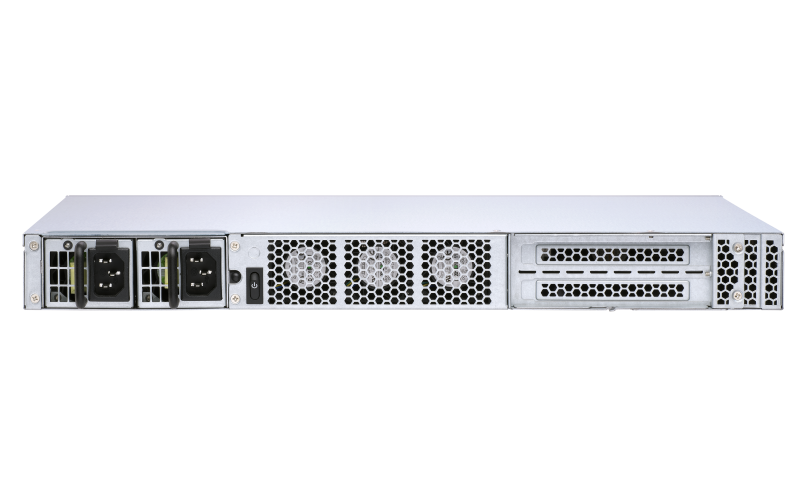

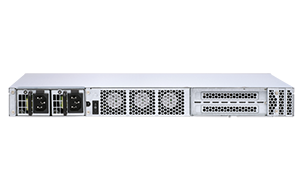

Rear View

Rear View
