Overview:
Flexible storage scalability for Turbo NAS. Simple & reliable.

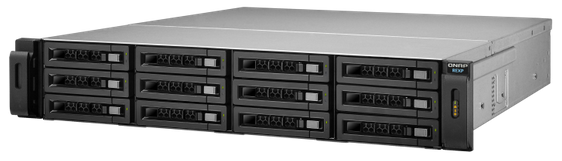

The QNAP REXP-1200U-RP expansion enclosure is designed for expanding the storage space on the Turbo NAS and can support maximum 384 TB raw capacity* by connecting multiple expansion enclosures via high speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage.
Highlights:
- Plug and use, seamless capacity expansion
- Missing mode protection
- High density, high efficiency and high scalability
- Flexibly manage storage with the QTS Storage Manger
- Supports SAS/SATA 6Gbps hard drives and SSD
- Backup storage for the Turbo NAS
* Supported Turbo NAS models and maximum number of applicable expansion enclosures.
| RAM of NAS |
>= 4GB |
>= 4GB |
>= 4GB |
>= 4GB |
| Maximum number of connected REXP-1200U-RP |
8 |
8 |
8 |
8 |
| Maximum number of hard drives |
104 |
108 |
112 |
120 |
| Maximum raw capacity |
416 TB |
432 TB |
448 TB |
480 TB |
| Maximum RAID group size in NAS |
32 TB |
48 TB |
64 TB |
96 TB |
| Maximum RAID group size in REXP-1200U-RP |
48 TB |
| Maximum number of RAID groups per storage pool |
128 |
| Maximum storage pool size |
308 TB |
| Maximum number of storage pools per system |
128 |
| Maximum Flexible Volume size |
250 TB |
| Maximum iSCSI LUN size |
250 TB |
| RAM of NAS |
>= 4GB |
>= 4GB |
>= 4GB |
| Maximum number of connected REXP-1200U-RP |
4 |
4 |
4 |
| Maximum number of hard drives |
72 |
66 |
60 |
| Maximum raw capacity |
288 TB |
264 TB |
240 TB |
| Maximum RAID group size in NAS |
24 TB |
18 TB |
12 TB |
| Maximum RAID group size in REXP-1200U-RP |
48 TB |
| Maximum number of RAID groups per storage pool |
128 |
| Maximum storage pool size |
288 TB |
264 TB |
240 TB |
| Maximum number of storage pools per system |
128 |
| Maximum Flexible Volume size |
250 TB |
250 TB |
240 TB |
| Maximum iSCSI LUN size |
240 TB |
250 TB |
240 TB |
Plug and use, seamless capacity expansion

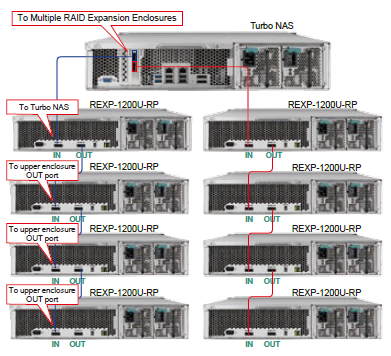

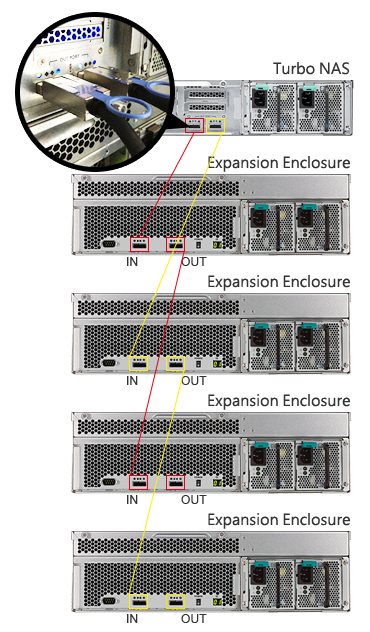

Simply connect a REXP-1200U-RP to a Turbo NAS* and power it on. The Turbo NAS will detect the hard drives in the REXP-1200U-RP as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager.
* QTS 4.0.4 or newer is required for the Turbo NAS.
Missing mode protection
When the disconnection of a RAID expansion enclosure is detected, the Turbo NAS blocks IO access to protect data. The system can recover from the missing mode to the normal state with data staying intact.
High density, high efficiency and highly scalable

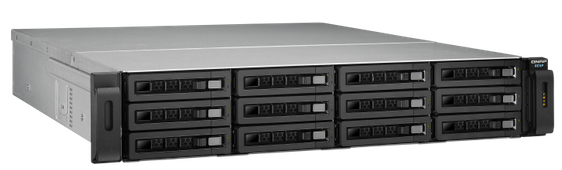

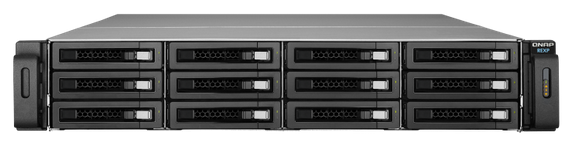

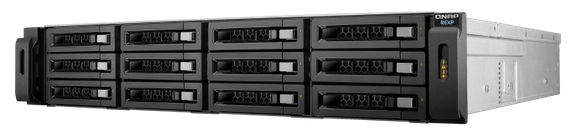

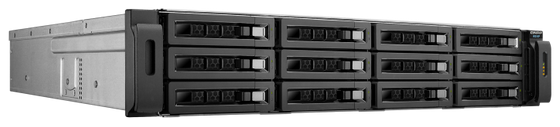

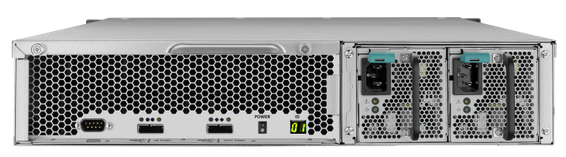

The REXP-1200U-RP supports 12 hard drives and 48TB raw capacity in 2U rack space. The REXP-1200U-RP has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chain respectively. Each SAS wide port combines four SAS channels(maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24Gbps per host connection.

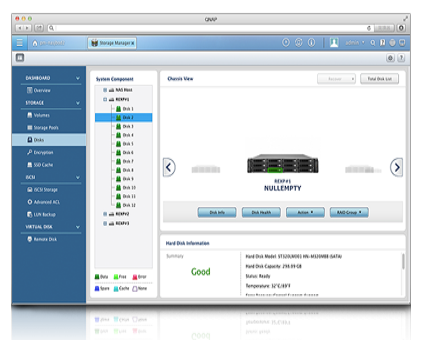

Powerful QTS Storage Manager
The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and REXP-1200U-RP management. IT administrators can easily monitor the health status of REXP-1200U-RP and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators for quick maintenance.
An excellent backup solution for the Turbo NAS

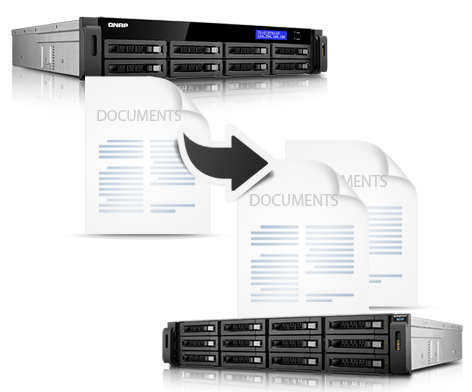

In addition to expanding an existing volume, IT administrator can use the REXP-1200U-RP as a budget-friendly external storage to perform speedy and secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrator back up the Turbo NAS data to the REXP-1200U-RP on a real time or scheduled basis.
Flexible drive type and capacity

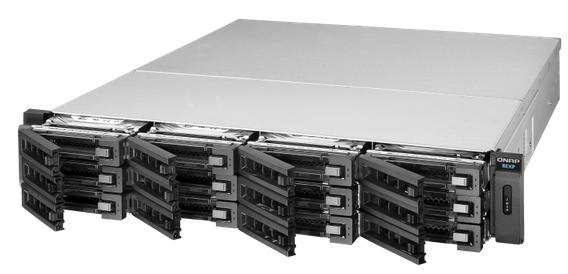

The REXP-1200U-RP offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS hard drives with high performance and high reliability for mission critical application, low-cost but high-capacity SATA hard drives for large data archiving, or high-speed and high stability SSD for I/O intensive operations. Just make the best use of each drive.
 |
 |
 |
| SAS |
SATA |
SSD |
| 2.5 "/3.5" |
2.5 "/3.5" |
|
Features:
High Performance Capacity Expansion for Turbo NAS
The QNAP RAID Expansion Enclosure is designed to provide a high-density, high-efficiency, and high-scalability storage expansion solution for the QNAP Turbo NAS*. With the plug-and-use design, the RAID Expansion Enclosure delivers a fast way to easily scale up storage capacity of the Turbo NAS. Multiple RAID Expansion Enclosures can be cascaded via the high speed SAS interface to provide over 400TB raw capacity. Coupled with the well designed software and intuitive user interface, the RAID Expansion Enclosure offers a seamless way for capacity expansion. Whenever short on storage, plug in a RAID Expansion Enclosure to the QNAP Turbo NAS, and expand its capacity right away.
Highlights
- Plug and use, seamless capacity expansion
- Backup storage for the Turbo NAS
- High density, high efficiency, high scalability
- Supports SAS/SATA 6Gbps hard drives and SSD
- SAS drives for high performance and high reliability
- SATA drives for low-cost and high-capacity applications
- SSD for I/O intensive operations
Plug and use, seamless capacity expansion
Simply connect a RAID Expansion Enclosure to a Turbo NAS and power it on, the Turbo NAS will detect the hard drives in the Enclosure as newly installed local drives. With the disk management software provided by the Turbo NAS, the IT administrators can easily expand an existing volume on the NAS. Multiple RAID Expansion Enclosures can also be cascaded to provide massive capacity. The status and health of the Enclosures can be monitored via the web-based management interface of the Turbo NAS.
High density, high efficiency and high scalability

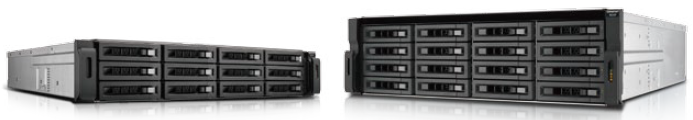

Two RAID Expansion Enclosure models are available. The REXP-1200U-RP supports 12 SAS/SATA 6Gbps hard drives and SSD in 2U rack space, providing up to 36TB raw capacity. The REXP-1200U-RP supports 16 hard drives and 48TB raw capacity in 3U rack space. These RAID Expansion Enclosure units have two SAS wide ports (IN port and OUT port) for host connectivity and daisy chain respectively. Each SAS wide port combines four SAS channels, with each supporting 6Gbps full duplex speed. The maximum bandwidth per host connection is 24Gbps, which delivers unprecedented performance when daisy-chaining multiple RAID Expansion Enclosures.
Backup storage for Turbo NAS
In addition to expanding an existing volume, the RAID Expansion Enclosure can also be used to host an independent volume. It is an excellent solution for backing up the Turbo NAS. Simply configure the RAID Expansion Enclosure as an independent volume, and start backing up data from the Turbo NAS through blazing fast SAS connection.
Flexible drive type and capacity
The RAID Expansion Enclosure offers flexibility in drive choices which include low-cost, high-capacity SATA hard drives for data archiving, enterprise-level SAS hard drives for mission critical applications, and solid-state drives (SSD) for I/O intensive operations.
Application Scenarios
Expand existing local volume

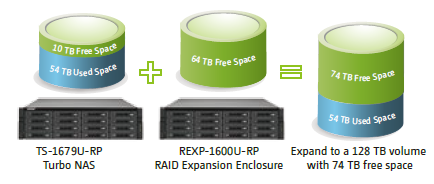

When being lack of volume capacity, use the RAID Expansion Enclosure to expand the Turbo NAS capacity. Simply connect the RAID Expansion Enclosure to the storage expansion port on the Turbo NAS and more available hard drives will appear instantly in the NAS. The volume management feature provided by the Turbo NAS allows the IT administrator to create a scalable volume. Wide port SAS connections provide 24Gbps connectivity between hosts and ensure the system performance.
Backup to the RAID Expansion Enclosure

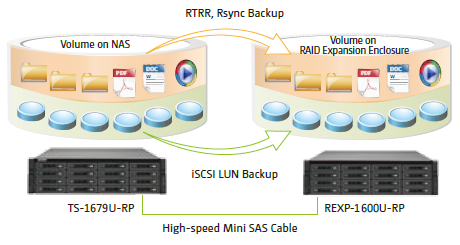

Create an independent volume on the RAID Expansion Enclosure and use the backup features provided by the Turbo NAS such as RTRR, rsync, or iSCSI LUN backup to back up the Turbo NAS data to the Enclosure. Data is backed up to an independent file system and device, and therefore protected from file system corruptions as well as hardware failures of the original Turbo NAS. Compared with backing up to another Turbo NAS via network, backing up to the RAID Expansion Enclosure offers a relatively higher transfer rate at a lower cost. Backing up to the RAID Expansion Enclosure offers redundancy, speed, and flexibility at an affordable cost.
Specifications:

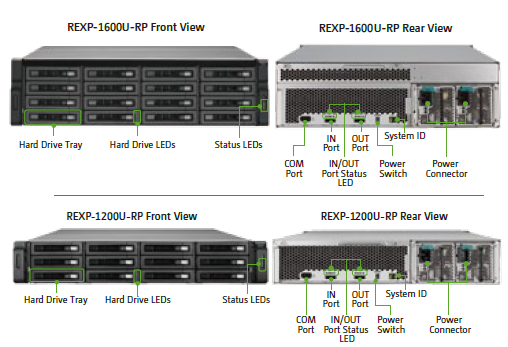

| Hardware Specification |
| Host Interface |
Two SAS 6Gbps wide port (IN port, OUT port) |
| Hard Drive |
16 x 3.5-inch SAS/SATA 6Gb/s, SAS/SATA 3Gb/s hard drive or 2.5-inch SAS/SATA, SSD hard drive |
12 x 3.5-inch SAS/SATA SAS/SATA 3Gb/s hard drive or 2.5-inch SAS/SATA, SSD hard drive |
| LED Indicators |
Front panel: Status, fault, system over heat, fan error
Rear panel: SAS link, SAS error, enclosure ID |
| Form Factor |
3U, rackmount |
2U, rackmount |
| Dimensions |
130(H) x 442.4(W) x 528.3(D) mm
5.12(H) x 17.42(W) x 20.80(D) inch |
88(H) x 439(W) x 520(D) mm
3.46(H) x 17.28(W) x 20.47(D) inch |
| Weight |
Net weight: 18.14 kg/39.99 lb
Gross weight: 25.92 kg/57.14 lb |
Net weight: 14.8 kg/32.63 lb
Gross weight: 21.99 kg/48.48 lb |
| Sound Level |
Standby: 30.1 dB
In operation: 41.5 dB (with 16 x 1TB hard drive installed) |
Standby: 43.3 dB
In operation: 41.5 dB (with 12 x 1TB hard drive installed) |
| Power Supply |
600W Redundant Power Supply |
| Power Consumption |
Idle mode: 199W
In operation: 289W (with 16x 2TB hard drive installed) |
Idle mode: 105W
In operation: 147W (with 12 x 500GB hard drive installed) |
| Temperature |
0-40°C |
| Relative Humidity |
0-60% |
| COM Port |
Reserved for system maintenance |
| Fan |
3 x smart cooling fan (hot-swappable fan module) |
| Management (via QNAP Turbo NAS) |
1. Supports disk S.M.A.R.T. information
2. RAID expansion enclosure identifier
3. Locate RAID expansion enclosures
4. Locate hard disks on RAID expansion enclosures
5. Smart fan control In-band SAS firmware update
6. In-band SAS firmware update |
| NAS Models Supported |
TS-879 Pro, TS-1079 Pro, TS-879U-RP, TS-EC879U-RP, TS-1279U-RP, TS-EC1279U-RP, TS-1679U-RP, TS-EC1679U-RP, TS-EC1279U-SAS-RP, TS-EC1679U-SAS-RP |
| Accessories |
| SAS-6G2E-U |
Dual-wide-port storage expansion card, SAS 6Gbps, for rackmount model, low-profile bracket |
 |
RAIL-A01-35 |
A01 series rail kit, max. load 35 kg |
 |
CAB-SAS10M-8088 |
MiniSAS external cable (SFF-8088 to SFF-8088), 1.0 m |
| CAB-SAS05M-8088 |
MiniSAS external cable (SFF-8088 to SFF-8088), 0.5 m |
Optional Accessories:
| Accessories(optional purchase) |
 |
SAS-6G2E-U |
- Dual-wide-port storage expansion card, SAS 6Gbps.
- Applied NAS models: TS-879U-RP, TS-EC879U-RP, TS-1279U-RP, TS-EC1279U-RP, TS-1679U-RP, TS-EC1679U-RP, TS-EC1279U-SAS-RP, TS-EC1679U-SAS-RP, TS-870U-RP, TS-1270U-RP.
Note: The storage expansion card is to be installed in the NAS for connecting to the RAID Expansion Enclosures. |
 |
RAIL-A01-35 |
A01 series (Chassis) rail kit, max. load 35 kg |
 |
CAB-SAS10M-8088 |
Mini SAS external cable (SFF-8088 to SFF-8088), 1.0 m |
|
CAB-SAS05M-8088 |
Mini SAS external cable (SFF-8088 to SFF-8088), 0.5 m |
