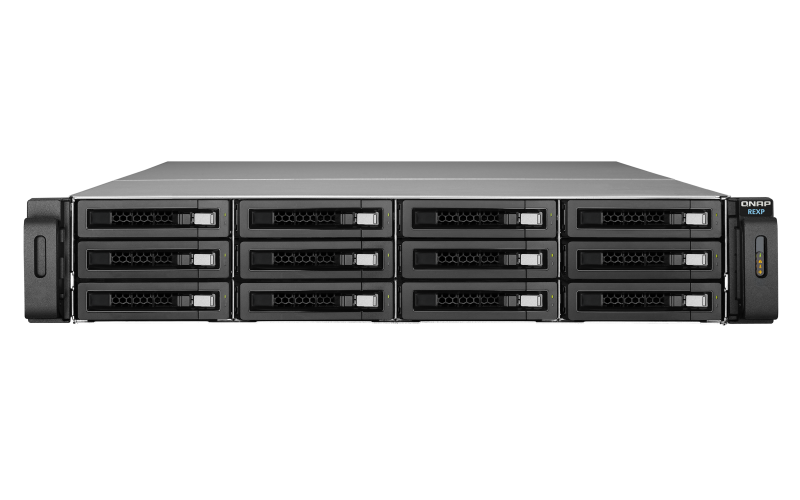

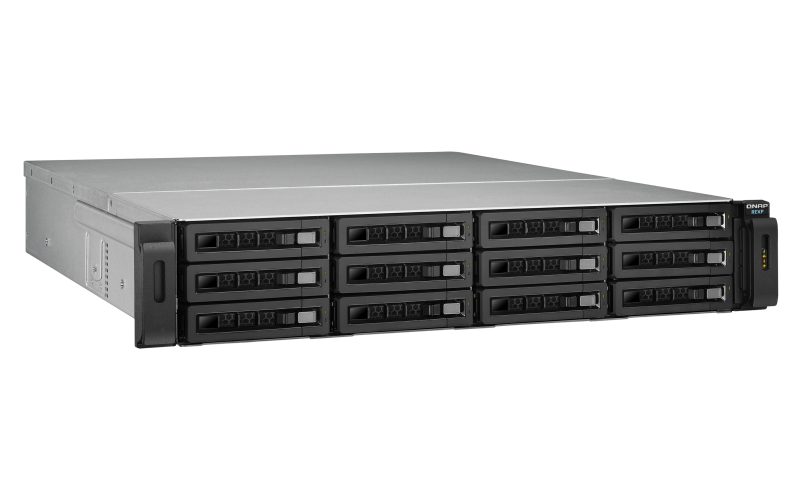

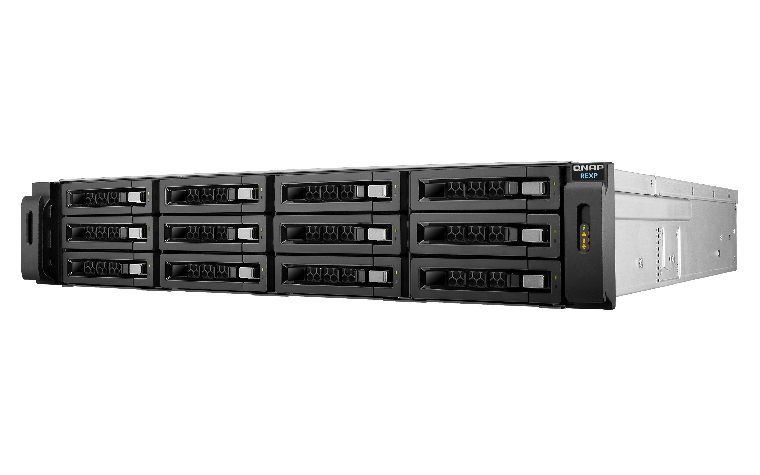

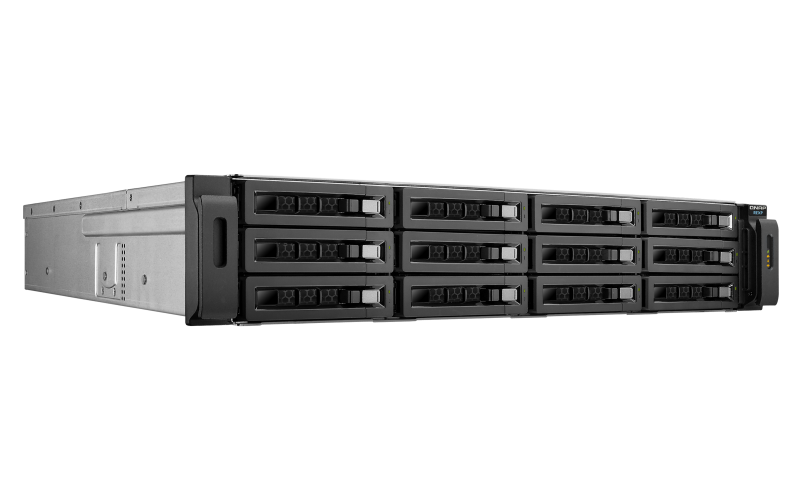

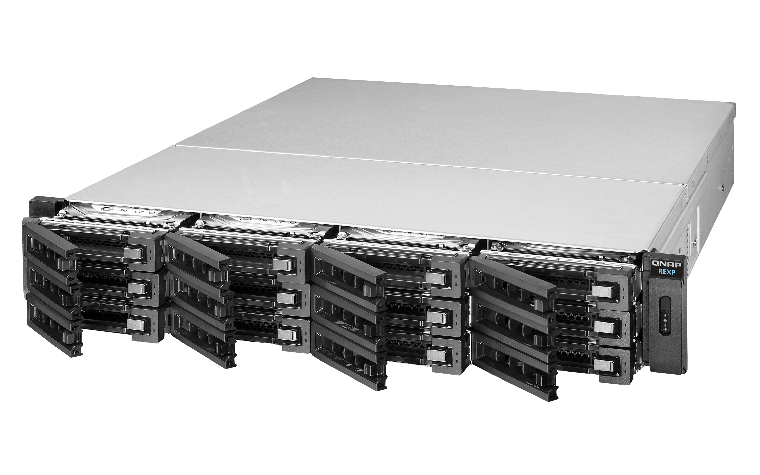

QNAP REXP-1210U-RP
6 Gbps RAID expansion enclosure for QNAP NAS

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Simple & flexible storage expansion for QNAP NAS

The REXP-1210U-RP expansion enclosure is designed for expanding the storage space on a QNAP NAS* by connecting multiple expansion enclosures via high-speed mini SAS cables. Featuring a 12 Gbps SAS interface on the chassis, the REXP-1210U-RP ensures fast data passthrough from 12 Gbps SAS-enabled QNAP NAS even when using 6Gbps hard drives. This is especially useful for large data applications that require high performance interconnection, such as video surveillance, archiving large data, and TV broadcast storage.

Package Content

  • 6 Gbps RAID Expansion Enclosure for QNAP NAS
  • 0.5m SAS Cable (SFF-8644)
  • 2 x Power Cords
  • Flat Head Screw (for 2.5" HDD)
  • Flat Head Screw (for 3.5" HDD)
  • Quick Installation Guide
  • Plug and use, seamless capacity expansion
  • Missing mode protection
  • High density, high efficiency and high scalability
  • Flexible management with the QTS Storage Manager
  • Backup storage for the QNAP NAS
  • Supports SAS 12 Gbps, SAS/SATA 6 Gbps HDD and SSD
  • Backward compatible with a 6 Gbps SAS-enabled NAS / REXP expansion unit and 6 Gbps SAS HBA by using the 12Gb/s SAS for 6Gb/s SAS cable (CAB-SAS10M-8644-8088).
*Supported QNAP NAS models and the maximum number of applicable expansion enclosures.
Turbo NAS models TVS-EC2480U-SAS-RP
TS-EC2480U
TS-EC1679U-RP
TS-1679U-RP
TDS-16489U
TVS-EC1680U-SAS-RP
TS-EC1679U-SAS-RP
TS-EC1680U
TS-1279U-RP
TS-1270U-RP
TVS-EC1280U-SAS-RP
TS-EC1279U-RP
TS-EC1279U-SAS-RP
TS-EC1280U
TVS-1271U-RP
TVS-EC1580MU-SAS-RP TS-879U-RP
TS-870U-RP
TS-EC879U-RP
TS-EC880U
TVS-871U-RP
TVS-471U-RP (QTS 4.2.0+)
RAM of NAS >= 8GB >= 8GB >= 8GB >= 8GB >= 8GB >= 8GB
Maximum number of REXP-1620U-RP 8 8 8 8 8 8
Maximum number of hard drives 152 144 140 143 136 132
Maximum raw capacity* 1216 TB 1152 TB 1120 TB 1102 TB 1088 TB 1056 TB
Maximum RAID group size in NAS 192 TB 128 TB 96 TB 78 TB 64 TB 32 TB
Maximum RAID group size in REXP-1620U-RP 96 TB
Maximum number of RAID groups per storage pool 128
Maximum storage pool size 308 TB
Maximum number of storage pools per system 128
Maximum flexible volume size 250 TB
Maximum iSCSI LUN size 250 TB
Turbo NAS models SS-EC2479U-SAS-RP SS-EC1879U-SAS-RP SS-EC1279U-SAS-RP
RAM of NAS >= 4GB >= 4GB >= 4GB
Maximum number of REXP-1620U-RP 8** 8** 8**
Maximum number of hard drives 152 146 140
Maximum raw capacity* 1048 TB 1042 TB 1036 TB
Maximum RAID group size in NAS 24 TB 18 TB 12 TB
Maximum RAID group size in REXP-1620U-RP 128 TB
Maximum number of RAID groups per storage pool 128
Maximum storage pool size 308 TB
Maximum number of storage pools per system 128
Maximum flexible volume size 250 TB
Maximum iSCSI LUN size 250 TB
*The maximum capacity is calculated by using 8 TB 3.5" HDDs & 1 TB 2.5" HDDs. **Purchasing a SAS expansion card is required for connecting over 4 units of RAID expansion enclosures.

Features:

Plug and use, seamless capacity expansion

Simply connect a REXP-1210U-RP to a QNAP NAS* and power it on. The QNAP NAS will detect the hard drives in the REXP-1210U-RP as newly-installed local drives. You can seamlessly expand and manage the NAS capacity by using the powerful QTS Storage Manager.

*The QNAP NAS must be using QTS 4.2 (or a newer version).

Plug and Use

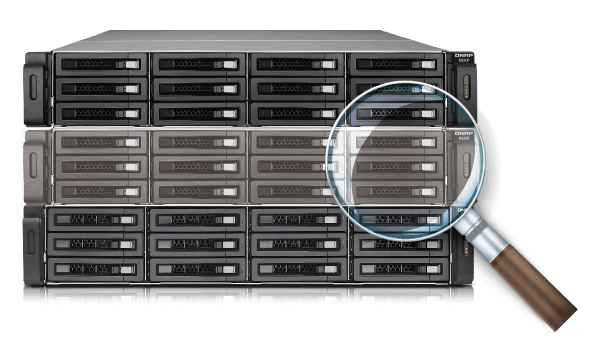

Missing mode protection

When the disconnection of a RAID expansion enclosure is detected, the NAS blocks IO access to protect data. The system can recover from missing mode to its normal state with the data staying intact.

Missing Mode Protection

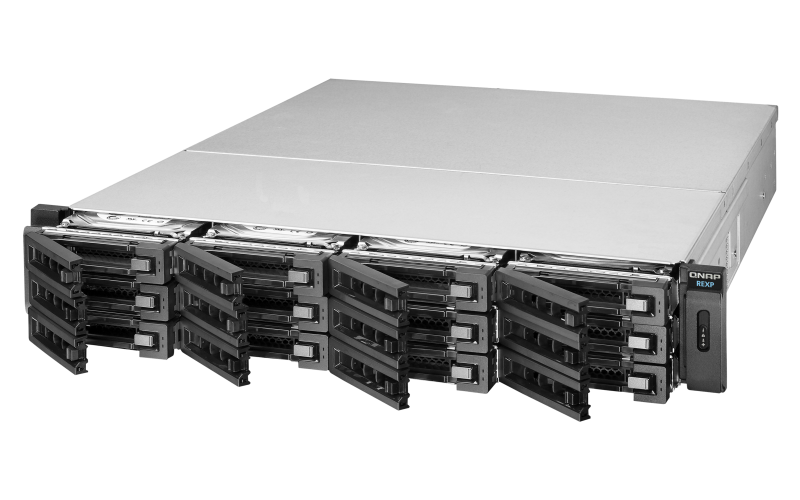

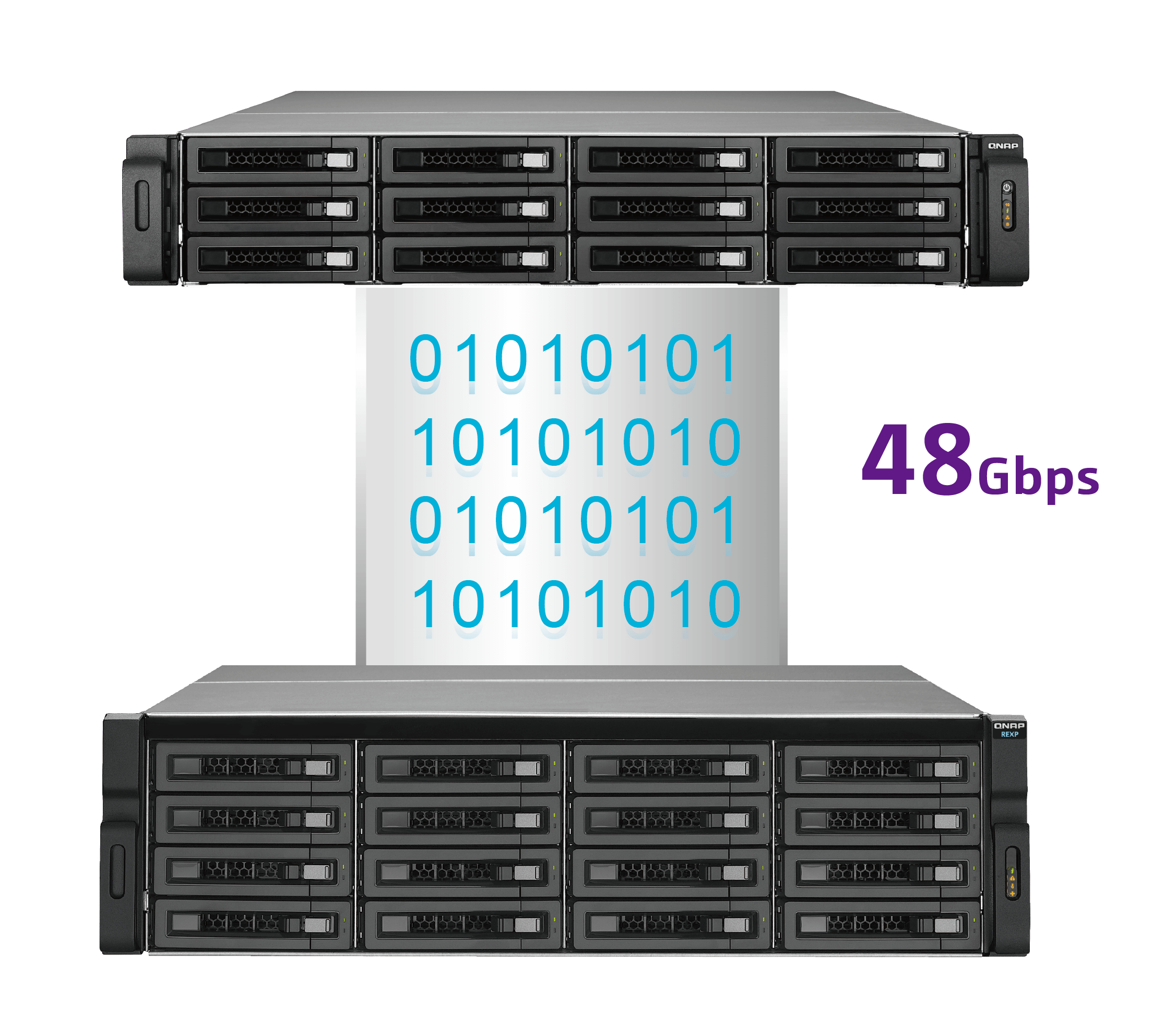

High Density, efficiency and scalability

High density, high efficiency and highly scalable

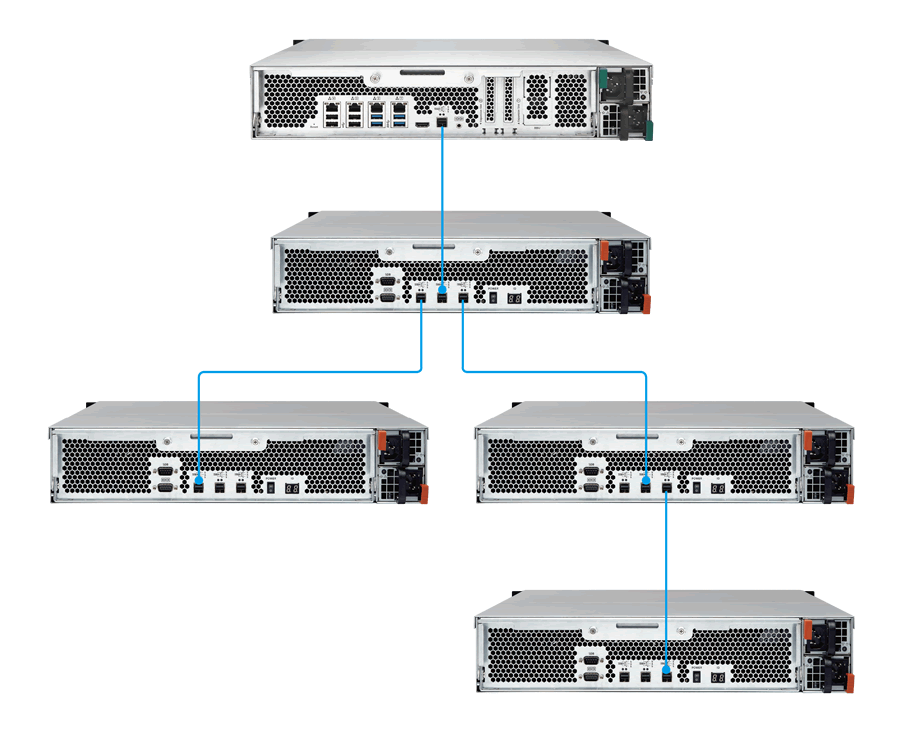

The REXP-1210U-RP supports 12 hard drives and 96TB raw capacity in 2U rack space. The REXP-1210U-RP has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chaining respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure), with each supporting 12Gbps full duplex speed. The solution delivers unprecedented performance of up to 48Gbps per host connection.

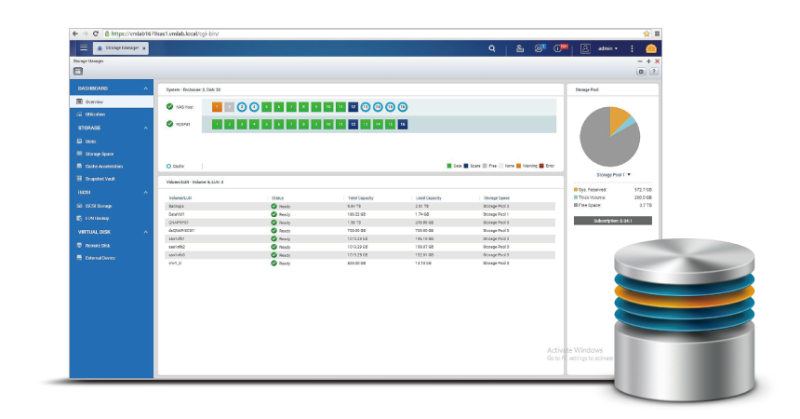

Powerful QTS Storage Manager

The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and REXP-1210U-RP management. IT administrators can easily monitor the health of the REXP-1210U-RP and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators in quick maintenance.

QTS Storage Manager

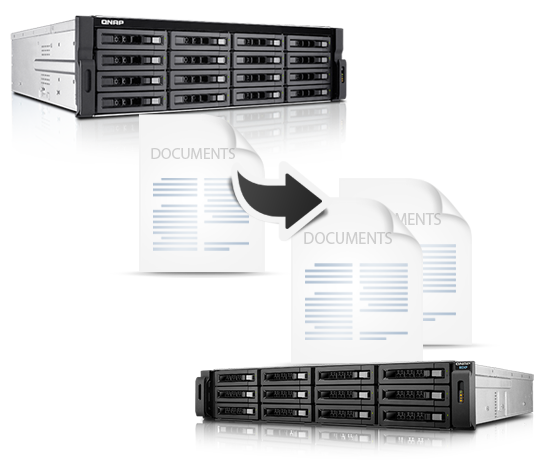

An excellent backup solution for the QNAP NAS

In addition to expanding an existing volume, IT administrators can use the REXP-1210U-RP as a budget-friendly external storage to perform speedy and secure backup tasks for a QNAP NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up NAS data to the REXP-1210U-RP on a real time or scheduled basis.

Backup Solution

Flexible drive type and capacity

The REXP-1210U-RP offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance and high reliability for mission-critical applications, low-cost but high-capacity SATA HDDs for large data archiving, or high-speed and high-stability SSDs for I/O-intensive operations.

Flexible Drive Type


Specifications:

Hardware Specification
  REXP-1210U-RP
Host Interface Three SAS 6Gbps 4x wide port
Hard Drive 12x 3.5" SAS/SATA 12/6Gb/s, SAS/SATA 3Gb/s hard drive or 2.5" SAS/SATA SSD
LED Indicators Front panel: Status, fault, system over heat, fan error
Rear panel: SAS link, SAS error, enclosure ID
Form Factor 2U rackmount
Dimensions 88 (H) x 439 (W) x 520(D) mm
3.46 (H) x 17.28 (W)x 20.47 (D) inch
Weight Net weight (NAS only): 14.8 kg/ 32.63 lb
Gross weight (with packing and accessories):21.99 kg/ 48.48 lb
Sound Level Sound pressure (LpAm): 46.1 dB(A)
Temperature 0-40°C
Humidity 5~95% RH non-condensing, wet bulb: 27°C
Power Consumption: In Operation 162.47W
Power Supply Redundant/ Hot Swap ATX Power Supply, 400W, 90-264Vac~, 47-63Hz
Fan 3 x 6 cm smart cooling fan (hot-swappable fan module)

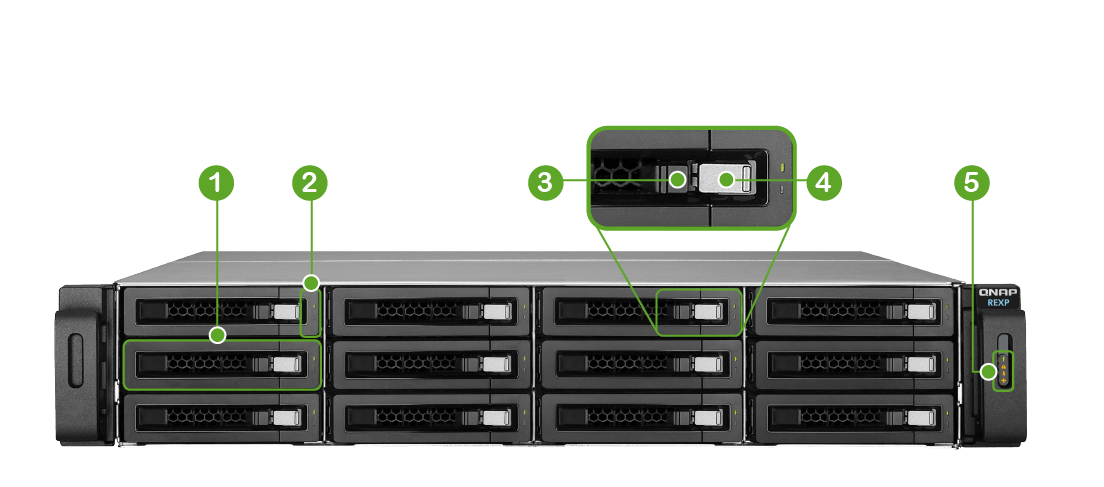

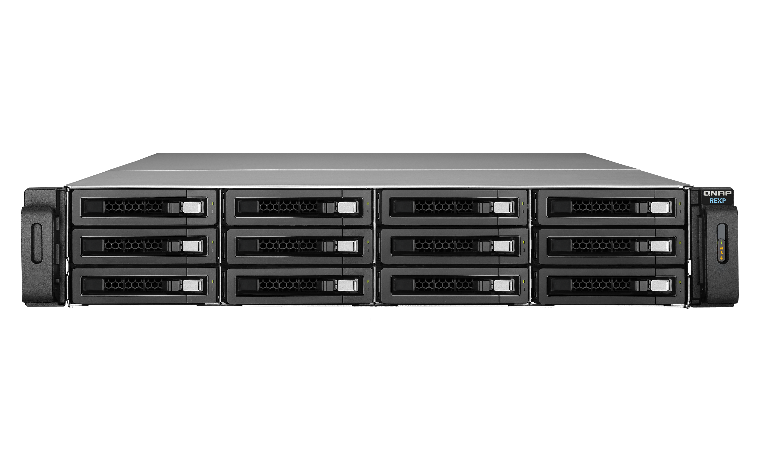

Front View:

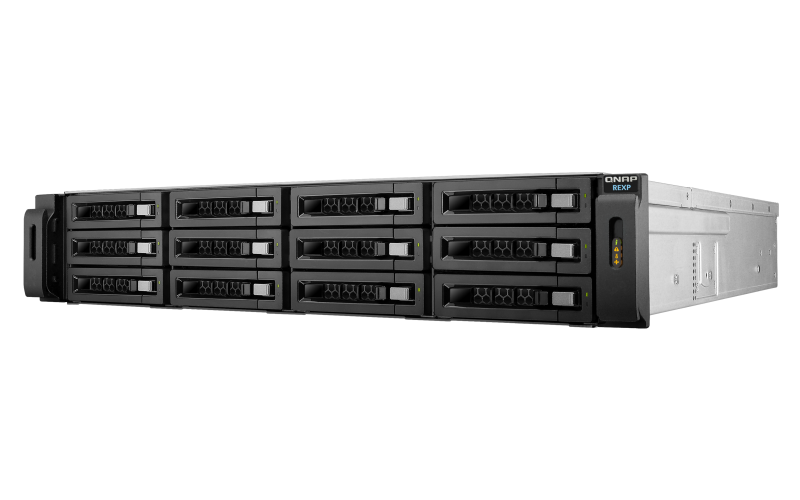

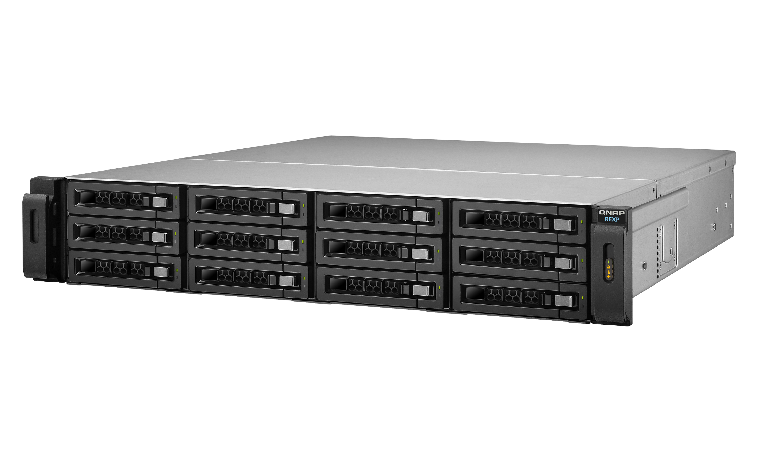

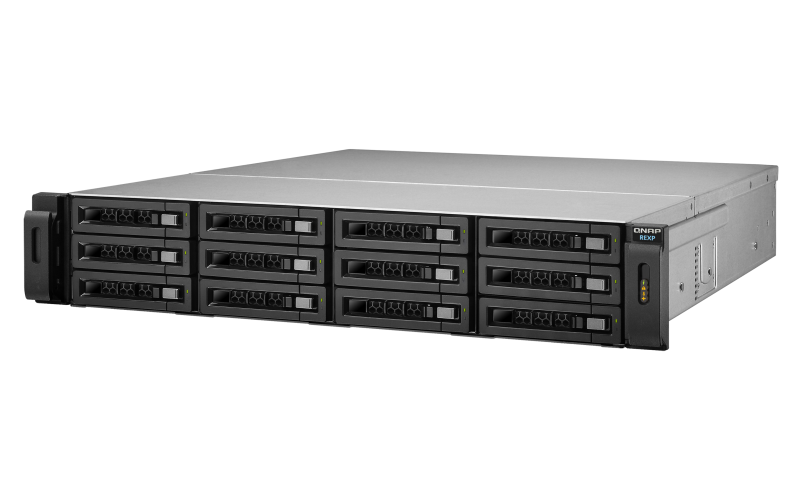

REXP-1210U-RP Hardware Front

1. Hard Drive Tray
2. Hard Drive LEDs
3. Tray Lock
4. Release Button
5. LED Indicators: System status, system fault, system over heat, fan error

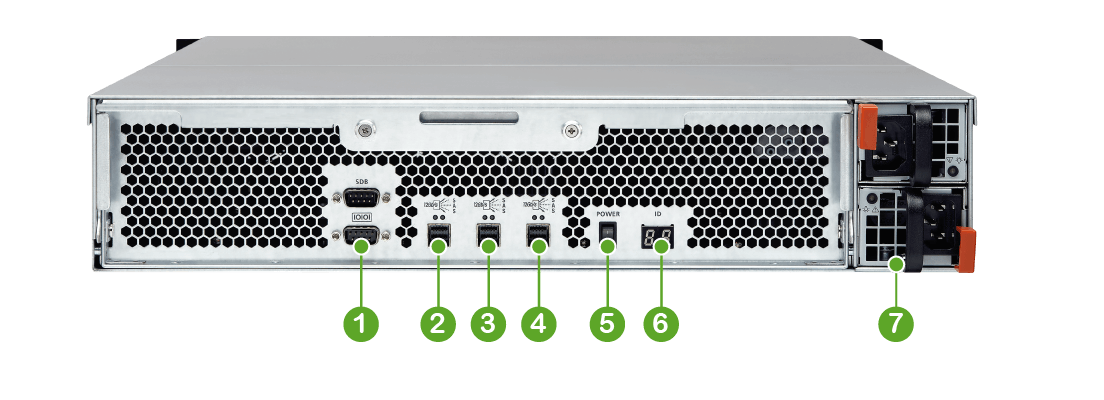

Rear View:

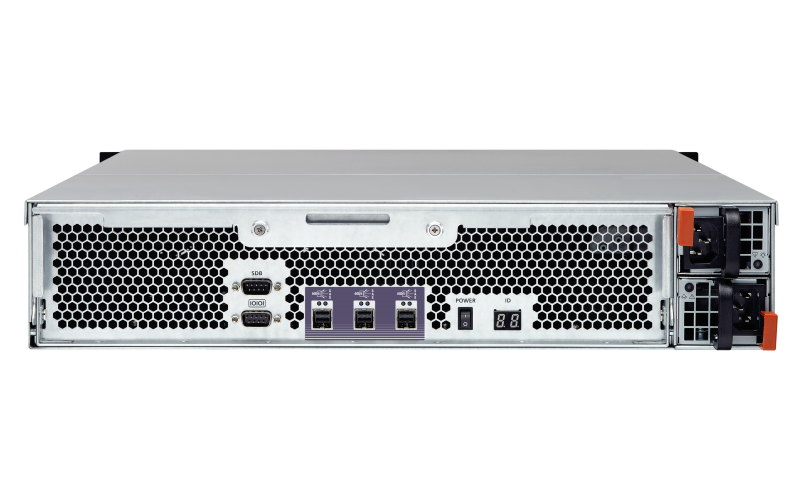

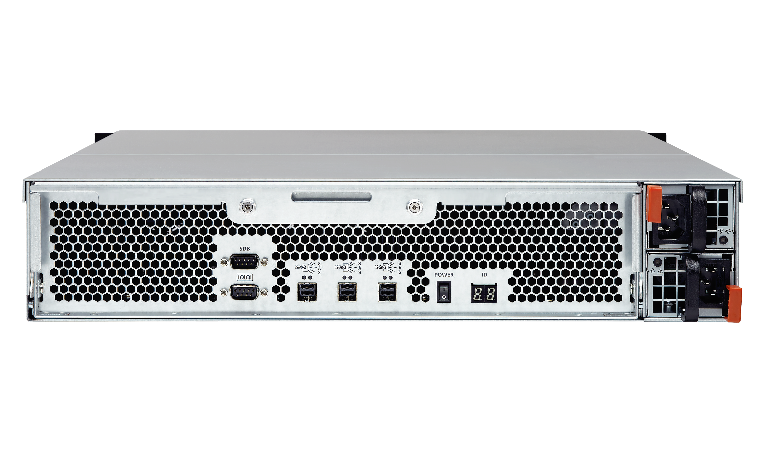

REXP-1210U-RP Hardware Rear

1. COM Port (Reserved)
2. Mini SAS Port (8644)
3. Mini SAS Port (8644)
4. Mini SAS Port (8644)
5. Power Switch
6. Enclosure ID
7. Power Connection

Remark:
The REXP-1210U-RP/REXP-1620U-RP complies with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server racks for this model, please make sure the server racks conform to the following criteria:

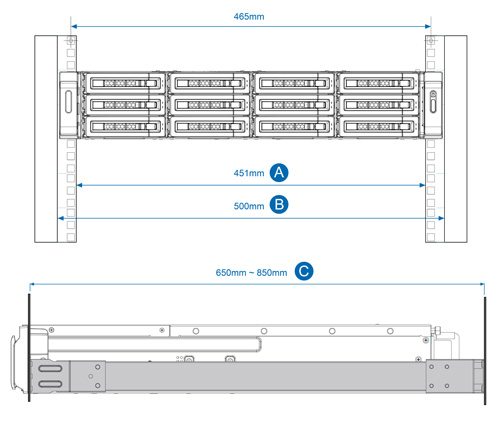

  1. Rack size
    1. Mounting post width: ≥ 450mm
    2. Panel width: ≥ 500mm
    3. Mounting post depth: 650mm-850mm

    Rack Size

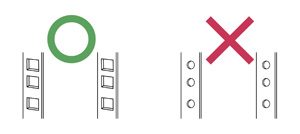

  2. The optional rack kits for the REXP-1210U-RP/REXP-1620U-RP are only compatible with square-hole server racks.

    Square-hole Server Racks only

* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS

Optional Accessories:

Accessories(optional purchase)
  Order P/N Product descriptions

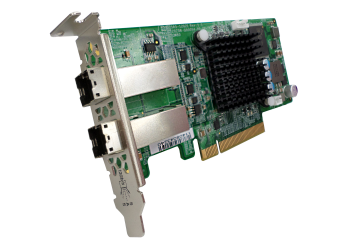

SAS-12G2E SAS-12G2E
  • Dual-wide-port storage expansion card, SAS 12Gbps.
  • Applicable NAS models:
    TVS-EC1280U-SAS-RP, TVS-EC1680U-SAS-RP, TVS-EC2480U-SAS-RP, TVS-EC1580MU-SAS-RP, TS-EC2480U, TS-EC1680U, TS-EC1280U, TS-EC880U; SS-EC1279U-SAS-RP; SS-EC1879U-SAS-RP; SS-EC2479U-SAS-RP; TS-EC1279U-SAS-RP ;TS-EC1679U-SAS-RP; TS-EC1679U-RP, TS-EC1279U-RP, TS-EC879U-RP TVS-1271U-RP, TVS-871U-RP
Note: The storage expansion card is to be installed in the NAS for connecting to the RAID Expansion Enclosures.
RAIL-A03-57 RAIL-A03-57 A03 series (Chassis) rail kit, max. load 57 kg
CAB-SAS10M-8644 CAB-SAS10M-8644 Mini SAS external cable (SFF 8644to SFF 8644), 1.0 m
CAB-SAS05M-8644 CAB-SAS05M-8644 Mini SAS external cable (SFF 8644 to SFF 8644), 0.5 m

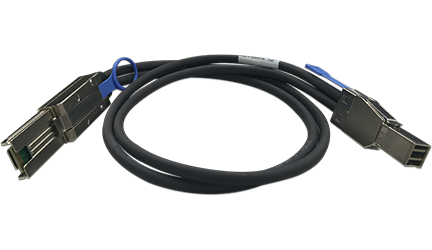

CAB-SAS10M-8644-8088 CAB-SAS10M-8644-8088

Mini SAS external cable (SFF 8644 to SFF 8088), 1.0 m

Note: A 12Gb/s SAS for 6Gb/s SAS cable is required to connect the REXP-1620U-RP to a 6Gb/s SAS-enabled NAS or 6Gb/s SAS-enabled REXP-1200U-RP/REXP-1600U-RP. The transfer rate over the cable will be 6Gb/s.

Utilities:

Various handy utilities are available for you to work smartly with your Turbo NAS. These utilities help increase your productivity and make it absolutely easy with connecting the Turbo NAS, setting up the system, data backup and synchronization, downloading files, and so on.


Qfinder

Connect and set up NAS easily

Qfinder is a utility, available for Windows, Mac, and Linux, to quickly find and access the Turbo NAS over the LAN. Install the Finder on your computer, open it, and double click your Turbo NAS name, and the login page is ready for you.

Connect and set up NAS easily

Easily access the NAS by Storage Plug & Connect

Windows version of Qfinder provides a convenient way to connect to the Turbo NAS and map a network drive or a virtual disk. By creating a shared folder on the Turbo NAS and mapping it as a network drive, you can use it as an additional drive and store files on it as it is a local drive of the computer.

Easily access the NAS by Storage Plug & Connect


myQNAPcloud Connect

NAS Connection by VPN

myQNAPcloud Connect helps you access the published services of the Turbo NAS quickly and securely on the Internet. myQNAPcloud Connect application is designed for Windows PC users. By installing the myQNAPcloud Connect, you will be able to connect to the Turbo NAS and easily manage files by drag-and-drop within the Windows Explorer.

NAS Connection by VPN


Qsync

Synchronize files anytime, anywhere

Qsync is a useful tool to synchronize files in multiple computers. It creates a specific “Qsync folder” in your devices that you can simply drop files in, and synchronizes the files to all your devices linked to the Turbo NAS.

Synchronize files anytime, anywhere


Sync in multiple ways

Full Sync

Whenever you add, edit, delete or rename a file on one computer, the change applies to all others linked with the Turbo NAS, so you have exactly identical contents on all your devices.

Full Sync

Smart Sync

Smart Sync

It allows you to remove files on one computer without affecting the copies stored on others that are linked with the Turbo NAS. However, when someone updates the files you deleted from another computer, you can still retrieve them in the Qsync folder.

Advanced Selective Sync

With both Full Sync or Smart Sync options, you can choose to only sync specific sub-folders within the Qsync folder, useful if your computers have limited storage.

Advanced Selective Sync

Share files and folders easily

Share files and folders easily

Quickly share files with download links

You can create download links to share files with people, even if they don't have an account on the Turbo NAS. This greatly reduces the time in creating user account and password for users.

Share folders for collaboration

Your life is connected with different groups of people. You can create sub-folders within the Qsync folder, and share each with different groups of Turbo NAS users as a file exchange center. Everyone in the same sub-folder is always kept up-to-date with the latest version of the files.


QNAP NetBak Replicator

Backup data on PC

The QNAP NetBak Replicator, provided with any Turbo NAS unit free of charge, helps you easily back up files from Windows PC - entire disk drives, documents, pictures, music, videos, fonts, emails, and more - to the Turbo NAS. The operation is very simple. You can do the backup task in just a few clicks using NetBak Replicator by the setting of real-time synchronization, scheduled backup and auto-backup from multiple PCs to the Turbo NAS.

NetBak Replicator also supports backing up to a remote server via FTP and WebDAV through the Internet. Imagine that you can backup new photos whenever on vacation. Even you are away from home, the convenient backup supports your memories.

QNAP NetBak Replicator

QGet

QGet

Download Station monitor widget

QGet is a powerful utility for download management. The software is available for Windows and Mac computers, allowing the management of BT, HTTP, and FTP download tasks of Download Station on multiple Turbo NAS servers.

QGet enables you to add, remove, or watch your BT download jobs from LAN or WAN. You can manage your download tasks in school or at work. QGet supports intuitive drag and drop of torrent files, HTTP or FTP URL to the software interface for convenient adding of download tasks.


vsphere Client plug-in

Manage QNAP NAS within vSphere Client

The Turbo NAS supports vSphere Client Plug-in that allows managing VMware datastores on the Turbo NAS directly from the vSphere client console. In a large-scale server virtualization environment, management is centralized and straightforward. Administrators can easily control the status of the Turbo NAS and datastores and create additional datastores to multiple ESXi hosts in just a few clicks.

Note: The TS-x51 series doesn't support vSphere Client plug-in.

vsphere Client plug-in

Qsnap

Qsnap

Take screenshots, easy and fast

Qsnap is a handy utility assisting you to quickly capture screenshots on your PC, and easily edit, save, and share, enabling quick note-taking or productive communication in your work and life.

  • Hotkey capturing: Taking PC screenshots without complicated mouse operations.
  • Easy editing: Add emphasis or remove unnecessary elements with a range of editing tools.
  • Instant sharing: Simply drag and drop the screenshots to instant messengers and emails as attachments to share.

Documentation:

Download the QNAP Turbo NAS Business Series Datasheet (PDF).
