QNAP Storage SATA HBA
Expand PC and NAS storage with easy installation

QNAP offers a variety of accessories to enhance the performance and functionality of your need.
All Accessories can be found on their respective product pages or you can purchase them below. Can't find the part you are looking for? Contact us today!




Pricing Notes:

QNAP Products
SATA HBA
4-port miniSAS HD host bus adapter, 16 x SATA, PCIe 3.0 x8, for TL JBOD
For TL-D1600S, TL-R1200S-RP
#QXP-1600eS
Our Price: $181.00
1-port SFF-8088 SATA host bus adapter, 4 x SATA 6Gb/s , PCIe 3.0 x2, for QNAP NAS, Windows or Linux
For TL-D400S, TL-R400S
#QXP-400eS-A1164
Our Price: $69.00
2-port SFF-8088 SATA host bus adapter, 8 x SATA 6Gb/s, PCIe 3.0 x4, for QNAP NAS, Windows or Linux
For TL-D800S
#QXP-800eS-A1164
Our Price: $129.00

The QXP SATA expansion cards are designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. Expand storage capacity easily by installing a QXP SATA expansion card into the PCIe slot of a QNAP NAS or Windows®/ Ubuntu® (Linux®) PC, and then connect the TL series JBOD storage enclosures using an SFF-8088 (or SFF-8644) cable. The low-profile card form-factor allows QXP SATA expansion cards to be compatible with a wide variety of NAS, computers, and servers.


Supports QNAP NAS and Windows®/Ubuntu® PCs

Each SFF-8088 or SFF-8644 (internal) connector on the QXP SATA expansion card supports up to four SATA drives. A suitable QXP card can be installed based on the number of drives you want to connect for storage expansion. For example, a NAS or PC can have two 4-port QXP-400eS cards installed, with one card connected to a 4-bay tower TL-D400S JBOD enclosure and the other card connected to a 4-bay rackmount TL-R400S. Alternatively, both cards can be connected to a single 8-bay tower TL-D800S JBOD enclosure. A NAS or PC with a single QXP-400eS card installed can also connect to an 8-bay TL JBOD storage enclosure that has only 1-4 drives installed.

Note: To update the firmware of TL JBOD storage enclosure through QTS or JBOD Manager, make sure all the device connection (including the NAS/PC, QXP SATA HBAs, and TL JBOD storage enclosures) is completed.

QXP-cards


QNAP JBOD Manager for Windows®/Ubuntu® users

The QNAP JBOD Manager utility allows Windows® and Ubuntu® (Linux®) PC users to monitor the status of fans, system temperature, and drive information of TL series JBOD storage enclosures.



Available Models

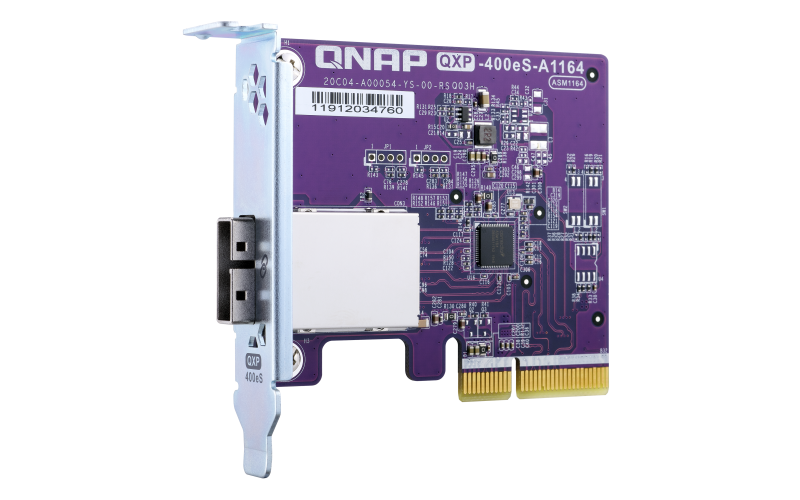

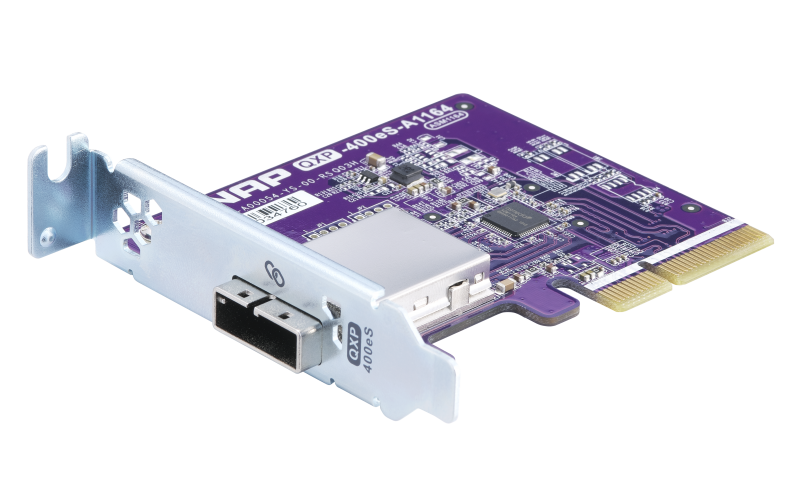

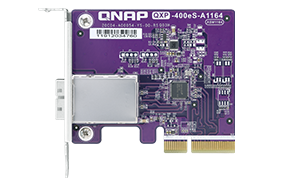

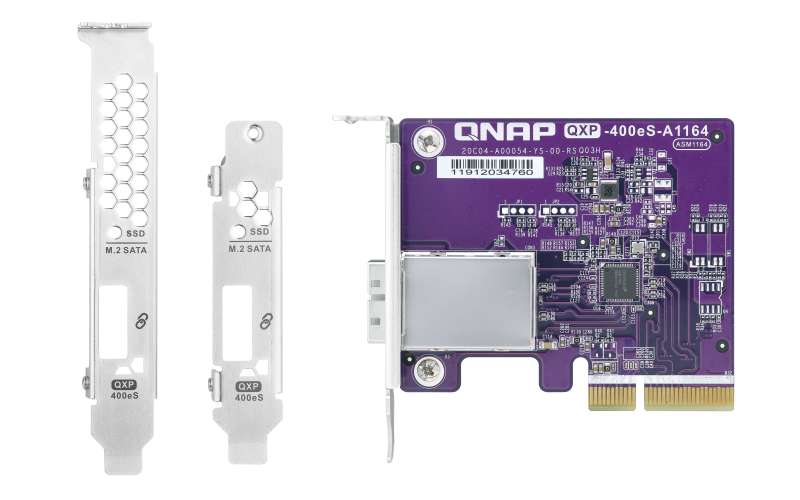

QXP-400eS QXP-400eS-A1164 Quad-port SATA expansion card
Controller: Asmedia ASM1164
Connector: 1 x SFF-8088
Supported SATA drive numbers: 4 x SATA 6Gb/s drives (Through SFF-8088 connector)
PCIe interfaces: PCIe Gen3 x2 (16Gbps)
Supported operating systems:
  • QTS 4.4.2 or later, QuTS hero
  • Windows 8 or later
  • Windows Server 2012 R2 or later
  • Linux with Kernel 3.10 or later
Form factor: Low-profile 85 x 68.9 x 17.24 mm (Without bracket 85 x 68.9 x 17.24 mm)
Cable: QNAP provides 1.0M SFF-8088 cable for optional purchase

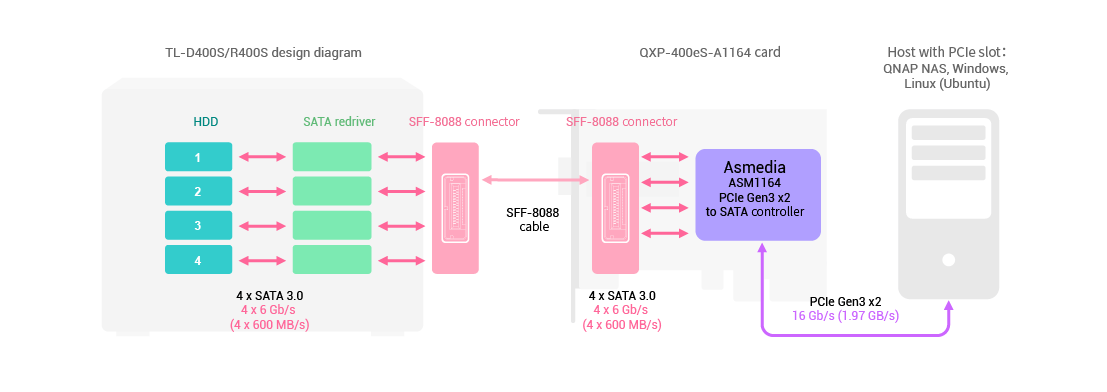

Architecture Diagram

Architecture Diagram

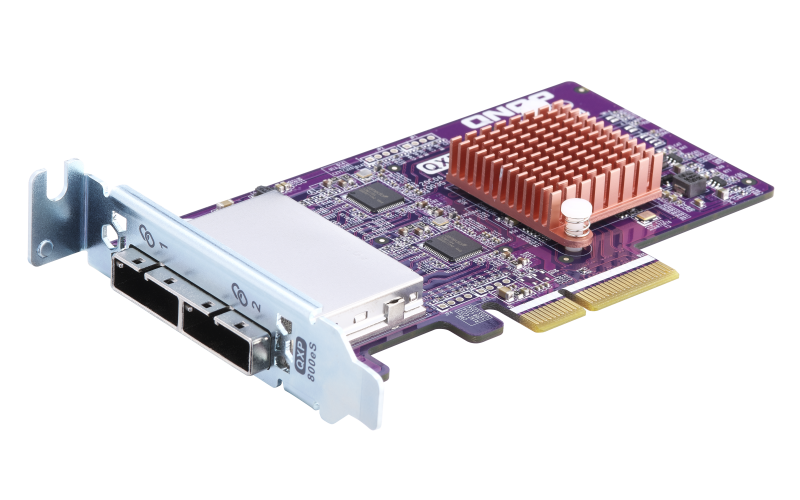

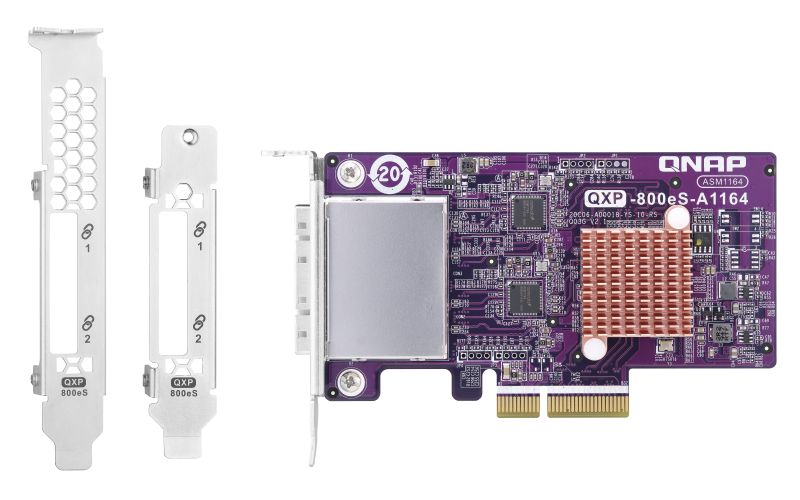

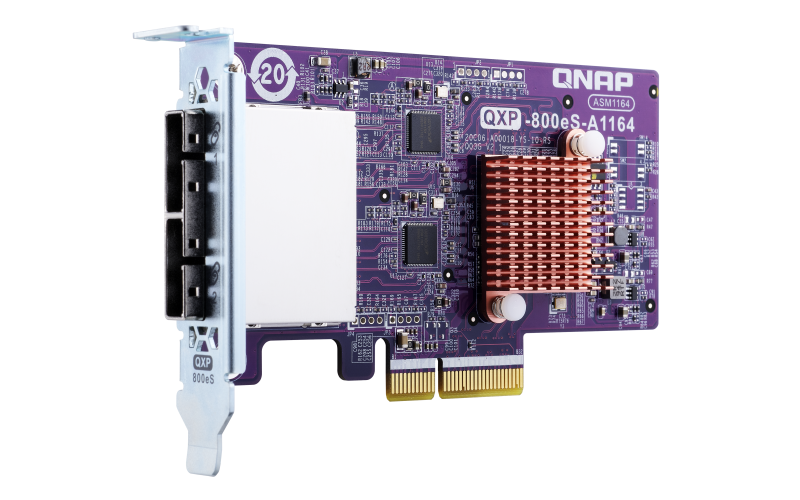

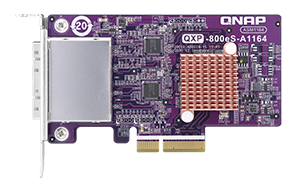

QXP-800eS QXP-800eS-A1164 8-port SATA expansion card
Controller: Asmedia ASM1164
Connector: 2 x SFF-8088
Supported SATA drive numbers: 8 x SATA 6Gb/s drives (Each SFF-8088 connector supports four SATA drives)
PCIe interfaces: PCIe Gen3 x4 (32Gbps)
Supported operating systems:
  • QTS 4.4.2 or later, QuTS hero
  • Windows 8 or later
  • Windows Server 2012 R2 or later
  • Linux with Kernel 3.10 or later
Form factor: Low-profile 119.65 x 68.9 x 17.24 mm (Without bracket 119.65 x 68.9 x 12 mm)
Cable: QNAP provides 1.0M SFF-8088 cable for optional purchase

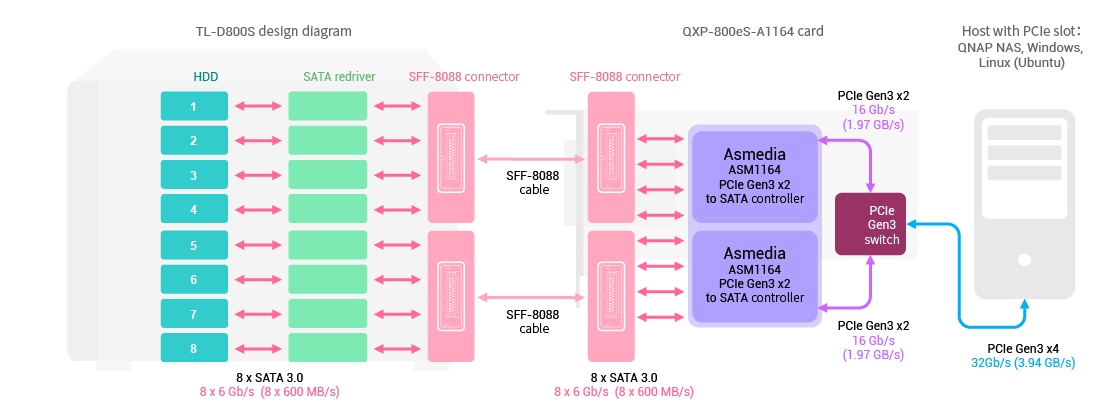

Architecture Diagram

Architecture Diagram

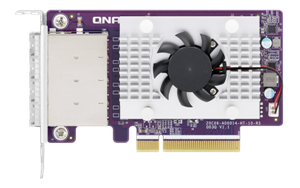

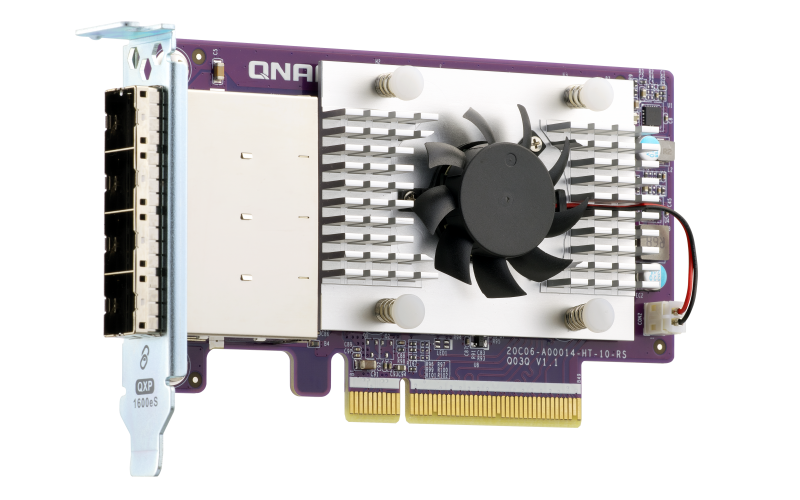

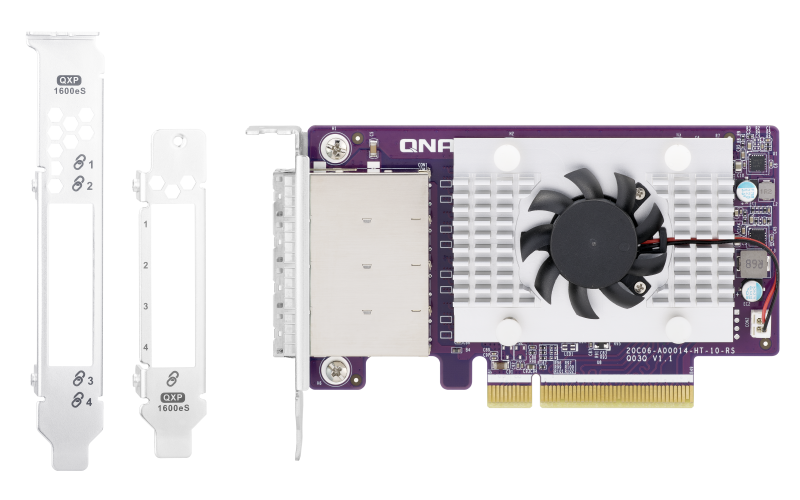

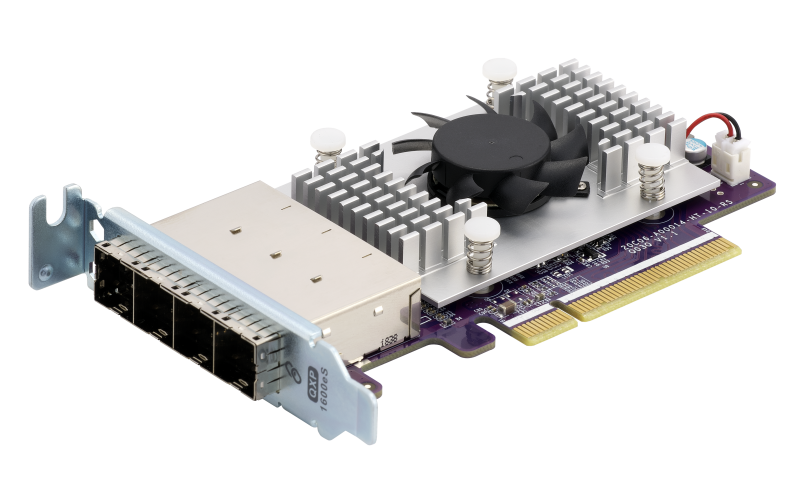

QXP-1600eS QXP-1600eS 16-port SATA expansion card
Controller: Marvell 88SE1475
Connector: 4 x SFF-8644
Supported SATA drive numbers: 16 x SATA 6Gb/s drives (Each SFF-8644 internal connector supports four SATA drives)
PCIe interfaces: PCIe Gen3 x8 (64Gbps)
Supported operating systems:
  • QTS 4.4.2 or later, QuTS hero
  • Windows 8 or later (Driver required)
  • Windows Server 2012 R2 or later
  • Linux with Kernel 3.10 ~ 5.0 (Driver required). QXP-1600eS officially supports Ubuntu 18.04.03 (Kernel 5.0).
Form factor: Low-profile 119.65 x 68.9 x 17.24 mm (Without bracket 119.65 x 68.9 x 12mm)
Cable: QNAP provides 1.0M SFF-8644 to SFF-8088 cable for optional purchase

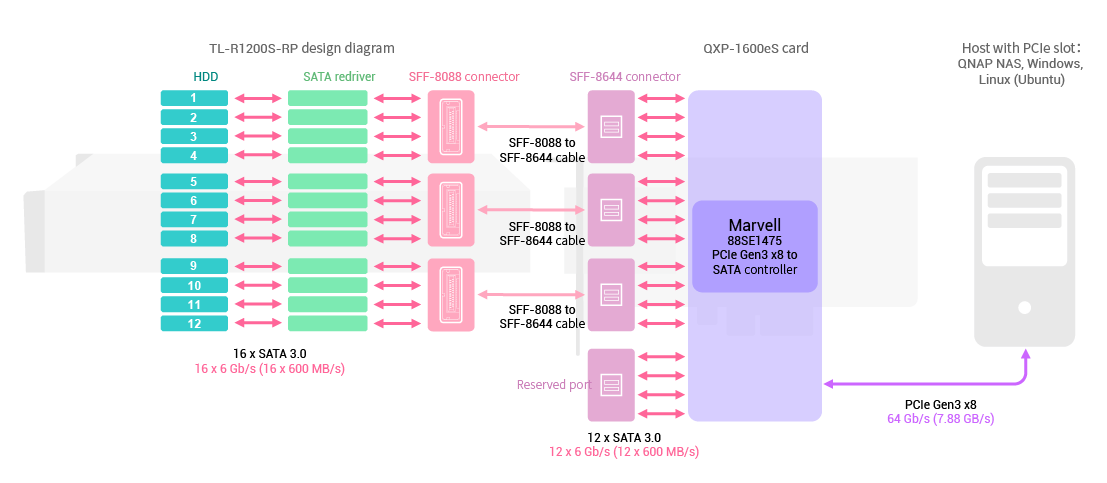

Architecture Diagram

Architecture Diagram
