QNAP TBS-453DX
Compact & versatile: The quad-core 4-bay M.2 SATA SSD NASbook that provides quick and easy access to cloud storage


Sorry, this product is no longer available, Please contact us for a replacement.



Overview:

The compact, near-silent, and versatile TBS-453DX M.2 SSD NASbook is ideal for office meetings and multimedia applications. With CacheMount, you can map multiple cloud storages and enable caching to work with online files as fast as the files stored on your TBS-453DX, providing an amazing hybrid-cloud experience for seamless file storage, backup, and recovery. The TBS-453DX also supports excellent real-time transcoding and media streaming, and also provides 4K @60Hz HDMI 2.0 output. Coupled with QNAP’s comprehensive 10GbE solutions, the 10GbE-ready TBS-453DX is perfect for enhancing team workflows and multimedia applications. Whether you are using it for work, entertainment, backup, or sharing, the TBS-453DX is always ready for you.



Package Content

  • TBS-453DX SAN/NAS Storage System
  • 2 x Ethernet Cables
  • AC Adapter: PWR-ADAPTER-65W-A02
  • 1 x Power Cord
  • 6 x Flat Head Screws (for M.2 SSD)
  • 4 x M.2 SSD Heatsink
  • 12 x M.2 SSD Thermal Pads
  • Quick Installation Guide (QIG)

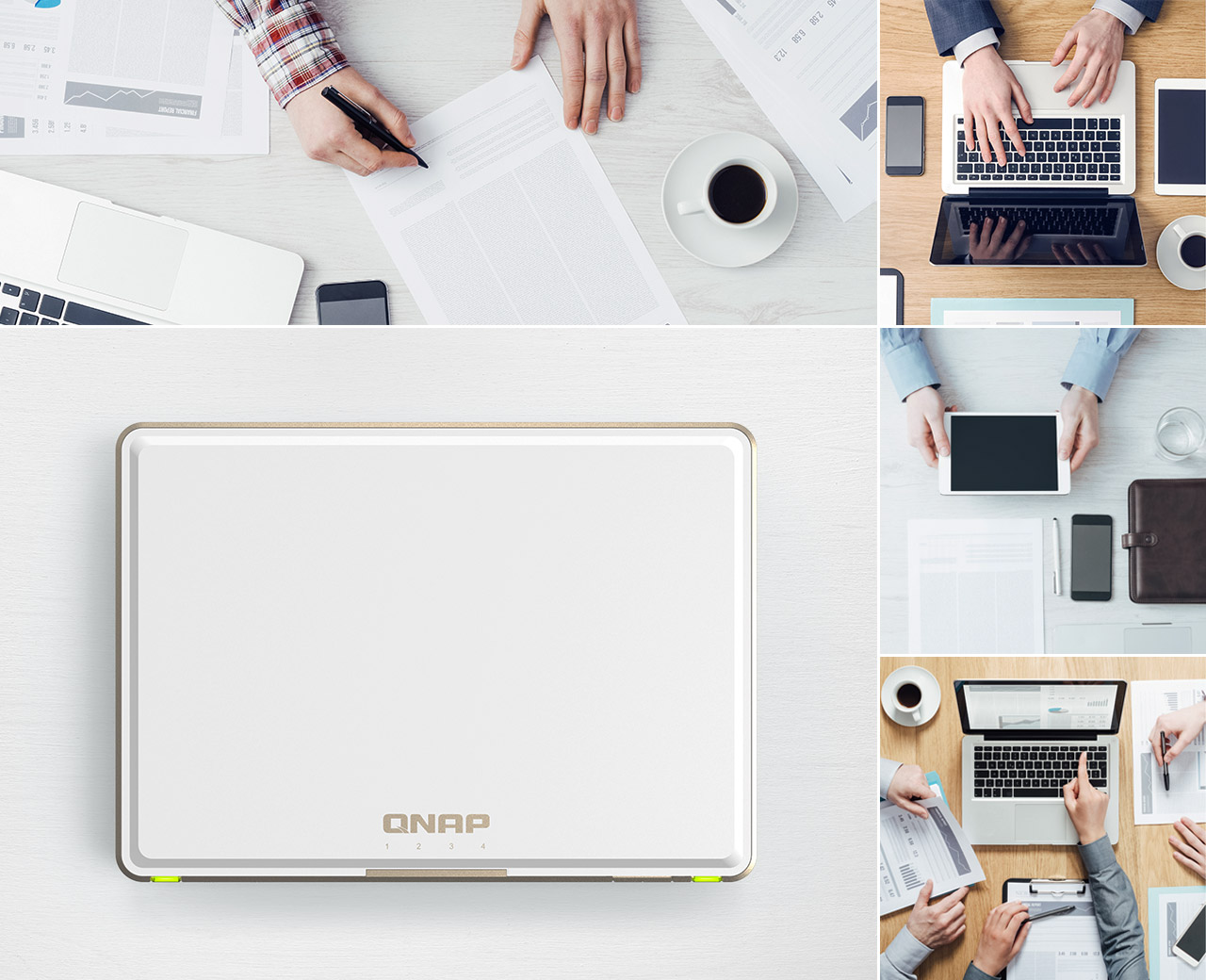

Handy, quiet and compact. The stylish tech gadget for everyday use.

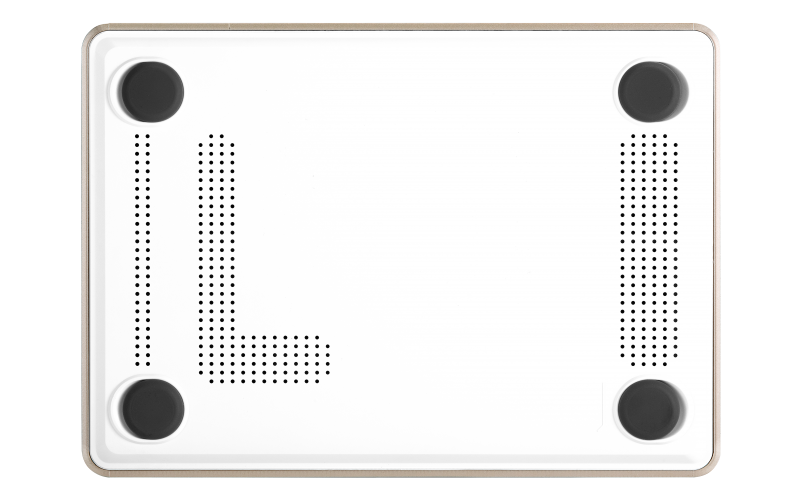

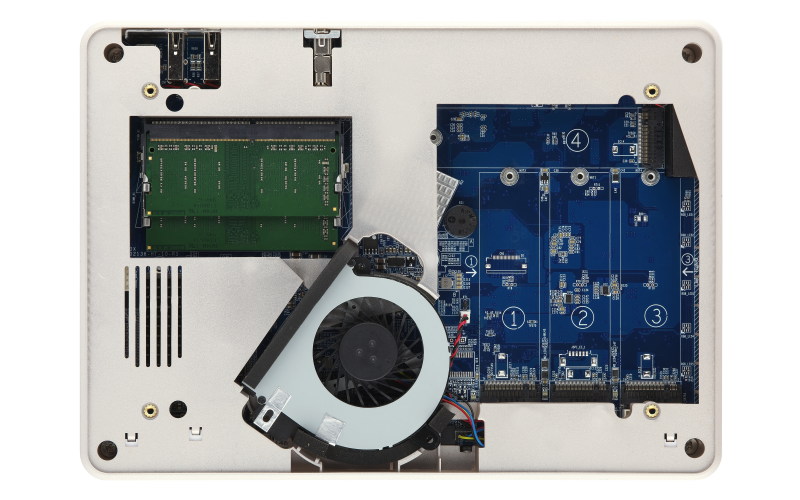

Designed with a "NASbook" concept, the TBS-453DX uses a thin, B5-sized case that can easily fit in to any working environment, and makes your work and meetings productive as you and your team members can easily access files on the TBS-453DX at the same time. Compared with a normal NAS, the TBS-453DX's usage of M.2 SSDs for storage allows it to be significantly smaller and quieter. The RAM and M.2 SSDs are also easily accessible for installation and upgrading by removing the rubber pads and screws on the bottom of the TBS-453DX. Besides laptop and mobile phone, the TBS-453DX NASbook is also the tech gadget that you should have one!

overview-2


Mount cloud storage for an amazing hybrid-cloud experience

The compact TBS-453DX supports Cloud Gateway, allowing you to mount over 20 cloud storage services for convenient, seamless file storage, backup, and recovery. CacheMount is a file-level gateway that makes reaching online files extremely easy, while you can also leverage the multimedia and file management functions provided by QTS to those online files as they are located on the TBS-453DX. VJBOD Cloud is block-level gateway that mounts cloud space on the NAS as block storage for creating volumes or iSCSI LUNs. Transferring a large number of small files thus becomes more efficient, and it saves bandwidth as the system only transfers changed data.

Note: The Cloud Gateway service will be available from QTS 4.4.1.

overview-3

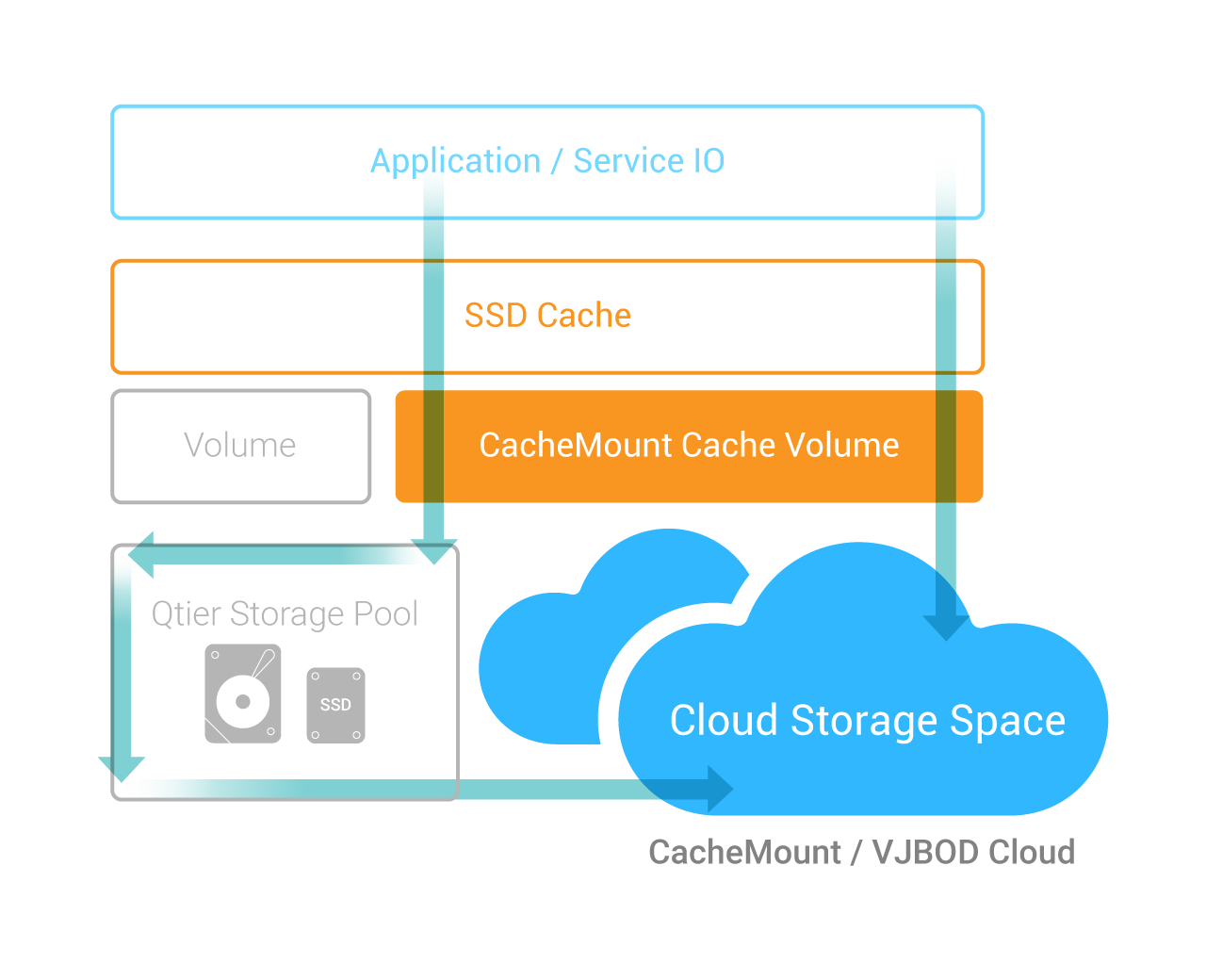

Mount cloud storage and cache locally with performance benefits

Enable caching for CacheMount and VJBOD Cloud, so the files on the cloud can be locally cached in TBS-453DX’s CacheMount Cache Volume. This allows you to reach frequently-accessed files with the lowest latency and work with them as they were stored on the TBS-453DX. No matter if you are working from home or offsite, accessing large-size files, or multiple users access to cloud space concurrently, working with those online files is as fast as working within LAN.

Note: The Cloud Gateway service will be available from QTS 4.4.1.

overview-2

overview-2

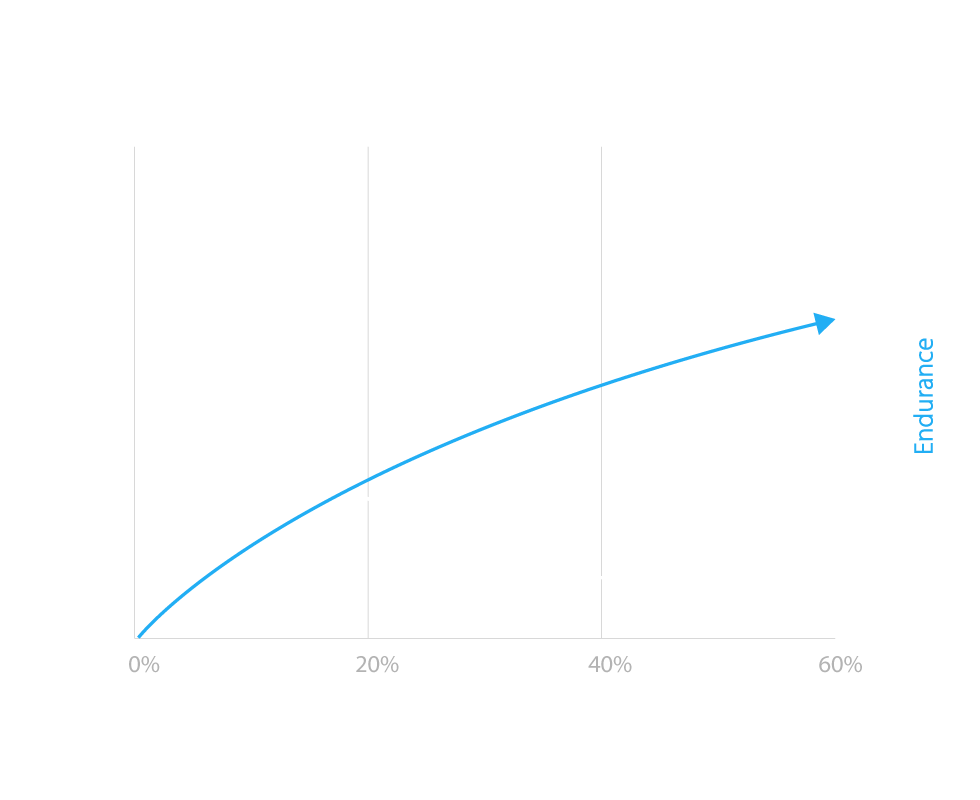

Potentially attain performance and endurance levels similar to enterprise-grade SSDs

The TBS-453DX supports software-defined SSD extra over-provisioning (OP) that enables you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now, you can enjoy faster file backups, smoother multimedia experiences, and optimized virtualization applications with better performance.



Ultimate multimedia experience with 4K HDMI, real-time transcoding and streaming

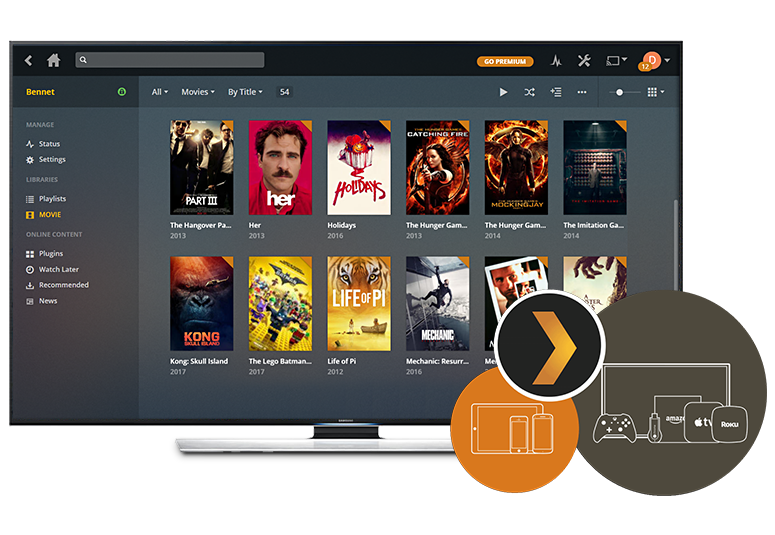

Featuring Intel® UHD Graphics 600, the TBS-453DX allows you to convert 4K videos to universal file formats that can be smoothly played on multiple devices*. You can also enjoy 4K 60fps content on your TV with the TBS-453DX's HDMI 2.0 output, and use with Plex® Media Server to stream media files to mobiles devices and media streaming devices (including DLNA®, Roku®, Apple TV®, Amazon Fire TV® and Google Chromecast™). The QNAP RM-IR004 remote control (purchased separately) can be configured using QButton to customize the actions of individual buttons, providing a more convenient NAS experience.

*The TBS-453DX’s hardware provides H.264 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.

overview-2

Features:

Four M.2 2280 SATA SSD slots for quieter and higher-performance storage (M.2 SSDs sold separately).

Software-defined SSD extra over-provisioning (from 1% to 60%) optimizes SSD random write speeds and extends SSD lifespan.

Mount cloud storage space as local drives, and enable caching to work with online files as quickly as local files.

10GbE NBASE-T RJ-45 Multi-Gig connectivity accelerates file sharing across teams and devices.

4K media playback and online transcoding. Directly view on a TV/monitor via HDMI 2.0 output (up to 4K @60Hz).

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Specifications:

CPU Intel® Celeron® J4105 4-core 1.5 GHz processor (burst up to 2.5 GHz)
Architecture: 64-bit
Encryption Acceleration Yes, AES-NI
System Memory 8 GB SODIMM DDR4 (2 x 4 GB)
Maximum Memory 8 GB (2 x 4 GB)
Memory Slot 2 x SODIMM DDR4
(For dual-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory 4 GB eMMC
M.2 SSD Slot 4 x M.2 2280 SATA 6 Gbps SSD

Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
10 Gigabit Ethernet Port 1 x 10GbE RJ45 (10G/5G/2.5G/1G/100M)
Gigabit Ethernet Port 1 x 1GbE RJ45

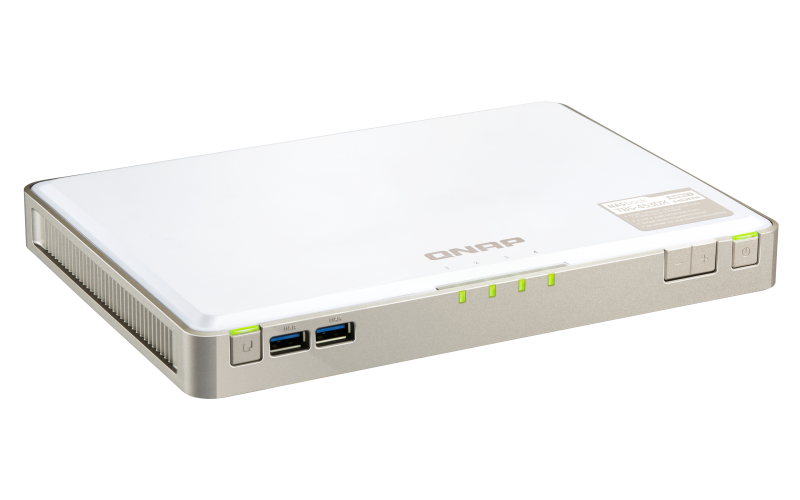

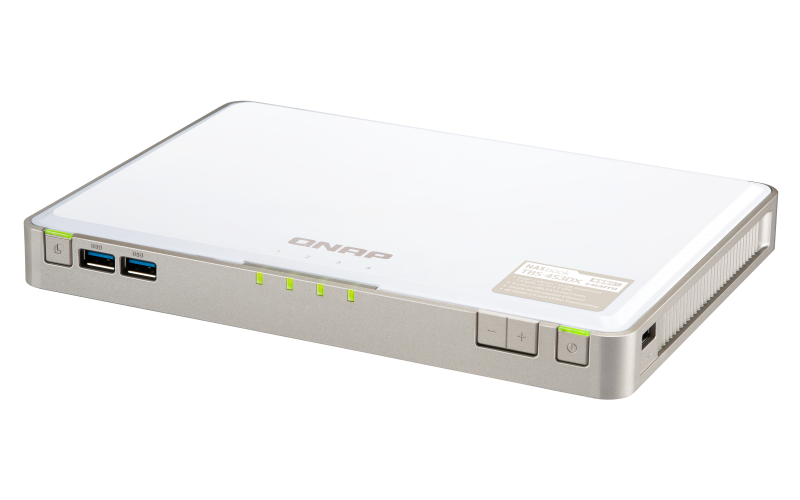

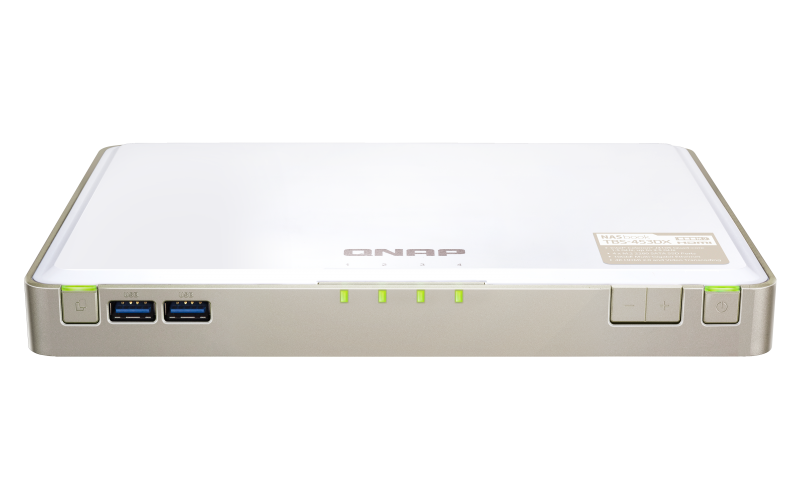

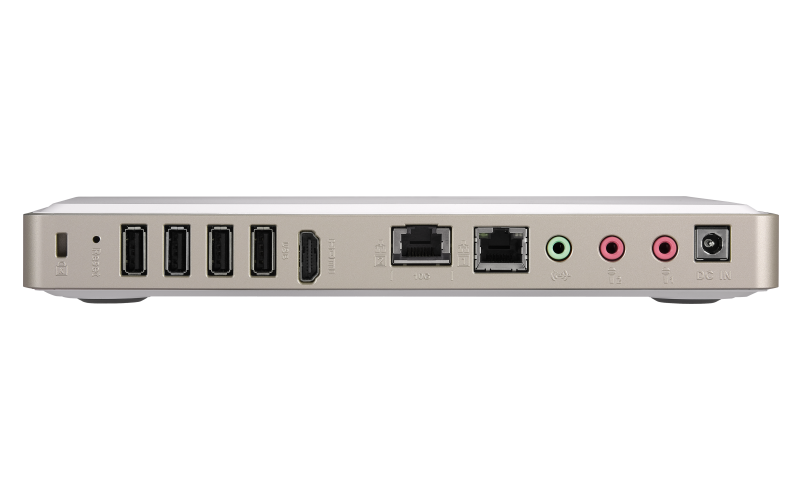

USB Port Front: 2 x USB 3.0 Type-A (The left port supports USB One Touch Copy)
Rear: 4 x USB 2.0 Type-A

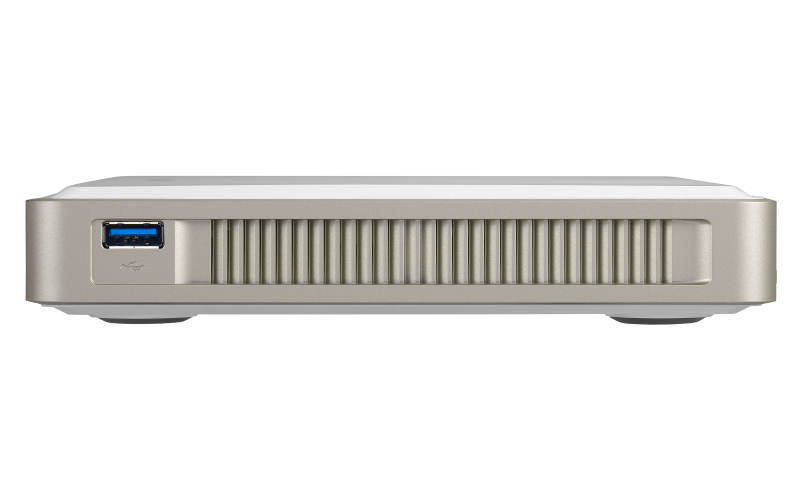

Right panel: 1 x USB 3.0 Type-A
HDMI Output 1 x HDMI 2.0, up to 3840 x 2160, @60Hz
Audio • 2 x 3.5 mm dynamic microphone jack
• 1 x 3.5 mm line-out jack
• 2 x speaker

Note: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators M.2 SSD 1-4
Buttons Power, Reset, USB One Touch Copy, Audio volume (up & down)
IR sensor Yes
Note: Requires an optional RM-IR004 remote control
Form Factor Compact
Dimensions (H x W x D) 30 x 230 x 165 mm
Weight Net weight: 0.8 kg (1.72 lbs)
Power Supply Unit 65W, 10-20V DC, 50/60 Hz
Power Consumption (W) In operation: 13.23 W
Drive standby: 12.38 W
Fan 1 x Compact internal fan
Sound Level 15.8 dB (A)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington Security Slot
CPU Intel® Celeron® J4105 4-core 1.5 GHz processor (burst up to 2.5 GHz)
Architecture: 64-bit
Encryption Acceleration Yes, AES-NI
System Memory 4 GB SODIMM DDR4 (2 x 2 GB)
Maximum Memory 8 GB (2 x 4 GB)
Memory Slot 2 x SODIMM DDR4
(For dual-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory 4 GB eMMC
M.2 SSD Slot 4 x M.2 2280 SATA 6 Gbps SSD

Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
10 Gigabit Ethernet Port 1 x 10GbE RJ45 (10G/5G/2.5G/1G/100M)
Gigabit Ethernet Port 1 x 1GbE RJ45
USB Port Front: 2 x USB 3.0 Type-A (The left port supports USB One Touch Copy)
Rear: 4 x USB 2.0 Type-A
Right panel: 1 x USB 3.0 Type-A
HDMI Output 1 x HDMI 2.0, up to 3840 x 2160, @60Hz
Audio • 2 x 3.5 mm dynamic microphone jack
• 1 x 3.5 mm line-out jack
• 2 x speaker

Note: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators M.2 SSD 1-4
Buttons Power, Reset, USB One Touch Copy, Audio volume (up & down)
IR sensor Yes
Note: Requires an optional RM-IR004 remote control
Form Factor Compact
Dimensions (H x W x D) 30 x 230 x 165 mm
Weight Net weight: 0.8 kg (1.72 lbs)
Power Supply Unit 65W, 10-20V DC, 50/60 Hz
Power Consumption (W) In operation: 13.23 W
Drive standby: 12.38 W
Fan 1 x Compact internal fan
Sound Level 15.8 dB (A)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington Security Slot

Documentation:

Datasheet for QNAP TBS-453DX is coming soon.
