Dual OS options system for versatility and mission-critical applications
This product is no longer available, please contact us for a replacement!
Powered by an Intel® Xeon® D processor, the powerful enterprise-class TES-3085U is open for two operating systems – either the FreeBSD-based QES or Linux-based QTS. While QES supports ZFS for the utmost reliability and allows near-limitless snapshots, block-level data deduplication and real-time data compression, QTS features Qtier Technology, SSD cache, and an abundance of value-added apps to realize storage efficiency and diverse usage applications. The TES-3085U gives the flexibility to choose from two operating systems, enabling businesses to deploy proper operating systems on multiple TES-3085U based on their needs and goals in different stages. The TES-3085U is especially useful for providing a speedy all-flash storage solution that offers up to 24 disk bays and 6 dedicated SSDs bays for caching.
- QNAP TES-3085U Enterprise Storage
- 4 x network cable
Note: To change the NAS operating system after completing setup, it is necessary to re-initialize the hard disks and delete all stored data.
A remote backup is required before switching the NAS operating system.

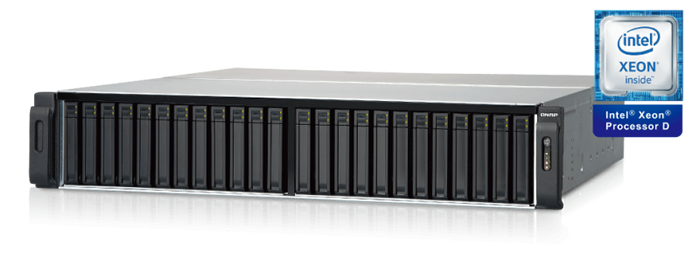

Intel® Xeon® D processor optimizes performance and efficiency
Powered by an advanced 14nm Intel® Xeon® D 64-bit SoC processor with an integrated PCH, up to 128GB DDR4 ECC RDIMM RAM / 64GB DDR4 non-ECC UDIMM RAM, and with two built-in 10GbE SFP+ ports, the 12Gb/s SAS-enabled TES-3085U delivers outstanding performance for data transmission and applications. With a thermal design power of only 20-65W, the TES-3085U fulfills demands for both performance and energy saving.
TES-3085U-D1548-32G / TES-3085U-D1548-64G / TES-3085U-D1548-16GR / TES-3085U-D1548-32GR / TES-3085U-D1548-128GR:
|Flash Memory||4 GB DOM|
|Hard Drive Tray||Front: 2.5"x 24
Rear: 2.5" SSD slot x 6
|Supported Hard Drive||Front: SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD
Rear: SATA 6Gb/s SSD
|LAN Port||2 x SFP+ 10GbE ports, 4 x Gigabit ports|
|LED Indicators||10 GbE, Status, LAN, Storage expansion port status|
|Buttons||System: Power button and reset button|
|Form Factor||2U, Rackmount|
|Dimensions (H x W x D)||88.3 x 439 x 484.5 mm
3.47 x 17.28 x 19.07 inch
|Weight||Net weight (NAS only): 13.98 kg / 30.82lb|
|Relative Humidity||5~95% non-condensing, wet bulb: 27˚C.|
|Power Supply||Redundant power: Input 90~264VAC; 450W x 2|
|PCIe Slot||Number: 4
Slot 1: PCIe Gen.3 x8
Slot 2: PCIe Gen.2 x4
Slot 3: PCIe Gen.3 x4
Slot 4: PCIe Gen.3 x4 or PCIe Gen.3 x8
Note: Slot 4 provides the width of PCIe Gen.3 x8 when slot 3 is not in use. Slot 4 then provides the width of PCIe Gen.3 x4 only when an expansion board is installed in slot 3.
|Fan||4 x 6 cm smart cooling fan|
Designs and specifications are subject to change without notice.
Download the QNAP TES-x85U Series Datasheet (PDF).
