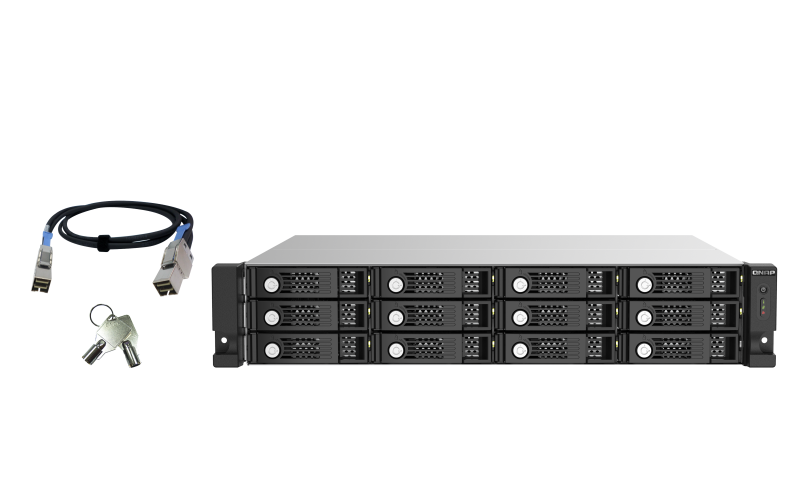

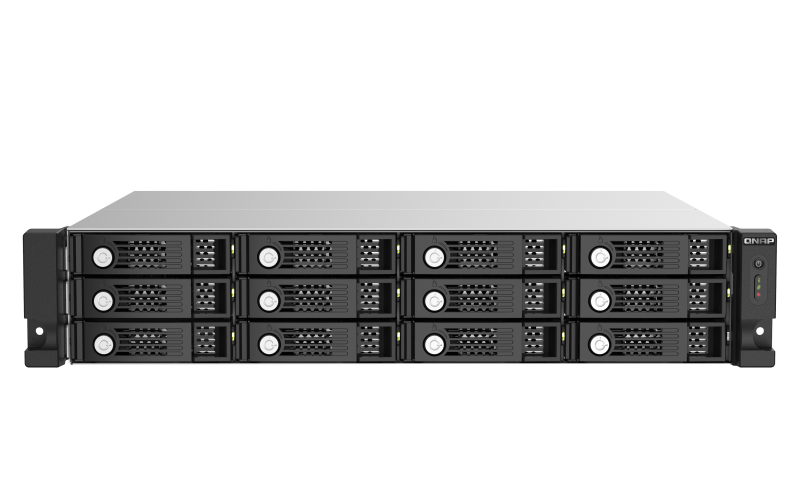

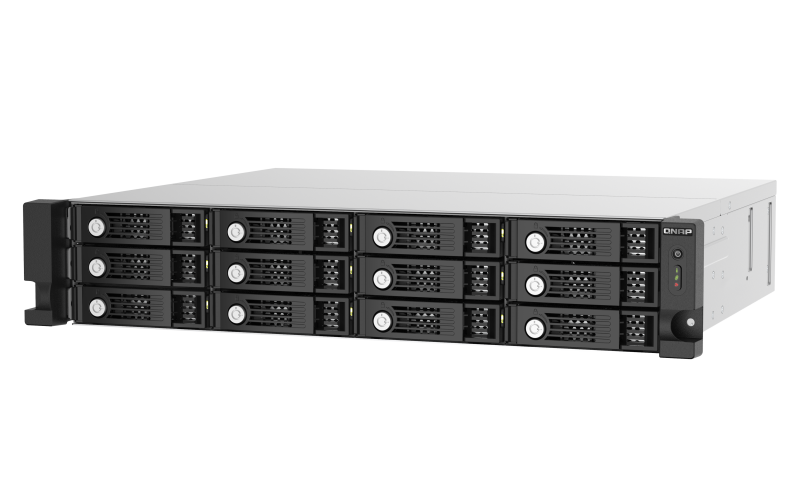

QNAP TL-R1220Sep-RP
Enterprise-grade SAS 12Gb/s storage expansion supporting multipath routing and daisy chaining

---

Supports SAS DataBolt™ technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure

Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1220Sep-RP features an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1220Sep-RP uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1220Sep-RP at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.

Note: The QNAP host NAS requires QTS 4.5.1 / QuTS hero h4.5.1 (or later) with a PCIe SAS storage expansion card installed.

---

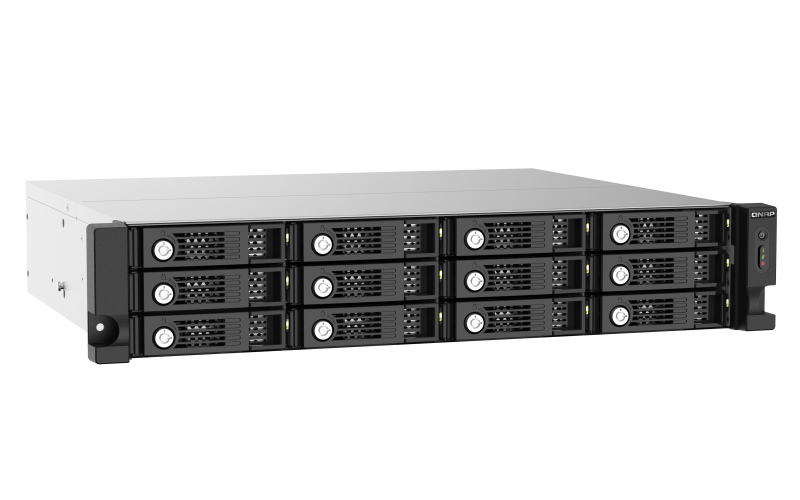

Short-depth design Can be installed in standard server racks or small AV cabinets

(2U, H 88.65 x W 482.2 x D 423.8 mm)

---

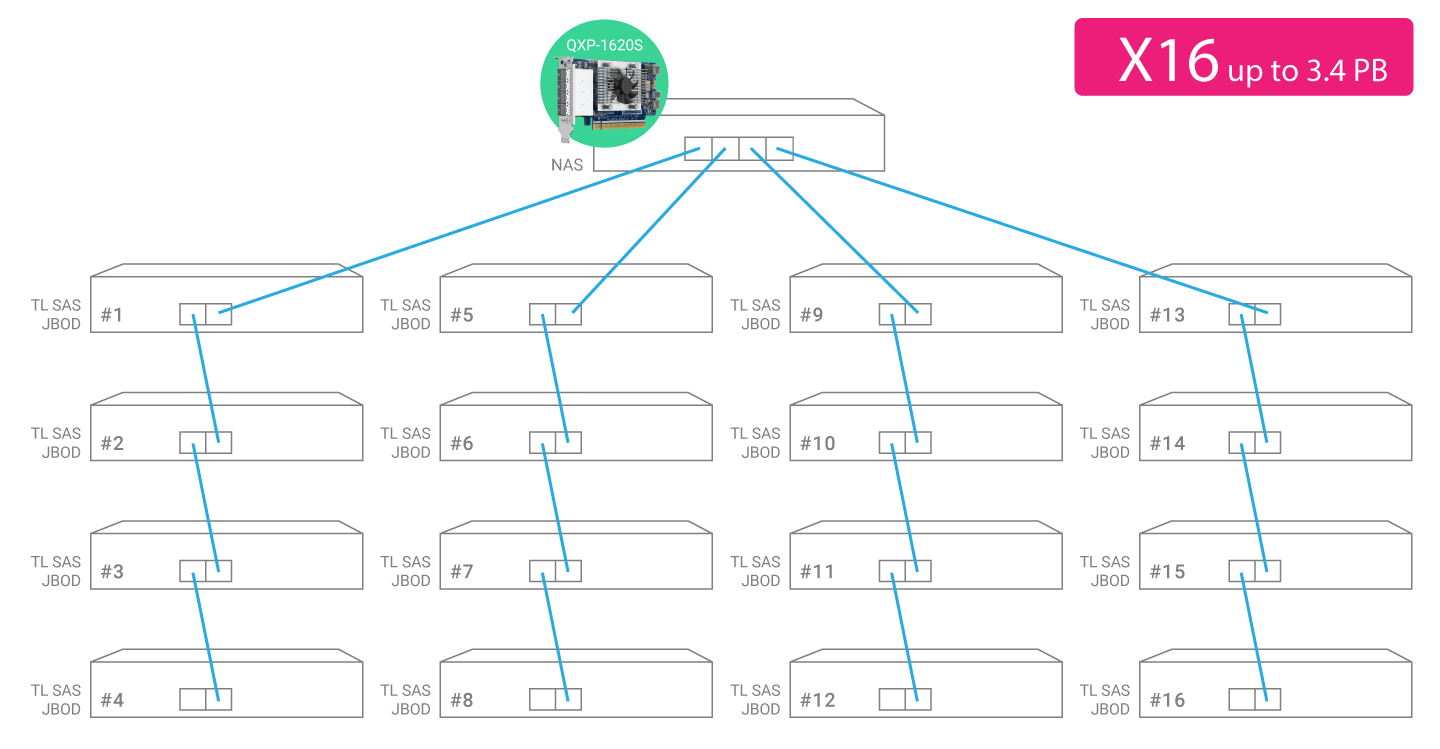

Connect up to 16 JBODs, support up to 3.4 PB raw capacity

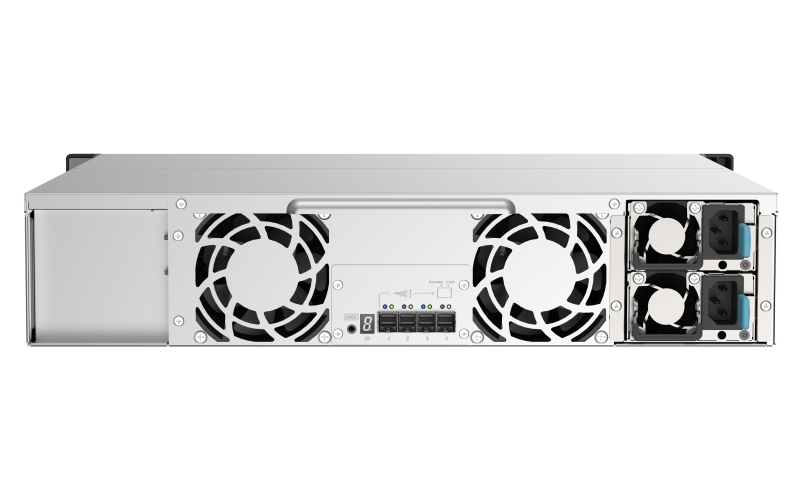

The TL-R1220Sep-RP has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. Up to sixteen TL-R1220Sep-RP can be daisy-chained to achieve a raw capacity of up to 3.4PB.

Note:

1. Use the CAB-SAS10M-8644-8088 12Gb/s to 6Gb/s external cable to connect to SAS NAS / REXP expansion enclosures and 6 Gb/s SAS HBA.
2. The host NAS requires one QXP-1620S-B3616W SAS card to daisy chain sixteen JBODs with single path routing. Using multipath routing with link aggregation enabled, the host NAS with one QXP-1620S-B3616W SAS card can daisy chain four JBODs; the host NAS with two QXP-1620S-B3616W SAS cards can daisy chain eight JBODs.

---

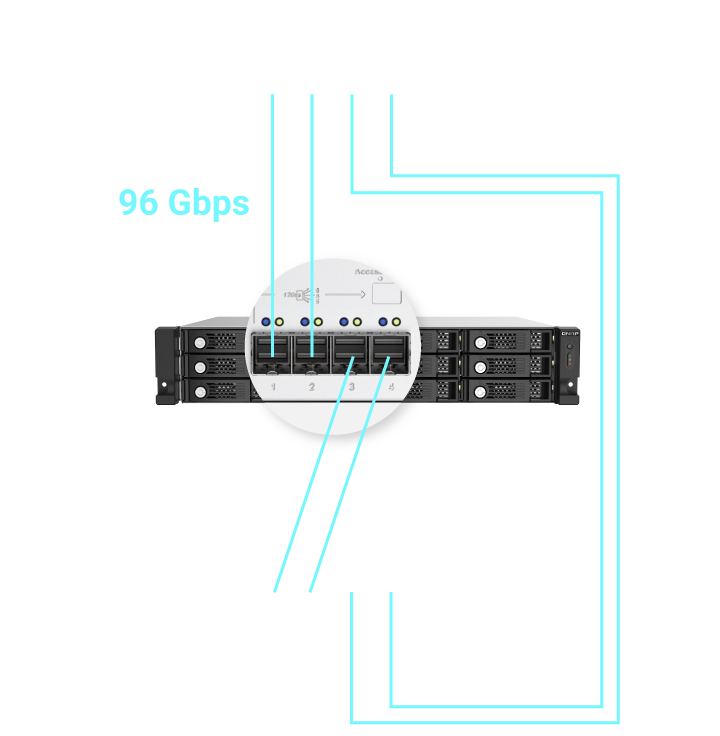

Multipath routing to ensure continuous system operations

By daisy chaining the TL-R1220Sep-RP, data transmission loads can be balanced with multipath routing to achieve high availability. If one route fails, another transmission route can be used to access the data and ensure continuous system operations. The TL-R1220Sep-RP also features a redundant power supply to ensure system uptime.

Note: Multipath routing requires a host NAS with QTS 4.5.1 / QuTS hero h4.5.1 (or later).

---

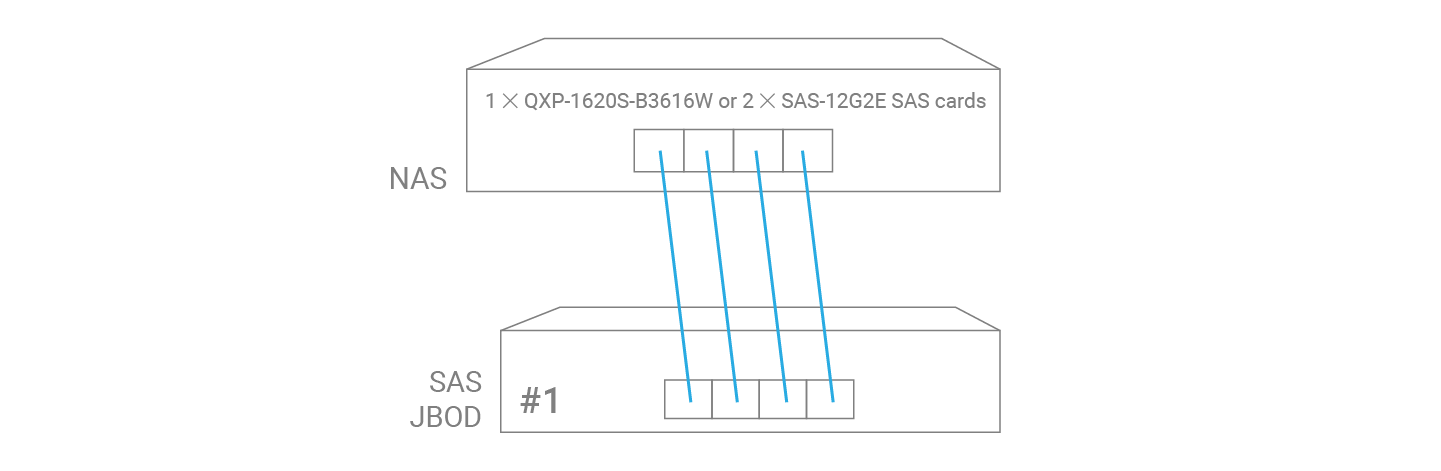

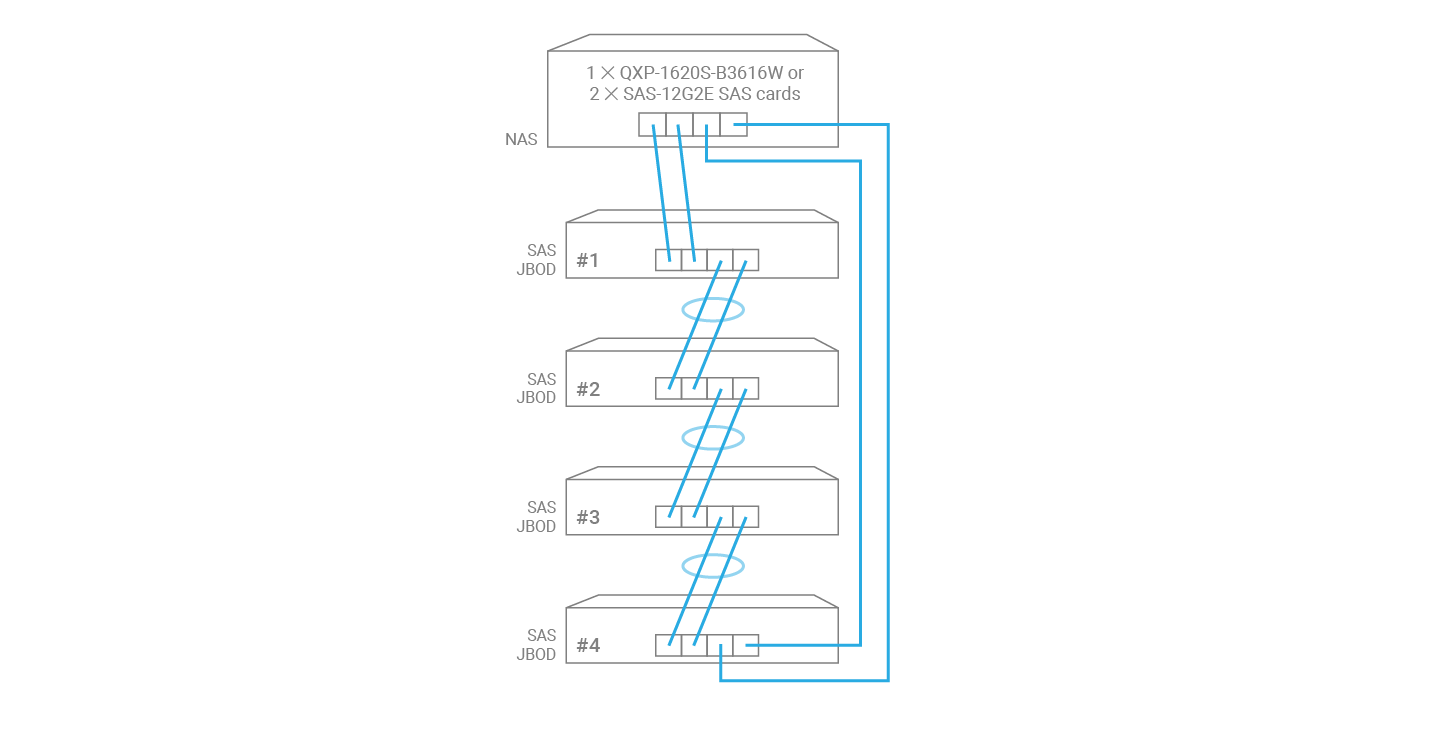

Flexible daisy chaining modes

By daisy-chaining your NAS to multiple TL SAS JBODs and REXP SAS JBODs, you can take advantage of multipath routing and link aggregation to benefit from higher transfer speeds and system availability.

High Storage Capacity

---

---

Speed up remote file transfers with JBOD migration

Moving many small files or a single large data file over a network can be time-consuming and negatively impact network performance. By setting up the RAID configuration on the TL-R1220Sep-RP, you can use it to move files to another computer or NAS. Simply save the files to the TL-R1220Sep-RP, connect it to the destination device, and then copy the files over.

Note: When using software RAID configuration, the TL-R1220Sep-RP migration only supports hosts that use the same operating system.

---

Extend hardware warranty up to 5 years

The TL-R1220Sep-RP is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.
