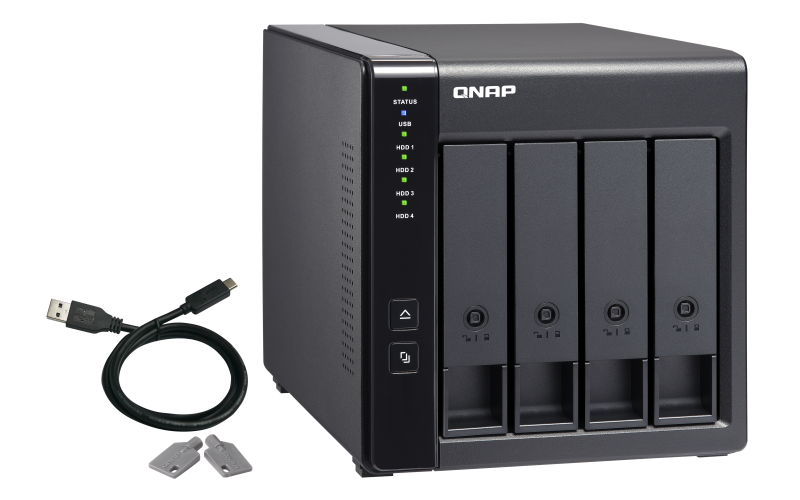

QNAP TR-004
4-bay USB 3.0 RAID Expansion Enclosure

QNAP TR-004

QNAP Products TR-004
Small Business Storage
QNAP TR-004 4-bay USB 3.0 type-C (5Gbps) hardware RAID enclosure/ DAS, supports 3.5" SATA HDD and 2.5" SATA SSD. Single, RAID 0/ 1/ 5/ 6/ 10 and JBOD. Expansion unit for QNAP NAS, Windows, Mac or Linux computers.
#TR-004-US
Our Price: $199.00

Create Your Ideal Bundle:

Click here to jump to more pricing!

Overview:

The TR-004 USB 3.0 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.0 Type-C connectivity to bring you a highly reliable and secure storage capacity expansion solution.

Effective storage expansion with RAID Support

The TR-004 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install larger, higher-capacity drives. Featuring four 3.5-inch SATA drive bays and supporting RAID configuration, the TR-004 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.

overview-1


Supports various RAID levels

The TR-004 supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.

overview-2

Individual Mode

Treats every disk as separate storage space, allowing you to independently access each one.

overview-2

JBOD Mode

All the disks are recognized as a single drive. This allows maximal storage utilization but provides no data protection.

overview-2

RAID 0 Mode

Data is split amongst the drives. RAID 0 provides the fastest performance but does not protect data from drive failure.

overview-2

RAID 1/10 Mode

Half of the total storage capacity is used to store data, and the other half keeps a copy of this data. This provides high data protection at the cost of only being able to use half the installed storage space.

overview-2

RAID 5 Mode

RAID 5 requires at least three drives to use and parity information is distributed among the drives, providing optimized storage capacity and protection against one disk failing.

overview-2

Software Ctrl Mode

Use this mode to control the RAID configuration from your NAS or computer.


RAID mode supported NAS expansion External storage for NAS External storage for Windows/Mac computer External storage for Linux computer
Software Ctrl Required to switch to Software Ctrl mode
Individual
JBOD
RAID 0/1/5/10
Multiple RAID


Flexible storage configuration and management

Compared with other RAID enclosures, the TR-004 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.

overview-2

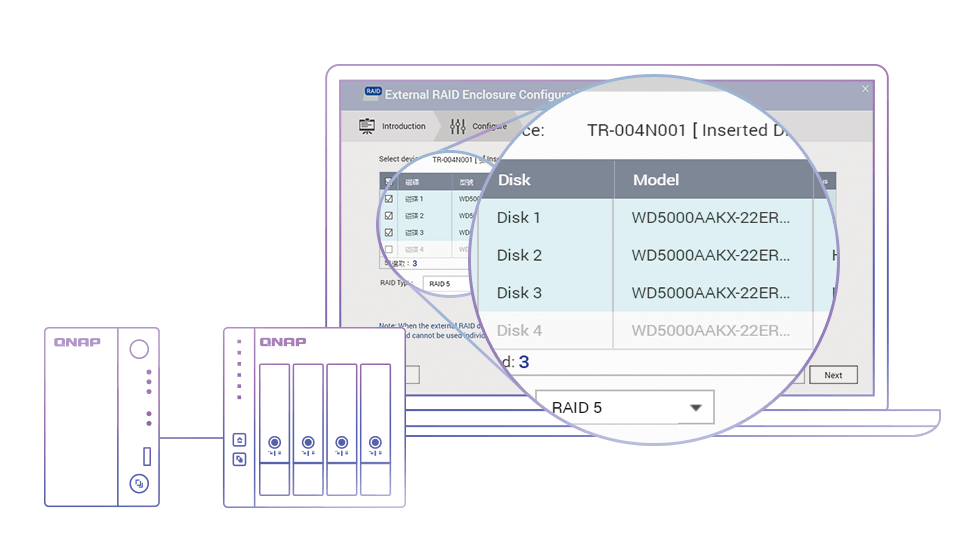

Use Storage & Snapshots Manager to configure the TR-004 as a storage expansion unit for your QNAP NAS. In addition to RAID configuration, the NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. By choosing external storage mode, you can use the TR-004 as a DAS.

overview-2

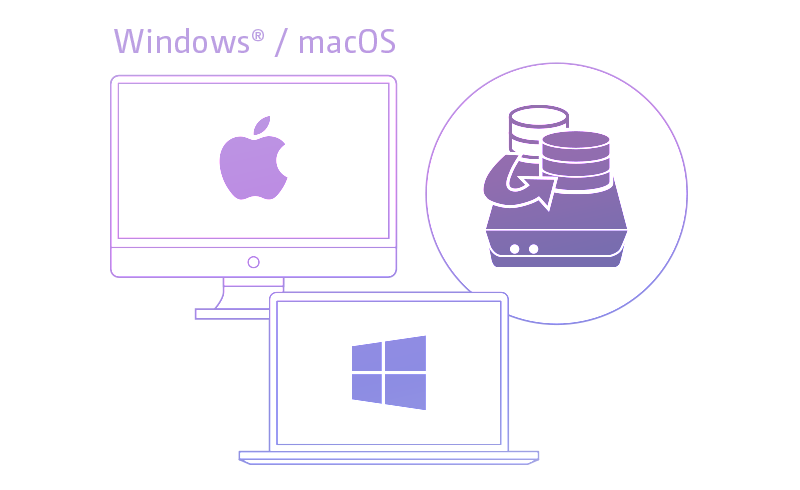

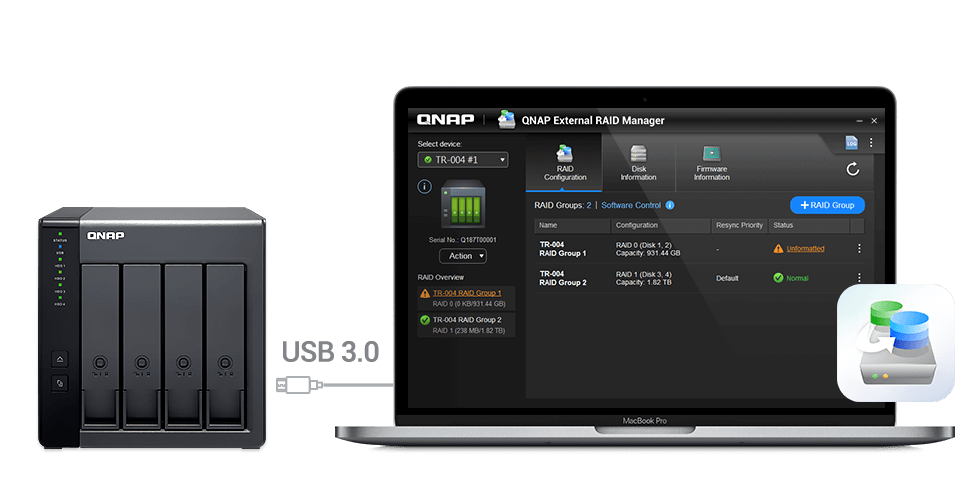

The QNAP External RAID Manager is a utility for Windows and Mac users to set up, monitor, and view the status of the TR-004. Users can easily configure RAID groups on the TR-004 and quickly obtain the status of RAID performance and health at a glance.



Scenario 1: Expand the capacity of your NAS

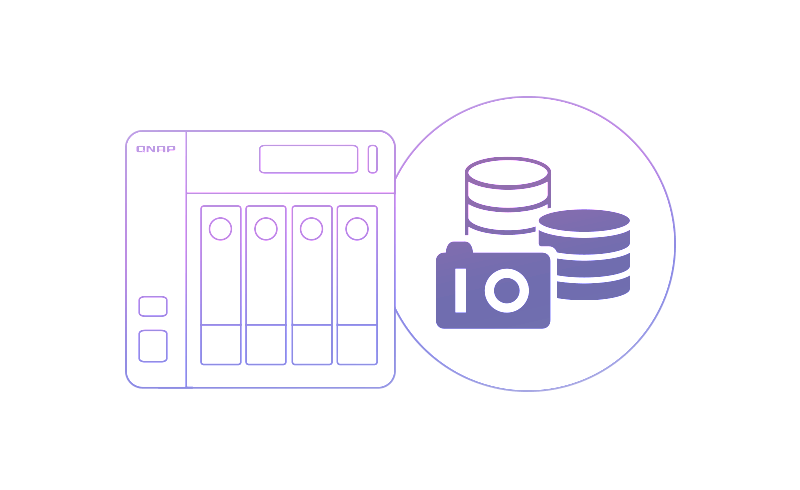

The TR-004 provides an alternative method for users to expand their NAS storage capacity. By connecting the TR-004 to their NAS and using the Storage & Snapshots Manager, users can easily configure and manage their storage expansion. The TR-004 supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, find files with Qsirch and organize files with Qfiling.

Function QNAP TR-004 UX-500P Other external RAID device
Connection Type USB 3.0 USB 3.0 By device
Drive bays 4 5 By device
Supported systems QNAP QTS, Windows, macOS, Linux etc... QNAP QTS QNAP QTS, Windows, macOS, Linux etc...
Disk health monitoring Supported (QNAP QTS, Windows, macOS) Supported Not Supported
External RAID protection Supported (QNAP QTS, Windows, macOS) Not Supported Supported
Create Storage Pool Supported (QNAP QTS, Windows, macOS) Supported Not Supported
RAID migration, replacing disk Not Supported Supported Not Supported

Note:

  1. The TR-004 does not support the following: the TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U, and NAS models that cannot be updated to QTS 4.3.6 (or later).
  2. The TR-004 can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TR-004.
  3. Drives can only be migrated from one TR-004 to another TR-004. The files and data stored on drives moved to/from a NAS (or another device) will not be recognized.



Scenario 2: External storage for your NAS

Instead of using the TR-004 to expand the capacity of your QNAP NAS, you can use it as a complimentary storage unit for backing up or moving data. It also allows you to physically migrate huge data collections that would require significant network bandwidth. While connected to the NAS, you can monitor the health and status of the TR-004 by using the Storage & Snapshots Manager on the NAS.

overview-2

overview-2

Scenario 3: Expand the storage space of your computer

The TR-004 can quickly add storage space to your computer. You can use the DIP switch to configure a hardware RAID mode or manage it by using the QNAP External RAID Manager utility. The health and status of the TR-004 can also be monitored by using the QNAP External RAID Manager utility.

Note: The QNAP External RAID Manager requires Windows 7 (or later) and macOS 10.11 (or later).

Scenario 4: Cross-platform file sharing

From your NAS to Windows, Mac, and Linux computers, the TR-004 is compatible with a wide range of devices. This makes it ideal for quickly moving large files between different devices. The TR-004 is even compatible with devices that use the exFAT file system*, adding further convenience for accessing and sharing files from a wider range of devices.

* To access devices that use the exFAT file system, users must purchase a separate exFAT driver license.

overview-2

Features:

USB 3.0 Type-C port for faster data transfer.

Supports up to four SATA drives for reliable read and write performance.

Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.

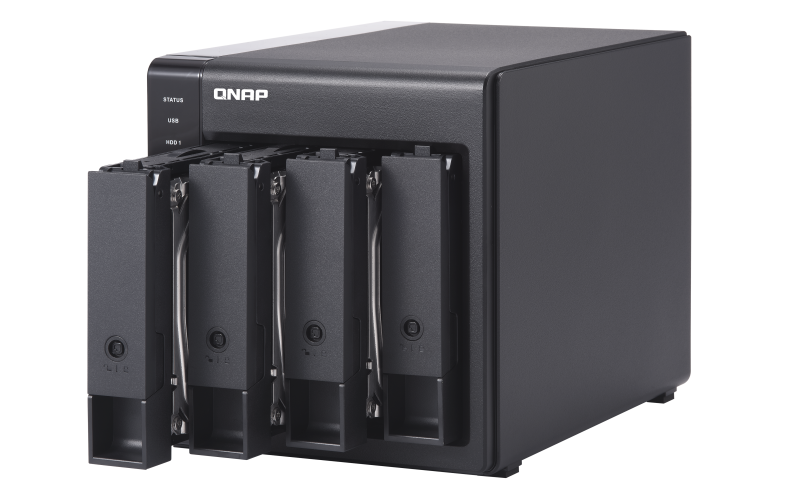

Lockable hard drive trays to prevent accidental drive removal.

Eject button for disconnecting the TR-004 from a NAS or computer*.
*Requires the QNAP External RAID Manager utility.

Instantly back up files from the TR-004 to the NAS using the One Touch Copy button**.
**Requires a QNAP NAS with a one touch copy button when in external drive mode. This feature will be supported in 2019 Q2.

Specifications:

Drive Bay 4 x 3.5-inch SATA 3Gb/s
Drive Compatibility • 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
• 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
• 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
Lockable with key lock Key lock
Hot-swappable
USB Port 1 x USB 3.0 Type-C
NOTE: This port is only for connecting the RAID enclosure to a NAS or computer.
Buttons • Eject
• Set
• One Touch Copy

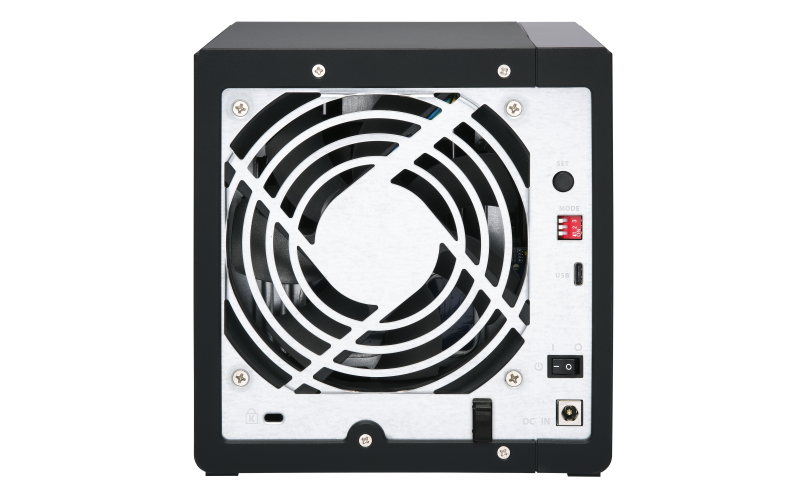

Switches • Power
• RAID modes: Software Ctrl, Individual, JBOD, RAID 0/1/5/10
Form Factor Tower
Dimensions (H x W x D) 168.5 x 160.2 x 219 mm
6.63 x 6.31 x 8.62 inch
Weight 1.85 kg (4.08 lbs)
Power Supply Unit 65W, 100-240V AC, 50/60 Hz
Power Consumption (W) HDD standby: 4.17 W
In operation: 18.21 W
(with 4 x 1TB HDDs)
Sound Level 18.1 db(A).
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Fan System: 1 x 12 cm, 12V DC smart fan
Security Slot Kensington security slot

Documentation:

Datasheet for QNAP TR-004 is coming soon.
