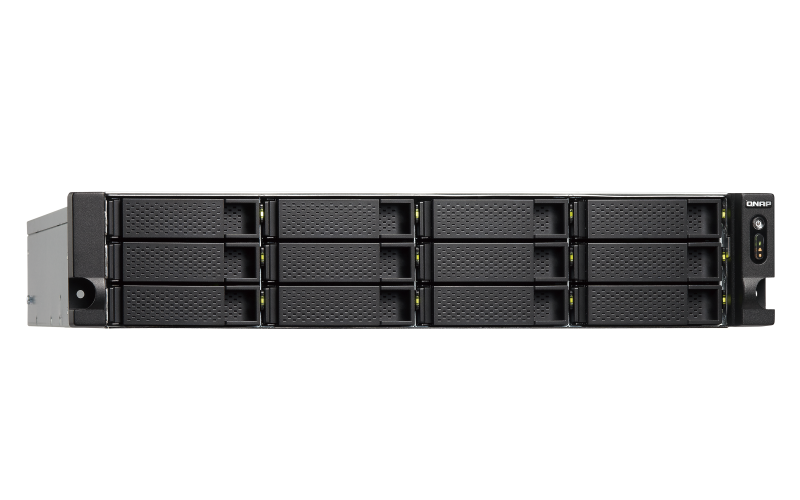

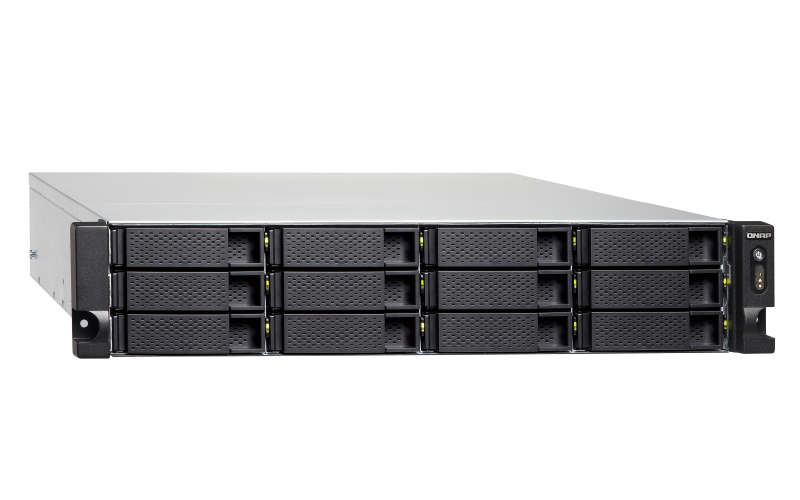

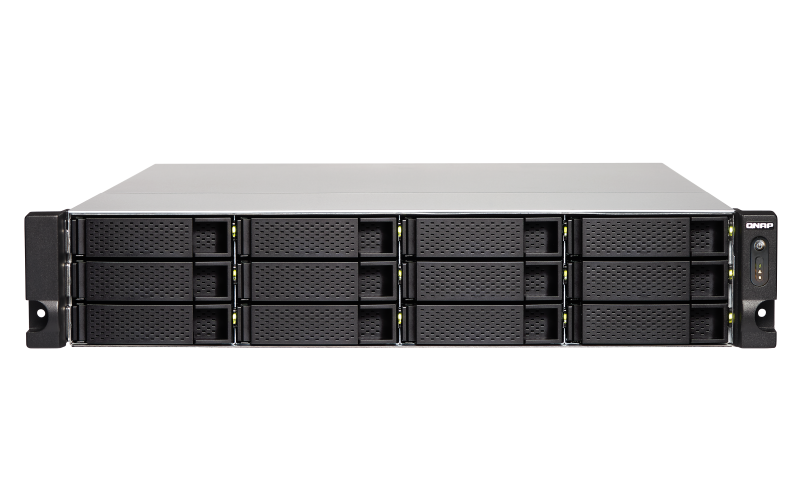

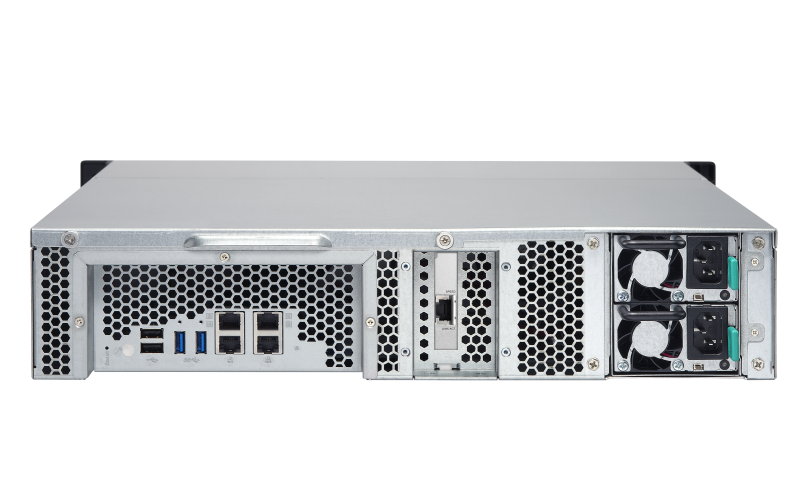

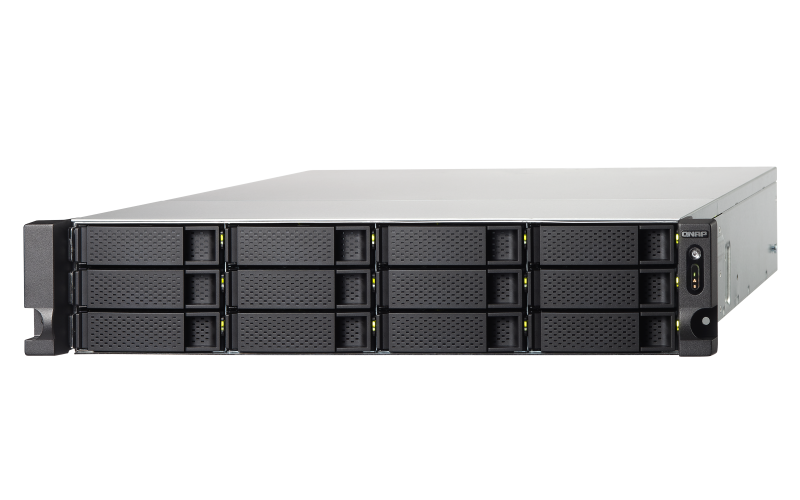

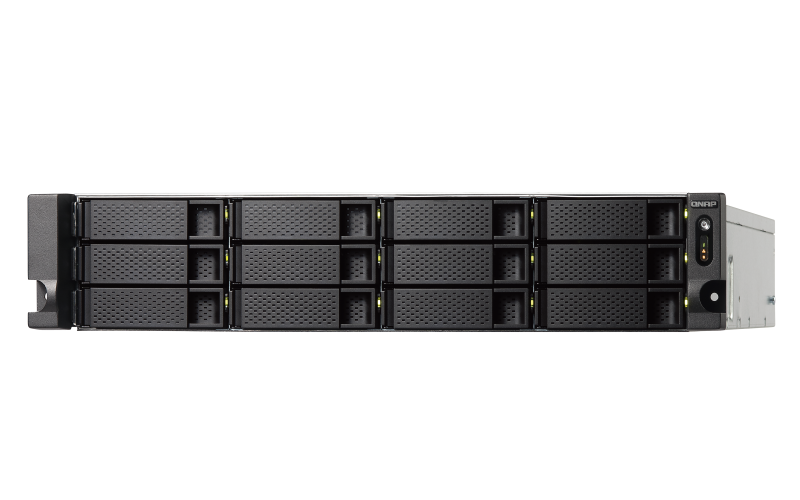

High-performance quad-core 10GbE NAS with redundant power supplies
Sorry, this product is no longer available, please contact us for a replacement.
The cost-efficient 10GbE-ready TS-1263XU-RP is powered by a high-performance AMD G-Series quad-core processor. Featuring native 10GbE connectivity that delivers high performance with persistent throughput, along with storage scalability, the TS-1263XU-RP is perfect for businesses that demand higher bandwidth for data centers and virtualization.
- 2 x Ethernet Cables
- 2 x Power Cords
- Flat Head Screw (for 3.5" HDD)
- Flat Head Screws (For 2.5" HDD)
- Quick Installation Guide (QIG)
High performance and AES-NI accelerated encryption
The TS-1263XU-RP is equipped with an energy-efficient 64-bit AMD G-Series GX-420MC quad-core 2.0 GHz processor with 4GB DDR3L RAM (upgradable to 16GB), one 10GbE 10GBASE-T port, four Gigabit Ethernet ports, and SSD caching support for excellent multi-tasking performance. With a hardware-accelerated AES-NI encryption, the TS-1263XU-RP also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS.

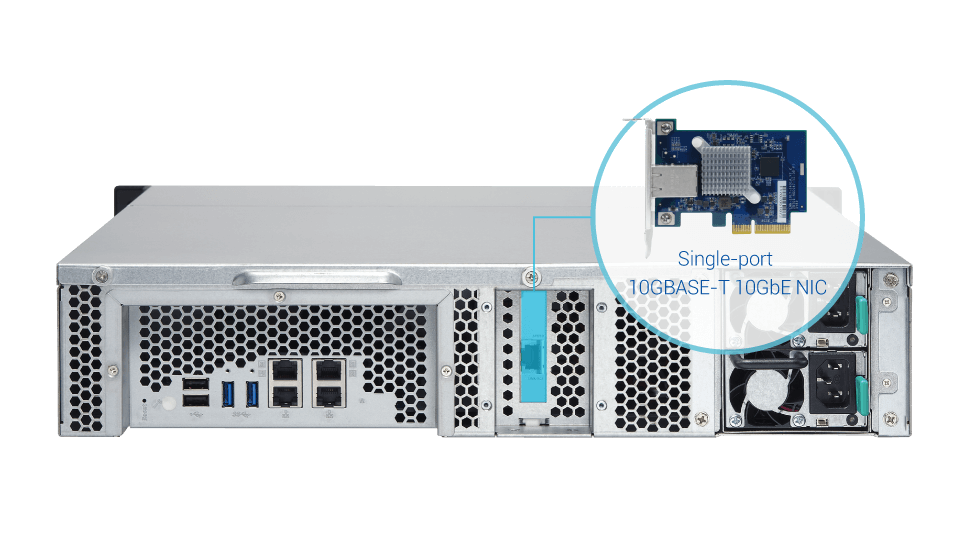

Integrated 10GbE 10GBASE-T connectivity
The TS-1263XU-RP comes with a pre-installed single-port 10GBASE-T Ethernet network adapter to fully support 10GbE high-speed networks. 10GbE networks deliver a major speed increase for virtualization tasks, fast backup & restoration, large-data applications, and also enable online video editing without needing the videos to be transferred between the NAS and workstations. Coupled with its large storage capacity potential, the TS-1263XU-RP is perfect for companies to store massive data and enjoy increased IT flexibility.

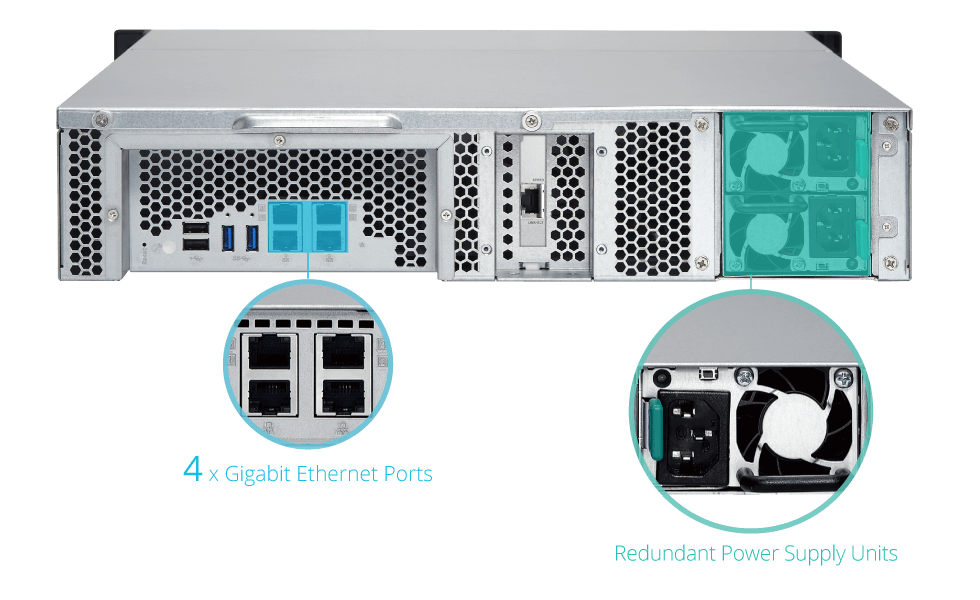

High reliability to ensure business continuity
The business-ready TS-1263XU-RP is designed to provide 24/7 operations and services. The support for comprehensive RAID configurations and hot-swapping allow for replacing hard drives without service interruption. QNAP's advanced RAID recovery technology also helps if any healthy drives are accidentally removed from a degraded RAID volume. The system can be recovered by reinserting the wrongly-removed hard drives so the data can still be accessed. The TS-1263XU-RP delivers high reliability and efficiency with quad 1GbE LAN support for multiple port-trunking modes including fail-over support. The TS-1263XU-RP also features a hot-swappable redundant power supply to ensure maximum system uptime.
SSD caching and auto tiering enable optimized storage efficiency
The TS-1263XU-RP supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-1263XU-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. The new Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Built-in single-port 10GbE 10GBASE-T NIC to accelerate virtualization and high-resolution video editing and sharing.
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
Snapshots fully record system status and data, and assist in quick data recovery and mitigating the threat of ransomware attacks.
Host containerized applications and virtual machines with various operating systems.
Secure private cloud supporting centralized storage, backup, sharing, and disaster recovery.
RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance.
Complete backup planning
Windows and Mac backup
Use the free QNAP NetBak Replicator utility to backup/restore Windows® files. Time Machine® is also supported for Mac® devices.
Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and its block-level operation makes it a dependable method for mitigating the growing threat of ransomware. The TS-1677X supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS.
With potentially huge storage capacities, high performance, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-1677X is perfect for backing up virtual machines.
|CPU||AMD G-Series GX-420MC quad-core 2.0 GHz|
|System Memory||4 GB DDR3L (1 x 4 GB)|
|Maximum Memory||16 GB (2 x 8 GB)|
|Memory Slot||2 x SO-DIMM DDR3L
(For dual-DIMM configurations, you must use a pair of identical DDR3L modules.)
|Flash Memory||512MB DOM|
|Drive Bay||12 x 3.5-inch SATA 6 Gbps bays|
|Drive Compatibility||• 3.5-inch SATA 6Gb/s HDD
• 2.5-inch SATA 6Gb/s HDD
• 2.5-inch SATA 6Gb/s SSD
|SSD Cache Acceleration Support||Drive bays 1 to 12|
|10 Gigabit Ethernet Port||1 x RJ45 10GBASE-T via a pre-installed PCIe network card, supporting 10G/5G/2.5G/1G/100M speeds
Note: Please use Cat 6a or Cat 7 LAN cables to achieve 10GbE speed over longer distance (not included).
|Gigabit Ethernet Port||4 x RJ45|
|PCIe Slot||1 x PCIe 2.0 x4 (preinstalled with a single-port 10GBASE-T network card)|
|USB Port||2 x USB 3.0
2 x USB 2.0
|LED Indicators||HDD 1-12, Status, USB, LAN|
|System Warning||Voice prompts|
|Form Factor||2U rackmount|
|Dimensions (H x W x D)||89 x 482 x 534 mm
3.5 x 18.98 x 21.02 inch
|Weight||Net weight: 13.10 kg (28.88 lbs)
Gross weight: 15.22 kg (33.55 lbs)
|Power Consumption (W)||HDD Sleep Mode: 57.15 (w/ 10GbE NIC)
In Operation: 143.17 (w/ 10GbE NIC)
|Sound Level||Sound pressure (LpAm) : 39.2 dB(A)|
|Power Supply Unit||2 x 300W,100-240V|
|Fan||2 x 7cm smart fan (12V DC)|
|Operating Temperature & Relative Humidity||0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)|
|Security Slot||Kensington security slot|
Download the QNAP TS-1263XU-RP Specification Sheet (PDF).
