QNAP TS-1273U-RP
High-performance quad-core NAS with dual 10GbE SFP+ ports and redundant power supplies
Sorry, this product is no longer available, Please contact us for a replacement.
Click here to jump to accessories pricing!
Overview:
Powered by a high-performance AMD R-Series quad-core processor with up to 64GB DDR4 RAM, the TS-1273U-RP features dual 10GbE SFP+ ports and provides two M.2 SATA 6Gb/s SSD slots that allows the greatest flexibility in tiered storage configuration and enables cache acceleration. This powerful hardware can also double the encrypted file transfer performance with AES-NI encryption acceleration. The TS-1273U-RP is designed for small and medium-sized businesses looking for private cloud, cross-platform file sharing and collaboration, efficient backup/restoration, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks with maximized ROI.
Package Content
- Turbo NAS TS-1273U-RP SAN/NAS Storage System
- 2 x Ethernet Cables
- 2 x Power Cords
- 48 x Flat Head Screws (for 3.5" HDD)
- 36 x Flat Head Screws (for 2.5" HDD)
- M.2 SSD Installation Kit
- Quick Installation Guide (QIG)
- 2 x M.2 SSD Heatsink
- NAS and iSCSI-SAN unified storage solution
- Built-in 10GbE SFP+ ports, highly-efficient storage solution for virtualization and on-the-fly media editing & sharing

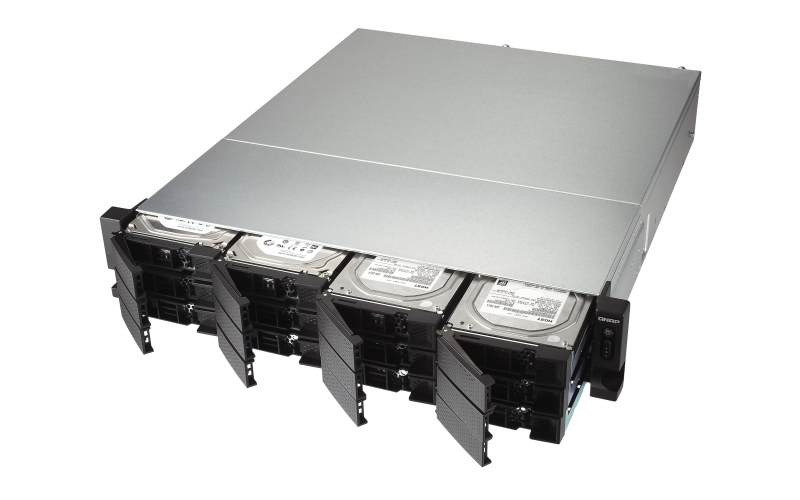

- Hot-swappable redundant power supplies ensures maximum system uptime
- Supports virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery
- Secure access with VPN Server & VPN Client
- Qfiling enables automatic file organization, Qsirch provides full-text file searching, and QmailAgent simplifies managing multiple email accounts
- The new QVR Pro allows dedicated storage space for surveillance data in the NAS, and leverages the advantages of storage manageability from QTS
- Expandable storage capacity by using QNAP expansion enclosures or VJBOD (Virtual JBOD)
Specifications:
| TS-1273U-RP Hardware Specifications | |||
|---|---|---|---|
| Ordering Information | TS-1273U-RP-64G | TS-1273U-RP-16G | TS-1273U-RP-8G |
| CPU | AMD R-Series RX-421ND quad-core 2.1 GHz processor, turbo core up to 3.4 GHz | ||
| Hardware Encryption Engine | Yes, AES-NI | ||
| System Memory | 64GB DDR4 (4 x 16GB) | 16GB DDR4 (2 x 8GB) | 8GB DDR4 (2 x 4GB) |
| Maximum Memory | 64GB (4 x 16GB) | ||
| Memory Slot | 4 x UDIMM DDR4 (For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.) |
||
| Flash Memory | 512MB DOM | ||
| Drive | 12 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs | ||
| M.2 SSD Slot | 2 x M.2 2280 SATA 6Gb/s SSDs | ||
| 10Gigabit LAN Port | 2 x 10GbE SFP+ port via a preinstalled PCIe network card | ||
| Gigabit LAN Port | 4 x Gigabit RJ45 LAN ports | ||
| PCIe Slot | 1 x PCIe Gen 3 (x4), pre-installed with a dual-port 10GbE SFP+ LAN card | ||
| USB Port | 2 x USB 3.0 port 4 x USB 2.0 port |
||
| LED Indicator | Status/Power，LAN，USB, Drive 1 - 12 | ||
| Button | Power/Status, Reset | ||
| Maintenance Port | 1 x 3.5mm console port | ||
| Form Factor | 2U Rackmunt | ||
| Dimension (H x W X D) | 89 x 482 x 534 mm 3.5 x 18.98 x 21.02 inch |
||
| Net Weight | 11.81 kg (26.04 lbs.) | 11.78 kg (25.97 lbs.) | 11.78 kg (25.97 lbs.) |
| Operating temperature & Relative Humidity | 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C | ||
| Power Suply | 300W (x2), 100-240V AC, 50/60 Hz | ||
| Fan | 2 x 70mm, 12V DC | ||
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.
Documentation:
Download the QNAP TS-x73U Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
Accessories
TS-1273U-RP Accessories
Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4)
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled, shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled, shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3
#QM2-2P-244A
Our Price: $89.00
Our Price: $89.00
Dual M.2 PCIe SSD expansion card
Supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-2P-344
Our Price: $119.00
Our Price: $119.00
Dual M.2 PCIe SSD expansion card
Supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-2P-384
Our Price: $149.00
Our Price: $149.00
Dual M.2 22110/2280 SATA SSD expansion card (PCIe Gen2 x2)
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
*shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
*shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3
#QM2-2S-220A
Our Price: $69.00
Our Price: $69.00
Quad M.2 PCIe SSD expansion card
Supports up to four M.2 2280 formfactor M.2 PCIe (Gen2 x4) SSDs; PCIe Gen2 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Supports up to four M.2 2280 formfactor M.2 PCIe (Gen2 x4) SSDs; PCIe Gen2 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-4P-284
Our Price: $129.00
Our Price: $129.00
Quad M.2 PCIe SSD expansion card
Supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-4P-384
Our Price: $169.00
Our Price: $169.00
Quad M.2 2280 SATA SSD expansion card
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QM2-4S-240
Our Price: $109.00
Our Price: $109.00
QNAP Dual-port 10Gbase-T network expansion card for tower and rackmount models, desktop brackets
#LAN-10G2T-X550
Our Price: $359.00
Our Price: $359.00
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height bracksts are included
All QNAP NAS models with a PCIe slot, works for Windows/Linux PC (please download driver from Aquantia)
All QNAP NAS models with a PCIe slot, works for Windows/Linux PC (please download driver from Aquantia)
#QXG-10G1T
Our Price: $109.00
Our Price: $109.00
Dual-port SFP+ 10GbE network expansion card; low-profile formfactor; PCIe Gen3 x8
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
#QXG-10G2SF-CX4
Our Price: $199.00
Our Price: $199.00
Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen2 x4
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
#QXG-10G2T-107
Our Price: $179.00
Our Price: $179.00
Dual-Port 16G Fibre Channel Host Bus Adapter, 2 x transceivers are included
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QXP-16G2FC
Our Price: $999.00
Our Price: $999.00
Dual-Port 32G Fibre Channel Host Bus Adapter, 2 x transceivers are included
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#QXP-32G2FC
Our Price: $1,499.00
Our Price: $1,499.00
Mellanox MFM1T02A-SR SFP+ Optical Module for 10GBASE-SR
For use with SFP+ 10GbE (except x85U and 16489U)
For use with SFP+ 10GbE (except x85U and 16489U)
#TRX-10GSFP-SR-MLX
Our Price: $119.00
Our Price: $119.00
Dual-wide-port storage expansion card, SAS 12Gbps
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
Check NAS compatibility list: https://www.qnap.com/en-us/compatibility/
#SAS-12G2E
Our Price: $429.00
Our Price: $429.00
QNAP 16GB DDR4 RAM, 2400 MHz, U-DIMM, 288-Pin
#RAM-16GDR4A0-UD-2400
Our Price: $260.00
Our Price: $260.00
QNAP 4GB DDR4 RAM, 2400 MHz, U-DIMM, 288-Pin
#RAM-4GDR4A0-UD-2400
Our Price: $100.00
Our Price: $100.00
QNAP 8GB DDR4 RAM, 2400 MHz, U-DIMM, 288-Pin
#RAM-8GDR4A0-UD-2400
Our Price: $180.00
Our Price: $180.00
Rail Kit For Rackmount Models
#RAIL-B02
Our Price: $99.00
Our Price: $99.00
SFP+ 10GbE twinaxial direct attach cable, 1.5M
For use with SFP+ 10GbE NIC
For use with SFP+ 10GbE NIC
#CAB-DAC15M-SFPP-DEC02
Our Price: $69.00
Our Price: $69.00
SFP+ 10GbE twinaxial direct attach cable, 3.0M
For use with SFP+ 10GbE NIC
For use with SFP+ 10GbE NIC
#CAB-DAC30M-SFPP-DEC02
Our Price: $79.00
Our Price: $79.00
SFP+ 10GbE twinaxial direct attach cable, 5.0M
For use with SFP+ 10GbE (except x85U and ARM Models)
For use with SFP+ 10GbE (except x85U and ARM Models)
#CAB-DAC50M-SFPP-DEC02
Our Price: $99.00
Our Price: $99.00
