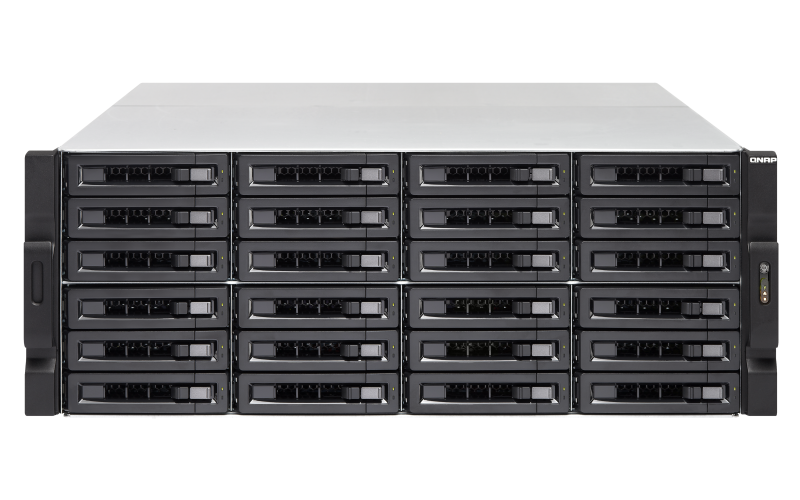

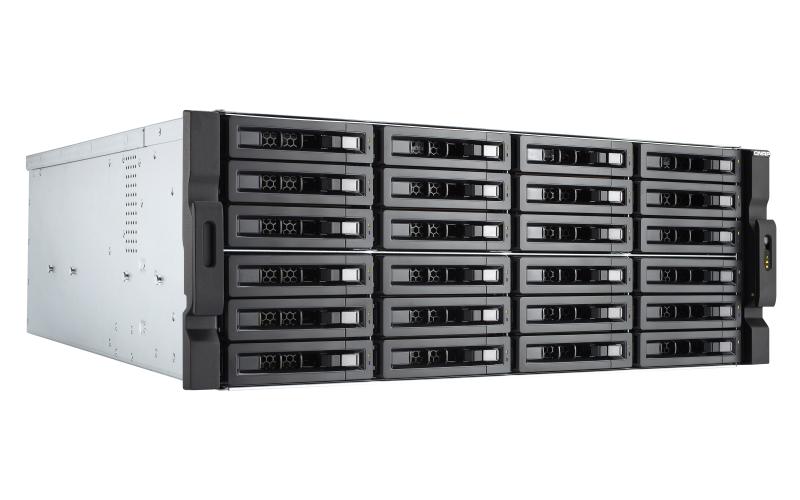

QNAP TS-2477XU-RP
Ryzen™-based rackmount NAS with up to 8 cores/16 threads and integrated dual 10GbE SFP+ ports to optimize system performance

QNAP TS-2477XU-RP

QNAP Products TS-2477XU-RP
Small Business Storage
QNAP TS-2477XU-RP AMD Ryzen™ 7 2700 8 cores/16 threads 3.2 GHz processor (Turbo Core 4.1 GHz), (16GB RAM)
#TS-2477XU-RP-2700-16G-US
List Price: $5,899.00
Our Price: $5,824.00
QNAP TS-2477XU-RP AMD Ryzen™ 5 2600 6 cores/12 threads 3.4 GHz processor (Turbo Core 3.9 GHz), (8GB RAM)
#TS-2477XU-RP-2600-8G-US
List Price: $5,399.00
Our Price: $5,324.00

Create Your Ideal Bundle:

Click here to jump to more pricing!

Overview:

Powered by AMD’s powerful Ryzen™ processor, the TS-2477XU-RP is capable of boosting virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.1 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-2477XU-RP. The TS-2477XU-RP also features a redundant power supply to ensure maximum system uptime.

Package Content

  • TS-2477XU-RP-2600-8G SAN/NAS Storage System
  • 2 x Ethernet Cables
  • 2 x Power Cords
  • 96 x Flat Head Screws (for 3.5" HDD)
  • 96 x Flat Head Screws (for 2.5" HDD)
  • Quick Installation Guide (QIG)

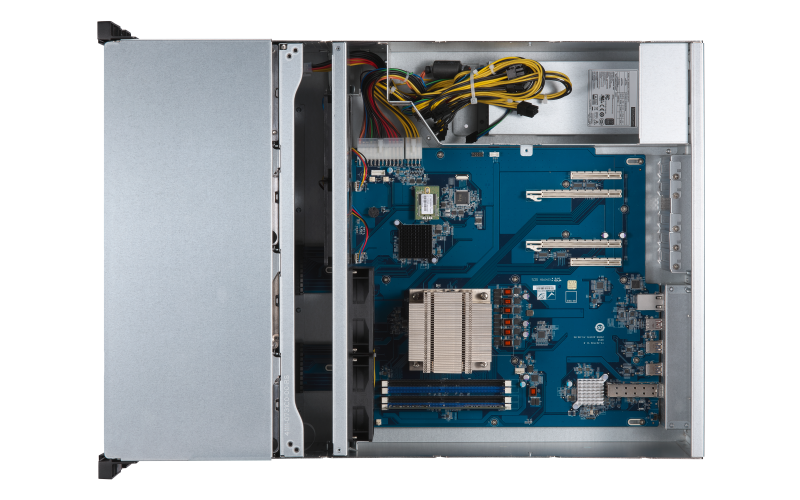

Top-class hardware engineering with high I/O expandability

The hardware design of the TS-2477XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

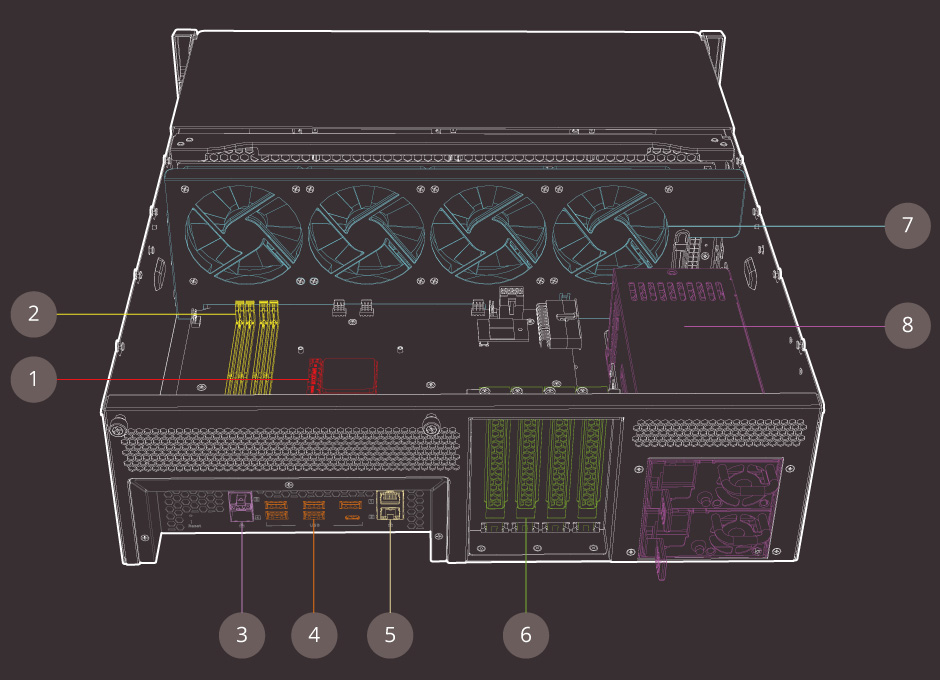

overview-1
  1. Multi-core AMD Ryzen™ processor
  2. DDR4 2400 MHz memory
  3. 2 x 10GbE SFP+ ports
  4. USB 3.0/ 3.1 ports
  5. 2 x Gigabit Ethernet ports
  6. 4 x PCIe expansion slots
  7. 4 x 9.2cm System fans
  8. 2 x 800W Power Supply Units


Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance AMD Ryzen™ 7 2700, AMD Ryzen™ 5 2600 or AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-2477XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-2477XU-RP.


overview-2

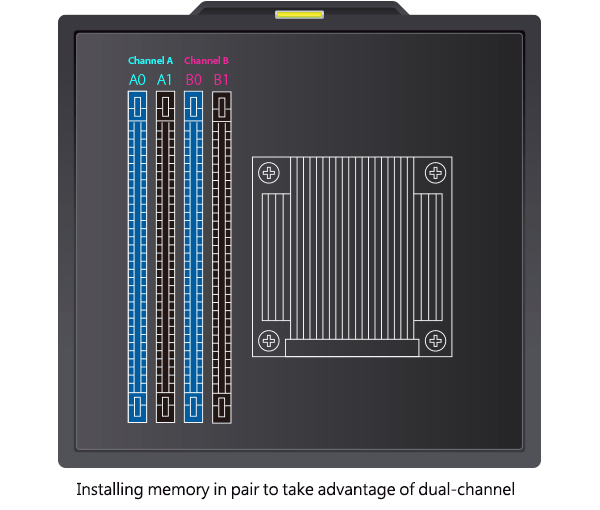

Dual-channel Memory to deliver power-smart performance

The TS-2477XU-RP supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-2477XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-2477XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.



Extend NAS functionality with PCIe slots

The TS-2477XU-RP features four PCIe slots* that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.


overview-3

10GbE/ 40GbE adapters

Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.

overview-4

QM2 card with M.2 SSD/10GbE support

Install QNAP's innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

overview-5

Wireless network cards

Install QNAP's wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

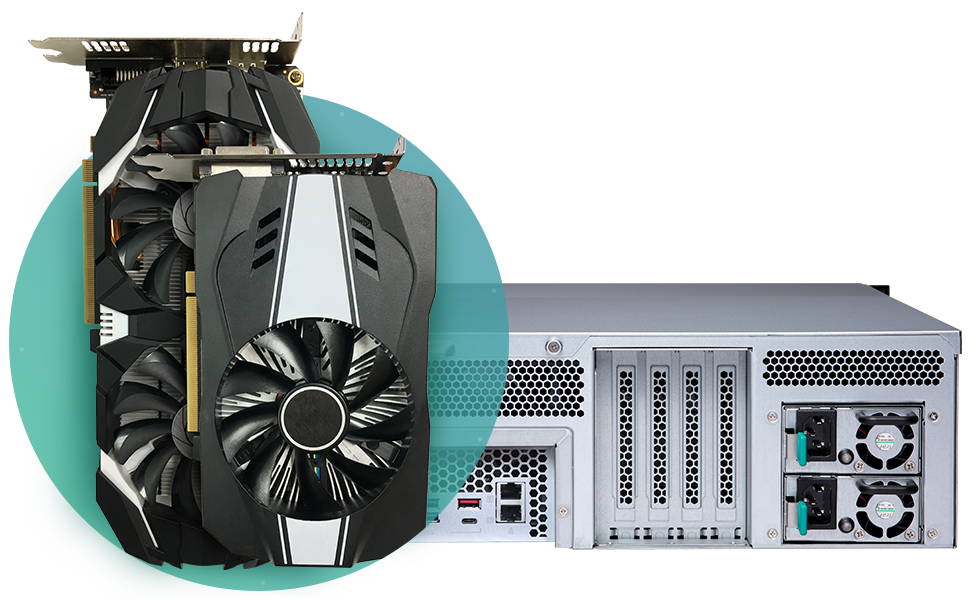

Fuel GPU-accelerated computing with a 800W power supply

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power compared to other hardware. The TS-2477XU-RP offers PCIe slots to support an AMD Radeon™ or NVIDIA® graphics card and features a 500 watt power supply that provides a 8-pin (6+2) power connector and a 6-pin power connector to power a graphics card for boosting imaging processing in QTS and performance of virtual machines via GPU passthrough.

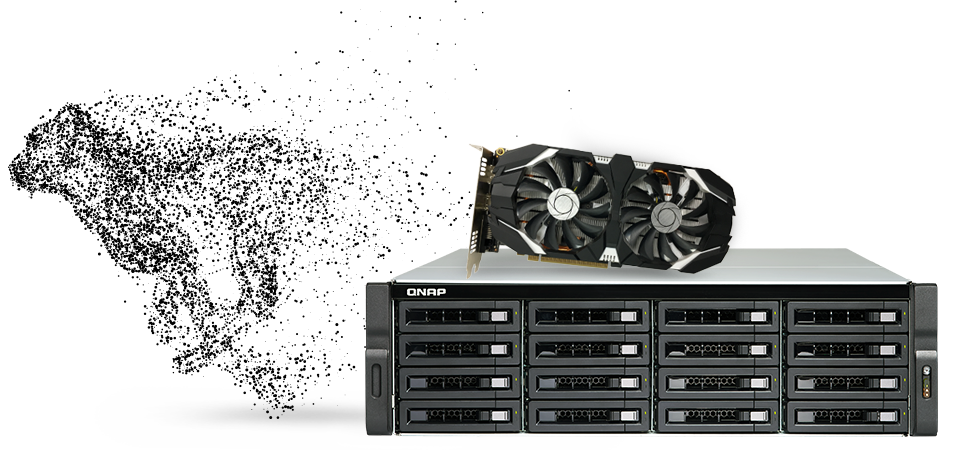

overview-6

overview-6

Run multiple graphics cards in your TS-2477XU-RP to unleash greater potential

Featuring four PCIe slots, the TS-2477XU-RP allows you to insert up to two high-end graphics cards that work cooperatively to deliver incredible computing performance over a single graphics card. It helps lead to greater potential for accelerating NAS video processing and GPU computing, empowering data-intensive AI machine learning, and realizing GPU-passthrough to VMs.



Features:

Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 Gen 2 (10Gbps) cards, or wireless network cards.

Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.

Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance

Specifications:

CPU AMD Ryzen™ 7 2700 8-core/16-thread 3.2 GHz processor, Turbo Core 4.1 GHz
Architecture: 64-bit
Graphics: Optional (with PCIe expansion card)
Encryption Engine: AES-NI
System Memory 16 GB DDR4 (2 x 8 GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x Long-DIMM slots
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)

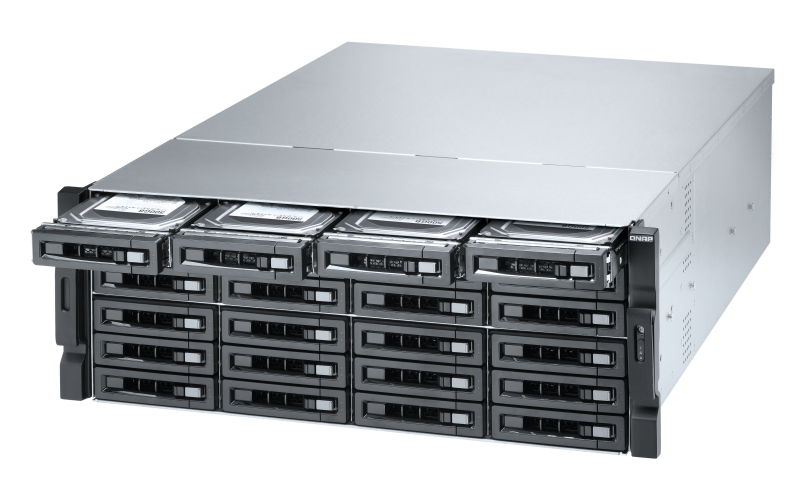

Drive Bay 24 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility 3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

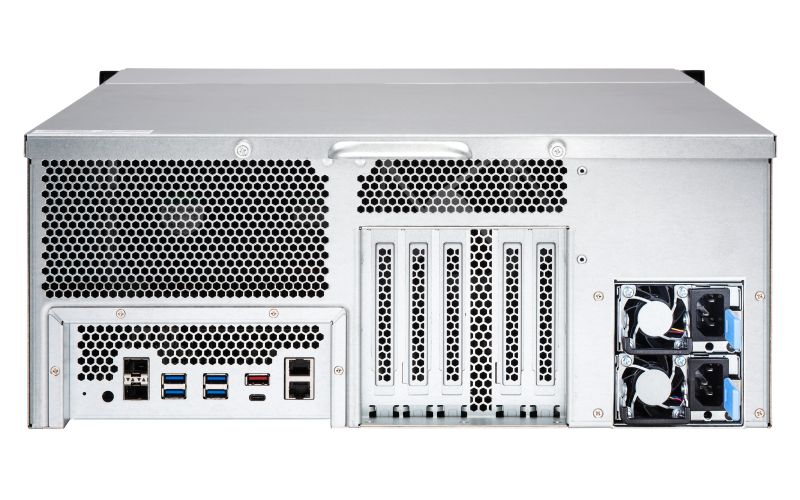

10 Gigabit Ethernet Port 2 x 10GbE SFP+ ports
Gigabit Ethernet Port 2 x RJ45
USB Port 2 x USB 3.1 Gen 2 (10 Gbps)
• 1 x USB 3.1 Gen 2 (10 Gbps) Type-C
• 1 x USB 3.1 Gen 2 (10 Gbps) Type-A

4 x USB 3.0 Type-A
PCIe Slot Slot 1: Gen3 x4
Slot 2: Gen3 x8 (if Slot 1 is occupied, then the speed becomes Gen3 x4)
Slot 3: Gen3 x8 (if Slot 4 is occupied, then the speed becomes Gen3 x4)
Slot 4: Gen3 x4
HDMI Output Optional: With PCIe expansion card
Form Factor 4U Rackmount
Dimensions (H x W x D) 176.15 x 481.04 x 672.02 mm
Power Supply Unit 800W x 2, 100-240V AC, 50/60Hz
Fan 4 x 9.2cm fan (12V DC)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Net Weight 22.66 kg
Power Consumption (W) In operation: 143.97 W
Sound Level 27.5 dB(A)
CPU AMD Ryzen™ 5 2600 6-core/12-thread 3.4 GHz processor, Turbo Core 3.9 GHz
Architecture: 64-bit
Graphics: Optional (with PCIe expansion card)
Encryption Engine: AES-NI
System Memory 8 GB DDR4 (1 x 8 GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x Long-DIMM slots
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Drive Bay 24 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility 3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives
10 Gigabit Ethernet Port 2 x 10GbE SFP+ ports
Gigabit Ethernet Port 2 x RJ45
USB Port 2 x USB 3.1 Gen 2 (10 Gbps)
• 1 x USB 3.1 Gen 2 (10 Gbps) Type-C
• 1 x USB 3.1 Gen 2 (10 Gbps) Type-A

4 x USB 3.0 Type-A
PCIe Slot Slot 1: Gen3 x4
Slot 2: Gen3 x8 (if Slot 1 is occupied, then the speed becomes Gen3 x4)
Slot 3: Gen3 x8 (if Slot 4 is occupied, then the speed becomes Gen3 x4)
Slot 4: Gen3 x4
HDMI Output Optional: With PCIe expansion card
Form Factor 4U Rackmount
Dimensions (H x W x D) 176.15 x 481.04 x 672.02 mm
Power Supply Unit 800W x 2, 100-240V AC, 50/60Hz
Fan 4 x 9.2cm fan (12V DC)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Net Weight 22.66 kg
Power Consumption (W) In operation: 143.97 W
Sound Level 27.5 dB(A)

Documentation:

Datasheet for QNAP TS-2477XU-RP is coming soon.

Pricing Notes:


Small Business Storage
QNAP TS-2477XU-RP AMD Ryzen™ 7 2700 8 cores/16 threads 3.2 GHz processor (Turbo Core 4.1 GHz), (16GB RAM)
#TS-2477XU-RP-2700-16G-US
List Price: $5,899.00
Our Price: $5,824.00
QNAP TS-2477XU-RP AMD Ryzen™ 5 2600 6 cores/12 threads 3.4 GHz processor (Turbo Core 3.9 GHz), (8GB RAM)
#TS-2477XU-RP-2600-8G-US
List Price: $5,399.00
Our Price: $5,324.00
TS-2477XU-RP Accessories
Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4)
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled, shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3
#QM2-2P-244A
Our Price: $129.00
Dual M.2 PCIe SSD expansion card
Supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-2P-344
Our Price: $199.00
Dual M.2 PCIe SSD expansion card
Supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-2P-384
Our Price: $219.00
Dual M.2 22110/2280 SATA SSD expansion card (PCIe Gen2 x2)
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
*shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3
#QM2-2S-220A
Our Price: $239.00
Quad M.2 2280 PCIe NVMe SSD expansion card
Supports up to four M.2 2280 formfactor M.2 PCIe (Gen2 x4) SSDs; PCIe Gen2 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-4P-284
Our Price: $189.00
Quad M.2 PCIe SSD expansion card
Supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-4P-384
Our Price: $269.00
Quad M.2 2280 SATA SSD expansion card
Supports up to four M.2 2280 formfactor M.2 SATA SSDs; PCIe Gen2 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
#QM2-4S-240
Our Price: $169.00
QNAP Dual-port 10Gbase-T network expansion card for tower and rackmount models, desktop brackets
#LAN-10G2T-X550
Our Price: $359.00
Dual-port 1GbE network expansion card
All NAS models with a PCIe slot
#LAN-1G2T-I210
Our Price: $99.00
QNAP Dual-port 40GbE QSFP+ network expansion card
Brackets for rackmount,tower and full height models are included
#LAN-40G2SF-MLX
Our Price: $499.00
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height bracksts are included
All QNAP NAS models with a PCIe slot, works for Windows/Linux PC (please download driver from Aquantia)
#QXG-10G1T
Our Price: $89.00
Dual-port SFP+ 10GbE network expansion card; low-profile formfactor; PCIe Gen3 x8
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
#QXG-10G2SF-CX4
Our Price: $239.00
Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen2 x4
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
#QXG-10G2T-107
Our Price: $179.00
Dual-port SFP28 25GbE network expansion card; low-profile formfactor; PCIe Gen3 x8
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
#QXG-25G2SF-CX4
Our Price: $259.00
Dual-Port 16G Fibre Channel Host Bus Adapter, 2 x transceivers are included
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
#QXP-16G2FC
Our Price: 1,099.00
Dual-Port 32G Fibre Channel Host Bus Adapter, 2 x transceivers are included
Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
#QXP-32G2FC
Our Price: 1,699.00
Mellanox MFM1T02A-SR SFP+ Optical Module for 10GBASE-SR
For use with SFP+ 10GbE (except x85U and 16489U)
#TRX-10GSFP-SR-MLX
Our Price: $119.00
Dual-wide-port storage expansion card, SAS 12Gbps
Brackets for rackmount,tower and full height models are included.
#SAS-12G2E
Our Price: $399.00
16GB DDR4 RAM, 2400 MHz, UDIMM
#RAM-16GDR4A1-UD-2400
Our Price: $260.00
4GB DDR4 RAM, 2400 MHz, UDIMM
#RAM-4GDR4A1-UD-2400
Our Price: $100.00
8GB DDR4 RAM, 2400 MHz, UDIMM
#RAM-8GDR4A1-UD-2400
Our Price: $180.00
Rail Kit for TS-EC2480U-RP rackmount models
#RAIL-A02-90
Our Price: $169.00
SFP+ 10GbE twinaxial direct attach cable, 1.5M
For use with SFP+ 10GbE NIC
#CAB-DAC15M-SFPP-DEC02
Our Price: $69.00
SFP+ 10GbE twinaxial direct attach cable, 3.0M
For use with SFP+ 10GbE NIC
#CAB-DAC30M-SFPP-DEC02
Our Price: $79.00
SFP+ 10GbE twinaxial direct attach cable, 5.0M
For use with SFP+ 10GbE NIC
#CAB-DAC50M-SFPP-DEC02
Our Price: $99.00
QSFP+ 40GbE twinaxial direct attach cable, 3.0M
40GbE NIC supported NAS
#CAB-NIC40G30M-QSFP
Our Price: $110.00
Mini SAS 12G cable (SFF-8644), 0.5m
ES/EJ series, TVS-ECx80U-SAS series, REXP-x20U series
#CAB-SAS05M-8644
Our Price: $69.00
Mini SAS 12G cable (SFF-8644), 1.0m
ES/EJ series, TVS-ECx80U-SAS series, REXP-x20U series
#CAB-SAS10M-8644
Our Price: $99.00
Mini SAS cable (SFF-8644), 2.0m
ES/EJ series, TVS-ECx80U-SAS series, REXP-x20U series
#CAB-SAS20M-8644
Our Price: $109.00
Mini SAS cable (SFF-8644), 3.0m
ES/EJ series, TVS-ECx80U-SAS series, REXP-x20U series
#CAB-SAS30M-8644
Our Price: $119.00
