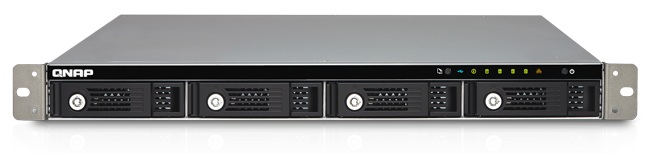

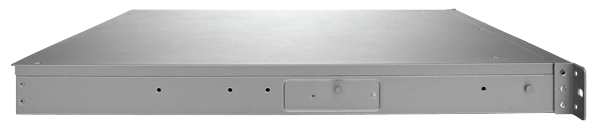

QNAP TS-431U
Affordable Rack-optimized NAS with Business-class Features

Overview:

The 4-bay TS-431U offers the optimal price/performance in a compact 1U chassis network storage server for file sharing, backup, synchronization, remote access, and more. Powered by an advanced ARM® Cortex®-A9 dual-core processor and 1GB RAM, the TS-431U delivers outstanding multitasking performance as a business NAS featuring four USB 3.0 and dual Gigabit LAN ports while maintaining low power consumption for 24/7 always-on usage. See how the TS-431U can enhance your working productivity & offers a private cloud for accessing data easily and securely.

• Organize & manage files and backup tasks in one centralized location
• Full NAS encryption by volume-based technology and hardware acceleration
• Synchronize files between computers, laptops, and mobile devices
• Create a 24/7 surveillance center for business environment
• Build a private cloud-based notebook to share with group members with the Notes Station and Qnotes mobile app
• Stream multimedia library via DLNA, AirPlay & Chromecast and watch on TV

Dual-core processor delivers high performance

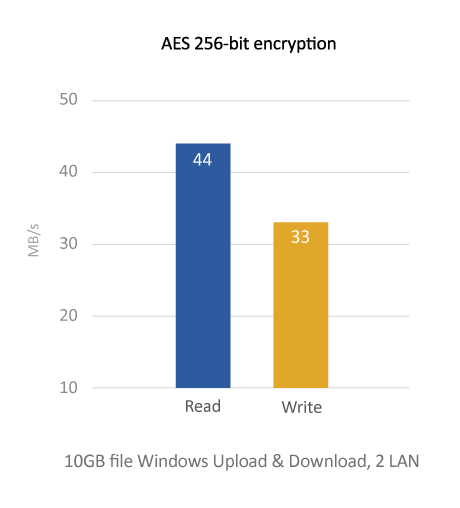

Equipped with powerful yet energy efficient Freescale™ ARM Cortex-A9 dual-core 1.2GHz processor, the TS-431U is a high-performance home NAS providing incredible performance of up to 110MB/s read & 80MB/s write throughput. The TS-431U’s enhanced encryption and decryption performance provides transfer speeds of over 30MB/s with AES-256 bit full NAS volume encryption, boosting system performance & security while ensuring the safety of sensitive personal data stored in the TS-431U. You can also use the TS-431U as a home multimedia hub to enjoy your photo, music and videos while downloading or backing up files without impacting the TS-431U’s performance. When installed with the latest 802.11ac or dual-band 2.4GHz/5GHz 802.11n Wi-Fi USB adapter, the TS-431U can offer remarkably high speeds for transferring large amount of files and streaming bandwidth-consuming multimedia.

* Tested in QNAP lab. Figures could vary by environments.

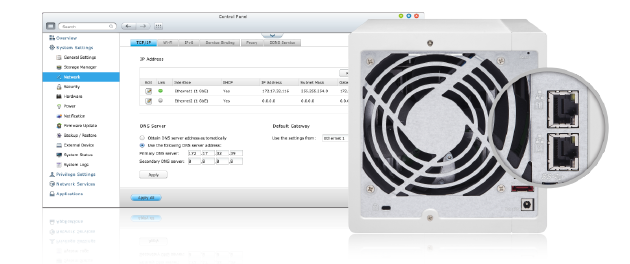

High Efficiency with dual LAN support

The TS-431U supports multiple port-trunking modes, enabling IT administrators to set up link aggregation to increase total data transmission capability. Failover and dual IP are also supported to ensure continuous system operations. The supported port-trunking modes include: Balance-rr (Round-Robin), Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit Load Balancing) and Balance-alb (Adaptive Load Balancing).

QTS - Simple and efficient

Thanks to QTS intuitive user interface, system operations of the TS-431U are smooth and handy. Its intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency.

Well-rounded backup solutions to secure data

By connecting external drives to the Turbo NAS via eSATA or USB, you can easily configure and copy shared folders on the TS-431U to external devices. The front panel USB port features a one-touch-copy function for you to instantly back up data on external drives to the TS-431U or alternatively to back up data from the TS-431U to external drives. QNAP’s NetBak Replicator supports real-time and scheduled data backup for Windows (including Outlook email archiving) and Mac OS X users can use Time Machine to effortlessly back up data to the TS-431U. A wide range of third-party backup software such as Acronis® True Image and Symantec® Backup Exec are also supported.

Cross-platform file sharing, centralized data storage

The TS-431U supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac and Linux/UNIX. Data, logs and ISO image of CDs and DVDs can be centrally stored in the TS-431U and protected by an integrated antivirus solution.

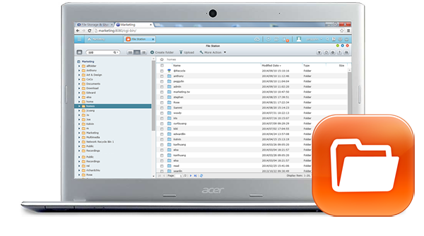

Manage your files via the Internet

The File Station brings conventional desktop-style file operations to web browsers, allowing you to upload, download, and manage files on your TS-431U wherever there is an internet connection. Supporting file extraction, folder creation, and smart search for files and folders, File Station also allows you to easily share files with friends & family via unique URLs. With reliable security features, SSL and password options, managing & sharing your files is simple and safe with the File Station.

A private cloud without constraints

In contrast to the limited storage space and potential security concerns of public cloud services, the TS-431U is advantageous for establishing a secure and large-capacity private cloud. The myQNAPcloud service allows remote access to files stored on the TS-431U, allowing you to play & share multimedia from the TS-431U or to conveniently check the system status from anywhere.

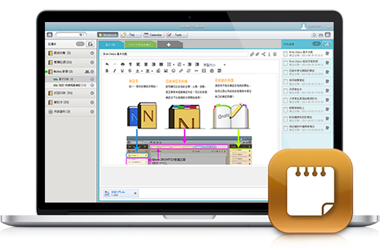

Create digital notes on your private cloud

Notes Station provides a private & secure way to share and collaborate on digital notes. With just a few steps you can create notes from web pages (or by importing from the TS-431U), edit notes with the intuitive web-based editor, and take screenshots for quick note-taking with Qsnap or the Notes Station Clipper extension for Chrome. You can also easily leverage the rich media contents stored on the TS-431U to enhance your notes, and access them on your mobile phones or tablet devices by using Qnotes mobile app anytime, anywhere.

With flexible privilege settings for editing & sharing notes, you can build a secure environment to work together with friends and colleagues. In addition, the Notes Station enables you to create to-do lists & calendar alerts that can be updated to your Google Calendar, helping manage your daily tasks more efficiently.

Archive your photo memories. Share your life.

The TS-431U acts as your photo vault for you to back up your favorite photos. The Photo Station makes photo sharing simple, and you can designate your own access right controls. Simply upload your photos to the TS-431U to create & organize your photo albums through a web browser, and share with your family and friends through social networking sites such as Facebook, Google+, Twitter and Pinterest. With the Qfile mobile app (for iOS® and Android™) you can also instantly upload your new photos from your mobile device to the TS-431U.

Build your home music library and enjoy music anywhere

The Music Station helps categorize your music collection, and displays album covers to easily organize your personal playlists. Through the music station web player, you can enjoy your music anytime, anywhere with a few clicks. Thousands of local and global online Internet radio programs are also built-into the Music Station for you to enjoy.

• Stream music and high-resolution audio (DSD) content to your DLNA Hi-Fi system and indulge in a high-quality sound experience.
• Stream music via AirPlay to compatible devices.
• Listen to your favorite songs streamed from iTunes Server, or play music via web browsers on your PC.
• Listen to your music on mobile devices through the Qmusic app.

Supports DLNA and AirPlay for media streaming

You can use DLNA-compatible devices such as Smart TVs, Sony® PS3, Microsoft® Xbox 360 and media players to enjoy HD quality videos stored on the TS-431U. You can also use the Qfile app on an iOS device to browse videos and photos stored on the TS-431U and play on the TV via Apple TV. By installing the QAirplay app from the QTS App Center, you can stream your media content directly on a TV via Apple TV. The media contents are streaming on Apple TV, bypassing your mobile device, thus saving the energy of your mobile device.

Offline Video transcoding

With offline transcoding, if you can only connect to a slow, limited or restricted Internet connection, you can still enjoy smooth video streaming by playing a version of the video with a pre-rendered, optimized resolution. By setting an automatic transcoding folder, the TS-431U will automatically convert the videos in this folder to a range of resolutions for use on many different devices and internet speeds. As this transcoding is a background task, you can schedule the TS-431U to work during off-peak hours such as when you are at work or asleep, allowing you to enjoy a perfect stream of your favorite videos when you’re off work or wake up.

* The offline transcoding capability of the TS-431U is 3 times faster than single-core ARM-based NAS.

24/7 download center

The TS-431U is a perfect download center for high speed BT, Magnet, PT (Private Trackers), eMule, FTP, and HTTP downloads. After the download tasks are set ready, you can turn off the computer, and the TS-431U will download as many HD videos as you want. With the QGet utility you can manage your download tasks on multiple Turbo NAS devices remotely on the local network or the Internet. You can also install HappyGet app to back up abundant online videos to your TS-431U.

Dropbox-like file synchronization across computers and mobile devices

With Qsync, your TS-251 is turned into a safe data center for file synchronization. Any file uploaded to the TS-251 will be made available for all linked devices, such as computers, laptops and mobile devices. Qsync is especially useful for frequent travelers in managing files and ensuring that different devices have the most up-to-date files. Qsync provides multiple ways for file synchronization and group file sharing, greatly enhancing the flexibility of team projects and collaboration.

Access, use, sync and enjoy with your tablets and smartphones

The TS-431U is your private cloud storage that virtually enlarges the capacity of your mobile devices. Qfile allows you to access, upload, download, manage, and share stored files easily as if you are all of your files in your pocket. If Qfile is installed on an iOS device, users can also browse videos & photos stored on the TS-431U and play via Apple TV. Qmanager lets you monitor & manage the TS-431U remotely and efficiently without turning on your PC, while Qmusic allows you to stream or download music from your TS-431U to mobile devices.

Comprehensive surveillance solution with 24/7 security

The TS-251’s Surveillance Station offers a professional surveillance solution with a user-friendly management interface, a wide range of over 2,600 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the VMobile app on your iOS® or Android™ devices to manage the monitoring of cameras anytime, anywhere, for total surveillance of your monitored environment.

Install-on-demand apps to extend NAS functionality

The TS-431U has a built-in App Center that provides various install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. In addition, QNAP’s development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless opportunities for the TS-431U.

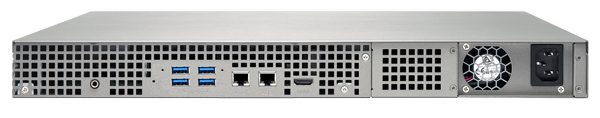

Enhance productivity with eSATA and multiple USB 3.0 ports

Equipped with an eSATA and three SuperSpeed USB 3.0 ports, the TS-431U allows you to flexibly arrange tasks with a wide range of external devices without interrupting your current workflow. You can back up files to USB drives & eSATA enclosures, access data stored on SD cards via USB card readers, share up to 3 printers via network, and connect to a UPS to ensure a continual power supply.

Energy-saving

The TS-431U features an energy-efficient dual-core ARM processor that maintains high performance in system operations and is suitable for an always-online personal cloud without running up a high electricity bill. Additional energy-saving features include hard disk standby, scheduled power on/off, and Wake on LAN.

NAS management can be just that easy.

The TS-431U provides comprehensive system tools to increase management efficiency.

Instant Alert Notifications With the SMTP and SMS settings on the Turbo NAS, system administrators will get notifications from SMS or emails when any error occurs.	SNMP (Simple Network Management Protocol) After activate SNMP, you can collect system information, alerts and error messages on the Turbo NAS. All the information can be transfer to up to 3 SNMP servers to achieve real-time and central management.	Wake on LAN Administrators can turn on the Turbo NAS within LAN. It saves more energy and improve security.
Scheduled Power on/off Administrators can flexibly set up the time of turning on/off for the Turbo NAS, maximum 15 sets of schedules are allowed for turning on, off, or rebooting.	S.M.A.R.T. & Advanced Hard Drive Health Scan (HHS) The Turbo NAS supports HDD S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) which monitors the hard drive status, and sends out alert notifications through email for administrators to take precautions. Moreover, the HHD Health Scanning technology can examine the hard drive status and prevent possible data loss.	Comprehensive Event Logs The Turbo NAS supports Syslog server that collects logs from various connected devices over the Internet and saves the data, enabling centralized log management with greater efficiency.

Additional features for home offices

The TS-431U supports various applications for home offices as an all-in-one Turbo NAS with cost-efficiency.

FTP Server The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission.	Web Server The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT cost.	RADIUS Server The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service.
VPN Server The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.	Print Server The Turbo NAS can be used as a Printer server to send remote printing request via the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.	Surveillance Station The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.

Features:

Modern businesses face the challenge of dramatic digital data growth. Deploying a reliable, affordable, and expandable storage center to securely store, share, and back up digital assets has become an important task for IT administrators. QNAP Turbo NAS provides an efficient and flexible network attached storage solution with the multi-window and multitasking QTS 4.0 Turbo NAS operating system. The TS-x70 series delivers a high-performing storage storage solution with 4 GbE ports and optional 10GbE network expansion for superior performance. QNAP provides powerful utilities and mobile apps which help business users to easily build up private cloud storage for data access, sharing, synchronization, and backup anywhere, anytime via the Internet. With VMware^® Ready™ and Citrix^® Ready™ certifications, and proven compatibility with Microsoft^® Hyper-V™ environments, the Turbo NAS is an ideal shared storage solution in a virtualized and clustered environment. Furthermore, the smart NAS offers built-in App Center with over 90 apps for even more applications in various industries.

QNAP QTS 4.0
Intuitive, innovative operating system featuring synchronization capabilities, multiwindow and easy management.

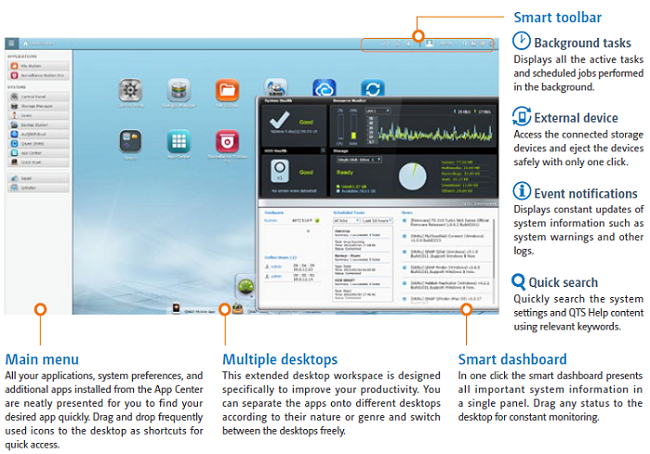

Innovative Desktop
The QTS 4.0’s intelligent desktop offers an intuitive, sleek, and easy-to-follow graphical user interface, simplifying the whole Turbo NAS experience. It allows you to open multiple application windows and run multiple tasks simultaneously. Application windows can be minimized to the toolbar which allows you to see an overview of the opened applications and switch among the running applications.

Centralized Storage and File Sharing

Cross-platform Sharing
The Turbo NAS supports SMB/CIFS, AFP, and NFS protocols for file sharing across Windows, Mac, or Linux/UNIX networks. User accounts and shared folders can be created via the user-friendly web-based interface without IT expertise.

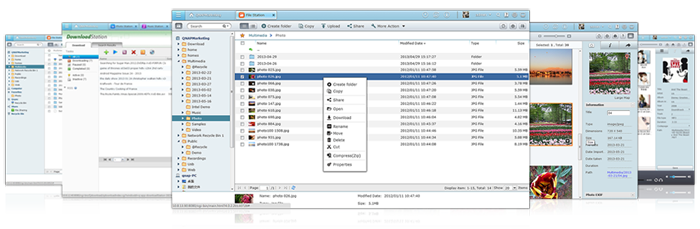

File Station
Upload, download and manage files anywhere with a web browser. File extraction, folder creation, smart search files or folders are accessed over the Internet. Preview your photos and videos through any web browser too!

Windows ACL
Basic permissions and 13 advanced permissions can be set up from the Windows Explorer and synchronized with the permission settings of the Turbo NAS. In addition, the same permissions can be applied to AFP, FTP, Web File Manager, and Microsoft Networking when Advanced Folder Permissions are enabled at the same time.

Advanced Folder Permissions
Advanced folder permissions allow users to configure folder and subfolder access to the Turbo NAS. Users can manage the folder permissions from the web-based management interface of the Turbo NAS easily.

Windows Active Directory (AD) and LDAP Directory Service
Retrieve multiple user accounts from a Windows AD server or an LDAP directory server by the Turbo NAS for efficient account setup.

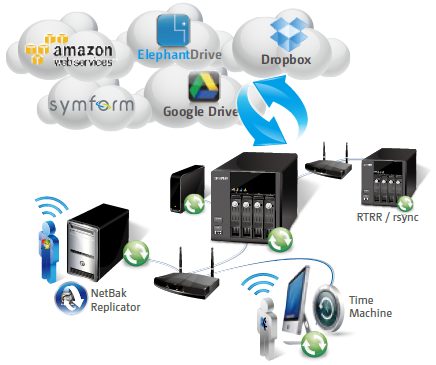

Well-rounded Backup Solution

Client Backup
The QNAP Turbo NAS supports NetBak Replicator, Time Machine and more third party backup software.

External Backup
QNAP Turbo NAS comes with a “one touch data copy button” for direct data backup between the Turbo NAS and external USB/eSATA storage devices.

Remote Backup

• Back up the Turbo NAS data to another remote Turbo NAS or an FTP server on a real-time basis via QNAP’s Real-time Remote Replication (RTRR) service.
• Back up the Turbo NAS data to a standard rsync server on scheduled basis via the rsync protocol.

Cloud Backup

• Real-time data backup from the Turbo NAS to online cloud storage services: Amazon S3, ElephantDrive, Symform, Dropbox, or Google Drive.

Video Editing

Digital film and video production produces volumes of data that require high performance RAID storage with sustainable throughput to balance with the demanding output of video editing. The QNAP TSx70 Series Turbo NAS fulfills storage and video editing needs with optional high-speed 10 GbE network interface. Digital videos can be quickly stored and edited on the Turbo NAS directly over the network. The Turbo NAS supports various network file sharing protocols such as NFS, AFP, and SMB/CIFS, so sharing files among PCs with different operating systems is easy.

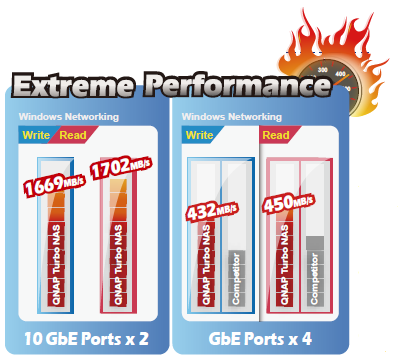

Superior Performance

Testing Environment:
2 Client PC configurations: Intel®Core™ i7-2600 CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit, Dual-port QNAP LAN-10G2T 10GBASE-T network expansion module, IOMeter sequential read and write.

NAS Configurations:
QNAP LAN-10G2D 10G2T 10GBASE-T network expansion module, 802.3ad trunking mode, full load Samsung HD103SJ 1TB SATA HDD, RAID 5.

Network Configurations:
Connect TS-870 and two client PCs to Cisco 4900M 10GbE switch.

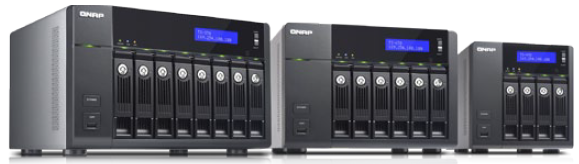

10GbE Storage Solution
The QNAP TS-x70 Series Turbo NAS includes 4 GbE ports for industry-leading performance in business environments. The optional dual-port 10GbE adaptor support makes it ready for the high-speed data transfer craved by data centers.

Private Cloud Storage

myQNAPcloud service
Create your own private cloud with the free myQNAPcloud service. The Turbo NAS creates your own unique URL and in a few easy steps, you will be able to access your files from any web browser.

VPN Server
The VPN server allows you to access the Turbo NAS on the same local network from the Internet and easily manage the files with drag-anddrop through the file browser.

CloudLink
CloudLink helps you pass through the complicated network environment and connect to the Turbo NAS from a remote PC and easily access the data from anywhere without complicated settings.

myQNAPcloud Connect
myQNAPcloud Connect is a Windows VPN connection utility. It can establish a secure VPN connection with the remote NAS over the Internet and enable you to access the NAS as if it were in your local network.

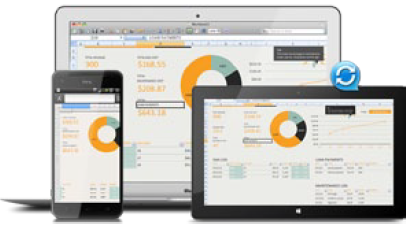

Dropbox-style Data Sync

Qsync
Your Turbo NAS becomes a safe data center for file synchronization with huge storage. Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration. Whenever you add, edit, delete or rename a file on one computer, the change applies to all others linked with the Turbo NAS, so you have identical data on all your devices.

Use space effectively
Remove the files on one computer without affecting the files stored on other devices linked with the Turbo NAS. Even when someone updates the same files from another computer, Qsync will ensure that you will always have the latest files. When synchronizing files, you can choose to only sync specific subfolders within the Qsync folder.

Share team folders with different groups of people
Create subfolders within the Qsync folder, and share each with different groups of Turbo NAS users as a file exchange center. Everyone in the same subfolder is always kept up-to-date with the latest version of the files.

Quickly share files with download links
You can create download links to share files with others. This greatly reduces the time in creating user account and password for users just to share less-important documents.

Storage for Virtualization

The QNAP Business Series Turbo NAS is a virtualization-aware storage solution which supports VMware vSphere, Microsoft Hyper-V, and Citrix XenServer. QNAP vSphere plug-in and QNAP SMI-S provider highly increase the productivity and efficiency.

Datastore for VMware

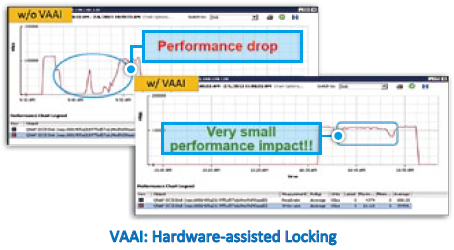

• VAAI for iSCSI, VAAI for NAS
  VMware vStorage APIs Integration (VAAI) is a set of APIs that allow ESXi hosts to offload processing for certain storage-related services to storage systems. The integration of QNAP NAS with VMware VAAI offers optimal performance for customers to deploy a virtualization environment.

  The QNAP NAS, VAAI iSCSI and VAAI NAS are VMware certified. Businesses can either select iSCSI or NFS as a centralized storage to boost performance. VAAI for iSCSI supports Full Copy (hardware-assisted copy), Block Zeroing (hardware-assisted zeroing), Hardware-assisted Locking, and Thin Provisioning with space reclaim. VAAI for NAS supports Full File Clone, Extended Statistics, and Reserve Space.

  The QNAP NAS uniquely supports VAAI iSCSI and VAAI NAS to enhance storage performance in a virtualized environment.

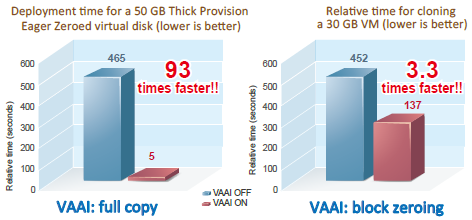

• Enhanced Performance by VAAI

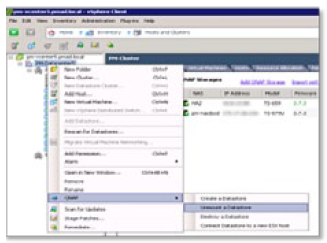

• vSphere Plug-in
  The vSphere plug-in allows users to manage the QNAP Turbo NAS directly on the vSphere client, making datastore management more effective.

Storage for Microsoft Hyper-V

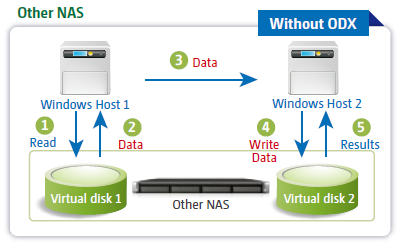

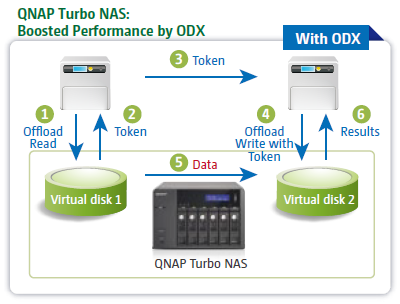

• ODX (Offloaded Data Transfer)
  With ODX support, the QNAP Turbo NAS becomes a high performance iSCSI storage solution under Windows Server 2012, including Hyper-V virtualized environment. QNAP storage enables full copies of virtual machines within the NAS without requiring the Windows hosts to read and write the data. This highly reduces the loading of Windows hosts and improves the performance of copy and move operations for Windows 2012 hosts using the QNAP iSCSI storage. When providing QNAP storage to a Windows 2012 file server, the end user using Windows 8 client workstation will also benefit from the Offloaded copy process for large file transfers.

• NAS Management via SCVMM
  The QNAP SMI-S provider enables management of the QNAP Turbo NAS directly through Microsoft System Center Virtual Machine Manager 2012 (SCVMM).

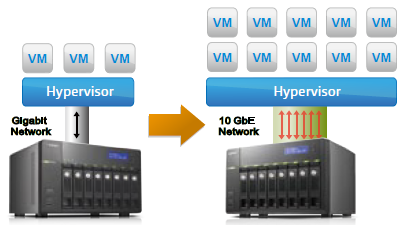

10 Gigabit Ethernet Storage Solution for the Virtualized Data Center
The QNAP TS-x70 Series Turbo NAS supports an optional 10GbE adaptor, including SFP+ and 10G Base-T interface. The 10Gb speed increases the agility of data transmission in a virtualized environment, intensifying NFS and iSCSI connection performance, and enables more VMs with multiple transactions running concurrently without performance penalty.

Proactive Data Protection

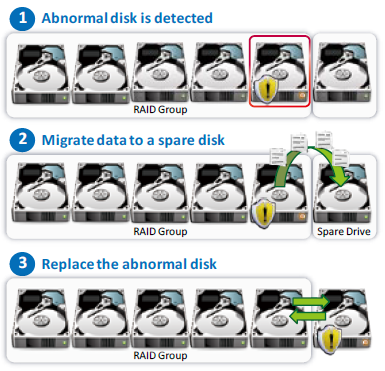

QNAP SMART Data Migration
The data stored on the Turbo NAS is constantly monitored to reduce potential data loss and rebuilding time. If the Turbo NAS detects a possible drive failure or abnormal health status, the data will be proactively migrated to a new spare drive. This ensures valuable business assets are well stored and protected.

Supports TLER and ERC
TLER (Time-Limited Error Recovery) and ERC (Error Recovery Control) are now supported with compatible hard drives, improving drive error handling in RAID applications. This latter prevents the hard drives from prematurely failing out of RAID arrays, forcing rebuilds, and RAID volume loss. The data will be retrieved more quickly when a hard drive takes too long to respond from bad blocks.

RAID Read Error Recovery
When read errors are detected in the hard drive blocks, they are automatically corrected with healthy ones. The bad block recovery will run in the background and ensure data is well stored in the hard drives.

RAID Hot-spare and Global Hot-spare Drives
A hot spare drive can be configured so that if a hard drive in a specific RAID group fails, the hot spare drive will operate automatically. Moreover, the QNAP storage also supports global hot spare drives which allow the administrator to share the spare drives efficiently among multiple RAID Groups.

Abundant Business Features
The Turbo NAS supports abundant server applications.
	Web Server Multiple websites can be hosted on the Turbo NAS with the built-in web server and virtual host feature.
	Syslog Server By collecting and storing the logs of other network devices on the Turbo NAS with the Syslog server support, the IT administrator can monitor the status of these devices and collect the information necessary for further troubleshooting.
	RADIUS Server The RADIUS server centralizes and consolidates user authentication by maintaining a list of user accounts that are authorized for remote network access through dial-up equipment, Wi-Fi access point, or VPN connections.
	Proxy Server With the help of the Squid App add-on, the QNAP Turbo NAS can be used as a Proxy Server.

HIPAA Compliant Storage Solution
While medical data (e.g ePHI) constantly increases, IT administrators are required to develop a strategy of strong storage platforms within their medical organizations. QNAP meets the electronic requirements of HIPAA for storing PHI data by providing a base to protect the confidentiality and security of “individually identifiable health information”. QNAP provides a full range and variety of storage models that can easily fit into different scales of deployment. Choose based upon capacity, performance, and price range to meet the need of any type of medical environment.

Secure Measures for Data Storage and Access
Policy-based Unauthorized IP Blocking Users can allow, deny or auto block specified IP addresses or network domains which attempt to connect to the Turbo NAS via SSH, Telnet, HTTP(S), FTP, Samba, or AFP.
Remote Login The Turbo NAS supports remote login by SSH (secure shell) or Telnet connection.
SSL Security (HTTPS) The Turbo NAS supports HTTPS. Users can upload a secure certificate and RSA private key in X.509PEM format issued by a trusted provider to allow access the Turbo NAS by secure SSL login.
Secure FTP The Turbo NAS offers secure data transfer with SSL/TLS (explicit) encryption. Passive FTP port range setup is also supported.
Encrypted Remote Replication by Rsync The data on the Turbo NAS can be backed up to or from another Turbo NAS or rsync server over the network securely.

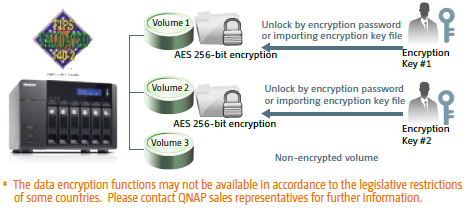

FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption The disk volume with FIPS 140-2 validated AES 256-bit encryption can only be accessed by an authorized encryption password or key. This prevents sensitive data on the Turbo NAS from unauthorized access, even if the hard disk drives or the entire system were stolen.
Advanced Folder Permissions Advanced folder permissions allow users to configure folder/subfolder access to the Turbo NAS. With this feature enabled, users can manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS without complicated procedures.

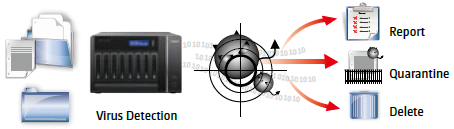

Antivirus The integrated antivirus solution for the Turbo NAS ensures business continuity by offering detection against the latest viruses, malware, worms, and Trojan horses with continuous free virus database updates.

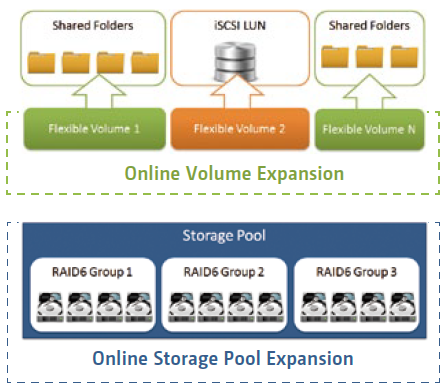

QNAP Flexible Volume
QNAP Flexible Volume provides a more secure and flexible way to store and manage the NAS data. This next generation volume offers powerful features such as storage pooling with multiple RAID, thin-provisioned volume with space reclaim, and online capacity expansion.

Block-based iSCSI LUN
In addition to storing data, the QNAP Flexible Volume can be utilized as an iSCSI LUN at the same time. The block-based iSCSI LUN provides less overhead which improves the overall read/write performance. The blockbased iSCSI LUN takes advantage of Flexible Volume features such as thin provisioning LUN with Space Reclaim and online capacity expansion.

Online Capacity Expansion
Increase the capacity size of the LUNs, volumes, and storage pools on the fly. The Turbo NAS allows you to add more hard drives to increase the storage capacity of the storage pool on demand. The LUN and volumes can also be expanded online without interrupting the services.

Thin-provisioned Volume
Pre-allocate storage to give the appearance of having more capacity than actually available. This allows you to consume storage on demand as data is written to disk, instead of having capacity ahead of time.

Space Reclaim
Space reclaim complements thin provisioning so storage can be recovered and used for other NAS applications. Normally when data is deleted in a volume the storage capacity cannot be transferred back to the overall storage pool. But with space reclaim, space can be recovered and allocated back to the overall storage pool. This provides a much more efficient space usage.

Alert for Volume/LUN Threshold
An alert can be created once a LUN or volume reaches a particular threshold size with email and SMS notifications. This prevents the storage or volume from running out of space, and the administrator can add more storage space or expand an existing volume if necessary.

App Center

Powerful, organized, rich-in-content
The new App Center makes it easy to find and install all sorts of apps and also acts as a central platform to manage and update your installed apps.

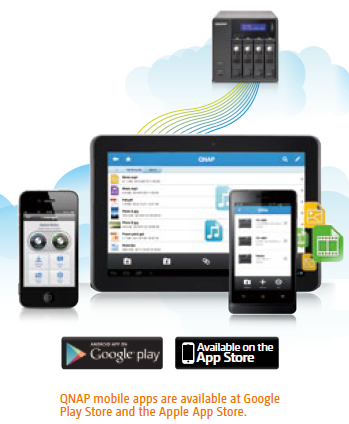

Mobility and Remote Access

Qfile
You can manage as many Turbo NAS units as you want with Qfile and conveniently connect to any of them on the login page. Enabling the auto-upload function will let your pictures and photo albums automatically sync to your Turbo NAS and works as a real-time backup of your precious photos. Qfile displays a thumbnail list view for you to easily identify the file type at a glance. You can move, copy, rename or delete files on the Turbo NAS, all with your mobile device.

Qmanager
Qmanager lets you monitor the CPU usage, memory usage, system event info, and active users. You can also remotely check the connection status or logged in users to prevent unauthorized access. Remotely restart or shut down your Turbo NAS, and use Qmanager to turn the application services on and off. You can use Wake on LAN to power on your NAS. It only takes a single click and you are done!

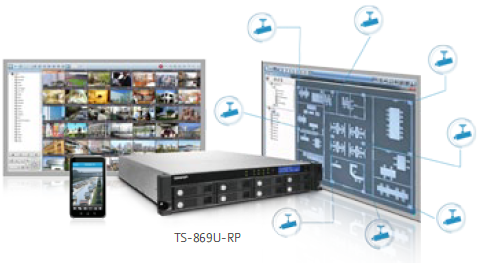

Surveillance

Surveillance Station Pro
The Surveillance Station Pro allows users to easily set up a home security system and flexibly choose the IP cameras for live view monitoring, recording, and playback. The live view provides instant video images from the monitored areas. Event notifications and fast video retrieval are also offered. iOS^® or Android™ users can install the VMobile app to monitor the surveillance channels anytime and anywhere.

Specifications:

TS-431U Specifications
CPU	Freescale™ ARM Cortex-A9 dual-core 1.2GHz processor with hardware encryption engine
DRAM	1GB DDR3 RAM
Flash Memory	512MB eMMC
Hard Drive	4 x 3.5" or 2.5" SATA 6Gb/s, SATA 3Gb/s HDD or SSD
Hard Drive Tray	4 x Hot-swappable tray
LAN Port	2 x Gigabit RJ-45 Ethernet port
LED Indicators	Power, Status, LAN, USB, HDD1-4
USB	4 x USB 3.0 ports (rear) 1 x USB 2.0 port (front) Support USB printer, pen drive, and UPS etc.
Buttons	Power, USB One-Touch-Copy, reset
Alarm Buzzer	System warning
Form Factor	1U, rack mountable
Dimensions	44 (H) x 439 (W) x 499 (D) mm 1.73 (H) x 17.28 (W) x 19.65 (D) inch
Weight	Net weight: 7.63 kg (16.82 lbs); Gross weight: 11.60 kg (25.57 lbs)
Power Consumption (W)	HDD standby: 19.3W Typical operation: 34.9W (with 4 x 2 TB HDDs installed)
Temperature	0 - 40˚C, 5~95% RH non-condensing, wet bulb: 27˚C
Power Supply	Input: 100-240V AC, 50/60Hz; Output: 250W
Fan	2 x 4cm cooling fan (12V DC)
Package Contents	TS-431U Ethernet cable x 2 Power cord Flat head screw x 16(for 3.5" HDD) Flat head screw x 12(for 2.5" HDD) Quick Installation Guide Hard disk tray key

Software Specifications:

Operating System Embedded Linux Supported Clients Windows XP and Windows Server 2003 onward Apple Mac OS X onward Linux & UNIX Supported Browsers Google Chrome Microsoft Internet Explorer 10+ Mozilla Firefox Apple Safari Multilingual Support Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish File System Internal Hard Drive: EXT4 External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+ Networking TCP/IP: IPv4 & IPv6* Dual Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming )* Service binding based on network interfaces* Proxy client, proxy server DHCP client, DHCP server NTP server Protocols: CIFS/SMB, AFP(v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC UPnP & Bonjour discovery Wi-Fi 802.11 ac/a/b/g/n USB adapter support Security Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP CIFS host access control for shared folders AES 256-bit volume-based data encryption** AES 256-bit external drive encryption** Importable SSL certificate Instant alert via E-mail, SMS, and beep Antivirus protection Storage Management Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5 + spare Global hot spare Online RAID capacity expansion Online RAID level migration Bad block scan and hard drive S.M.A.R.T. Bad block recovery RAID recovery Bitmap support Power Management Wake on LAN Internal hard drive standby mode Scheduled power on/off Automatic power on after power recovery USB and network UPS support with SNMP management Access Right Management Import/export users User quota management Local user access control for CIFS, AFP, FTP, and WebDAV Application access control for Photo Station, Music Station, and Video Station Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station myQNAPcloud Service Private cloud storage and sharing with myQNAPcloud id (QID) Free host name registration (DDNS) Auto router (via UPnP) configuration Web-based file manager with HTTPS 2048-bit encryption Cloudlink for remote access without complicated router setup myQNAPcloud connect for easy VPN connection (Windows VPN utility) Qsync Syncs files among multiple devices with SSL support Selective synchronization for syncing specific folders only Share team folder as a file center for team collaboration Shares files by links via e-mail Policy settings for conflicted files and file type filter support Incremental synchronization for HDD space saving Supports Windows & Mac OS Web Administration Personalized desktop Smart toolbar and dashboard for system status Dynamic DNS (DDNS) SNMP (v2 & v3) Resource monitor Network recycle bin for file deletion via CIFS/SMB, AFP and File Station Automatic cleanup File type filter Comprehensive logs (events & connection) Syslog client/server Mobile app: Qmanager for remote system monitoring & management File Server File Sharing across Windows, Mac, and Linux/UNIX Windows ACL Advanced folder permission for CIFS/SMB, AFP, FTP Shared folder aggregation (CIFS/SMB) FTP Server FTP over SSL/TLS (Explicit) FXP supported File Station Supports ISO Mounting (Up to 256 ISO Files) Support thumbnail display of multimedia files Support share download link and upload link Drag-n-drop Files via Chrome and Firefox Browsers Photo, music, and video preview and playback       File Compression and decompression (ZIP and 7z)

Backup Station Remote replication server (over rsync) Real-time remote replication (RTRR) to another QNAP NAS or FTP server Works as both RTRR server & client with bandwidth control Real-time & scheduled backup Encryption, compression, file filter, and transfer rate limitation Encrypted replication between QNAP NAS servers Desktop backup with QNAP NetBak Replicator for Windows Apple Time Machine backup support Data backup to multiple external storage devices Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, EMC retrospect, Symantec Backup Exec, etc. Photo Station Show photos in thumbnails, list, timeline, or folder view Supports virtual/smart album Tags photos with text, color, and rating Slideshows with background music and different transition effects Animated thumbnails for videos Geotags photos and display them on Google maps Shares slideshows link to social websites or through email Supports Facebook friends login Music Station Plays or shares music collections with web browser Automatic classification via Media Library Internet radio streaming Up to 8 music alarms Mobile app: Qmusic for music playing and management iTunes Server Audio and Video Sharing for Windows & Mac iTunes Download Station PC-less BT, FTP/FTPS, and HTTP/HTTPS download (up to 500 Tasks) BT download with Magnet Link and PT support Scheduled download and bandwidth control RSS subscription and download (broadcatching) Bulk download with wildcard settings BT search Proxy support for BT download PC utility: Qget for downloads browsing and management Mobile app: Android Qget for downloads browsing and management Cloud Storage Backup Amazon S3 Amazon Glacier WebDAV-based cloud storage Microsoft Azure Open Stack Google Drive Print Server Max number of printers: 3 Print job display and management IP-based and domain name-based privilege control Surveillance Station Supports over 2,700 IP cameras Includes 2 free camera licenses, up to 8 camera channels via additional license purchase Instant playback to check the recent event Visual aid by e-map Playback and speed control by shuttle bar Video preview on playback timeline Intelligent video analytics (IVA) for advanced video search Surveillance client for Mac Mobile surveillance app: vmobile (iOS and Android) Mobile recording app: vcam (iOS and Android) Notes Station Graphical web-based editor for taking notes Integrate with NAS file system: insert attachment or image from NAS file system Event calendar and to-do list Image editor Provide Chrome Extension: Notes Station Clipper Clip web page content to your note Mobile app: Qnotes Signage Station Support dynamic content includes video, image, music, and text message Multi-user collaboration Support email and social network sharing Support design software - iArtist Lite for Windows® Support various browser playback (Chrome, Firefox, IE, Safari) iSCSI (IP SAN) iSCSI Target Multi-LUNs per Target Up to 256 Targets/LUNs Combined Supports LUN Mapping & Masking File-based LUN Online LUN Capacity Expansion iSCSI LUN Backup, One-time Snapshot, and Restore iSCSI Connection and Management by QNAP Finder (Windows) Virtual Disk Drive (via iSCSI Initiator) Max No.of Virtual Disk Drives: 8 VPN Server Secure remote access: PPTP &OpenVPN VPN services Max number of clients: 15 for PPTP & 15 for OpenVPN Domain Authentication Integration Microsoft Active Directory (AD) Domain controller LDAP server, LDAP client Domain users login via CIFS/SMB, AFP, FTP, and File Station App Center More than 100 official and community software add-ons Mobile Apps Qfile: iOS, Android Phone, window phone Qfile HD: iPad version Qmanager: iOS, Android Phone Qmusic:  iOS, Android Phone Qremote:  iOS, Android Phone Qget: Android Phone Vmobile: iOS, iPad, Android Phone

* Not all services are supported.
** The data encryption functions may not available in accordance with the legislative restrictions of some countries.

Utilities:

Various handy utilities are available for you to work smartly with your Turbo NAS. These utilities help increase your productivity and make it absolutely easy with connecting the Turbo NAS, setting up the system, data backup and synchronization, downloading files, and so on.

Qfinder

Connect and set up NAS easily
Qfinder is a utility, available for Windows, Mac, and Linux, to quickly find and access the Turbo NAS over the LAN. Install the Finder on your computer, open it, and double click your Turbo NAS name, and the login page is ready for you.

Easily access the NAS by Storage Plug & Connect
Windows version of Qfinder provides a convenient way to connect to the Turbo NAS and map a network drive or a virtual disk. By creating a shared folder on the Turbo NAS and mapping it as a network drive, you can use it as an additional drive and store files on it as it is a local drive of the computer.

myQNAPcloud Connect

NAS Connection by VPN
myQNAPcloud Connect helps you access the published services of the Turbo NAS quickly and securely on the Internet. myQNAPcloud Connect application is designed for Windows PC users. By installing the myQNAPcloud Connect, you will be able to connect to the Turbo NAS and easily manage files by drag-and-drop within the Windows Explorer.

Qsync

Synchronize files anytime, anywhere
Qsync is a useful tool to synchronize files in multiple computers. It creates a specific “Qsync folder” in your devices that you can simply drop files in, and synchronizes the files to all your devices linked to the Turbo NAS.

Sync in multiple ways

Full Sync
Whenever you add, edit, delete or rename a file on one computer, the change applies to all others linked with the Turbo NAS, so you have exactly identical contents on all your devices.

Smart Sync
It allows you to remove files on one computer without affecting the copies stored on others that are linked with the Turbo NAS. However, when someone updates the files you deleted from another computer, you can still retrieve them in the Qsync folder.

Advanced Selective Sync
With both Full Sync or Smart Sync options, you can choose to only sync specific sub-folders within the Qsync folder, useful if your computers have limited storage.

Share files and folders easily

Quickly share files with download links
You can create download links to share files with people, even if they don’t have an account on the Turbo NAS. This greatly reduces the time in creating user account and password for users.

Share folders for collaboration
Your life is connected with different groups of people. You can create sub-folders within the Qsync folder, and share each with different groups of Turbo NAS users as a file exchange center. Everyone in the same sub-folder is always kept up-to-date with the latest version of the files.

QNAP NetBak Replicator

Backup data on PC
The QNAP NetBak Replicator, provided with any Turbo NAS unit free of charge, helps you easily back up files from Windows PC - entire disk drives, documents, pictures, music, videos, fonts, emails, and more - to the Turbo NAS. The operation is very simple. You can do the backup task in just a few clicks using NetBak Replicator by the setting of real-time synchronization, scheduled backup and auto-backup from multiple PCs to the Turbo NAS.

NetBak Replicator also supports backing up to a remote server via FTP and WebDAV through the Internet. Imagine that you can backup new photos whenever on vacation. Even you are away from home, the convenient backup supports your memories.

QGet

Download Station monitor widget
QGet is a powerful utility for download management. The software is available for Windows and Mac computers, allowing the management of BT, HTTP, and FTP download tasks of Download Station on multiple Turbo NAS servers.

QGet enables you to add, remove, or watch your BT download jobs from LAN or WAN. You can manage your download tasks in school or at work. QGet supports intuitive drag and drop of torrent files, HTTP or FTP URL to the software interface for convenient adding of download tasks.

vsphere Client plug-in

Manage QNAP NAS within vSphere Client
The Turbo NAS supports vSphere Client Plug-in that allows managing VMware datastores on the Turbo NAS directly from the vSphere client console. In a large-scale server virtualization environment, management is centralized and straightforward. Administrators can easily control the status of the Turbo NAS and datastores and create additional datastores to multiple ESXi hosts in just a few clicks.

Note: The TS-x51 series doesn’t support vSphere Client plug-in.

Qsnap Take screenshots, easy and fast Qsnap is a handy utility assisting you to quickly capture screenshots on your PC, and easily edit, save, and share, enabling quick note-taking or productive communication in your work and life. Hotkey capturing: Taking PC screenshots without complicated mouse operations. Easy editing: Add emphasis or remove unnecessary elements with a range of editing tools. Instant sharing: Simply drag and drop the screenshots to instant messengers and emails as attachments to share.

Product Views:

Front View

Left View

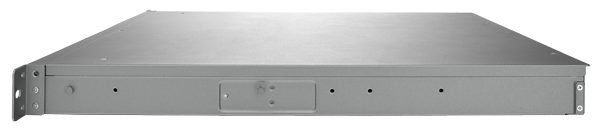

Right View

Rear View
