QNAP TS-431X3
Quad-core 1.7GHz SMB NAS with built-in 10GbE SFP+ and 2.5GbE RJ45 ports for high-speed connectivity


QNAP TS-431X3

QNAP Products
TS-431X3
QNAP TS-431X3 4-Bay ARM-based NAS with Hardware Encryption, Quad Core 1.7GHz, 4GB RAM, 10GbE(SFP+) ,2.5GbE and 1GbE LAN
Annapurna Labs AL314 4-core 1.7GHz, 4GB DDR3L SODIMM RAM (max 8GB), SATA 6Gb/s, 1x 10GbE SFP+ LAN, 1 x 2.5GbE LAN, 1 x GbE LAN
#TS-431X3-4G-US
Our Price: $449.00

Create Your Ideal Bundle:

Click here to jump to more pricing!

Package Content

  • QNAP TS-431X3 Storage
  • 1 x Ethernet cable
  • 1 x Power cords
  • Flat head screw (for 3.5" HDD)
  • Flat head screw (for 2.5" HDD)
  • Adapter
  • 2 x Drive tray keys
  • Quick Installation Guide

Overview:

The quad-core TS-431X3 provides four drive bays for high-capacity storage with expandable memory up to 8GB RAM to meet data backup, recovery, and virtualized storage needs of SMBs. The built-in 10GbE SFP+ port provides high bandwidth for intensive data transmission. Coupled with the QNAP 10GbE switch, you can build a high-speed 10GbE network environment. The TS-431X3 also features a 2.5GbE RJ45 port and a 1GbE RJ45 port for enhancing team file sharing and collaboration efficiency. The TS-431X3 provides comprehensive local, off-site and cloud backup and secure Snapshot technology to help create a reliable backup and disaster recovery plan. In the event of a system crash or accidental file deletion, you can quickly restore the system to its normal state.



Available Models

  • TS-431X3-4G-
    AnnapurnaLabs AL-314 quad-core 1.7GHz processor, 4 GB RAM (expandable to 8 GB)

10GbE SFP+

Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and virtualized application, while 2.5GbE connectivity enables low-latency file sharing and team collaboration.

HBS

HBS (Hybrid Backup Sync) can backup and sync your data to other NAS, servers and cloud storage for comprehensive backup and disaster recovery.

Snapshots

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.


LXC and Docker

Supports LXC and Docker® containers for rapidly deploying application services across platforms, including the cloud, servers, and PCs.

Qfiling

Qfiling automates file organization, greatly improving work efficiency.

Virtual JBOD

Supports VJBOD (Virtual JBOD) technology to expand the storage space of other QNAP NAS.

Features:

High-speed 10GbE and 2.5GbE connectivity

Powered by AnnapurnaLabs AL-314 quad-core 1.7 GHz processor with 4 GB DDR3L RAM (expandable to 8 GB), the TS-431X3 features one 10 GbE SFP+ port, one 2.5 GbE RJ45 port and one Gigabit port, allowing you to enjoy higher transfer speeds using existing CAT5e or CAT6 RJ45 cables in your network environment. Coupled with QNAP QSW series network switch, you can easily build a high-speed network affordably. You can also use your laptop with a QNAP USB 3.2 Gen 1 to 5GbE adapter (QNA-UC5G1T) or your desktop computer with a QNAP 5 GbE network expansion card (QXG-5G1T-111C) and directly connect to the TS-431X3’s 2.5GbE port to enjoy 2.5 times faster transfer speeds.

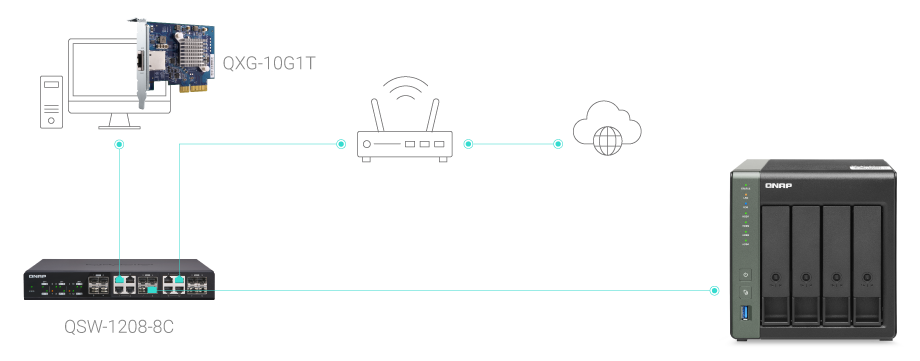

Easily Create a High-speed Network Environment

10GbE improves overall network performance and everyday tasks with ten times the bandwidth of 1GbE. From 10GbE NAS, to switches, to network adapters, QNAP provides a complete range of everything needed to upgrade to 10GbE environments.

10GbE-switch-ts-431x3


Multi-point file backup, access and sync

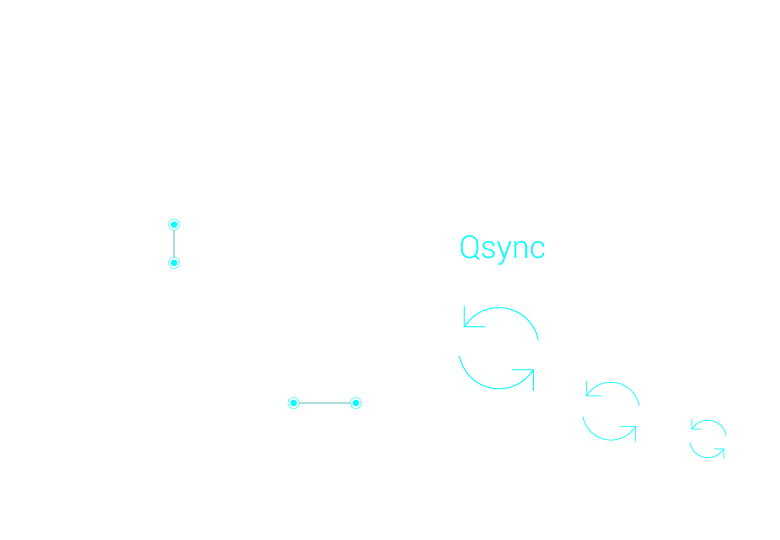

HBS (Hybrid Backup Sync) consolidates data backup, recovery, and synchronization, coupled with high-speed 10GbE and 2.5GbE connectivity of the TS-431X3, allowing you to easily backup or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-431X3 into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-431X3 will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.

hbs-qsync


Protect data against malware with Snapshots

Snapshots help protect your data by fully recording the NAS system state and metadata. If a file is accidentally deleted or modified, you can use snapshots from the Storage & Snapshots Manager or the File Station to quickly restore files to its previously-recorded state. QNAP snapshots are block-based and only record changed data. Not only does this save storage space, but it also reduces time required to back up and restore data. The TS-431X3 supports up to 64 snapshots per volume/LUN, and up to 256 snapshots in total.

snapshot


Boost productivity with QNAP applications

QNAP File Station provides centralized file management allowing you to view and manage files on your TS-431X3 and other storage sources or devices. Qfiling helps automate file organization, and Qsirch can make your file searches faster. You can also use Qfile mobile app to access NAS files from a mobile device.

Qfiling

Qfiling

Qfiling automates file organization. Files are automatically archived into folders based on your settings.

Qsirch

Qsirch

Qsirch quickly finds images, music, videos, documents, emails, and other files by using keywords, colors and different filters.

Qfile

Qfile

Qfile mobile app allows you to access NAS files from a mobile device anytime anywhere, and upload and backup files on your phone to a NAS.


Protects your sensitive data with file encryption

When sharing sensitive or confidential files on your TS-431X3, you can enhance data security by using File Station to encrypt them into .qenc files and set a password. The file recipients need to download and install QENC Decrypter on their computers and enter the correct password to decrypt, view and use encrypted .qenc files.

Note: Computers are required with Windows 8 (or later) OS and macOS 10.12 (or later) OS.


Take full control of NAS system status and data security

Notification Center consolidates all QTS system events and alerts, providing you with a single-app solution for notifications. Security Counselor can evaluate and recommend TS-431X3 security settings to improve NAS security.

Stay informed at all times

The Notification Center offers a single-app solution for notifications of the QTS system events and alerts. You don’t need to configure settings in different apps, helping you streamline management processes and save time.

NAS security portal

Security Counselor checks for weaknesses and offers recommendations to secure your data against multiple attack methods. It also integrates anti-virus and anti-malware software to ensure complete protection of your QNAP NAS.


Host container applications

Container Station integrates both LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub®, easily import or export container apps, manage access controls and rapidly deploy application services across several platforms including the cloud, servers, and PCs.


Flexible and economical storage expansion

QNAP provides easy storage capacity expansion solutions. Here are several ways to expand your NAS storage as needed to accommodate data and business growth:

Attach Expansion Enclosures

Attach Expansion Enclosures

Connect 2 RAID expansion enclosures (TR-004, TR-002 or TL-D800C) and use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.

Upgrade RAID Capacity

Upgrade RAID Capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand your QNAP NAS capacity so it can grow with your business.

Migrate to a New NAS

Migrate to a New NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.


Extend hardware warranty up to 5 years

The TS-431X3 is backed by a 2-year warranty at no extra cost. You can purchase a warranty extension to extend your warranty coverage up to five years.

Hardware Specifications:

  TS-431X3-4G
CPU AnnapurnaLabs, an Amazon company Alpine AL314, 4-core, 1.7GHz
CPU Architecture 32-bit ARM
Floating Point Unit
Encryption Engine
System Memory 4 GB SODIMM DDR3 (1 x 4 GB)
Maximum Memory 8 GB (1 x 8 GB)
Memory Slot 1 x SO-DIMM DDR3
Flash Memory 512 MB (Dual boot OS protection)
Drive Bay 4x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 1
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 1
10 Gigabit Ethernet Port 1 x 10GbE SFP+
Jumbo Frame
USB 3.2 Gen 1 port 3
Form Factor Tower
LED Indicators Power, Status, LAN, USB, HDD1-4
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 6.65 × 6.3 × 8.62 inch
Weight (Net) 4.43 lbs
Weight (Gross) 7.65 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 90W Adapter, 100-240V
Fan 1 x 120mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) 400
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Product Views:

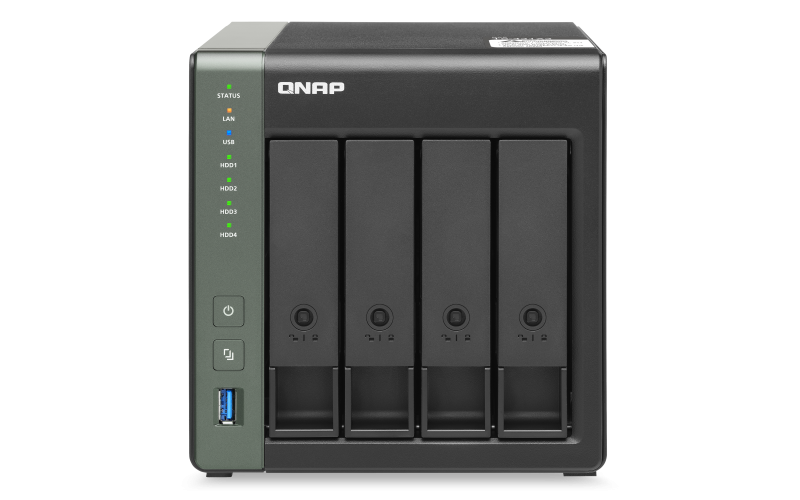

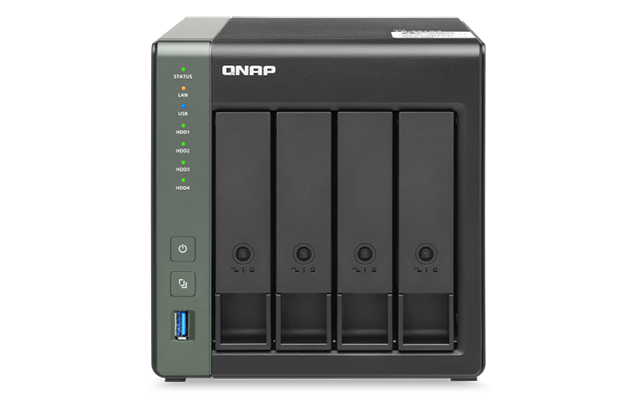

Front View

Front View

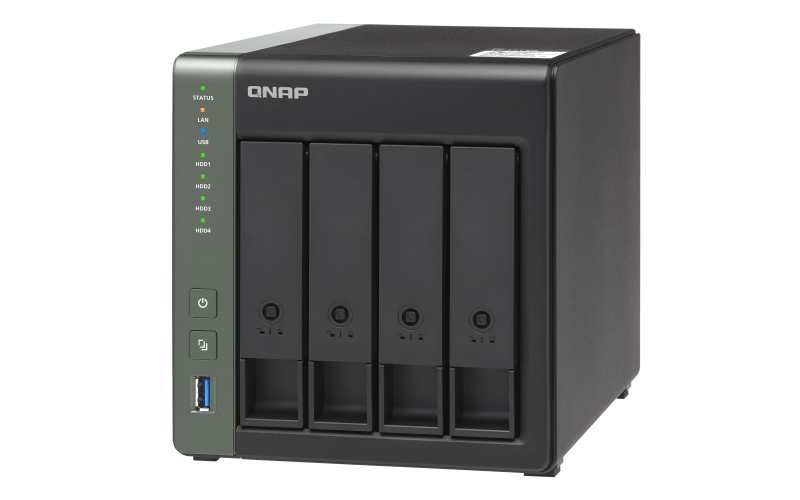

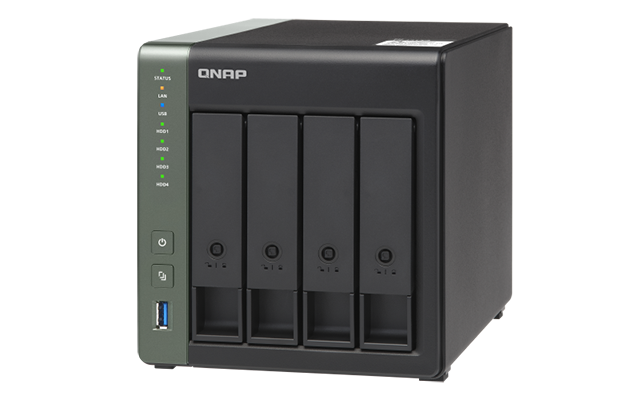

Top Right View

Top Right View

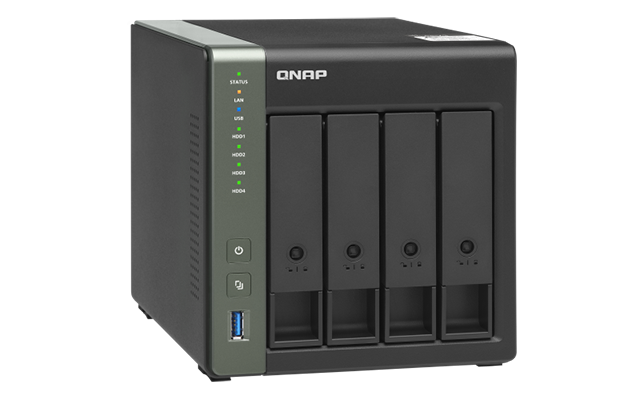

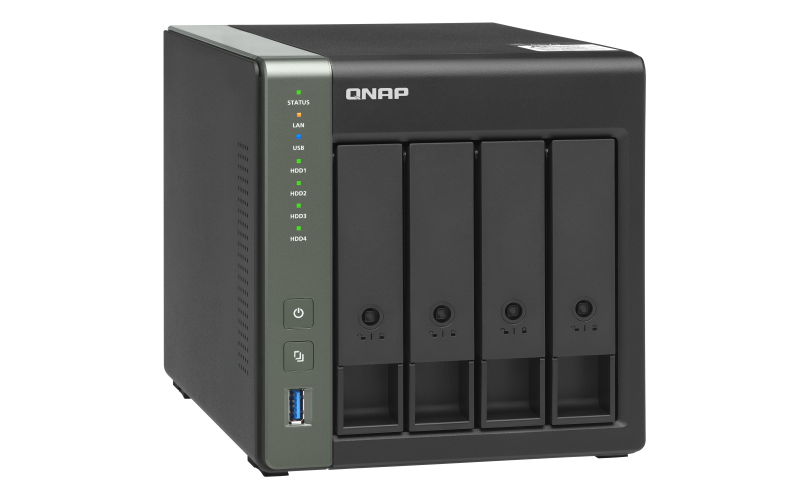

Top Left View

Top Left View

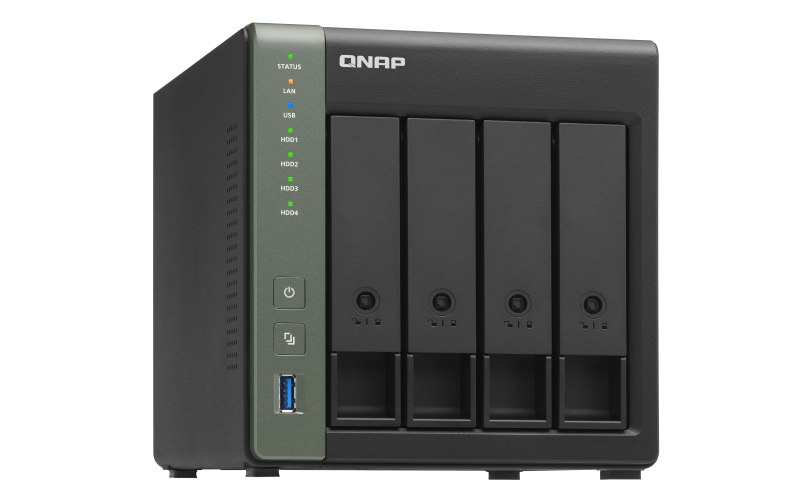

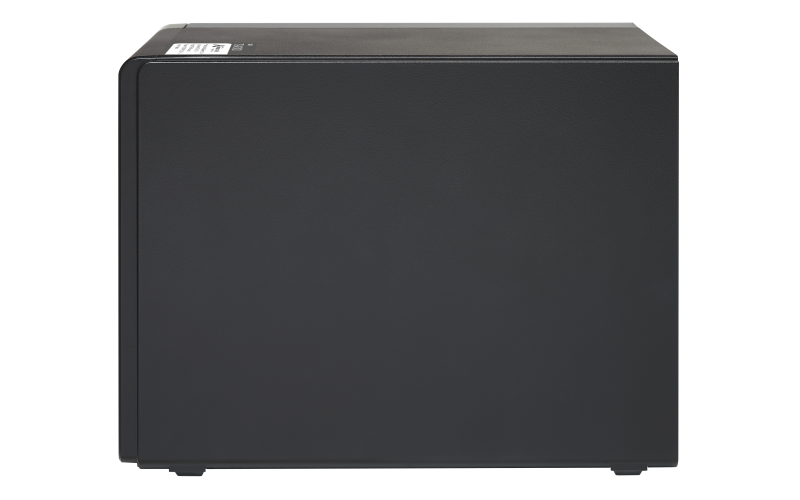

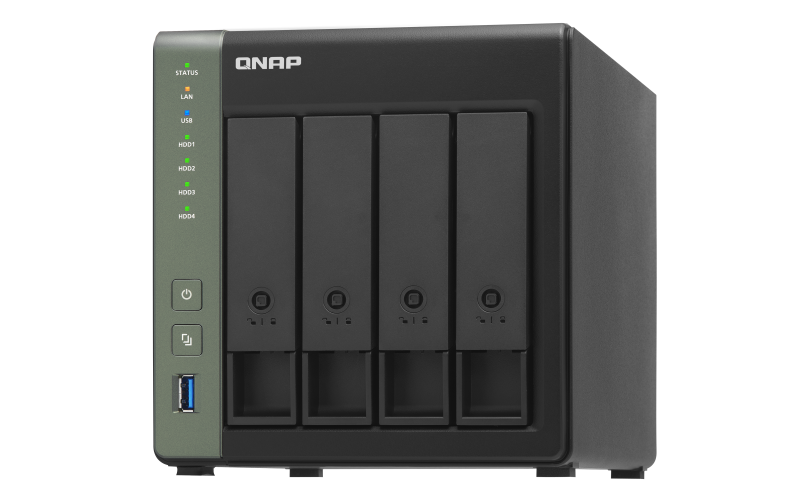

Right Angle View

Right Angle View

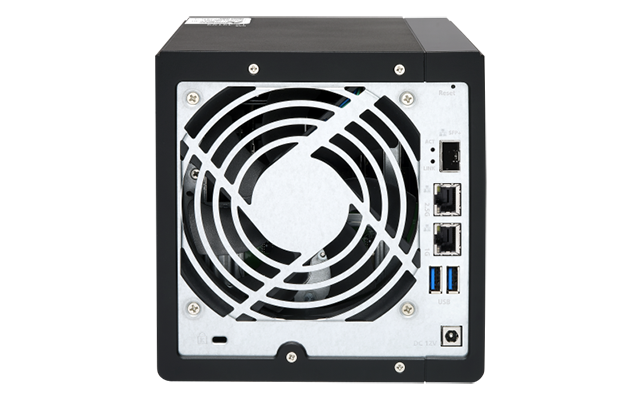

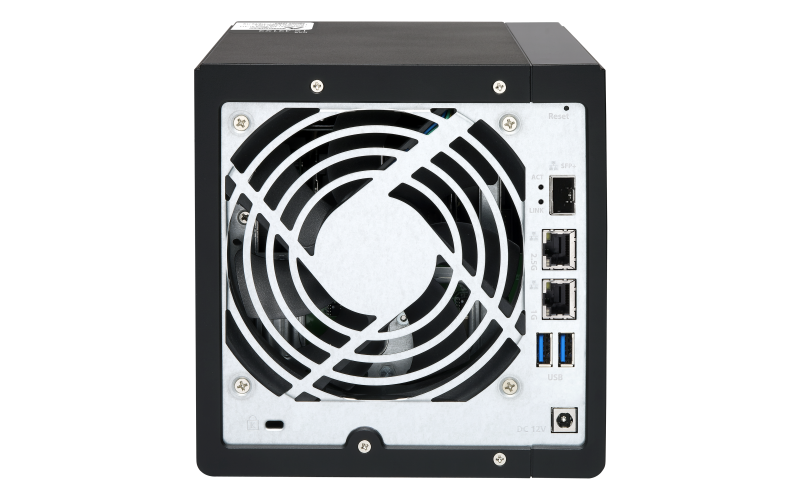

Rear View

Rear View

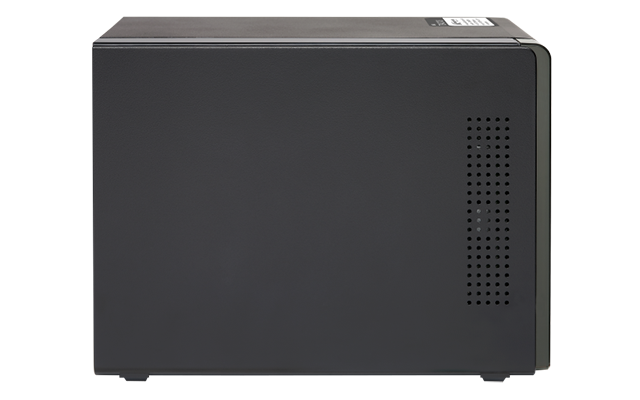

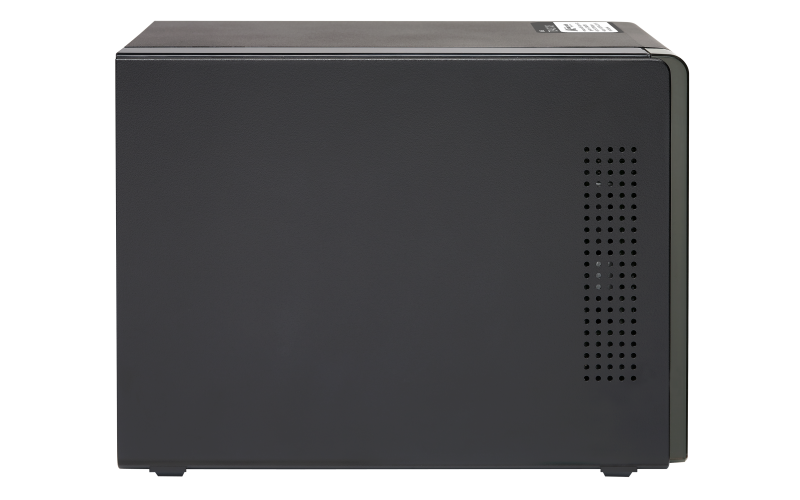

Left Angle View

Left Angle View

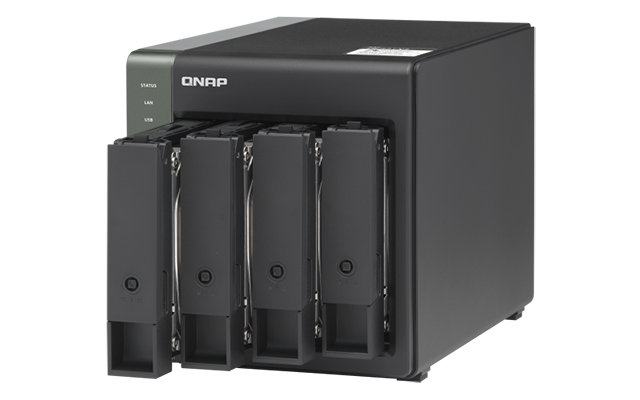

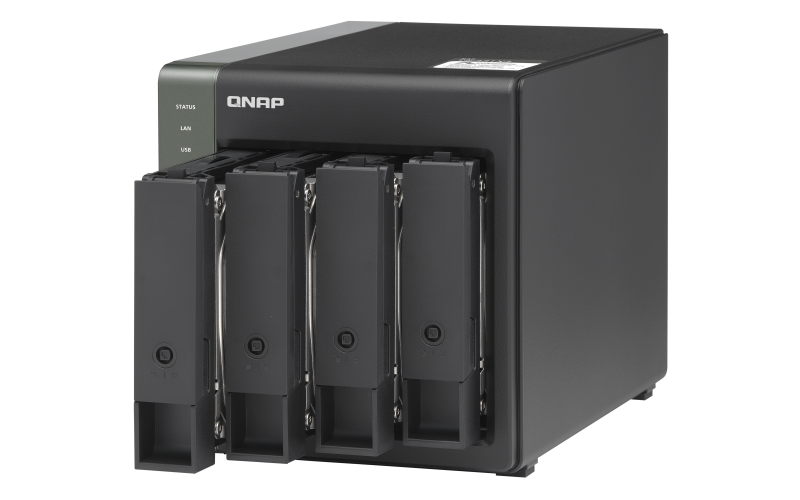

Hot Swappable

Hot Swappable



Documentation:

Datasheet for QNAP TS-431X3 is coming soon.
