QNAP TS-431XU-RP
Cost-effective quad-core NAS with dual 10GbE SFP+ ports and redundant power supplies
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
The powerful quad-core TS-431XU-RP includes two 10GbE SFP+ ports to fully support 10GbE high-speed networks at a budget price with maximized ROI. The TS-431XU-RP provides versatile all-in-one functionalities and unique features including VJBOD (Virtual JBOD) - an economical way to utilize unused NAS storage space for expanding the storage capacity of other QNAP NAS - and Container Station - that allows users to rapidly develop and deploy Internet of Things (IoT) apps. The TS-431XU-RP is a cost-effective storage solution designed for growing businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.
- 10GbE readiness, SSD cache, and hardware-accelerated encryption engine
- VJBOD allows using the TS-431XU-RP to expand the storage capacity of other QNAP NAS
- Containerized virtualization and IoT app development with Container Station
- Build a private cloud to centrally organize & manage files and backup tasks
- Secure access with VPN Server & VPN Client
- Scalable design allowing the connection of two QNAP expansion enclosures (UX-1200U-RP) to increase the total storage capacity up to 28 drives
Specifications:
TS-431XU-RP Specifications | |
---|---|
Ordering P/N | TS-431XU-RP-4G |
CPU | AnnapurnaLabs, an Amazon company Alpine AL-314 Quad-Core 1.7 GHz ARM® Cortex-A15 CPU |
Hardware Encryption Accleration | |
System Memory | 2GB DDR3 (1 x 2GB) |
Maximum Memory | 16GB |
Memory Slots | 2 x SODIMM DDR3 (Note: For dual-DIMM configurations, you must use a pair of identical DDR3 RAM modules.) |
Flash Memory | 512MB |
Drive Type | 4 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs |
10GbE LAN | 2 x 10 Gigabit SFP+ LAN ports |
GbE LAN | 2 x Gigabit RJ45 LAN ports |
USB | 4 x USB 3.0 ports |
PCIe Slot | 1 x PCIe Gen2 (x2) |
LED | Status/Power, LAN, HDD 1-4 |
Button | Power, Reset |
Other | Kensington security slot, console port |
Dimension (HxWxD) | 44 x 439 x 499 mm 1.73 x 17.28 x 19.65 inch |
Weight | Net: 9.12 kg (20.11 lbs) Gross: 11.10 kg (24.47 lbs) |
Operating Temperature | 0-40˚C |
Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C |
Noise Level | 38.3 dB(A)* |
Power Consumption | HDD standby: 36.05W In operation: 51.16W (with 4 x 2TB HDDs installed) |
Power | ATX 250W, 100-240V AC, 5A-2.5A, 50Hz-60Hz (x2) |
Fan | 2 x 4cm system fan (12V DC) |
*Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS
Product Views:

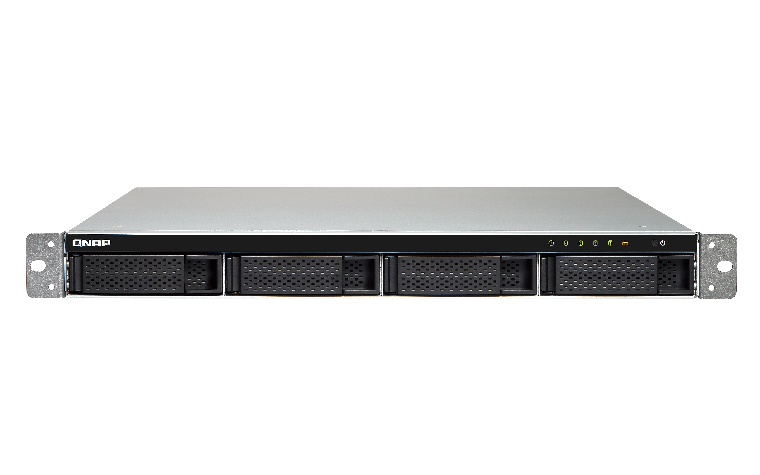

Front View |
Left View |
Right View |

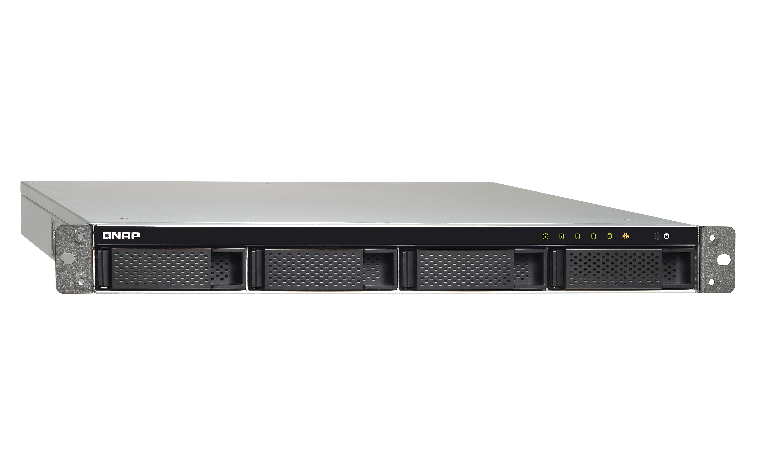

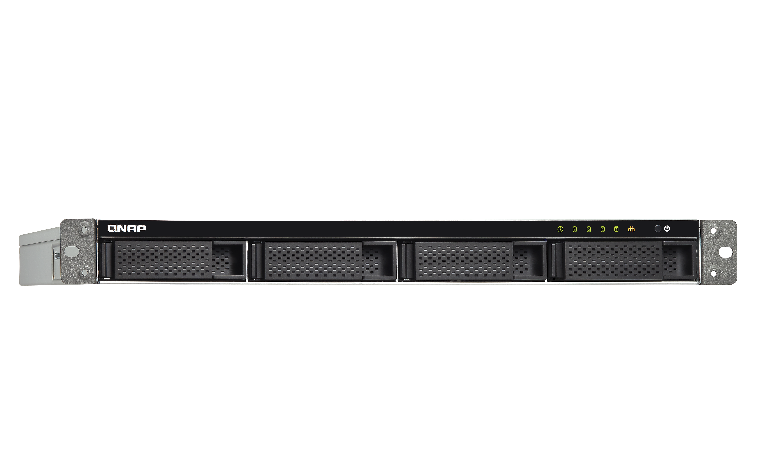

Left Angle View |

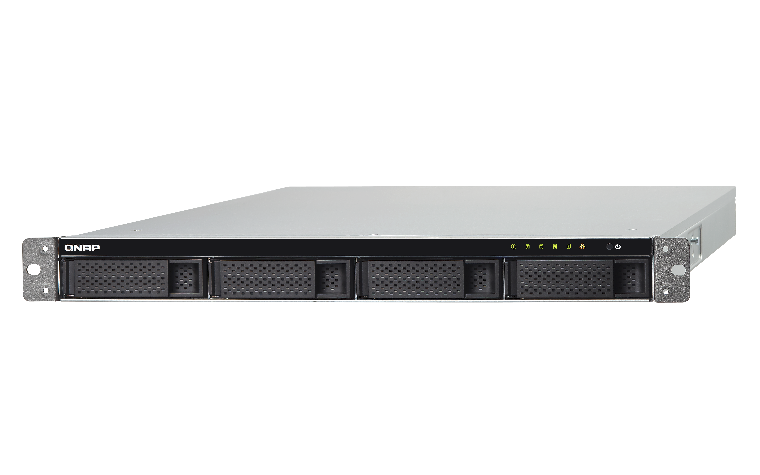

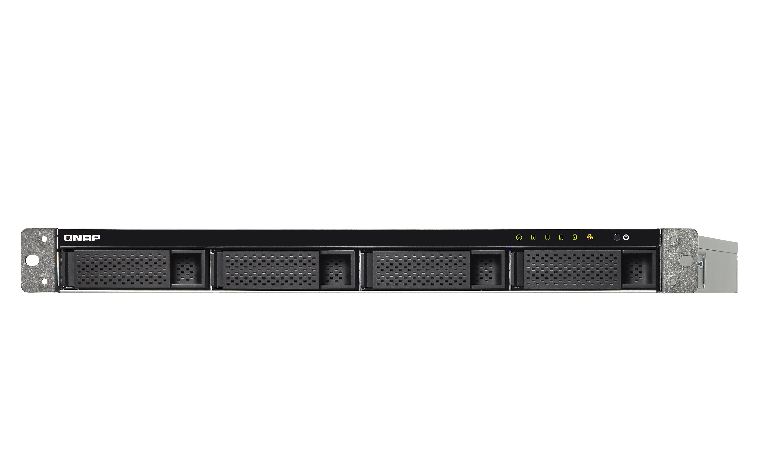

Right Angle View |

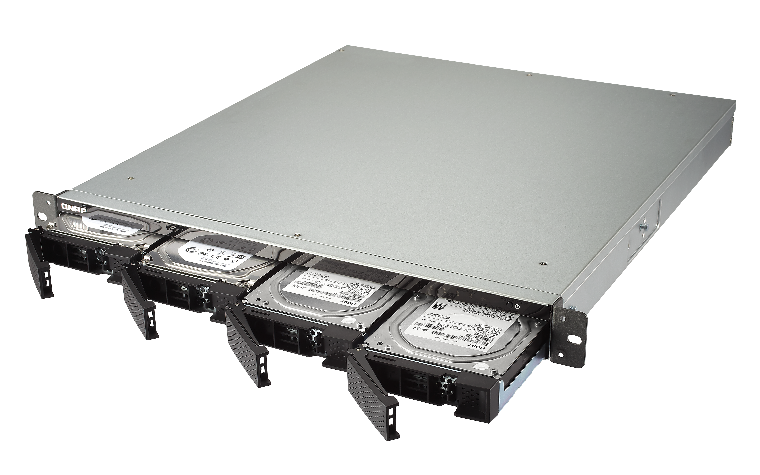

Open View |

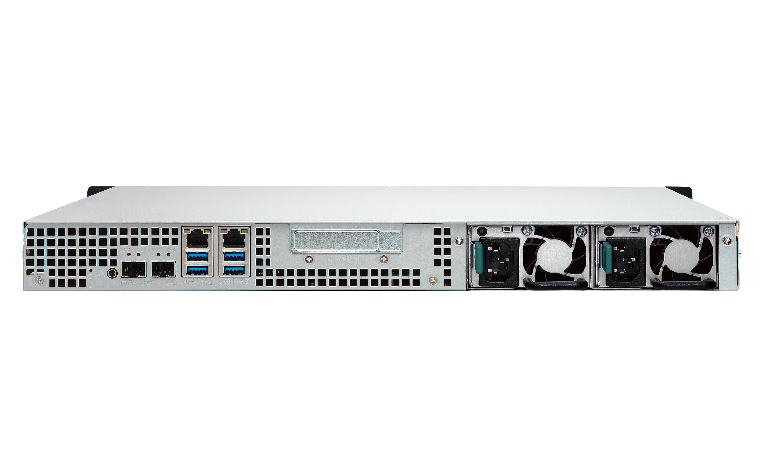

Back View |
Documentation:
Download the QNAP TS-x31U Series Datasheet (PDF).
