QNAP TS-431XeU
Short depth rackmount NAS with quad-core CPU and 10GbE SFP+ port

QNAP TS-431XeU

QNAP Products TS-431XeU
Small Business (SMB) Storage
QNAP 4-bay 1U Short-Depth Rackmount NAS with Builti-in 10GbE Network (8GB RAM)
ARM Cortex-A15 Quad Core 1.7GHz, 8GB DDR3 RAM (max 8GB), SATA 6Gb/s,1 x 10GbE(SFP+), 2 x 1GbE, Hardware encryption, Container Station, Surveillance Station, max 1 UX-800U-RP/UX-1200U-RP Expansion Unit
#TS-431XeU-8G-US
Our Price: $699.00
QNAP 4-bay 1U Short-Depth Rackmount NAS with Built-in 10GbE Network (2GB RAM max 8)
ARM Cortex-A15 Quad Core 1.7GHz, 2GB DDR3 RAM (max 8GB), SATA 6Gb/s,1 x 10GbE(SFP+), 2 x 1GbE, Hardware encryption, Container Station, Surveillance Station, max 1 UX-800U-RP/UX-1200U-RP Expansion Unit
#TS-431XeU-2G-US
Our Price: $549.00

Create Your Ideal Bundle:

Click here to jump to more pricing!

Overview:

Package Content

  • QNAP TS-431XeU Storage
  • Ethernet Cable
  • Power Cord
  • Flat Head Screw (for 3.5" HDD)
  • Flat Head Screw (for 2.5" HDD)
  • Quick Installation Guide (QIG)
  • 2 x Hanger
  • 2 x Holder

The high-performance quad-core short depth TS-431XeU includes a 10GbE SFP+ port to fully support 10GbE high-speed networks at a budget price with maximized ROI. The short depth design is perfectly suitable for installing the TS-431XeU in a compact rack, or places with a lot of cabling. The TS-431XeU provides versatile all-in-one functionality and unique features including VJBOD (Virtual JBOD) - an economical way to utilize unused NAS storage space for expanding the storage capacity of other QNAP NAS - and Container Station - that allows users to rapidly develop and deploy Internet of Things (IoT) apps. The TS-431XeU is a cost-effective storage solution designed for growing businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.

  • The short depth design is suitable for installing in smaller racks or space-constrained locations
  • 10GbE readiness, SSD caching, and encryption acceleration engine
  • VJBOD allows using the TS-431XeU to expand the storage capacity of other QNAP NAS
  • Containerized virtualization and IoT app development with Container Station
  • Build a private cloud to centrally organize & manage files and backup tasks
  • Secure access with VPN Server & VPN Client
  • Qsirch, the full text search engine, helps quickly locate files on the NAS
  • Expand the total storage capacity up to 24 drives by connecting up to 2 QNAP expansion enclosure (UX-1200U-RP or UX-800U-RP)

Features:

Smaller Footprint for Bigger Opportunities

Compared to a traditional 4-bay rackmount NAS, the TS-431XeU has a depth of only 11.46 inches (291 mm). This makes the TS-431XeU an excellent choice for smaller racks, and the unused space can be reserved for cabling or ventilation. The TS-431XeU is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms and security surveillance recording.

small racks


Quad-core CPU and built-in one 10GbE SFP+ port

The TS-431XeU is equipped with an Annapurna Labs, an Amazon company, Alpine AL314 quad-core 1.7 GHz ARM® Cortex-A15 processor with SATA 6Gb/s and up to 8GB DDR3 RAM. Its encryption acceleration engine provides unmatched encryption performance in its class with AES 256-bit full NAS volume encryption, boosting system performance & security while ensuring the safety of sensitive business data stored in the TS-431XeU. Besides two Gigabit Ethernet ports, the TS-431XeU also includes a 10GbE SFP+ port to fully support 10GbE high-speed networks for businesses that demand higher bandwidth for virtualization and fast backup & restoration of an ever-growing amount of data.


Reduce the impact of ransomware or system failure with Snapshots

The TS-431XeU supports snapshots, which can record the system status and data at any single moment*. If the system unexpectedly fails or is infected with ransomware, you can instantly restore files from a snapshot. The intuitive snapshot tool in the QTS Storage Manager can be used to take snapshots of your data, and restore data from snapshots if necessary. Always take regular snapshots to ensure the safety of your files and data.

* For a single volume/LUN, up to 64 versions are supported. For the whole NAS, up to 256 versions are supported. Snapshot support will be added to the TS-431XeU in the upcoming QTS 4.3.4.

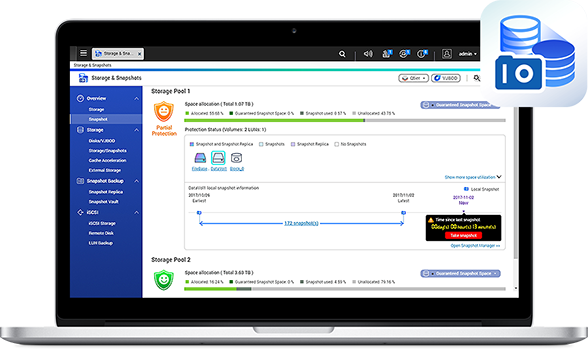

snapshots


High reliability design ensuring business continuity

The business-ready TS-431XeU is designed to provide 24/7 operations and services. The support for comprehensive RAID configurations and hot-swapping allow for replacing hard drives without service interruption. QNAP's advanced RAID recovery technology also helps if any healthy drives are accidentally removed from a degraded RAID volume. The system can be recovered by reinserting the wrongly-removed hard drives so the data can still be accessible. The TS-431XeU delivers high reliability and efficiency with support for multiple port-trunking modes including fail-over support.

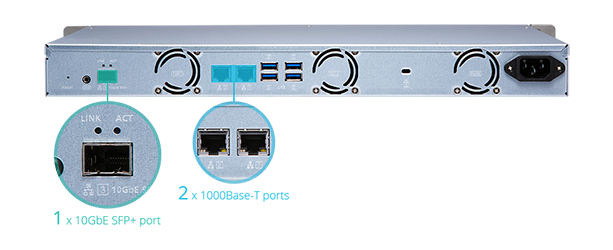

high-reliability-design


VJBOD: Maximize storage utilization across multiple QNAP NAS

Besides using expansion enclosures, there is an additional option to expand NAS storage capacity. QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand the storage of a QNAP NAS with multiple QNAP NAS units. The TS-431XeU offers great potential for economically expanding the storage of other QNAP NAS with VJBOD, and to create virtual storage pools and volumes on virtual disks for operating NAS services.

Note: The remote QNAP NAS must support iSCSI and Storage Pools and use QTS 4.2.1 (or newer).

Rapidly deploy IoT apps with Container Station

QNAP Container Station exclusively integrates LXC and Docker® lightweight virtualization technologies, allowing you to operate multiple isolated Linux® systems on the TS-431XeU as well as download apps from the built-in Docker Hub® Registry for unlimited containerized applications. What's better, Container Station supports the QIoT Containers platform that helps quickly structure your IoT environment and deployment on your private IoT cloud, boosting microservices and modernizing legacy applications to drive more business opportunities.

Container_Station


QTS - The intelligent NAS operating system

With multiple applications and functions, QTS enhances management efficiency, personal productivity, entertainment, and much more. The user-friendly QTS features an intelligent desktop that allows you to find desired functions quickly, monitor important system information on a real-time basis, open multiple application windows to run multiple tasks concurrently with greater working efficiency, and provides a built-in App Center with install-on-demand apps to extend NAS functionality. Empowered by intelligent agent services that simplify system operations and management, QTS breaks down barriers of devices, platforms, and geography to provide you with the optimum cloud experience.


Optimized collaboration with cross-platform file sharing and sync

The TS-431XeU centrally stores data, logs and various files, and supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows®, Mac®, Linux®/UNIX® networks. Coupled with Qsync - a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization - any file uploaded to the TS-431XeU will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing, greatly enhancing the flexibility of team projects and collaboration.


file sharing and sync

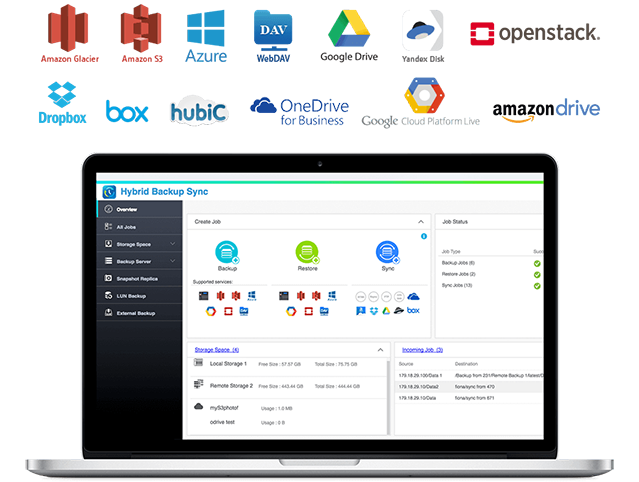

Well-rounded backup & disaster recovery solutions

The TS-431XeU offers flexible backup solutions for Windows® and Mac® users. It also supports Hybrid Backup Sync that consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. Supported cloud services include Amazon® Glacier, Azure™ Storage, Google Cloud Storage™, Google Drive™, Microsoft® OneDrive® for Business, Dropbox®, Amazon® Drive, Yandex® Disk, Box®, hubiC® and Amazon® S3/OpenStack Swift/WebDAV compatible services.

Hybrid-Backup


Comprehensive security to protect your data

In open network environments, business data may be exposed in a potential hack. The TS-431XeU provides numerous security options, such as antivirus, encrypted access, IP blocking, 2-step verification, and more. IT administrators can also control the access rights of each user to different folders, preventing unauthorized access to important files. The TS-431XeU supports AES 256-bit encryption, preventing sensitive business data from unauthorized access and breach even if the hard drives or the entire system were stolen. Windows AD server, LDAP server, and built-in LDAP service are also supported.

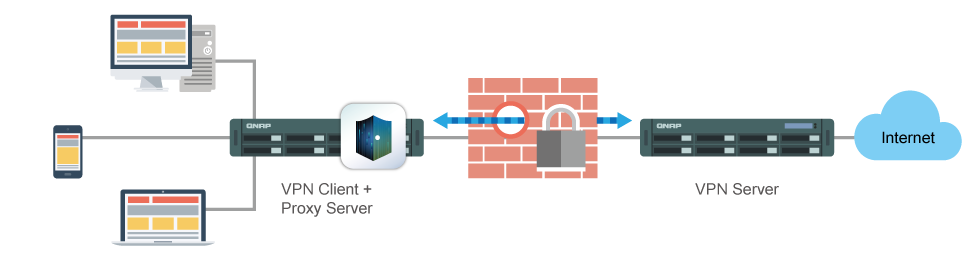

Secure access with VPN Server & VPN Client

With the new QVPN app which integrates settings for VPN server and VPN client, the TS-431XeU can be used as a VPN server with L2TP/IPsec, OpenVPN, and PPTP support, allowing you to securely access data shared within private local networks. It can also be used as a VPN Client to connect to other VPN servers (connecting multiple servers at the same time is possible) or virtual private networks through PPTP and OpenVPN for secure data transmission. You can connect devices to your NAS and the VPN server at home to access data on the LAN; via VPN Client on your NAS, for example, you can connect to VPN servers in foreign countries for accessing regionally-restricted services.

VPN Server & VPN Client


Qsirch - a smarter, faster way to search

The TS-431XeU supports Qsirch, a proprietary search engine for quickly finding files. In addition to previewing files with thumbnails, content abstract and keyword hints, Qsirch even remembers your search history allowing you to quickly navigate to files you've previously searched for. The Qsirch Helper extension (for Google Chrome™ and Mozilla Firefox®) can also be used to search for files on your NAS when using Google Search™. Qsirch provides a huge productivity boost by greatly reducing the time spent looking for files on the NAS.


QmailAgent: A mailroom center for your private cloud

QmailAgent is an online email client that helps you manage multiple email accounts, allowing you to access all of your emails and to easily switch between different accounts. It provides complete functionality for composing, reading and organizing emails. You can even attach files, photos and documents directly from the TS-431XeU when composing emails. iOS® and Android™ users can use the QmailClient app to quickly check multiple email accounts with mobile devices, and to browse & send emails using the QmailAgent on their TS-431XeU.

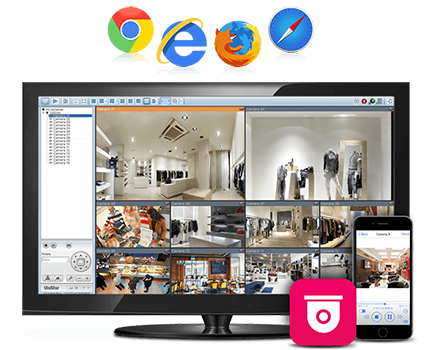

Comprehensive surveillance solution providing 24/7 security

Surveillance Station is a professional network surveillance Video Management System (VMS) that offers a user-friendly management interface, over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can use iOS® or Android™ Vmobile app to manage the monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TS-431XeU. The TS-431XeU offers 2 free IP camera channels and you can expand up to 30 channels by purchasing additional licenses.

surveillance solution


Easily expand storage capacity

The TS-431XeU's storage capacity can be expanded as needed to meet the demands of rapidly-growing data, making it ideal for storage-intensive applications such as video surveillance, data archiving, TV broadcast storage, and more. By connecting the TS-431XeU to a QNAP expansion enclosure you can expand the TS-431XeU's storage on-demand, and use the QTS Storage Manager to easily manage the newly-added capacity without any downtime.

Using an UX-800U-RP and an UX-1200U-RP, up to 24 (4+8+12) drives are supported. Using two UX-800U-RPs, up to 20 (4+8+8) drives are supported. Using an UX-800U-RP or an UX-1200U-RP, up to 12 (4+8) or 16 (4+12) drives are supported. With the support of QJBOD Express (JBOD enclosure roaming)*, you can connect a large-capacity QNAP expansion enclosure to the TS-431XeU, and migrate data to another NAS through the JBOD enclosure without needing network connectivity.

* RAID groups of storage pools cannot cross multiple enclosures.
** You can create a volume over 16TB, but its storage space cannot be expanded. Volumes smaller than 16TB can only be expanded up to 16TB by using online capacity expansion. For the best use of storage space on your NAS, please create multiple volumes.


expansion


Quiet and Energy Efficient for 24/7 Operation

The TS-431XeU utilizes an energy-efficient quad-core ARM processor that maintains high performance in system operations without running up a high electricity bill. With a noise level of just 20.3dB, and power consumption of 12.42W (sleep) or 30.99W (active), the TS-431XeU is ideal for providing an always-online business cloud and other around-the-clock applications. Additional energy-saving features include hard disk standby, scheduled power on/off, and Wake on LAN.

Test environment: TS-431XeU, with 4 WD Red HDD (1TB) installed and formed a RAID 5 array; noise level measured at bystander positions, at a distance of approx. 1.2m from the TS-431XeU.


Additional SMB-ready features

The TS-431XeU supports various business applications as an all-in-one Turbo NAS with cost-efficiency.

FTP server


FTP server

Web server


Web server

RADIUS server


RADIUS server

The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT cost.
The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.

VPN server


VPN server

Printer server


Printer server

Surveillance Station


Surveillance Station


Extend hardware warranty up to 5 years

TS-431XeU is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension that increases your coverage up to 5 years.

Hardware Specifications:

  TS-431XeU-2G TS-431XeU-8G
CPU AnnapurnaLabs Alpine AL-314 32-bit ARM® Cortex-A15 quad-core 1.7GHz processor
CPU Architecture 32-bit ARM
Floating Point Unit
Encryption Engine (AES-NI) (AES-NI)
System Memory 8 GB SODIMM DDR3 (1 x 8 GB)
Maximum Memory 8 GB (1 x 8 GB)
Memory Slot 1 x SO-DIMM DDR3
Flash Memory 512MB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 1 x 10GbE SFP+
Jumbo Frame
USB 3.2 Gen 1 port 4
Form Factor 1U Rackmount
LED Indicators HDD 1-4, Status, USB, LAN1-3
Buttons Power, Reset
Dimensions (HxWxD) 1.73 × 17.28 × 11.46 inch
Weight (Net) 9.15 lbs
Weight (Gross) 12.74 lbs
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Open-frame 100W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz
Power Consumption: HDD Sleep Mode 12.42 W
Power Consumption: Operating Mode, Typical 30.99 W
With drives fully populated
Fan System fan: 3 x 40mm, 12VDC
Sound Level 20.3 db(A)
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) 700 700
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.

Optional Accessories:

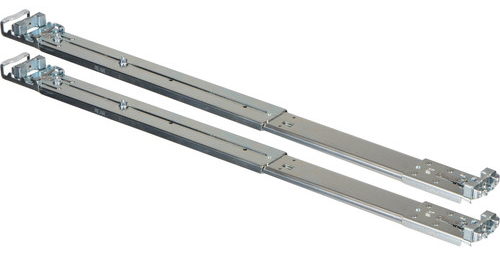

RAIL-B02

RAIL-B02

Rail kit for rackmount models
Note: This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth.

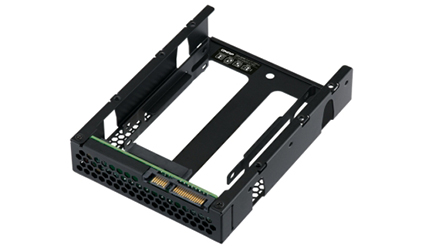

QDA-A2AR

QDA-A2AR

Dual 2.5" SATA to 3.5" SATA adapter with RAID support

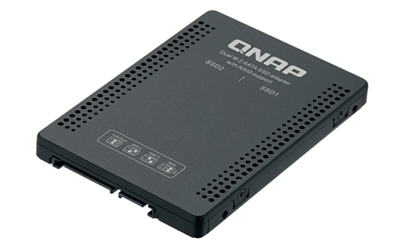

QDA-A2MAR

QDA-A2MAR

Dual M.2 SATA SSD to 2.5" SATA adapter with RAID support
Note: Computer SATA ports that do not support 12V (+12V_SATA) are not compatible with the QDA-A2MAR. Please consult your computer vendor for the SATA port voltage output before purchasing the QDA-A2MAR.

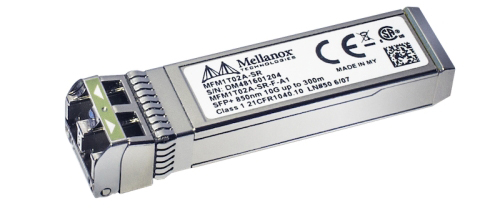

TRX-10GSFP-SR-MLX

TRX-10GSFP-SR-MLX

TRX-10GSFP-SR-MLX

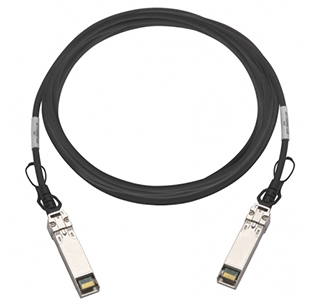

CAB-DAC15M-SFPP-DEC02

CAB-DAC15M-SFPP-DEC02

1.5M SFP+ 10GbE DIRECT ATTACH CABLE
Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

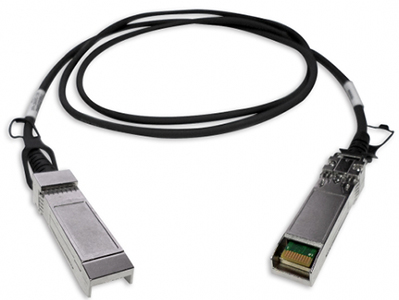

CAB-DAC30M-SFPP-DEC02

CAB-DAC30M-SFPP-DEC02

3.0M SFP+ 10GbE DIRECT ATTACH CABLE
Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
CAB-DAC50M-SFPP-DEC02

CAB-DAC50M-SFPP-DEC02

5.0M SFP+ 10GbE DIRECT ATTACH CABLE
Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

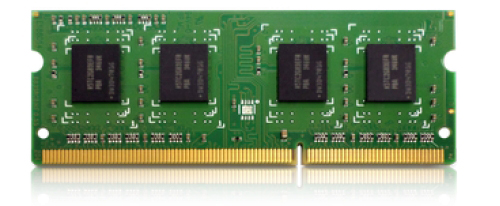

RAM-4GDR3-SO-1600

RAM-4GDR3-SO-1600

DDR type: DDRⅢ(204 PIN)
Capacity: 4GB
Spec: SAMSUNG K4B4G0846(X)
Manufacturer: APACER
Frequency: 1600
Form(PIN): 204PIN
Manufacturer P/N: 78.B2GCN.4000C SAMSUNG
Power Supply: 1.5V
Temperature: 0℃~85℃
Environmental Regulation: RoHS
Note: Make sure all DIMMs meet the requirements for your NAS model (the information listed in product specifications).
RAM-8DR3-SO-1600

RAM-8GDR3-SO-1600

DDR type: DDRⅢ(204 PIN)
Capacity: 8GB
Spec: SAMSUNG 512M X 8
Manufacturer: TRANSCEND
Frequency: 1600
Form(PIN): 204PIN
Manufacturer P/N: TS1GSK64V6H SAMSUNG
Power Supply: 1.5V
Temperature: 0℃~85℃
Environmental Regulation: RoHS
Note: Make sure all DIMMs meet the requirements for your NAS model (the information listed in product specifications).

Product Views:

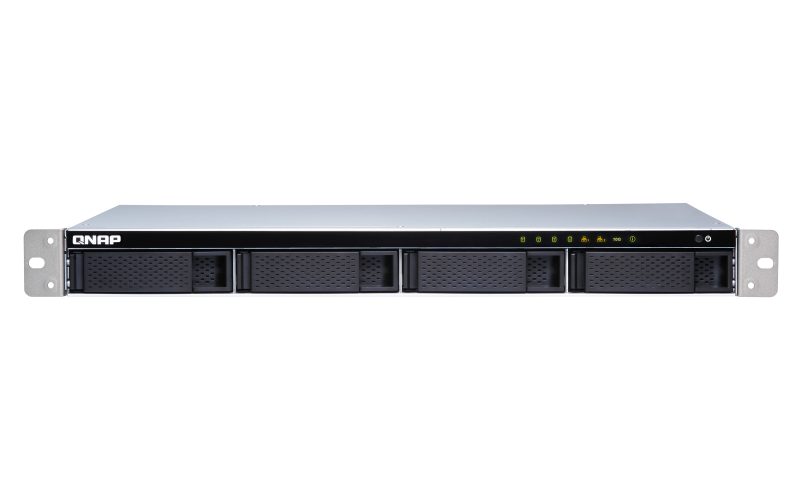

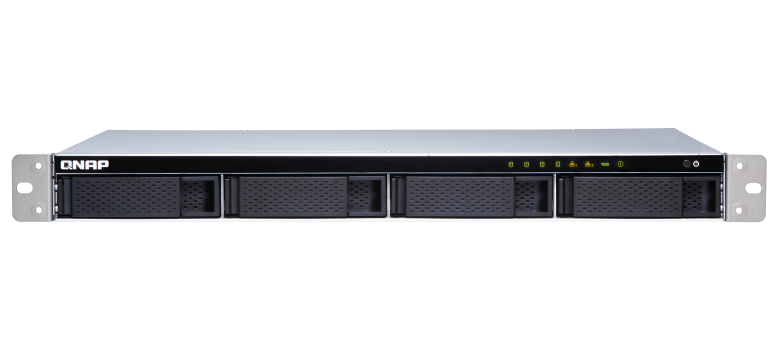

Front View

Front View

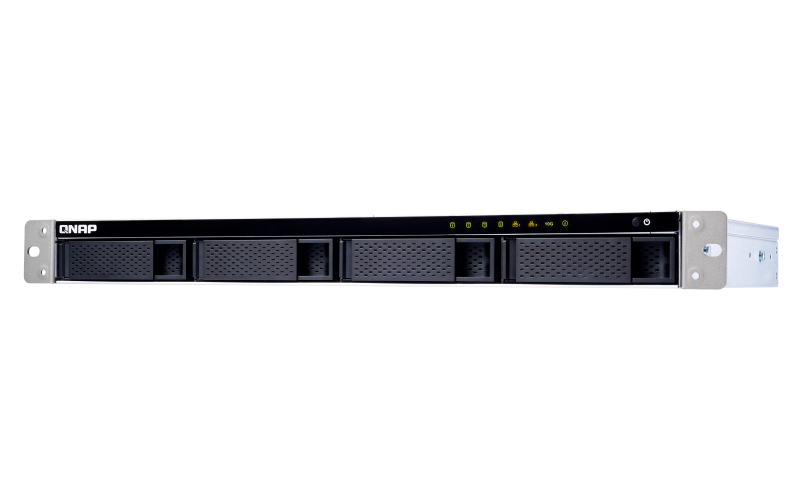

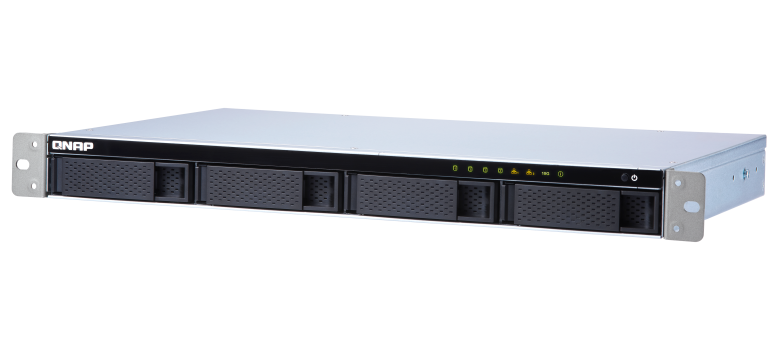

Top Right Angle View

Top Right Angle View

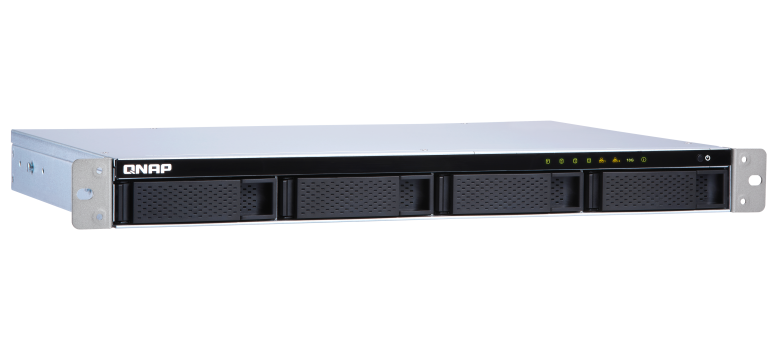

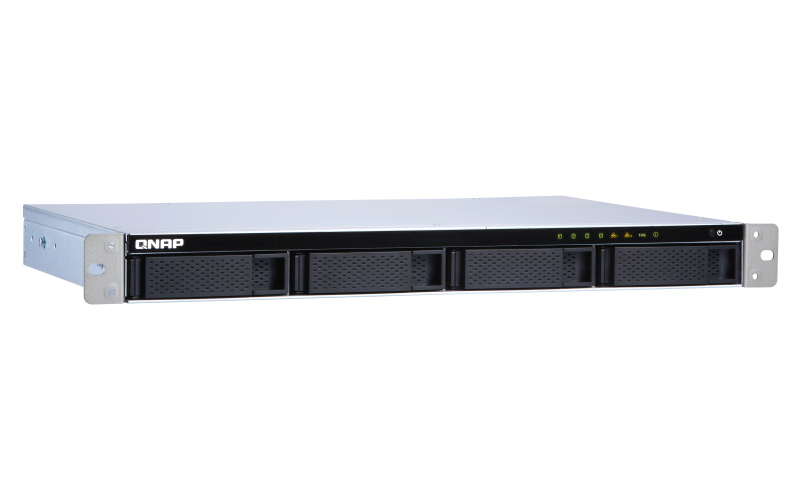

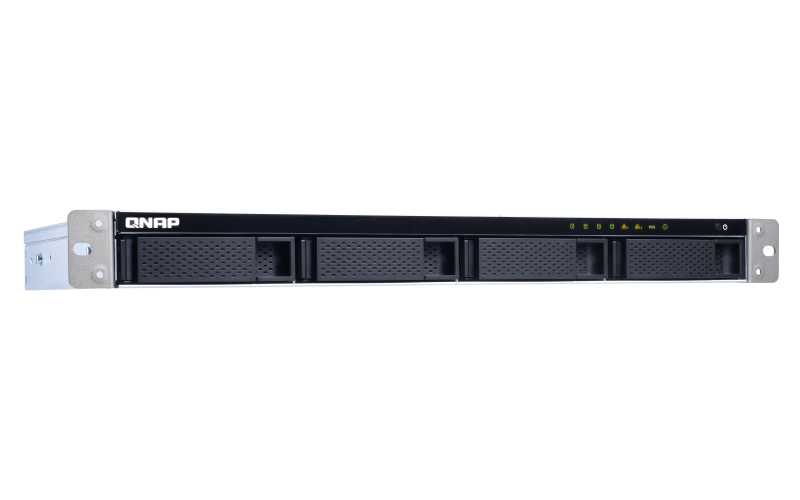

Top Left Angle View

Top Left Angle View

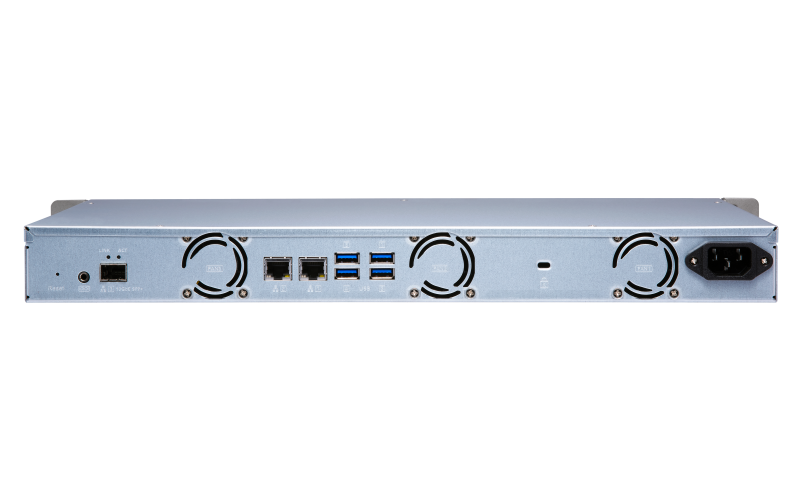

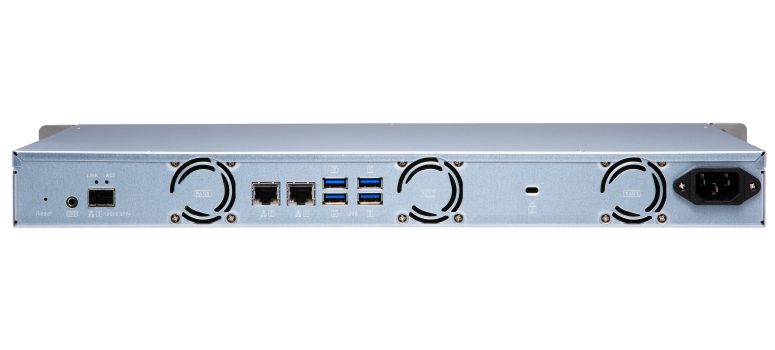

Rear View

Rear View

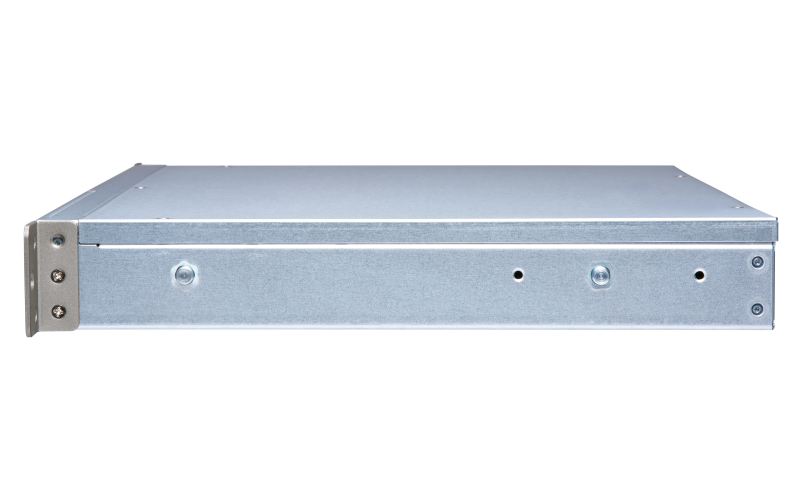

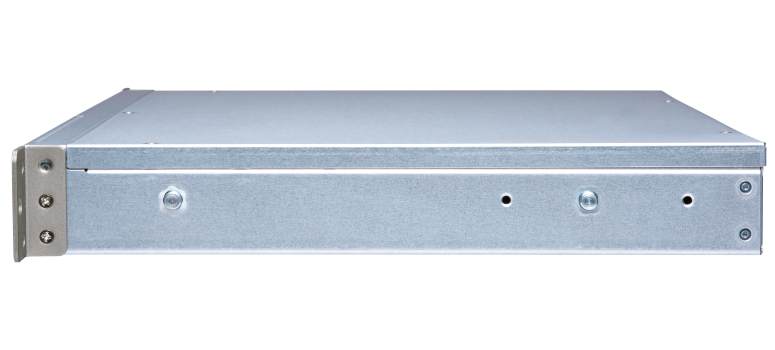

Right Side View

Right Side View

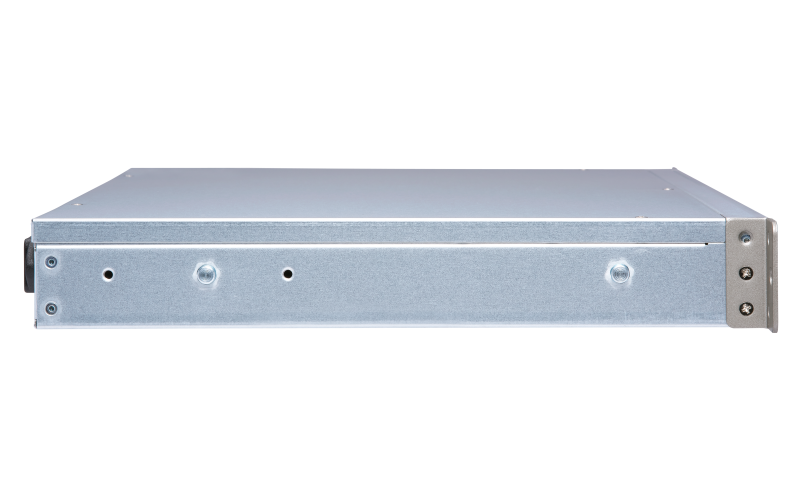

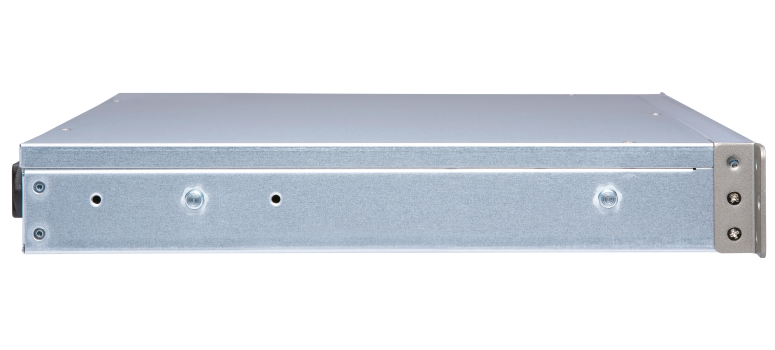

Left Side View

Left Side View

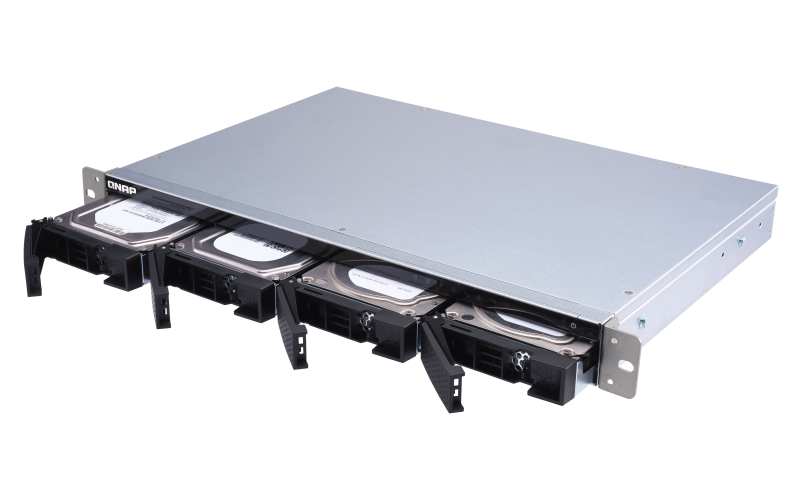

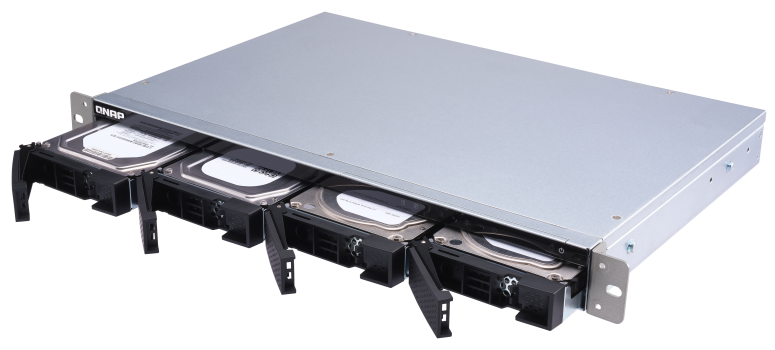

Hot-swappable View

Hot-swappable View



Documentation:

Download the QNAP TS-431XeU Datasheet (PDF).
