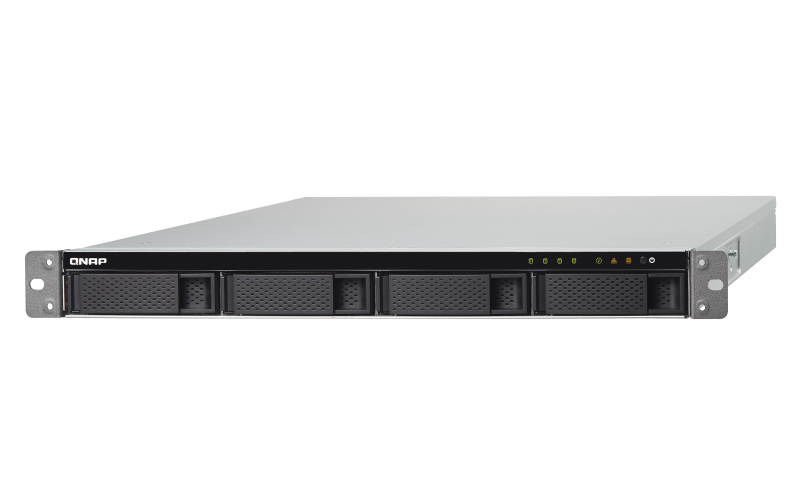

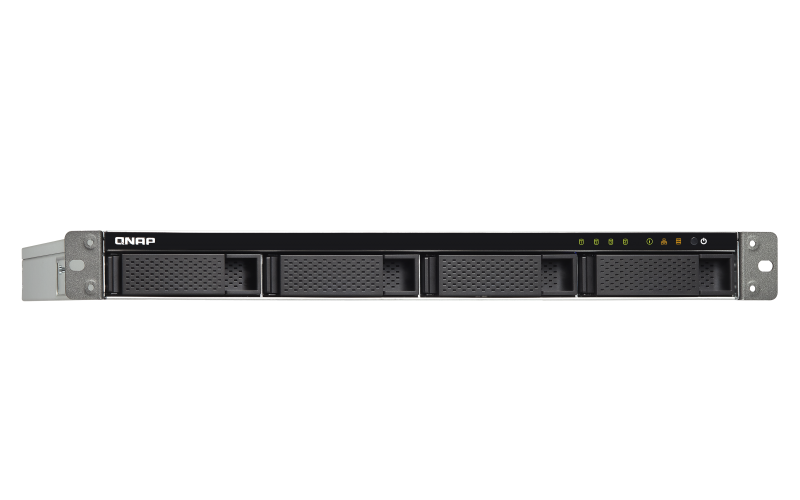

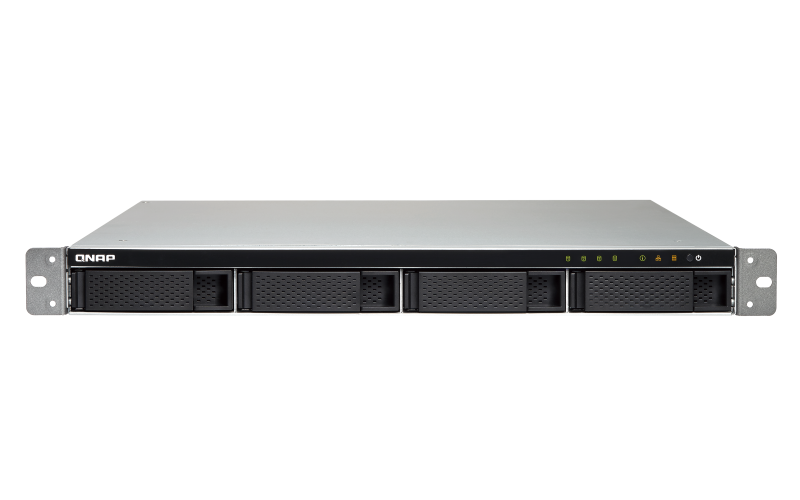

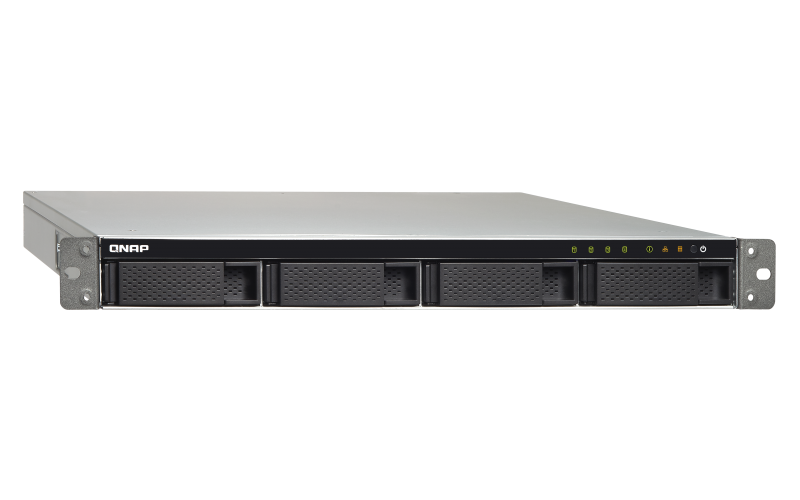

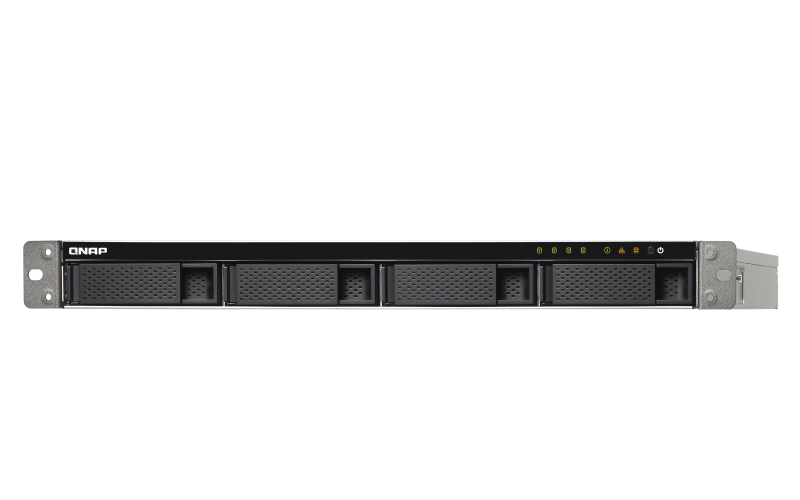

10GbE-ready, entry-level rackmount NAS for SMB featuring two SFP+ ports, one PCIe 2.0 ×2 slot and redundant power supply
Our Price: $799.00

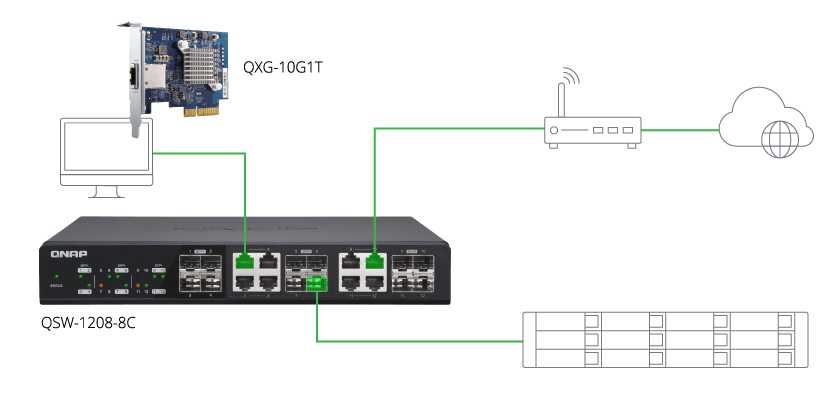

The built-in 10GbE SFP+ ports deliver high speed for mission-critical applications such as database hosting and VM storage.

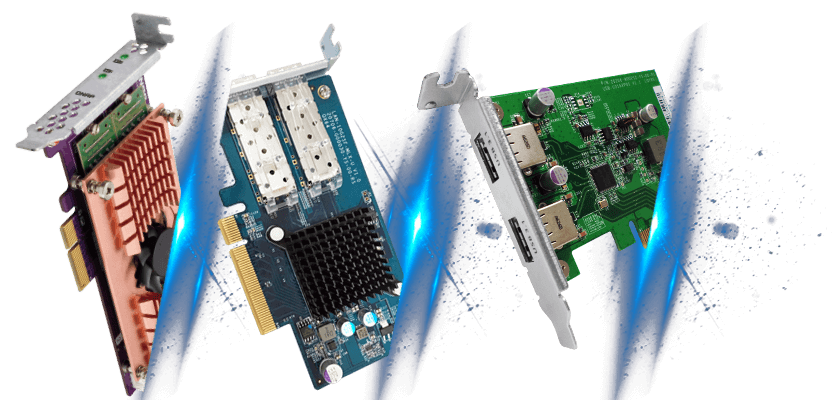

One PCIe 2.0 ×2 slot (×4 length) is available for adding a 10GbE port and/or M.2 SSD slots. With SSDs installed, Qtier auto tiering can be enabled to optimize storage utilization.
Snapshots add an extra layer of protection to your disaster recovery plan, giving you the flexibility to create and revert snapshots locally and/or remotely.

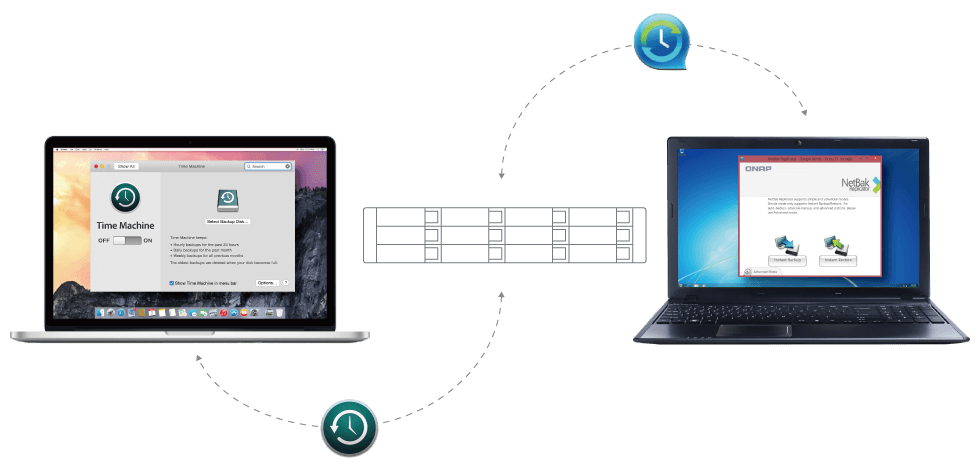

The Hybrid Backup Sync app completes your backup strategies, allowing you to back up, restore and sync files locally and remotely.
QNAP's Virtual JBOD technology can be used to expand remote NAS capacity, ensuring all available space can be fully utilized.
The hot-swappable redundant power supply ensures high reliability and maximum system uptime.
|CPU||Annapurna Labs Alpine AL-324 ARMv8 Cortex-A57 quad-core 1.7 GHz processor
|System Memory||2 GB DDR4 (1 x 2 GB)|
|Maximum Memory||16 GB (1 x 16 GB)|
|Memory Slot||1 x DDR4 Long-DIMM slot|

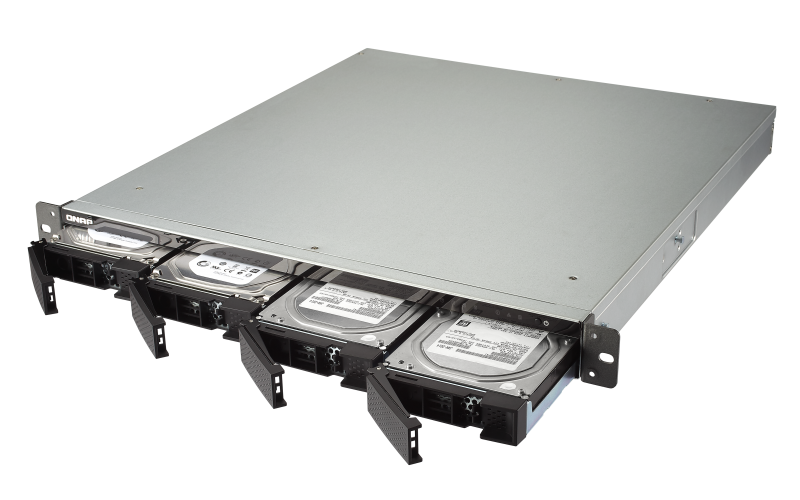

|Drive Bay||4 x 3.5-inch SATA 6 Gbps bays|
|Drive Compatibility||3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
|SSD Cache Acceleration Support||• 3.5-inch bays 1 to 4
Optional: SSDs on an optional QM2 PCIe expansion card

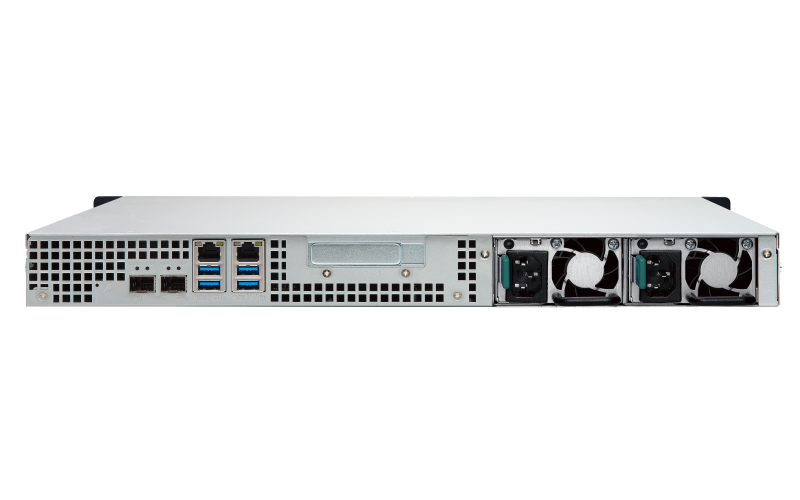

|10 Gigabit Ethernet Port||2 x 10GbE SFP+|
|Gigabit Ethernet Port||2 x RJ45|
|USB Port||4 x USB 3.1 Gen 1 Type-A|
|PCIe Slot||Slot 1: 2.0 x2|
|Dimensions (H x W x D)||44 x 439 x 499 mm
1.73 x 17.28 x 19.65 inch
|Net Weight||9.16 kg (20.19 lbs)|
|Power Supply Unit||2 x ATX 250 W, 100 - 240 V AC, 50/60 Hz, 5A - 2.5A|
|Power Consumption (W)||HDD sleep: 35.116 W
In Operation: 48.751 W
|Fan||2 x 4 cm fans (12 V DC)|
|Sound Level||38.9 dB(A)|
|Operating Temperature & Relative Humidity||0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb temp.: 27˚C (80.6˚F)|
Download the QNAP TS-432XU-RP Datasheet (PDF).
