8-bay QTS-Linux Combo NAS
Sorry, this product is no longer available, please contact us for a replacement.
The TS-853A NAS server is designed to grow alongside with small and medium businesses, allowing its users to use the NAS as a storage device, but also a multitasking and multifunctional light-weight server. Not only is the TS-853A reliable, it is also packed with business-critical features such as LUN/ Volume Snapshot – allowing files/folders to revert to a previous state in case of any corruption, or file-loss. The TS-853A is powered by the latest Quad-core Intel Celeron N3150 CPU which allow users enjoy 4K (H.264) video playback and 1080P/4K video real-time transcoding right from the NAS to an HD/4K display.
- NAS and iSCSI-SAN unified storage solution for server virtualization
- Supports VMware, Citrix, and Microsoft Hyper-V and advanced virtualization features
- AES-NI hardware-accelerated encryption for efficient cryptographic performance up to 420 MB/s
- Supports hardware decoding and transcode 4K (H.264) videos on-the-fly or offline
- Dual HDMI outputs for switching between mirroring and extended desktop options
- Supports the Linux OS with direct output via HDMI
- Equipped with 24-bit digital to analog converter (DAC) for amplifier and clear audio
The beginning of a new era
Powered by the latest 14 nm Intel Celeron N3150 quad-core 1.6GHz processor, dual-channel 4/8GB DDR3L-1600 RAM (upgradable to 8GB), 4 Gigabit LAN ports and SATA 6Gb/s, the TS-853A can deliver up to 410 MB/s read speeds. The TS-853A can automatically increase the processor's clock rate from 1.6GHz to 2.08GHz when performing CPU-intensive tasks. The TS-853A features Intel® AES-NI hardware-accelerated encryption engine to drive transfer speeds of up to 420 MB/s with AES 256-bit encryption for both full NAS volume and shared folders, boosting system performance & security while ensuring the safety of sensitive business data stored in the TS-853A.
OS: QTS 4.2.0
Volume type: RAID 5; 4 x Seagate 1TB ST1000NM0033 HDDs: NAS and PCs are connected.
Intel Core i7-4770 3.40GHz CPU; DDR3L 1600Hz 16GB; WD 1TB WD10EZEX;
Intel Gigabit CT( MTU 1500 ) ; Windows® 7 Professional 64bit SP1 & Windows 8.1 Pro 64-bit IOMeter configuration: Multiple PCs via switch. Transferring 32GB file continuously to NAS for 3 minutes. Block size: 64KB for SMB2.0
* Tested in QNAP lab. Figures could vary by environments.
Superior real-time and offline 4K video transcoding*
Featuring advanced 8th-generation Intel HD Graphics, the TS-853A supports 4K (H.264) hardware decoding and delivers superior real-time 4K (H.264) and 1080p video transcoding to convert videos to universal formats that can be smoothly played on PCs, mobile devices and Smart TVs. With offline transcoding, even when you can only connect using a low-speed Internet connection, you can still enjoy smooth video playback via File Station, Video Station, and the Qfile mobile app by selecting a pre-rendered lower resolution video. The TS-853A also allows you to set a dedicated folder for automatic video transcoding.
Easily expand storage capacity
The TS-853A supports online capacity expansion for archiving rapidly-growing data by connecting a QNAP expansion enclosure. With the QNAP scale-up solution, the raw storage capacity can be expanded on demand*, making the TS-853A an ideal file center with large storage capacity for storage-intensive business applications such as video surveillance, data archiving, TV broadcast storage, and more.
With the support of QJBOD Express (JBOD enclosures roaming)**, you can just connect a large capacity QNAP expansion enclosure to the TS-853A, and migrate data to another NAS through the JBOD enclosure without network connectivity.
The maximum raw storage capacity available by connecting a QNAP expansion enclosure:
|Turbo NAS Model||QNAP Expansion Enclosure||No. of RAID Expansion Enclosure||Total HDD No. (NAS + Enclosure)||Max. Raw Capacity (TB)***|
*To expand the storage space with an UX expansion enclosure, you must create a separate static volume or storage pool on the UX expansion unit.
**RAID groups of storage pools cannot cross multiple enclosures.
***The maximum capacity is calculated by using 8TB HDDs.
QTS 4.2 – Simple, convenient and efficient
Thanks to the intuitive user interface of QTS, your NAS experience is smarter, smoother and spectacular. Its modern flat design streamlines loading times, and the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.
Disaster recovery solutions brings peace of mind
The TS-853A offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote QNAP NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency. The TS-853A also supports the rsync protocol to back up data to another remote server on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon S3, Amazon Glacier, Microsoft Azure, ElephantDrive, Dropbox, Google Drive, Google Cloud Storage, and more.
Restore files with Snapshot
QTS Storage Manager adds an easy-to-use web-based snapshot tool for you to easily restore data on the TS-853A back to any point of time in the case of loss important data. You can take snapshots for both volumes and LUN (up to 256 snapshots per volume or LUN and maximum 1024 snapshots per NAS ), efficiently replicate volume/LUN snapshots via Snapshot Replica to remote servers by copying only the changes made, and quickly clone a volume /LUN snapshot as a local volume without interrupting the current system operation. You can even set up the system to automatically take a snapshot of the volume before backup via RTRR/rsync, even when the file is opened.
Datastore for virtualized environments
The TS-853A is also an iSCSI/ IP-SAN storage that supports VMware and Citrix, and is compatible with Microsoft Hyper-V and Windows Server 2012, benefiting flexible deployment and management in any virtualization environments. The TS-853A supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.
Qsirch – A smarter, faster way to search
The TS-853A supports Qsirch, a proprietary near real-time search tool for quick file searching. In addition to thumbnail previews, Qsirch now allows you to find and preview Gmail emails that are backed up on the TS-853A. Qsirch even remembers your search history allowing you to quickly navigate to files you've previously searched for. Qsirch is a huge productivity boost that greatly reduces the time spent looking for files on the NAS, allowing you to focus on other tasks. The revamped Qsirch 2.1 further features a Google Chrome Extension that allows you to search for files on your NAS when you use Google Search.

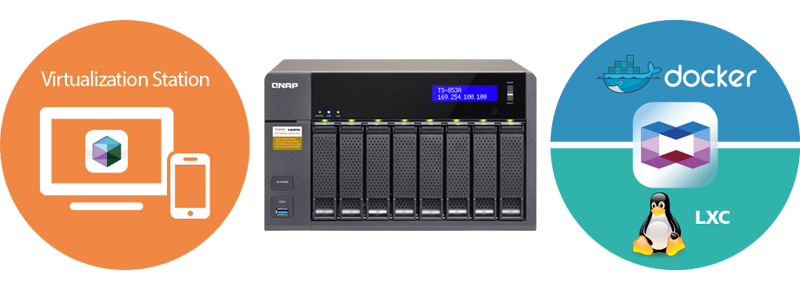

Born for server virtualization
The TS-853A comes with the support of QNAP’s VM hypervisor - Virtualization Station which allows you to host virtual machines on your NAS, and access them via a web browser or VNC. Virtualization Station further uses SDN (Software-defined Networks) which allows the TS-853A and VMs to share the same LAN port. No longer constrained by physical network performance, high-speed Virtual Switches greatly increases data transfer between VMs as well as between VMs and NAS through the internal interface.
This NAS also features with the game-changing Container technology for server virtualization. QNAP’s Container Station exclusively integrates LXC and Docker lightweight virtualization technologies, allowing you to operate multiple isolated Linux systems on the TS-853A as well as download apps from the built-in Docker Hub Registry. Container Station also supports the Online Document app*, which allows you to directly view, edit and store files of various types anytime on your NAS, including Office documents, images and text files.
Cross-platform file sharing, centralized data storage
The TS-853A supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Data, logs and ISO images of CDs and DVDs can be centrally stored on the TS-853A and protected by an integrated antivirus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using an existing Windows AD server, LDAP server or built-in LDAP service. The TS-853A supports SAMBA v4 and can act as a Windows domain controller to manage privilege settings.
Well-rounded backup solutions to secure data
QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with a solution to effortlessly back up data to the TS-853A. The front-panel USB 3.0 port of the TS-853A features a one-touch-copy function for you to instantly back up data from external drives to the TS-853A with just one click, or alternatively to back up data from the TS-853A to external drives. A wide range of third-party backup software such as Acronis True Image and Symantec Backup Exec are also supported.
File synchronization across multiple devices and clouds
Qsync utility turns your TS-853A into a safe, large-capacity data center for file synchronization. Any file uploaded to the TS-853A will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most up-to-date files on different devices. Qsync now provides more new features— it allows you to synchronize shared folders and create group-shared folders exclusive for your project team; it provides centralized management configuration, helping saving IT administers’ time; it also supports centralized configuration and allows you to remotely erase the Qsync folder on a lost device to avoid data breaches, and even restore it after you have retrieved the device. You can also install the Cloud Drive Sync app from QTS App Center to easily sync files with Google Drive and Dropbox cloud storage.
Enjoy the best audiovisual experience on TV
QNAP’s HD Station integrates the powerful Kodi media player and various applications, such as Chrome browser, YouTube, and Plex Home Theater. With HDMI connectivity, you can connect the TS-853A to a HDTV or an A/V receiver to enjoy your rich multimedia content and 4K H.264 videos with the best audiovisual experience. The splendid user interface of Kodi, 7.1 channel audio passthrough*, and the TS-853A’s powerful real-time transcoding capability facilitate smooth and enhanced playback of 4K videos **. You can even watch YouTube videos, surf the web and manage the TS-853A using a web browser with multilingual keyboard input.
The TS-853A includes a QNAP remote control for you to conveniently control HD Station. You can also turn your mobile devices into remote controls by installing the Qremote app.
QTS-Linux dual systems, geared for the IoT era
The TS-853A’s QTS-Linux dual systems are based upon QNAP’s advanced virtualization technologies. The revolutionary architecture of the TS-853A enables users not only to download rich apps from QTS App Center but also to develop IoT packages for Linux and display them using HDMI output. With the TS-853A, you can develop and run IoT packages on demand and centrally store the data on the TS-853A, benefiting from a secure private storage and development solution. Simply plug in a keyboard, mouse and HDMI monitor to the TS-853A, and use the Linux Station as if you were using a PC. You can also operate the Linux Station as a remote desktop via web browser for instant management.

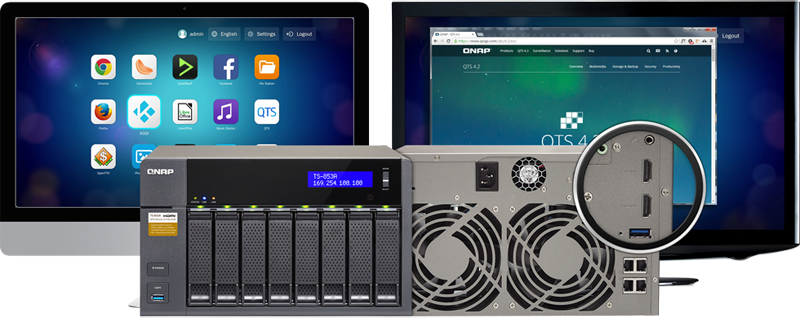

Dual HDMI outputs - Switch between HD Station and Linux desktop
The TS-853A comes with dual HDMI outputs for using two monitors in either a “mirrored” or “extended” desktop configuration. While mirroring displays the same content on both displays, extended desktop mode allows users to display applications over two displays for improved multitasking convenience and productivity.
When displaying content using HDMI outputs, you can use the TS-853A as an amazing multimedia player by using HD Station to enjoy rich apps including Kodi, HD Player, Plex Home Theater, YouTube, Spotify, JRiver, Google Chrome, Mozilla Firefox, and more. Alternatively, you can choose to output Linux operating system desktop to use the TS-853A as a PC.
Note: the Linux desktop will be available from QTS 4.2.1 To use it, you must install the Linux Station from the App Center.
Install-on-demand apps to extend NAS functionality
The built-in App Center provides various install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. And you can directly update the installed applications in the App Center once the updated version are released.
Enjoy your exclusive karaoke system with OceanKTV
QNAP OceanKTV is the first NAS-based karaoke application on the market allowing you to create a quality karaoke experience at home. The TS-853A offers high-capacity storage for accommodating up to thousands of 1080p karaoke songs. Simply attach your big-screen TV to the TS-853A via HDMI and start singing with OceanKTV. Four UI themes are provided to create the best atmosphere, and with the OceanKTV mobile app you can control the entire experience on your phone or tablet. More than a NAS, the TS-853A is a karaoke machine for singing entertainment. Enjoy alone or with your friends!
High-quality audio effect with dual microphones inputs and Line Out function
The TS-853A has two 6.3mm dynamic microphone jacks for connecting up to two dynamic microphones. Compared with the average reception quality of USB microphone, the TS-853A offers a clearer reception quality as it is equipped with a 20-bit analog-to-digital converter (ADC). On top of that, the TS-853A has a 24-bit digital to analog converter (DAC) that can send audio signals via the Line Out jack to your amplifier and deliver clearer stereo sound. By offering excellent audio output/input functionalities together with various apps, the TS-853A brings you a fantastic audiovisual experience.
Comprehensive surveillance solution providing 24/7 security
Surveillance Station is a professional network surveillance Video Management System (VMS) that offers a user-friendly management interface, over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS or Android devices to manage monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TS-853A. The TS-853A includes 4 free IP camera channels and you can expand up to 40 channels by purchasing additional licenses.
Additional SMB-ready features
The TS-853A supports various business applications as an all-in-one Turbo NAS with cost-efficiency
The Turbo NAS supports FTP server to share large size files, coming with user-defined settings including bandwidth limitation, number of connections, and write-only permission.
The Turbo NAS supports Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on the single one Turbo NAS with reduced IT cost.
The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service.
The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.
The Turbo NAS can be used as a Printer server to send remote printing request via the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.
The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.
*A receiver with HDMI support is required for decoding multi-channel surround sound.
** The quality of video and music delivery can vary according to hardware and network environments.
|CPU||14 nm Intel Celeron N3150 1.6GHz quad-core processor (burst up to 2.08GHz)|
|Floating Point Unit||Yes|
|Hardware Encryption||Yes (AES-NI)|
|GPU||8th generation Intel HD Graphics|
|System memory|| TS-853A-4G: 4GB (2 x 2GB)
TS-853A-8G: 8GB (2 x 4GB)
|Memory Expandable Up To||8 GB|
|Total Memory Slots||2, SODIMM DDR3L-1600
(*For dual-DIMM configurations, you must use a pair of identical DDR3L modules.)
|Maximum Number of Hard Drive||8|
|Hard Disk Drive||Hot-swappable 3.5" or 2.5" SATA 6Gb/s, SATA 3Gb/s hard drive or SSD|
|LAN Port||4 x Gigabit RJ-45 Ethernet port|
|USB||4 x USB 3.0 port (Front:1, Rear:3)
Support USB printer, pen drive, and USB UPS etc.
|Video Output||2 x HDMI, up to 4K 2160P Ultra HD support|
|Audio||Input: 2 x 6.3mm microphone jacks (dynamic microphones only)
Output: Line Out Jack (for amplifier or headphone amplifier)
|LED Indicators||Status, USB, HDD 1-8|
|LCD Panel||Mono-LCD display with backlight|
|Buttons||System: Power button, USB one-touch-backup button, Reset button|
|IR Receiver||Yes, Support QNAP RM-IR002 Remote Control and RM-IR003 Remote Control|
|Other Interface||Kensington security slot, console port (system maintenance)|
|Alarm Buzzer||System warning|
|System Fan||2 x 12cm quiet cooling fan (12V DC)|
|Dimensions||185.2(H) x 298.2(W) x 235(D) mm
7.29(H) x 11.74(W) x 9.25(D) inch
|Weight||Net: 7.3 kg (16.08 lbs)
Gross: 8.6 kg (18.94 lbs)
|Temperature||0 - 40˚C|
|Relative Humidity||5 - 95% RH non-condensing, wet bulb: 27˚C|
|Power Supply||ATX 240W, 110-240V AC, 50-60Hz, 5A|
|Power Consumption (W)||System sleep mode: 1.91W
HDD standby: 32.71W
In operation: 58.8W
Access Right Management
Domain Authentication Integration
Cloud Backup Station
AirPlay & Chromecast
HD (HybridDesk) Station 3.0
Storage Plug & Connect
iSCSI (IP SAN)
Q'center (NAS CMS)
1 Not all IPv6 services are supported.
2 Data encryption functions may be unavailable in accordance with the legislative restrictions of some countries.
3 This feature may vary by model.
4 DRM-protected content is not supported.
Design and specifications are subject to change without notice.
8-Bay Expansion Unit
5-Bay Expansion Unit
4GB DDR3L RAM Module
8GB DDR3L RAM Module
Various handy utilities are available for you to work smartly with your Turbo NAS. These utilities help increase your productivity and make it absolutely easy with connecting the Turbo NAS, setting up the system, data backup and synchronization, downloading files, and so on.
Connect and set up NAS easily
Qfinder is a utility, available for Windows, Mac, and Linux, to quickly find and access the Turbo NAS over the LAN. Install the Finder on your computer, open it, and double click your Turbo NAS name, and the login page is ready for you.
Easily access the NAS by Storage Plug & Connect
Windows version of Qfinder provides a convenient way to connect to the Turbo NAS and map a network drive or a virtual disk. By creating a shared folder on the Turbo NAS and mapping it as a network drive, you can use it as an additional drive and store files on it as it is a local drive of the computer.
NAS Connection by VPN
myQNAPcloud Connect helps you access the published services of the Turbo NAS quickly and securely on the Internet. myQNAPcloud Connect application is designed for Windows PC users. By installing the myQNAPcloud Connect, you will be able to connect to the Turbo NAS and easily manage files by drag-and-drop within the Windows Explorer.
Synchronize files anytime, anywhere
Qsync is a useful tool to synchronize files in multiple computers. It creates a specific “Qsync folder” in your devices that you can simply drop files in, and synchronizes the files to all your devices linked to the Turbo NAS.
Sync in multiple ways
Whenever you add, edit, delete or rename a file on one computer, the change applies to all others linked with the Turbo NAS, so you have exactly identical contents on all your devices.
It allows you to remove files on one computer without affecting the copies stored on others that are linked with the Turbo NAS. However, when someone updates the files you deleted from another computer, you can still retrieve them in the Qsync folder.
Advanced Selective Sync
With both Full Sync or Smart Sync options, you can choose to only sync specific sub-folders within the Qsync folder, useful if your computers have limited storage.
Share files and folders easily
Quickly share files with download links
You can create download links to share files with people, even if they don’t have an account on the Turbo NAS. This greatly reduces the time in creating user account and password for users.
Share folders for collaboration
Your life is connected with different groups of people. You can create sub-folders within the Qsync folder, and share each with different groups of Turbo NAS users as a file exchange center. Everyone in the same sub-folder is always kept up-to-date with the latest version of the files.
QNAP NetBak Replicator
Backup data on PC
The QNAP NetBak Replicator, provided with any Turbo NAS unit free of charge, helps you easily back up files from Windows PC - entire disk drives, documents, pictures, music, videos, fonts, emails, and more - to the Turbo NAS. The operation is very simple. You can do the backup task in just a few clicks using NetBak Replicator by the setting of real-time synchronization, scheduled backup and auto-backup from multiple PCs to the Turbo NAS.
NetBak Replicator also supports backing up to a remote server via FTP and WebDAV through the Internet. Imagine that you can backup new photos whenever on vacation. Even you are away from home, the convenient backup supports your memories.
vsphere Client plug-in
Manage QNAP NAS within vSphere Client
The Turbo NAS supports vSphere Client Plug-in that allows managing VMware datastores on the Turbo NAS directly from the vSphere client console. In a large-scale server virtualization environment, management is centralized and straightforward. Administrators can easily control the status of the Turbo NAS and datastores and create additional datastores to multiple ESXi hosts in just a few clicks.
Note: The TS-x51 series doesn’t support vSphere Client plug-in.
Q'center Virtual Appliance
Deploy Q’center as virtual appliance
Q’center is a powerful QNAP NAS management system. The Q’center Virtual Appliance can be easily deployed in Microsoft Hyper-V or VMware ESXi to increase its flexibility and connectivity for large storage environments.
Minimum requirements：108 GB free disk space, 1 GB memory and 4 virtual CPUs
Supported platforms: VMware ESXi (ESXi 5.0, ESXi 5.1, ESXi 5.5), VMware Fusion 7, VMware Workstation 11, Microsoft Windows Server 2012 R2 with Hyper-V 3.0.
Use Q’center to monitor multiple NAS.
With Q’center, you can view the status and system information of multiple QNAP NAS units at the same time, inspect system resource usage, monitor disk/volume health and perform other management tasks. With these features, Q’center can better assist IT administrators and QNAP NAS users in system resource allocation and future capacity planning.
QNAP Snapshot Agent
In QTS 4.2, the Storage Manager's Snapshot function supports iSCSI LUNs to rapidly back up and restore data. When creating a LUN snapshot, QNAP Snapshot Agent for Windows Server or VMware vCenter allows the NAS to communicate with the remote server when taking snapshots and ensures Application-consistent LUN snapshots.
VSS Hardware Provider also allows NAS ROW (Redirect on Write) instead of Windows COW (Copy on Write) to increase backup efficiency and to offload the snapshot to the NAS for reducing the performance impact on the Windows server.
Take screenshots, easy and fast
||Left Angle View
||Right Angle View
|Top Left View
||Top Right View
Download the QNAP TS-x53A Series Datasheet (PDF).
