QNAP TS-932X
Slim & Big: 9-bay hybrid NAS supporting 3.5” & 2.5” drives with dual 10GbE ports

Sorry, this product is no longer available, Please contact us for a replacement.

Overview:

The business-class TS-932X is a budget-friendly NAS designed to accommodate five 3.5-inch hard drives and four 2.5-inch SSDs. It is also the first ARM-based NAS that supports Qtier™ technology for efficient auto-tiered storage. As a 9-bay NAS, the compact TS-932X takes up less desktop space compared with other models in the same class, and presents a stylish control panel embellished with brushed-metal aluminum. Featuring dual 10GbE SFP+ ports, the TS-932X provides an excellent blend of speed and affordability to future-proof your IT infrastructure for 10GbE networks.

Package Content

  • TS-932X
  • 2 x Ethernet Cables
  • 1 x Power Cord
  • AC Adapter
  • Flat Head Screw (for 3.5” HDD)
  • Flat Head Screws (For 2.5” HDD)
  • Quick Installation Guide (QIG)

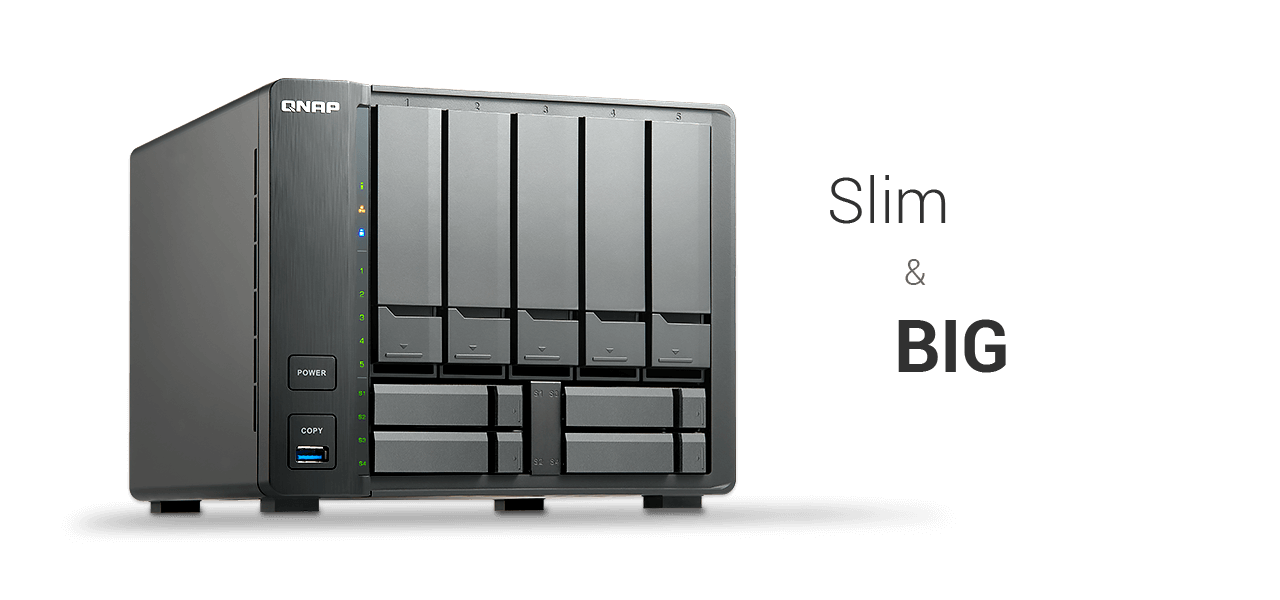

Slim size, big capacity. Quality & stylish.

You may be surprised with the size of the TS-932X, which is a 9-bay NAS with a similar appearance as a regular 4-bay/6-bay NAS. The TS-932X strikes a balance between storage capacity and performance, making it a perfect companion for small and medium organizations and small offices. Remarkable design details also include succinct LED indicators, a brushed-metal aluminum control panel, and a unique drive bay layout that efficiently streamlines the physical footprint of the NAS

Quad-core CPU and dual 10GbE SFP+ ports

The TS-932X is equipped with an AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7 GHz Cortex-A57 processor with 2GB/8GB DDR4 RAM (upgradable to 16GB) and supports SATA 6Gb/s. When processing AES 256-bit full NAS volume encryption, the TS-932X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-932X comes with a pair of 10GbE SFP+ ports to fully support 10GbE high-speed networks, delivering a major speed increase for virtualization tasks, fast backup & restoration, and large-data applications.

SSD caching and auto tiering enable optimized storage efficiency

The TS-932X provides four 2.5-inch bays for SSD caching to improve the workflow of random IOPS demanding applications. Qtier™ Technology empowers the TS-932X with automatic tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. The new Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Snapshots – a modern way to protect data

Essential for NAS data protection, snapshots help protect your data by fully recording the NAS system state and the metadata. You can use the Storage & Snapshots Manager or File Station to easily manage snapshots and quickly restore the system to its normal state if an error occurs. QNAP snapshots are block-based and only record the changed data. Not only does this save storage space but also reduces the time required to back up and restore data.

Host container applications

Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub® to easily import/export container apps and manage access controls, enjoying the benefit of easy installation, transferability and high-efficiency as well as rapidly deploying application services across several platforms including the cloud, servers, and PCs.

QTS – The intelligent, intuitive and creative NAS operating system

With multiple modularized applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The built-in App Center with hundreds of install-on-demand apps also opens up vast potential for extensive NAS functionality. The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. QTS breaks the barriers of devices, platforms, and geography to bring you advanced features and optimized cloud experiences.


Expand storage capacity of other QNAP NAS with Virtual JBOD

QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand the storage capacity of your QNAP NAS with unused storage space from other QNAP NAS. The unused storage capacity of the TS-832X can be mounted as local disks in other NAS, and you can create virtual storage pools and volumes for operating NAS services to maximize storage utilization.
Note: ARM-based NAS do not currently support the VJBOD "Host" function to utilize other NAS storage space.

Features:

Dual 10GbE SFP+ ports for accelerating virtualization and massive file sharing.

PCIe expandability allows for 10GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards.

Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Supports LXC and Docker® containers for rapidly deploying application services across platforms including the cloud, servers, and PCs.

Secure private cloud supporting centralized storage, backup, sharing, disaster recovery, and storage capacity expansion.

Complete backup planning

Snapshots for Volume & LUN

Block-based snapshots are a dependable method for protecting data in the face of the growing threat of ransomware. Snapshots can be taken by schedule or manually and then backed up to other NAS/servers to provide an all-encompassing backup solution.

Windows and Mac backup

Use the free QNAP NetBak Replicator utility to back up/restore files from Windows® computers. Time Machine® is also supported for Mac® users. It is easy, fast and convenient.

Hybrid Backup Sync

Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

Specifications:

CPU AnnapurnaLabs, an Amazon company Alpine AL-324 Quad-core 1.7GHz ARM® Cortex-A57 Processor, 64-bit
Encryption Acceleration
System Memory 8GB DDR4 2400 (1 x 8 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x SODIMM slot
Flash Memory 512 MB NAND Flash
Drive Bay 5 x 3.5-inch SATA 6 Gbps bays
4 x 2.5-inch SATA 6 Gbps bays

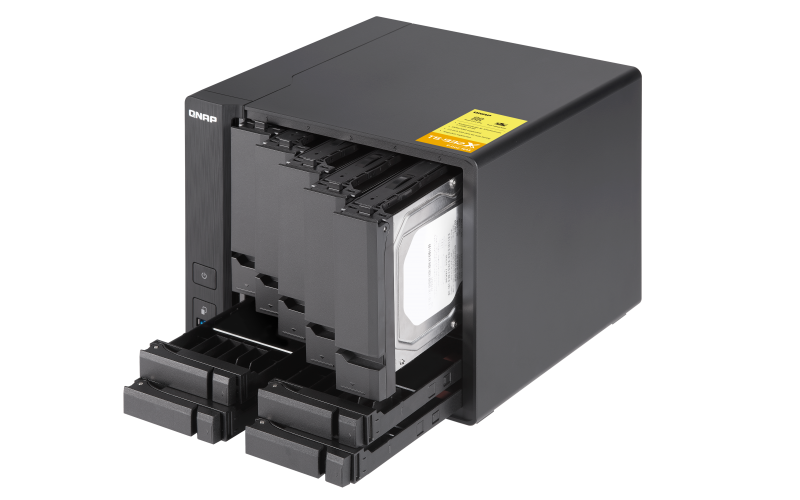

Hot-swappable
Drive Compatibility 3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

2.5-inch bays:
• 2.5-inch solid state drives
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Gigabit Ethernet Port 2 x Gigabit RJ45
USB Port USB 3.0 (Front: 1; Rear: 2)
Audio 1 x Built-in speaker, 1 x 3.5mm line out jack
Note: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators Status/Power, LAN, USB, HDD 1-5, SSD 1-4
Buttons Power, Reset, USB One- touch-copy
System Warning Voice prompts
Form Factor Tower
Dimensions (H x W x D) 182 x 225 x 224 mm
7.17 x 8.86 x 8.82 inch
Power Consumption (W) HDD standby:21.66 W
In operation:42.15 W
(with 5 x HDDs and 4 x SSDs installed)
Sound Level Sound pressure (LpAm): 18.7 dB(A)
Weight Net weight: 3.53 kg (7.78 lbs)
Gross weight: 5.06 kg (11.15 lbs)
Fan 1 x 14cm smart Fan (12V DC)
Power Supply Unit 120W AC external adapter, 100-240V
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot
CPU AnnapurnaLabs, an Amazon company Alpine AL-324 Quad-core 1.7GHz ARM® Cortex-A57 Processor, 64-bit
Encryption Acceleration
System Memory 2GB DDR4 2400 (1 x 2 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x SODIMM slot
Flash Memory 512 MB NAND Flash
Drive Bay 5 x 3.5-inch SATA 6 Gbps bays
4 x 2.5-inch SATA 6 Gbps bays
Hot-swappable
Drive Compatibility 3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

2.5-inch bays:
• 2.5-inch solid state drives
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Gigabit Ethernet Port 2 x Gigabit RJ45
USB Port USB 3.0 (Front: 1; Rear: 2)
Audio 1 x Built-in speaker, 1 x 3.5mm line out jack
Note: You cannot use the speakers and the line-out jack simultaneously.
LED Indicators Status/Power, LAN, USB, HDD 1-5, SSD 1-4
Buttons Power, Reset, USB One- touch-copy
System Warning Voice prompts
Form Factor Tower
Dimensions (H x W x D) 182 x 225 x 224 mm
7.17 x 8.86 x 8.82 inch
Power Consumption (W) HDD standby:21.66 W
In operation:42.15 W
(with 5 x HDDs and 4 x SSDs installed)
Sound Level Sound pressure (LpAm): 18.7 dB(A)
Weight Net weight: 3.53 kg (7.78 lbs)
Gross weight: 5.06 kg (11.15 lbs)
Fan 1 x 14cm smart Fan (12V DC)
Power Supply Unit 120W AC external adapter, 100-240V
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington security slot

Documentation:

Download the QNAP TS-932X Specification Sheet (PDF).
