QNAP TS-h1887XU-RP
Powerful 10GbE-ready hybrid storage with PCIe Gen 4 expandability, supporting QuTS hero or QTS operating system

QNAP Products

Enterprise Storage Products

QNAP 18-Bay 2U rackmount NAS, Intel® Xeon® E-2336 6C/12T 2.9 GHz processor (boost up to 4.8 GHz), QuTS hero O.S. with ZFS, deduplication, compress, snapshots, optional fibre channel FC support
Intel® Xeon® E-2336 6 cores / 12 threads 2.9 GHz processor (boost up to 4.8 GHz), 16GB ECC DDR4 RAM 4 x Long-DIMM DDR4 Max RAM 128GB (4 x 32 GB), 12 x 2.5″/3.5″ SATA 6Gbps HDD/SSD + 6 x 2.5″ SATA 6Gbps, 2 x 10GBASE-T, 2 x 2.5GbE, 4 x USB 3.2 Gen2 ( USB-A), 2 x PCIe Gen4 x4 + 2 x PCIe Gen4 x8, 550W redundant PSU

#TS-h1887XU-RP-E2336-32G-US
Get a Quote!

QNAP 18-Bay 2U rackmount NAS, Intel® Xeon® E-2334 4C/8T 3.4 GHz processor (boost up to 4.8 GHz), QuTS hero O.S. with ZFS, deduplication, compress, snapshots, optional fibre channel FC support
Intel® Xeon® E-2334 4 cores / 8 threads 3.4 GHz processor (boost up to 4.8 GHz), 16GB ECC DDR4 RAM 4 x Long-DIMM DDR4 Max RAM 128GB (4 x 32 GB), 12 x 2.5″/3.5″ SATA 6Gbps HDD/SSD + 6 x 2.5″ SATA 6Gbps, 2 x 10GBASE-T, 2 x 2.5GbE, 4 x USB 3.2 Gen2 ( USB-A), 2 x PCIe Gen4 x4 + 2 x PCIe Gen4 x8, 550W redundant PSU

#TS-h1887XU-RP-E2334-16G-US
Get a Quote!

Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Overview

Features

Specifications

Package Content

QNAP TS-h1887XU-RP Storage
1 x Ethernet cable
2 x Power cords
48 x Flat head screw (for 3.5” HDD)
64 x Flat head screw (for 2.5” HDD)
Quick Installation Guide

Overview:

The high-capacity TS-h1887XU-RP is powered by a next-gen Intel® Xeon® E-2300 series processor, supports up to 128 GB DDR4 ECC memory, and provides an HDD/SSD hybrid storage architecture that balances performance and cost to deliver reliable server-grade performance. Running the ZFS-based QuTS hero operating system, the TS-h1887XU-RP emphasizes data integrity with inline data deduplication, near-limitless snapshots, real-time SnapSync, and QSAL (QNAP SSD Antiwear Leveling) – providing an ideal storage solution that meets today’s business requirements for file servers, virtualization servers, VDI, and backup/restore.

Available Models

TS-h1887XU-RP-E2336-32G-
Intel® Xeon® E-2336 6C 12T 2.9GHz, up to 4.8GHz, 32 GB ECC DDR4 (2 x 16 GB), redundant power supply

TS-h1887XU-RP-E2334-16G-
Intel® Xeon® E-2334 4C 8T 3.4GHz, up to 4.8GHz, 16 GB ECC DDR4 (1 x 16 GB), redundant power supply

HDD/SSD hybrid storage

Combines the advantages of high-capacity HDD and high-performance SSD. Supports SSD caching to boost IOPS performance.

10GbE & 2.5GbE connectivity

Dual 10GBASE-T and dual 2.5GbE high-speed connectivity enhances virtualization, intensive file access, and large backup/restoration tasks.

High-speed PCIe Gen 4 slots

Install 10/25GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.

Comprehensive backup center

Optimized for business-class backup, including Google™ Workspace and Microsoft 365® data, and VMware® and Hyper-V virtual machines.

Virtualization applications

Supports virtualization storage and hosting virtual machines and containerized apps.

Cloud storage gateway

Realizes hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

Features:

Powerful Intel® Xeon® E processor and up to 128 GB DDR4 ECC memory

Designed for heavy business workloads, the TS-h1887XU-RP has extreme processing power to drive virtual machine performance. Supporting up to 128 GB DDR4 ECC memory to fuel multitasking demands, the TS-h1887XU-RP delivers cost-efficient and reliable server-grade performance to meet increasing business IT demands.

CPU

Intel® Xeon® E-2336 six-core processor (up to 4.8 GHz). Check more specs

Memory

DDR4 ECC RAM, expandable to 128 GB (4 x 32 GB)

Intel Xeon processor

SMB Sequential Throughput (6 x 25GbE)	Read 9755 MB/s	Write 8874 MB/s
iSCSI Random 4K IOPS (6 x 25GbE)	Read 583553 IOPS	Write 404818 IOPS

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS: TS-h1887XU-RP-E2336-32G
OS: QuTS hero h5.0.0
Volume type: Samsung 860 EVO 1TB x30 (RAID 50, 15 x2); QXG-25G2SF-CX6

Client PC:
6* Client PC simultaneously read and write 16GB file (= 96GB totally)
Intel Core™ i7-7700 4.20GHz CPU, 32GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016, and Intel Core™ i3-8100 3.60GHz CPU, 4GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016

Hybrid storage architecture, optimized for SSD cache acceleration

Compared with traditional storage arrays, the TS-h1887XU-RP hybrid storage balances cost, performance, and capacity. Featuring twelve 3.5-inch SATA 6Gb/s bays for hard drives and six 2.5-inch SATA 6Gb/s SSD slots, the TS-h1887XU-RP supports SSD caching to improve IOPS-intensive workloads for accessing vital data.

Hybrid Backup Sync multiple backups ensure your data protection

Rest assured your data is safe with the 3-2-1 backup rule and a reliable disaster recovery plan. Backups stored in the QNAP NAS can be further backed up to another QNAP NAS, remote server, or cloud storage, and restored quickly whenever needed.

Data Reduction

Too much data, not enough time for backup? QuDedup technology empowers backup tasks with source-based deduplication to optimize file sizes for greater time and storage savings. Backup/recovery becomes much faster!

Versioning

The more versions you back up reduces the risk of data loss. QuDedup is especially useful for accelerating multi-version backups to provide greater protection against data loss.

Encryption

Files can be encrypted/compressed before they are backed up or synced. This effectively prevents unauthorized access and provides an extra layer of protection for business data.

Intelligent Network

Automatically selects the best physical network ports for your task, supports auto-failover to ensure continuous services, and automatically switches back once the best network port reconnects.

Process Automation

Set the backup process on each NAS, then multiple NAS can automatically complete all job flows. Whether migrating big data or backing up to multiple destinations, IT staff can ease their workloads with a one-time setting.

Server-grade hardware: Sturdy and high-performance

The TS-h1887XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet diverse application requirements.

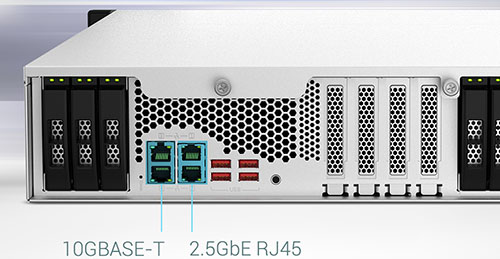

10GbE & 2.5GbE-ready. Fast for bandwidth-demanding tasks.

The TS-h1887XU-RP provides two 2.5GbE RJ45 ports (backwards compatible with 1G/100M) and dual-port 10GBASE-T connectivity. Port Trunking and failover support further increases bandwidth and reliability for vital applications including virtualization, large file transfers, high-speed backup/restoration, and real-time applications. QNAP also offers numerous options of managed and unmanaged 10GbE/2.5GbE switches, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.

TS-h1887XU-RP- 2.5gbe

Flexible PCIe Gen 4 expansion

The TS-h1887XU-RP is equipped with a PCIe Gen 4 slot. With twice the I/O performance of PCIe Gen 3, the TS-h1887XU-RP can take advantage of PCIe cards to expand application potential.

10/25/40/100GbE network cards

Enable lightning-fast throughput for bandwidth-hungry tasks with smooth workflows and improved productivity.

QM2 cards

Add M.2 SSD caching or 2.5GbE/10GbE connectivity for optimized performance or bandwidth.

SATA storage expansion cards

Designed for connecting the TS-h1887XU-RP to SATA 6Gb/s TL expansion units to satisfy ever-growing storage needs.

Graphics cards

Supports entry-level graphics cards that do not require additional power. Adding a graphics card can streamline video editing, transcoding, and enable GPU pass-through to virtual machines.

Note: When Virtualization Station uses the graphics card, the TS-h1887XU-RP will temporarily stop hardware transcoding acceleration for QuTS hero (or vice versa).

ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data integrity is key	Data reduction improves storage efficiency and performance	Multi-level cache technology
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.	Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance.	Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection	QSAL (QNAP SSD Antiwear Leveling) enhances data protection	App Center ecosystem extends NAS functionality
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.	RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.	Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the NAS.

Inline data deduplication, compression, and compaction improve SSD endurance

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TDS-h2489FU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.

big-data-storage

Comprehensive backup and disaster recovery solution

The TS-h1887XU-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

Remote backup for NAS

Hybrid Backup Sync makes it easy to back up data from a TS-h1887XU-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup

Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

Note: Minimum memory requirements are 2 GB available and 4 GB installed.

Cloud backup for NAS

Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology

Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Real-time SnapSync

Real-time SnapSync immediately synchronizes data changes with the destination storage, ensuring the primary and secondary NAS always have the same data. RPO is minimal to achieve real-time disaster recovery.

Note: SnapSync is supported by QNAP NAS models featuring the QuTS hero (4.5.3 or later) and QES ( v2.1.1 or later) operating systems. These NAS can be paired with each other to provide a perfect backup storage solution.

Multi-version snapshots mitigate ransomware threats

The TS-h1887XU-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

business-anti-ransomware-image

Up to 65,536 snapshots

QuTS hero supports enough snapshots for you to create 1 snapshot every hour for 7 years without needing to delete any! Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing.

Back up snapshots

Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-h1887XU-RP to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

Comprehensive security and privilege settings

The TS-h1887XU-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

Simplified privilege settings

The TS-h1887XU-RP supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

TeamViewer remote access

TeamViewer app enables remote management and connectivity to multiple NAS devices from Windows® PCs with an unparalleled level of safety, while increasing IT efficiency and end user productivity.

Superior security with QVPN

A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-h1887XU-RP as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.

QuWAN SD-WAN

To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Counselor

A security portal for the TS-h1887XU-RP to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover

Regularly scan your TS-h1887XU-RP using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

All-in-one solution for hosting virtual machines and containers

By running multiple virtual machines and containers on the TS-h1887XU-RP, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Conainer Station

Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.

Linux Station

Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.

QuTScloud virtual NAS

QuTScloud is a virtual appliance based on the QTS operating system. Enterprises can quickly launch QuTScloud on hypervisors including Linux® KVM, Microsoft® Hyper-V, and VMware ESXi™ to acquire advanced NAS features without requiring additional NAS hardware.

The best file storage and collaboration center

The TS-h1887XU-RP integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.

File Station

Manage, access, and share all the files in the TS-h1887XU-RP and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Qsync

Make any file uploaded to a TS-h1887XU-RP available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

Qsirch

QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Free exFAT support

exFAT is a file system that supports files up to 16EB and is optimized for flash storage (such as SD cards and USB devices) - helping accelerate large media file transfer and sharing.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h1887XU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Smart surveillance solution for 24/7 security

QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-h1887XU-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Free embedded channels

2 IP camera channels

Total camera channels

Scalable with optional licenses*

Subscription-based

Monthly US $1.99 /channel

Video format

MP4

Mobile app

QVR Pro Client and mobile app

Scalable storage

NAS expansion units

*The maximum number of channels supported varies by NAS model, network configuration, and camera settings.

Flexible and economical storage expansion

QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-h1887XU-RP storage as needed to accommodate data and business growth.

Attach QNAP expansion enclosures

Connect expansion enclosures to the TS-h1887XU-RP, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount cloud storage or remote file servers

Mount cloud storage or remote file servers to expand the capacity of the TS-h1887XU-RP while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a new NAS

Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID capacity

Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

More productivity-boosting applications

The TS-h1887XU-RP provides an App Center that includes feature-rich apps to expand your NAS potential!

QuMagie

An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tools for the ultimate photo management and sharing solution.

QuObjects

Run a high-performance S3 compatible development environment on your TS-h1090FU to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.

Notification Center

Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

Proxy Server

By using a high-capacity TS-h1887XU-RP as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.

QmailAgent

The best email backup solution that allows you to easily backup/recover and manage multiple email accounts in their native format with strong security and data integrity.

QuFTP

The TS-h1887XU-RP can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.

A health check for your hard drives

Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

S.M.A.R.T. and back block scanning

If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.

DA Drive Analyzer

The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

Seagate® IronWolf™ Health Management

When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.

Flexibly switch to QTS operating system

The TS-h1887XU-RP also supports QTS - QNAP’s standard NAS operating system – that provides greater everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TS-h1887XU-RP.

QTS

Suited for performance-demanding tasks, cross-teams file sync, and HDD-SSD hybrid storage applications

QuTS hero

Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications

Note: QTS and QuTS hero use different file systems. You must remove all the drives from the TS-h1887XU-RP before switching from QuTS hero to QTS.

business-quts-hero-to-qts-image

5-year warranty as standard

The TS-h1887XU-RP is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.

Hardware Specifications:

	TS-h1887XU-RP-E2334-16G	TS-h1887XU-RP-E2336-32G
CPU	Intel® Xeon® E-2334 4C 8T 3.4GHz, up to 4.8GHz	Intel® Xeon® E-2336 6C 12T 2.9GHz, up to 4.8GHz
CPU Architecture	64-bit x86
Floating Point Unit
Encryption Engine	(AES-NI)	(AES-NI)
System Memory	16 GB ECC DDR4 (1 x 16 GB)	32 GB ECC DDR4 (2 x 16 GB)
Maximum Memory	128GB (4 x 32 GB)
Memory Slot	4 x ECC UDIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory	5GB (Dual boot OS protection)
Drive Bay	18 (12 x 3.5-inch SATA + 6 x 2.5-inch SATA)
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives
M.2 Slot	Optional via a QM2 PCIe adapter
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M)
10 Gigabit Ethernet Port	2 x 10GBASE-T (10G/5G/2,5G/1G/100M)
PCIe Slot	3 (2 x Gen4 x4 +1 x Gen 4 x8) Card dimensions for PCIe slot 1：200 x 111.15 x 23.76 mm / 9.84 x 4.38 x 0.94 inches. Card dimensions for PCIe slot 2：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 2 (10Gbps) Port	4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
Form Factor	2U Rackmount
LED Indicators	Status (Green/Red) LAN (Green) USB (Blue) HDD status (Green/Red)
Buttons	Power, Reset
Dimensions (HxWxD)	3.49 × 17.01 × 20.13 inch
Weight (Net)	28.66 lbs
Weight (Gross)	41.89 lbs
Operating temperature	0 - 40°C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit	2 x 550W PSU
Power Consumption: HDD Sleep Mode	118.77 W
Power Consumption: Operating Mode, Typical	148.94 W
Fan	4 x 60mm, 12VDC

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

Pricing Notes:

Pricing and product availability subject to change without notice.

QNAP Products

#TS-h1887XU-RP-E2336-32G-US
Get a Quote!

#TS-h1887XU-RP-E2334-16G-US
Get a Quote!

Storage Expansion Card

Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4)
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
*shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3

#QM2-2P-244A
Get a Quote!

QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x AQC113C 10GbE NBASE-T port

#QM2-2P10G1TB
Get a Quote!

QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port

#QM2-2P2G2T
Get a Quote!

Dual M.2 22110/2280 SATA SSD expansion card (PCIe Gen2 x2)
Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
*shorter version to support TVS-x82/TS-x77 PCIe slot 2 & slot 3

#QM2-2S-220A
Get a Quote!

Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

#QM2-4P-384
Get a Quote!

Network Expansion Card

Dual-port (10GBASE-T) 10GbE network expansion card, Intel X710, PCIe Gen3 x4
PCIe supported NAS and Windows 8/10/Windows Server/Linux/uBuntu/ RHEL PCs. Visit https://www.qnap.com/go/compatibility for the compatibible NAS.

#QXG-10G2T-X710
Get a Quote!

Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8
PCIe supported NAS

#QXG-25G2SF-CX6
Get a Quote!

Single port 2.5GbE 4-speed Network card
PCIe supported NAS and Windows 10/ Windows Server 2016 & 2019 /Linux PCs. Visit https://www.qnap.com/go/compatibility for the compatibible NAS.

#QXG-2G1T-I225
Get a Quote!

Dual port 2.5GbE 4-speed Network card
PC/Server or NAS with a PCIe slot

#QXG-2G2T-I225
Get a Quote!

Quad port 2.5GbE 4-speed Network card
PC/Server or NAS with a PCIe slot

#QXG-2G4T-I225
Get a Quote!

QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
PCIe supported NAS

#QXG-5G1T-111C
Get a Quote!

Other Accessories

550W power supply unit, Delta
TS-1886XU-RP, TL-R1620Sep-RP, TS-1673AU-RP, TS-h3088XU-RP, TL-R1620Sdc

#PWR-PSU-550W-DT01
Get a Quote!

2.5″ tray for 24 bay ES NAS
ES2486dc, TS-1886XU-RP, GM-1001, GM-1002, TNS-h1083X, TS-h3088XU-RP

#TRAY-25-NK-BLK04
Get a Quote!

QNAP Rail Kit for 2U Rackmount Models
QGD-1600P, TL-R1200C-RP, TL-R1200S-RP, TL-R1220Sep-RP, TL-R1620Sep-RP, TL-R400S, TR-004U, TS-1231XU(-RP), TS-1232PXU-RP, TS-1232XU(-RP), TS-1232BU(-RP), TS-1253DU-RP, TS-1253U(-RP), TS-1263U(-RP), TS-1263XU(-RP), TS-1273AU-RP, TS-1273U(-RP), TS-1277XU-RP, TS-1283XU-RP, TS-1673AU-RP, TS-1886XU-RP, TS-h1886XU-RP, TS-431U, TS-431XU(-RP), TS-431XeU, TS-432PXU-RP, TS-432XU(-RP), TS-451DeU, TS-453BU(-RP), TS-453DU(-RP), TS-463U(-RP), TS-463XU(-RP), TS-831XU(-RP), TS-832PXU(-RP), TS-832XU(-RP), TS-853B

#RAIL-B02
Get a Quote!

Interface Expansion

16G Fibre Channel Host Bus Adapter, 2 x transceivers are included

#QXP-16G2FC
Get a Quote!

32G Fibre Channel Host Bus Adapter, 2 x transceivers are included

#QXP-32G2FC
Get a Quote!

2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series

#QXP-820S-B3408
Get a Quote!
