QNAP TS-h3088XU-RP
Modernize your IT using the ZFS-based, 25GbE-ready all-flash storage with high performance, high capacity, and low latency


Sorry, this product is no longer available, please contact us for a replacement.


Want to build a custom bundle? Contact us!

Click here to jump to more pricing!

Package Content

  • QNAP TS-h3088XU-RP Storage
  • 1 x Ethernet cables
  • 2 x Power cord
  • 120 x Flat head screw (for 2.5″ HDD)
  • Quick Installation Guide

Overview:

The 2U rackmount TS-h3088XU-RP provides a cost-efficient all-flash storage solution for tackling I/O-intensive and latency-sensitive enterprise applications. With 30 drive bays for 2.5-inch SATA 6Gb/s SSDs, built-in dual-port 25GbE SFP28 SmartNIC, four 2.5GbE LAN ports, PCIe expandability, and up to petabyte-scale storage capacity, the TS-h3088XU-RP satisfies uncompromising performance demands in virtualization, modern data centers, hybrid/multi-cloud applications, mission-critical backup/restore tasks, and file servers that allow thousands of simultaneous connections. The QuTS hero operating system features ZFS data reduction and SSD optimization technologies to get the utmost performance, lifespan, and efficiency from your SSD investments!



Available Models

  • TS-h3088XU-RP-W1270-64G-
    Intel® Xeon® W-1270 8 cores/16 threads 3.4 GHz processor (Turbo Boost up to 5.0 GHz), 64 GB DDR4 UDIMM ECC memory (4 x 16 GB)

  • TS-h3088XU-RP-W1250-32G-
    Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Turbo Boost up to 4.7 GHz), 32 GB DDR4 UDIMM ECC memory (2 x 16 GB)

SSD

Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.


Note: QXP-T32P expansion cards are sold separately

25 and 2.5GbE

Dual 25GbE SFP28 and quad 2.5GbE RJ45 high-speed connectivity accelerate virtualization, intensive file access, media file transfer, and large backup/restoration tasks.

PCIe expandability

PCIe Gen 3 slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.


Scalable design

Scalable design to grow with your business by connecting up to sixteen SAS 12Gb/s TL-1620Sep-RP expansion enclosures to attain petabyte-scale storage capacity of 286 disk drives.

virtualization storage

Supports virtualization storage and hosting virtual machines and containerized apps.

Cloud storage

Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

Features:

Powerful Intel® Xeon® W processors supporting up to 128 GB DDR4 ECC memory

Featuring Intel® Xeon® W-1200 series processors, the TS-h3088XU-RP provides options of 6-core and 8-core models with frequency performance of up to 5.0 GHz and enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine helps maintain the security of NAS data without impacting performance. With dual-channel modules and 4 Long-DIMM slots, the TS-h3088XU-RP’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.

Intel® Xeon® D-1600

Extreme all-flash performance

To get the utmost performance from the TS-h3088XU-RP, QNAP recommends:
The front 24 SSDs should be configured as data pool #2 in RAID 6 or RAID 60 (yields the best performance). The rear 6 SSDs should be configured as pool #1 in RAID 6 (as system and app pool/small data storage).


Dual 25GbE connectivity optimizes data transfer and VMware virtualization with iSER

The TS-h3088XU-RP provides four 2.5GbE RJ45 ports (supports 2.5/1GbE) and has a built-in dual-port 25GbE SFP28 SmartNIC (supports 25/10/1GbE) with the Mellanox® ConnectX-4 Lx SmartNIC controller that supports iSCSI Extensions for RDMA (iSER) to increase performance of data transfer between NAS and ESXi server and offload CPU workloads. With Port Trunking and Auto-Negotiation, the TS-h3088XU-RP empowers your organization with the bandwidth and reliability to allow thousands of endpoint users to smoothly access data stored on the NAS and also satisfy the most demanding applications, including data centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. The TS-h3088XU-RP is also ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure and scalable network environments without going over budget.


Abundant I/O capability with PCIe expansion

The TS-h3088XU-RP features three PCIe Gen 3 slots that enable using numerous expansion cards for expanding application potential. (One slot comes pre-installed with a dual-port 25GbE network card.)

5/10/25/40GbE network cards

Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup/restoration).

QM2 M.2 SSD/10GbE cards

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity for optimized performance and bandwidth.

SAS/SATA storage expansion cards

Designed for connecting the TS-h3088XU-RP to SAS 12Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.


Direct 4K HDMI output for multimedia and virtual machine content

The TS-h3088XU-RP features Intel® UHD Graphics P630 that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K (4096 x 2160p) @30Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer and display. By connecting the TS-h3088XU-RP to an HDMI display, you can directly watch multimedia content saved on the NAS, virtual machine OS desktop from Virtualization Station, or Ubuntu Linux Station desktop for system maintenance.


ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data integrity is key Data reduction improves storage efficiency and performance Multi-level cache technology with both read and write
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) and Copy on Write (COW) are also supported. Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance. Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection QSAL (QNAP SSD Antiwear Leveling) enhances data protection App Center ecosystem extends NAS functionality
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection. RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.

(Available from Q1 2021)
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h3088XU-RP.

Inline data deduplication, compression, and compaction improve SSD endurance

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h3088XU-RP optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.

big-data-storage


More SSD performance and lifespan optimization technologies

Write Coalescing

Write Coalescing

Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.

Pool Over-provisioning

Pool Over-provisioning

Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.

TRIM

TRIM

Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.

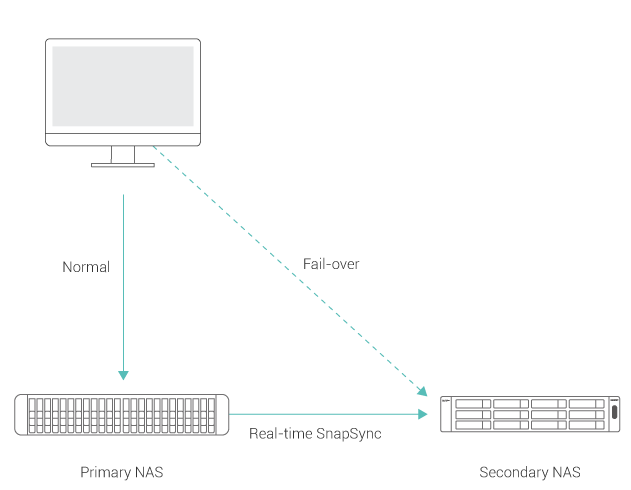

Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

Note: SnapSync will be available from QuTS hero h4.5.2.

real-time-snapSync


The TS-h3088XU-RP also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.


Snapshots multiply backup protection

Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

HBS simplifies 3-2-1 backup plans

HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h3088XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.


All-in-one virtual machine and container hosting solution

You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station

Container Station

Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.


License-free VMware® and Hyper-V backup appliance

With Hyper Data Protector, the TS-h3088XU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.


Move business data to the cloud and enjoy low latency access to cloud-based data

The TS-h3088XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications.

HybridMount

HybridMount File-Based Cloud Gateway

Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD

VJBOD Cloud block-based cloud gateway

VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.


High-performance, reliable storage solution for virtualization

  • Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.

  • Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h3088XU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.


More productivity applications

Boxafe

Boxafe

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.

Security Counselor

Security Counselor

A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

qsirch-icon

Qsirch

QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.


Ubuntu Linux Station

Ubuntu Linux Station

Run Ubuntu® applications (including apps from the Ubuntu Software Center) directly on the NAS. Access the Ubuntu® desktop locally using HDMI output or remotely via web browser.

Qfiling

Qfiling

Automate your file organization by creating custom file organization rules with filters, editing modules, file destination, and scheduled/real-time tasks. It’s easy, smart, and efficient!

QuObjects-icon

QuObjects

Designed for object service developers; allows for creating high-performance S3 compatible development environments on a NAS to simplify service development workflows from testing to production.


Extend hardware warranty up to 5 years

The TS-h3088XU-RP is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Hardware Specifications:

  TS-h3088XU-RP-W1270-64G TS-h3088XU-RP-W1250-32G
CPU Intel® Xeon® W-1270 8-core 3.4 GHz processor (boost up to 5.0 GHz) Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz)
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI) (AES-NI)
Hardware-accelerated Transcoding
System Memory 64 GB UDIMM DDR4 ECC (4 x 16 GB) 32 GB UDIMM DDR4 ECC (2 x 16 GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x Long-DIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay Front: 24 x 2.5-inch SATA 6Gb/s, 3Gb/s
Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
Drive Compatibility 2.5-inch bays:
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via an adapter
10 Gigabit Ethernet Port Optional via an adapter
Wake on LAN (WOL)
Only the 2.5GbE port

Only the 2.5GbE port
25 Gigabit Ethernet Port 2
Jumbo Frame
PCIe Slot 3
Slot 1: PCIe Gen3 x8 or x4
Slot 2: PCIe Gen3 x4
Slot 3: PCIe Gen3 x4
*Slot 1 is preinstalled with a 25GbE network adapter. Please reserve this slot for the 25GbE adapter for the best performance.
**Slot 1 provides the width of PCIe Gen3 x8 when Slot 2 is not in use, and provides the width of PCIe Gen3 x4 when Slot 2 is in use.
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
2 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
HDMI Output 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
Form Factor Rackmount
LED Indicators HDD, Status, 10 GbE, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 88.3 × 481.07 × 515.02 mm
Weight (Net) 12.26 kg
Weight (Gross) 17.87 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 550W(x2), 100-240V
Power Consumption: HDD Sleep Mode 129.57 W
Power Consumption: Operating Mode, Typical 261.81 W
Tested with drives fully populated.
Fan 3 x 60mm, 12VDC
Sound Level 53 db(A)
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) 10,000
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Exceptional hardware to boost all-flash performance

The TS-h3088XU-RP features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access.

QNAP TS-h3088XU-RP Hardware

1 30x 2.5-inch SATA 6Gb/s SSD drive bays Solid state drives deliver higher speed, lower latency, and lower power consumption, making them essential for mission-critical business applications or video editing workflows. Supports flexible configuration for cache acceleration to boost IOPS performance.
2 Intel® Xeon® W processor
  • TS-h3088XU-RP-W1270-64G: Intel® Xeon® W-1270 8 cores/16 threads 3.4 GHz processor (Turbo Boost up to 5.0 GHz)
  • TS-h3088XU-RP-W1250-32G: Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Turbo Boost up to 4.7 GHz)
3 DDR4 ECC memory Four DDR4 UDIMM ECC memory slots supporting up to 128 GB RAM.
4 3x PCIe Gen 3 slots Supports installing 5/10/25/40GbE network cards, QM2 cards, Fibre Channel cards, and SAS/SATA storage expansion cards for greater application potential (one slot comes pre-installed with a dual-port 25GbE NIC).
5 2x 25GbE SFP28 LAN ports Includes a dual-port 25GbE SmartNIC that supports up to 50 Gbps bandwidth under Port Trunking. Uses a Mellanox® ConnectX-4 Lx SmartNIC controller with iSER support.
6 1x 4K HDMI 1.4b output Supports up to 4096 x 2160 @30Hz.
7 4x USB 3.2 Gen 2 (10Gbps) ports Including two Type-A and two Type-C ports that deliver up to 10 Gbps transfer speeds. Supports external hard drives or UPS.
8 4x 2.5GbE RJ45 LAN ports Supports using existing CAT5e cables to instantly upgrade from 1GbE connections. Obtain up to 10 Gbps under Port Trunking.
9 Redundant power supply Redundant 550 watt power supplies ensure continuous system uptime.
10 Smart cooling Monitors system temperatures and automatically adjusts fan speeds.
11 Air ducts Provides dedicated and centralized air flow to effectively disperse SSD heat.

Product Views:

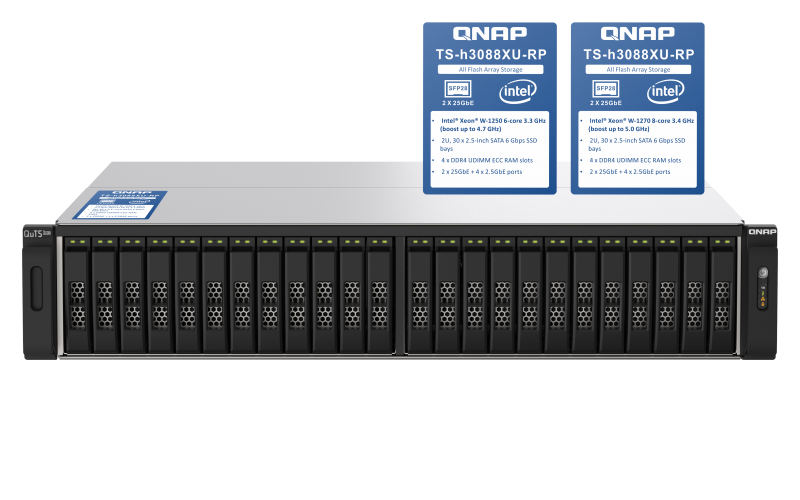

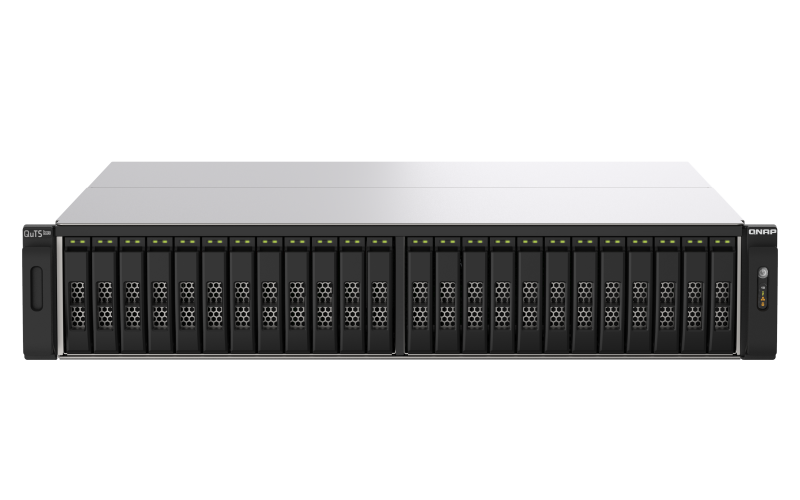

Front View

Front View

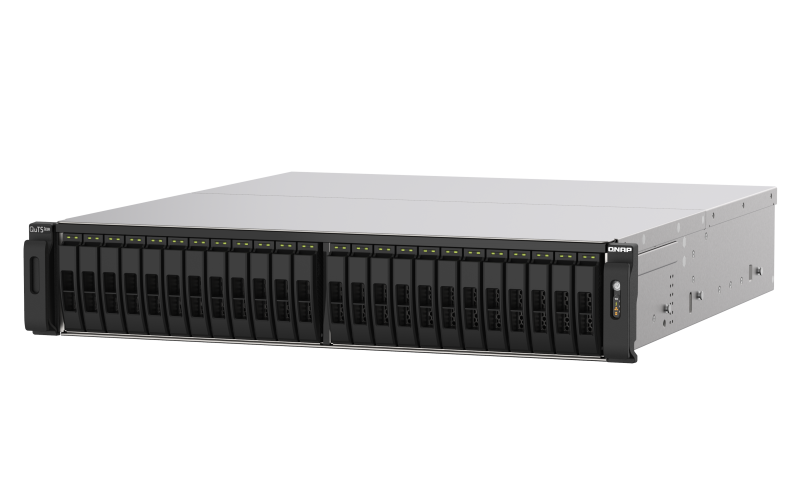

Top Right Angle View

Top Right Angle View

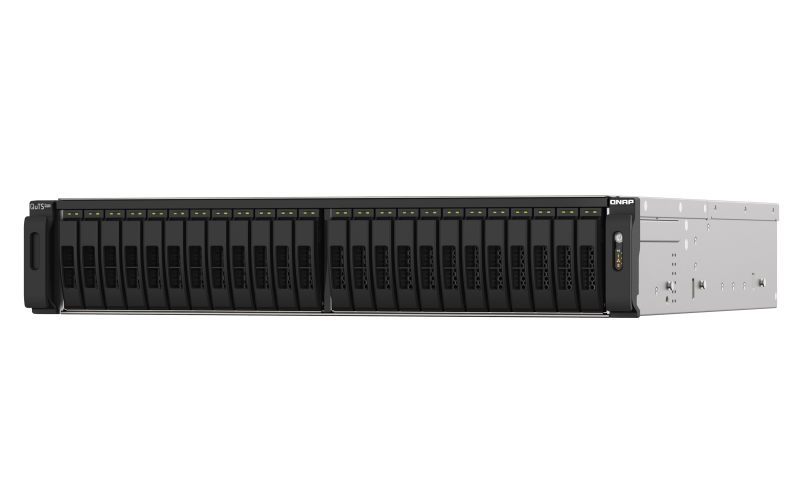

Right Angle View

Right Angle View

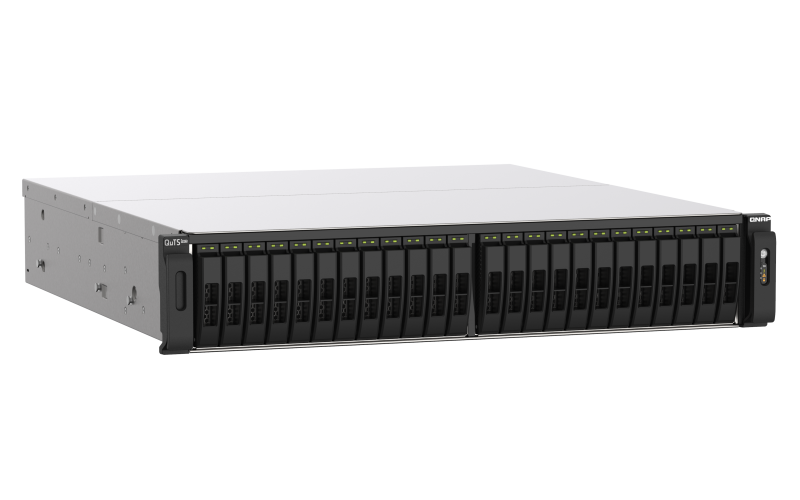

Top Left Angle View

Top Left Angle View

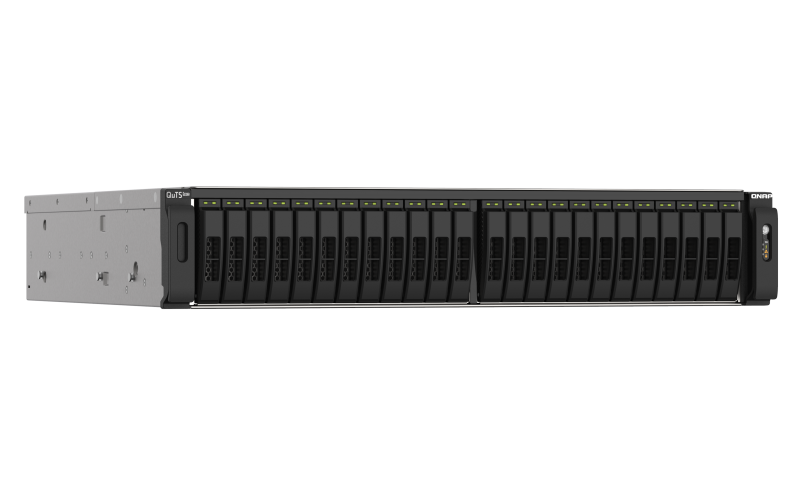

Left Angle View

Left Angle View

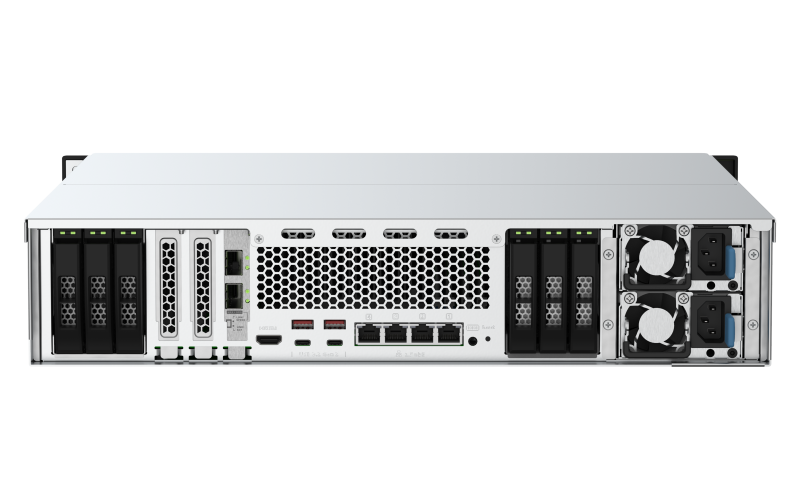

Rear View

Rear View
