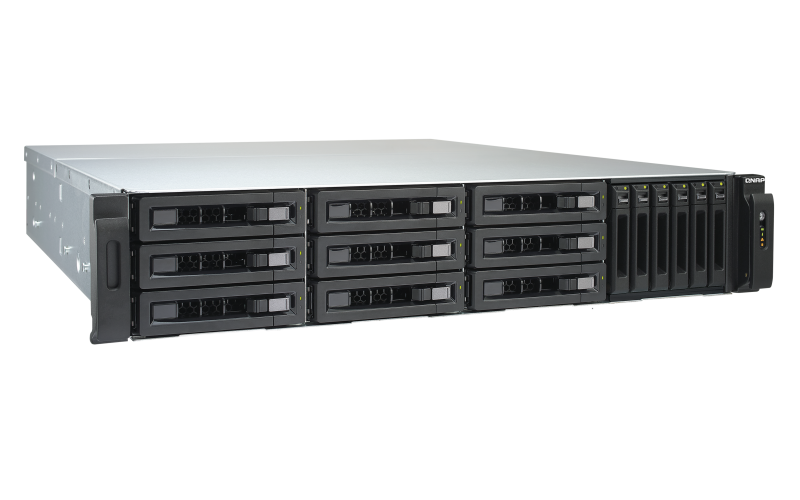

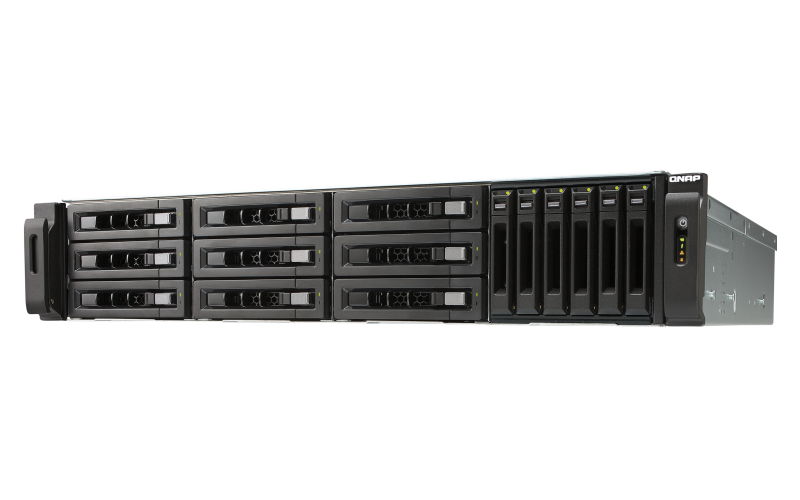

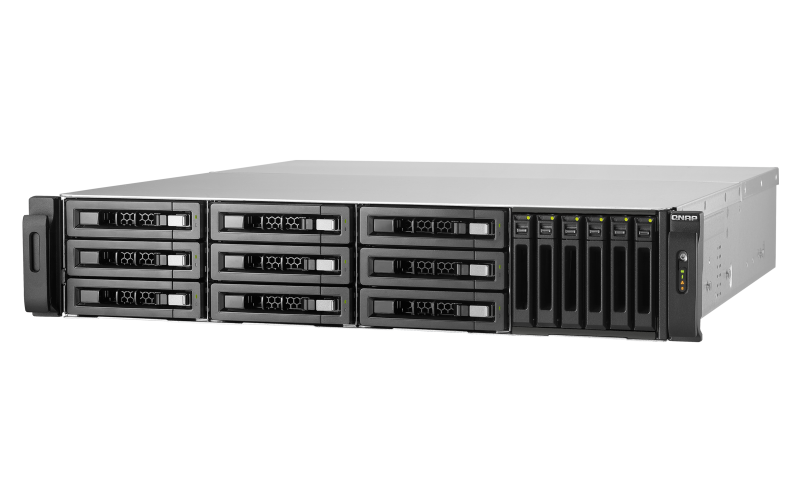

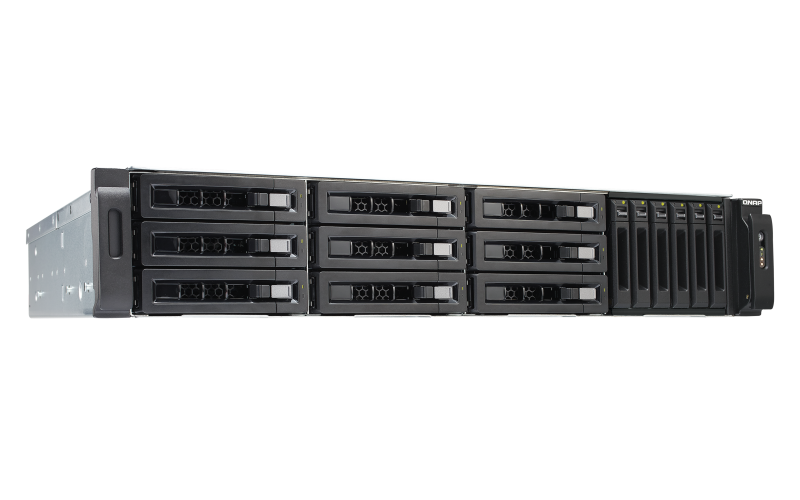

QNAP TVS-1582TU
Rackmount Thunderbolt™ 3 NAS, ideal for SNG/OB van live production

Overview:

Exclusively providing a Thunderbolt™/NAS/iSCSI SAN triple solution, the TVS-1582TU offers four high-bandwidth Thunderbolt™ 3 ports for optimizing 4K video transfer and online editing. It is a perfect match for Thunderbolt-equipped Mac® and Windows® users for 4K workflows, file storage and high-speed sharing. The compact rack-mounted form factor makes the TVS-1582TU especially useful for SNG/OB van live media production that requires frequent relocation. The TVS-1582TU adopts 7th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution to fulfill critical tasks with sophisticated capabilities.

• A hybrid NAS supporting 3.5” & 2.5” drives in one chassis
• Qtier technology and SSD cache enable 24/7 optimized storage efficiency
• The Network & Virtual Switch app assists network traffic distribution and re-routes dedicated bandwidth for diverse applications
• Superior 4K video playback and transcoding
• Four Thunderbolt™ 3 (40 Gbps) ports and dual 10GbE ports for on-the-fly video editing and rapid file sharing
• Four available combinations with Mac/PC and JBOD for flexible attaching, sharing and expansion
• Flexible storage expansion with QNAP storage expansion enclosures and Virtual JBOD (VJBOD)
• Supports QRM+ unified remote server management, virtualization (storage and hosting), containerization, and WirelessAP service

Note:
1. Requires MacOS Sierra 10.12.3 (or later) for using Thunderbolt connection on Mac.
2. Thunderbolt 3 reaches the maximum theoretical transfer rate of 40 Gigabits per second. Actual performance may vary due to hardware/software limitations and usage environment.
3. Thunderbolt 3 (40 Gbps) doubles its theoretical potential for speed when compared to Thunderbolt 2 (20 Gbps). This results in the TVS-1582TU’s file transfer speed increasing from 900 MB/s to 1,600 MB/s.

Specifications:

Ordering P/N	TVS-1582TU-i5-16G TVS-1582TU-i7-32G
CPU	TVS-1582TU-i5-16G: Intel® Core™ i5-7500 3.4 GHz quad-core processor TVS-1582TU-i7-32G: Intel® Core™ i7-7700 3.6 GHz quad-core processor
System memory	Total DIMM slots: 4 Maximum memory: 64 GB (16 GB x4) TVS-1582TU-i5-16G： System memory: 16 GB DDR4 RAM Memory modules pre-installed: 8 GB x2 TVS-1582TU-i7-32G： System memory: 32 GB DDR4 RAM Memory modules pre-installed: 8 GB x4
Flash Memory	512MB DOM

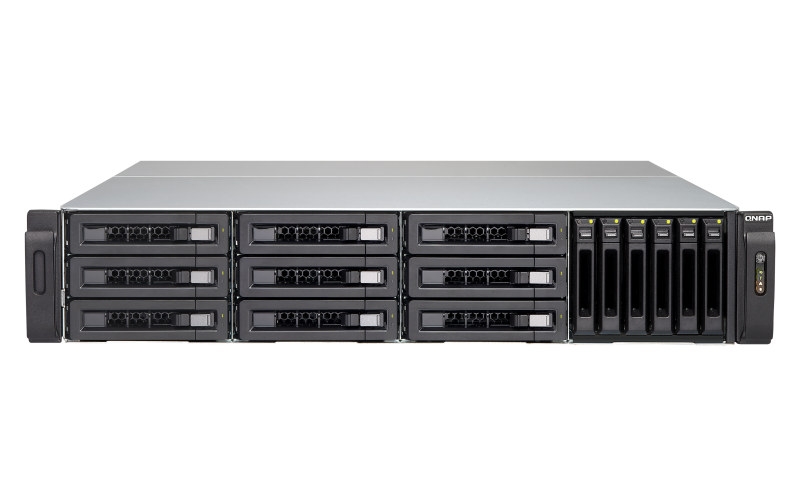

Hard Drive Tray	6 x 2.5" SSD 9 x 2.5"/3.5" hard drive or SSD

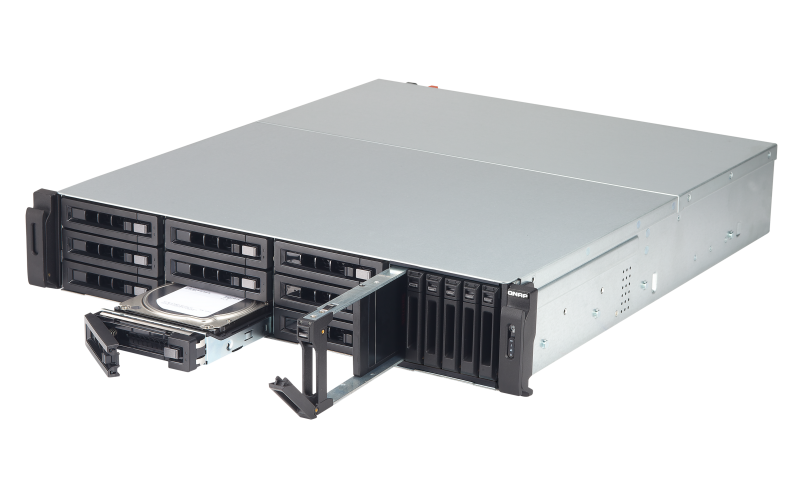

Drive Interface	SATA 6Gbps/3Gbps; Hot-swappable
Thunderbolt Port	4 x Thunderbolt 3 port
USB	4 x USB 2.0 port (Rear) 4 x USB 3.0 port (Rear)
LAN Port	2 x SFP+ 10GbE port 4 x GbE port
HDMI Output	1 (HDMI 1.4b x1)
LED Indicators	System status, 2.5" SSD, 3.5" HDD
Buttons	System: Power button, Reset button
System Warning	Buzzer
Form Factor	2U rackmount
Dimensions (H x W x D)	88 x 442.5 x 530.5 mm 3.46 x 17.42 x 20.89 inch
Weight	Net weight (NAS only): 14.18 kg/ 31.26 lb Gross weight (with packing and accessories): 21.41 kg/ 47.20 lb
Sound Level (dB)*	Sound pressure (LpAm) (bystander position): 53.9 dB (with 9 x Seagate ST2000VN000-1HJ164 hard drive and 6 x Seagate ST500LT012 SSD installed)
Temperature	0-40˚C
Relative Humidity	5~95% non-condensing, wet bulb: 27˚C
Power Supply	Redundant power: Input 90~264VAC; 450W x 2
PCIe Slot	3 (1* PCIe Gen3 x8; 2* PCIe Gen3 x4) Note: Three PCle slots are occupied by two Thunderbolt™ 3 card and a 10GbE adapter.
Fan	4 x 6 cm smart cooling fan

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.

* Sound Level Test Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Package Contents

• TVS-1582TU
• Ethernet cable x 4
• Power cord x 2
• Flat head screws (for 3.5” HDD)
• Flat head screws (for 2.5” HDD)
• Quick Installation Guide

Documentation:

Download the QNAP TVS-1582TU Brochure (PDF).
