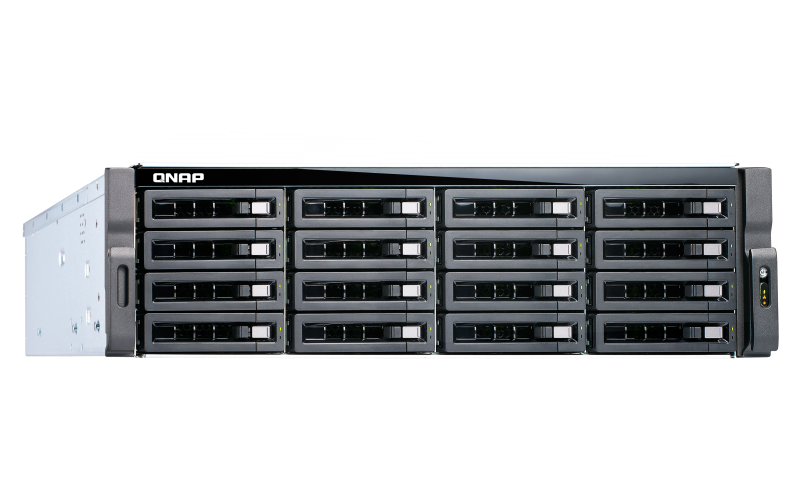

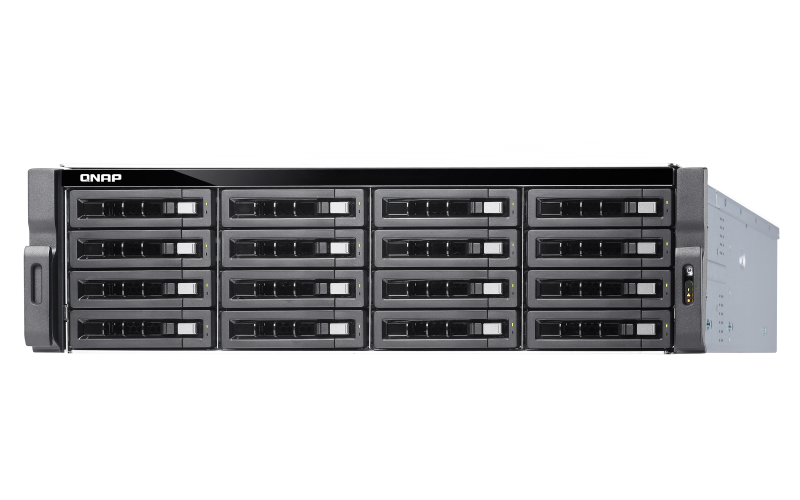

QNAP TVS-1672XU-RP
8th Gen Intel® Core™ processors. Built-in Mellanox® ConnectX®-4 Lx 10GbE Controller. iSER supported.

Sorry, this product is no longer available, please contact us for a replacement.



Want to build a custom bundle? Contact us!

Overview:

Designed for diversified business IT environments, the TVS-1672XU-RP features an 8th generation Intel® Core™ processor, Mellanox® ConnectX®-4 Lx 10GbE controller, and PCIe expansion for 25GbE / 40GbE connectivity to boost intensive large file sharing, heavily-loaded backups, or virtualization applications. PCIe expandability also allows for installing graphics cards to empower AI workflows and video transcoding, and the 4K HDMI 2.0 output can display surveillance videos on a monitor or TV to improve surveillance management. The TVS-1672XU-RP also features a redundant power supply to ensure maximum system uptime.

Robust. Durable. Expandable

The hardware design of the TVS-1672XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

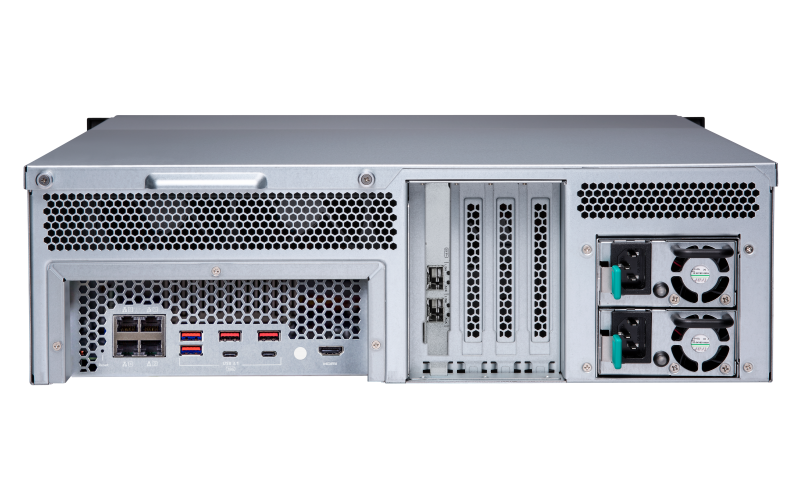

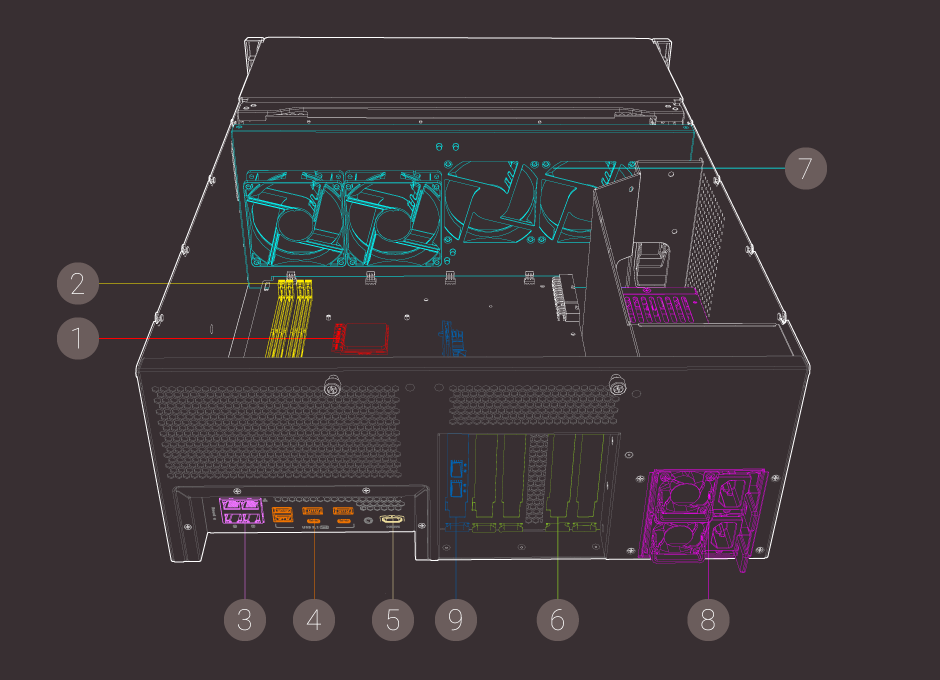

overview-1
  1. 8th Gen Intel® Core™ processor
  2. DDR4 2400 MHz memory
  3. 4x Gigabit Ethernet ports
  4. USB 3.1 Gen2 ports
  5. HDMI 2.0 output
  6. 5x PCIe expansion slots
  7. System fans
  8. Power supply units
  9. 2x 10GbE SFP+ ports


Dual-channel Memory to deliver power-smart performance

The TVS-872XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TVS-872XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64 GB RAM) of the TVS-872XU-RP for greater performance to tackle dynamically-changing workloads such as virtualization.

overview-2

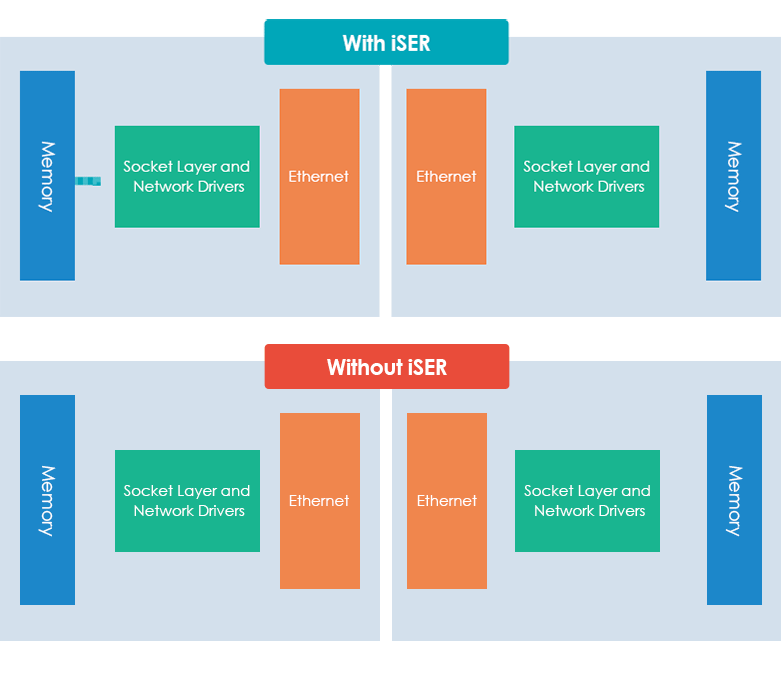

Dual 10GbE connectivity optimizes high-speed data transfer and VMware virtualization with iSER

The TVS-1672XU-RP provides two 10GbE SFP+ ports that use the Mellanox® ConnectX®-4 Lx SmartNIC controller. They support the iSCSI Extensions for RDMA (iSER) protocol, allowing data to bypass general network drivers, the socket layer, and to directly enter memory buffers of the ESXi server and storage to offload CPU workloads. When both the VMware® server and the TVS-1672XU-RP support iSER, it can provide up to 60% increased random read/write performance and 50% decreased latency, providing an essential tool to optimize demanding virtualization applications.

overview-3

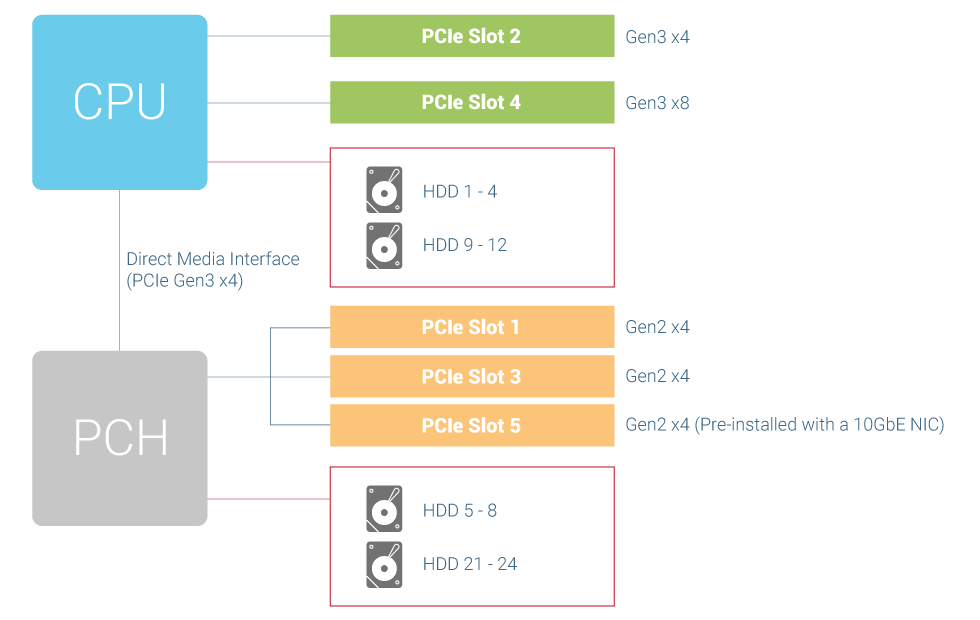

Recommended usage of PCIe slots

The TVS-1672XU-RP provides multiple PCIe slots. To ensure that the SATA drives have sufficient bandwidth, it is recommended to only use low-end expansion cards, (such as a 1GbE NIC, USB 3.0 card, or Wi-Fi adapter) with the PCIe Gen2 slot (Slot 1, 3, 5) as this slot is connected to the PCH. For high-end expansion cards (including 10GbE/40GbE NICs, SAS cards, Mustang-200 acceleration card, and graphics cards), it is recommended to use PCIe Gen3 slots (Slot 2, 4) as these slots are connected to the CPU.

overview-6

overview-6

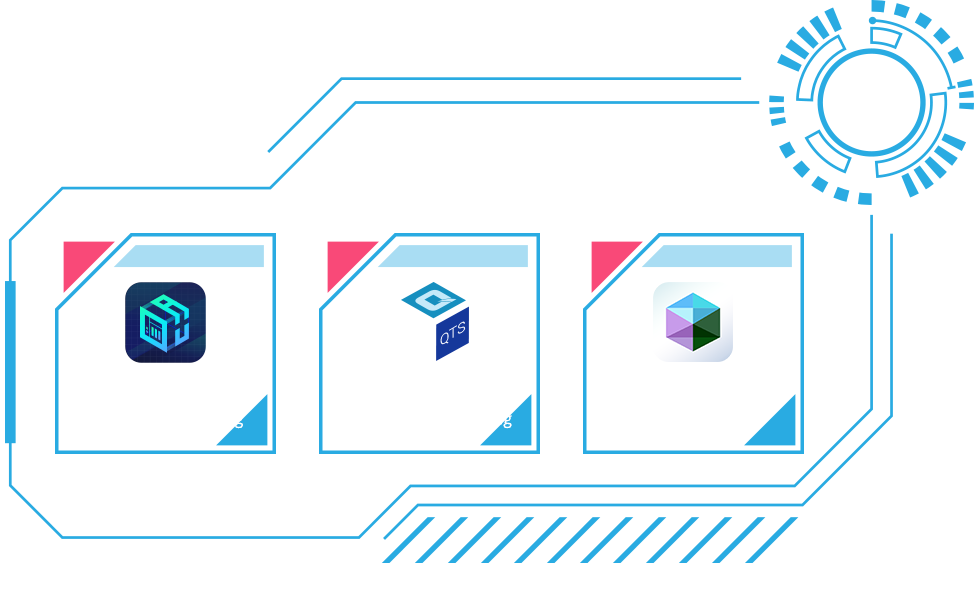

Empower GPU-accelerated computing with graphics cards

Graphics cards are optimized for graphical calculations and transformations. The TVS-1672XU-RP provides PCIe slots for installing an AMD Radeon™ or NVIDIA® graphics card to boost data-intensive AI machine learning, while also providing benefits for imaging processing and virtual machine performance (via GPU passthrough).

Note:
1. 3U/4U models support high-profile graphics cards that require external power; 1U/2U models support low-profile graphics cards that do not require additional external power (For example, the NVIDIA GT1030).
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for VM is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the NAS will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. Always consult the Compatibility List for supported NAS and graphics cards before purchasing a graphics card for the NAS.



Features:

Two 10GbE SFP+ SmartNIC ports with iSER support accelerate large file sharing and intensive data transfer.

PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.

4K media playback and online transcoding. Directly view on a TV/monitor via HDMI 2.0 output (up to 4K @60Hz).

Software-defined SSD RAID extra over-provisioning (from 1% to 60%) optimizes SSD random write speeds and extends SSD lifespan.

Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

Comprehensive security management, providing a security portal for your NAS and helping you to stay informed of NAS status at all times.

Specifications:

CPU Intel® Core™ i3-8100 4-core 3.6 GHz processor
Architecture: 64-bit
Graphics: Intel® UHD Graphics 630
Encryption Acceleration , AES-NI
System Memory 8 GB UDIMM DDR4 (2 x 4 GB)
Maximum Memory 64 GB ( 4 x 16 GB)
Memory Slot 4 x Long-DIMM DDR4
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory 4 GB (Dual boot OS protection)

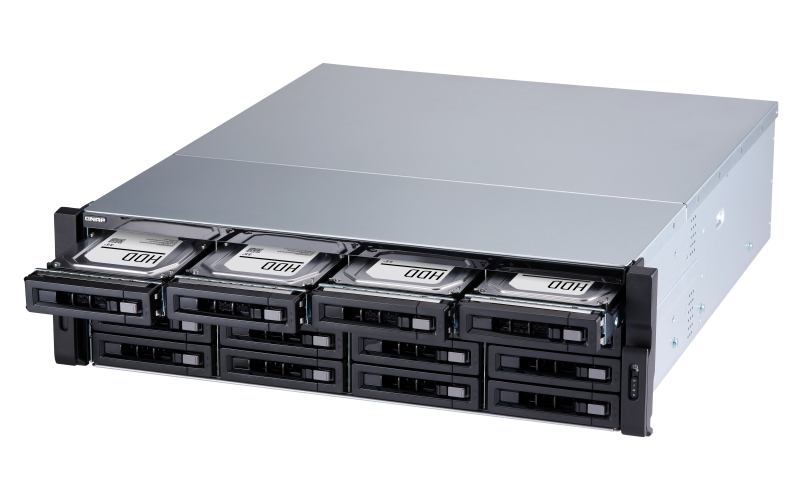

Drive Bay Hot-swappable 16 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility 3.5-inch bays:
.3.5-inch SATA hard disk drives
.2.5-inch SATA hard disk drives
.2.5-inch SATA solid state drives
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC ports
Gigabit Ethernet Port 4 x RJ45
PCIe Slot 4

Slot 1: PCIe Gen2 x4 (PCH)
Slot 2: PCIe Gen3 x8 (CPU)
Slot 3: PCIe Gen3 x4 (CPU)
Slot 4: PCIe Gen3 x4 (CPU)
Note: Slot 4 is preinstalled with a 10GbE network adapter
USB Port 2 x Type-C USB 3.1 Gen2 10Gbps
4 x Type-A USB 3.1 Gen2 10Gbps
HDMI Output 1 x HDMI 2.0, up to 3840 x 2160, @60Hz
LED Indicators HDD 1-16, Status, LAN, Storage expansion port status
Buttons Power, Reset
System Warning Voice prompts
Form Factor 3U Rackmount
Dimensions (H x W x D) 130 x 481 x 573.5 mm
5.1 x 18.8 x 22.6 inch
Weight Net weight: 15.35 kg (33.84 lbs)
Gross Weight: 21.79 kg (48.04 lbs)
Power Supply Unit 500W (x2), 100-240V
Power Consumption (W) In operation: 126.33 W
(with WD10EFRX drives fully populated)
Fan System: 4 x 9.2cm fan (12V DC)
Sound Level Sound pressure (LpAm): 49.7 dB(A)
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security Slot Kensington Security Slot

Documentation:

Datasheet for QNAP TVS-1672XU-RP is coming soon.
