QNAP TVS-682
High-performance NAS: tiered storage, application-based partitioning and network traffic distribution
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
The TVS-682 features advanced hardware by adopting 6th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-682 also supports smooth 4K @30Hz video transfer, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-682 presents an ideal choice for a complete business-ready storage solution.
- Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
- Qtier technology and SSD cache enable 24/7 optimized storage efficiency
- The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
- Triple HDMI output for smooth 4K video playback
- Scalable design with economical QNAP storage expansion enclosures
- Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-682’s storage capacity
- Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization
Specifications:
| TVS-682 Specifications | |
|---|---|
| Ordering P/N | TVS-682-PT-8G TVS-682-i3-8G |
| CPU | TVS-682-PT-8G: Intel® Pentium® G4400 3.3 GHz dual-core processor TVS-682-i3-8G: Intel® Core™ i3-6100 3.7 GHz dual-core processor |
| System memory | Total DIMM slots: 4 Maximum memory: 64 GB (16 GB x4) Memory modules pre-installed: 8 GB DDR4 RAM (4 GB x 2) Note: The pre-installed memory modules need to be replaced when expanding the memory to over 24 GB. |
| Flash Memory | 512MB DOM |
| M.2 Slot | 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD Note: 1. The M.2 SSD is not included as standard. 2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| Hard Drive Tray | 2 x 2.5” SSD 4 x 2.5”/3.5” hard drive or SSD |

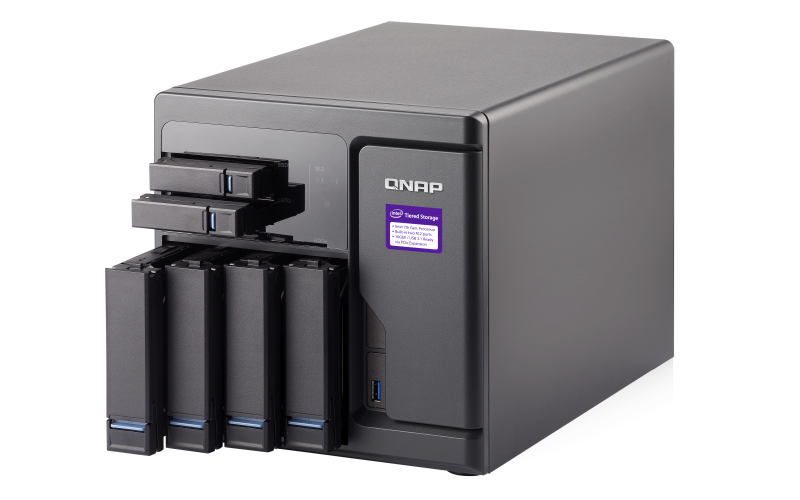

| Drive Interface | SATA 6Gbps/3Gbps; Hot-swappable |
| USB | 1 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear) |
| LAN Port | 4 x GbE port (10GbE and 40GbE are supported with the purchase and installation of compatible network adapters) Note: 1. For a list of compatible network adapters, please visit the Compatibility List. 2. For instructions on how to install network adapters, please refer to Chapter 6 of the QNAP NAS Hardware Manual. |
| HDMI Output | 3 |
| Audio Input | Audio In: 2 x 6.3mm MIC In |
| Audio Output | 2 x built-in speaker, 1 x 3.5mm Line-out jack Note: Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker. |
| LED Indicators | System status, 2.5” SSD, M.2 SSD, 3.5” HDD |
| Buttons | System: Power button, Reset button, USB one-touch-backup button |
| System Warning | Buzzer |
| Form Factor | Tower |
| Dimensions | 231.9 (H) x 224.9 (W) x 319.8 (D) mm 9.1 (H) x 8.9 (W) x 12.6 (D) inch |
| Weight | Net (NAS only): 7.7 kg/ 16.96lb Gross (with packing and accessories): 9.5 kg/ 20.94lb |
| Sound Level (dB)* | Sound pressure (LpAm) (bystander position): 20.5 dB (with 4 x Seagate ST2000VN000-1HJ164 hard drive installed) |
| Temperature | 0-40˚C |
| Relative Humidity | 5~95% non-condensing, wet bulb: 27˚C |
| Power Supply | Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W |
| PCIe Slot | 2 (1* PCIe Gen3 x16; 1* PCIe Gen3 x4) |
| Fan | System: 1 x 8 cm cooling fan CPU: 1 x 9 cm fan |
* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS
Package Contents
- TVS-682
- Ethernet cable x 4
- Quick installation guide (QIG)
- Power cord x 1
- Screws for M.2 installation: 2 x screw + 2 x bolt
- Flat head screw x 24 (for 2.5” HDD)
- M.2 SSD Heatsink x 2
- IR Remote Control: RM-IR002
Accessories:
 12G SAS Dual-wide-port Storage Expansion Card SAS-12G2E $399.00 |
 16GB DDR4-2133 RAM MODULE LONG DIMM RAM-16GDR4-LD-2133 $235.00 |
4GB DDR4-2133 RAM MODULE LONG DIMM RAM-4GDR4-LD-2133 $100.00 |
8GB DDR4-2133 RAM Module Long DIMM RAM-8GDR4-LD-2133 $180.00 |
 Dual-port 10GbE SFP+ network expansion card LAN-10G2SF-MLX $325.00 |
 Dual-port 40GbE QSFP+ network expansion card LAN-40G2SF-MLX $575.00 |
 Fan Module SP-FAN-BLOWER-A01 $70.00 |
 Heatsink for M.2 SSD module,14*14MM HS-M2SSD-01 $30.00 |
 Infrared (IR) remote control RM-IR002 $15.00 |
 Installation kit for M.2 SSD KIT-M2SSDINST-01 $29.00 |
 mini SAS cable (0.5M, SFF-8644) CAB-SAS05M-8644 $69.00 |
mini SAS cable (1.0M, SFF-8644) CAB-SAS10M-8644 $129.00 |
 Power PWR-PSU-250W-FS01 $140.00 |
 SCR-HDD25A-96 SCR-HDD25A-96 $31.00 |
 Tray TRAY-35-NK-BLK03 $52.00 |
 Tray TRAY-25-NK-BLK01 $42.00 |
 USB-U31A2P01 USB-U31A2P01 $70.00 |
|||
Documentation:
Download the QNAP TVS-682 Brochure (PDF).
