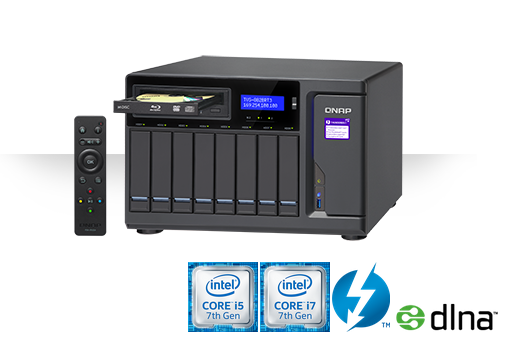

QNAP TVS-882BRT3
All-in-one Thunderbolt 3 Blu-ray NAS for disc backup, video playback, and file sharing

Overview:

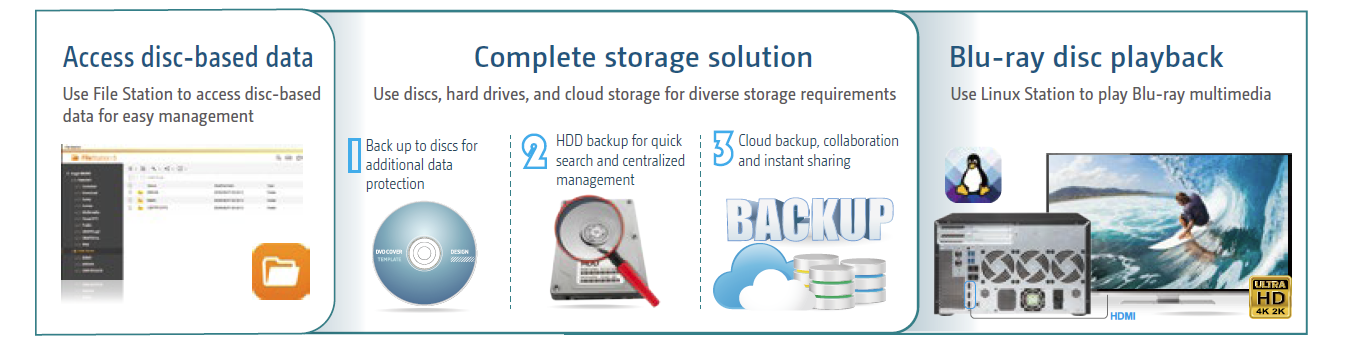

The TVS-882BRT3 uses 7th Generation Intel® 14nm multi-core processors and features Thunderbolt 3 (40 Gbps) connectivity, including a unique Thunderbolt-to-Ethernet (T2E) 10 GbE converter, and is ideal for online video editing and high-speed file sharing. The TVS-882BRT3 comes with an optical disc drive (ODD) slot, allowing you to install compatible disc drives (including Blu-ray Disc drives). QNAP also provides models with a preinstalled Blu-ray Disc drive, allowing you to experience extensive disc applications right way. You can back up the content of your discs to NAS for long-term storage and easier sharing, or you can write NAS-based files to disc for an extra layer of data protection. Blu-ray Discs can also be played by the NAS when used with an HDMI display with virtual machines or Linux Station (third-party media player software required - may require separate license purchase). The TVS-882BRT3 comes with three PCIe Gen.3 slots. Two slots are preinstalled with dual-port Thunderbolt 3 expansion card, while the third slot allows for adding 10GbE/40GbE NIC, SAS storage expansion card, or a USB 3.1 10GbE adapter, making the TVS-882BRT3 ideal for diverse storage applications.

• Four Thunderbolt 3 (40 Gbps) and dual 10GbE network ports for on-the-fly video editing and rapid file sharing
• 5.25-inch SATA ODD for installing an optical disc drive or two slim disc drives; TVS-882BRT3 also supports USB disc drives
• Two M.2 SATA 6Gb/s slots and Qtier auto-tiering for optimized storage efficiency
• Triple HDMI output enables direct disc playing through virtual machines
• Qfiling enables automatic file organization; Qsirch full-text search helps locate files faster
• Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization
• The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
• Virtual JBOD (VJBOD) allows using the free space of a QNAP NAS to expand the capacity of other QNAP NAS

Specifications:

TVS-882BRT3 Hardware Specifications
Ordering P/N	TVS-882BRT3-i5-16G TVS-882BRT3-ODD-i5-16G	TVS-882BRT3-i7-32G TVS-882BRT3-ODD-i7-32G
CPU	Intel® Core i5-7500 Quad-core 3.4 GHz (Max. 3.8 GHz)	Intel® Core i7-7700 Quad-core 3.6 GHz (Max. 4.2 GHz)
Graphic Processors	9th Intel® HD Graphics
System memory	16GB DDR4 (8GB x 2)	32GB DDR4 (8GB x 4)
Total DIMM slots	4 (Max. 64GB)
Flash Memory	512MB DOM
ODD Expansion Slot	1 x 5.25” 5.25" disc burner or 2 x Slim SATA disc burners * ODD skus come with preloaded Blu-ray ODD
Preloaded ODD	LG WH16NS58D
M.2 Slot	2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD *M.2 SSD is not included
Hard Drive Tray	8 x 2.5”/3.5” SATA 6Gb/s, 3Gb/s HDD or SSD
Thunderbolt Port	4 x Thunderbolt 3 high-speed port
USB Port	1 x USB 3.0 port (Front) 4 x USB 3.0 port (Rear)
LAN Port	4 x GbE RJ45
HDMI Output	3 (HDMI 1.4b)
PCIe Slot	3 (HDD area: 1* PCIe Gen3 x8; Processor area: 2* PCIe Gen3 x4) Note: 2* PCIe Gen3 x4 are preinstalled two dual port Thunderbolt 3 AIC
Audio Input	Audio In: 2 x 6.3mm MIC In
Audio Output	2 x built-in speakers and 1 x 3.5mm Line Out
Dimensions	234.6 (H) x 369.9 (W) x 319.8 (D) mm 9.23 (H) x 14.56 (W) x 12.59 (D) inch
Weight	Net: 11.55kg/ 25.46 lb Gross (with packing and accessories): 13.65 kg/ 30.09 lb ODD Preloaded: 0.63kg/ 1.4 lb
Sound Level (dB)*	Sound pressure (LpAm) (bystander position): 21.6 dB (with 8 x Seagate ST2000VN000-1HJ164 Hard Drive installed)
Power Supply	ATX 100-240V~, 3-1.5A Output 250W
Fan	System Area: 3 x 8 cm cooling Fan Processor Area: 1 x 9 cm Fan

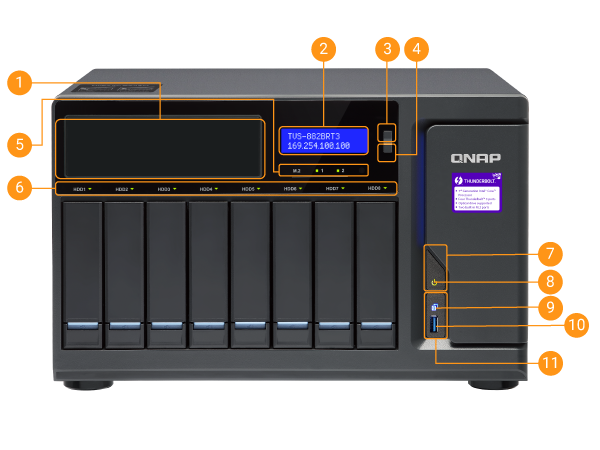

Front

1.	Optical drive bay	7.	Power button
2.	LCD panel	8.	Status LED
3.	Enter button	9.	USB One Touch Copy LED
4.	Select button	10.	USB 3.0 One Touch Copy port
5.	M.2 LEDs	11.	USB One Touch Copy button
6.	Drive LEDs

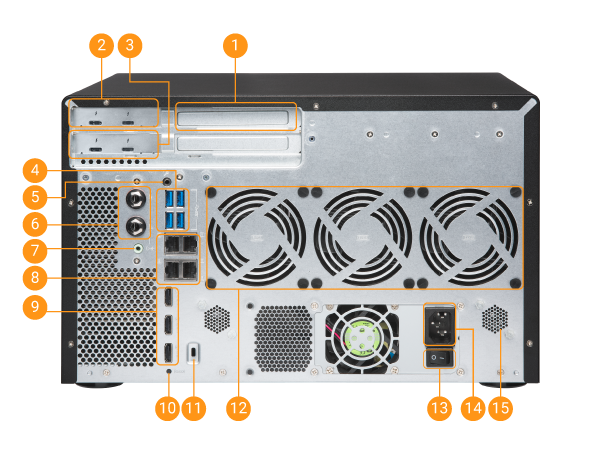

Rear

1.	PCIe 3.0 x8 (slot 1): pre-installed with a dual-port 10GBASE-T network expansion card	9.	HDMI ports
2.	PCIe 3.0 x4 (slot 2): pre-installed with a dual-port Thunderbolt 3 expansion card	10.	Reset button
3.	PCIe 3.0 x4 (slot 3): pre-installed with a dual-port Thunderbolt 3 expansion card	11.	Kensington security slot
4.	USB 3.0 ports	12.	System fans
5.	Console port	13.	Power switch
6.	6.3 mm microphone jacks	14.	Power port
7.	3.5 mm speaker jack	15.	Speakers
8.	Gigabit RJ45 Ethernet ports

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.

* Sound Level Test Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Documentation:

Download the QNAP TVS-882BR / TVS-882BRT3 Datasheet (PDF).
