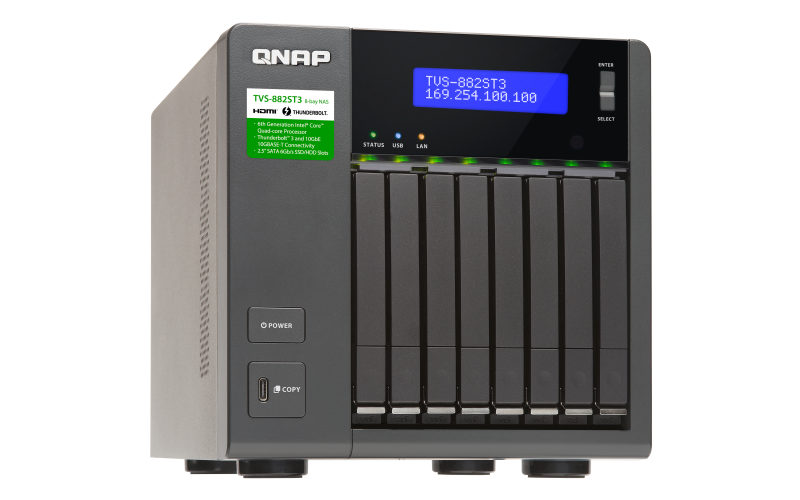

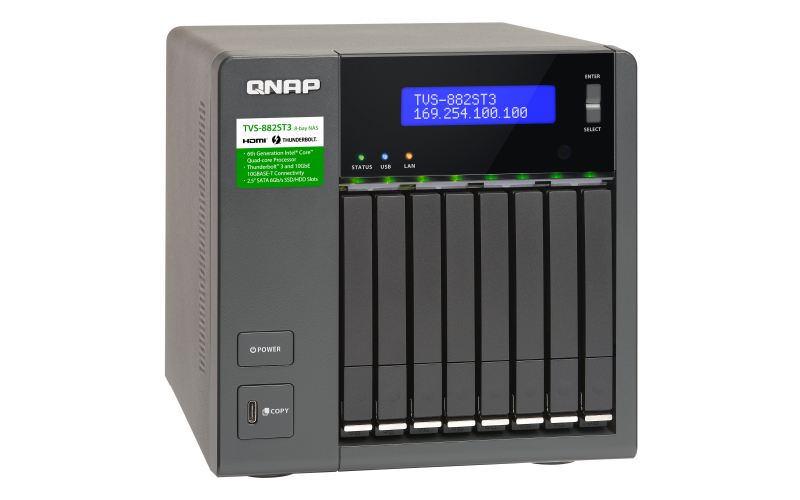

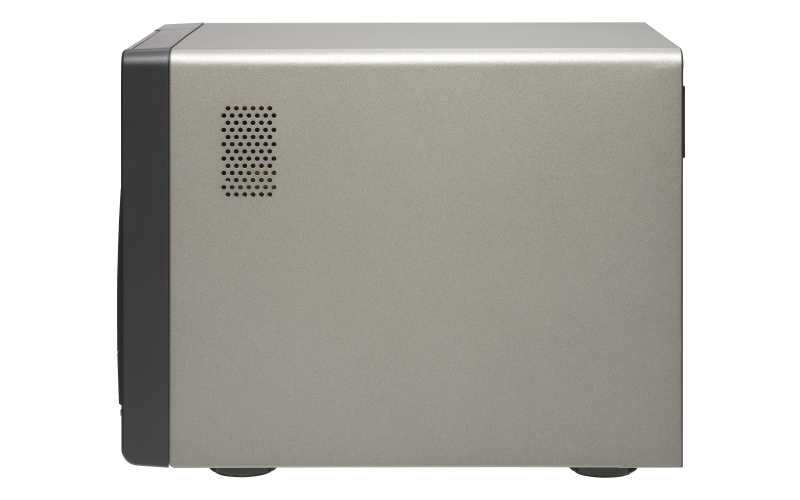

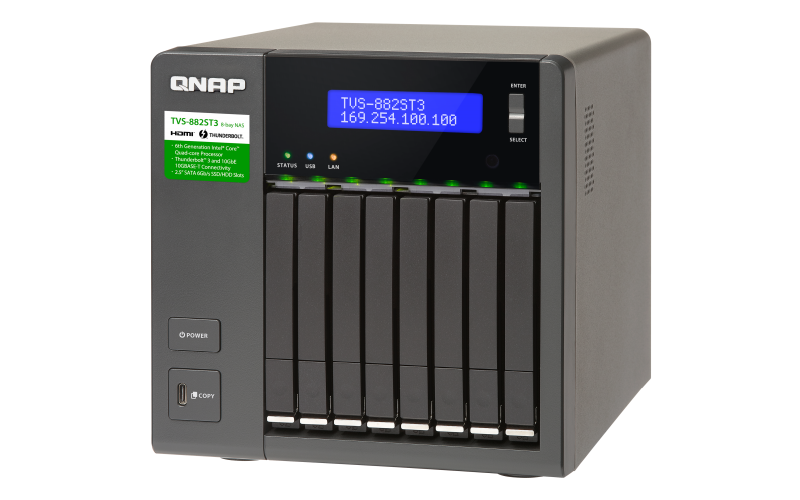

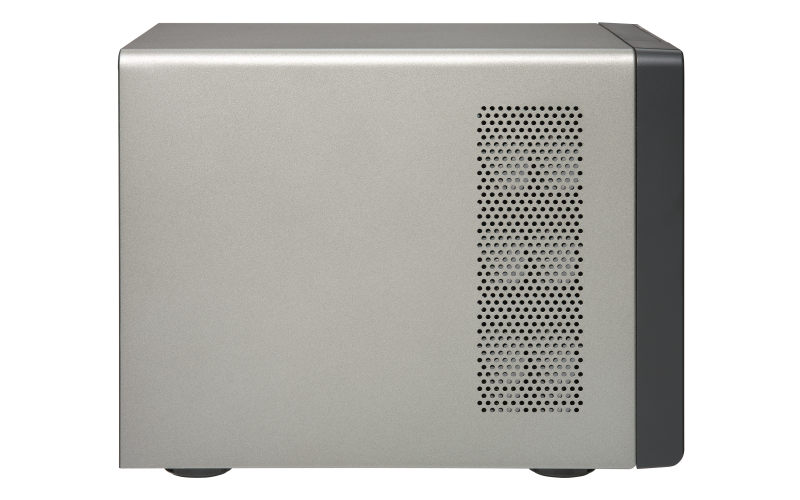

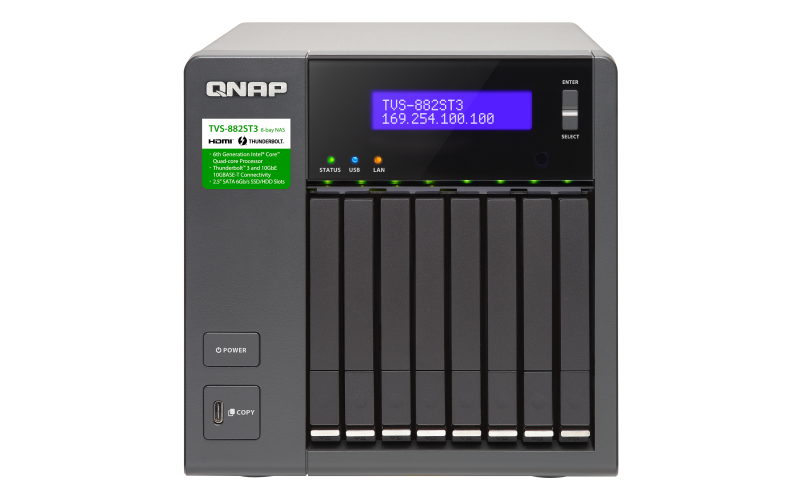

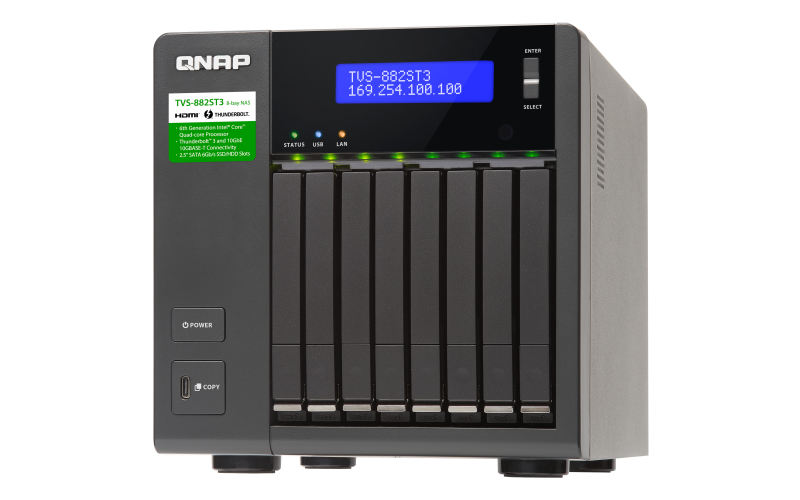

QNAP TVS-882ST3
8-bay 2.5-inch Thunderbolt™ 3 NAS with 10GbE connectivity

Overview:

The TVS-882ST3 is powered by a 6th Generation Intel® Core™ quad-core processor with AES-NI accelerated encryption, 10GbE connectivity, USB 3.1 Gen2 10Gbps Type-C and Type-A ports, and dual Thunderbolt™ 3 ports with an innovative software-based Thunderbolt-to-Ethernet (T2E) Converter. Exclusively providing a Thunderbolt™/NAS/iSCSI SAN triple solution, the TVS-882ST3 supports higher bandwidth for optimizing 4K video transfer and online editing. The TVS-882ST3 is a perfect match for Thunderbolt-equipped Mac® and Windows® users for 4K workflows, file storage and high-speed sharing.

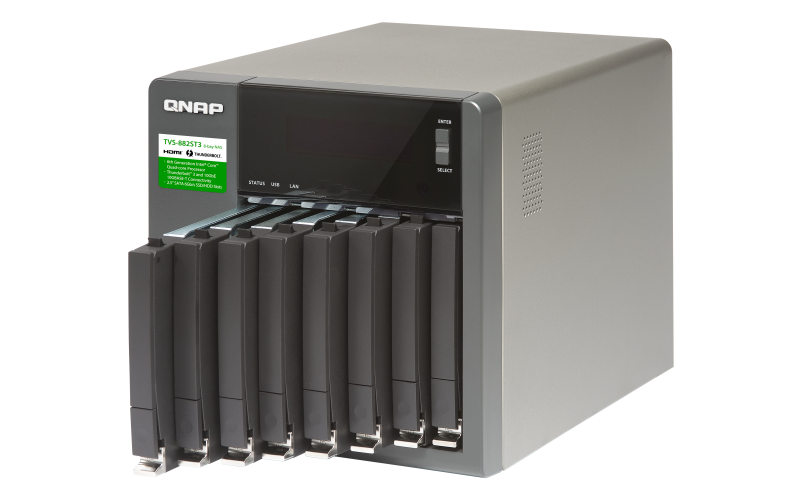

• Eight 2.5" SATA 6Gb/s SSD/HDD slots
• High-speed Thunderbolt™ 3 (40Gbps) and 10GbE network for on-the-fly video editing and rapid file sharing
• High flexibility with USB 3.1 Gen2 10Gbps Type-A and Type-C ports
• The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
• Four available combinations with Mac/PC and JBOD for flexible attaching, sharing and expansion
• HDMI with up to 4K @30Hz output for an excellent audiovisual experience
• Supports QvPC Technology, virtual machines and containers, Linux Station, and storage virtualization
• Flexible storage expansion with QNAP Thunderbolt™ storage expansion enclosures or Virtual JBOD (VJBOD)

Note:
1. Requires MacOS Sierra 10.12.3 (or later) for using Thunderbolt connection on Mac.
2. Thunderbolt 3 reaches the maximum theoretical transfer rate of 40 Gigabits per second. Actual performance may vary due to hardware/software limitations and usage environment.

Specifications:

Ordering SKUs	TVS-882ST3-i7-16G	TVS-882ST3-i7-8G	TVS-882ST3-i5-8G
CPU	Intel® Core™ i7-6700HQ quad-core 2.6 GHz, up to 3.5 GHz		Intel® Core™ i5-6442EQ quad-core 1.9 GHz, up to 2.7 GHz
Encryption Accleration	Yes, AES-NI
System Memory	16GB (2 x 8GB)	8GB (2 x 4GB)
Maximum Memory	32GB (2 x 16GB)
Number of Memory Slots	2 x DDR4 SODIMM slots (For dual-DIMM configuration, you must use a pair of identical DDR4 modules.)
Flash	512MB
Drive	8 x 2.5" SATA 6Gb/s HDD/SSD

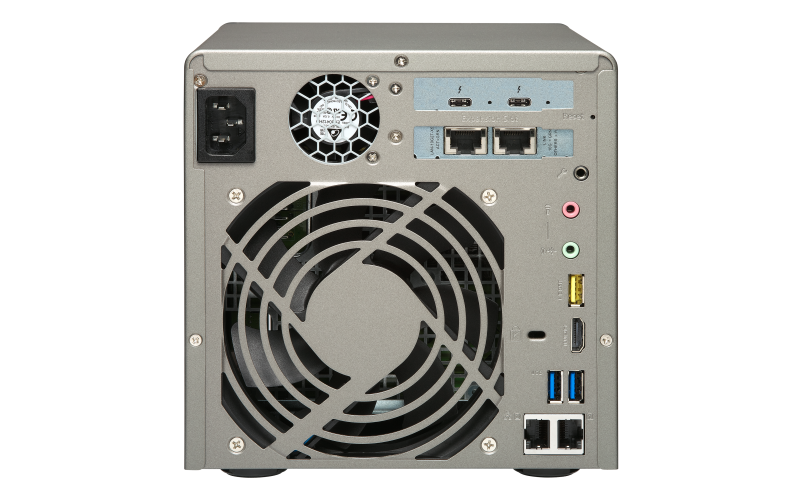

Thunderbolt Port	2 x Thunderbolt 3
10GbE LAN Port	2 x 10GBASE-T
GbE LAN Port	2 x Gigabit RJ45
USB 3.1 Port	1 x Type-C USB 3.1 Gen2 10Gbps 1 x Type-A USB 3.1 Gen2 10Gbps
USB 3.0 Port	2
LCM Display	Yes
PCIe Slot	2 (1 PCIe 3.0 x8 + 1 PCIe 3.0 x4) Note: Pre-installed with a Thunderbolt 3 card and a 10GbE card
HDMI Port	1, up to 3846 x 2160, 30Hz
Audio Input	3.5mm microphone input jack
Audio Output	3.5mm line out jack
LED Indicators	Status/Power, USB, Drive 1-8
Buttons	Power, USB copy, reset, select, enter
Infrared Receiver	Yes, supplied with QNAP RM-IR004 remote control
Other Interfaces	Kensington security slot, maintenance port
Dimension (HxWxD)	177 x 180 x 235 mm 6.97 x 7.09 x 9.25 inch
Weight	Net (NAS only): 3.97 kg (8.75lbs)
Operating Temperature	0 ~ 40˚C (32˚F ~ 104˚F)
Relatie Humidity	5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Sound Level (dB)*	15.2 dB (A)
Power Consumption	HDD sleep: 26.36W Typical operation: 43.43W		HDD sleep: 25.57W Typical operation: 42.70W
Power Supply	ATX 250W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz
Fan	1 x 12 cm (12V DC)

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.

* Sound Level Test Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.

Package Contents

• TVS-882ST3
• Ethernet Cable x 2
• Power Cord x 1
• Flat head screw x 32 (for 2.5" HDD)
• Quick Installation Guide (QIG)
• Infrared (IR) Remote Control: RM-IR004

Documentation:

Download the QNAP TVS-882ST3 Brochure (PDF).
